1. PRESENTED BY
Swapnil S. Tirmanwar
Pharmacognosy
(M. Pharm 1st year)
PRIYADARSHINI J. L. COLLEGE OF
PHARMACY,
Electronic zone, MIDC, Hingna road
NAGPUR-440016
2022-2023
In vivo evaluation techniques, for Diuretics
WOX888
1

2. CONTENTS
• INTRODUCTION
• CLASSIFICATION
• SCREENING METHODS FOR DIURETICS:
1. IN-VITRO METHOD
2. IN-VIVO METHOD
• REFERENCES
WOX888 2

3. CLASSIFICATION
THIAZIDE DIURETICS
• CHLOROTHIAZIDE
• HYDROCHLOROTHIAZIDE
LOOP DIURETICS
• FUROSEMIDE
• ETHACRYNIC ACID
POTASSIUM SPARING DIURETICS
• SPIRONOLACTONE
• AMILORIDE
• TRIAMTERENE
CARBONIC ANHYDRASE INHIBITORS
• ACETAZOLAMIDE
• DORZOLAMIDE
WOX888 3

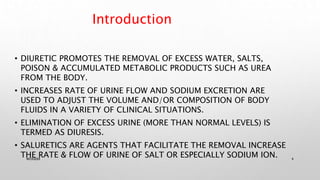

4. • DIURETIC PROMOTES THE REMOVAL OF EXCESS WATER, SALTS,
POISON & ACCUMULATED METABOLIC PRODUCTS SUCH AS UREA
FROM THE BODY.
• INCREASES RATE OF URINE FLOW AND SODIUM EXCRETION ARE
USED TO ADJUST THE VOLUME AND/OR COMPOSITION OF BODY
FLUIDS IN A VARIETY OF CLINICAL SITUATIONS.
• ELIMINATION OF EXCESS URINE (MORE THAN NORMAL LEVELS) IS
TERMED AS DIURESIS.
• SALURETICS ARE AGENTS THAT FACILITATE THE REMOVAL INCREASE
THE RATE & FLOW OF URINE OF SALT OR ESPECIALLY SODIUM ION.
WOX888 4
Introduction

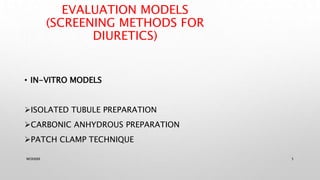

5. EVALUATION MODELS
(SCREENING METHODS FOR
DIURETICS)
• IN-VITRO MODELS
ISOLATED TUBULE PREPARATION
CARBONIC ANHYDROUS PREPARATION
PATCH CLAMP TECHNIQUE
WOX888 5

6. • IN-VIVO MODELS
DIURETIC ACTIVITY IN RAT (LIPSCHITZ TEST).
 SAL URETIC ACTIVITY IN RATS.
 DIURETIC & SAL URETIC ACTIVITY IN DOG CATS.
STOP FLOW TECHNIQUE.
CLEARANCE METHOD.
MICRO PUNCTURE TECHNIQUE.
WOX888 6

7. DIURETIC ACTIVITY IN RATS
(LIPSCHITZ TEST )
PURPOSE AND RATIONALE:
• LIPSCHITZ TEST IS FOR TESTING OF DIURETIC ACTIVITY IN RATS & HAS
BEEN DESCRIBED BY LIPSCHITZ ET AL IN 1943.
• THE TEST IS BASED ON WATER AND SODIUM EXCRETION IN TEST
ANIMALS AS COMPARED TO THE RATS TREATED WITH HIGH DOSE OF
UREA (CONTROL).
• THE "LIPSCHITZ VALUE" =
EXCRETION BY TEST ANIMALS/EXCRETION BY UREA CONTROL
WOX888 7

8. WOX888 8

9. METHODOLOGY:
• SPECIES - MALE WISTAR RATS (100-200 GM).
• SEX - MALE RATS.
• THREE ANIMALS IN EACH GROUP BOTH IN TEST AND CONTROL (4 GROUPS).
• INDUCING AGENT :UREA(1 GM/KG)
• STD. DRUG :FUROSEMIDE
WOX888 9

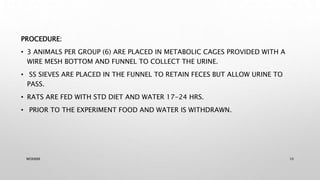

10. PROCEDURE:
• 3 ANIMALS PER GROUP (6) ARE PLACED IN METABOLIC CAGES PROVIDED WITH A
WIRE MESH BOTTOM AND FUNNEL TO COLLECT THE URINE.
• SS SIEVES ARE PLACED IN THE FUNNEL TO RETAIN FECES BUT ALLOW URINE TO
PASS.
• RATS ARE FED WITH STD DIET AND WATER 17-24 HRS.
• PRIOR TO THE EXPERIMENT FOOD AND WATER IS WITHDRAWN.
WOX888 10

11. PROCEDURE:
• TEST COMPOUND IS APPLIED ORALLY AT A DOSE OF 50MG/KG IN 5MLWATER/KG
BODY WEIGHT.
• 2 GROUPS OF 3 ANIMALS ACT AS CONTROL AND ARE TREATED WITH UREA.
• ADDITIONALLY,5ML OF 0.9% NACL SOLUTION/100G BODY WEIGHT ARE GIVEN BY
GAVAGE.
• URINE EXCRETION IS RECORDED AFTER 5 AND 24 HRS.
• THE NA CONTENT OF URINE IS DETERMINED BY FLAME PHOTOMETRY.
WOX888 11

12. EVALUATION :
• URINE VOLUME EXCRETED PER 100 G BODY WEIGHT IS CALCULATED FOR EACH
GROUP.
• RESULTS ARE EXPRESSED AS LIPSCHITZ VALUE (THE RATIO OF T/U)
• LIPSCHITZ VALUE =
T (RESPONSE OF TEST COMPOUND)/U (RESPONSE OF UREA TREATMENT)
• LIPSCHITZ VALUE≥ 1 INDICATES POSITIVE EFFECT
• LIPSCHITZ VALUE≥ 2 INDICATES POTENT DIURETIC ACTIVITY
• FOR STUDYING PROLONGED EFFECT, 24 HR URINE SAMPLE
COLLECTED& ANALYSED
WOX888 12

13. SALURETIC ACTIVITY IN RATS
PURPOSE AND RATIONALE:
• SALURETIC TEST IN RATS WAS DESIGNED TO DETERMINE SODIUM, POTASSIUM,
CHLORIDE AND WATER CONTENT & OSMOLARITY OF URINE
• RATIO BETWEEN ELECTROLYTES CAN BE CALCULATED, INDICATING CARBONIC
ANHYDRASE INHIBITION OR K+ SPARING EFFECT
WOX888 13

14. METHODOLOGY:
• SPECIES-WISTAR RATS (100-200G).
• SEX-MALE.
• THREE ANIMALS IN EACH GROUP ONE GROUP ACTS AS A TEST & ANOTHER ONE
AS A CONTROL.
• INDUCING AGENT :UREA(1 GM/KG)
• STD. DRUG : FUROSEMIDE(25MG/KG) OR OR HYDROCHLOROTHIAZIDE(25MG/KG)
WOX888 14

15. PROCEDURE:
• MALE WISTAR RATS FED WITH STD DIET AND WATER ARE USED.
• 15 HRS. PRIOR TO THE TEST FOOD BUT NOT WATER IS WITHDRAWN.
• TEST COMPOUNDS ARE APPLIED 50MG/KG ORALLY IN 0.5ML/100G BODY WEIGHT STARCH
SUSPENSION.
• 3 ANIMALS ARE PLACED IN 1 METABOLIC CAGE WITH A WIRE MESH BOTTOM AND A FUNNEL TO
COLLECT THE URINE.
• 2 GROUPS OF 3 ANIMALS ARE USED FOR EACH DOSE OF THE TEST COMPOUND.
• URINE EXCRETION IS REGISTERED EVERY HR. UP TO 5 HRS.
• THE 5 HR URINE IS ANALYSED BY FLAME PHOTOMETRY FOR NA & K+ & BY ARGENTOMETRY FOR
CHLORIDE.
• TO EVALUATE COMPOUNDS WITH PROLONGED EFFECT 24 HR URINE IS ANALYSED.
• FUROSEMIDE(25MG/KG) OR HYDROCHLOROTHIAZIDE(25MG/KG) IS USED AS STANDARD.
WOX888 15

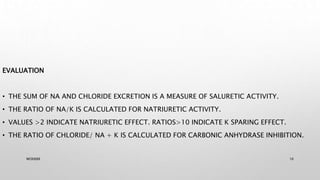

16. EVALUATION
• THE SUM OF NA AND CHLORIDE EXCRETION IS A MEASURE OF SALURETIC ACTIVITY.
• THE RATIO OF NA/K IS CALCULATED FOR NATRIURETIC ACTIVITY.
• VALUES >2 INDICATE NATRIURETIC EFFECT. RATIOS>10 INDICATE K SPARING EFFECT.
• THE RATIO OF CHLORIDE/ NA + K IS CALCULATED FOR CARBONIC ANHYDRASE INHIBITION.
WOX888 16

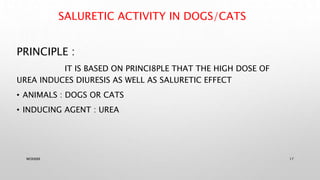

17. SALURETIC ACTIVITY IN DOGS/CATS
PRINCIPLE :
IT IS BASED ON PRINCI8PLE THAT THE HIGH DOSE OF
UREA INDUCES DIURESIS AS WELL AS SALURETIC EFFECT
• ANIMALS : DOGS OR CATS
• INDUCING AGENT : UREA
WOX888 17

18. PROCEDURE:
• GIVE ANESTHESIA TO ANIMAL WITH PHENOBARBITONE(35-50 MG
/KG)
• OPEN THE LOWER ABDOMEN ANANNULA FOR DOSING THE TEST/S
DRUG AND SALINE SOLUTION.
• TREAT EACH ANIMAL OF GROUP WITH UREA.
• ADMINISTER STANDARD DRUG AND TEST/S IN DECIDED DOSES AT
PER DECIDED FREQUENCY.
WOX888 18

19. EVALUATION
• COLLECT AND MEASURE THE URINE VOLUME.
• MEASURE SODIUM AND POTASSIUM CONC. BY FLAME PHOTOMETRY.
• COMPARE RESULTS OF CONTROL, STANDARD DRUG AND TEST
SAMPLE/S GROUPS
WOX888 19

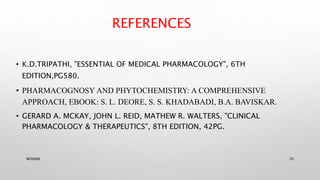

20. REFERENCES
• K.D.TRIPATHI, "ESSENTIAL OF MEDICAL PHARMACOLOGY", 6TH
EDITION,PG580.
• PHARMACOGNOSY AND PHYTOCHEMISTRY: A COMPREHENSIVE
APPROACH, EBOOK: S. L. DEORE, S. S. KHADABADI, B.A. BAVISKAR.
• GERARD A. MCKAY, JOHN L. REID, MATHEW R. WALTERS, "CLINICAL
PHARMACOLOGY & THERAPEUTICS", 8TH EDITION, 42PG.
WOX888 20
