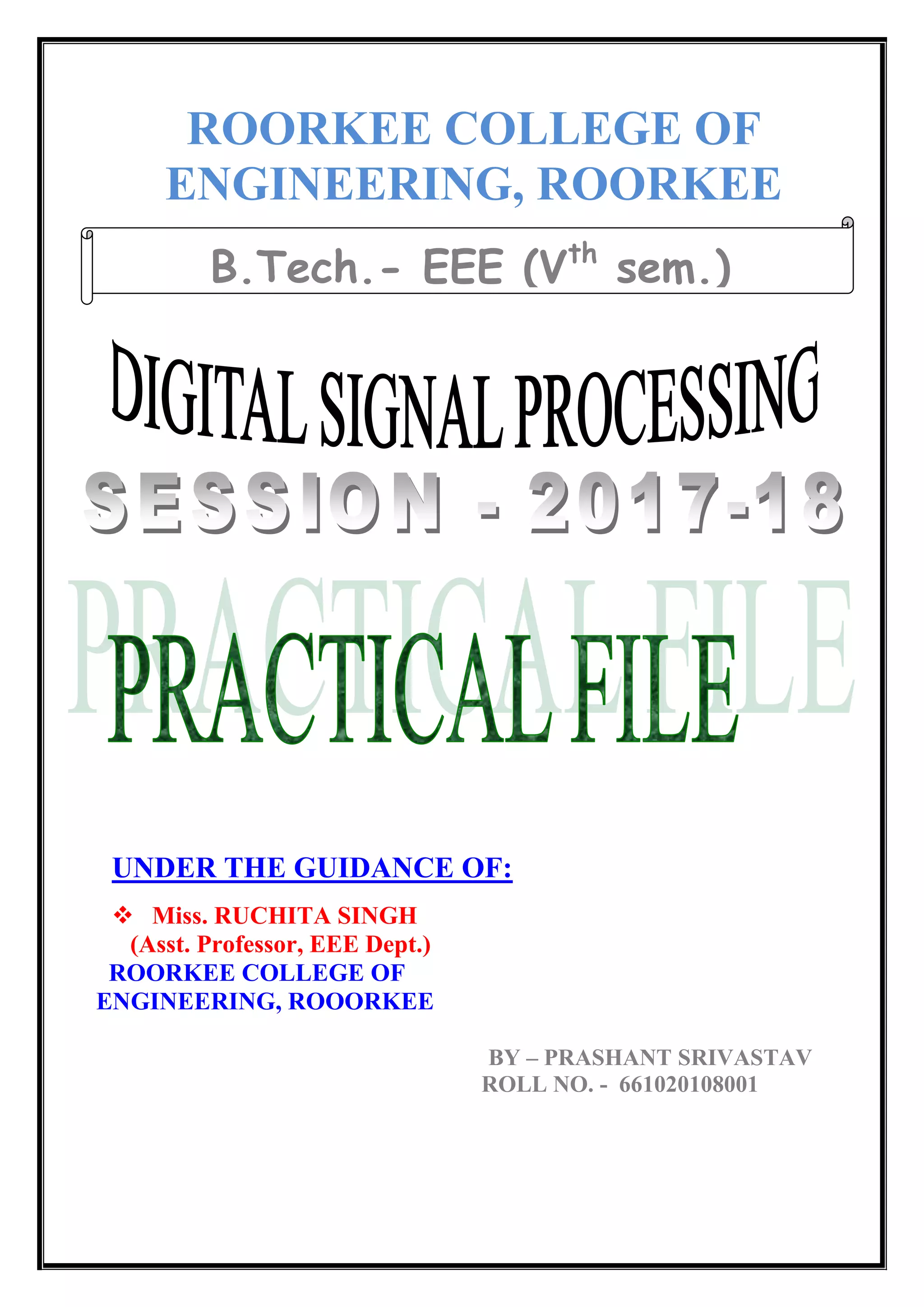

DIGITAL SIGNAL PROCESSING BASED ON MATLAB
1. ROORKEE COLLEGE OF
ENGINEERING, ROORKEE
UNDER THE GUIDANCE OF:
Miss. RUCHITA SINGH
(Asst. Professor, EEE Dept.)
ROORKEE COLLEGE OF
ENGINEERING, ROOORKEE
BY – PRASHANT SRIVASTAV
ROLL NO. - 661020108001
B.Tech.- EEE (Vth
sem.)

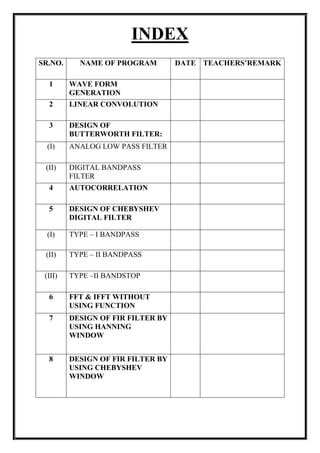

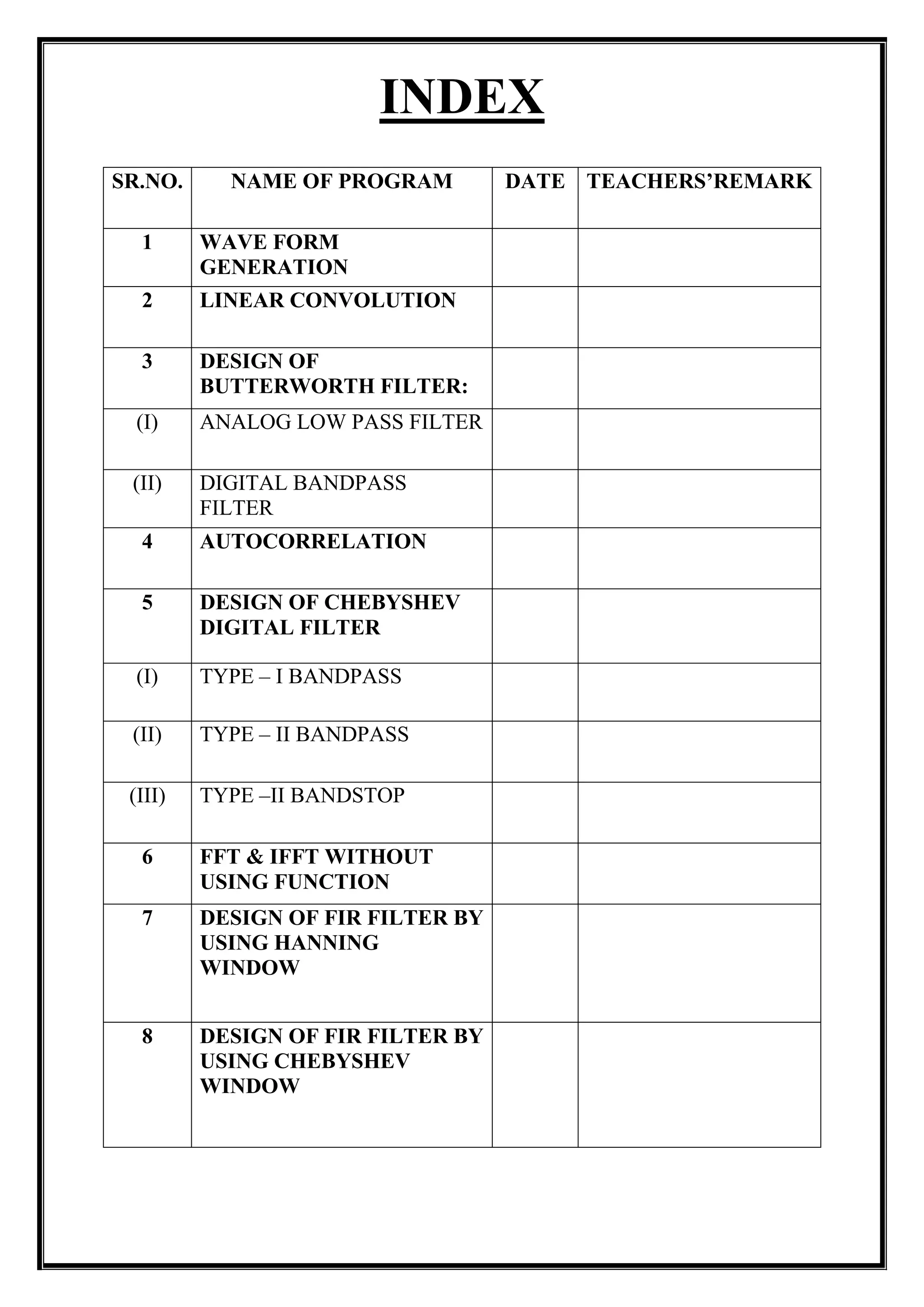

2. INDEX
SR.NO. NAME OF PROGRAM DATE TEACHERS’REMARK
1 WAVE FORM
GENERATION
2 LINEAR CONVOLUTION
3 DESIGN OF
BUTTERWORTH FILTER:
(I) ANALOG LOW PASS FILTER
(II) DIGITAL BANDPASS
FILTER
4 AUTOCORRELATION
5 DESIGN OF CHEBYSHEV
DIGITAL FILTER
(I) TYPE – I BANDPASS
(II) TYPE – II BANDPASS
(III) TYPE –II BANDSTOP

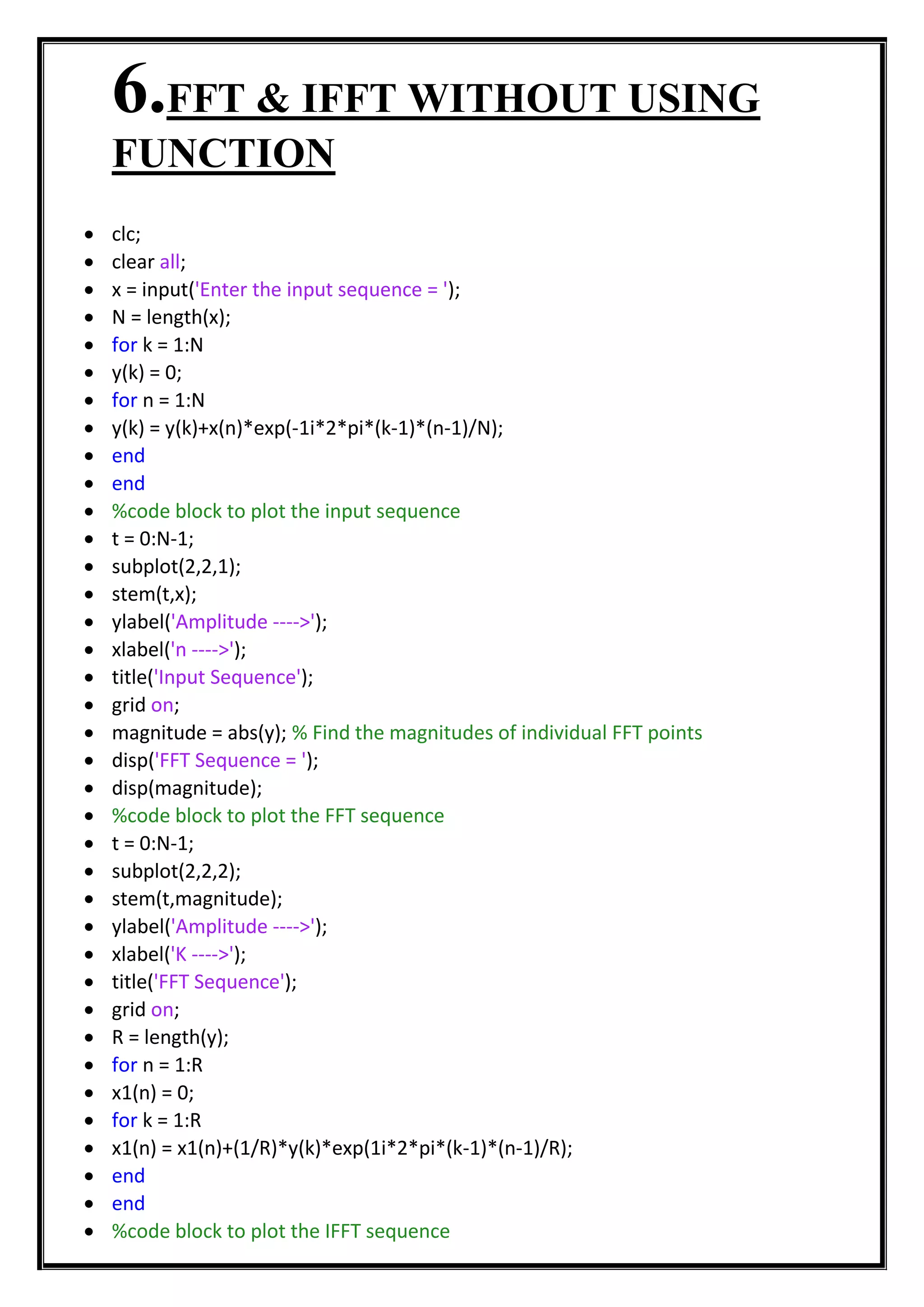

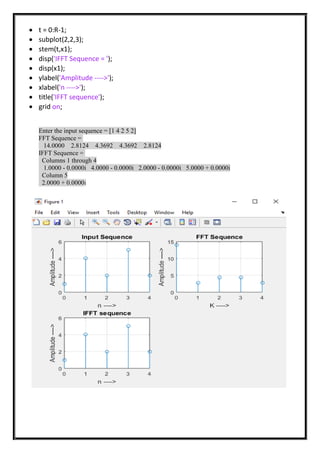

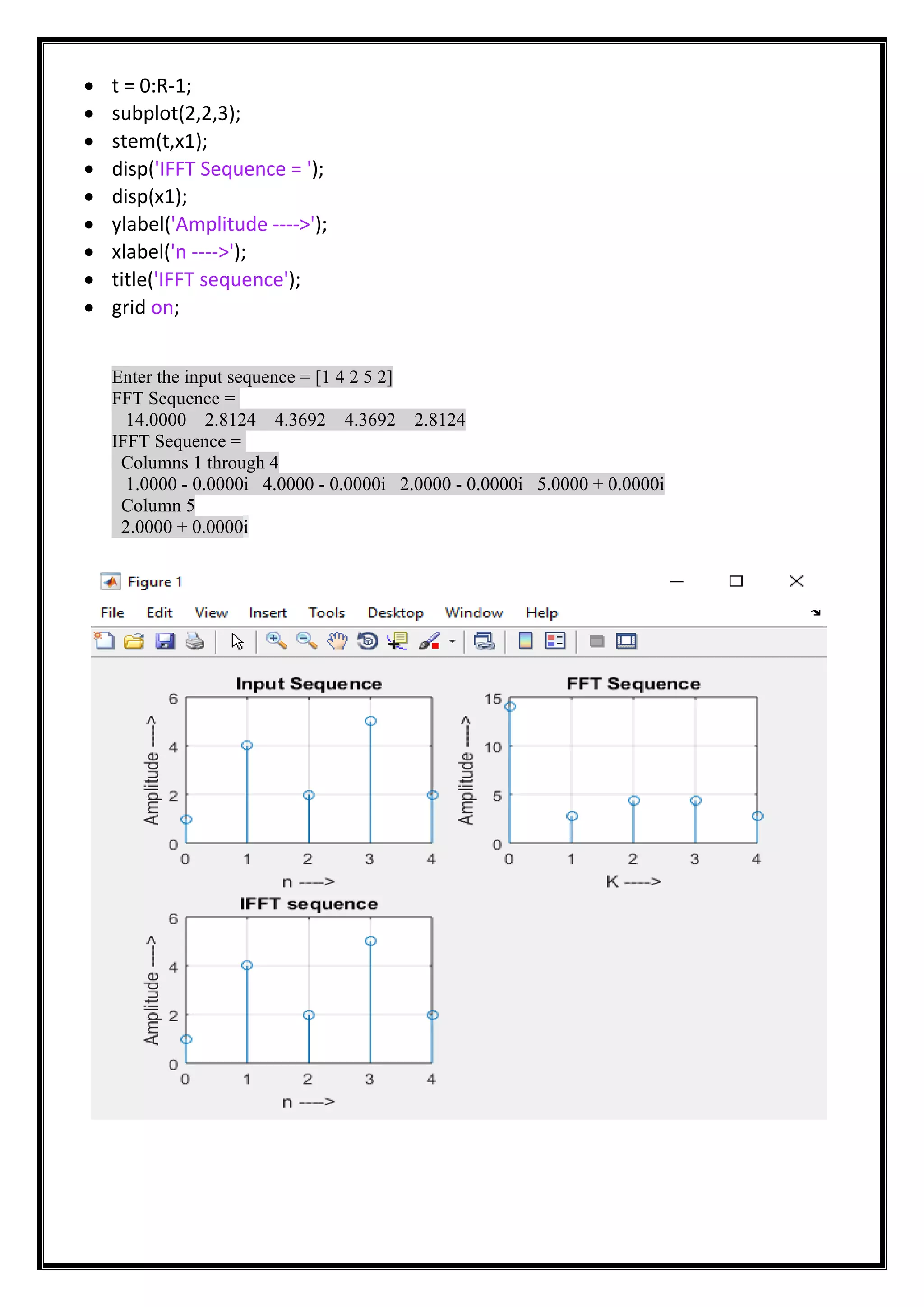

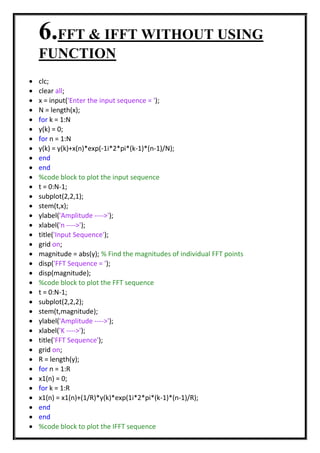

6 FFT & IFFT WITHOUT
USING FUNCTION

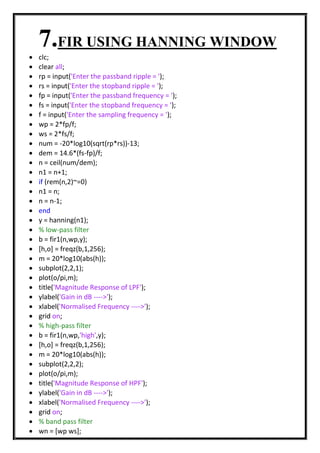

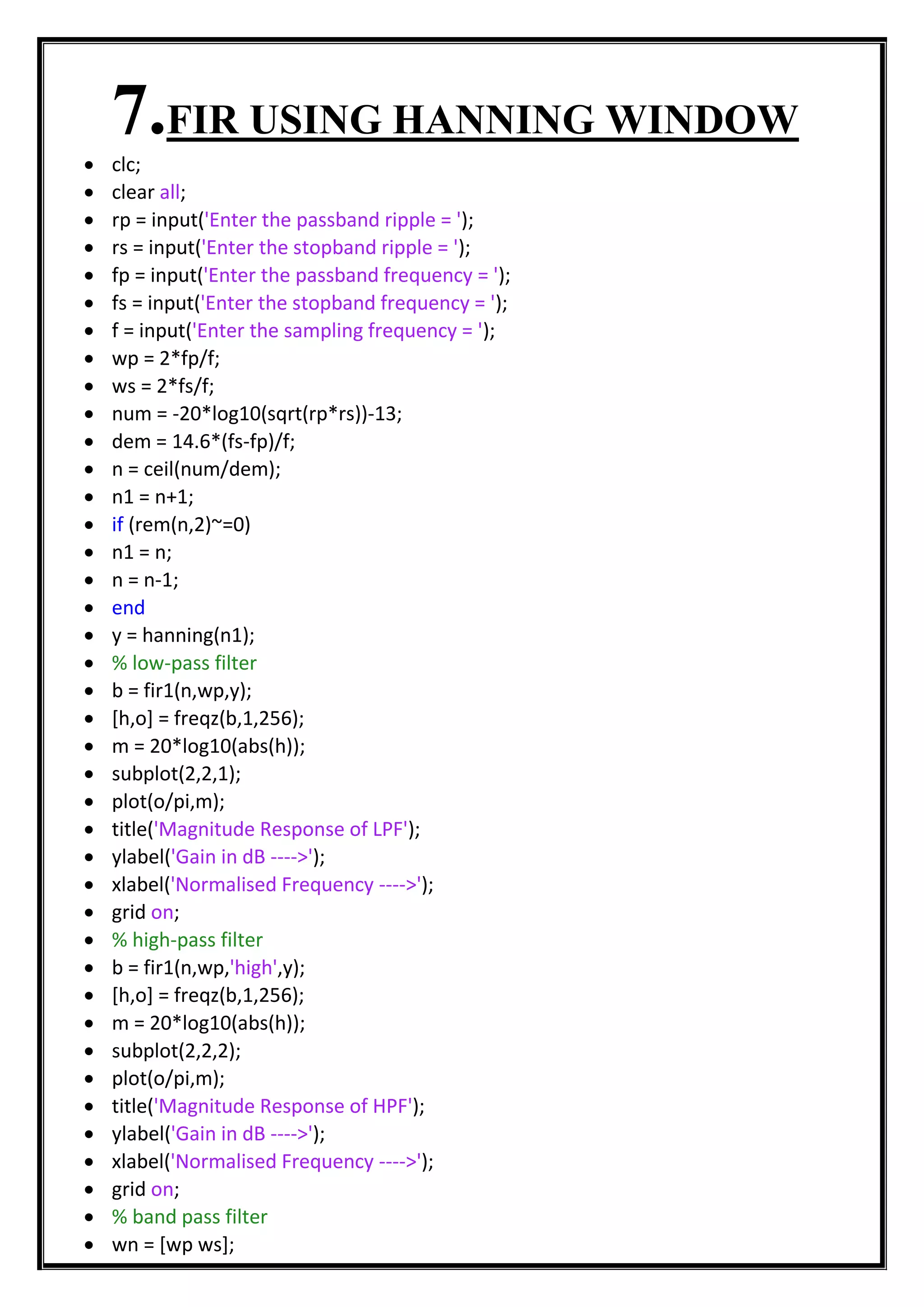

7 DESIGN OF FIR FILTER BY
USING HANNING
WINDOW

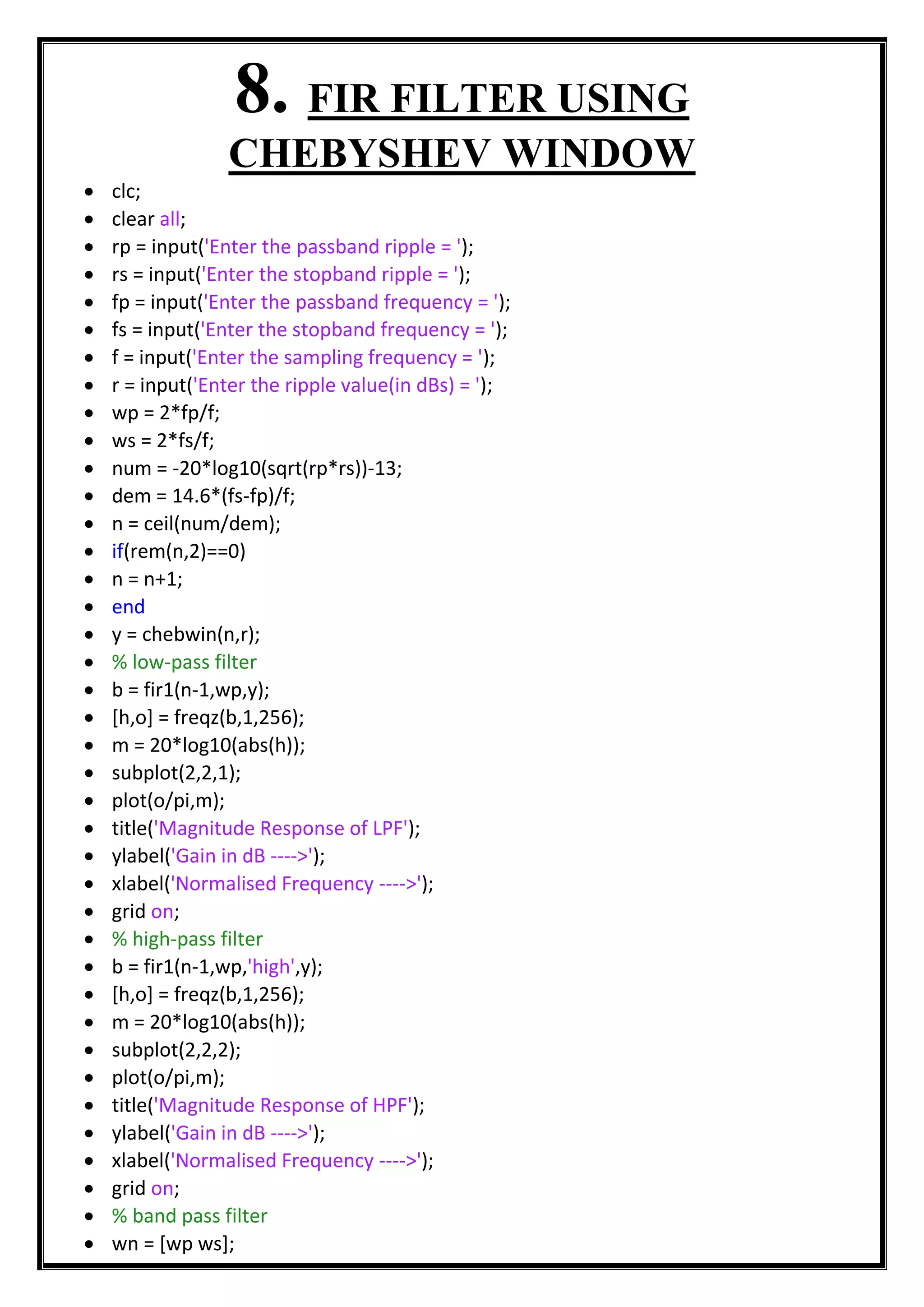

8 DESIGN OF FIR FILTER BY
USING CHEBYSHEV
WINDOW

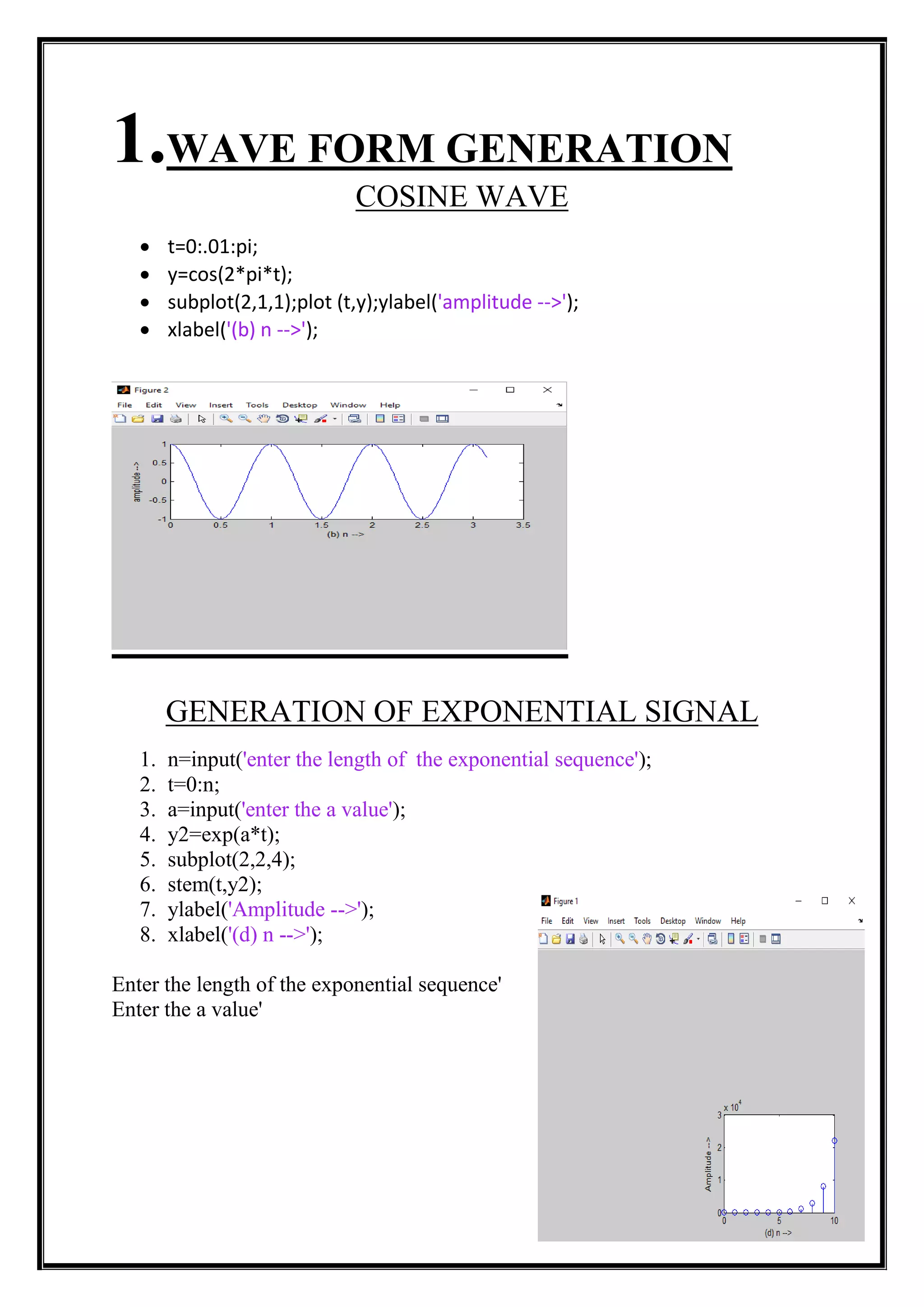

3. 1.WAVE FORM GENERATION
COSINE WAVE
t=0:.01:pi;
y=cos(2*pi*t);
subplot(2,1,1);plot (t,y);ylabel('amplitude -->');
xlabel('(b) n -->');
GENERATION OF EXPONENTIAL SIGNAL
1. n=input('enter the length of the exponential sequence');
2. t=0:n;
3. a=input('enter the a value');
4. y2=exp(a*t);
5. subplot(2,2,4);
6. stem(t,y2);
7. ylabel('Amplitude -->');
8. xlabel('(d) n -->');
Enter the length of the exponential sequence'
Enter the a value'

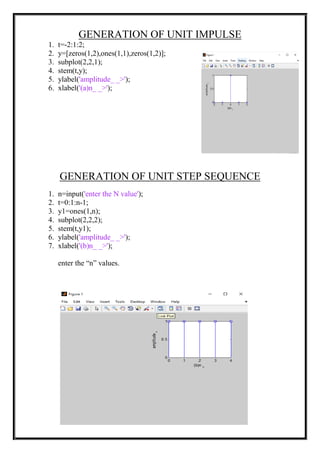

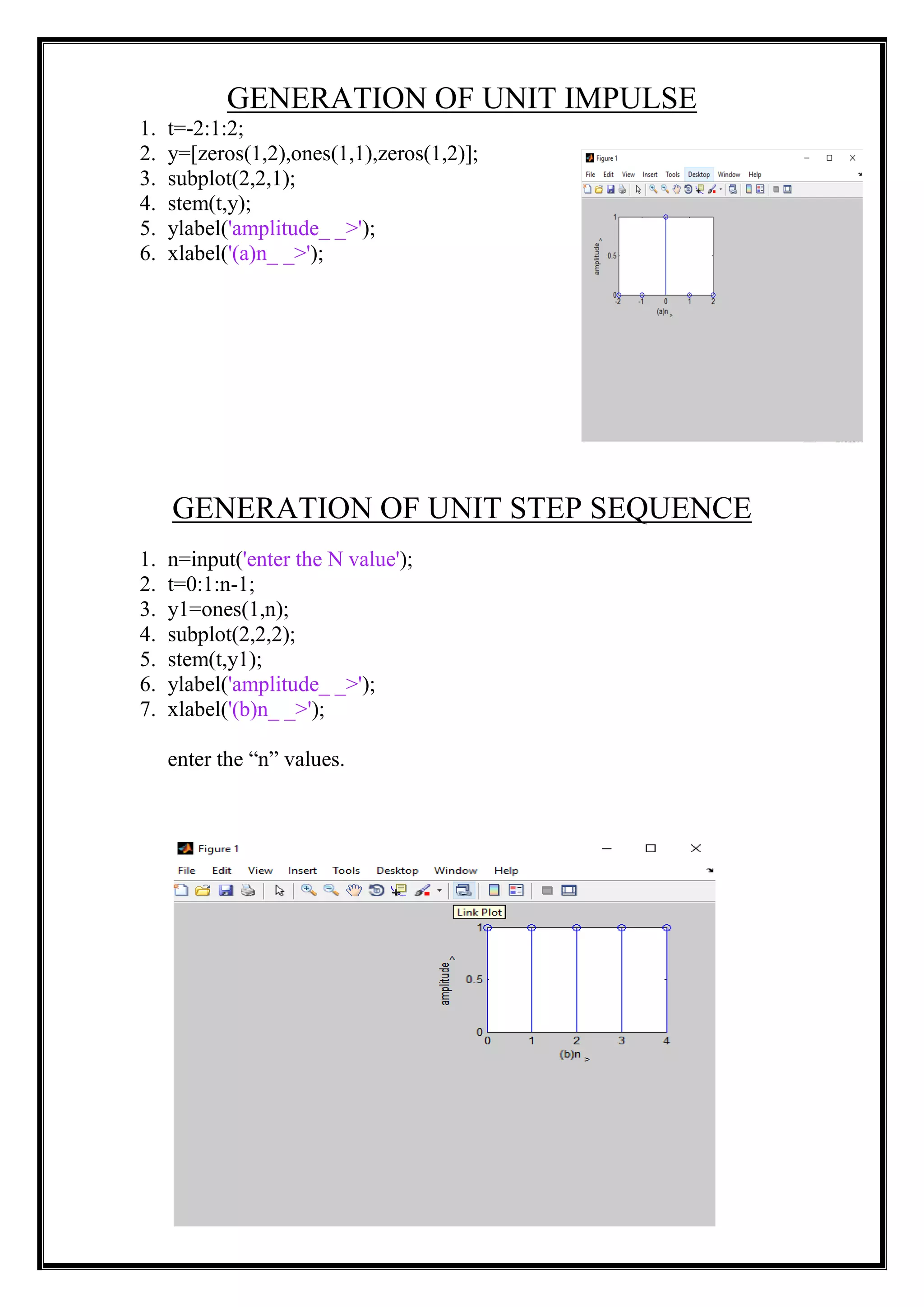

4. GENERATION OF UNIT IMPULSE
1. t=-2:1:2;
2. y=[zeros(1,2),ones(1,1),zeros(1,2)];
3. subplot(2,2,1);
4. stem(t,y);
5. ylabel('amplitude_ _>');
6. xlabel('(a)n_ _>');
GENERATION OF UNIT STEP SEQUENCE
1. n=input('enter the N value');
2. t=0:1:n-1;
3. y1=ones(1,n);
4. subplot(2,2,2);
5. stem(t,y1);
6. ylabel('amplitude_ _>');
7. xlabel('(b)n_ _>');
enter the “n” values.

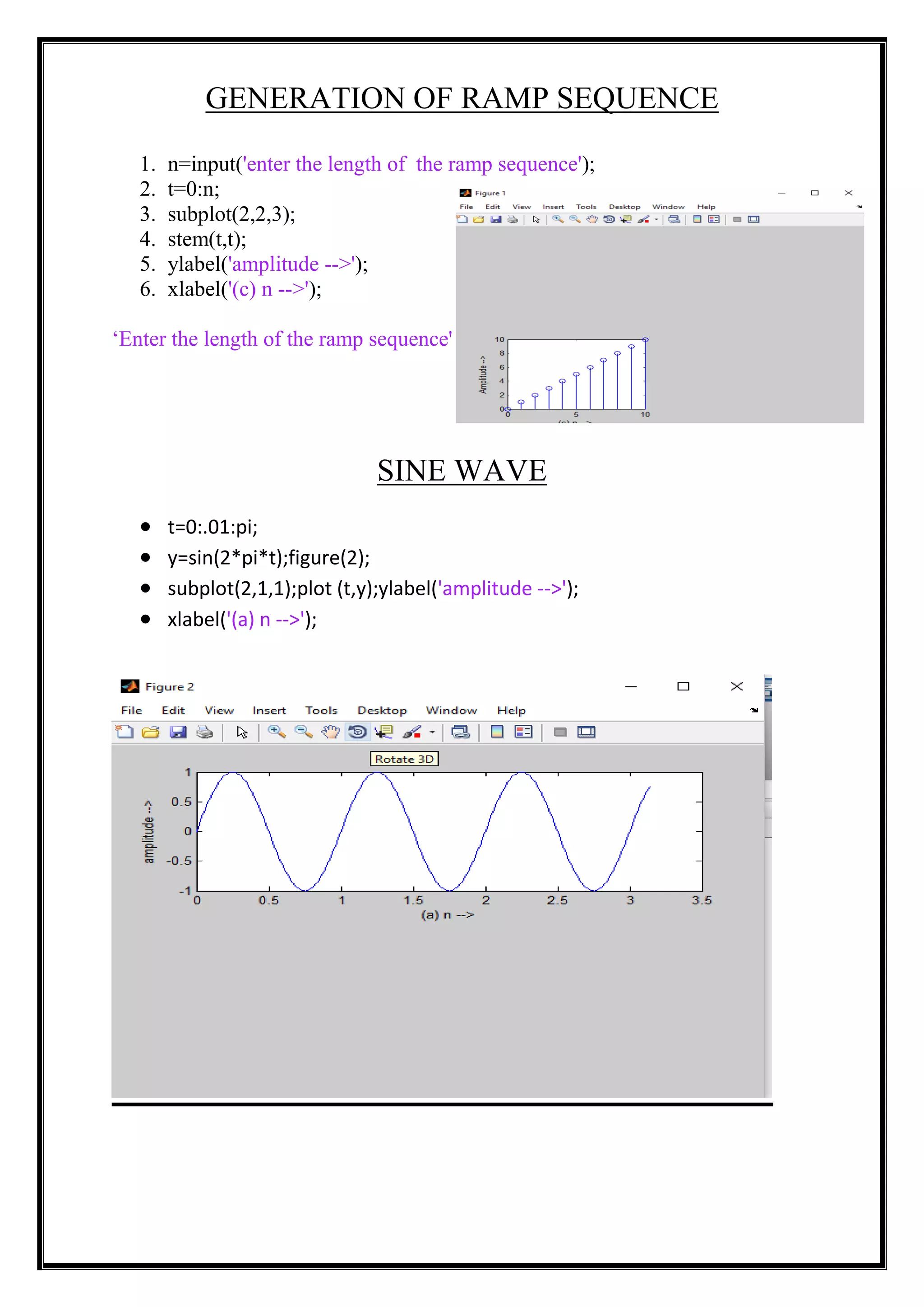

5. GENERATION OF RAMP SEQUENCE
1. n=input('enter the length of the ramp sequence');
2. t=0:n;
3. subplot(2,2,3);
4. stem(t,t);
5. ylabel('amplitude -->');
6. xlabel('(c) n -->');
„Enter the length of the ramp sequence'
SINE WAVE
t=0:.01:pi;
y=sin(2*pi*t);figure(2);
subplot(2,1,1);plot (t,y);ylabel('amplitude -->');
xlabel('(a) n -->');

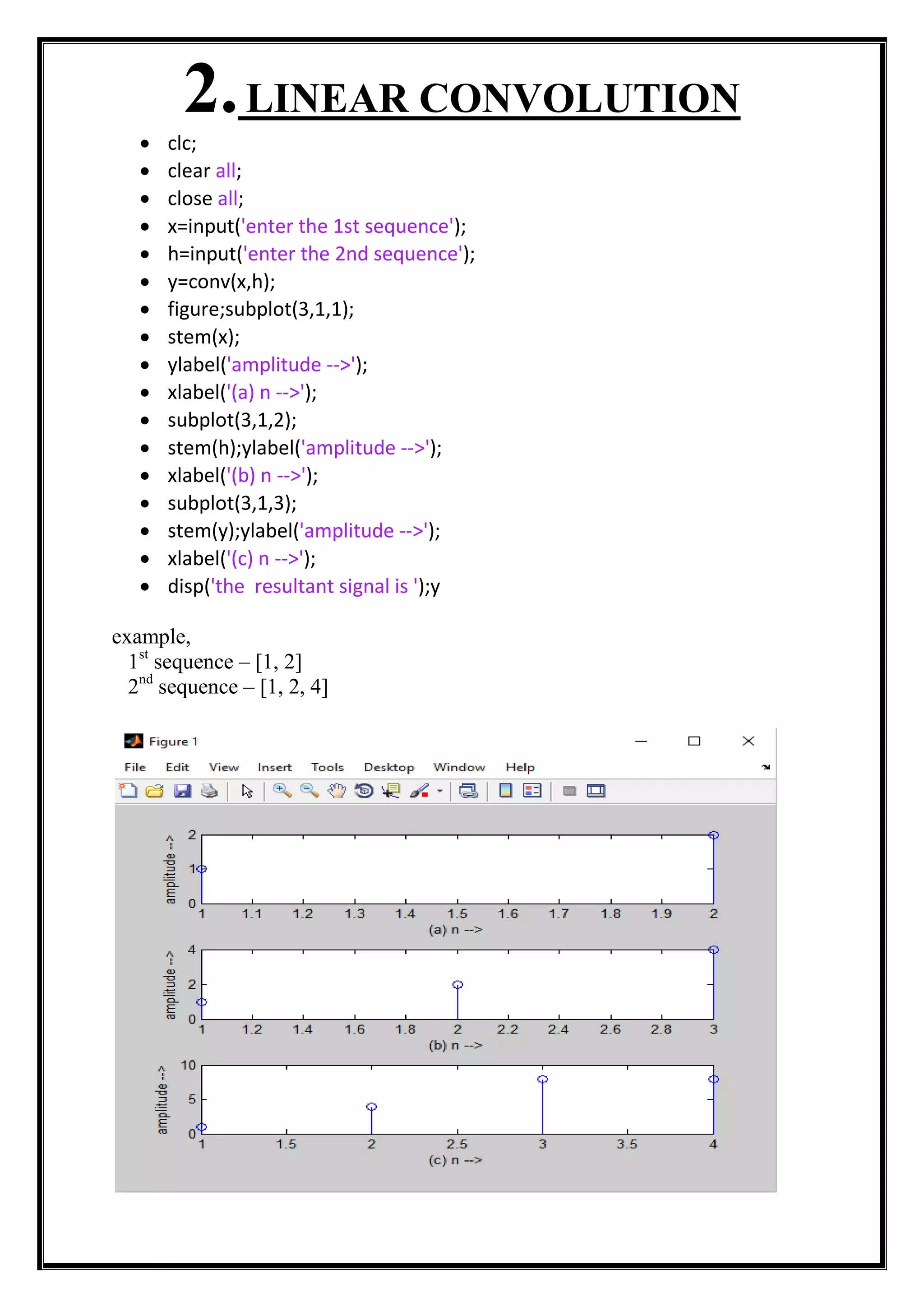

6. 2.LINEAR CONVOLUTION
clc;
clear all;
close all;
x=input('enter the 1st sequence');
h=input('enter the 2nd sequence');
y=conv(x,h);
figure;subplot(3,1,1);
stem(x);
ylabel('amplitude -->');
xlabel('(a) n -->');
subplot(3,1,2);
stem(h);ylabel('amplitude -->');
xlabel('(b) n -->');
subplot(3,1,3);
stem(y);ylabel('amplitude -->');
xlabel('(c) n -->');
disp('the resultant signal is ');y
example,
1st
sequence – [1, 2]
2nd
sequence – [1, 2, 4]

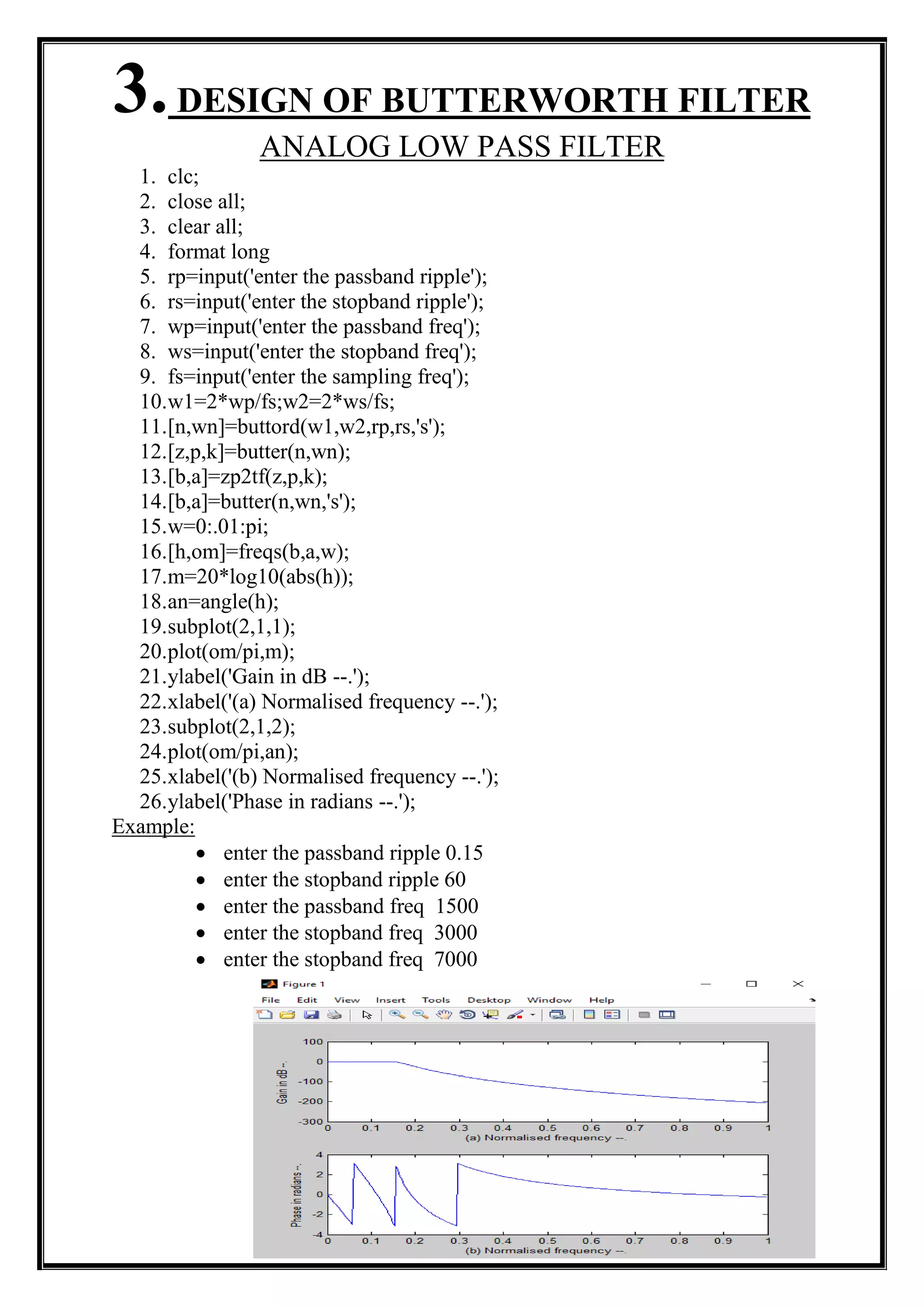

7. 3.DESIGN OF BUTTERWORTH FILTER
ANALOG LOW PASS FILTER
1. clc;
2. close all;
3. clear all;
4. format long
5. rp=input('enter the passband ripple');
6. rs=input('enter the stopband ripple');
7. wp=input('enter the passband freq');
8. ws=input('enter the stopband freq');
9. fs=input('enter the sampling freq');
10.w1=2*wp/fs;w2=2*ws/fs;
11.[n,wn]=buttord(w1,w2,rp,rs,'s');
12.[z,p,k]=butter(n,wn);
13.[b,a]=zp2tf(z,p,k);
14.[b,a]=butter(n,wn,'s');
15.w=0:.01:pi;
16.[h,om]=freqs(b,a,w);
17.m=20*log10(abs(h));
18.an=angle(h);
19.subplot(2,1,1);
20.plot(om/pi,m);
21.ylabel('Gain in dB --.');
22.xlabel('(a) Normalised frequency --.');
23.subplot(2,1,2);
24.plot(om/pi,an);
25.xlabel('(b) Normalised frequency --.');
26.ylabel('Phase in radians --.');
Example:
enter the passband ripple 0.15
enter the stopband ripple 60
enter the passband freq 1500
enter the stopband freq 3000
enter the stopband freq 7000

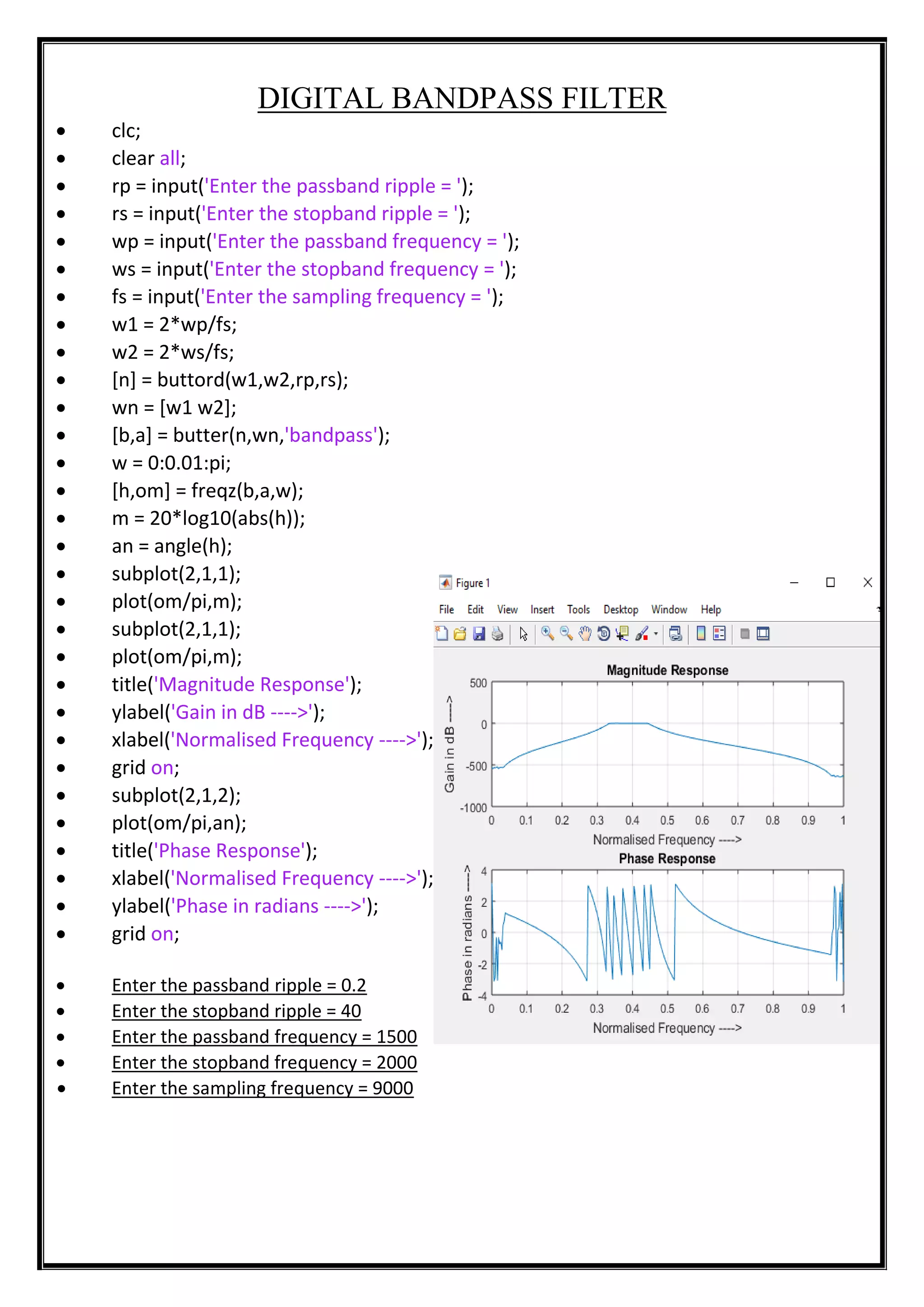

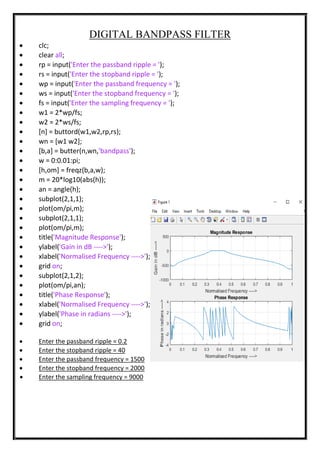

8. DIGITAL BANDPASS FILTER
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = buttord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = butter(n,wn,'bandpass');
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Enter the passband ripple = 0.2
Enter the stopband ripple = 40
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 9000

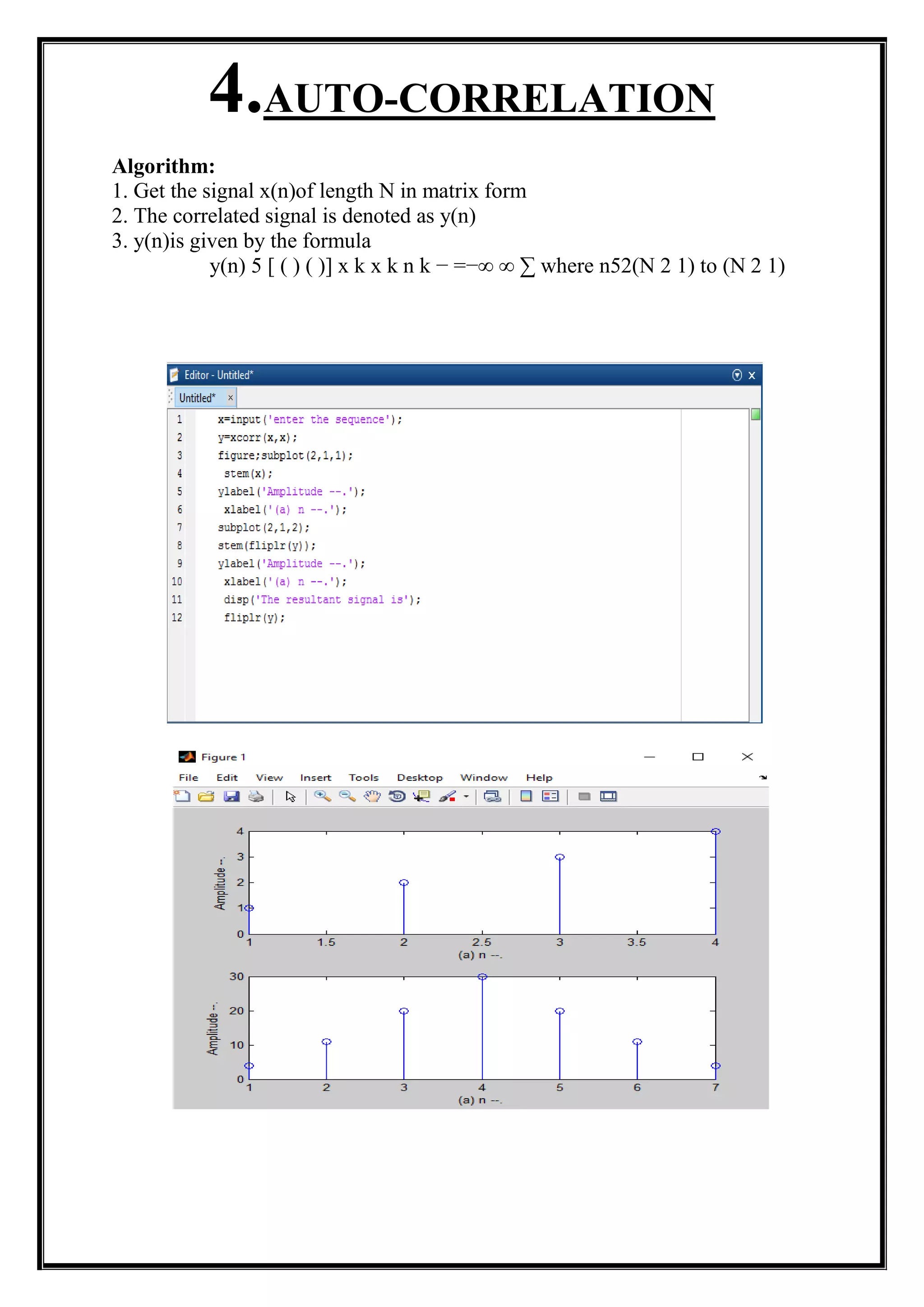

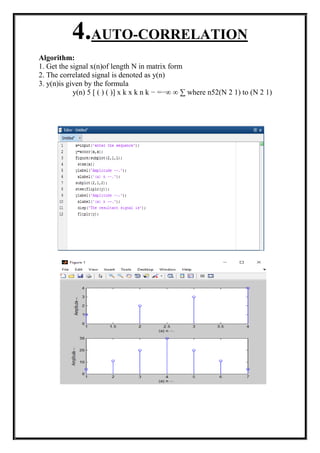

9. 4.AUTO-CORRELATION
Algorithm:
1. Get the signal x(n)of length N in matrix form
2. The correlated signal is denoted as y(n)
3. y(n)is given by the formula
y(n) 5 [ ( ) ( )] x k x k n k − =−∞ ∞ ∑ where n52(N 2 1) to (N 2 1)

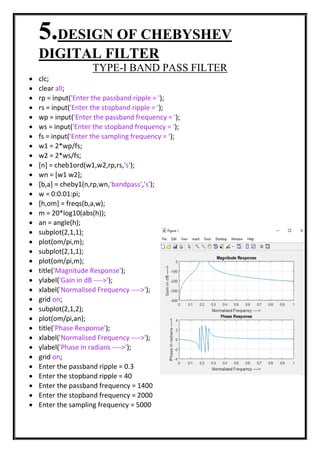

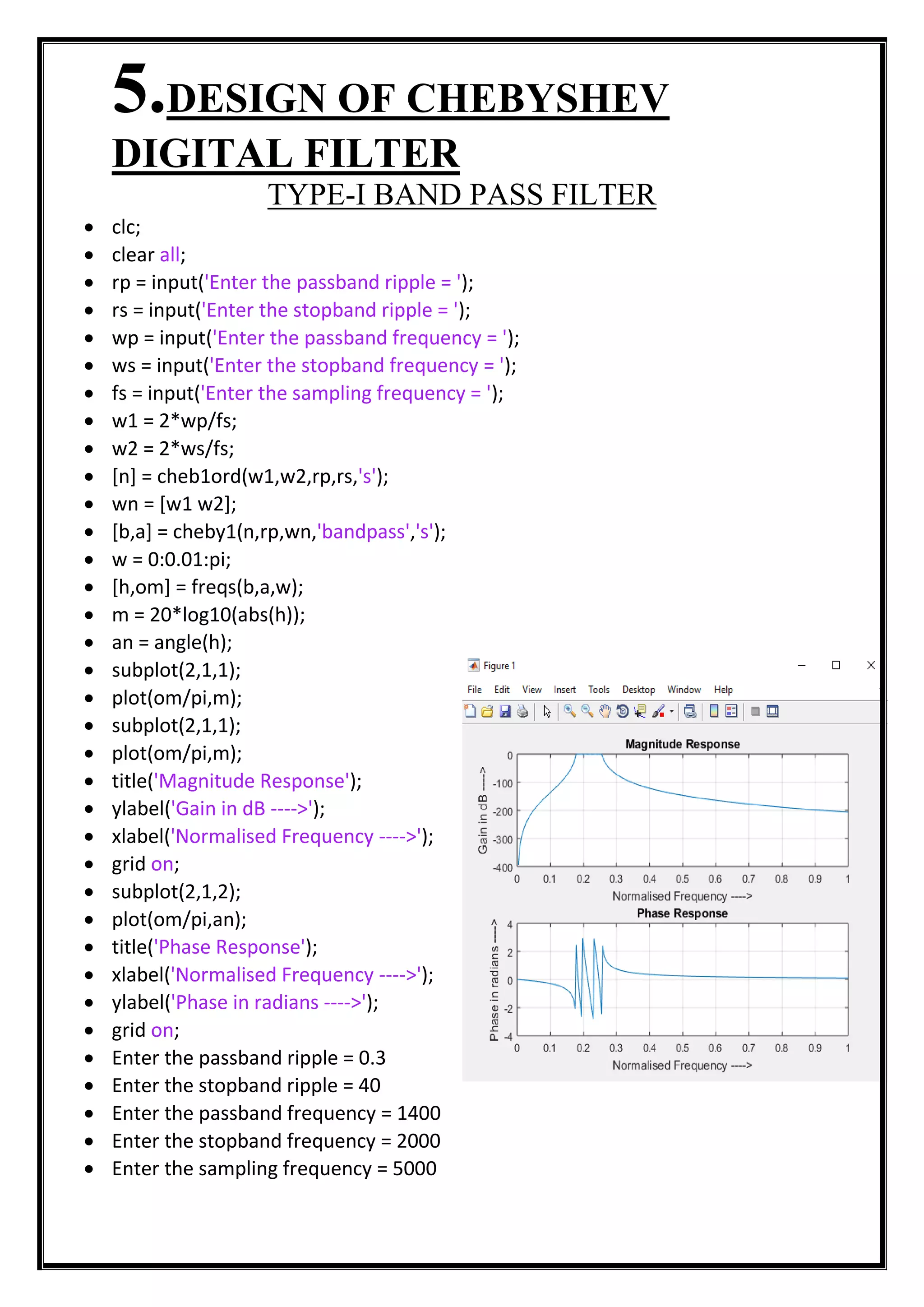

10. 5.DESIGN OF CHEBYSHEV
DIGITAL FILTER
TYPE-I BAND PASS FILTER
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'bandpass','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Enter the passband ripple = 0.3
Enter the stopband ripple = 40
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 5000

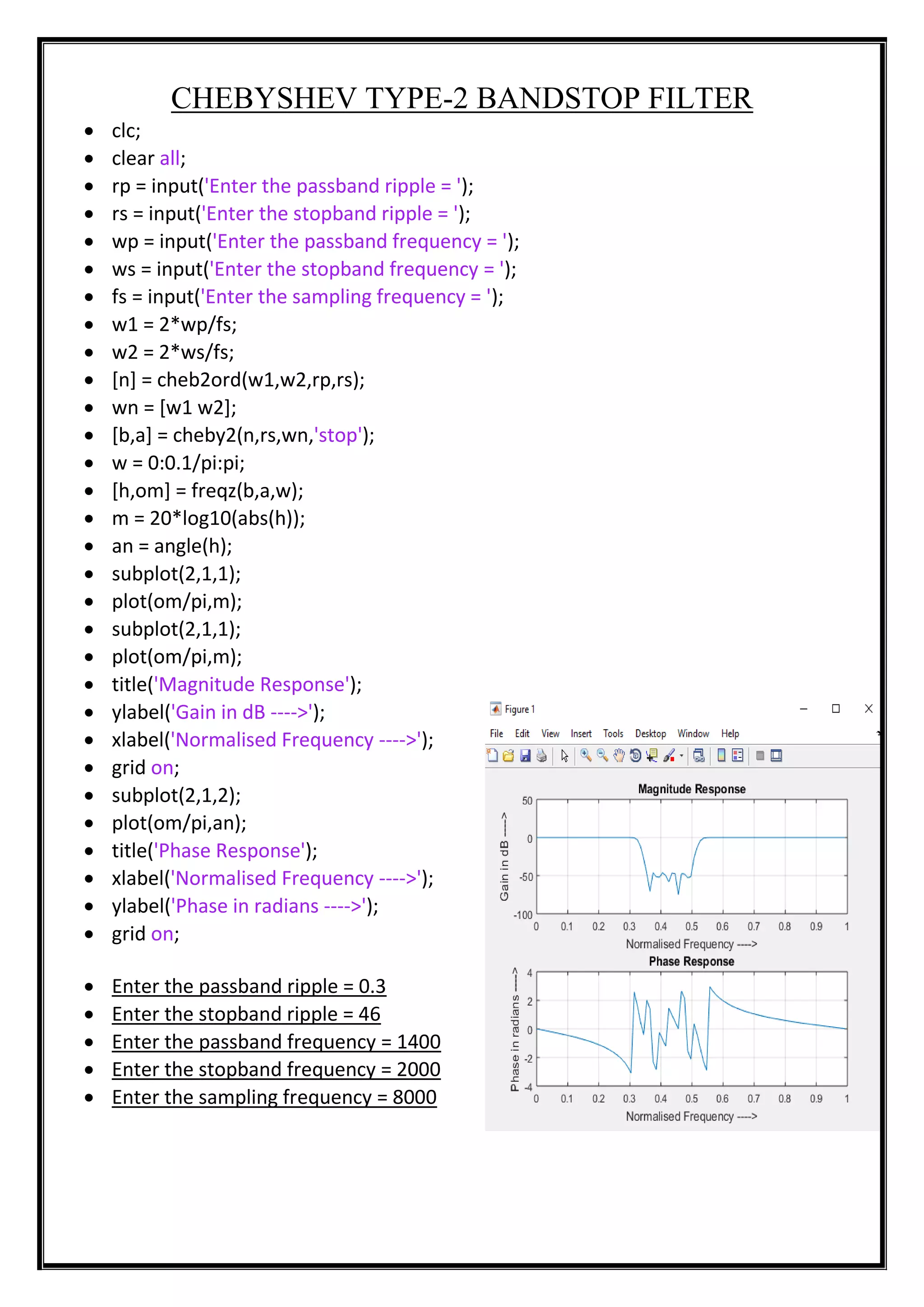

11. CHEBYSHEV TYPE-2 BANDSTOP FILTER
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb2ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby2(n,rs,wn,'stop');
w = 0:0.1/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Enter the passband ripple = 0.3
Enter the stopband ripple = 46
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000

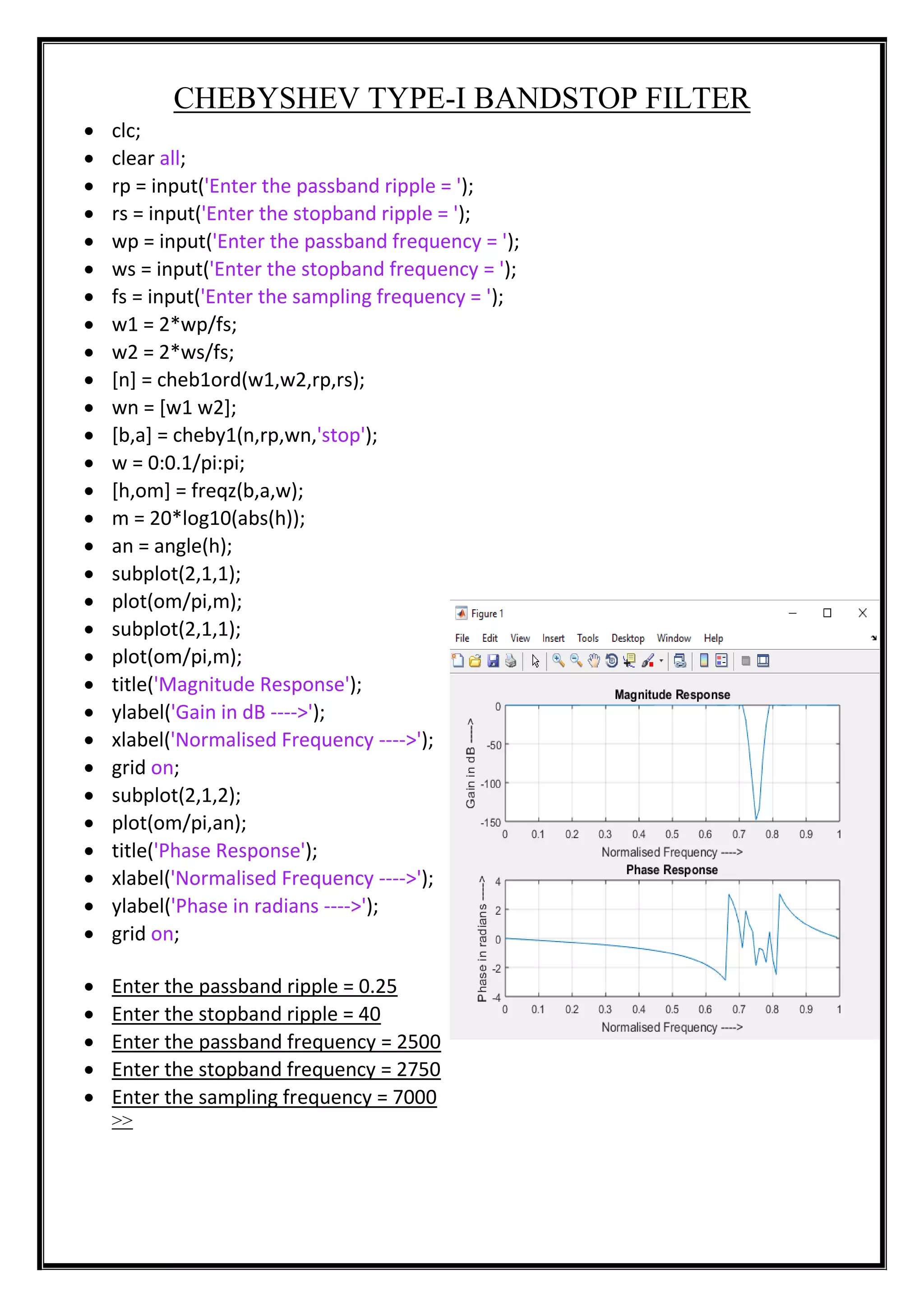

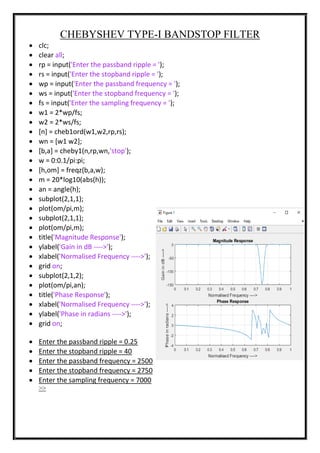

12. CHEBYSHEV TYPE-I BANDSTOP FILTER
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'stop');
w = 0:0.1/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Enter the passband ripple = 0.25
Enter the stopband ripple = 40
Enter the passband frequency = 2500
Enter the stopband frequency = 2750
Enter the sampling frequency = 7000
>>
13. 6.FFT & IFFT WITHOUT USING
FUNCTION
clc;
clear all;
x = input('Enter the input sequence = ');
N = length(x);
for k = 1:N
y(k) = 0;
for n = 1:N
y(k) = y(k)+x(n)*exp(-1i*2*pi*(k-1)*(n-1)/N);
end
end
%code block to plot the input sequence
t = 0:N-1;
subplot(2,2,1);
stem(t,x);
ylabel('Amplitude ---->');
xlabel('n ---->');
title('Input Sequence');
grid on;
magnitude = abs(y); % Find the magnitudes of individual FFT points
disp('FFT Sequence = ');
disp(magnitude);
%code block to plot the FFT sequence
t = 0:N-1;
subplot(2,2,2);
stem(t,magnitude);
ylabel('Amplitude ---->');
xlabel('K ---->');
title('FFT Sequence');
grid on;
R = length(y);
for n = 1:R
x1(n) = 0;
for k = 1:R
x1(n) = x1(n)+(1/R)*y(k)*exp(1i*2*pi*(k-1)*(n-1)/R);
end
end
%code block to plot the IFFT sequence
15. 7.FIR USING HANNING WINDOW
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)~=0)
n1 = n;
n = n-1;
end
y = hanning(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];

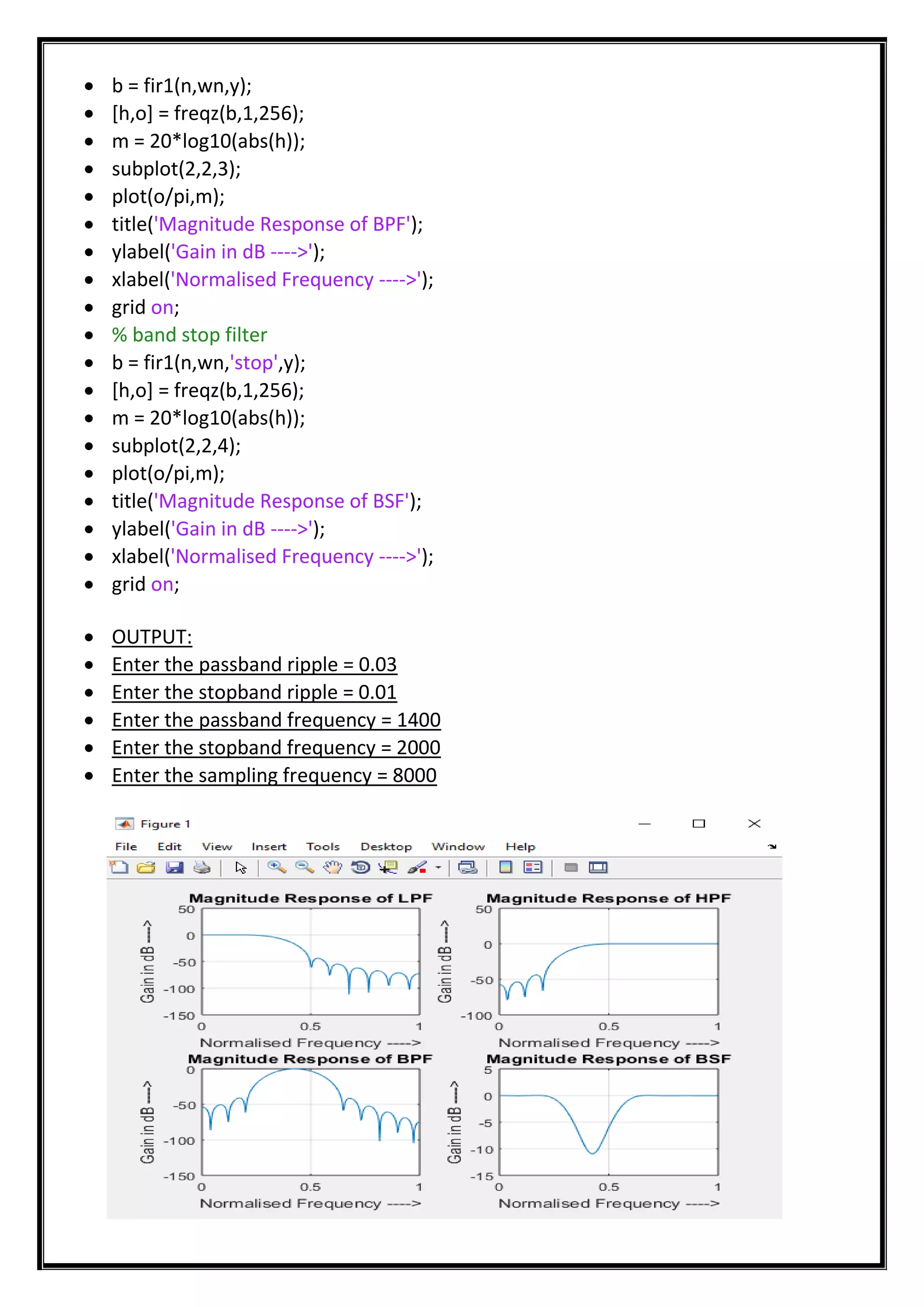

16. b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
OUTPUT:
Enter the passband ripple = 0.03
Enter the stopband ripple = 0.01
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000

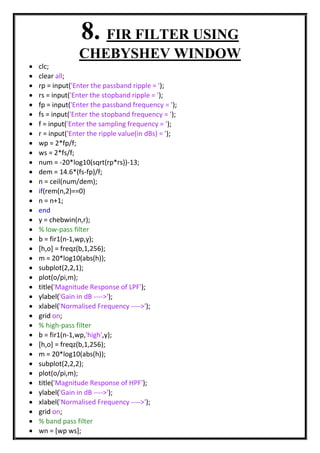

17. 8. FIR FILTER USING
CHEBYSHEV WINDOW
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
r = input('Enter the ripple value(in dBs) = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
if(rem(n,2)==0)
n = n+1;
end
y = chebwin(n,r);
% low-pass filter
b = fir1(n-1,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n-1,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];

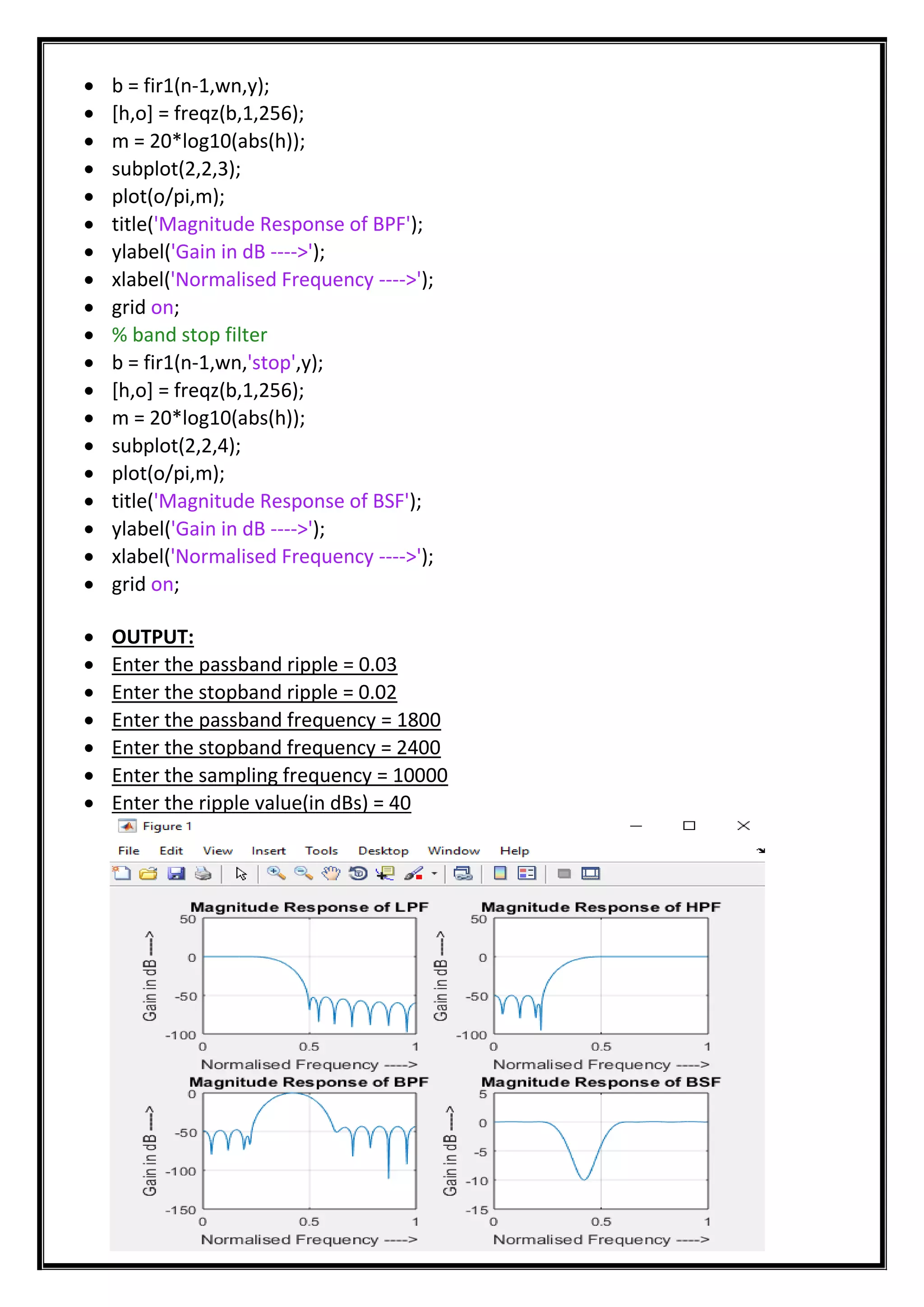

18. b = fir1(n-1,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n-1,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
OUTPUT:
Enter the passband ripple = 0.03
Enter the stopband ripple = 0.02
Enter the passband frequency = 1800
Enter the stopband frequency = 2400
Enter the sampling frequency = 10000
Enter the ripple value(in dBs) = 40
