1. Presenter: Dr. Bijay Mehta
Moderator: Dr. Kuldip Mangal Joshi

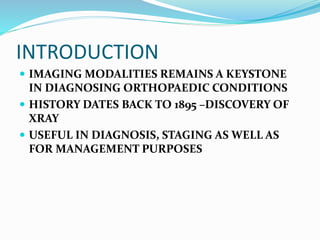

2. INTRODUCTION
 IMAGING MODALITIES REMAINS A KEYSTONE
IN DIAGNOSING ORTHOPAEDIC CONDITIONS
 HISTORY DATES BACK TO 1895 –DISCOVERY OF
XRAY
 USEFUL IN DIAGNOSIS, STAGING AS WELL AS
FOR MANAGEMENT PURPOSES

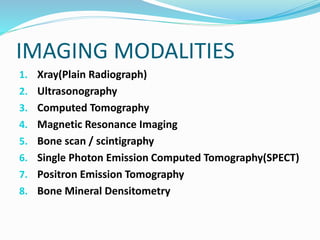

3. IMAGING MODALITIES
1. Xray(Plain Radiograph)
2. Ultrasonography
3. Computed Tomography
4. Magnetic Resonance Imaging
5. Bone scan / scintigraphy
6. Single Photon Emission Computed Tomography(SPECT)
7. Positron Emission Tomography
8. Bone Mineral Densitometry

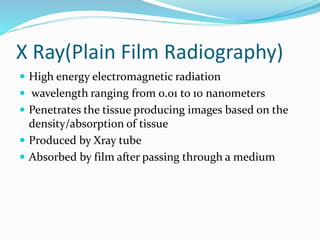

4. X Ray(Plain Film Radiography)
 High energy electromagnetic radiation
 wavelength ranging from 0.01 to 10 nanometers
 Penetrates the tissue producing images based on the
density/absorption of tissue
 Produced by Xray tube
 Absorbed by film after passing through a medium

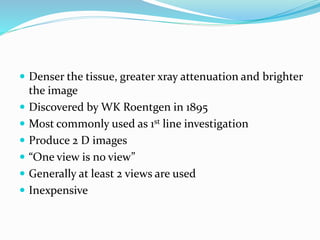

5.  Denser the tissue, greater xray attenuation and brighter
the image
 Discovered by WK Roentgen in 1895
 Most commonly used as 1st line investigation
 Produce 2 D images
 “One view is no view”
 Generally at least 2 views are used
 Inexpensive

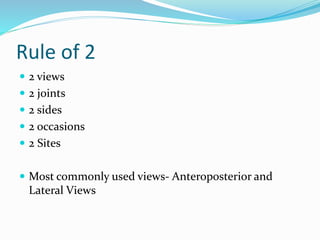

6. Rule of 2
 2 views
 2 joints
 2 sides
 2 occasions
 2 Sites
 Most commonly used views- Anteroposterior and
Lateral Views

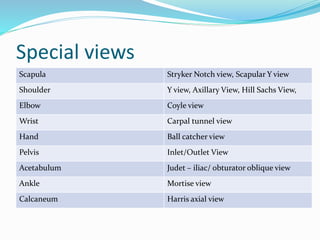

7. Special views
Scapula Stryker Notch view, Scapular Y view
Shoulder Y view, Axillary View, Hill Sachs View,
Elbow Coyle view
Wrist Carpal tunnel view
Hand Ball catcher view
Pelvis Inlet/Outlet View
Acetabulum Judet – iliac/ obturator oblique view
Ankle Mortise view
Calcaneum Harris axial view

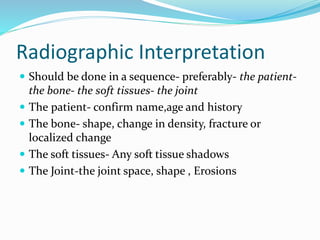

8. Radiographic Interpretation
 Should be done in a sequence- preferably- the patient-
the bone- the soft tissues- the joint
 The patient- confirm name,age and history
 The bone- shape, change in density, fracture or
localized change
 The soft tissues- Any soft tissue shadows
 The Joint-the joint space, shape , Erosions

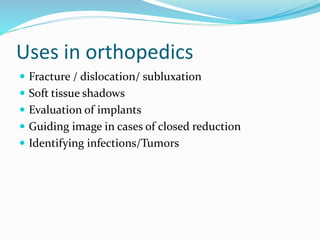

9. Uses in orthopedics
 Fracture / dislocation/ subluxation
 Soft tissue shadows
 Evaluation of implants
 Guiding image in cases of closed reduction
 Identifying infections/Tumors

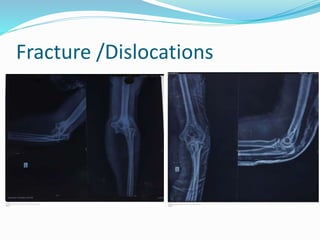

10. Fracture /Dislocations

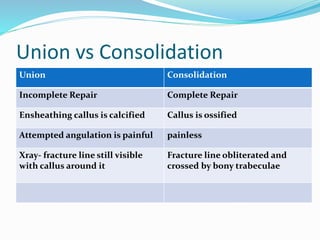

11. Union vs Consolidation
Union Consolidation
Incomplete Repair Complete Repair
Ensheathing callus is calcified Callus is ossified
Attempted angulation is painful painless
Xray- fracture line still visible
with callus around it
Fracture line obliterated and
crossed by bony trabeculae

12. Infections
 During 1st week- No xray
abnormalities
 2nd week- Periosteal Reactions
 Later- patchy rarefaction of
metaphysis and bone
destruction
 Chronic osteomyelitis-
Sequestrum, Involucrum may
be seen

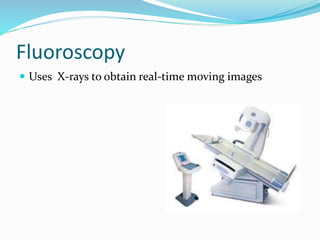

13. Fluoroscopy
 Uses X-rays to obtain real-time moving images

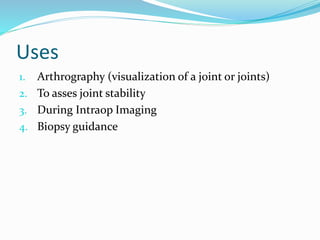

14. Uses
1. Arthrography (visualization of a joint or joints)
2. To asses joint stability
3. During Intraop Imaging
4. Biopsy guidance

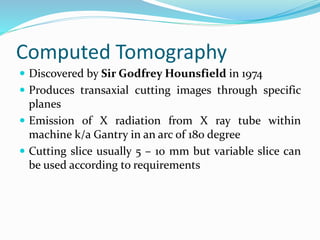

15. Computed Tomography
 Discovered by Sir Godfrey Hounsfield in 1974
 Produces transaxial cutting images through specific
planes
 Emission of X radiation from X ray tube within
machine k/a Gantry in an arc of 180 degree
 Cutting slice usually 5 – 10 mm but variable slice can
be used according to requirements

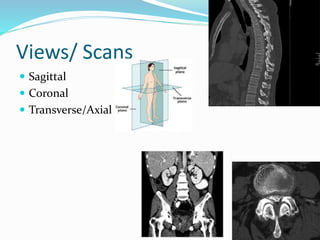

16. Views/ Scans
 Sagittal
 Coronal
 Transverse/Axial

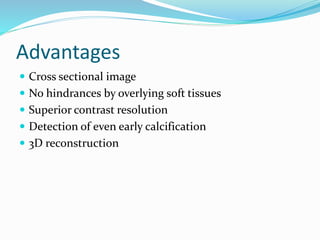

17. Advantages
 Cross sectional image
 No hindrances by overlying soft tissues
 Superior contrast resolution
 Detection of even early calcification
 3D reconstruction

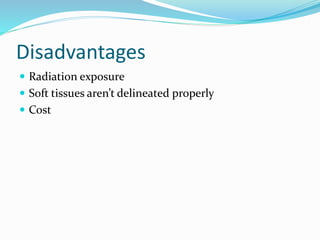

18. Disadvantages
 Radiation exposure
 Soft tissues aren’t delineated properly
 Cost

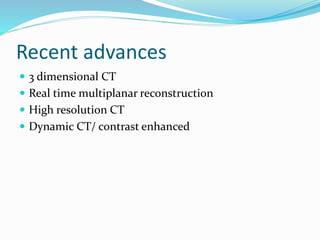

19. Recent advances
 3 dimensional CT
 Real time multiplanar reconstruction
 High resolution CT
 Dynamic CT/ contrast enhanced

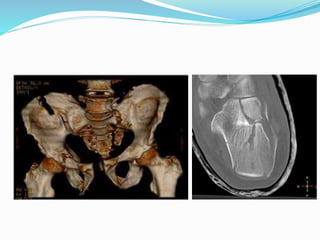

20. Uses
 Fractures/subluxation/dislocations requiring
transaxial/ 3D reconstruct like carpal/ tarsal/ tibial
plateau/calcaneal/pelvic

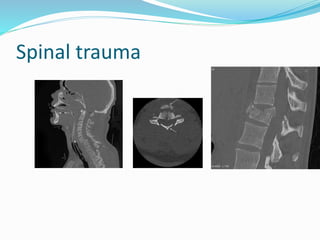

22. Spinal trauma

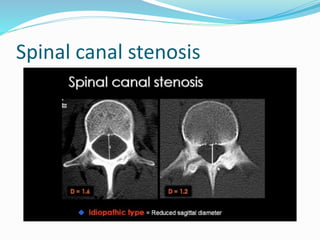

23. Spinal canal stenosis

24. CT guided biopsy

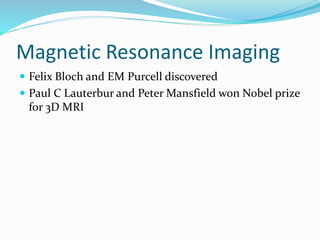

25. Magnetic Resonance Imaging
 Felix Bloch and EM Purcell discovered
 Paul C Lauterbur and Peter Mansfield won Nobel prize
for 3D MRI

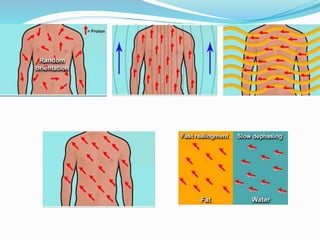

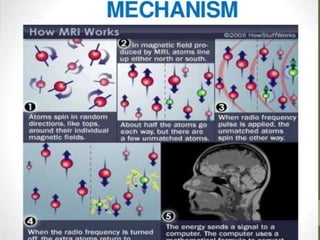

26. Mechanism

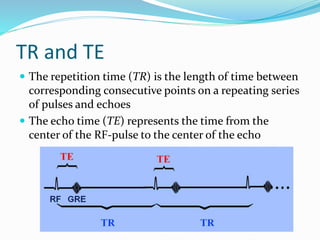

28. TR and TE
 The repetition time (TR) is the length of time between
corresponding consecutive points on a repeating series
of pulses and echoes
 The echo time (TE) represents the time from the
center of the RF-pulse to the center of the echo

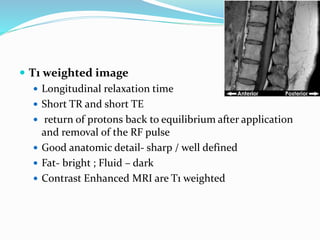

29.  T1 weighted image
 Longitudinal relaxation time
 Short TR and short TE
 return of protons back to equilibrium after application
and removal of the RF pulse
 Good anatomic detail- sharp / well defined
 Fat- bright ; Fluid – dark
 Contrast Enhanced MRI are T1 weighted

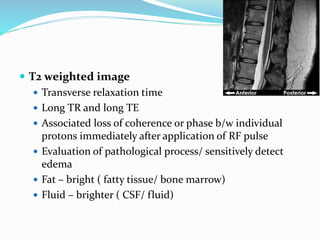

30.  T2 weighted image
 Transverse relaxation time
 Long TR and long TE
 Associated loss of coherence or phase b/w individual
protons immediately after application of RF pulse
 Evaluation of pathological process/ sensitively detect
edema
 Fat – bright ( fatty tissue/ bone marrow)
 Fluid – brighter ( CSF/ fluid)

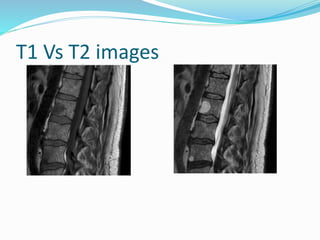

31. T1 Vs T2 images

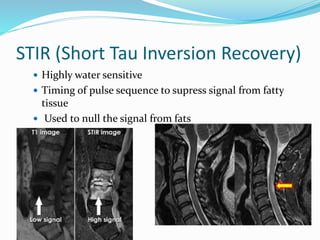

32. STIR (Short Tau Inversion Recovery)
 Highly water sensitive
 Timing of pulse sequence to supress signal from fatty
tissue
 Used to null the signal from fats

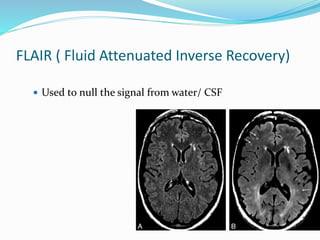

33. FLAIR ( Fluid Attenuated Inverse Recovery)
 Used to null the signal from water/ CSF

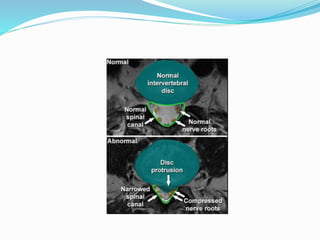

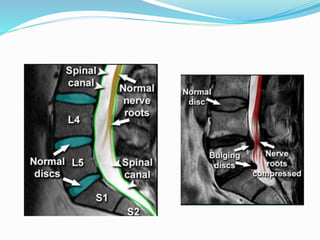

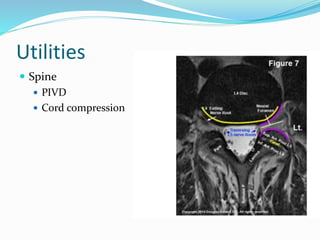

34. Utilities

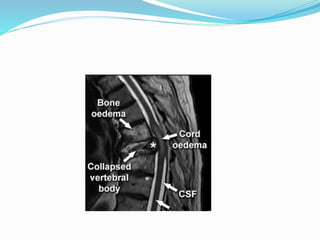

 Spine
 PIVD
 Cord compression

38.  Knee

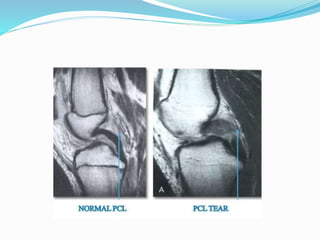

 ACL injury
 PCL injury

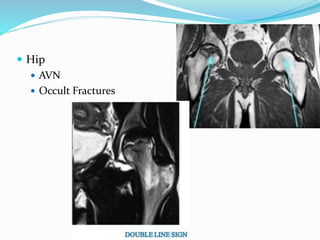

40.  Hip
 AVN
 Occult Fractures

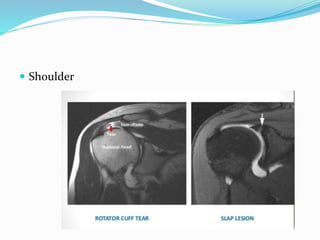

41.  Shoulder

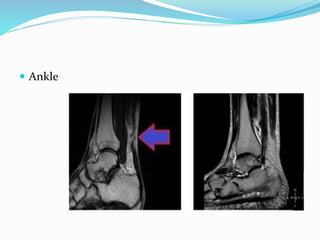

42.  Ankle

43. Advantages
 No risk of radiation
 Clear soft tissue visualisation

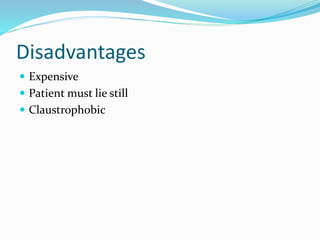

44. Disadvantages
 Expensive
 Patient must lie still
 Claustrophobic

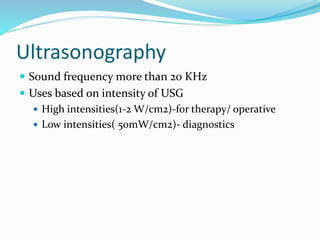

45. Ultrasonography
 Sound frequency more than 20 KHz
 Uses based on intensity of USG
 High intensities(1-2 W/cm2)-for therapy/ operative
 Low intensities( 50mW/cm2)- diagnostics

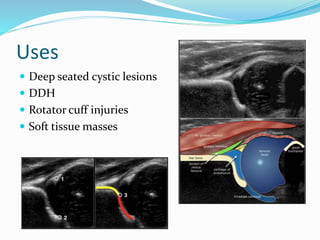

46. Uses
 Deep seated cystic lesions
 DDH
 Rotator cuff injuries
 Soft tissue masses

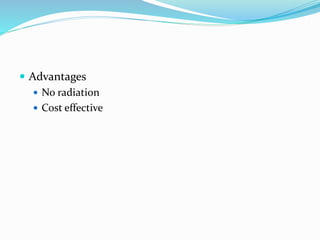

47.  Advantages
 No radiation
 Cost effective

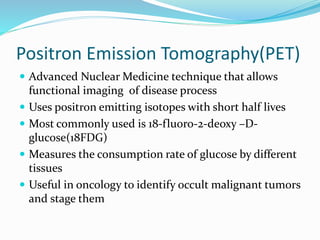

48. Positron Emission Tomography(PET)
 Advanced Nuclear Medicine technique that allows
functional imaging of disease process
 Uses positron emitting isotopes with short half lives
 Most commonly used is 18-fluoro-2-deoxy –D-
glucose(18FDG)
 Measures the consumption rate of glucose by different
tissues
 Useful in oncology to identify occult malignant tumors
and stage them

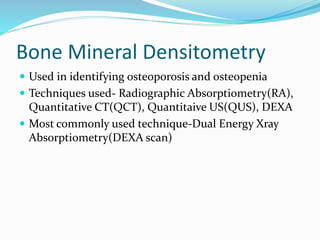

49. Bone Mineral Densitometry
 Used in identifying osteoporosis and osteopenia
 Techniques used- Radiographic Absorptiometry(RA),
Quantitative CT(QCT), Quantitaive US(QUS), DEXA
 Most commonly used technique-Dual Energy Xray
Absorptiometry(DEXA scan)

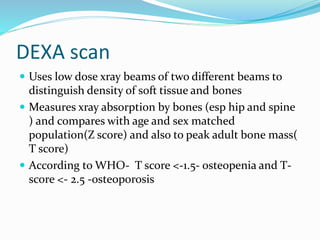

50. DEXA scan
 Uses low dose xray beams of two different beams to
distinguish density of soft tissue and bones
 Measures xray absorption by bones (esp hip and spine
) and compares with age and sex matched
population(Z score) and also to peak adult bone mass(
T score)
 According to WHO- T score <-1.5- osteopenia and T-
score <- 2.5 -osteoporosis

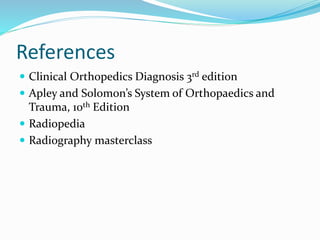

51. References
