1. DFIR Training
Remote Desktop Protocol (RDP) Triage
4/15/2020

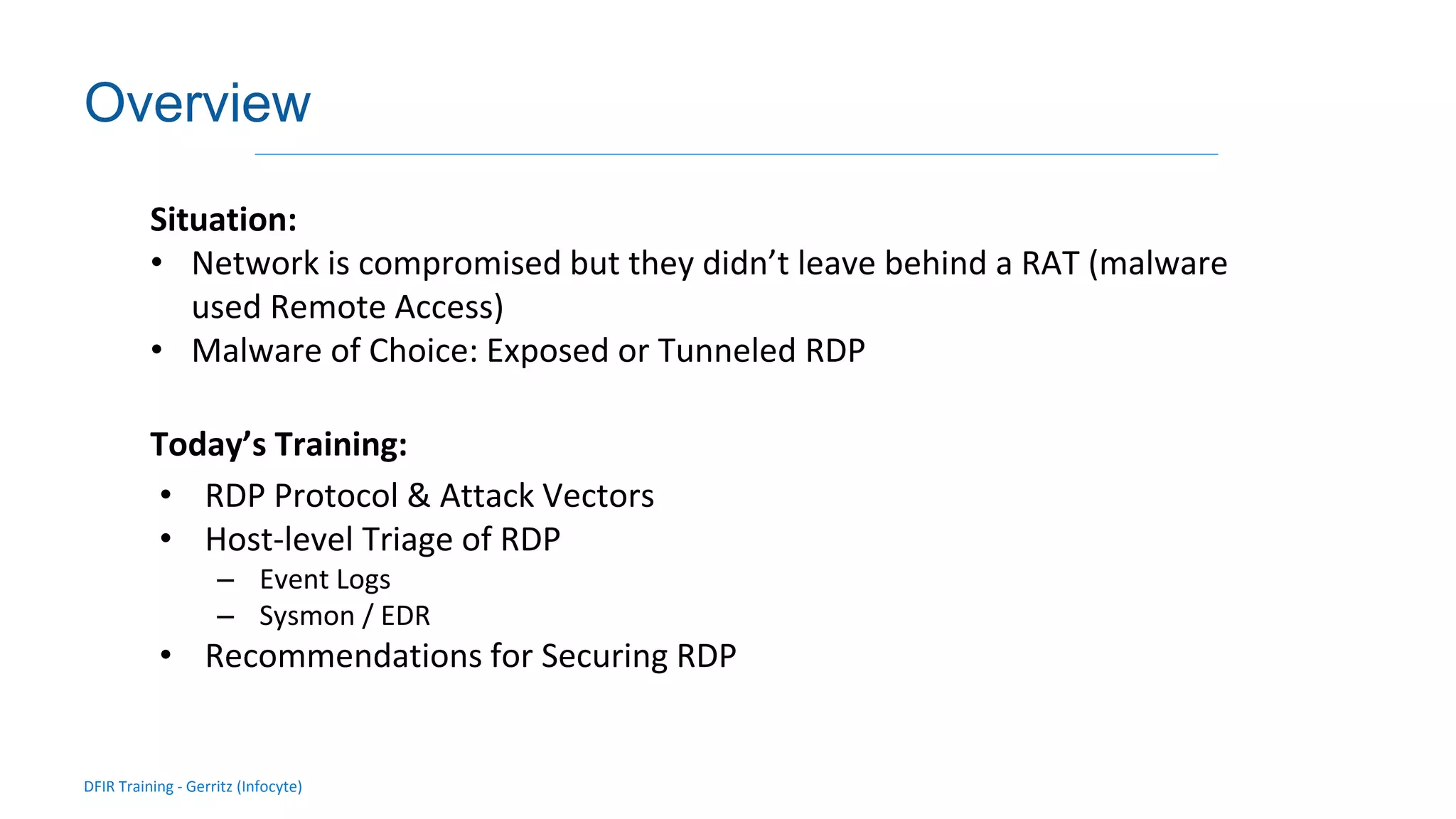

2. DFIR Training - Gerritz (Infocyte)
Validating integrity via live forensic analysis of a set of hosts
Overview
Situation:
• Network is compromised but they didn’t leave behind a RAT (malware
used Remote Access)
• Malware of Choice: Exposed or Tunneled RDP
Today’s Training:
• RDP Protocol & Attack Vectors
• Host-level Triage of RDP
– Event Logs
– Sysmon / EDR
• Recommendations for Securing RDP

3. Remote Desktop
Protocol (RDP)

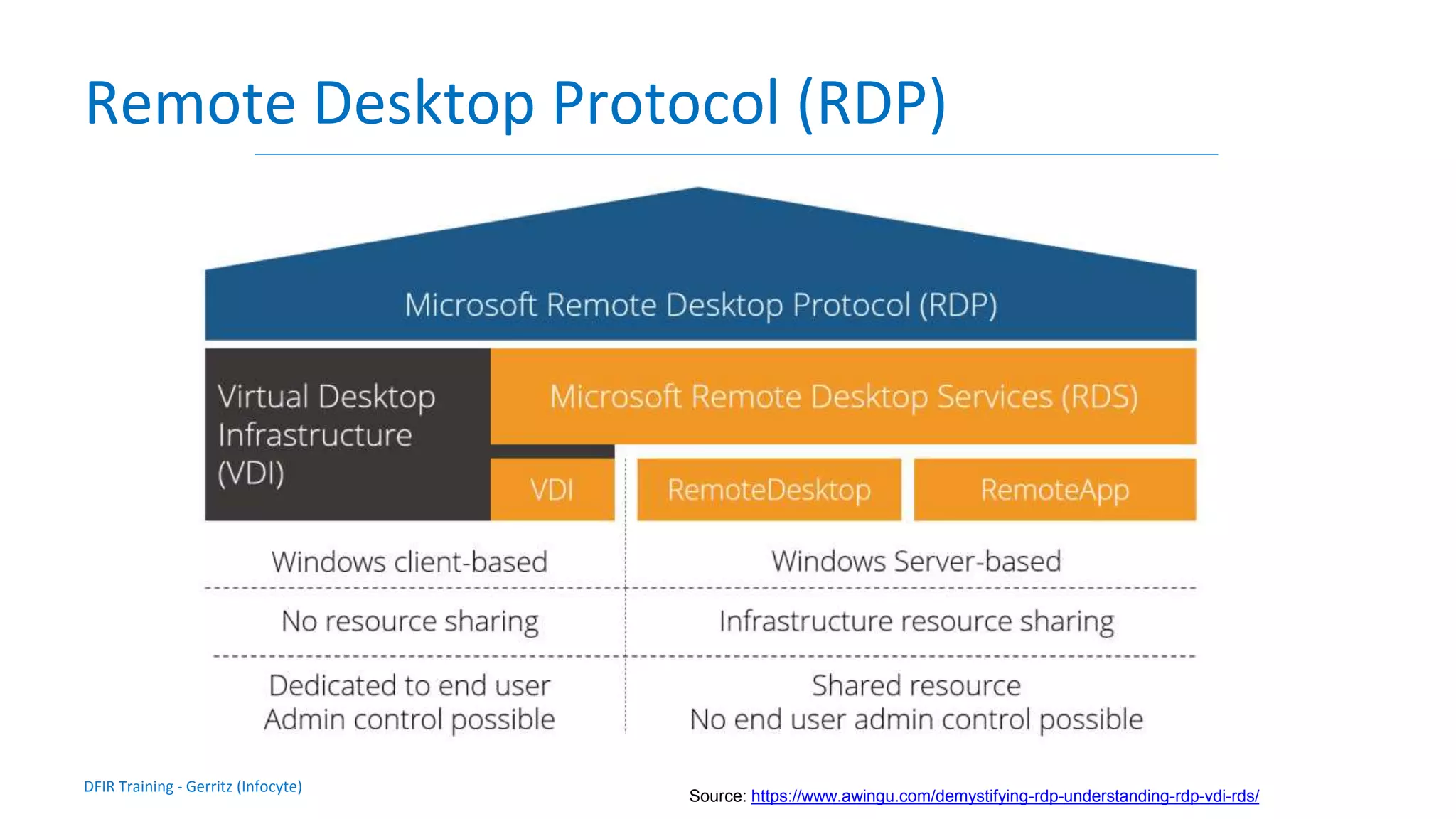

4. DFIR Training - Gerritz (Infocyte)
Remote Desktop Protocol (RDP)
Source: https://www.awingu.com/demystifying-rdp-understanding-rdp-vdi-rds/

5. DFIR Training - Gerritz (Infocyte)
Remote Desktop Protocol (RDP)
Description:
Default remote session protocol for all Microsoft
Windows versions.
Used extensively in organizations for server
management, remote desktop, VDI, and cloud
management.
Protocol Implementation Ports OS Meant For
RDP TCP/UDP 3389 Windows Clients (XP+) Internal (insecure)
RD Gateway (HTTPS/SSL) TCP 443
UDP 3391 (Streaming)
Windows Server 2k8R2+ External (securable)
Services Using RDP Description
Virtual Desktop (VDI) Remote Dedicated VM
Remote Desktop Services
(RDS)
Remote Shared VM
Hyper-V / Azure GUI Emulation

6. RDP Attack Vectors

7. DFIR Training - Gerritz (Infocyte)

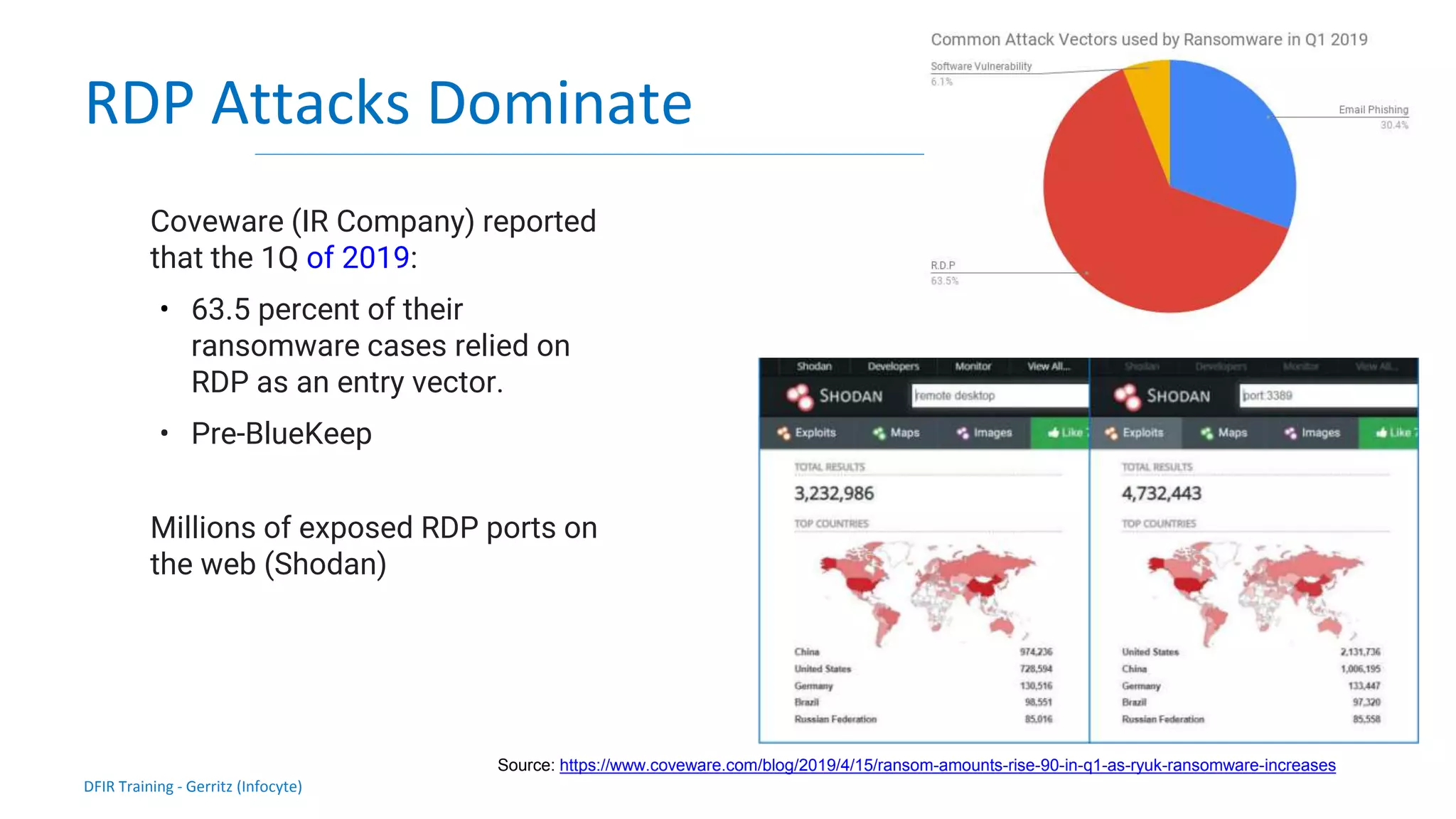

RDP Attacks Dominate
Coveware (IR Company) reported
that the 1Q of 2019:
• 63.5 percent of their
ransomware cases relied on
RDP as an entry vector.
• Pre-BlueKeep
Millions of exposed RDP ports on
the web (Shodan)
Source: https://www.coveware.com/blog/2019/4/15/ransom-amounts-rise-90-in-q1-as-ryuk-ransomware-increases

8. DFIR Training - Gerritz (Infocyte)
RDP Vulnerabilities
Description:
Plenty of RCE vulnerabilities in RDP (most of these
target channels on TCP/UDP 3389 or UDP 3391)
Name CVE Scope Description
BlueKeep CVE-2019-0708 Remote / Pre-
Auth
Used to execute remote code on RDP Servers
on older OS servers/clients.
DejaBlue CVE-2019-1181, 1182,
1222, etc.
Remote / Pre-
Auth
BlueKeep-style vulns for modern OS’s
RDP Path Traversal CVE 2019-0887 Lateral Turns compromised RDP Server into watering
hole (pwn connecting clients)
BlueGate CVE-2020-0609
CVE-2020-0610
Remote / Pre-
Auth
Used to DoS or execute remote code on RD
Gateways listening on UDP 3391

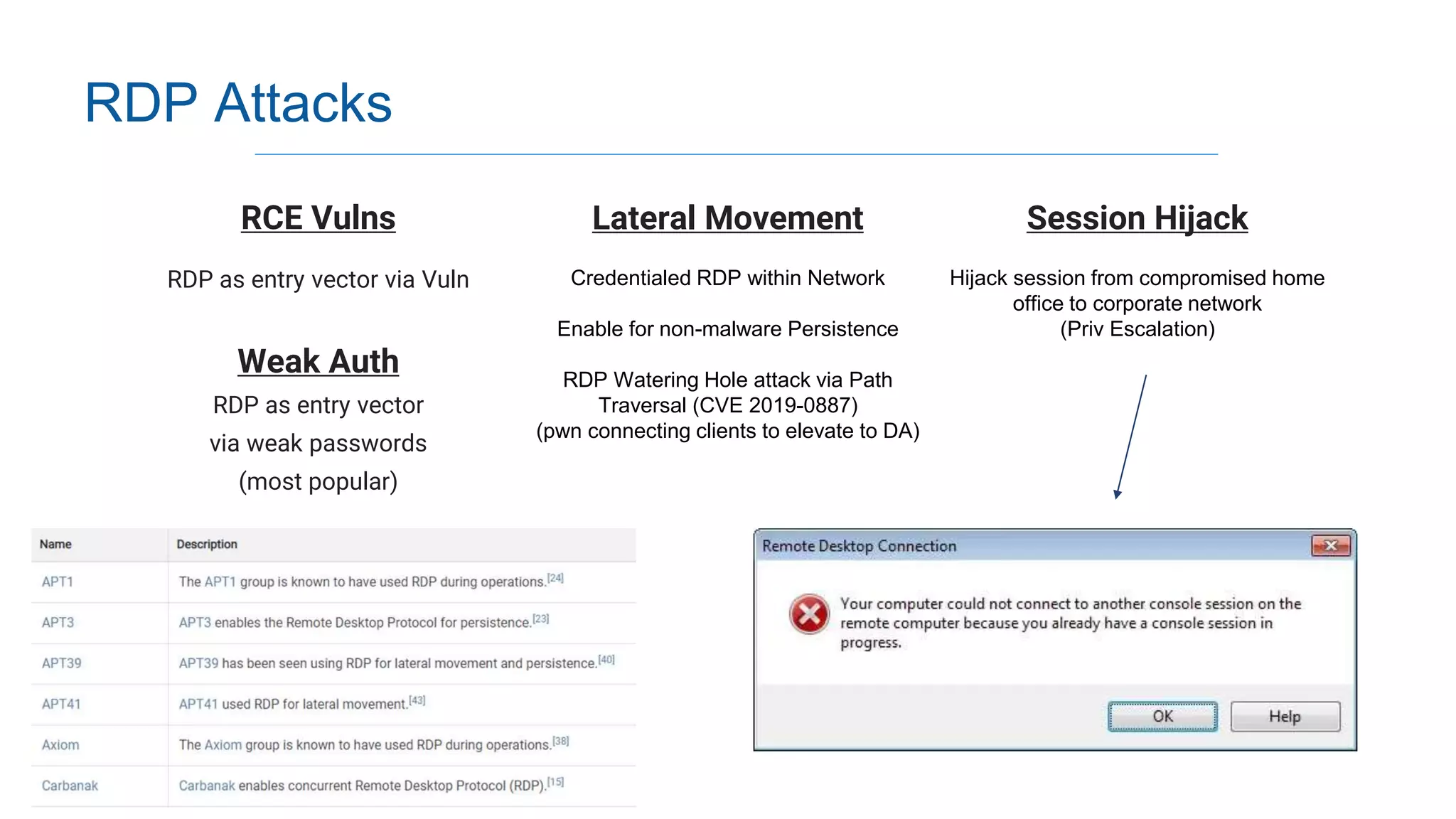

9. DFIR Training - Gerritz (Infocyte)
RDP Attacks
RCE Vulns Lateral Movement Session Hijack
RDP as entry vector via Vuln
Weak Auth
RDP as entry vector
via weak passwords
(most popular)
Credentialed RDP within Network
Enable for non-malware Persistence
RDP Watering Hole attack via Path
Traversal (CVE 2019-0887)
(pwn connecting clients to elevate to DA)
Hijack session from compromised home
office to corporate network
(Priv Escalation)

10. Triaging Malicious
RDP Usage

11. DFIR Training - Gerritz (Infocyte)
RDP Event Logs - Connections
Network Connection → Authentication → Logon → Reconnect → Activity → Logoff
Log: Microsoft-Windows-Terminal-Services-
RemoteConnectionManager/Operational
Id 1149 (Connection)
User Network Authentication
(Logon screen displayed)
Includes Source IP
Usefulness: Low (Can be noisy)
Associated to Id 131 (Connection
Accepted)
and Id 132 (Channel Connected)
Log: Security
Id 4624 (Authentication)
Logon (Type 10)
Includes Source IP, UserSID and LoginID
Usefulness: High
--
Type 3 is an additional event for NLA-
enabled session
Type 7 for Reconnects
(Associated to Id 21)
Log: Security
Id 4778 (Authentication)
Reconnect (Type 10)
Includes Source IP + LoginID
Usefulness: Medium (unreliable)
--
New LoginID is sometimes generated
(need it for proces_create correlation)
(Associated to Id 25)

12. DFIR Training - Gerritz (Infocyte)
RDP Event Logs - Sessions
Network Connection → Authentication → Session → Reconnects → Activity → Logoff
Log: Microsoft-Windows-TerminalServices-
LocalSessionManager/Operational
Id 21, 24, 25 (Session Logon)
RDP Session Created (21), Disconnected (24),
Reconnected (25)
Includes Source IP & SessionID
Usefulness: Medium (timelining)

13. DFIR Training - Gerritz (Infocyte)
RDP Other Important Events
Log: Security or Sysmon/EDR
Id 4688
(Sysmon Id 1)
Process Create
Includes LogonId and UserSID
Usefulness: High when
correlated with 4624
Correlate with LogonId & SID
Other Important Events to Consider:
Startup folder - File Creation Events (Sysmon Id 11)
Network Connection → Authentication → Session → Reconnect → Activity → Logoff

14. DFIR Training - Gerritz (Infocyte)
Validating integrity via live forensic analysis of a set of hosts
EventLog Parsers
• Get-SysmonEvents
https://gist.github.com/singlethreaded/df6d810a95ca8fd6874be26e06a73320
• ConvertFrom-WinEvent
https://gist.github.com/singlethreaded/77f873ecaf6318750e270610ae6b35bd
• RDP Triage Script
https://gist.github.com/singlethreaded/c730e559f868f5380d7d5ccd2a56928e
• RDP Triage Infocyte Extension
https://github.com/Infocyte/extensions/blob/master/official/collection/rdp_triage.lua

15. Recommendations

16. DFIR Training - Gerritz (Infocyte)
Securing Publicly Available Services
Every IP on the internet is being bombarded by malicious requests...
Required Security Features for globally accessible services:
• SSL Certificates for Authentication (Verifies endpoint)
• Transport Encryption (i.e. HTTPS/TLS)
– Note: RDP is already encrypted so HTTPS wrapper is mostly redundant
• Brute Force Mitigation (i.e. IP Auto-blocker on failed auth or malformed
requests)
• Multi-Factor Authentication
• DDoS protection (i.e. Cloudflare) [Recommended]

17. DFIR Training - Gerritz (Infocyte)
Validating integrity via live forensic analysis of a set of hosts
RDP Can Be Secured
RDP can be an acceptable and secure remoting solution if configured
correctly...
Recommendations:
• Enforce Network Level Authentication (DOUBLEPULSAR no like) enabled clients
• Use an RDP Gateway Solution (RD Gateway Role on Windows Server)
– Requires a valid SSL Certificate
– DO NOT self-sign certificates (unless you hate your users and/or your helpdesk)
• Enforce Two-Factor Authentication (2FA)
• IP Restrict RD Gateway or restrict to VPN if you can’t enable 2FA
Guide: ttps://turbofuture.com/computers/How-To-Setup-a-Remote-Desktop-Gateway-Windows-Server-2016
Azure MFA: https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-nps-extension-rdg

18. DFIR Training - Gerritz (Infocyte)
Validating integrity via live forensic analysis of a set of hosts

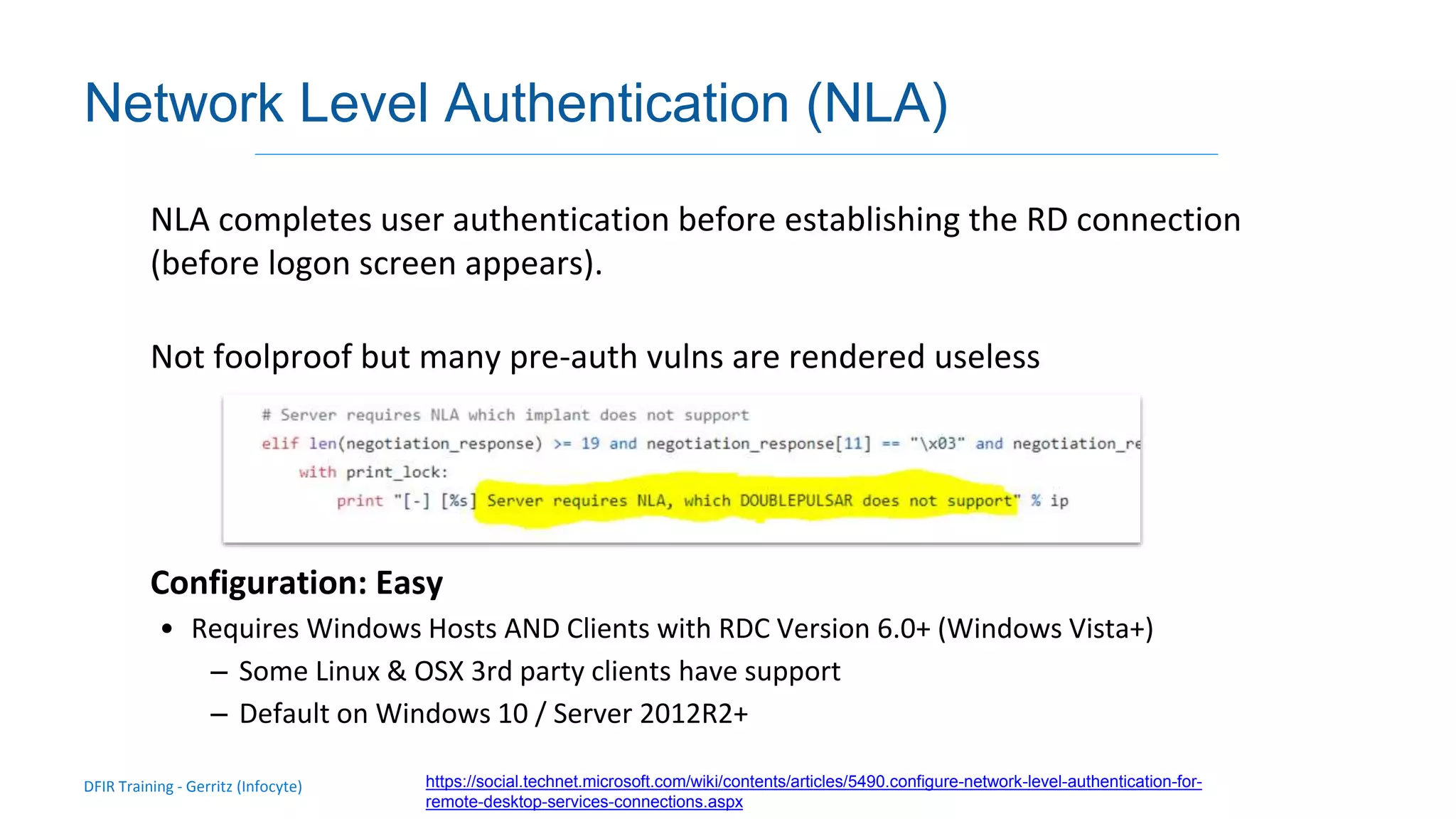

Network Level Authentication (NLA)
NLA completes user authentication before establishing the RD connection
(before logon screen appears).
Not foolproof but many pre-auth vulns are rendered useless
Configuration: Easy
• Requires Windows Hosts AND Clients with RDC Version 6.0+ (Windows Vista+)
– Some Linux & OSX 3rd party clients have support
– Default on Windows 10 / Server 2012R2+
https://social.technet.microsoft.com/wiki/contents/articles/5490.configure-network-level-authentication-for-
remote-desktop-services-connections.aspx

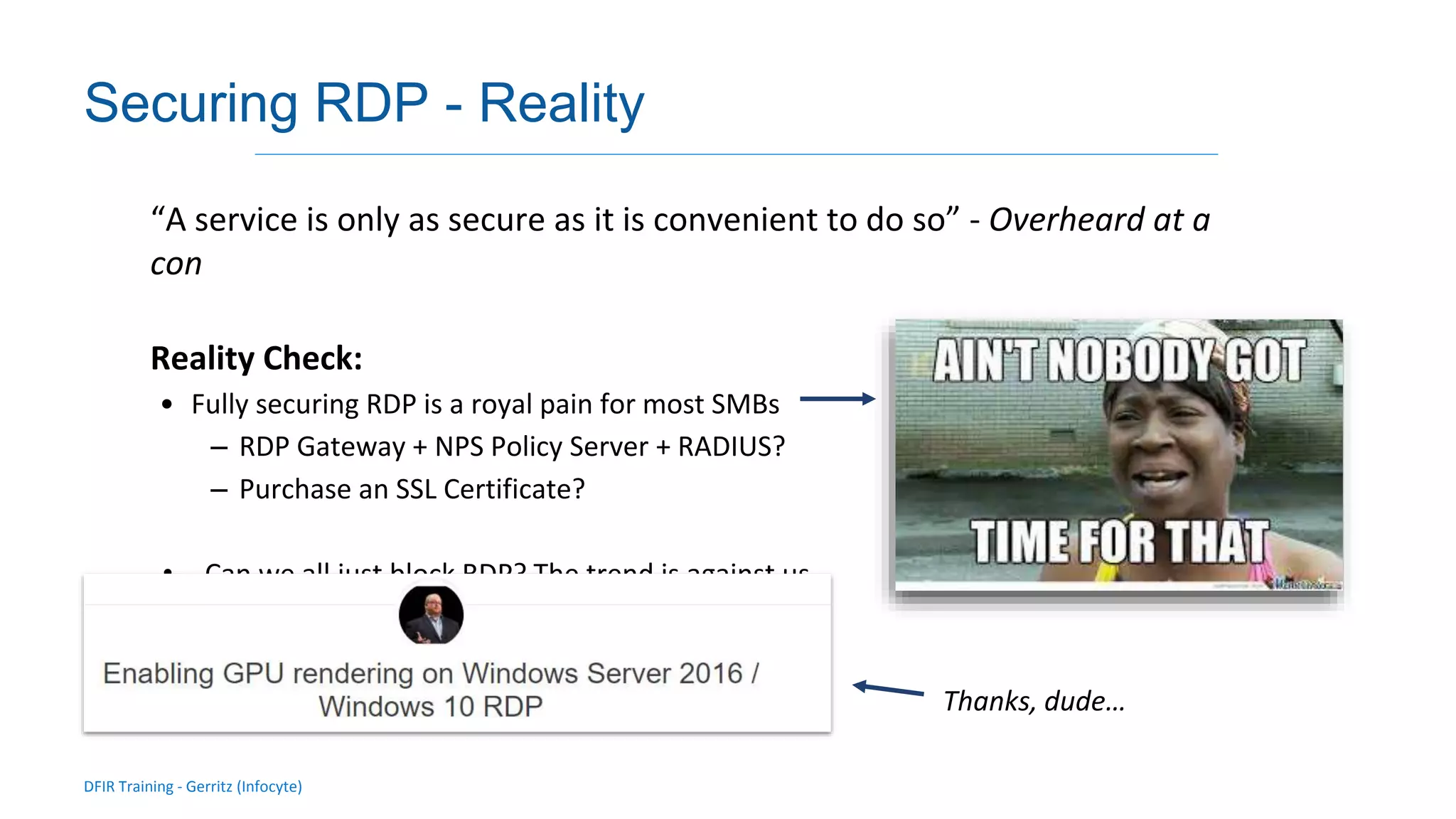

19. DFIR Training - Gerritz (Infocyte)
Validating integrity via live forensic analysis of a set of hosts
Securing RDP - Reality
“A service is only as secure as it is convenient to do so” - Overheard at a
con
Reality Check:
• Fully securing RDP is a royal pain for most SMBs
– RDP Gateway + NPS Policy Server + RADIUS?
– Purchase an SSL Certificate?
• Can we all just block RDP? The trend is against us...
Thanks, dude…

20. DFIR Training - Gerritz (Infocyte)
https://duo.com/docs/rdgateway
Commercial Solutions
Dou has one of the easiest to implement RD Gateway solutions I’ve seen:
• Automatic 2FA
• Auth Gateway
Azure AD MFA works
but is far more difficult to
implement.
AWS also has a solution (but I haven’t tried it)
