The document discusses using Elastic Stack to store and analyze 2 million audit logs per day from distributed systems. It introduces Elastic Stack components like Logstash, Kibana, Elasticsearch and Beats. It describes how the speaker's company Gemalto used Logstash and Elasticsearch to ingest logs from .NET applications into Elasticsearch at speeds of 1000 logs/second. Future plans include using Elasticsearch's machine learning and integrating with Kafka for cross data center replication.

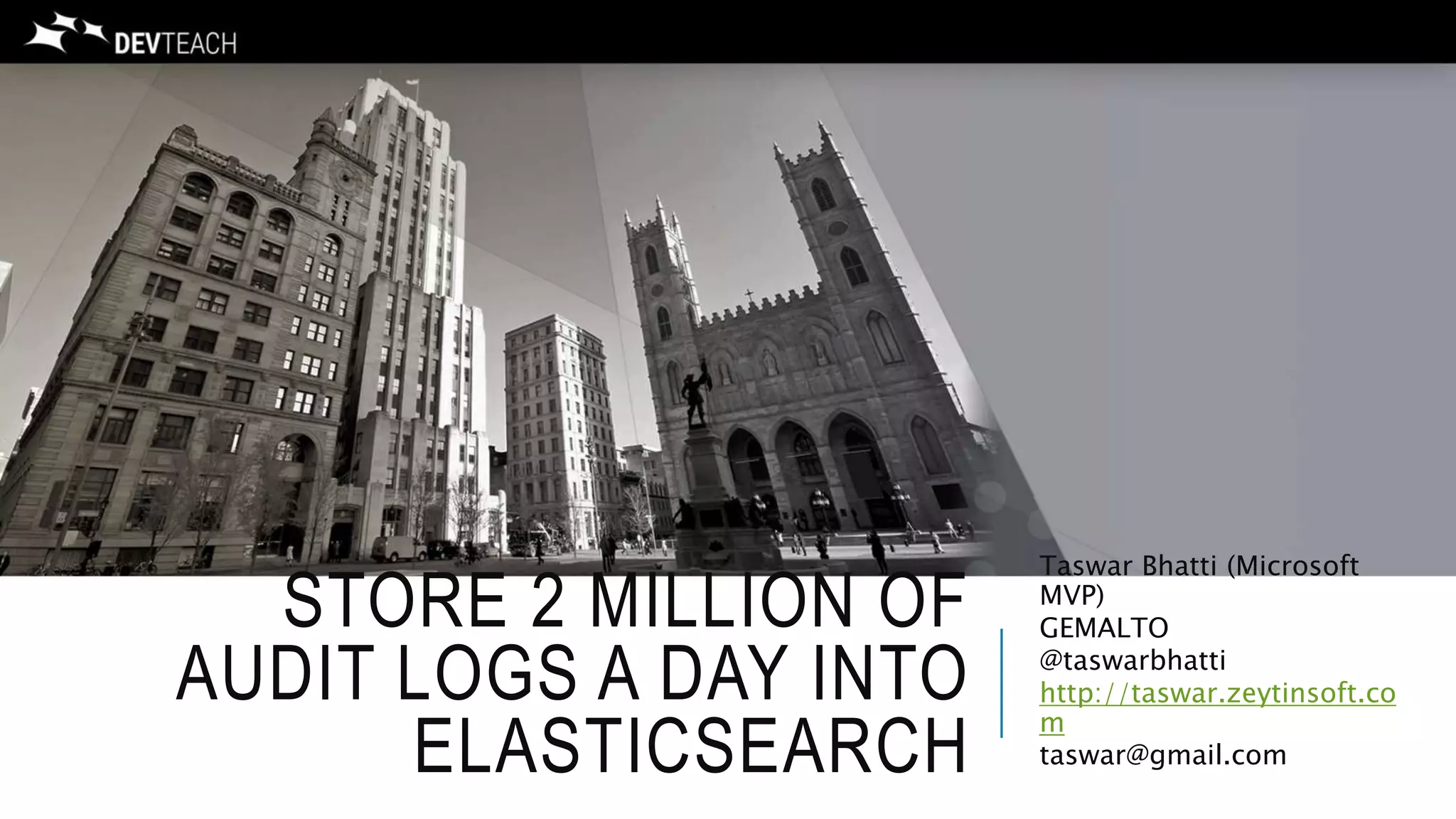

1. STORE 2 MILLION OF
AUDIT LOGS A DAY INTO
ELASTICSEARCH
Taswar Bhatti (Microsoft
MVP)
GEMALTO
@taswarbhatti
http://taswar.zeytinsoft.co
m
taswar@gmail.com

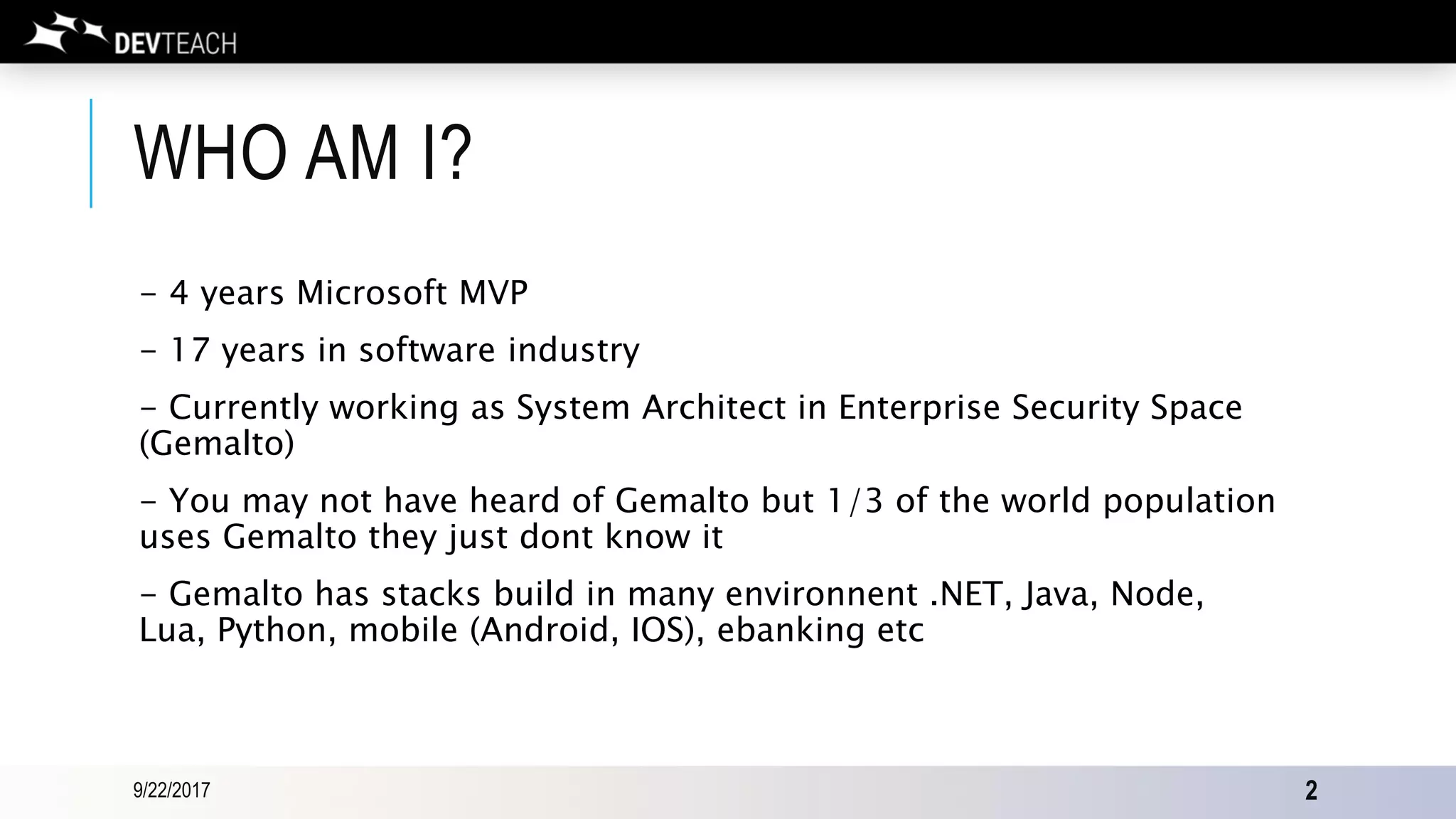

2. WHO AM I?
- 4 years Microsoft MVP
- 17 years in software industry
- Currently working as System Architect in Enterprise Security Space
(Gemalto)
- You may not have heard of Gemalto but 1/3 of the world population
uses Gemalto they just dont know it
- Gemalto has stacks build in many environnent .NET, Java, Node,
Lua, Python, mobile (Android, IOS), ebanking etc
9/22/2017 2

3. AGENDA
- Problem we had and wanted to solve with Elastic Stack
- Intro to Elastic Stack (Ecosystem)
- Logstash
- Kibana
- Beats
- Elastic Search flows designs that we have considered
- Future plans of using Elastic Search
9/22/2017 3

4. QUESTION & POLL
- How many of you are using Elastic or some other logging solution?
- How do you normally log? Where do you log?
- Do you log in Relational Database?
9/22/2017 4

5. HOW DO YOU TROUBLESHOOT OR
FIND YOUR BUGS
- Typically in a distributed environment one has to go through the
logs to find out where the issue is
- Could be multiple systems that you have to go through which
machine/server generated the log or monitoring multiple logs
- Even monitor firewall logs to find traffic routing through which data
center
- Chuck Norris never troubleshoot; the trouble kills themselves when
they see him coming
9/22/2017 5

6. 9/22/2017 6

7. OUR PROBLEM
- We had distributed systems (microservices) that would generate
many different types of logs, in different data centers
- We also had authentication audit logs that had to be secure and
stored for 1 year
- We generate around 2 millions records of audit logs a day, 4TB with
replications
- We need to generate reports out of our data for customers
- We were still using Monolith Solution in some core parts of the
application
- Growing pains of a successful application
- We want to use a centralized scalable logging system for all our9/22/2017 7

8. FINDING BUGS THROUGH LOGS
9/22/2017 8

9. A LITTLE HISTORY OF
ELASTICSEARCH
- Shay Banon created Compass in 2004
- Released Elastic Search 1.0 in 2010
- ElasticSearch the company was formed in 2012
- Shay wife is still waiting for her receipe app
9/22/2017 9

10. 9/22/2017 10

11. ELASTIC STACK
9/22/2017 11

12. ELASTICSEARCH
- Written in Java backed by Lucene
- Schema free, REST & JSON based document store
- Search Engine
- Distributed, Horizontally Scalable
- No database storage, storage is Lucene
- Apache 2.0 License
9/22/2017 12

13. COMPANIES USING ELASTIC STACK
9/22/2017 13

14. ELASTICSEARCH INDICES
- Elastic organizes document in indices
- Lucene writes and maintains the index files
- ElasticSearch writes and maintains metadata on top of Lucene
- Example: field mappings, index settings and other cluster metadata
9/22/2017 14

15. DATABASE VS ELASTIC
9/22/2017 15

16. ELASTIC CONCEPTS
- Cluster : A cluster is a collection of one or more nodes (servers)
- Node : A node is a single server that is part of your cluster, stores
your data, and participates in the cluster’s indexing and search
capabilities
- Index : An index is a collection of documents that have somewhat
similar characteristics. (e.g Product, Customer, etc)
- Type : Within an index, you can define one or more types. A type is
a logical category/partition of your index.
- Document : A document is a basic unit of information that can be
indexed
- Shard/Replica: Index divided into multiple pieces called shards,
replicas are copy of your shards9/22/2017 16

17. ELASTIC NODES
- Master Node : which controls the cluster
- Data Node : Data nodes hold data and perform data related
operations such as CRUD, search, and aggregations.
- Ingest Node : Ingest nodes are able to apply an ingest pipeline to a
document in order to transform and enrich the document before
indexing
- Coordinating Node : only route requests, handle the search reduce
phase, and distribute bulk indexing.
9/22/2017 17

18. SAMPLE JSON DOCUMENT
HTTP CALL JSON DOCUMENT
9/22/2017 18

19. ELASTICSEARCH CLUSTER
9/22/2017 19

20. TYPICAL CLUSTER SHARD &
REPLICA
9/22/2017 20

21. SHARD SEARCH AND INDEX
9/22/2017 21

22. DEMO OF ELASTICSEARCH
9/22/2017 22

23. LOGSTASH
- Ruby application runs under
JRuby on the JVM
- Collects, parse, enrich data
- Horizontally scalable
- Apache 2.0 License
- Large amount of public plugins
written by Community
https://github.com/logstash-
plugins
9/22/2017 23

24. TYPICAL USAGE OF LOGSTASH
9/22/2017 24

25. 9/22/2017 25

26. LOGSTASH INPUT
9/22/2017 26

27. LOGSTASH FILTER
9/22/2017 27

28. LOGSTASH OUTPUT
9/22/2017 28

29. DEMO LOGSTASH
9/22/2017 29

30. BEATS
9/22/2017 30

31. BEATS
- Lightweight shippers written in Golang (Non JVM shops can use
them)
- They follow unix philosophy; do one specific thing, and do it well
- Filebeat : Logfile (think of it tail –f on steroids)
- Metricbeat : CPU, Memory (like top), redis, mongodb usage
- Packetbeat : Wireshark uses libpcap, monitoring packet http etc
- Winlogbeat : Windows event logs to elastic
- Dockbeat : Monitoring docker
- Large community lots of other beats offered as opensource
9/22/2017 31

32. 9/22/2017 32

33. FILEBEAT
9/22/2017 33

34. X-PACK
- Elastic commercial offering (This is one of the ways they make
money)
- X-Pack is an Elastic Stack extension that bundles
- Security (https to elastic, password to access Kibana)
- Alerting
- Monitoring
- Reporting
- Graph capabilities
- Machine Learning
9/22/2017 34

35. 9/22/2017 35

36. KIBANA
- Visual Application for Elastic Search (JS, Angular, D3)
- Powerful frontend for dashboard for visualizing index information
from elastic search
- Historical data to form charts, graphs etc
- Realtime search for index information
9/22/2017 36

37. 9/22/2017 37

38. DEMO KIBANA
9/22/2017 38

39. DESIGNS WE WENT THROUGH
- We started with simple design to measure throughput
- One instance of logstash and one instance of ElasticSearch with
filebeat
9/22/2017 39

40. DOTNET CORE APP
- We used a dotnetcore application to generate logs
- Serilog to generate into json format and stored on file
- Filebeat was installed on the linux machine to ship the logs to
logstash
9/22/2017 40

41. PERFORMANCE ELASTIC
- 250 logs item per second for 30 minutes
9/22/2017 41

42. OVERVIEW
9/22/2017 42

43. LOGSTASH
9/22/2017 43

44. ELASTIC SEARCH RUN TWO
- 1000 logs per second, run for 30 minutes
9/22/2017 44

45. PERFORMANCE
9/22/2017 45

46. OTHER DESIGNS
9/22/2017 46

47. WHAT WE ARE GOING WITH FOR
NOW, UNTIL…..
9/22/2017 47

48. CONSIDERATIONS OF DATA
- Index by day make sense in some cases
- In other you may want to index by size rather (Black Friday more
traffic than other days) when Shards are not balance ElasticSearch
doesn’t like that
- Don’t index everything, if you are not going to search on specific
fields mark them as text
9/22/2017 48

49. FUTURE CONSIDERATIONS
- Investigate into Elastic Search Machine learning
- ElasticSearch with Kafka for cross data center replication
9/22/2017 49

50. THANK YOU & OPEN TO
QUESTIONS
- Questions???
- Contact: Taswar@gmail.com
- Blog:
http://Taswar.zeytinsoft.com
- Twitter: @taswarbhatti
- LinkedIn (find me and add me)
9/22/2017 50
