An introduction to Microsoft Bot Framework
- 1. Introduction to Bot Framework TaswarBhatti @taswarbhatti http://taswar.zeytinsoft.com

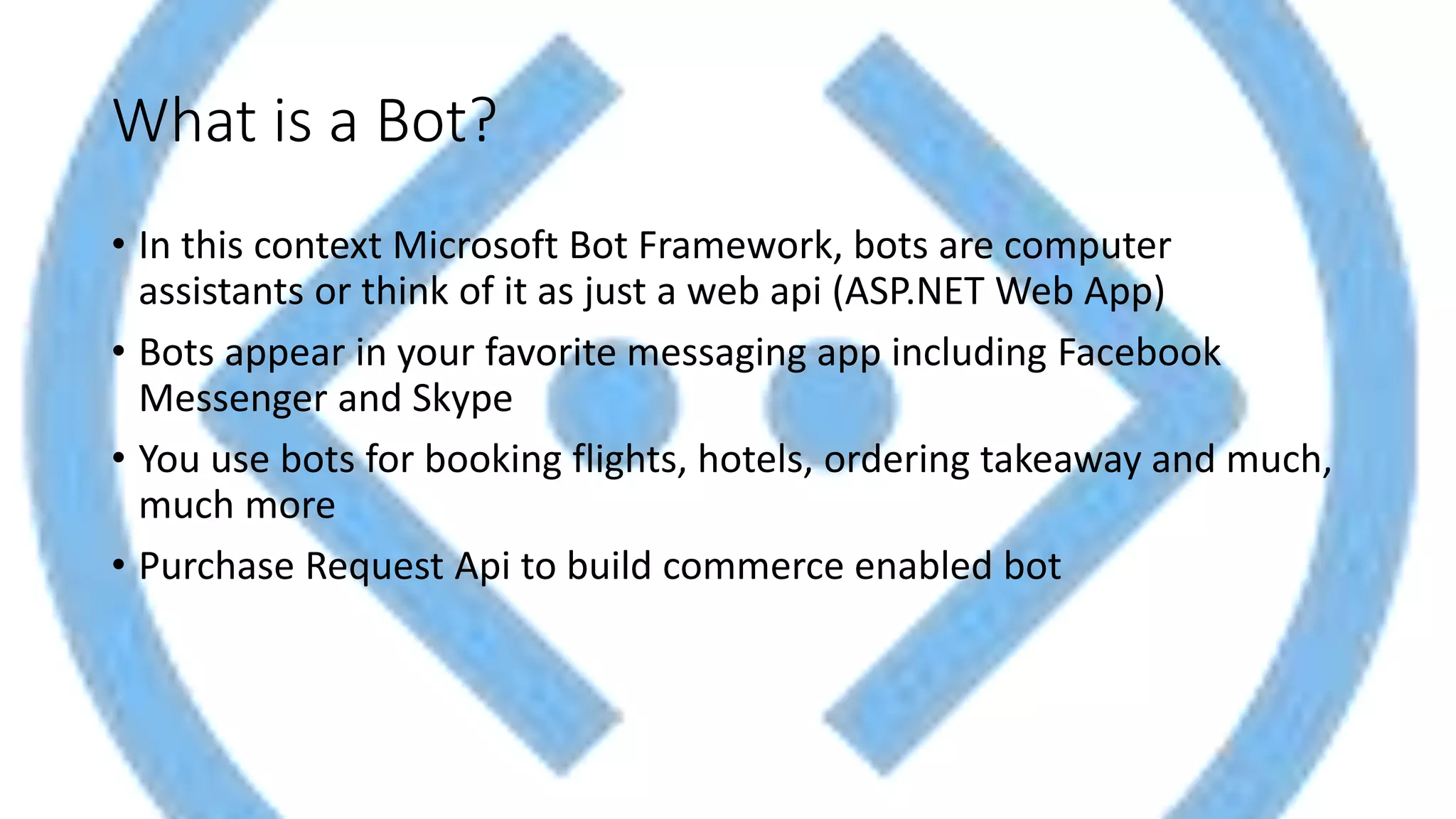

- 2. What is aBot? • In this context Microsoft Bot Framework, bots are computer assistants or think of it as just a web api (ASP.NET Web App) • Bots appear in your favorite messaging app including Facebook Messenger and Skype • You use bots for booking flights, hotels, ordering takeaway and much, much more • Purchase Request Api to build commerce enabled bot
- 3. Not, not thisBot!
- 4. Bot Framework Overview •The Microsoft Bot Framework consists of: • Bot Builder SDK(.NET, Node.js, REST Api) • Bot Framework Emulator for Windows, Linux and Mac • Bot Connector • Developer Portal (http://dev.botframework.com) • Bot Directory
- 5. High Level viewof Bots
- 6.
- 7.
- 8. An Echo BotCode • [BotAuthentication] • public class MessagesController : ApiController{ • public async Task<HttpResponseMessage> Post([FromBody]Activity activity) { • if (activity.Type == ActivityTypes.Message) { • ConnectorClient connector = new ConnectorClient(new Uri(activity.ServiceUrl)); • // return our reply to the user • Activity reply = activity.CreateReply($"Echo {activity.Text}"); • await connector.Conversations.ReplyToActivityAsync(reply); • } else { • HandleSystemMessage(activity); • } • var response = Request.CreateResponse(HttpStatusCode.OK); • return response; • } • }
- 9. Bot Emulator • TheBot Famework Emulator is a desktop application that allows bot developers to test and debug their bots on localhost • It is supported on Windows, Linux and Mac
- 10.
- 11.
- 12. Bot Builder Dialogand Sessions • Bot builder uses dialogs to manage a bot conversation between a user • Session Objects are passed to the dialog handlers • Session Objects are the primary mechnics between bots and users
- 13. Types of Dialogs •Prompts – Text, Confirm, Number, Time, Choice, etc • Waterfall dialogs – collection and use sequence of steps • User Data – Store data of user, conversation (private data) Payload max is 32k • Intent Dialog – listen to keywords or phrases using NLP (e.g LUIS) • Attachments and Cards – For Rich Objects (media or images)
- 14. Demo Search Imageand Card • Using cognitive vision api
- 15. Guideline for bots •Don’t send a bot to do a webpages’s job • Bots are just apps • Don’t abuse Natural Language Processing • Sometimes buttons do everything you need • Its all a matter of User Experience
- 16. Resources • Microsoft BotFramework Resources (http://aka.ms/botresources) • LUIS (https://www.luis.ai) • Azure Trail (https://azure.Microsoft.com/services/bot-services) • Books (Building Bots with Microsoft Bot Framework PACKT) • Books (Programming the Microsoft Bot Framework MSPress) • An introduction to Microsoft Bot Framework
