Test Kitchen: Testing Ansible Roles in EC2
Environment Variables](https://image.slidesharecdn.com/201505-testingansibleroles-150515100928-lva1-app6891/85/Test-Driven-Infrastructure-with-Ansible-Test-Kitchen-Serverspec-and-RSpec-53-320.jpg)
Uploaded byMartin Etmajer
Test-Driven Infrastructure with Ansible, Test Kitchen, Serverspec and RSpec
The document provides an overview of integrating Dynatrace with Ansible, Test Kitchen, and other DevOps tools to enhance continuous delivery by minimizing cycle times and improving test-driven infrastructure. It details Test Kitchen's architecture, including drivers, platforms, and provisioners, and describes how to write and execute tests for infrastructures using RSpec and Serverspec. Additionally, it highlights advanced configurations for testing Ansible roles and deploying in cloud environments such as AWS.
More Related Content
Similar to Test-Driven Infrastructure with Ansible, Test Kitchen, Serverspec and RSpec
Test-Driven Infrastructure with Ansible, Test Kitchen, Serverspec and RSpec
- 1. 1 #Dynatrace with Ansible,Test Kitchen, Serverspec and RSpec Test-Driven Infrastructure DevOps Days Berlin
- 2. 2 #Dynatrace Insert image here TechnologyStrategist at Dynatrace martin.etmajer@dynatrace.com @metmajer Martin Etmajer
- 3. 3 #Dynatrace Why ContinuousDelivery?
- 4. 4 #Dynatrace Why ContinuousDelivery?

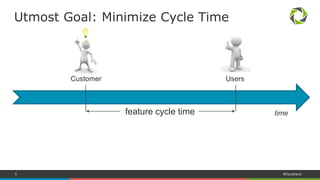

- 5. 5 #Dynatrace Utmost Goal:Minimize Cycle Time feature cycle time time Customer Users

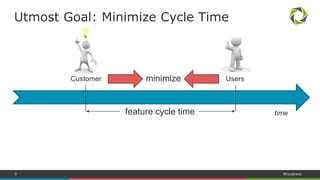

- 6. 6 #Dynatrace Utmost Goal:Minimize Cycle Time feature cycle time time Customer minimize Users

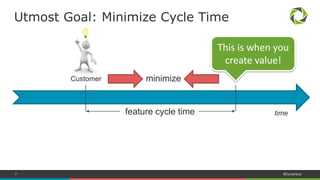

- 7. 7 #Dynatrace Utmost Goal:Minimize Cycle Time feature cycle time time Customer This is when you create value! minimize

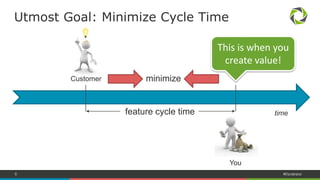

- 8. 8 #Dynatrace Utmost Goal:Minimize Cycle Time feature cycle time time Customer You This is when you create value! minimize

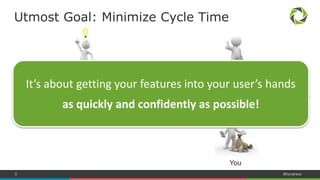

- 9. 9 #Dynatrace Utmost Goal:Minimize Cycle Time feature cycle time time Customer You minimize It’s about getting your features into your users’ hands as quickly and confidently as possible!

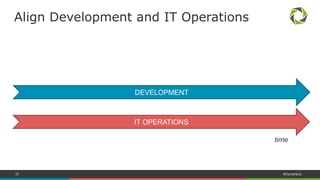

- 10. 10 #Dynatrace Align Developmentand IT Operations IT OPERATIONS DEVELOPMENT time

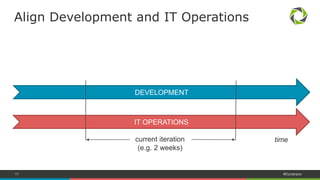

- 11. 11 #Dynatrace Align Developmentand IT Operations IT OPERATIONS DEVELOPMENT current iteration (e.g. 2-week time-box) time

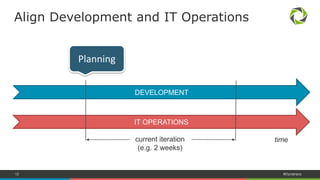

- 12. 12 #Dynatrace Align Developmentand IT Operations IT OPERATIONS DEVELOPMENT current iteration (e.g. 2-week time-box) time Planning

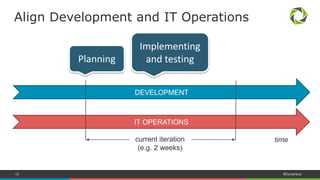

- 13. 13 #Dynatrace Align Developmentand IT Operations IT OPERATIONS DEVELOPMENT current iteration (e.g. 2-week time-box) time Planning Implementing and testing
- 14. 14 #Dynatrace Align Developmentand IT Operations IT OPERATIONS DEVELOPMENT current iteration (e.g. 2-week time-box) time Planning Implementing and testing Working and deployable code
- 15.
- 16.
- 17. 17 #Dynatrace “Make itwork. Make it right. Make it fast.” Kent Beck, Creator of Extreme Programming and Test-Driven Development Get the code to operate correctly Make the code clear, enforce good design Optimize

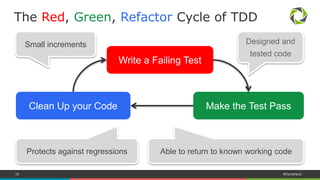

- 18. 18 #Dynatrace The Red,Green, Refactor Cycle of TDD Write a Failing Test Make the Test PassClean Up your Code Small increments Able to return to known working code Designed and tested code Protects against regressions
- 19. 19 #Dynatrace » Refactoring »simplify » modularize (use 3rd-party Ansible roles) » Migrating to different Platforms » OS » Cloud Providers » Migrating to different Automation Tool » Ansible, Chef, Puppet » Bash, Perl, etc. Why you shouldn’t rely on a single tool?
- 20. 20 #Dynatrace » Refactoring »simplify » modularize (use 3rd-party Ansible roles) » Migrating to different Platforms » OS » Cloud Providers » Migrating to different Automation Tool » Ansible, Chef, Puppet » Bash, Perl, etc. Why you shouldn’t rely on a single tool? With TDD you express your intentions twice: once in the code and once in the test. If they don’t match, tests fail and you’ve caught a bug!

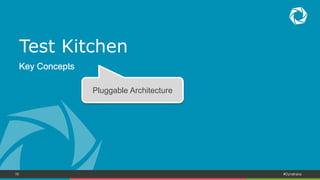

- 21. 21 #Dynatrace Test Kitchen KeyConcepts Pluggable Architecture

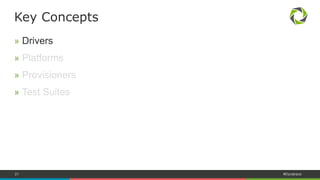

- 22. 22 #Dynatrace » Drivers »Platforms » Provisioners » Test Suites Key Concepts
- 23. 23 #Dynatrace » Drivers »Platforms » Provisioners » Test Suites Key Concepts

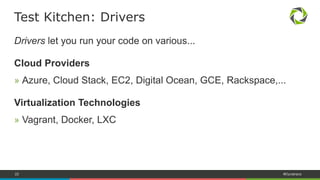

- 24. 24 #Dynatrace Drivers letyou run your code on various... Cloud Providers » Azure, Cloud Stack, EC2, Digital Ocean, GCE, Rackspace,... Virtualization Technologies » Vagrant, Docker, LXC Test Kitchen: Drivers

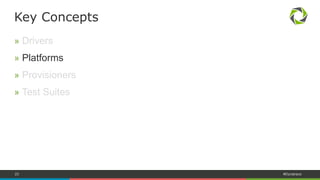

- 25. 25 #Dynatrace » Drivers »Platforms » Provisioners » Test Suites Key Concepts

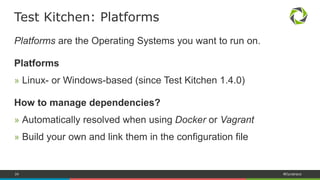

- 26. 26 #Dynatrace Platforms arethe Operating Systems you want to run on. Platforms » Linux- or Windows-based (since Test Kitchen 1.4.0) How to manage dependencies? » Automatically resolved when using Docker or Vagrant » Build your own and link them in the configuration file Test Kitchen: Platforms

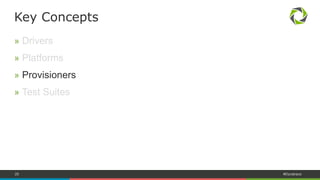

- 27. 27 #Dynatrace » Drivers »Platforms » Provisioners » Test Suites Key Concepts

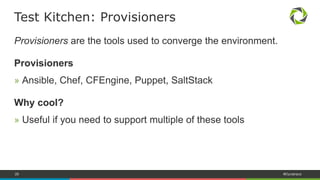

- 28. 28 #Dynatrace Provisioners arethe tools used to converge the environment. Provisioners » Ansible, Chef, CFEngine, Puppet, SaltStack Why cool? » Useful if you need to support multiple of these tools Test Kitchen: Provisioners
- 29. 29 #Dynatrace » Drivers »Platforms » Provisioners » Test Suites Key Concepts

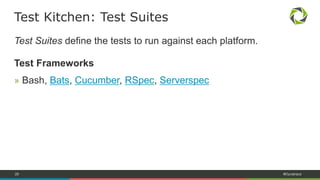

- 30. 30 #Dynatrace Test Suitesdefine the tests to run against each platform. Test Frameworks » Bash, Bats, Cucumber, RSpec, Serverspec Test Kitchen: Test Suites
- 31.
- 32. 32 #Dynatrace Installation Ready? $ geminstall test-kitchen kitchen-docker kitchen-ansible Test Kitchen: Installation $ kitchen version Test Kitchen version 1.4.2
- 33.

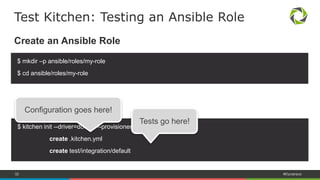

- 34. 34 #Dynatrace Create anAnsible Role Initialize Test Kitchen $ mkdir –p ansible/roles/my-role $ cd ansible/roles/my-role Test Kitchen: Testing an Ansible Role $ kitchen init --driver=docker --provisioner=ansible_playbook create .kitchen.yml create test/integration/default Configuration goes here! Tests go here!

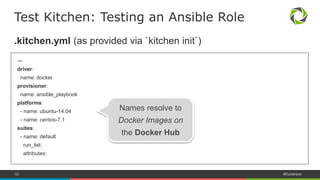

- 35. 35 #Dynatrace .kitchen.yml (asprovided via `kitchen init`) --- driver: name: docker provisioner: name: ansible_playbook platforms: - name: ubuntu-14.04 - name: centos-7.1 suites: - name: default run_list: attributes: Test Kitchen: Testing an Ansible Role Names resolve to Docker Images on the Docker Hub

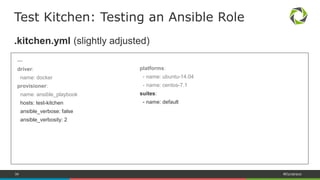

- 36. 36 #Dynatrace .kitchen.yml (slightlyadjusted) --- driver: name: docker provisioner: name: ansible_playbook hosts: test-kitchen ansible_verbose: false ansible_verbosity: 2 Test Kitchen: Testing an Ansible Role platforms: - name: ubuntu-14.04 - name: centos-7.1 suites: - name: default

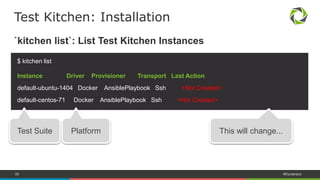

- 37. 37 #Dynatrace $ kitchenlist Instance Driver Provisioner Transport Last Action default-ubuntu-1404 Docker AnsiblePlaybook Ssh <Not Created> default-centos-71 Docker AnsiblePlaybook Ssh <Not Created> `kitchen list`: List Test Kitchen Instances Test Kitchen: Installation This will change...Test Suite Platform
- 38. 38 #Dynatrace Test Kitchen Writean Integration Test

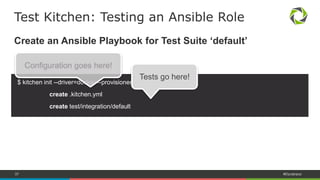

- 39. 39 #Dynatrace Create anAnsible Playbook for Test Suite ‘default’ Test Kitchen: Testing an Ansible Role $ kitchen init --driver=docker --provisioner=ansible_playbook create .kitchen.yml create test/integration/default Configuration goes here! Tests go here!

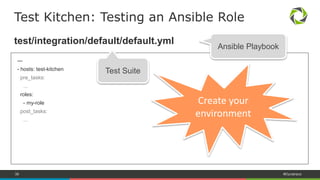

- 40. 40 #Dynatrace test/integration/default/default.yml --- - hosts:test-kitchen pre_tasks: ... roles: - my-role post_tasks: ... Test Kitchen: Testing an Ansible Role Create your environment Ansible Playbook Test Suite

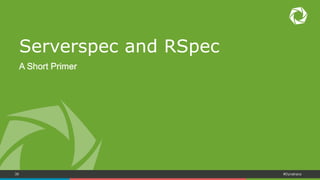

- 41. 41 #Dynatrace Serverspec andRSpec A Short Primer

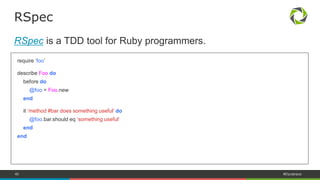

- 42. 42 #Dynatrace RSpec isa TDD tool for Ruby programmers. RSpec require ‘foo’ describe Foo do before do @foo = Foo.new end it ‘method #bar does something useful’ do @foo.bar.should eq ‘something useful’ end end

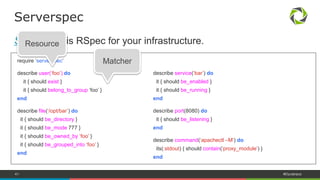

- 43. 43 #Dynatrace Serverspec isRSpec for your infrastructure. Serverspec require ‘serverspec’ describe user(‘foo’) do it { should exist } it { should belong_to_group ‘foo’ } end describe file(‘/opt/bar’) do it { should be_directory } it { should be_mode 777 } it { should be_owned_by ‘foo’ } it { should be_grouped_into ‘foo’ } end describe service(‘bar’) do it { should be_enabled } it { should be_running } end describe port(8080) do it { should be_listening } end describe command(‘apachectl –M’) do its(:stdout) { should contain(‘proxy_module’) } end Resource Matcher

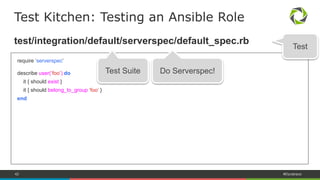

- 44. 44 #Dynatrace test/integration/default/serverspec/default_spec.rb require ‘serverspec’ describeuser(‘foo’) do it { should exist } it { should belong_to_group ‘foo’ } end Test Kitchen: Testing an Ansible Role Test Test Suite Do Serverspec!

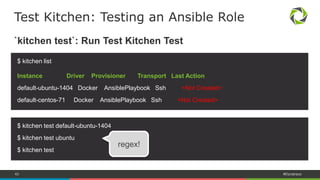

- 45. 45 #Dynatrace `kitchen test`:Run Test Kitchen Tests Test Kitchen: Testing an Ansible Role $ kitchen test default-ubuntu-1404 $ kitchen test ubuntu $ kitchen test regex! $ kitchen list Instance Driver Provisioner Transport Last Action default-ubuntu-1404 Docker AnsiblePlaybook Ssh <Not Created> default-centos-71 Docker AnsiblePlaybook Ssh <Not Created>
- 46. 46 #Dynatrace Test Kitchen:Stages test = converge verify destroy Instance created and provisioned Instance tested and verified

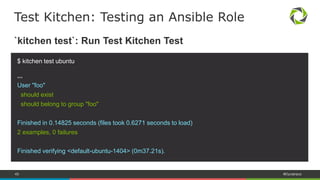

- 47. 47 #Dynatrace `kitchen verify`:Run Test Kitchen Tests $ kitchen verify ubuntu ... User "foo" should exist should belong to group "foo" Finished in 0.14825 seconds (files took 0.6271 seconds to load) 2 examples, 0 failures Finished verifying <default-ubuntu-1404> (0m37.21s). Test Kitchen: Testing an Ansible Role

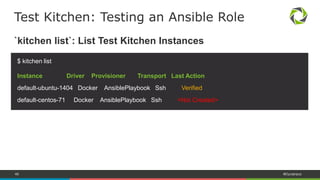

- 48. 48 #Dynatrace `kitchen list`:List Test Kitchen Instances Test Kitchen: Testing an Ansible Role $ kitchen list Instance Driver Provisioner Transport Last Action default-ubuntu-1404 Docker AnsiblePlaybook Ssh Verified default-centos-71 Docker AnsiblePlaybook Ssh <Not Created>
- 49. 49 #Dynatrace Test Kitchenwith Ansible Advanced Tips
- 50. 50 #Dynatrace Resolving RoleRequirements

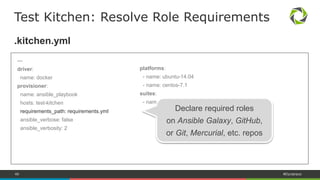

- 51. 51 #Dynatrace .kitchen.yml --- driver: name: docker provisioner: name:ansible_playbook hosts: test-kitchen requirements_path: requirements.yml ansible_verbose: false ansible_verbosity: 2 Test Kitchen: Resolve Role Requirements platforms: - name: ubuntu-14.04 - name: centos-7.1 suites: - name: default Declare required roles on Ansible Galaxy, GitHub, or Git, Mercurial, etc. repos
- 52. 52 #Dynatrace Testing AnsibleRoles in Amazon EC2

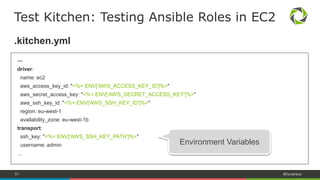

- 53. 53 #Dynatrace .kitchen.yml --- driver: name: ec2 aws_access_key_id:"<%= ENV['AWS_ACCESS_KEY_ID']%>" aws_secret_access_key: "<%= ENV['AWS_SECRET_ACCESS_KEY']%>" aws_ssh_key_id: "<%= ENV['AWS_SSH_KEY_ID']%>" region: eu-west-1 availability_zone: eu-west-1b transport: ssh_key: "<%= ENV['AWS_SSH_KEY_PATH']%>" username: admin ... Test Kitchen: Testing Ansible Roles in EC2 Environment Variables
- 54. 54 #Dynatrace Testing RESTAPIs with RSpec Not supported by Serverspec

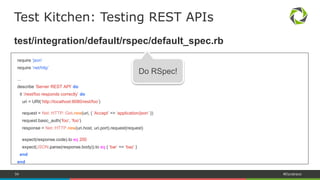

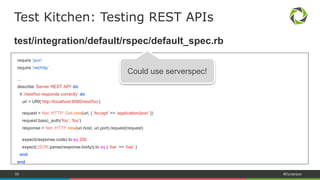

- 55. 55 #Dynatrace test/integration/default/serverspec/default_spec.rb require ‘json’ require‘net/http’ ... describe ‘Server REST API’ do it ‘/rest/foo responds correctly’ do uri = URI(‘http://localhost:8080/rest/foo’) request = Net::HTTP::Get.new(uri, { ‘Accept’ => ‘application/json’ }) request.basic_auth(‘foo’, ‘foo’) response = Net::HTTP.new(uri.host, uri.port).request(request) expect(response.code).to eq 200 expect(JSON.parse(response.body)).to eq { ‘bar’ => ‘baz’ } end end Test Kitchen: Testing REST APIs
- 56. 56 #Dynatrace Dynatrace-Ansible Project FurtherExamples: https://github.com/dynaTrace/Dynatrace-Ansible
- 57.
- 58.
- 59.
- 60.
Editor's Notes
- #17 And as we are dealing with code - “infrastructure as code” namely – why shouldn’t we apply the same principles that help us create better software to create better infrastructure? After all, a bug in the environment may have more severe consequences than a bug in a software.
- #18 See: - http://c2.com/cgi/wiki?MakeItWorkMakeItRightMakeItFast
- #19 See: http://www.jamesshore.com/Agile-Book/test_driven_development.html http://blog.goyello.com/2011/09/13/red-green-refactor-cycle/
