Vagrant allows users to configure and manage virtual machine environments through files and commands. It uses configuration files to define VMs and provisioning tools to automate software installation. Key features include: - Managing virtual machines from a Vagrantfile configuration - Provisioning VMs through tools like Chef and Ansible - Accessing VMs through SSH using the vagrant command - Installing plugins to add functionality like AWS integration

1. DevOps (2)
Vagrant
Mulodo Vietnam Co., Ltd.

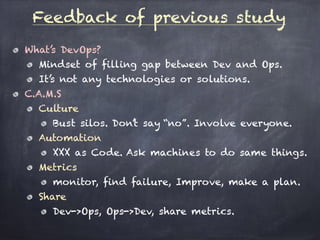

2. What’s DevOps?
Mindset of filling gap between Dev and Ops.
It’s not any technologies or solutions.
C.A.M.S
Culture
Bust silos. Don’t say “no”. Involve everyone.
Automation
XXX as Code. Ask machines to do same things.
Metrics
monitor, find failure, Improve, make a plan.
Share
Dev->Ops, Ops->Dev, share metrics.
Feedback of previous study

3. What’s DevOps?
mindset of DevOps <—- DevOps(1)
Infrastructure as Code:
Vagrant <———————————- DevOps(2) Now
Ansible
(Fabric)
What’s for ‘Infrastructure as Code’?
Scope of this study

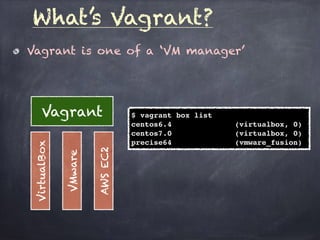

4. Vagrant is one of a ‘VM manager’
What’s Vagrant?
VirtualBox
VMware
AWSEC2
Vagrant $ vagrant box list
centos6.4 (virtualbox, 0)
centos7.0 (virtualbox, 0)
precise64 (vmware_fusion)

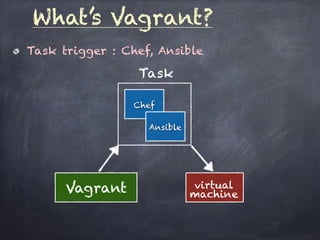

5. Task trigger : Chef, Ansible
What’s Vagrant?
Vagrant virtual
machine
Task
Chef
Ansible

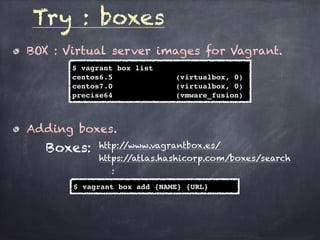

6. BOX : Virtual server images for Vagrant.
Try : boxes
$ vagrant box list
centos6.5 (virtualbox, 0)
centos7.0 (virtualbox, 0)
precise64 (vmware_fusion)
Adding boxes.
$ vagrant box add {NAME} {URL}
Boxes: http://www.vagrantbox.es/
https://atlas.hashicorp.com/boxes/search
:

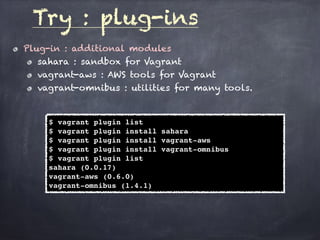

7. Plug-in : additional modules
sahara : sandbox for Vagrant
vagrant-aws : AWS tools for Vagrant
vagrant-omnibus : utilities for many tools.
Try : plug-ins
$ vagrant plugin list
$ vagrant plugin install sahara
$ vagrant plugin install vagrant-aws
$ vagrant plugin install vagrant-omnibus
$ vagrant plugin list
sahara (0.0.17)
vagrant-aws (0.6.0)
vagrant-omnibus (1.4.1)

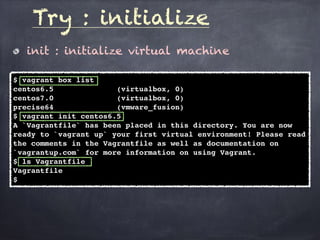

8. init : initialize virtual machine
Try : initialize
$ vagrant box list
centos6.5 (virtualbox, 0)
centos7.0 (virtualbox, 0)
precise64 (vmware_fusion)
$ vagrant init centos6.5
A `Vagrantfile` has been placed in this directory. You are now
ready to `vagrant up` your first virtual environment! Please read
the comments in the Vagrantfile as well as documentation on
`vagrantup.com` for more information on using Vagrant.
$ ls Vagrantfile
Vagrantfile
$

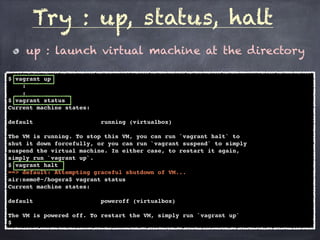

9. up : launch virtual machine at the directory
Try : up, status, halt
$ vagrant up
:
:
$ vagrant status
Current machine states:
default running (virtualbox)
The VM is running. To stop this VM, you can run `vagrant halt` to
shut it down forcefully, or you can run `vagrant suspend` to simply
suspend the virtual machine. In either case, to restart it again,
simply run `vagrant up`.
$ vagrant halt
==> default: Attempting graceful shutdown of VM...
air:nemo@~/hogera$ vagrant status
Current machine states:
default poweroff (virtualbox)
The VM is powered off. To restart the VM, simply run `vagrant up`
$

10. ssh : ssh login to virtual machine
Try: ssh
$ vagrant ssh
Last login: Wed Nov 18 09:09:04 2015 from 10.0.2.2
[vagrant@vagrant-centos64 ~]$
login by yourself
$ vagrant ssh-config
Host default
HostName 127.0.0.1
User vagrant
Port 2222
UserKnownHostsFile /dev/null
StrictHostKeyChecking no
PasswordAuthentication no
IdentityFile /XXXXXXX/.vagrant/machines/default/virtualbox/private_key
IdentitiesOnly yes
LogLevel FATAL

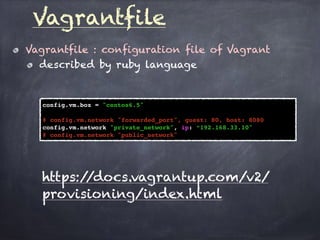

11. Vagrantfile : configuration file of Vagrant
described by ruby language
Vagrantfile
config.vm.box = "centos6.5"
# config.vm.network "forwarded_port", guest: 80, host: 8080
config.vm.network "private_network", ip: “192.168.33.10"
# config.vm.network "public_network"
https://docs.vagrantup.com/v2/
provisioning/index.html

12. Try: provision, reload
provision:
apply provision against running virtual machine.
$ vagrant provision
:
$
reload
halt and up (= restart)
with ‘--provision’ option, force provisioning.
$ vagrant reload
:
$ vagrant reload --provision
:
$

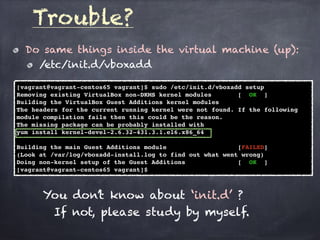

13. Trouble?
Do same things inside the virtual machine (up):
/etc/init.d/vboxadd
[vagrant@vagrant-centos65 vagrant]$ sudo /etc/init.d/vboxadd setup
Removing existing VirtualBox non-DKMS kernel modules [ OK ]
Building the VirtualBox Guest Additions kernel modules
The headers for the current running kernel were not found. If the following
module compilation fails then this could be the reason.
The missing package can be probably installed with
yum install kernel-devel-2.6.32-431.3.1.el6.x86_64
Building the main Guest Additions module [FAILED]
(Look at /var/log/vboxadd-install.log to find out what went wrong)
Doing non-kernel setup of the Guest Additions [ OK ]
[vagrant@vagrant-centos65 vagrant]$
You don’t know about ‘init.d’ ?
If not, please study by myself.

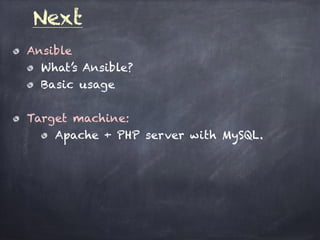

14. Next
Ansible
What’s Ansible?
Basic usage
Target machine:
Apache + PHP server with MySQL.
