1. How to develop
Puppet Modules
From source to the Forge
with zero clicks
Carlos Sanchez
@csanchez
http://csanchez.org
http://maestrodev.com

2. @csanchez Apache
Maven
ASF
Member
Eclipse
Foundation
csanchez.org
maestrodev.com

3. Modules

6. We use 50 modules

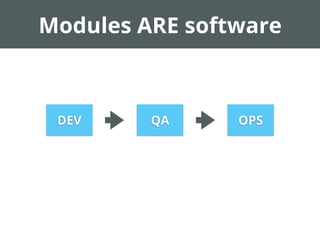

8. DEV QA OPS
Modules ARE software

9. oh my
Versions
Dependencies
Incompabilities

11. Specs

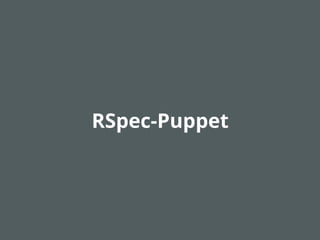

12. RSpec-Puppet

13. Gemfile
source 'https://rubygems.org'
group :rake do
gem 'puppet'
gem 'rake'
gem 'puppet-lint'
gem 'rspec-puppet'
end

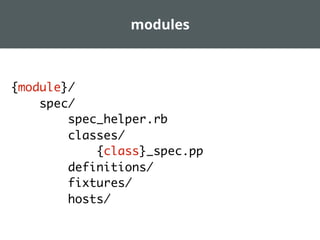

14. modules
{module}/
spec/
spec_helper.rb
classes/
{class}_spec.pp
definitions/
fixtures/
hosts/

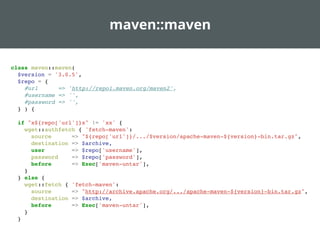

15. maven::maven
class maven::maven(
$version = '3.0.5',
$repo = {
#url => 'http://repo1.maven.org/maven2',
#username => '',
#password => '',
} ) {
if "x${repo['url']}x" != 'xx' {
wget::authfetch { 'fetch-maven':
source => "${repo['url']}/.../$version/apache-maven-${version}-bin.tar.gz",
destination => $archive,
user => $repo['username'],
password => $repo['password'],
before => Exec['maven-untar'],
}
} else {
wget::fetch { 'fetch-maven':
source => "http://archive.apache.org/.../apache-maven-${version}-bin.tar.gz",
destination => $archive,
before => Exec['maven-untar'],
}
}

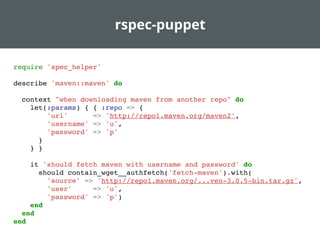

16. rspec-puppet
require 'spec_helper'
describe 'maven::maven' do
context "when downloading maven from another repo" do
let(:params) { { :repo => {
'url' => 'http://repo1.maven.org/maven2',
'username' => 'u',
'password' => 'p'
}
} }
it 'should fetch maven with username and password' do
should contain_wget__authfetch('fetch-maven').with(
'source' => 'http://repo1.maven.org/...ven-3.0.5-bin.tar.gz',
'user' => 'u',
'password' => 'p')
end
end
end

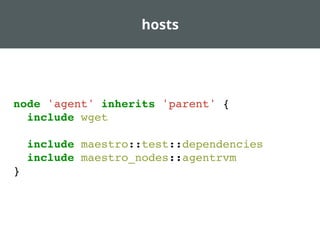

17. hosts
node 'agent' inherits 'parent' {
include wget
include maestro::test::dependencies
include maestro_nodes::agentrvm
}

18. hosts
require 'spec_helper'
describe 'agent' do
it do should contain_class('maestro::agent').with(
'agent_name' => 'agent-01',
'stomp_host' => 'maestro.maestrodev.net')
end
it { should_not contain_service('maestro') }
it { should_not contain_service('activemq') }
it { should_not contain_service('jenkins') }
it { should_not contain_service('postgresqld') }
it { should_not contain_service('maestro-test-hub') }
it { should_not contain_service('sonar') }
it { should_not contain_service('archiva') }
end

19. rspec-puppet with facts
require 'spec_helper'
describe 'wget' do
context 'running on OS X' do
let(:facts) { {:operatingsystem => 'Darwin'} }
it { should_not contain_package('wget') }
end
context 'running on CentOS' do
let(:facts) { {:operatingsystem => 'CentOS'} }
it { should contain_package('wget') }
end
context 'no version specified' do
it { should contain_package('wget').with_ensure('installed') }
end
context 'version is 1.2.3' do
let(:params) { {:version => '1.2.3'} }
it { should contain_package('wget').with_ensure('1.2.3') }
end
end

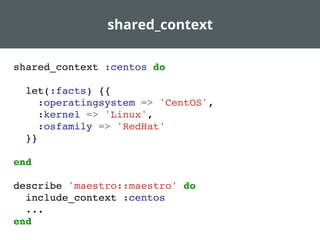

20. shared_context
shared_context :centos do
let(:facts) {{
:operatingsystem => 'CentOS',
:kernel => 'Linux',
:osfamily => 'RedHat'
}}
end
describe 'maestro::maestro' do
include_context :centos
...
end

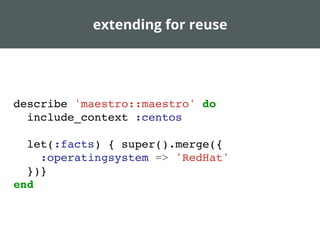

21. extending for reuse
describe 'maestro::maestro' do
include_context :centos
let(:facts) { super().merge({
:operatingsystem => 'RedHat'
})}
end

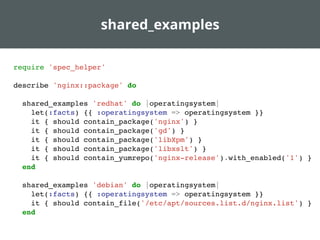

22. shared_examples
require 'spec_helper'
describe 'nginx::package' do
shared_examples 'redhat' do |operatingsystem|
let(:facts) {{ :operatingsystem => operatingsystem }}
it { should contain_package('nginx') }
it { should contain_package('gd') }
it { should contain_package('libXpm') }
it { should contain_package('libxslt') }
it { should contain_yumrepo('nginx-release').with_enabled('1') }
end
shared_examples 'debian' do |operatingsystem|
let(:facts) {{ :operatingsystem => operatingsystem }}
it { should contain_file('/etc/apt/sources.list.d/nginx.list') }
end

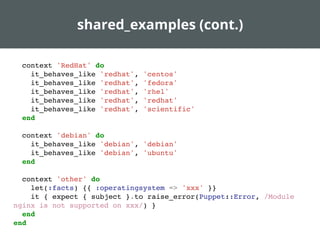

23. shared_examples (cont.)
context 'RedHat' do
it_behaves_like 'redhat', 'centos'
it_behaves_like 'redhat', 'fedora'
it_behaves_like 'redhat', 'rhel'
it_behaves_like 'redhat', 'redhat'
it_behaves_like 'redhat', 'scientific'
end
context 'debian' do
it_behaves_like 'debian', 'debian'
it_behaves_like 'debian', 'ubuntu'
end
context 'other' do
let(:facts) {{ :operatingsystem => 'xxx' }}
it { expect { subject }.to raise_error(Puppet::Error, /Module
nginx is not supported on xxx/) }
end
end

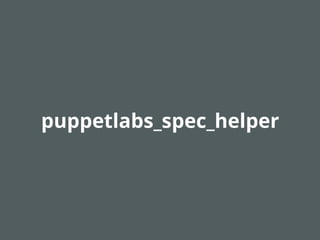

24. puppetlabs_spec_helper

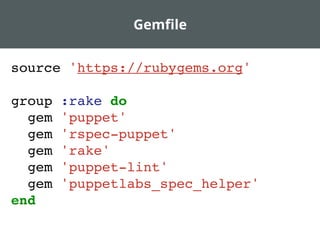

25. Gemfile
source 'https://rubygems.org'
group :rake do
gem 'puppet'
gem 'rspec-puppet'
gem 'rake'
gem 'puppet-lint'
gem 'puppetlabs_spec_helper'
end

26. Rakefile
require 'puppetlabs_spec_helper/rake_tasks'
build # Build puppet module package
clean # Clean a built module package
coverage # Generate code coverage information
lint # Check puppet manifests with puppet-lint
spec # Run spec tests in a clean fixtures directory
spec_clean # Clean up the fixtures directory
spec_prep # Create the fixtures directory
spec_standalone # Run spec tests on an existing fixtures directory

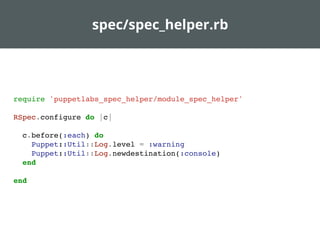

27. spec/spec_helper.rb
require 'puppetlabs_spec_helper/module_spec_helper'
RSpec.configure do |c|
c.before(:each) do
Puppet::Util::Log.level = :warning
Puppet::Util::Log.newdestination(:console)
end
end

28. .fixtures
# bring modules into spec/fixtures
fixtures:
repositories:
firewall: "git://github.com/puppetlabs/puppetlabs-firewall"
stdlib:
repo: "git://github.com/puppetlabs/puppetlabs-stdlib"
ref: "2.6.0"
symlinks:
my_module: "#{source_dir}"

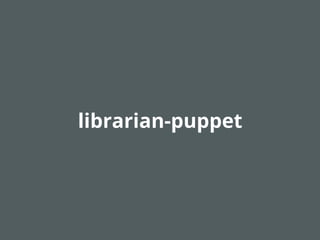

29. librarian-puppet

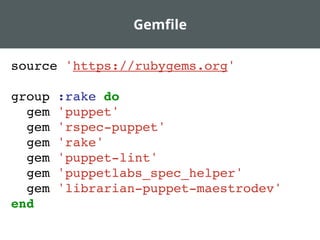

30. Gemfile
source 'https://rubygems.org'
group :rake do
gem 'puppet'
gem 'rspec-puppet'
gem 'rake'
gem 'puppet-lint'
gem 'puppetlabs_spec_helper'
gem 'librarian-puppet-maestrodev'
end

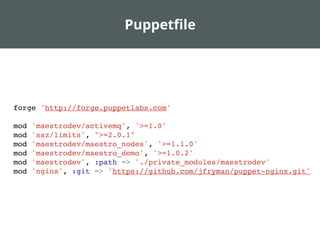

31. Puppetfile
forge 'http://forge.puppetlabs.com'
mod 'maestrodev/activemq', '>=1.0'
mod 'saz/limits', ">=2.0.1"
mod 'maestrodev/maestro_nodes', '>=1.1.0'
mod 'maestrodev/maestro_demo', '>=1.0.2'
mod 'maestrodev', :path => './private_modules/maestrodev'
mod 'nginx', :git => 'https://github.com/jfryman/puppet-nginx.git'

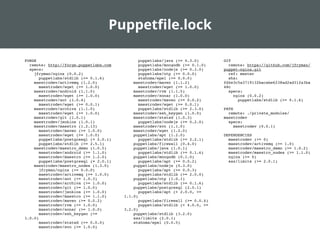

33. Puppetfile.lock
FORGE
remote: http://forge.puppetlabs.com
specs:
jfryman/nginx (0.0.2)
puppetlabs/stdlib (>= 0.1.6)
maestrodev/activemq (1.2.0)
maestrodev/wget (>= 1.0.0)
maestrodev/android (1.1.0)
maestrodev/wget (>= 1.0.0)
maestrodev/ant (1.0.4)
maestrodev/wget (>= 0.0.1)
maestrodev/archiva (1.1.0)
maestrodev/wget (>= 1.0.0)
maestrodev/git (1.0.1)
maestrodev/jenkins (1.0.1)
maestrodev/maestro (1.2.13)
maestrodev/maven (>= 1.0.0)
maestrodev/wget (>= 1.0.0)
puppetlabs/postgresql (= 2.0.1)
puppetlabs/stdlib (>= 2.5.1)
maestrodev/maestro_demo (1.0.5)
maestrodev/android (>= 1.1.0)
maestrodev/maestro (>= 1.2.0)
puppetlabs/postgresql (= 2.0.1)
maestrodev/maestro_nodes (1.3.0)
jfryman/nginx (>= 0.0.0)
maestrodev/activemq (>= 1.0.0)
maestrodev/ant (>= 1.0.3)
maestrodev/archiva (>= 1.0.0)
maestrodev/git (>= 1.0.0)
maestrodev/jenkins (>= 1.0.0)
maestrodev/maestro (>= 1.1.0)
maestrodev/maven (>= 0.0.2)
maestrodev/rvm (>= 1.0.0)
maestrodev/sonar (>= 1.0.0)
maestrodev/ssh_keygen (>=
1.0.0)
maestrodev/statsd (>= 0.0.0)
maestrodev/svn (>= 1.0.0)
puppetlabs/java (>= 0.3.0)
puppetlabs/mongodb (>= 0.1.0)
puppetlabs/nodejs (>= 0.3.0)
puppetlabs/ntp (>= 0.0.0)
stahnma/epel (>= 0.0.0)
maestrodev/maven (1.1.2)
maestrodev/wget (>= 1.0.0)
maestrodev/rvm (1.1.5)
maestrodev/sonar (1.0.0)
maestrodev/maven (>= 0.0.2)
maestrodev/wget (>= 0.0.1)
puppetlabs/stdlib (>= 2.3.0)
maestrodev/ssh_keygen (1.0.0)
maestrodev/statsd (1.0.3)
puppetlabs/nodejs (>= 0.2.0)
maestrodev/svn (1.1.0)
maestrodev/wget (1.2.0)
puppetlabs/apt (1.2.0)
puppetlabs/stdlib (>= 2.2.1)
puppetlabs/firewall (0.4.0)
puppetlabs/java (1.0.1)
puppetlabs/stdlib (>= 0.1.6)
puppetlabs/mongodb (0.1.0)
puppetlabs/apt (>= 0.0.2)
puppetlabs/nodejs (0.3.0)
puppetlabs/apt (>= 0.0.3)
puppetlabs/stdlib (>= 2.0.0)
puppetlabs/ntp (1.0.1)
puppetlabs/stdlib (>= 0.1.6)
puppetlabs/postgresql (2.0.1)
puppetlabs/apt (< 2.0.0, >=
1.1.0)
puppetlabs/firewall (>= 0.0.4)
puppetlabs/stdlib (< 4.0.0, >=
3.2.0)
puppetlabs/stdlib (3.2.0)
saz/limits (2.0.1)
stahnma/epel (0.0.5)
GIT
remote: https://github.com/jfryman/
puppet-nginx.git
ref: master
sha:
fd4e3c5a3719132bacabe6238ad2ad31fa3ba
48c
specs:
nginx (0.0.2)
puppetlabs/stdlib (>= 0.1.6)
PATH
remote: ./private_modules/
maestrodev
specs:
maestrodev (0.0.1)
DEPENDENCIES
maestrodev (>= 0)
maestrodev/activemq (>= 1.0)
maestrodev/maestro_demo (>= 1.0.2)
maestrodev/maestro_nodes (>= 1.1.0)
nginx (>= 0)
saz/limits (>= 2.0.1)

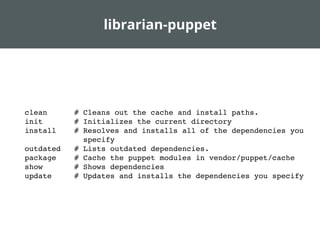

34. librarian-puppet
clean # Cleans out the cache and install paths.
init # Initializes the current directory
install # Resolves and installs all of the dependencies you
specify
outdated # Lists outdated dependencies.
package # Cache the puppet modules in vendor/puppet/cache
show # Shows dependencies
update # Updates and installs the dependencies you specify

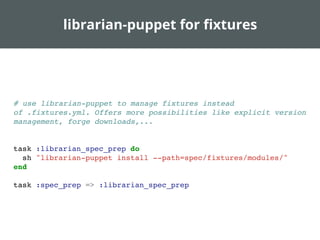

35. librarian-puppet for fixtures
# use librarian-puppet to manage fixtures instead
of .fixtures.yml. Offers more possibilities like explicit version
management, forge downloads,...
task :librarian_spec_prep do
sh "librarian-puppet install --path=spec/fixtures/modules/"
end
task :spec_prep => :librarian_spec_prep

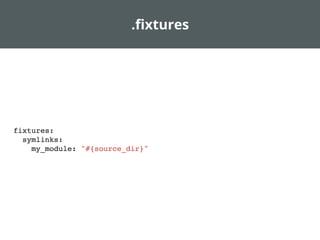

36. .fixtures
fixtures:
symlinks:
my_module: "#{source_dir}"

37. Vagrant

38. tests/init.pp
stage { 'epel':
before => Stage['rvm-install']
}
class { 'epel': stage => 'epel' } ->
class { 'rvm': }

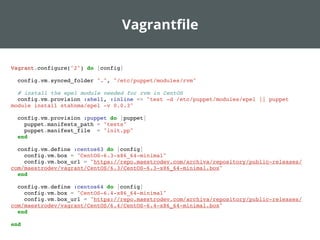

39. Vagrantfile
Vagrant.configure("2") do |config|
config.vm.synced_folder ".", "/etc/puppet/modules/rvm"
# install the epel module needed for rvm in CentOS
config.vm.provision :shell, :inline => "test -d /etc/puppet/modules/epel || puppet
module install stahnma/epel -v 0.0.3"
config.vm.provision :puppet do |puppet|
puppet.manifests_path = "tests"
puppet.manifest_file = "init.pp"
end
config.vm.define :centos63 do |config|
config.vm.box = "CentOS-6.3-x86_64-minimal"
config.vm.box_url = "https://repo.maestrodev.com/archiva/repository/public-releases/
com/maestrodev/vagrant/CentOS/6.3/CentOS-6.3-x86_64-minimal.box"
end
config.vm.define :centos64 do |config|
config.vm.box = "CentOS-6.4-x86_64-minimal"
config.vm.box_url = "https://repo.maestrodev.com/archiva/repository/public-releases/
com/maestrodev/vagrant/CentOS/6.4/CentOS-6.4-x86_64-minimal.box"
end
end

40. Rakefile
desc "Integration test with Vagrant"
task :integration do
sh %{vagrant destroy --force}
sh %{vagrant up}
sh %{vagrant destroy --force}
end

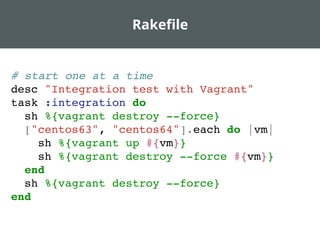

41. Rakefile
# start one at a time
desc "Integration test with Vagrant"
task :integration do
sh %{vagrant destroy --force}
["centos63", "centos64"].each do |vm|
sh %{vagrant up #{vm}}
sh %{vagrant destroy --force #{vm}}
end
sh %{vagrant destroy --force}
end

43. Blacksmith

44. gem 'puppet-blacksmith'

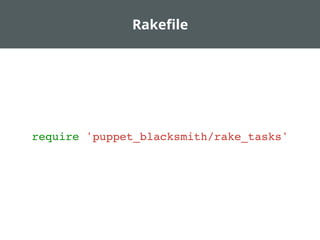

46. Rakefile
require 'puppet_blacksmith/rake_tasks'

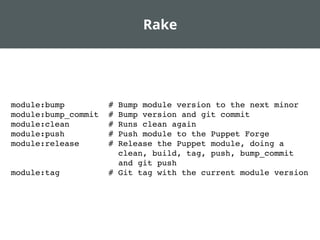

47. Rake
module:bump # Bump module version to the next minor
module:bump_commit # Bump version and git commit
module:clean # Runs clean again
module:push # Push module to the Puppet Forge
module:release # Release the Puppet module, doing a
clean, build, tag, push, bump_commit
and git push
module:tag # Git tag with the current module version

48. ~/.puppetforge.yml
---
forge: https://forge.puppetlabs.com
username: myusername
password: mypassword

49. just remember
create project in the Forge first
(not yet implemented)
2.0.0 is built as a library to be reused

50. All together

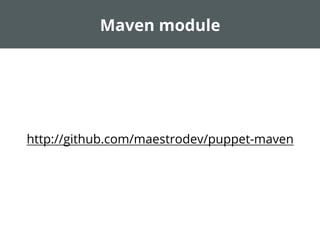

51. Maven module
http://github.com/maestrodev/puppet-maven

52. Modulefile
name 'maestrodev-maven'
version '1.1.3'
author 'maestrodev'
license 'Apache License, Version 2.0'
project_page 'http://github.com/maestrodev/puppet-maven'
source 'http://github.com/maestrodev/puppet-maven'
summary 'Apache Maven module for Puppet'
description 'A Puppet module to download artifacts from Maven
repositories'
dependency 'maestrodev/wget', '>=1.0.0'

53. Gemfile
source 'https://rubygems.org'
group :rake do
gem 'puppet', '>=2.7.20'
gem 'rspec-puppet', '>=0.1.3'
gem 'rake', '>=0.9.2.2'
gem 'puppet-lint', '>=0.1.12'
gem 'puppetlabs_spec_helper'
gem 'puppet-blacksmith', '>=1.0.5'
gem 'librarian-puppet-maestrodev', '>=0.9.8'
end

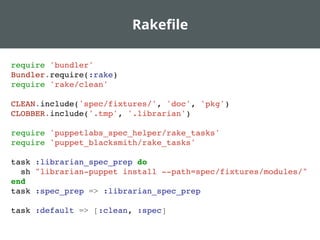

54. Rakefile
require 'bundler'
Bundler.require(:rake)
require 'rake/clean'
CLEAN.include('spec/fixtures/', 'doc', 'pkg')
CLOBBER.include('.tmp', '.librarian')
require 'puppetlabs_spec_helper/rake_tasks'
require 'puppet_blacksmith/rake_tasks'
task :librarian_spec_prep do
sh "librarian-puppet install --path=spec/fixtures/modules/"
end
task :spec_prep => :librarian_spec_prep
task :default => [:clean, :spec]

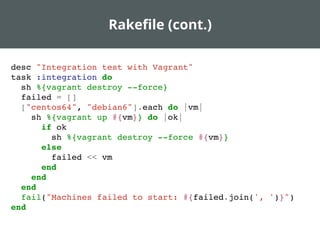

55. Rakefile (cont.)
desc "Integration test with Vagrant"
task :integration do
sh %{vagrant destroy --force}
failed = []
["centos64", "debian6"].each do |vm|
sh %{vagrant up #{vm}} do |ok|
if ok
sh %{vagrant destroy --force #{vm}}
else
failed << vm
end
end
end
fail("Machines failed to start: #{failed.join(', ')}")
end

56. .fixtures.yml
fixtures:
symlinks:
maven: "#{source_dir}"

57. Puppetfile
forge 'http://forge.puppetlabs.com'
mod 'maestrodev/wget', '>=1.0.0'

58. Integrating
modules

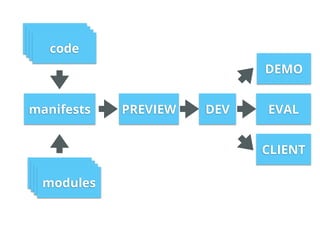

61. modules
PREVIEW
code
DEV
DEMO
EVAL
CLIENT
modulesmodulesmodules
codecodecode
manifests

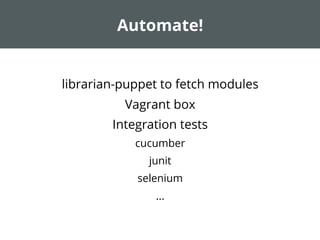

62. Automate!
librarian-puppet to fetch modules
Vagrant box
Integration tests
cucumber
junit
selenium
...

63. Vagrant integration
tests

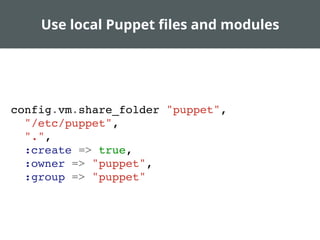

64. Use local Puppet files and modules
config.vm.share_folder "puppet",
"/etc/puppet",
".",
:create => true,
:owner => "puppet",
:group => "puppet"

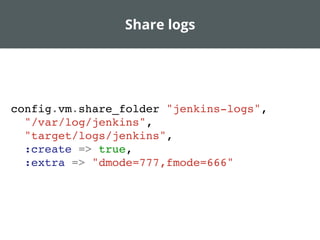

65. Share logs
config.vm.share_folder "jenkins-logs",
"/var/log/jenkins",
"target/logs/jenkins",
:create => true,
:extra => "dmode=777,fmode=666"

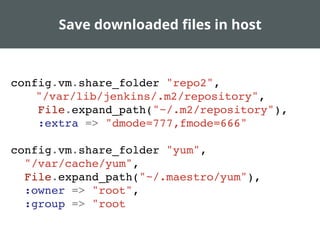

66. Save downloaded files in host
config.vm.share_folder "repo2",
"/var/lib/jenkins/.m2/repository",
File.expand_path("~/.m2/repository"),
:extra => "dmode=777,fmode=666"
config.vm.share_folder "yum",
"/var/cache/yum",
File.expand_path("~/.maestro/yum"),
:owner => "root",
:group => "root

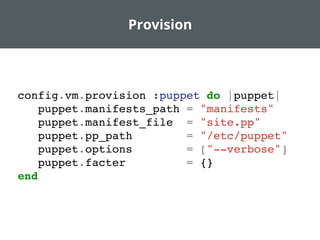

67. Provision
config.vm.provision :puppet do |puppet|
puppet.manifests_path = "manifests"
puppet.manifest_file = "site.pp"
puppet.pp_path = "/etc/puppet"
puppet.options = ["--verbose"]
puppet.facter = {}
end

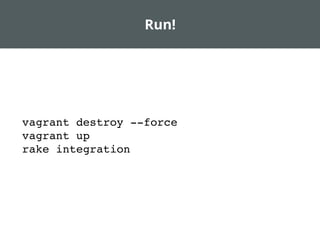

68. Run!
vagrant destroy --force
vagrant up
rake integration

69. Forward looking

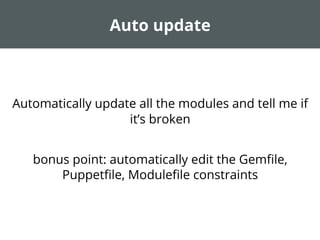

70. Auto update
Automatically update all the modules and tell me if
it’s broken
bonus point: automatically edit the Gemfile,
Puppetfile, Modulefile constraints

71. csanchez@maestrodev.com
carlos@apache.org
@csanchez
Thanks!
http://csanchez.org
http://maestrodev.com

72. Photo Credits
Brick wall - Luis Argerich
http://www.flickr.com/photos/lrargerich/4353397797/
Agile vs. Iterative flow - Christopher Little
http://en.wikipedia.org/wiki/File:Agile-vs-iterative-flow.jpg
DevOps - Rajiv.Pant
http://en.wikipedia.org/wiki/File:Devops.png
Pimientos de Padron - Howard Walfish
http://www.flickr.com/photos/h-bomb/4868400647/
Compiling - XKCD
http://xkcd.com/303/
Printer in 1568 - Meggs, Philip B
http://en.wikipedia.org/wiki/File:Printer_in_1568-ce.png
Relativity - M. C. Escher
http://en.wikipedia.org/wiki/File:Escher%27s_Relativity.jpg
Teacher and class - Herald Post
http://www.flickr.com/photos/heraldpost/5169295832/
