FreeBSD: Dev to Prod

FreeBSD: Dev to Prod in the Cloud

Sean Chittenden
Engineering, HashiCorp
sean@hashicorp.com
seanc@FreeBSD.org (semi-retired)

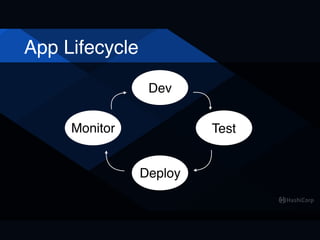

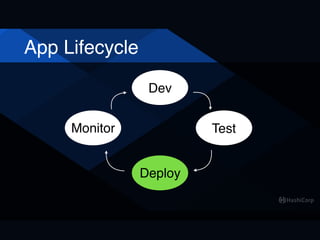

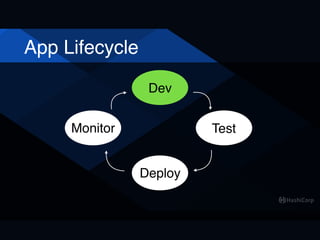

App Lifecycle
Dev
Deploy
TestMonitor

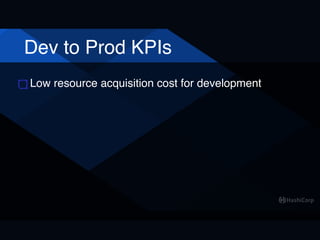

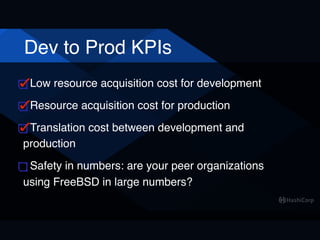

Dev to Prod KPIs
Low resource acquisition cost for development

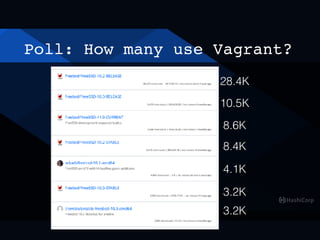

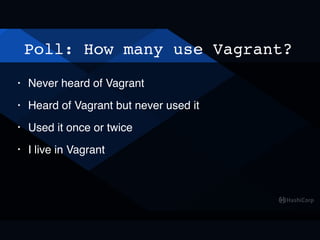

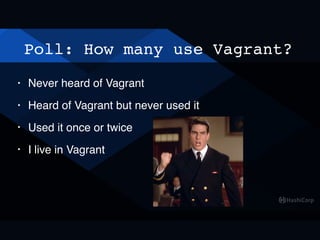

Poll: How many use Vagrant?
• Never heard of Vagrant
• Heard of Vagrant but never used it
• Used it once or twice
• I live in Vagrant

YOU CAN'T HANDLE THE TRUTH!!!

22.6M
8.4M
5.9M
5.9M
2.1M
2.0M
1.4M
1.4M

28.4K
10.5K
8.6K
8.4K
4.1K
3.2K
3.2K

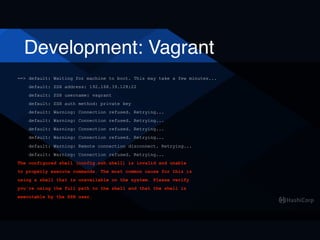

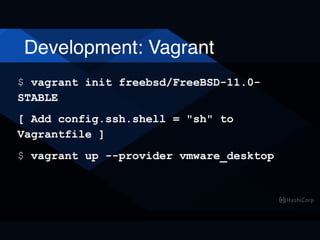

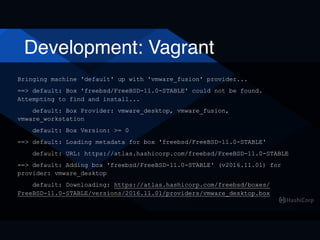

Development: Vagrant
$ vagrant init freebsd/FreeBSD-11.0-
STABLE
[ Add config.ssh.shell = "sh" to
Vagrantfile ]
$ vagrant up --provider vmware_desktop

Bringing machine 'default' up with 'vmware_fusion' provider...
==> default: Box 'freebsd/FreeBSD-11.0-STABLE' could not be found.
Attempting to find and install...
default: Box Provider: vmware_desktop, vmware_fusion,
vmware_workstation
default: Box Version: >= 0
==> default: Loading metadata for box 'freebsd/FreeBSD-11.0-STABLE'
default: URL: https://atlas.hashicorp.com/freebsd/FreeBSD-11.0-STABLE
==> default: Adding box 'freebsd/FreeBSD-11.0-STABLE' (v2016.11.01) for
provider: vmware_desktop
default: Downloading: https://atlas.hashicorp.com/freebsd/boxes/
FreeBSD-11.0-STABLE/versions/2016.11.01/providers/vmware_desktop.box

==> default: Waiting for machine to boot. This may take a few minutes...
default: SSH address: 192.168.39.128:22
default: SSH username: vagrant
default: SSH auth method: private key
default: Warning: Connection refused. Retrying...
default: Warning: Remote connection disconnect. Retrying...
The configured shell (config.ssh.shell) is invalid and unable
to properly execute commands. The most common cause for this is
using a shell that is unavailable on the system. Please verify
you're using the full path to the shell and that the shell is
executable by the SSH user.

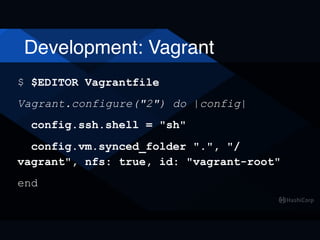

$ $EDITOR Vagrantfile
Vagrant.configure("2") do |config|
config.ssh.shell = "sh"
config.vm.synced_folder ".", "/
vagrant", nfs: true, id: "vagrant-root"
end

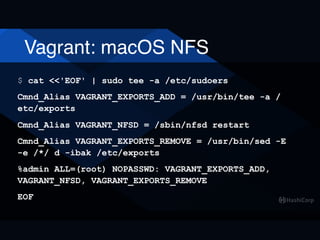

Vagrant: macOS NFS
$ cat <<'EOF' | sudo tee -a /etc/sudoers
Cmnd_Alias VAGRANT_EXPORTS_ADD = /usr/bin/tee -a /
etc/exports
Cmnd_Alias VAGRANT_NFSD = /sbin/nfsd restart
Cmnd_Alias VAGRANT_EXPORTS_REMOVE = /usr/bin/sed -E
-e /*/ d -ibak /etc/exports
%admin ALL=(root) NOPASSWD: VAGRANT_EXPORTS_ADD,
VAGRANT_NFSD, VAGRANT_EXPORTS_REMOVE
EOF

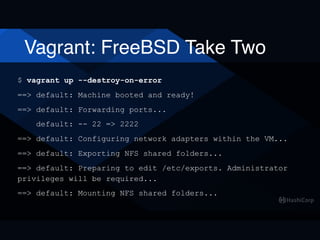

Vagrant: FreeBSD Take Two
$ vagrant up --destroy-on-error
==> default: Machine booted and ready!
==> default: Forwarding ports...
default: -- 22 => 2222
==> default: Configuring network adapters within the VM...
==> default: Exporting NFS shared folders...
==> default: Preparing to edit /etc/exports. Administrator
privileges will be required...
==> default: Mounting NFS shared folders...

$ vagrant ssh
$ vagrant ssh
FreeBSD 11.0-STABLE (GENERIC) #0 r308135: Mon
Oct 31 19:17:52 UTC 2016
vagrant@:~ % cd /vagrant/
vagrant@:/vagrant % uname -a > uname.out
vagrant@:/vagrant % logout
Shared connection to 192.168.39.130 closed.
$ cat uname.out

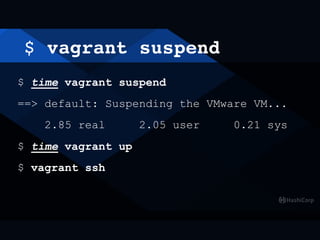

$ vagrant suspend
$ time vagrant suspend
==> default: Suspending the VMware VM...
2.85 real 2.05 user 0.21 sys
$ time vagrant up
$ vagrant ssh

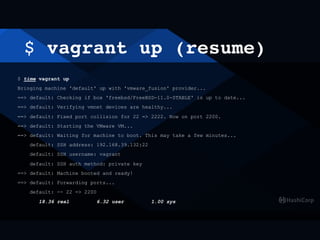

$ vagrant up (resume)
$ time vagrant up
Bringing machine 'default' up with 'vmware_fusion' provider...
==> default: Checking if box 'freebsd/FreeBSD-11.0-STABLE' is up to date...
==> default: Verifying vmnet devices are healthy...
==> default: Fixed port collision for 22 => 2222. Now on port 2200.
==> default: Starting the VMware VM...
==> default: Waiting for machine to boot. This may take a few minutes...
default: SSH address: 192.168.39.132:22
default: SSH username: vagrant
default: SSH auth method: private key
==> default: Machine booted and ready!
==> default: Forwarding ports...
default: -- 22 => 2200
18.36 real 6.32 user 1.00 sys

$ vagrant status
$ vagrant status
Current machine states:
default running (vmware_fusion)
The VM is running. To stop this VM, you can run `vagrant halt`
to
shut it down, or you can run `vagrant suspend` to simply suspend
the virtual machine. In either case, to restart it again, run
`vagrant up`.

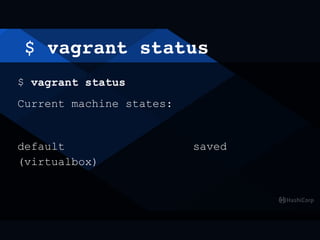

$ vagrant status
$ vagrant status
Current machine states:
default saved
(virtualbox)

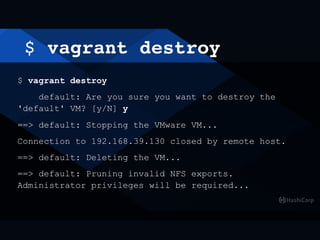

$ vagrant destroy
$ vagrant destroy
default: Are you sure you want to destroy the
'default' VM? [y/N] y
==> default: Stopping the VMware VM...
Connection to 192.168.39.130 closed by remote host.
==> default: Deleting the VM...
==> default: Pruning invalid NFS exports.
Administrator privileges will be required...

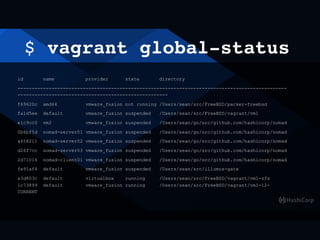

$ vagrant global-status
id name provider state directory
-----------------------------------------------------------------------------------------------
-----------------------------------------------------
f69620c amd64 vmware_fusion not running /Users/sean/src/FreeBSD/packer-freebsd
fa1d5ee default vmware_fusion suspended /Users/sean/src/FreeBSD/vagrant/vm1
e1c9cc0 vm2 vmware_fusion suspended /Users/sean/go/src/github.com/hashicorp/nomad
0b6bf5d nomad-server01 vmware_fusion suspended /Users/sean/go/src/github.com/hashicorp/nomad
a658211 nomad-server02 vmware_fusion suspended /Users/sean/go/src/github.com/hashicorp/nomad
d26f7cc nomad-server03 vmware_fusion suspended /Users/sean/go/src/github.com/hashicorp/nomad
2d71016 nomad-client01 vmware_fusion suspended /Users/sean/go/src/github.com/hashicorp/nomad
fe91af4 default vmware_fusion suspended /Users/sean/src/illumos-gate
a3d803c default virtualbox running /Users/sean/src/FreeBSD/vagrant/vm1-zfs 
1c73899 default vmware_fusion running /Users/sean/src/FreeBSD/vagrant/vm1-12-
CURRENT

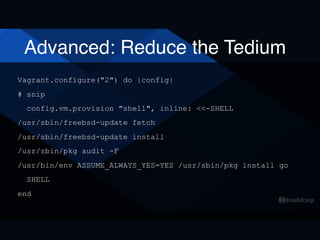

Advanced: Reduce the Tedium
Vagrant.configure("2") do |config|
# snip
config.vm.provision "shell", inline: <<-SHELL
/usr/sbin/freebsd-update fetch
/usr/sbin/freebsd-update install
/usr/sbin/pkg audit -F
/usr/bin/env ASSUME_ALWAYS_YES=YES /usr/sbin/pkg install go
SHELL
end

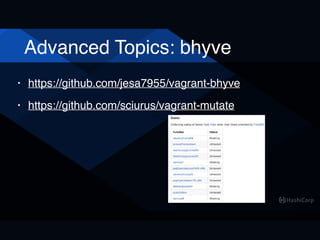

Advanced Topics: bhyve
• https://github.com/jesa7955/vagrant-bhyve
• https://github.com/sciurus/vagrant-mutate

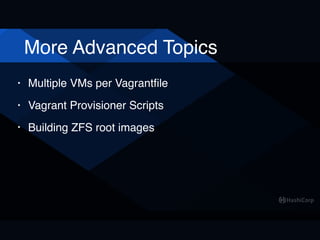

More Advanced Topics
• Multiple VMs per Vagrantﬁle
• Vagrant Provisioner Scripts
• Building ZFS root images

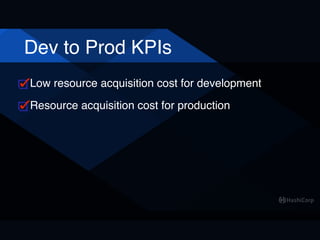

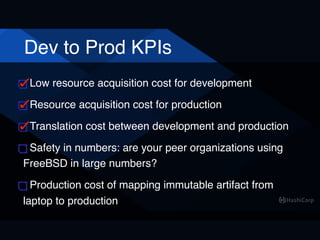

Dev to Prod KPIs
Resource acquisition cost for production

Quick GCE "Demo"
(arbitrarily chose GCE, could
have used AWS or Azure)

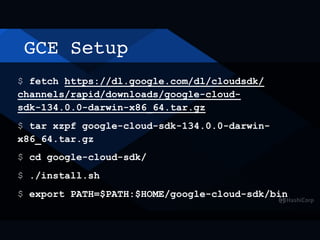

GCE Setup
$ fetch https://dl.google.com/dl/cloudsdk/
channels/rapid/downloads/google-cloud-
sdk-134.0.0-darwin-x86_64.tar.gz
$ tar xzpf google-cloud-sdk-134.0.0-darwin-
x86_64.tar.gz
$ cd google-cloud-sdk/
$ ./install.sh
$ export PATH=$PATH:$HOME/google-cloud-sdk/bin

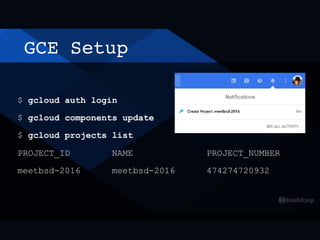

GCE Setup
$ gcloud auth login
$ gcloud components update
$ gcloud projects list
PROJECT_ID NAME PROJECT_NUMBER
meetbsd-2016 meetbsd-2016 474274720932

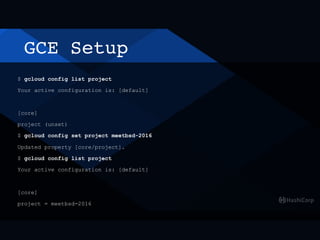

GCE Setup
$ gcloud config list project
Your active configuration is: [default]
[core]
project (unset)
$ gcloud config set project meetbsd-2016
Updated property [core/project].
$ gcloud config list project
Your active configuration is: [default]
[core]
project = meetbsd-2016

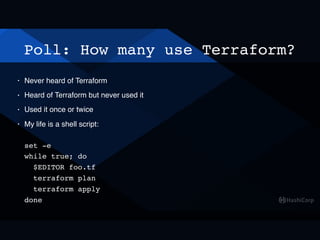

Poll: How many use Terraform?
• Never heard of Terraform
• Heard of Terraform but never used it
• Used it once or twice
• My life is a shell script: 
 
set -e 
while true; do 
$EDITOR foo.tf 
terraform plan 
terraform apply 
done

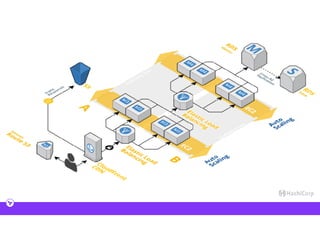

Commoditization of Infrastructure

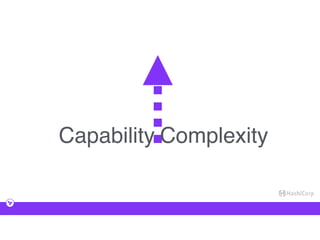

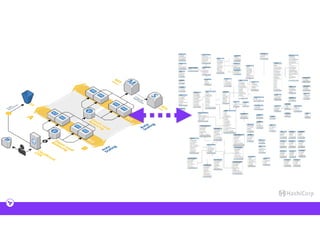

Managing Complexity
A strategy for

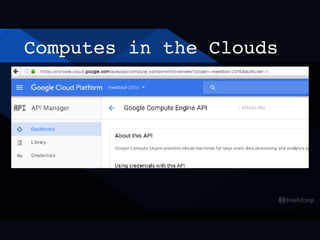

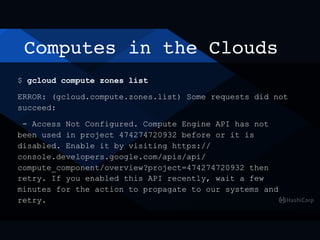

Computes in the Clouds
$ gcloud compute zones list
ERROR: (gcloud.compute.zones.list) Some requests did not
succeed:
- Access Not Configured. Compute Engine API has not
been used in project 474274720932 before or it is
disabled. Enable it by visiting https://
console.developers.google.com/apis/api/
compute_component/overview?project=474274720932 then
retry. If you enabled this API recently, wait a few
minutes for the action to propagate to our systems and
retry.

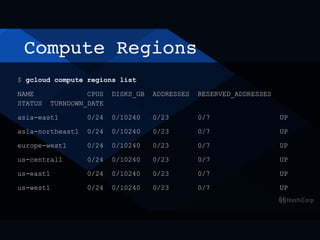

Compute Regions
$ gcloud compute regions list
NAME CPUS DISKS_GB ADDRESSES RESERVED_ADDRESSES
STATUS TURNDOWN_DATE
asia-east1 0/24 0/10240 0/23 0/7 UP
asia-northeast1 0/24 0/10240 0/23 0/7 UP
europe-west1 0/24 0/10240 0/23 0/7 UP
us-central1 0/24 0/10240 0/23 0/7 UP
us-east1 0/24 0/10240 0/23 0/7 UP
us-west1 0/24 0/10240 0/23 0/7 UP

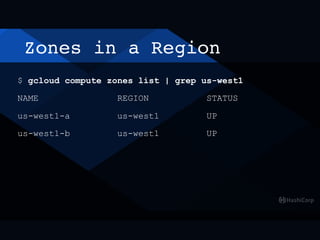

Zones in a Region
$ gcloud compute zones list | grep us-west1
NAME REGION STATUS
us-west1-a us-west1 UP
us-west1-b us-west1 UP

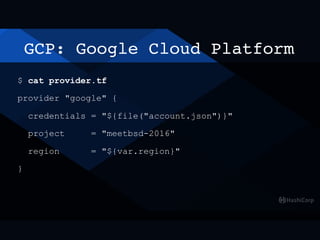

GCP: Google Cloud Platform
$ cat provider.tf
provider "google" {
credentials = "${file("account.json")}"
project = "meetbsd-2016"
region = "${var.region}"
}

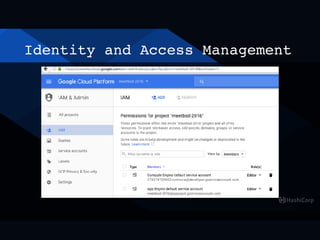

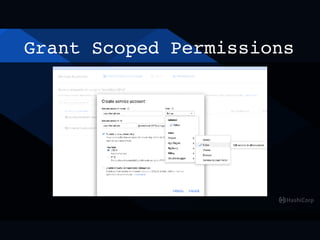

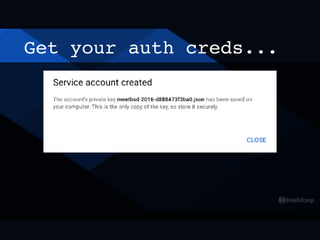

Identity and Access Management

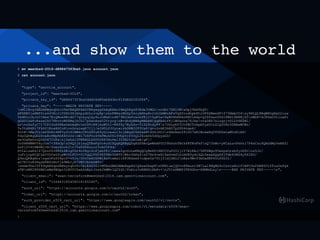

...and show them to the world
$ mv meetbsd-2016-d888473f3ba0.json account.json
$ cat account.json
{
"type": "service_account",
"project_id": "meetbsd-2016",
"private_key_id": "d888473f3ba0ddd06d85eb8d3bc91fd8d2020f86",
"private_key": "-----BEGIN PRIVATE KEY-----
nMIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQDXgx83Rde3UMGLnrGbt7ZN10WiwDpjTmXfbQT/
dFX8B5jaNBF6ls64YEcJiTZHtZ8JAkpydOLcrvpRpnhnFWHsrMGZp5kcyAHhaBr2cbIbMHvAFzVqXfcodhpbPhiOF6XBmnXF+f75NmbC04ny9HtQL8BqWROgKpU2iuw
TsdNinjbJoC+Abx7EiQMukHKvdG77qteyqlQy4oJcMnmn4N79EG3mfvxohPEjC+5gK5a+XaBUHhNPArKN0lA6p+Q2Sfxarf66IPWZL5M4BjS5nMDF+kCPSwO3tloaPi
qGXD1GwFcRzsxCkU7NhvroW68MajhCG17pSwnAsw52YryognB+dhdyWHAgMBAAECggEAdufKjlWDqons76Jke/vrs0Kh7xluqrjvD1LV6KZWl/
arnvGxfyC717CPISzKfRAxOehAqRvim34TcH8jkuW5t1+R8fXy7BykSo+TiD28tdyP8n7OUuybVICtFBCTvbpAYyxUtLG1Q00Hr5DHAwWCWz/
Te3tzR4Ri7FkhY1EoxHGCoHnvGcsiwgK7Cjj/eIN0LfJUycairbDHB02F0UsP/qvuDrAE3hNO7p2PD4vqe6/
SOtMnMaJVzlmfShRL4WFVyfo9lBM4oCR0d90uK9yGJzexol3cjABgd26AfakNtXGSJDCJn8AhAan591hO7xR1BndaNq5TGXDxtaMUzKiA8/
Tdo0QKBgQD2SveRcHNpRhKAVzUsnWl7USFUo49kFMuh061SVbpYcf0vQi2koASk5d0pyxGO/
xe3OaKmOvnQrk567COPanj2ehxl5TB8AGLDGVO2RP3Xu4e135fB2tuklwA/gF//
Jo0NKMBMVYHyJoa7+38xUpnD4Q2jbjsyQTEwFgVo4uGCDQqKQKBgQDgAZX9AcQeWkAFUC09hXzhTBtkP8TKnFkfnQ7JhWc+yKCaLuvPkkti7P4xCzu9QAGdMyYeNXZl
GzPj2Y4tHW4MjvN1XoerDovk3n7VsK8SHzLo23vA05F4d/
PUIa1zeEZ1Z7QnnfD3H8fn6EigYDr4n58giScPjebf8inexaZgoUoLwKBgQCg8m6D+XNCCUuP2O1jlY7AtKAJ/5NTZWgo95wnpsOrzbfyiRfnnz5Jr/
juFcjcpHCQCLb0YDfeGfopM+UtFCU+UlTgQlFD0965TMiOkWT0/WkcYAPa4nD7Nr4vwSl6aGvmfInlmD85ydlkQL5msekQg6SjTdb6ORG4y0X1KO/
Q9xuQKBgHnzngxOFxZ58pcP+vVJz/OOvCm6OZPWlHsPtmAx116P3Rdzmf+cdpw5x70tj21djkNl2nEez9Wvf3mUaSNP45LPDk3l/
aD7RIYoN3Hgyb8E6zNoYjw9MkIyk7UWTJbDkSBTv/
nmde9UeITf49qkRGqnGRNxyrqhCKcIb1E463ZJ+MTAoGBAOAMeEapAk1Q6awGkwpNnUKNluwjQZ+n8FmurrIM7Lal8NQMG4cCsvcxEolf1WPCOxfkB86VlZTuuOxPgk
sTNnMP28PZMS1mNm9BGpn3iBVYCDaAZxAyrJzskJkMWvlQ2YdI/fobiz3vBHHZcDbPv+nJV1xXMBFJTK6Ghn+X8MHdLzyn-----END PRIVATE KEY-----n",
"client_email": "sean-terraform@meetbsd-2016.iam.gserviceaccount.com",
"client_id": "106443185458018185240",
"auth_uri": "https://accounts.google.com/o/oauth2/auth",
"token_uri": "https://accounts.google.com/o/oauth2/token",
"auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
"client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/sean-
terraform%40meetbsd-2016.iam.gserviceaccount.com"
}

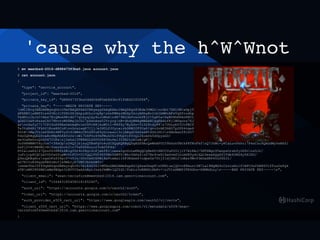

'cause why the h^W^Wnot
$ mv meetbsd-2016-d888473f3ba0.json account.json
$ cat account.json
{
"type": "service_account",
"project_id": "meetbsd-2016",
"private_key_id": "d888473f3ba0ddd06d85eb8d3bc91fd8d2020f86",
"private_key": "-----BEGIN PRIVATE KEY-----
nMIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQDXgx83Rde3UMGLnrGbt7ZN10WiwDpjTmXfbQT/
dFX8B5jaNBF6ls64YEcJiTZHtZ8JAkpydOLcrvpRpnhnFWHsrMGZp5kcyAHhaBr2cbIbMHvAFzVqXfcodhpbPhiOF6XBmnXF+f75NmbC04ny9HtQL8BqWROgKpU2iuw
TsdNinjbJoC+Abx7EiQMukHKvdG77qteyqlQy4oJcMnmn4N79EG3mfvxohPEjC+5gK5a+XaBUHhNPArKN0lA6p+Q2Sfxarf66IPWZL5M4BjS5nMDF+kCPSwO3tloaPi
qGXD1GwFcRzsxCkU7NhvroW68MajhCG17pSwnAsw52YryognB+dhdyWHAgMBAAECggEAdufKjlWDqons76Jke/vrs0Kh7xluqrjvD1LV6KZWl/
arnvGxfyC717CPISzKfRAxOehAqRvim34TcH8jkuW5t1+R8fXy7BykSo+TiD28tdyP8n7OUuybVICtFBCTvbpAYyxUtLG1Q00Hr5DHAwWCWz/
Te3tzR4Ri7FkhY1EoxHGCoHnvGcsiwgK7Cjj/eIN0LfJUycairbDHB02F0UsP/qvuDrAE3hNO7p2PD4vqe6/
SOtMnMaJVzlmfShRL4WFVyfo9lBM4oCR0d90uK9yGJzexol3cjABgd26AfakNtXGSJDCJn8AhAan591hO7xR1BndaNq5TGXDxtaMUzKiA8/
Tdo0QKBgQD2SveRcHNpRhKAVzUsnWl7USFUo49kFMuh061SVbpYcf0vQi2koASk5d0pyxGO/
xe3OaKmOvnQrk567COPanj2ehxl5TB8AGLDGVO2RP3Xu4e135fB2tuklwA/gF//
Jo0NKMBMVYHyJoa7+38xUpnD4Q2jbjsyQTEwFgVo4uGCDQqKQKBgQDgAZX9AcQeWkAFUC09hXzhTBtkP8TKnFkfnQ7JhWc+yKCaLuvPkkti7P4xCzu9QAGdMyYeNXZl
GzPj2Y4tHW4MjvN1XoerDovk3n7VsK8SHzLo23vA05F4d/
PUIa1zeEZ1Z7QnnfD3H8fn6EigYDr4n58giScPjebf8inexaZgoUoLwKBgQCg8m6D+XNCCUuP2O1jlY7AtKAJ/5NTZWgo95wnpsOrzbfyiRfnnz5Jr/
juFcjcpHCQCLb0YDfeGfopM+UtFCU+UlTgQlFD0965TMiOkWT0/WkcYAPa4nD7Nr4vwSl6aGvmfInlmD85ydlkQL5msekQg6SjTdb6ORG4y0X1KO/
Q9xuQKBgHnzngxOFxZ58pcP+vVJz/OOvCm6OZPWlHsPtmAx116P3Rdzmf+cdpw5x70tj21djkNl2nEez9Wvf3mUaSNP45LPDk3l/
aD7RIYoN3Hgyb8E6zNoYjw9MkIyk7UWTJbDkSBTv/
nmde9UeITf49qkRGqnGRNxyrqhCKcIb1E463ZJ+MTAoGBAOAMeEapAk1Q6awGkwpNnUKNluwjQZ+n8FmurrIM7Lal8NQMG4cCsvcxEolf1WPCOxfkB86VlZTuuOxPgk
sTNnMP28PZMS1mNm9BGpn3iBVYCDaAZxAyrJzskJkMWvlQ2YdI/fobiz3vBHHZcDbPv+nJV1xXMBFJTK6Ghn+X8MHdLzyn-----END PRIVATE KEY-----n",
"client_email": "sean-terraform@meetbsd-2016.iam.gserviceaccount.com",
"client_id": "106443185458018185240",
"auth_uri": "https://accounts.google.com/o/oauth2/auth",
"token_uri": "https://accounts.google.com/o/oauth2/token",
"auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
"client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/sean-
terraform%40meetbsd-2016.iam.gserviceaccount.com"
}

Fill out some defaults...
$ cat provider-vars.tf
variable "region" {
default = "us-west1"
}
variable "default_zone" {
default = "us-west1-a"
}

GCE is a GCP service
$ cat gce-vars.tf
variable "gce_ssh_private_key_file" {
default = ".ssh_id_rsa"
}
variable "gce_ssh_user" {
default = "sean"
}
variable "gce_ssh_port" {
default = 22
}

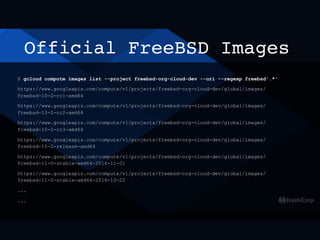

Official FreeBSD Images
$ gcloud compute images list --project freebsd-org-cloud-dev --uri --regexp freebsd'.*'
https://www.googleapis.com/compute/v1/projects/freebsd-org-cloud-dev/global/images/
freebsd-10-2-rc1-amd64
freebsd-10-2-release-amd64
freebsd-11-0-stable-amd64-2016-11-01
freebsd-11-0-stable-amd64-2016-10-22
...
...

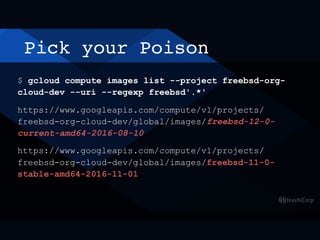

Pick your Poison
$ gcloud compute images list --project freebsd-org-
cloud-dev --uri --regexp freebsd'.*'
https://www.googleapis.com/compute/v1/projects/
freebsd-org-cloud-dev/global/images/freebsd-12-0-
current-amd64-2016-08-10
https://www.googleapis.com/compute/v1/projects/
freebsd-org-cloud-dev/global/images/freebsd-11-0-
stable-amd64-2016-11-01

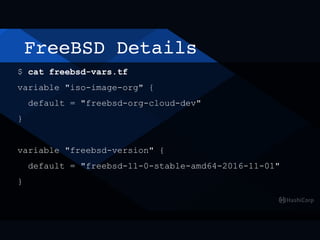

FreeBSD Details
$ cat freebsd-vars.tf
variable "iso-image-org" {
default = "freebsd-org-cloud-dev"
}
variable "freebsd-version" {
default = "freebsd-11-0-stable-amd64-2016-11-01"
}

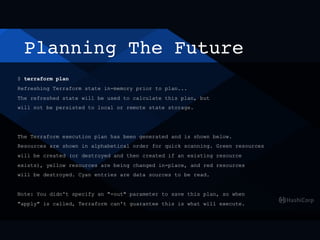

Planning The Future
$ terraform plan
Refreshing Terraform state in-memory prior to plan...
The refreshed state will be used to calculate this plan, but
will not be persisted to local or remote state storage.
The Terraform execution plan has been generated and is shown below.
Resources are shown in alphabetical order for quick scanning. Green resources
will be created (or destroyed and then created if an existing resource
exists), yellow resources are being changed in-place, and red resources
will be destroyed. Cyan entries are data sources to be read.
Note: You didn't specify an "-out" parameter to save this plan, so when
"apply" is called, Terraform can't guarantee this is what will execute.

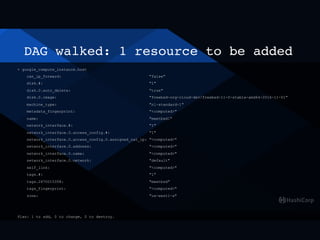

DAG walked: 1 resource to be added
+ google_compute_instance.host
can_ip_forward: "false"
disk.#: "1"
disk.0.auto_delete: "true"
disk.0.image: "freebsd-org-cloud-dev/freebsd-11-0-stable-amd64-2016-11-01"
machine_type: "n1-standard-1"
metadata_fingerprint: "<computed>"
name: "meetbsd1"
network_interface.#: "1"
network_interface.0.access_config.#: "1"
network_interface.0.access_config.0.assigned_nat_ip: "<computed>"
network_interface.0.address: "<computed>"
network_interface.0.name: "<computed>"
network_interface.0.network: "default"
self_link: "<computed>"
tags.#: "1"
tags.2670015358: "meetbsd"
tags_fingerprint: "<computed>"
zone: "us-west1-a"
Plan: 1 to add, 0 to change, 0 to destroy.

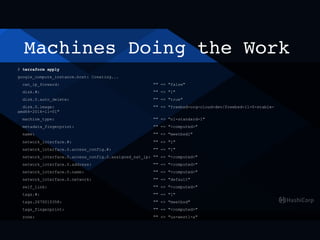

Machines Doing the Work
$ terraform apply
google_compute_instance.host: Creating...
can_ip_forward: "" => "false"
disk.#: "" => "1"
disk.0.auto_delete: "" => "true"
disk.0.image: "" => "freebsd-org-cloud-dev/freebsd-11-0-stable-
amd64-2016-11-01"
machine_type: "" => "n1-standard-1"
metadata_fingerprint: "" => "<computed>"
name: "" => "meetbsd1"
network_interface.#: "" => "1"
network_interface.0.access_config.#: "" => "1"
network_interface.0.access_config.0.assigned_nat_ip: "" => "<computed>"
network_interface.0.address: "" => "<computed>"
network_interface.0.name: "" => "<computed>"
network_interface.0.network: "" => "default"
self_link: "" => "<computed>"
tags.#: "" => "1"
tags.2670015358: "" => "meetbsd"
tags_fingerprint: "" => "<computed>"
zone: "" => "us-west1-a"

Hold Please
google_compute_instance.host: Still creating... (10s elapsed)
google_compute_instance.host: Provisioning with 'file'...
google_compute_instance.host: Still creating... (1m0s
elapsed)
google_compute_instance.host: Still creating... (1m10s
elapsed)
[snip]

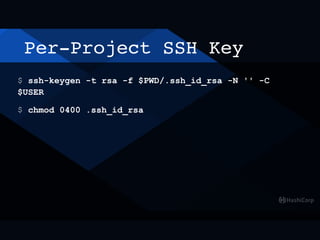

$ ssh-keygen -t rsa -f $PWD/.ssh_id_rsa -N '' -C
$USER
$ chmod 0400 .ssh_id_rsa
Per-Project SSH Key

$ cat .ssh_id_rsa
-----BEGIN RSA PRIVATE KEY-----
MIIEogIBAAKCAQEAs1Aif7ST/0Ck8rcuxaVrq0slBOzVXytdJyFnNzv+eYvMGcqB
kMT6UPuwZLhcNfaGoH6Uu5b96zri66Qvo49kfn5trpjCxPLV2fz8otPVk6C6TbO5
xPIAzOudtm9zgYfwDJfypqesv2eF/SxRQcNJjdUkd1RtJocY8diBXmbCfhtX/P+A
LrKB+jMVGburwlshXYShdcuc3fTEGeZX52Hh+vnXWPEZEsPI6WFnpUmaza1Rwwsf
NhZnmgeb8+fPOfuWz9syzIAxZUEtEiacrSlNlJeHAjuxVb3nUhsrjkc3BAD4Ar6q
hPa4z118FNqyn1TiDwBaZ9s+1nTga0dAYDyQnQIDAQABAoIBAFkR0zEwV9uRFt5h
09/lnagGuarKoeqWNb18QDMVoABsSsP87YMl9VlIzIQbd+JuRM1wUx0jkZnJNHLs
qaVLUxXqYz05MHZ4UXXozu1q4EpmqmRyhDKqK2+fEkZO8kdDaSA4UhYqcArbt5jc
7LgH8396gpSr4VQkA2YOr6Re0vmkcpaRe0w83BjixKs9lusJGKtHjlhWnow63vmJ
h5SDfxjP2o1VqPbvMKOHggQ/yn763Nao7CaOn8rAIPNtTQHMKE3zO2Lc3OmbieH9
5nkCz6EA2kd8EEM4l5OFIG4CNNy6qsuFGEJJkFtbS8OSz6IVtBDmXy7cdQsW3yKU
ieXiU0ECgYEA2xLpwctgfY4rcPzih9tFv9buEXY98uD2HA+TOeZPeJRDoci/z6it
MUR+WEXQ8YaRVLdmZEbZPmSsCoWn7O45EdVVVIEOUVoqNYgeZHJ46bYjP07Xe1wP
X00M48Fj5MAIFIoSlu3FiSBtN+n9uTmu2YgWd0XmTdpowZ+r84By1KkCgYEA0YmI
LfpyXdYHICQw5k7a2EBUpo15Aa3nlxEhfMt2obxHXYSdgb8UYMu/vTqfcJ7X86jo

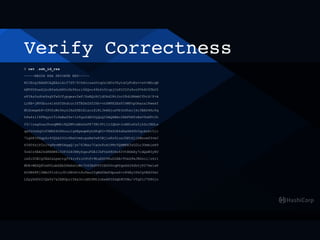

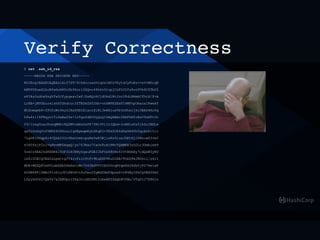

Verify Correctness

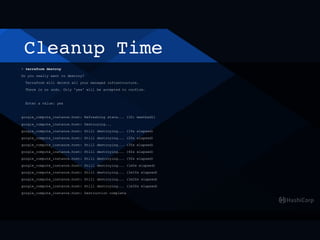

Cleanup Time
> terraform destroy
Do you really want to destroy?
Terraform will delete all your managed infrastructure.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
google_compute_instance.host: Refreshing state... (ID: meetbsd1)
google_compute_instance.host: Destroying...
google_compute_instance.host: Still destroying... (10s elapsed)
google_compute_instance.host: Still destroying... (1m0s elapsed)
google_compute_instance.host: Destruction complete

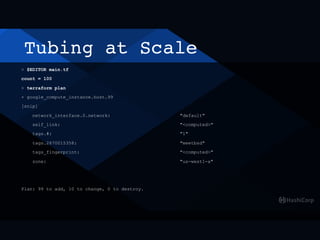

Tubing at Scale
> $EDITOR main.tf
count = 100
> terraform plan
+ google_compute_instance.host.99
[snip]
network_interface.0.network: "default"
self_link: "<computed>"
tags.#: "1"
tags.2670015358: "meetbsd"
tags_fingerprint: "<computed>"
zone: "us-west1-a"
Plan: 99 to add, 10 to change, 0 to destroy.

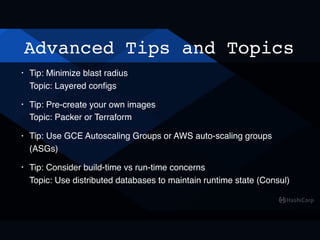

Advanced Tips and Topics
• Tip: Minimize blast radius 
Topic: Layered conﬁgs
• Tip: Pre-create your own images 
Topic: Packer or Terraform
• Tip: Use GCE Autoscaling Groups or AWS auto-scaling groups
(ASGs)
• Tip: Consider build-time vs run-time concerns 
Topic: Use distributed databases to maintain runtime state (Consul)

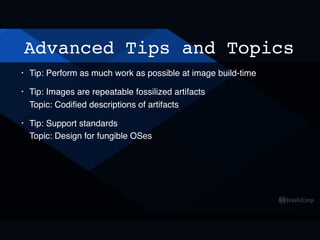

Advanced Tips and Topics
• Tip: Perform as much work as possible at image build-time
• Tip: Images are repeatable fossilized artifacts 
Topic: Codiﬁed descriptions of artifacts
• Tip: Support standards 
Topic: Design for fungible OSes

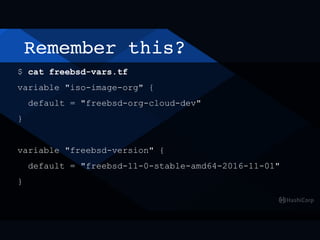

Remember this?
default = "freebsd-org-cloud-dev"
}
default = "freebsd-11-0-stable-amd64-2016-11-01"
}

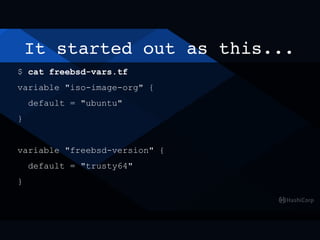

It started out as this...
default = "ubuntu"
}
default = "trusty64"
}

Dev to Prod KPIs
Translation cost between development and
production

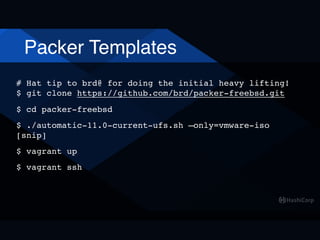

Packer Templates
# Hat tip to brd@ for doing the initial heavy lifting! 
$ git clone https://github.com/brd/packer-freebsd.git
$ cd packer-freebsd
$ ./automatic-11.0-current-ufs.sh —only=vmware-iso 
[snip]
$ vagrant up
$ vagrant ssh

Why? I like working in FreeBSD
http://brendangregg.com/Perf/freebsd_observability_tools.png

http://www.slideshare.net/gmccance/cern-data-centre-evolution

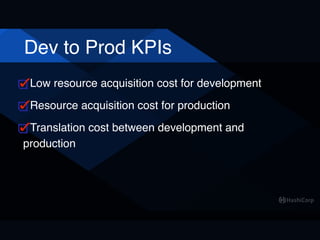

Dev to Prod KPIs
Translation cost between development and
production
Safety in numbers: are your peer organizations
using FreeBSD in large numbers?

https://www.freebsdfoundation.org/wp-content/uploads/2015/12/vol2_no4_groupon.pdf

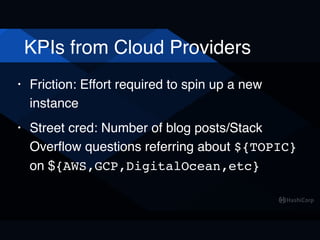

KPIs from Cloud Providers
• Friction: Effort required to spin up a new
instance
• Street cred: Number of blog posts/Stack
Overﬂow questions referring about ${TOPIC}
on ${AWS,GCP,DigitalOcean,etc}

Dev to Prod KPIs
Translation cost between development and production
Safety in numbers: are your peer organizations using
FreeBSD in large numbers?
Production cost of mapping immutable artifact from
laptop to production

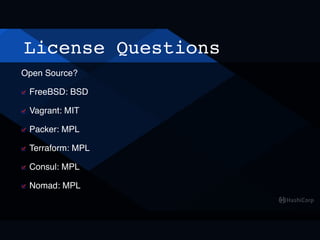

License Questions
Open Source?
FreeBSD: BSD
Vagrant: MIT
Packer: MPL
Terraform: MPL
Consul: MPL
Nomad: MPL

FreeBSD: Dev to Prod

More Related Content

What's hot

Viewers also liked

Similar to FreeBSD: Dev to Prod

Recently uploaded

FreeBSD: Dev to Prod
