1. Continuous Integration
- The first step of Auto Testing-
2016/07/07
Mulodo Vietnam Co., Ltd.

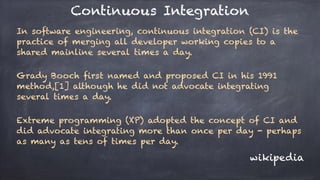

2. Continuous Integration
In software engineering, continuous integration (CI) is the
practice of merging all developer working copies to a
shared mainline several times a day.
Grady Booch first named and proposed CI in his 1991
method,[1] although he did not advocate integrating
several times a day.
Extreme programming (XP) adopted the concept of CI and
did advocate integrating more than once per day - perhaps
as many as tens of times per day.
wikipedia

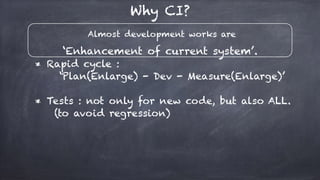

3. Almost development works are
‘Enhancement of current system’.
Why CI?
* Rapid cycle :
‘Plan(Enlarge) - Dev - Measure(Enlarge)’
* Tests : not only for new code, but also ALL.
(to avoid regression)

4. Almost development works are
‘Enhancement of current system’.
Why CI?
* Rapid cycle :
‘Plan(Enlarge) - Dev - Measure(Enlarge)’
* Tests : not only for new code, but also ALL.
(to avoid regression)
Tests are increasing
||
Dev cycle is going faster

5. Almost development works are
‘Enhancement of current system’.
Why CI?
* Rapid cycle :
‘Plan(Enlarge) - Dev - Measure(Enlarge)’
* Tests : not only for new code, but also ALL.
(to avoid regression)
Tests are increasing
||
Dev cycle is going faster
No way
out

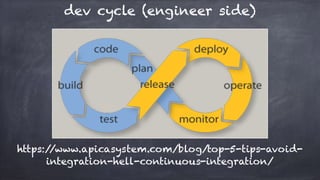

6. dev cycle (engineer side)
https://www.apicasystem.com/blog/top-5-tips-avoid-
integration-hell-continuous-integration/

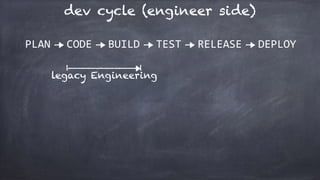

7. PLAN CODE BUILD TEST RELEASE DEPLOY
legacy Engineering
dev cycle (engineer side)

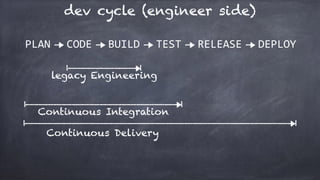

8. PLAN CODE BUILD TEST RELEASE DEPLOY
Continuous Integration
Continuous Delivery
legacy Engineering
dev cycle (engineer side)

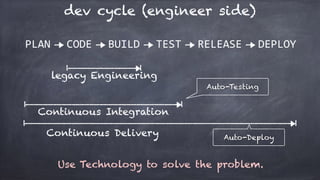

9. PLAN CODE BUILD TEST RELEASE DEPLOY
Continuous Integration
Continuous Delivery
legacy Engineering
dev cycle (engineer side)
Use Technology to solve the problem.
Auto-Testing
Auto-Deploy

10. dev cycle (from client side)
Huh? Tests?
That’s not my business.
Please ask testers.
No problem.
We are testing our code in
standard dev-flow

11. dev cycle (from client side)
Huh? Tests?
That’s not my business.
Please ask testers.
No problem.
We are testing our code in
standard dev-flow
Which engineer do you think better?

12. Aut0-Testing (auto-deploy)
So, “Testing” become a much important thing than you think.
Let’s start Auto-testing

13. Tools
CI tools
Test tools
https://en.wikipedia.org/wiki/List_of_unit_testing_frameworks

14. Tools
CI tools
Test tools
https://en.wikipedia.org/wiki/List_of_unit_testing_frameworks

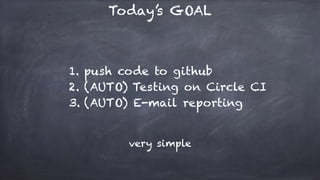

15. Today’s GOAL
1. push code to github
2. (AUTO) Testing on Circle CI
3. (AUTO) E-mail reporting
very simple

16. Flow
That’s ALL
create repository on github.com
create sample code and unit test code
register to CircleCI

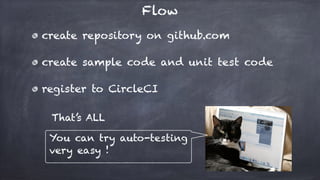

17. Flow
create repository on github.com
create sample code and unit test code
register to CircleCI
That’s ALL
You can try auto-testing
very easy !

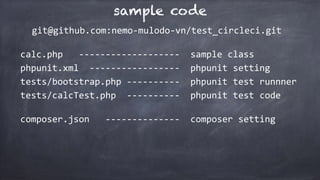

18. sample code
git@github.com:nemo-mulodo-vn/test_circleci.git
calc.php ------------------- sample class
phpunit.xml ----------------- phpunit setting
tests/bootstrap.php ---------- phpunit test runnner
tests/calcTest.php ---------- phpunit test code
composer.json -------------- composer setting

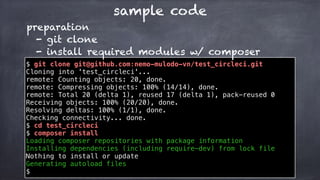

19. sample code
$ git clone git@github.com:nemo-mulodo-vn/test_circleci.git
Cloning into 'test_circleci'...
remote: Counting objects: 20, done.
remote: Compressing objects: 100% (14/14), done.
remote: Total 20 (delta 1), reused 17 (delta 1), pack-reused 0
Receiving objects: 100% (20/20), done.
Resolving deltas: 100% (1/1), done.
Checking connectivity... done.
$ cd test_circleci
$ composer install
Loading composer repositories with package information
Installing dependencies (including require-dev) from lock file
Nothing to install or update
Generating autoload files
$
preparation
- git clone
- install required modules w/ composer

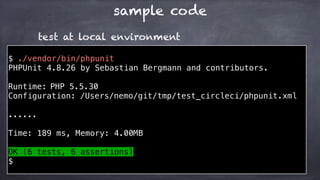

20. sample code
$ ./vendor/bin/phpunit
PHPUnit 4.8.26 by Sebastian Bergmann and contributors.
Runtime: PHP 5.5.30
Configuration: /Users/nemo/git/tmp/test_circleci/phpunit.xml
......
Time: 189 ms, Memory: 4.00MB
OK (6 tests, 6 assertions)
$
test at local environment

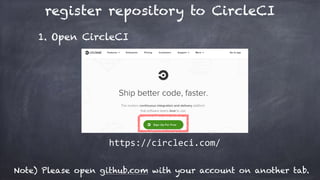

21. register repository to CircleCI
1. Open CircleCI
https://circleci.com/
Note) Please open github.com with your account on another tab.

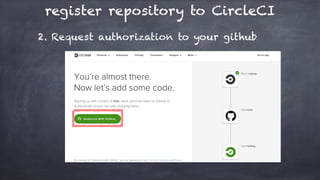

22. register repository to CircleCI
2. Request authorization to your github

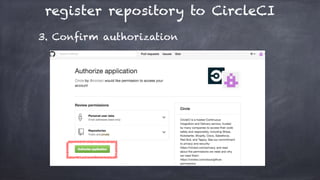

23. register repository to CircleCI
3. Confirm authorization

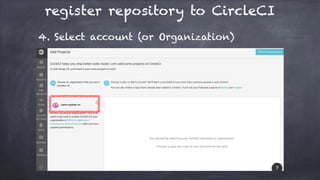

24. register repository to CircleCI
4. Select account (or Organization)

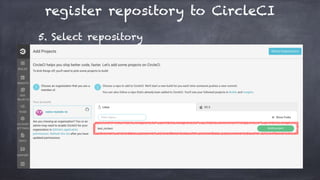

25. register repository to CircleCI
5. Select repository

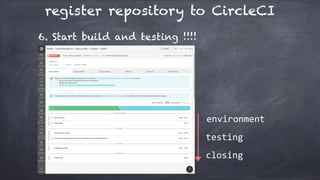

26. register repository to CircleCI
6. Start build and testing !!!!
environment
closing
testing

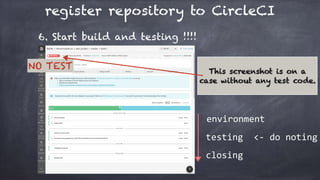

27. register repository to CircleCI
6. Start build and testing !!!!
environment
closing
testing <- do noting
This screenshot is on a
case without any test code.
NO TEST

28. That’s ALL
Much easier than
I thought

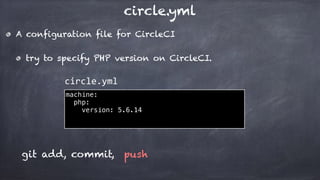

29. circle.yml
A configuration file for CircleCI
try to specify PHP version on CircleCI.
machine:
php:
version: 5.6.14
circle.yml
git add, commit, push

30. circle.yml
Some more example
machine:
php:
version: 5.6.14
dependencies:
override:
- composer install --prefer-source --no-interaction --dev
test:
override:
- echo “Thanks for spending your time"
circle.yml
https://circleci.com/docs/configuration/
You can deploy code to specified EC2
server and test on the server. (if u need)

31. Thank you
I am happy,
If you become
motivated to test.
