The document discusses infrastructure provisioning using Chef. It explains that Chef uses a declarative approach where you describe the desired state rather than how to achieve it. Cookbooks contain recipes that describe resources to bring a VM to the specified state. Cookbooks are repeatable, testable units that can install packages, configure services, create users and templates. Vagrant and Chef are often used together, with Vagrant managing VMs and triggering Chef provisioning to install software inside VMs.

1. Provisioning part
You can download me here:
https://github.com/akranga/devops-hackathon-2

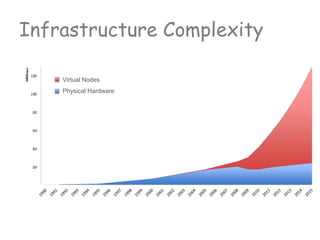

2. Infrastructure Complexity
Virtual Nodes
Physical Hardware

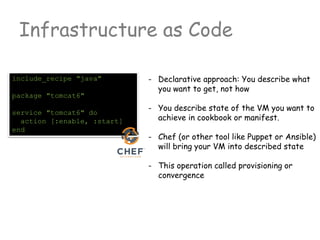

3. Infrastructure as Code
- Declarative approach: You describe what
you want to get, not how
- You describe state of the VM you want to
achieve in cookbook or manifest.
- Chef (or other tool like Puppet or Ansible)
will bring your VM into described state
- This operation called provisioning or
convergence
include_recipe "java"
package "tomcat6"
service "tomcat6" do
action [:enable, :start]
end

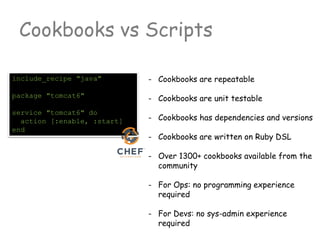

4. Cookbooks vs Scripts
- Cookbooks are repeatable
- Cookbooks are unit testable
- Cookbooks has dependencies and versions
- Cookbooks are written on Ruby DSL
- Over 1300+ cookbooks available from the
community
- For Ops: no programming experience
required
- For Devs: no sys-admin experience
required
include_recipe "java"
package "tomcat6"
service "tomcat6" do
action [:enable, :start]
end

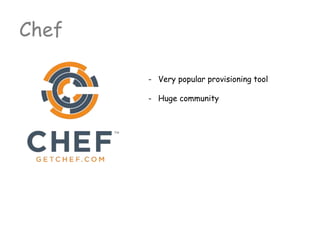

5. Chef
- Very popular provisioning tool
- Huge community

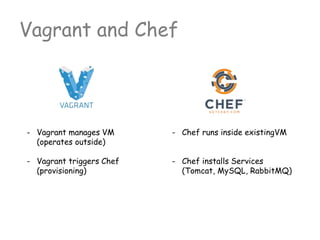

6. Vagrant and Chef
- Vagrant manages VM
(operates outside)
- Vagrant triggers Chef
(provisioning)
- Chef runs inside existingVM
- Chef installs Services
(Tomcat, MySQL, RabbitMQ)

7. Use Cases
- DevOps are using Vagrant + Chef for Cookbook development
- Dev & QA are using t host environment locally
- Ops using test deployments before roll-out to prod
- Jenkins using to run Infrastructure Automation Tests
- Jenkins using to do true Integration Tests of the App
+

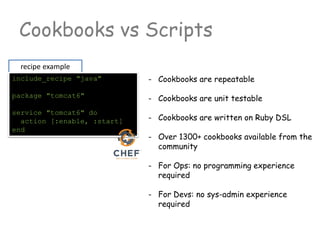

8. recipe example
Cookbooks vs Scripts
- Cookbooks are repeatable
- Cookbooks are unit testable
- Cookbooks are written on Ruby DSL
- Over 1300+ cookbooks available from the
community
- For Ops: no programming experience
required
- For Devs: no sys-admin experience
required
include_recipe "java"
package "tomcat6"
service "tomcat6" do
action [:enable, :start]
end

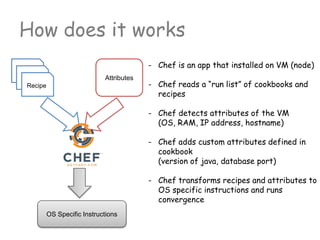

9. How does it works
- Chef is an app that installed on VM (node)
- Chef reads a “run list” of cookbooks and
recipes
- Chef detects attributes of the VM
(OS, RAM, IP address, hostname)
- Chef adds custom attributes defined in
cookbook
(version of java, database port)
- Chef transforms recipes and attributes to
OS specific instructions and runs
convergence
Recipe
Attributes
OS Specific Instructions

10. Anatomy of Cookbook

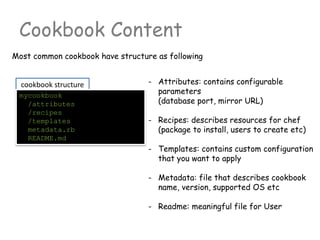

11. Cookbook Content
- Attributes: contains configurable
parameters
(database port, mirror URL)
- Recipes: describes resources for chef
(package to install, users to create etc)
- Templates: contains custom configuration
that you want to apply
- Metadata: file that describes cookbook
name, version, supported OS etc
- Readme: meaningful file for User
Most common cookbook have structure as following
cookbook structure
mycookbook
/attributes
/recipes
/templates
metadata.rb
README.md

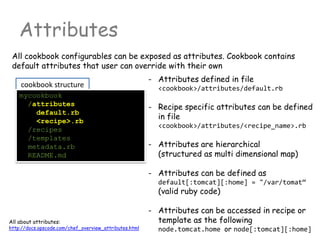

12. cookbook structure
Attributes
- Attributes defined in file
<cookbook>/attributes/default.rb
- Recipe specific attributes can be defined
in file
<cookbook>/attributes/<recipe_name>.rb
- Attributes are hierarchical
(structured as multi dimensional map)
- Attributes can be defined as
default[:tomcat][:home] = "/var/tomat“
(valid ruby code)
- Attributes can be accessed in recipe or
template as the following
node.tomcat.home or node[:tomcat][:home]
mycookbook
/attributes
default.rb
<recipe>.rb
/recipes
/templates
metadata.rb
README.md
All cookbook configurables can be exposed as attributes. Cookbook contains
default attributes that user can override with their own
All about attributes:
http://docs.opscode.com/chef_overview_attributes.html

13. cookbook structure
Recipes
mycookbook
/attributes
/recipes
default.rb
<other_recipe>.rb
/templates
metadata.rb
README.md
Recipe describes resources for chef convergence. Cookbook should have at
least “default” recipe. Recipes ordered in the chef run list.
Single web page for Chef resoruces:
http://docs.opscode.com/resources.html
- package: a software package that will be
installed from package manager (apt, yum)
- service: a service in: /etc/init.d
:enable – enable service to autorun
:start, :stop, :restart, :reload
- user: user that will be created or updated
- directory: directory to be created
- remote_file: file to be downloaded from
remote host
- tempalte: a file in VM rendered from ERB
template (templates directory

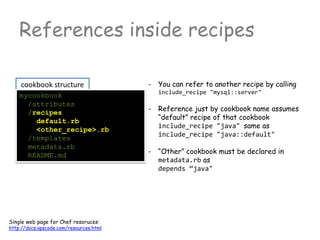

14. cookbook structure
References inside recipes
mycookbook
/attributes
/recipes
default.rb
<other_recipe>.rb
/templates
metadata.rb
README.md
Single web page for Chef resoruces:
http://docs.opscode.com/resources.html
- You can refer to another recipe by calling
include_recipe "mysql::server"
- Reference just by cookbook name assumes
“default” recipe of that cookbook
include_recipe "java" same as
include_recipe "java::default"
- “Other” cookbook must be declared in
metadata.rb as
depends “java"

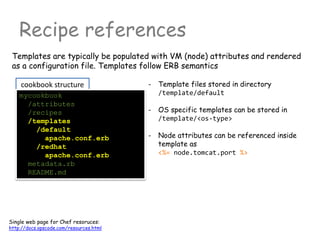

15. cookbook structure
Recipe references
mycookbook
/attributes
/recipes
/templates
/default
apache.conf.erb
/redhat
apache.conf.erb
metadata.rb
README.md
Single web page for Chef resoruces:
http://docs.opscode.com/resources.html
- Template files stored in directory
/template/default
- OS specific templates can be stored in
/template/<os-type>
- Node attributes can be referenced inside
template as
<%= node.tomcat.port %>
Templates are typically be populated with VM (node) attributes and rendered
as a configuration file. Templates follow ERB semantics

16. cookbook structure
Metadata
mycookbook
/attributes
/recipes
/templates
metadata.rb
README.md
Single web page for Chef resoruces:
http://docs.opscode.com/resources.html
- Template files stored in directory
/template/default
- OS specific templates can be stored in
/template/<os-type>
- Node attributes can be referenced inside
template as
<%= node.tomcat.port %>
Chef has dependency management between cookbooks. Each cookbook should
have following data

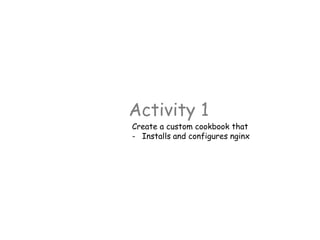

17. Activity 1
Create a custom cookbook that
- Installs and configures nginx

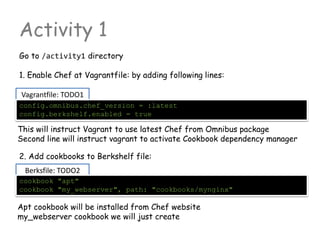

18. Berksfile: TODO2
Vagrantfile: TODO1
Activity 1
Go to /activity1 directory
1. Enable Chef at Vagrantfile: by adding following lines:
config.omnibus.chef_version = :latest
config.berkshelf.enabled = true
2. Add cookbooks to Berkshelf file:
This will instruct Vagrant to use latest Chef from Omnibus package
Second line will instruct vagrant to activate Cookbook dependency manager
cookbook "apt"
cookbook "my_webserver", path: "cookbooks/mynginx"
Apt cookbook will be installed from Chef website
my_webserver cookbook we will just create

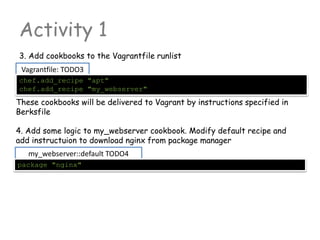

19. my_webserver::default TODO4
Activity 1
3. Add cookbooks to the Vagrantfile runlist
4. Add some logic to my_webserver cookbook. Modify default recipe and
add instructuion to download nginx from package manager
package "nginx"
Vagrantfile: TODO3
chef.add_recipe "apt"
chef.add_recipe "my_webserver"
These cookbooks will be delivered to Vagrant by instructions specified in
Berksfile

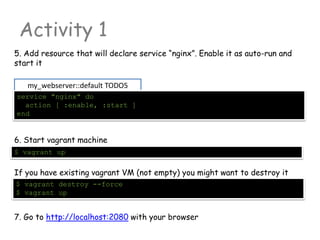

20. my_webserver::default TODO5
Activity 1
5. Add resource that will declare service “nginx”. Enable it as auto-run and
start it
service "nginx" do
action [ :enable, :start ]
end
6. Start vagrant machine
$ vagrant up
If you have existing vagrant VM (not empty) you might want to destroy it
$ vagrant destroy --force
$ vagrant up
7. Go to http://localhost:2080 with your browser

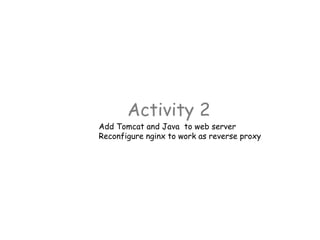

21. Activity 2
Add Tomcat and Java to web server
Reconfigure nginx to work as reverse proxy

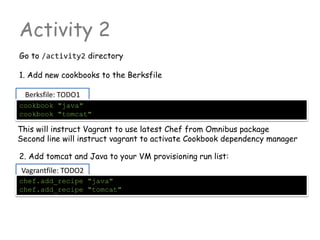

22. Vagrantfile: TODO2
Berksfile: TODO1
Activity 2
Go to /activity2 directory
1. Add new cookbooks to the Berksfile
cookbook "java"
cookbook "tomcat"
2. Add tomcat and Java to your VM provisioning run list:
This will instruct Vagrant to use latest Chef from Omnibus package
Second line will instruct vagrant to activate Cookbook dependency manager
chef.add_recipe "java"
chef.add_recipe "tomcat"

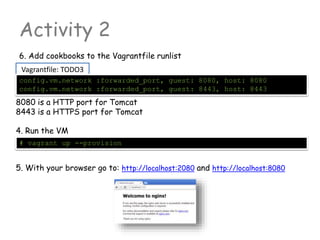

23. Activity 2
6. Add cookbooks to the Vagrantfile runlist
4. Run the VM
# vagrant up --provision
Vagrantfile: TODO3
config.vm.network :forwarded_port, guest: 8080, host: 8080
config.vm.network :forwarded_port, guest: 8443, host: 8443
8080 is a HTTP port for Tomcat
8443 is a HTTPS port for Tomcat
5. With your browser go to: http://localhost:2080 and http://localhost:8080

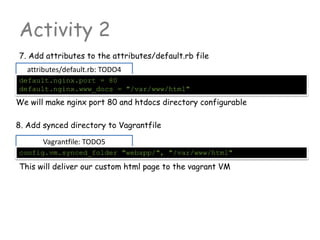

24. Activity 2
7. Add attributes to the attributes/default.rb file
8. Add synced directory to Vagrantfile
attributes/default.rb: TODO4
default.nginx.port = 80
default.nginx.www_docs = "/var/www/html"
We will make nginx port 80 and htdocs directory configurable
Vagrantfile: TODO5
config.vm.synced_folder "webapp/", "/var/www/html"
This will deliver our custom html page to the vagrant VM

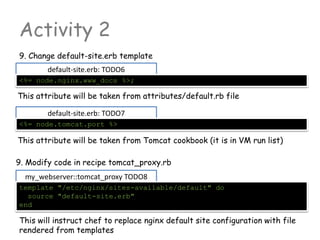

25. Activity 2
9. Change default-site.erb template
9. Modify code in recipe tomcat_proxy.rb
default-site.erb: TODO6
<%= node.nginx.www_docs %>;
my_webserver::tomcat_proxy TODO8
template "/etc/nginx/sites-available/default" do
source "default-site.erb"
end
This will instruct chef to replace nginx default site configuration with file
rendered from templates
default-site.erb: TODO7
<%= node.tomcat.port %>
This attribute will be taken from attributes/default.rb file
This attribute will be taken from Tomcat cookbook (it is in VM run list)

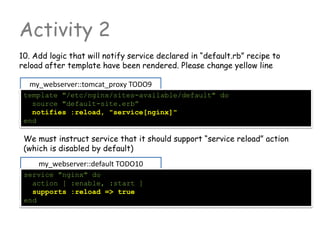

26. Activity 2
10. Add logic that will notify service declared in “default.rb” recipe to
reload after template have been rendered. Please change yellow line
my_webserver::tomcat_proxy TODO9
template "/etc/nginx/sites-available/default" do
source "default-site.erb”
notifies :reload, "service[nginx]"
end
We must instruct service that it should support “service reload” action
(which is disabled by default)
my_webserver::default TODO10
service "nginx" do
action [ :enable, :start ]
supports :reload => true
end

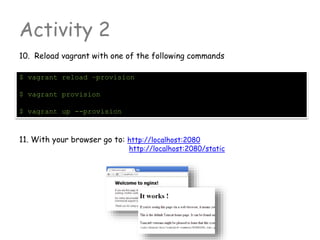

27. Activity 2
10. Reload vagrant with one of the following commands
11. With your browser go to: http://localhost:2080
http://localhost:2080/static
$ vagrant reload –provision
$ vagrant provision
$ vagrant up --provision

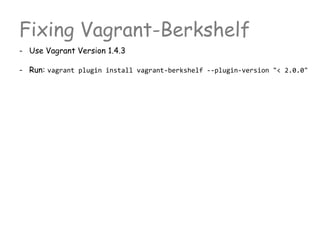

28. Fixing Vagrant-Berkshelf
- Use Vagrant Version 1.4.3
- Run: vagrant plugin install vagrant-berkshelf --plugin-version "< 2.0.0"

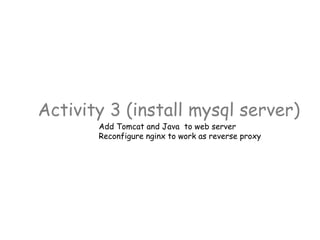

29. Activity 3 (install mysql server)
Add Tomcat and Java to web server
Reconfigure nginx to work as reverse proxy

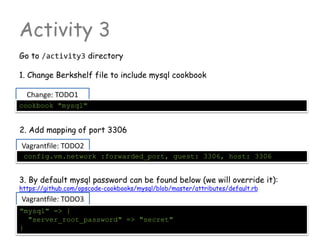

30. Vagrantfile: TODO2
Change: TODO1
Activity 3
Go to /activity3 directory
1. Change Berkshelf file to include mysql cookbook
cookbook "mysql"
2. Add mapping of port 3306
config.vm.network :forwarded_port, guest: 3306, host: 3306
Vagrantfile: TODO3
"mysql" => {
"server_root_password" => "secret"
}
3. By default mysql password can be found below (we will override it):
https://github.com/opscode-cookbooks/mysql/blob/master/attributes/default.rb

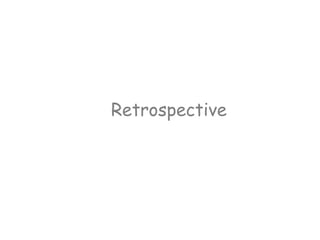

31. Retrospective
