1. 1
STEPHEN SAMUEL

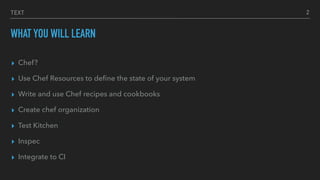

2. TEXT
WHAT YOU WILL LEARN
▸ Chef?
▸ Use Chef Resources to define the state of your system
▸ Write and use Chef recipes and cookbooks
▸ Create chef organization
▸ Test Kitchen
▸ Inspec
▸ Integrate to CI
2

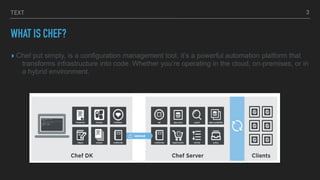

3. TEXT
WHAT IS CHEF?
▸ Chef put simply, is a configuration management tool, it’s a powerful automation platform that
transforms infrastructure into code. Whether you’re operating in the cloud, on-premises, or in
a hybrid environment.
3

4. TEXT
CHEF BASICS
▸ Chef lets you automate all the things—infrastructure, applications, compliance
and more
▸ Chef helps you express your infrastructure policy – how your software is
delivered and maintained on your servers – as code. When infrastructure is
code, it becomes more maintainable, versionable, testable, and collaborative.
▸ A great way to get started with Chef is to log in to a server, or node, and
configure it directly.
4

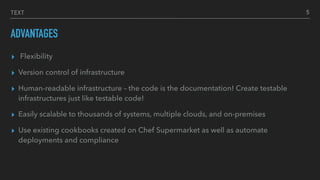

5. TEXT
ADVANTAGES
▸ Flexibility
▸ Version control of infrastructure
▸ Human-readable infrastructure – the code is the documentation! Create testable
infrastructures just like testable code!
▸ Easily scalable to thousands of systems, multiple clouds, and on-premises
▸ Use existing cookbooks created on Chef Supermarket as well as automate
deployments and compliance
5

6. TEXT

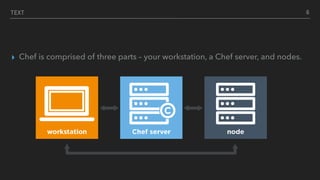

▸ Chef is comprised of three parts – your workstation, a Chef server, and nodes.
6

7. TEXT

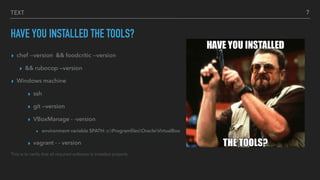

HAVE YOU INSTALLED THE TOOLS?
▸ chef --version && foodcritic --version
▸ && rubocop —version
▸ Windows machine
▸ ssh
▸ git —version
▸ VBoxManage - -version
▸ environment variable $PATH: c:ProgramfilesOracleVirtualBox
▸ vagrant - - version
This is to verify that all required software is installed properly
7

8. TEXT
CHEF RESOURCES
▸ A resource describes the desired state and steps for achieving the desired
configuration.
▸ Resources are managed within "recipes" (which will be covered in later) and
are generally grouped together within cookbooks for management-specific
software and tasks.
8

9. TEXT
RESOURCE DEFINITION
file 'hello.txt' do
content 'Hello, world!'
end
The TYPE named NAME should be ACTION'd with PROPERTIES
package ‘git’ do
action :install
end
9

10. TEXT

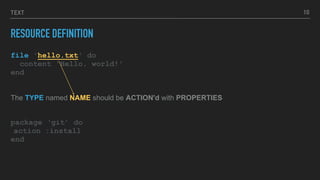

RESOURCE DEFINITION
file 'hello.txt' do
content 'Hello, world!'
end
The TYPE named NAME should be ACTION'd with PROPERTIES
package ‘git’ do
action :install
end
10

11. TEXT
RESOURCE DEFINITION
file 'hello.txt' do
content 'Hello, world!'
end
The TYPE named NAME should be ACTION'd with PROPERTIES
package ‘git’ do
action :install
end
11

12. TEXT

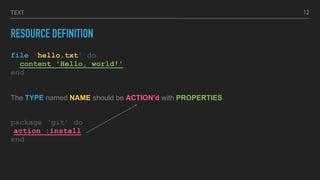

RESOURCE DEFINITION
file 'hello.txt' do
content 'Hello, world!'
end
The TYPE named NAME should be ACTION'd with PROPERTIES
package ‘git’ do
action :install
end
12

13. TEXT

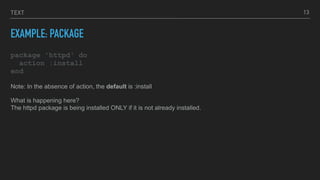

EXAMPLE: PACKAGE
package 'httpd' do
action :install
end
13
Note: In the absence of action, the default is :install
What is happening here?
The httpd package is being installed ONLY if it is not already installed.

14. TEXT

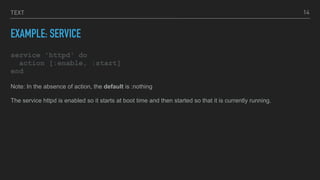

EXAMPLE: SERVICE
service 'httpd' do
action [:enable, :start]
end
14
Note: In the absence of action, the default is :nothing
The service httpd is enabled so it starts at boot time and then started so that it is currently running.

15. TEXT
EXAMPLE: FILE
file ‘/etc/motd‘ do
content 'This computer is the property of ...'
end
15
Note: In the absence of action, the default is :create
The file motd is created with the content
“This computer is the property …”

16. TEXT
RECIPE
▸ Recipes are a collection of resources, defined and written using patterns.
Helper code, such as loops and if statements, can be written around those
resources to help customize the configurations of specific nodes.
▸ For example, if or case statements around package names.
16

17. TEXT

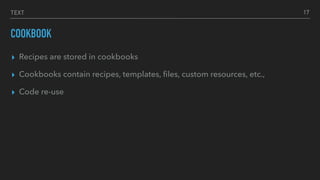

COOKBOOK
▸ Recipes are stored in cookbooks
▸ Cookbooks contain recipes, templates, files, custom resources, etc.,
▸ Code re-use
17

18. TEXT

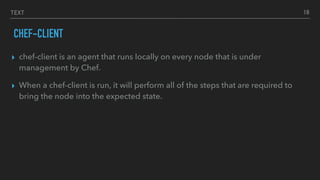

CHEF-CLIENT
▸ chef-client is an agent that runs locally on every node that is under
management by Chef.
▸ When a chef-client is run, it will perform all of the steps that are required to
bring the node into the expected state.
18

19. TEXT

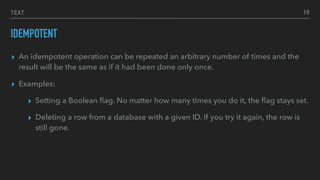

IDEMPOTENT
▸ An idempotent operation can be repeated an arbitrary number of times and the
result will be the same as if it had been done only once.
▸ Examples:
▸ Setting a Boolean flag. No matter how many times you do it, the flag stays set.
▸ Deleting a row from a database with a given ID. If you try it again, the row is
still gone.
19

20. TEXT

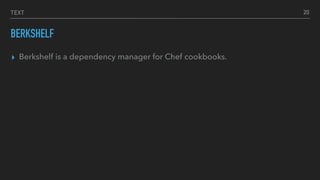

BERKSHELF
▸ Berkshelf is a dependency manager for Chef cookbooks.
20

21. KITCHEN
▸ Use Test Kitchen to automatically test cookbook data across any combination
of platforms and test suites

22. 22

23. TEXT

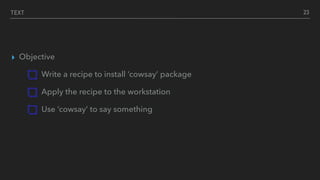

▸ Objective
Write a recipe to install ‘cowsay’ package
Apply the recipe to the workstation
Use ‘cowsay’ to say something
23

24. TEXT

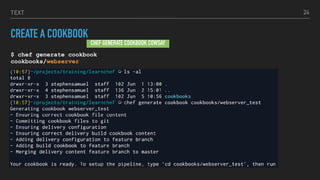

CREATE A COOKBOOK
$ chef generate cookbook
cookbooks/webserver
24
CHEF GENERATE COOKBOOK COWSAY

25. TEXT

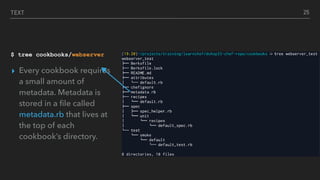

$ tree cookbooks/webserver
▸ Every cookbook requires
a small amount of
metadata. Metadata is
stored in a file called
metadata.rb that lives at
the top of each
cookbook’s directory.
25

26. TEXT
BERKSFILE
EDIT FILE: ~/.BERKSHELF/CONFIG.JSON
{
"SSL": {
"VERIFY": FALSE
}
}
26
source 'https://pchfsup1v.standardbank.co.za'
metadata
cookbook 'sbsa-kitchen'
BERKS
INSTALL

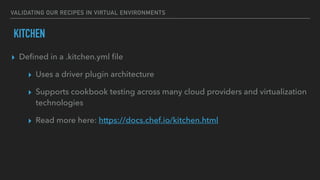

27. VALIDATING OUR RECIPES IN VIRTUAL ENVIRONMENTS
KITCHEN
▸ Defined in a .kitchen.yml file
▸ Uses a driver plugin architecture
▸ Supports cookbook testing across many cloud providers and virtualization
technologies
▸ Read more here: https://docs.chef.io/kitchen.html

28. TEXT

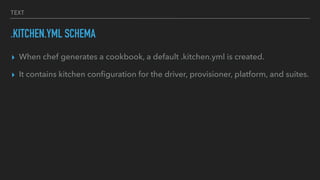

.KITCHEN.YML SCHEMA
▸ When chef generates a cookbook, a default .kitchen.yml is created.
▸ It contains kitchen configuration for the driver, provisioner, platform, and suites.

29. TEXT

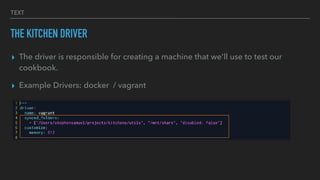

THE KITCHEN DRIVER
▸ The driver is responsible for creating a machine that we'll use to test our
cookbook.
▸ Example Drivers: docker / vagrant

30. TEXT

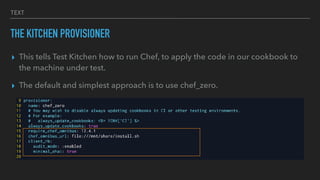

THE KITCHEN PROVISIONER
▸ This tells Test Kitchen how to run Chef, to apply the code in our cookbook to
the machine under test.
▸ The default and simplest approach is to use chef_zero.

31. TEXT

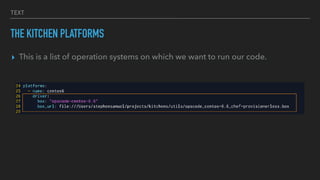

THE KITCHEN PLATFORMS
▸ This is a list of operation systems on which we want to run our code.

32. TEXT

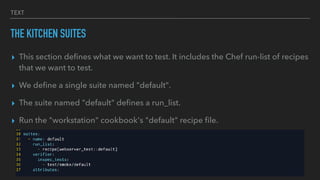

THE KITCHEN SUITES
▸ This section defines what we want to test. It includes the Chef run-list of recipes
that we want to test.
▸ We define a single suite named "default".
▸ The suite named "default" defines a run_list.
▸ Run the "workstation" cookbook's "default" recipe file.

33. TEXT
EDIT .KITCHEN.YML
driver:
name: vagrant
synced_folders:
- ["E:cheftrainingutils", "/mnt/share", "disabled: false"]
customize:
memory: 512
provisioner:
name: chef_zero
require_chef_omnibus: 12.4.1
chef_omnibus_url: file:///mnt/share/install.sh
client_rb:
audit_mode: :enabled
minimal_ohai: true
always_update_cookbooks: true

34. TEXT

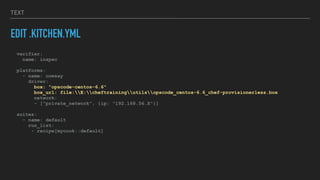

EDIT .KITCHEN.YML
verifier:
name: inspec
platforms:
- name: cowsay
driver:
box: "opscode-centos-6.6"
box_url: file:E:cheftrainingutilsopscode_centos-6.6_chef-provisionerless.box
network:
- ["private_network", {ip: "192.168.56.X"}]
suites:
- name: default
run_list:
- recipe[mycook::default]

35. TEXT

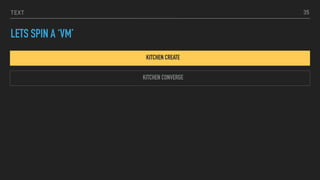

LETS SPIN A ‘VM’
KITCHEN CREATE
35
KITCHEN CONVERGE

36. TEXT

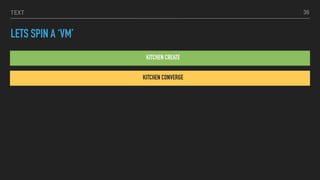

LETS SPIN A ‘VM’
KITCHEN CREATE
36
KITCHEN CONVERGE

37. TEXT
LET’S ‘COWSAY’ MANUALLY
37
KITCHEN CONVERGE (FAILED??)
kitchen login
@vagrant: sudo -s (change to root)
@root: yum install git

38. TEXT

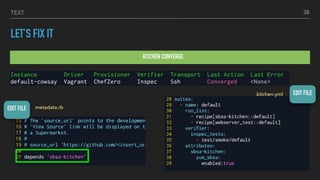

LET’S FIX IT
KITCHEN CONVERGE
38
EDIT FILE
metadata.rbEDIT FILE
.kitchen.yml

39. TEXT

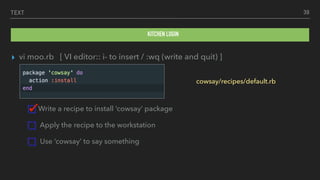

▸ vi moo.rb [ VI editor:: i- to insert / :wq (write and quit) ]
Write a recipe to install ‘cowsay’ package
Apply the recipe to the workstation
Use ‘cowsay’ to say something
39
KITCHEN LOGIN
cowsay/recipes/default.rb

40. TEXT
▸ apply the recipe
$ sudo chef-client –-local-mode moo.rb
Write a recipe to install ‘cowsay’ package
Apply the recipe to the workstation
Use ‘cowsay’ to say something
40

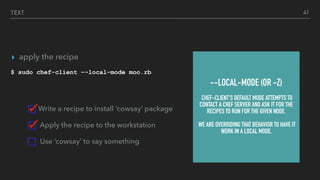

41. TEXT
▸ apply the recipe
$ sudo chef-client –-local-mode moo.rb
Write a recipe to install ‘cowsay’ package
Apply the recipe to the workstation
Use ‘cowsay’ to say something
41
--LOCAL-MODE (OR -Z)
CHEF-CLIENT'S DEFAULT MODE ATTEMPTS TO
CONTACT A CHEF SERVER AND ASK IT FOR THE
RECIPES TO RUN FOR THE GIVEN NODE.
WE ARE OVERRIDING THAT BEHAVIOR TO HAVE IT
WORK IN A LOCAL MODE.

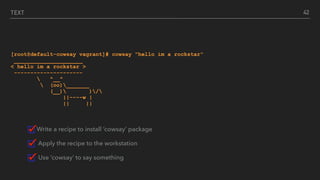

42. TEXT
[root@default-cowsay vagrant]# cowsay "hello im a rockstar"
_____________________
< hello im a rockstar >
---------------------
^__^
(oo)_______
(__) )/
||----w |
|| ||
Write a recipe to install ‘cowsay’ package
Apply the recipe to the workstation
Use ‘cowsay’ to say something
42

43. TEXT 43

44. TEXT 44
TEST KITCHEN

45. TEXT

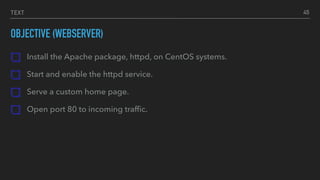

OBJECTIVE (WEBSERVER)
Install the Apache package, httpd, on CentOS systems.
Start and enable the httpd service.
Serve a custom home page.
Open port 80 to incoming traffic.
45

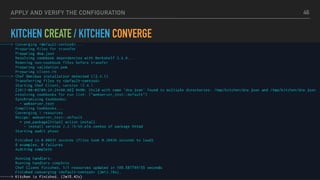

46. APPLY AND VERIFY THE CONFIGURATION
KITCHEN CREATE / KITCHEN CONVERGE
46

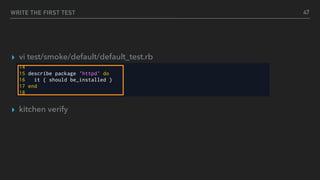

47. WRITE THE FIRST TEST
▸ vi test/smoke/default/default_test.rb
▸ kitchen verify
47

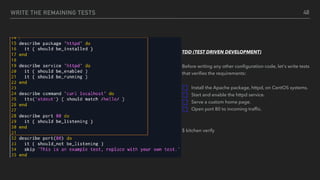

48. WRITE THE REMAINING TESTS 48
TDD (TEST DRIVEN DEVELOPMENT)
Before writing any other configuration code, let's write tests
that verifies the requirements:
Install the Apache package, httpd, on CentOS systems.
Start and enable the httpd service.
Serve a custom home page.
Open port 80 to incoming traffic.
$ kitchen verify

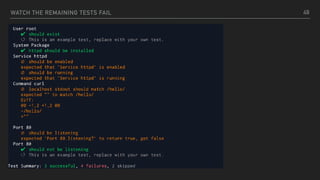

49. WATCH THE REMAINING TESTS FAIL 49

50. TEXT

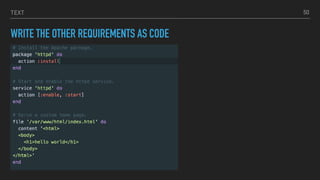

WRITE THE OTHER REQUIREMENTS AS CODE
50

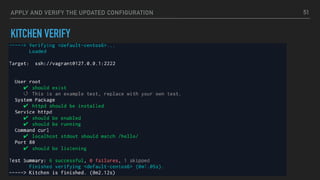

51. APPLY AND VERIFY THE UPDATED CONFIGURATION
KITCHEN VERIFY
51

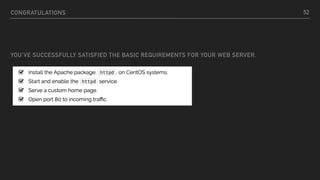

52. CONGRATULATIONS
YOU'VE SUCCESSFULLY SATISFIED THE BASIC REQUIREMENTS FOR YOUR WEB SERVER.
52

53. TEXT
TEST KITCHEN COMMANDS AND CONFIGURATION
$ kitchen create [INSTANCE|REGEXP|all]
Create one or more instances.

54. TEXT
TEST KITCHEN COMMANDS AND CONFIGURATION
$ kitchen converge [INSTANCE|REGEXP|
all]
Create the instance (if necessary) and
then apply
the run list to one or more instances.

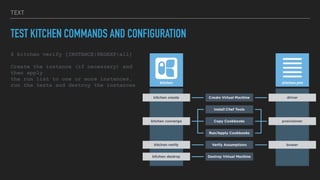

55. TEXT
TEST KITCHEN COMMANDS AND CONFIGURATION
$ kitchen verify [INSTANCE|REGEXP|all]
Create the instance (if necessary) and
then apply
the run list to one or more instances,
run the tests and destroy the instances

56. TEXT

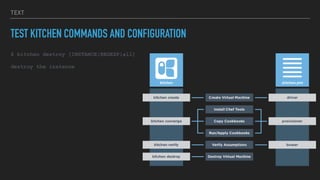

TEST KITCHEN COMMANDS AND CONFIGURATION
$ kitchen destroy [INSTANCE|REGEXP|all]
destroy the instance

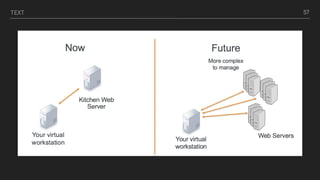

57. TEXT 57

58. TEXT 58
CHEF SERVER

59. TEXT
CHEF SERVER (OBJECTIVE)
▸ Connect local workstation (laptop) to a Chef Server
▸ Upload cookbooks to a Chef Server
▸ Bootstrap a node
▸ Manage a node via a Chef Server
59

60. TEXT
CHEF SERVER
▸ Chef is comprised of three parts – your workstation, a Chef server, and nodes.
▸ Chef server acts as a central repository for your cookbooks as well as for
information about every node it manages.
60

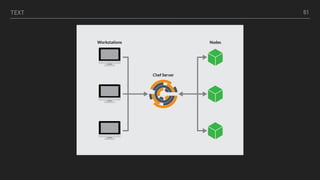

61. TEXT 61

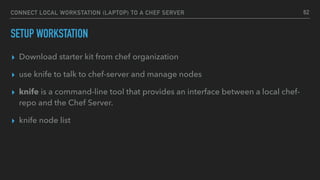

62. CONNECT LOCAL WORKSTATION (LAPTOP) TO A CHEF SERVER
SETUP WORKSTATION
▸ Download starter kit from chef organization
▸ use knife to talk to chef-server and manage nodes
▸ knife is a command-line tool that provides an interface between a local chef-
repo and the Chef Server.
▸ knife node list
62

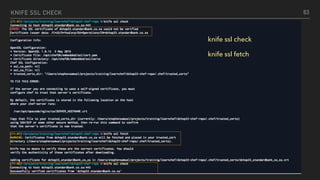

63. KNIFE SSL CHECK
∑
63
knife ssl check
knife ssl fetch

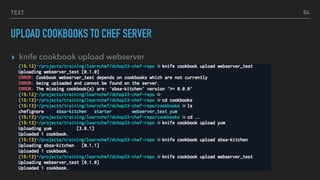

64. TEXT
UPLOAD COOKBOOKS TO CHEF SERVER
▸ knife cookbook upload webserver
64

65. TEXT

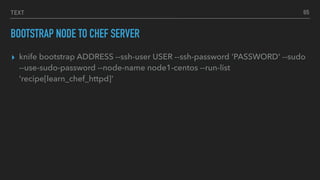

BOOTSTRAP NODE TO CHEF SERVER
▸ knife bootstrap ADDRESS --ssh-user USER --ssh-password 'PASSWORD' --sudo
--use-sudo-password --node-name node1-centos --run-list
'recipe[learn_chef_httpd]'
65

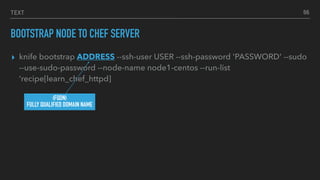

66. TEXT
BOOTSTRAP NODE TO CHEF SERVER
▸ knife bootstrap ADDRESS --ssh-user USER --ssh-password 'PASSWORD' --sudo
--use-sudo-password --node-name node1-centos --run-list
‘recipe[learn_chef_httpd]
66
(FQDN)
FULLY QUALIFIED DOMAIN NAME

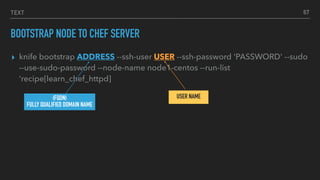

67. TEXT
BOOTSTRAP NODE TO CHEF SERVER
▸ knife bootstrap ADDRESS --ssh-user USER --ssh-password 'PASSWORD' --sudo
--use-sudo-password --node-name node1-centos --run-list
‘recipe[learn_chef_httpd]
67
(FQDN)
FULLY QUALIFIED DOMAIN NAME
USER NAME

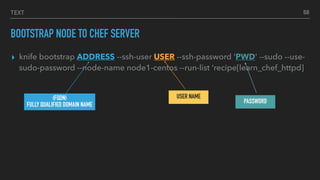

68. TEXT
BOOTSTRAP NODE TO CHEF SERVER
▸ knife bootstrap ADDRESS --ssh-user USER --ssh-password 'PWD' --sudo --use-
sudo-password --node-name node1-centos --run-list ‘recipe[learn_chef_httpd]
68
(FQDN)
FULLY QUALIFIED DOMAIN NAME
USER NAME
PASSWORD

69. TEXT
BOOTSTRAP NODE TO CHEF SERVER
▸ knife bootstrap ADDRESS --ssh-user USER --ssh-password 'PWD' --sudo --use-
sudo-password --node-name node1-centos --run-list ‘recipe[learn_chef_httpd]
69
(FQDN)
FULLY QUALIFIED DOMAIN NAME
USER NAME
PASSWORD
NODE NAME

70. TEXT

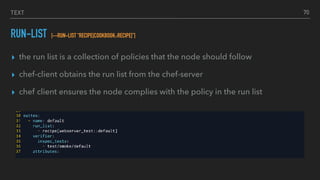

RUN-LIST [--RUN-LIST “RECIPE[COOKBOOK::RECIPE]”]
▸ the run list is a collection of policies that the node should follow
▸ chef-client obtains the run list from the chef-server
▸ chef client ensures the node complies with the policy in the run list
70

71. TEXT

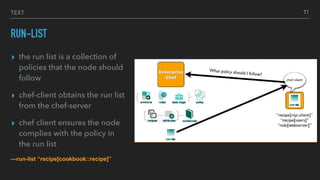

RUN-LIST
▸ the run list is a collection of
policies that the node should
follow
▸ chef-client obtains the run list
from the chef-server
▸ chef client ensures the node
complies with the policy in
the run list
—run-list “recipe[cookbook::recipe]”
71

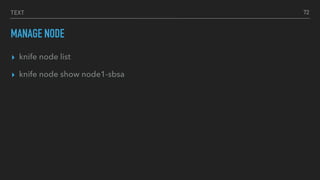

72. TEXT
MANAGE NODE
▸ knife node list
▸ knife node show node1-sbsa
72

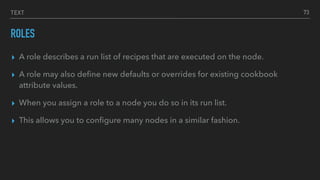

73. TEXT
ROLES
▸ A role describes a run list of recipes that are executed on the node.
▸ A role may also define new defaults or overrides for existing cookbook
attribute values.
▸ When you assign a role to a node you do so in its run list.
▸ This allows you to configure many nodes in a similar fashion.
73

74. TEXT 74
TEST INFRASTRUCTURE

75. TEXT

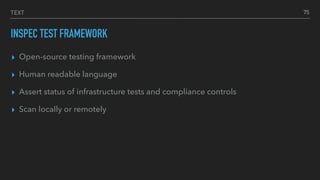

INSPEC TEST FRAMEWORK
▸ Open-source testing framework
▸ Human readable language
▸ Assert status of infrastructure tests and compliance controls
▸ Scan locally or remotely
75

76. TEXT

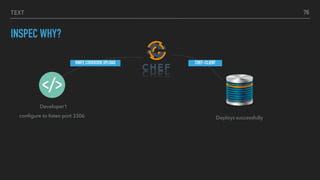

INSPEC WHY?
76
Developer1
configure to listen port 3306
KNIFE COOKBOOK UPLOAD CHEF-CLIENT
Deploys successfully

77. TEXT

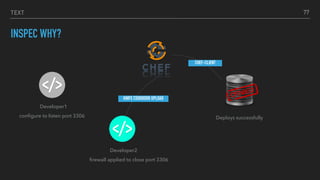

INSPEC WHY?
77
Developer1
configure to listen port 3306
CHEF-CLIENT
Deploys successfully
Developer2
firewall applied to close port 3306
KNIFE COOKBOOK UPLOAD

78. TEXT

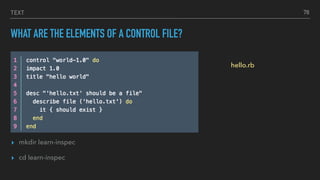

WHAT ARE THE ELEMENTS OF A CONTROL FILE?
▸ mkdir learn-inspec
▸ cd learn-inspec
78
hello.rb

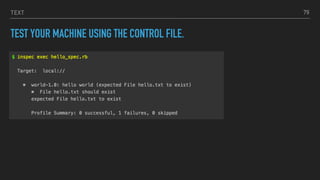

79. TEXT
TEST YOUR MACHINE USING THE CONTROL FILE.
79

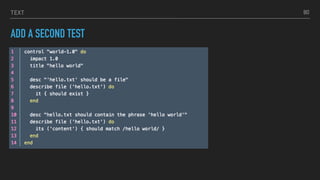

80. TEXT
ADD A SECOND TEST
80

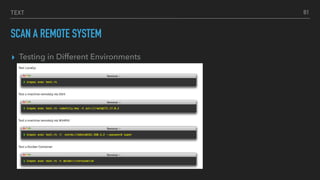

81. TEXT
SCAN A REMOTE SYSTEM
▸ Testing in Different Environments
81

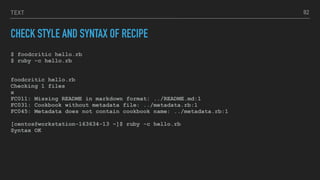

82. TEXT
CHECK STYLE AND SYNTAX OF RECIPE
$ foodcritic hello.rb
$ ruby –c hello.rb
foodcritic hello.rb
Checking 1 files
x
FC011: Missing README in markdown format: ../README.md:1
FC031: Cookbook without metadata file: ../metadata.rb:1
FC045: Metadata does not contain cookbook name: ../metadata.rb:1
[centos@workstation-163634-13 ~]$ ruby -c hello.rb
Syntax OK
82

83. TEXT
INTEGRATE INSPEC WITH JENKINS
DEMO
83

84. TEXT

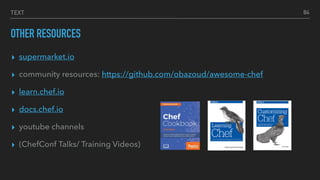

OTHER RESOURCES
▸ supermarket.io
▸ community resources: https://github.com/obazoud/awesome-chef
▸ learn.chef.io
▸ docs.chef.io
▸ youtube channels
▸ (ChefConf Talks/ Training Videos)
84
