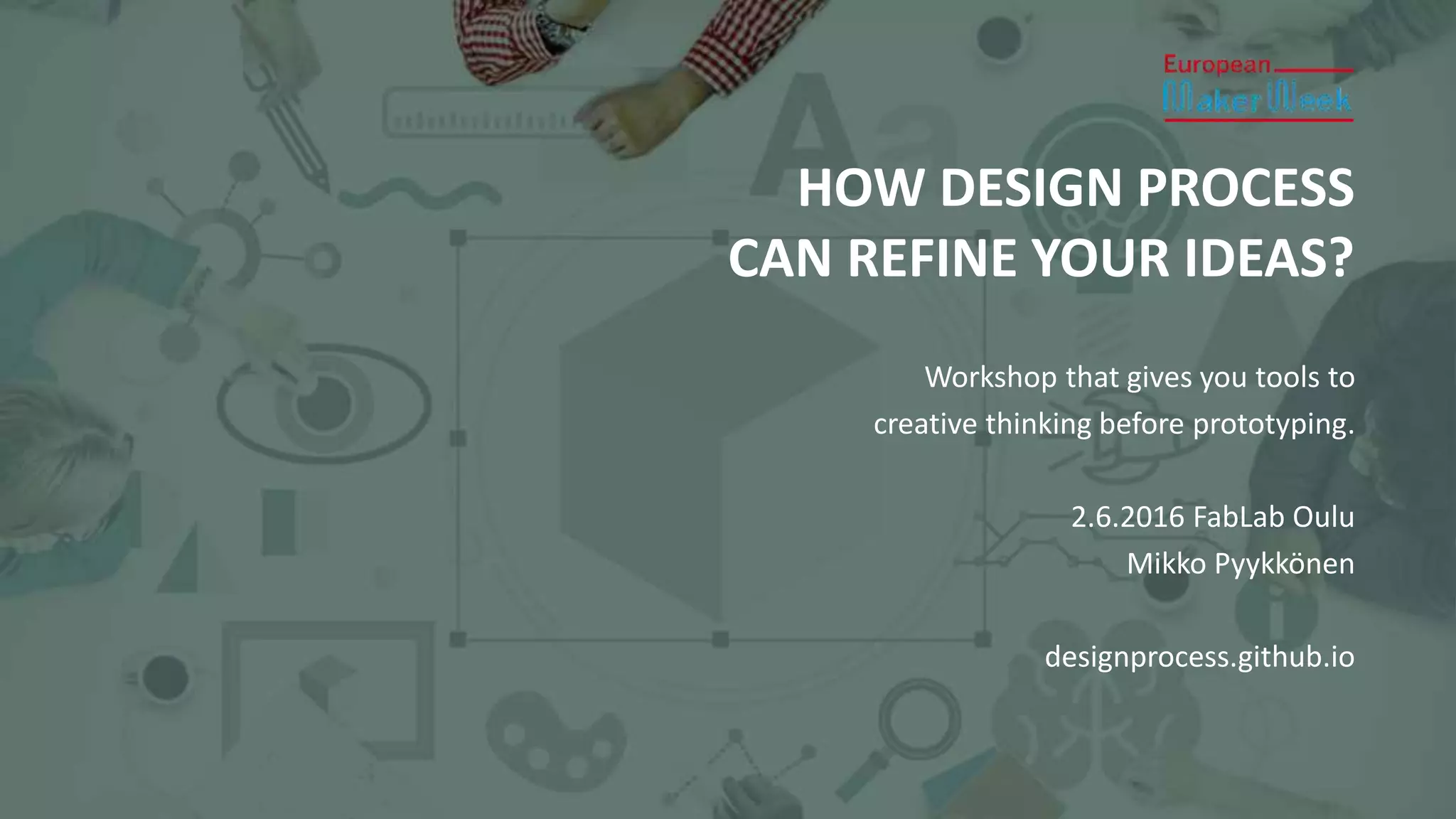

1. HOW DESIGN PROCESS
CAN REFINE YOUR IDEAS?
Workshop that gives you tools to
creative thinking before prototyping.
2.6.2016 FabLab Oulu
Mikko Pyykkönen
designprocess.github.io

2. We are in the middle of cultural change in product fabrication. We are moving
from age of design heros towards age of maker culture. Time, we spent on
reading product reviews is going to be spent more on reading DIY (Do It
Yourself) stories. Birth of Fab Labs, maker communities, easy shared
instructions and advanced fabrication tools, mean easy access to build your
own things to support your personal life individually. This leads into that
design education should be aimed for all of us. Goal is to simplify the design
process, so it will be fast and easy to adapt by everyone. This workshop is
about giving basic tools for polishing your ideas in paper to shine brighter
before going to prototype them. The time you spend on paper will pay you
back later.

3. Start drawing your ideas

4. But seriously
I can´t draw

6. First Ever Sketch Of Alexander Graham Bell's
Telephone Concept

8. drawing
tools
DOCUMENTING
WAKING UP
DRAWING

9. drawing
tutorials
KEYWORDS FOR
TUTORIALS
tutorial, product,
sketch, design,
illustrate, SHAPES:
ball, cube, pipe,
sphere, pyramid

10. Design Process

11. Design Process
PROBLEM
SOLUTION

12. Design Process
from problem to solution
PROBLEM
KNOWLEDGE
IDEA
SELECTION
TEST
AND DO IT AGAIN
SOLUTION IS MOST PROPABLY NEVER ”READY”
IT IS JUST SOLUTION WHICH IS RELATED TO TIME
AND RESOURCES.

13. Design Process
iterations
MORE ITERATIONS
BETTER IT GETS

14. Design Process
understand the problem
- WHEN THE PROBLEM OCCURS
-WHAT ARE THE FACTS THAT WILL FORM
THE PROBLEM
- DIVIDE PROBLEM INTO DETAILS
subproblems

15. Design Process
get inspired
Behance.com
Pinterest.com
Instuctables.com
Core77.com
Design-milk.com

16. Design Process
through the silo

17. SAMPLE PROBLEM
HOW TO DROP AN EGG FROM SECOND
FLOOR TO FIRST FLOOR WITHOUT
BREAKING IT?

18. Design Process
design brief

19. Design ProcessDESIGN BRIEF
PRODUCT DESCRIPTION: SYSTEM FOR DROPING AN EGG FROM SECOND FLOOR OF FABLAB TO THE FIRST FLOOR
IN A WAY THAT EGG WONT GET BROKEN.
DESIGN TARGETS:
(Product features) efficiency – Product should be able to protect egg from dropping
endurance – Product needs to last only one dropping
usability - Everyone should be able to use it
ergonomics- system is build only one time use so ergonomics are not very
important for the system. Everyone should be able to use it anyway
TARGET GROUP: people who are attending to the workshop
Brief clarifies/unifies the design goal to the team.

20. Design Process
ideation

21. Design Process
ideation
Brainstorming
NO CRITISISM
There will be time for that later

22. Design Process
Affinity wallObserve your ideas. Look after similarities.
Organise your ideas into groups. Try to give
names and short describtions to idea groups.
Some of the ideas might belong to multiple groups. Don´t worry.
Just make a copy. Sometimes you get new ideas while organising previous.
It´s OK. You can still add new ideas into the wall.

23. Design Process
ideation
MORPHOLOGICAL
ANALYSES
vegetable collection
system

24. Design Process
ideation
MORPHOLOGICAL ANALYSES FOR EGG
DROPPING SYSTEM

25. Design Process
sketching

26. Design Process
sketching

27. Design Process
sketching
Don´t forget to documentate

28. Design Process
concepting

29. Design Process
building concepts
SHORT DESCRIPTION
CONCEPT NAME AND NUMBER
detail1 detail2
CONSEPT IS SUMMARY
OF SKETCHES

30. Design Process
evaluating concepts
Present concepts and try to find end user opinions.

31. Design Process
finalizing concept

32. Design Process
finalizing concept
DESIGN CONSENTRATES MORE ON
DETAILS. You may use previous methods
for each detail.

33. Design Process
finalizing concept

34. Design Process
making virtual model

35. Design Process
finalizing concept

36. Design Process
prototyping
If you are not sure of some detail in your
3D model, you can print only that part
first to check how it works
You can also first use cheaper materials
to test. Example cutting first cardboard
with laser.

37. Design Process
get feedback
After prototype is ready present it to
possible end users. Ask for feedback and
make notes. Test it in real life situations
and try to learn.
Based on feedback and observations
start design process again.

38. Design Process
Design Process is problem to solution
process.
Same process and same tools but
multiply real life use cases

39. DESIGN KIT
QUESTIONAIRE
