Deploying WO on Windows
- 1. Deploying WO onWindows Markus Stoll junidas GmbH, Stuttgart
- 2. • customer requirement •Windows integration • WebObjects 4.x migration / mixed deployment • Why not? Windows deployment, why?
- 3. WebObjects on Windows •Setup explained, Demos • Common pitfalls • Tools and techniques for Debugging • URLs for stuff you need • Q&A

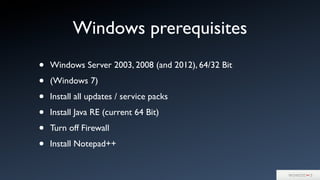

- 4. Windows prerequisites • WindowsServer 2003, 2008 (and 2012), 64/32 Bit • (Windows 7) • Install all updates / service packs • Install Java RE (current 64 Bit) • Turn off Firewall • Install Notepad++
- 5. WO prerequisites • InstallWebObjects 5.4.3 on a Mac • pack /System/Library/Frameworks/Java* (except JavaVM.fw) • Compile current WONDER • pack WONDER fw, apps, examples
- 6. Windows basic setup •InstallVC 2010 Redistributable Packages (64 Bit / 32 Bit) (Apache & WOStart depend on it) 64 Bit / 32 Bit • Choose proper hostname
- 7. WO basic setup •Choose WO base dir (c:Apple) • ENV-Variable NEXT_ROOT • Create Subfolders • .LibraryFrameworks • .LocalLibraryFrameworks • .LocalLibraryWebObjectsConfiguration • .LocalLibraryWebObjectsJavaApplications
- 8. Demo 1, Setup •Windows setup • WO setup
- 9. WOStart • modified WebObjects-awareJava.exe • <AppName>.exe replaces <AppName>.cmd / WOBootstrap.jar • parse ContentsWindowsCLSSPATH.TXT • application class • classpath • JVM parameters • find and load jvm.dll
- 10. WOStart, advantages • nosub process • process name == App name • classpath loaded as system classpath • able to run as NT Service with same cmd line parameters
- 11. WO app asNT Service • sc.exe create <ServiceName> displayName= "<DisplayName>" binPath = "<PathToWOStart> <WOParameters>" start= auto • sc.exe failure <ServiceName> reset= 30 actions= restart/3000 • sc.exe start <ServiceName>
- 12. WOStart 64 Bitvs. 32 Bit • 2 Binaries: 64 Bit and 32 Bit • WOStart.exe must match the chosen JavaVM architecture! • VC 10 redist!
- 13. Demo 2,WOStart • WOStart •Install wotaskd and JavaMonitor as NT Service
- 14. JavaMonitor / WOTaskD WOTaskD WOApp 1WO App 2 WO App 2 WO Apps start/stop Disk config lifebeat JavaMonitor
- 15. JavaMonitor / WOTaskD,multiple hosts WOTaskD WO App 1WO App 2 WO App 2 WOTaskD WO App 1WO App 2 WO App 2 JavaMonitor WOTaskD WO App 1WO App 2 WO App 2
- 16. Demo 3, SetupJavaMonitor • Declare host • Create App & Instance
- 17. WebServer / Apachevs. IIS • IIS • integrate remote static content • integrate ASP/.NET content • modify Adaptor • needs patched Application class • Apache • need for Apache modules • integrate PHP (secure)
- 18. IIS • Refurbished WOAdaptor •IIS 7 / 64 Bit and 32 Bit • Bugfixes (stable like Apache-Adaptor) • Streaming (even with unset Content-Length) • Compile using MingW • WebObjects 4.x compatibility
- 19. IIS, cont. • WOAdaptoris ISAPI-Extension, NOT ISAPI-Filter • Add Server Role „Web Server (IIS)“ • Option „ISAPI-Extensions“ • Register WOAdaptor at „CGI and ISAPI Restrictions“ • Enable ISAPI-dll at „Handler Mappings“ • Create folders / declare in WebSite • Configure in Registry

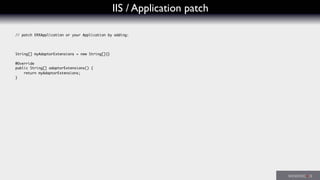

- 20. IIS / Applicationpatch // patch ERXApplication or your Application by adding: String[] myAdaptorExtensions = new String[]{} @Override public String[] adaptorExtensions() { return myAdaptorExtensions; }
- 21. Demo 4, IISsetup • IIS installation • Adaptor config • WebSite config • 32 Bit mode
- 22. Apache 2.4 underWindows • Binaries for httpd and WOAdaptor available • avoid compiling • runs as NT Service • short Demo
- 23. Debugging WOStart /WOApps •WOStart debugging set _JAVA_LAUNCHER_DEBUG=1 WOStart.exe ... • WOTaskD/JavaMonitor debugging ContentsResourcesProperties: NSDebugLevel=NSLog.DebugLevelDetailed NSDebugGroup= NSLog.DebugGroupDeployment • All Apps: Java Remote Debugging ContentsWindowsCLSSPATH.TXT: # JVMOptions == -Xdebug -Xrunjdwp:server=y,transport=dt_socket,address=4000,suspend=n

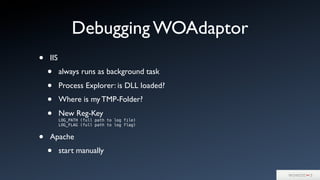

- 24. Debugging WOAdaptor • IIS •always runs as background task • Process Explorer: is DLL loaded? • Where is my TMP-Folder? • New Reg-Key LOG_PATH (full path to log file) LOG_FLAG (full path to log flag) • Apache • start manually
- 25. Pitfalls • text files& line endings • 32 Bit vs. 64 Bit (Wow64) • ONE user for all WO apps • LocalService or dedicated user • no sudo (RunAs does not help) • Permissions Logs & config files • process / user limits
- 26. Pitfalls, cont. • est.TCPconnections do block sockets http://support.microsoft.com/kb/929851 • storage access / UNC paths • automatic Windows updates • IIS app pools / worker recycling
- 27. Aftermath • Set WOAdaptorcredentials • Set JavaMonitor credentials • Firewall
- 28. Windows deployment, URLs •VC 10 Redist., 64 Bit http://www.microsoft.com/en-us/download/details.aspx?id=13523 • VC 10 Redist., 32 Bit http://www.microsoft.com/en-us/download/details.aspx?id=8328 • WOStart binaries http://wocommunity.org/documents/tools/WOStart.zip • WOStart source ${WONDER}/Utilities/WOStart
- 29. URLs, cont. • WOAdaptor,IIS (DLL & EXE, 32 Bit, 64 Bit) http://wocommunity.org/documents/tools/mod_WebObjects/IIS/ • Apache for Windows http://www.apachelounge.com/download/ • WOAdaptor, Apache/Windows (32 Bit, 64 Bit) http://wocommunity.org/documents/tools/mod_WebObjects/Apache2.4/ windows/ • WOAdaptor Source ${WONDER}/Utilities/Adaptors
- 30. Tools • Process Explorer(Microsoft Sysinternals) • Process Monitor (Microsoft Sysinternals) • Notepad++ • wireshark / Packetyzer / Fiddler2 • powershell • MingW / MingW64
