This document discusses the "Framework Principal" pattern which allows optimizing resource usage across multiple applications by initializing shared services and configurations in a single starter class. The Framework Principal runs very early and can be used to launch services independently of any application based on configuration properties. It provides examples of how to configure different applications to use the same Framework Principal by specifying different property files and user names for production vs sandbox environments. This allows launching shared services only once across multiple applications rather than separately in each one.

1. “Framework Principal" pattern
Philippe Rabier - twitter.com/prabier
Sophiacom

2. @prabier
Follow me!

3. Why this presentation?

4. •What is a Framework Principal?
• Starter class automatically instantiated, very early
• Used to initialize your stuffs
• Independent from the Application
• @see ERXFrameworkPrincipal

5. What is the goal?
Resource optimization!

6. Feedback fromYou ’N Push

7. Sandbox environment
1 application
Back Office FTP Server Web Services
Job Scheduler
In-App
Purchase
Service
Push
Notification
Service

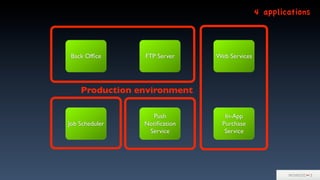

8. Production environment
Back Office FTP Server Web Services
Job Scheduler
In-App
Purchase
Service
Push
Notification
Service
4 applications

9. How to do that?
Not rocket science!

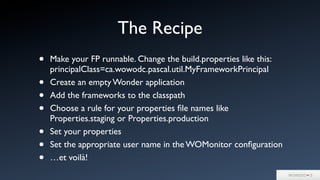

10. • Make your FP runnable. Change the build.properties like this:
principalClass=ca.wowodc.pascal.util.MyFrameworkPrincipal
• Create an empty Wonder application
• Add the frameworks to the classpath
• Choose a rule for your properties file names like
Properties.staging or Properties.production
• Set your properties
• Set the appropriate user name in the WOMonitor configuration
• …et voilà!
The Recipe

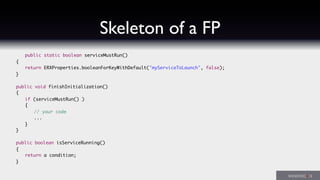

11. Skeleton of a FP
public static boolean serviceMustRun()
{
return ERXProperties.booleanForKeyWithDefault("myServiceToLaunch", false);
}
public void finishInitialization()
{
if (serviceMustRun() )
{
// your code
...
}
}
public boolean isServiceRunning()
{
return a condition;
}

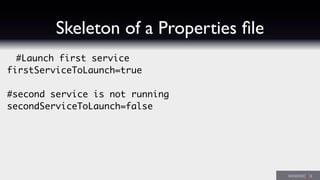

12. Skeleton of a Properties file
#Launch first service
firstServiceToLaunch=true
#second service is not running
secondServiceToLaunch=false

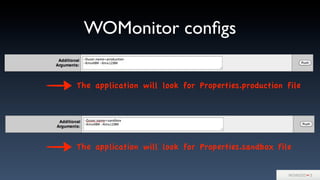

13. WOMonitor configs
The application will look for Properties.production file
The application will look for Properties.sandbox file

14. 2 Strategies
• Only one application
• user name is different for each application
• ex: Properties.scheduler, Properties.backoffice, …
• Several specialized applications
• user name is the same for every app like Properties.production
• applications are different: scheduler.woa, backoffice.woa, …

15. Do you know?
• ERRest can be configured in a FP (set up the request handler, the
routes, …)
• D2W applications could be defined in a FP (the
ERXNavigationManager loads all navigationMenu.plist in any
frameworks, the rules can be anywhere, …).

16. @prabier
Follow me!

17. Q&A
“Framework Principal" pattern
