1. MONTREAL JUNE 30, JULY 1ST AND 2ND 2012
Dynamic Elements
Johann Werner
NUREG GmbH

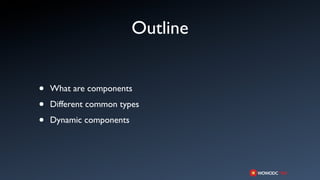

2. Outline
• What are components
• Different common types
• Dynamic components

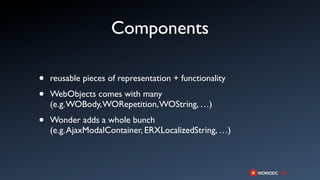

3. Components
• reusable pieces of representation + functionality
• WebObjects comes with many
(e.g. WOBody, WORepetition, WOString, …)
• Wonder adds a whole bunch
(e.g. AjaxModalContainer, ERXLocalizedString, …)

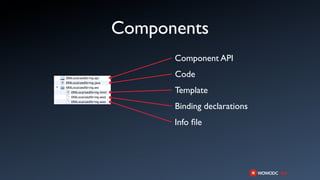

4. Components
Component API
Code
Template
Binding declarations
Info file

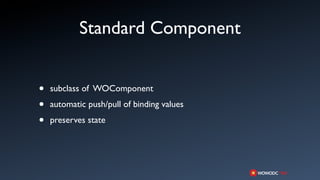

5. Standard Component
• subclass of WOComponent
• automatic push/pull of binding values
• preserves state

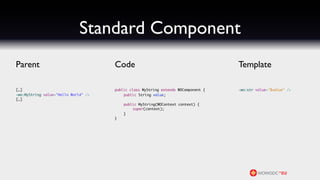

6. Standard Component
Parent Code Template
[…] public class MyString extends WOComponent { <wo:str value="$value" />
<wo:MyString value="Hello World" /> public String value;
[…]
public MyString(WOContext context) {
super(context);
}
}

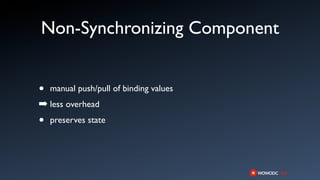

7. Non-Synchronizing Component
• manual push/pull of binding values
➡ less overhead
• preserves state

8. Non-Synchronizing Component
Parent Code Template
[…] public class MyString extends WOComponent { <wo:str value="$value" />
<wo:MyString value="Hello World" /> public MyString(WOContext context) {
[…] super(context);
}
@Override
public boolean synchronizesVariablesWithBindings() {
return false;
}
public String value() {
return (String) valueForBinding("value");
}
}

9. Non-Synchronizing Component
Parent Code Template
[…] public class MyString extends WOComponent { <wo:str value="$^value" />
<wo:MyString value="Hello World" /> public MyString(WOContext context) {
[…] super(context);
}
@Override
public boolean synchronizesVariablesWithBindings() {
return false;
}
}

10. Stateless Component
• manual push/pull of binding values
➡ less overhead
• no state
• single shared instance*
➡ less memory, fewer Java object-creations

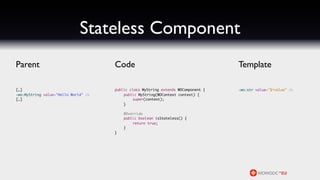

11. Stateless Component
Parent Code Template
[…] public class MyString extends WOComponent { <wo:str value="$^value" />
<wo:MyString value="Hello World" /> public MyString(WOContext context) {
[…] super(context);
}
@Override
public boolean isStateless() {
return true;
}
}

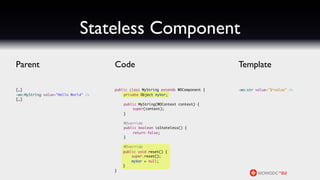

12. Stateless Component
Parent Code Template
[…] public class MyString extends WOComponent { <wo:str value="$^value" />
<wo:MyString value="Hello World" /> private Object myVar;
[…]
public MyString(WOContext context) {
super(context);
}
@Override
public boolean isStateless() {
return false;
}
@Override
public void reset() {
super.reset();
myVar = null;
}
}

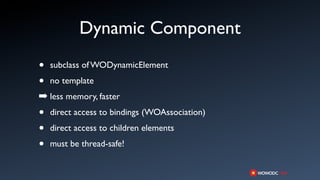

13. Dynamic Component
• subclass of WODynamicElement
• no template
➡ less memory, faster
• direct access to bindings (WOAssociation)
• direct access to children elements
• must be thread-safe!

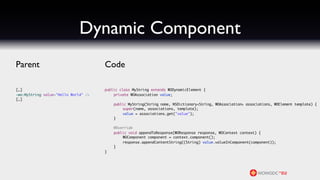

14. Dynamic Component
Parent Code
[…] public class MyString extends WODynamicElement {
<wo:MyString value="Hello World" /> private WOAssociation value;
[…]
public MyString(String name, NSDictionary<String, WOAssociation> associations, WOElement template) {
super(name, associations, template);
value = associations.get("value");
}
@Override
public void appendToResponse(WOResponse response, WOContext context) {
WOComponent component = context.component();
response.appendContentString((String) value.valueInComponent(component));
}
}

15. Demo

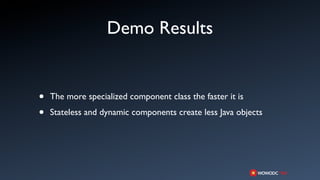

16. Demo Results
• The more specialized component class the faster it is
• Stateless and dynamic components create less Java objects

17. When should I use…
Standard components
• for pages, big blocks
Non Synchronizing components
• smaller components that are used often
• binding has
• different name as the variable to hold it
• no variable counterpart

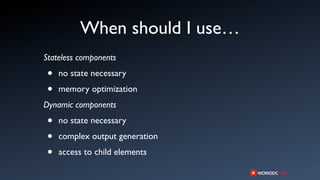

18. When should I use…
Stateless components
• no state necessary
• memory optimization
Dynamic components
• no state necessary
• complex output generation
• access to child elements

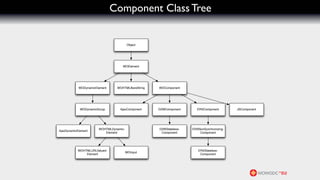

19. Component Class Tree
Object
WOElement
WODynamicElement WOHTMLBareString WOComponent
WODynamicGroup AjaxComponent D2WComponent ERXComponent JSComponent
WOHTMLDynamic- D2WStateless- ERXNonSynchronizing-
AjaxDynamicElement
Element Component Component
WOHTMLURLValued- ERXStateless-
WOInput
Element Component

20. Component Class Tree
Object
WOElement
WODynamicElement WOHTMLBareString WOComponent
WODynamicGroup AjaxComponent D2WComponent ERXComponent JSComponent
WOHTMLDynamic- D2WStateless- ERXNonSynchronizing-
AjaxDynamicElement
Element Component Component
WOHTMLURLValued- ERXStateless-
WOInput
Element Component

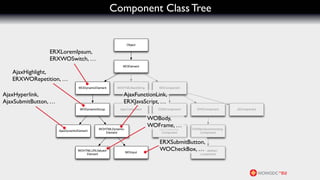

21. Component Class Tree
Object
ERXLoremIpsum,
ERXWOSwitch, …
WOElement
AjaxHighlight,
ERXWORepetition, …
WODynamicElement WOHTMLBareString WOComponent
AjaxHyperlink, AjaxFunctionLink,
AjaxSubmitButton, … ERXJavaScript, …
WODynamicGroup AjaxComponent D2WComponent ERXComponent JSComponent
WOBody,
WOHTMLDynamic-
WOFrame, …
D2WStateless- ERXNonSynchronizing-
AjaxDynamicElement
Element Component Component
ERXSubmitButton,
WOHTMLURLValued-
WOInput
WOCheckBox, ERXStateless-
…
Element Component

22. Component Class Tree
Object
WOElement
WODynamicElement WOHTMLBareString WOComponent
WODynamicGroup AjaxComponent D2WComponent ERXComponent JSComponent
WOHTMLDynamic- D2WStateless- ERXNonSynchronizing-
ERXDynamicElement
Element Component Component
WOHTMLURLValued- ERXStateless-
AjaxDynamicElement WOInput
Element Component

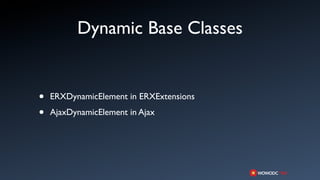

23. Dynamic Base Classes
• ERXDynamicElement in ERXExtensions
• AjaxDynamicElement in Ajax

24. DEMO

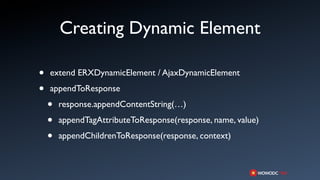

25. Creating Dynamic Element
• extend ERXDynamicElement / AjaxDynamicElement
• appendToResponse
• response.appendContentString(…)
• appendTagAttributeToResponse(response, name, value)
• appendChildrenToResponse(response, context)

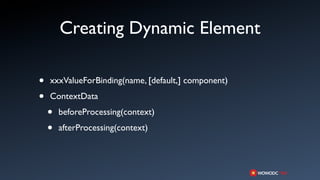

26. Creating Dynamic Element
• xxxValueForBinding(name, [default,] component)
• ContextData
• beforeProcessing(context)
• afterProcessing(context)

27. MONTREAL JUNE 30, JULY 1ST AND 2ND 2012
Q&A
