Delay Analysis
……. wise after the Event?
Consilian
Building solutions for business problems

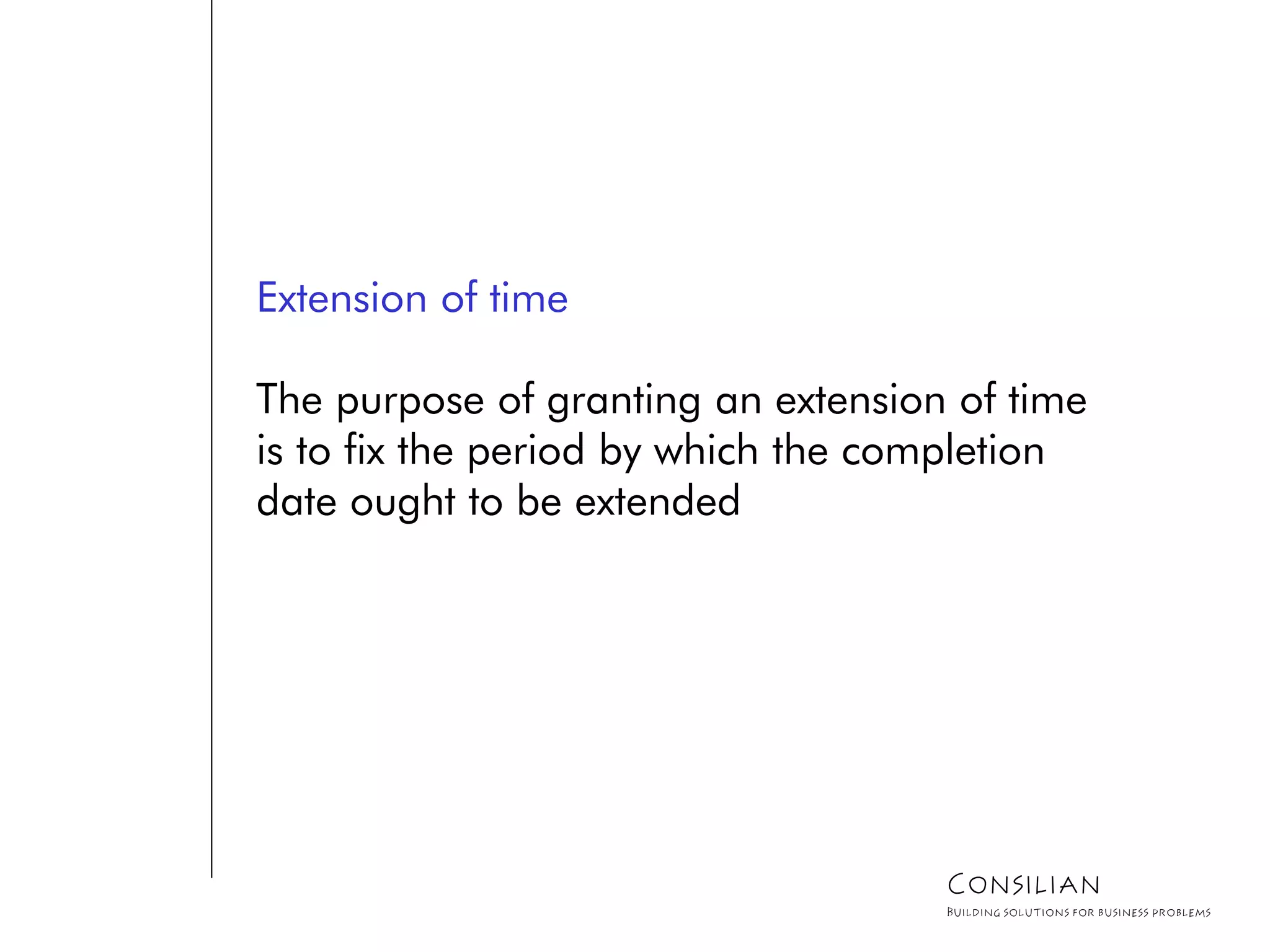

Extension of time
The purpose of granting an extension of time
is to fix the period by which the completion
date ought to be extended
Consilian

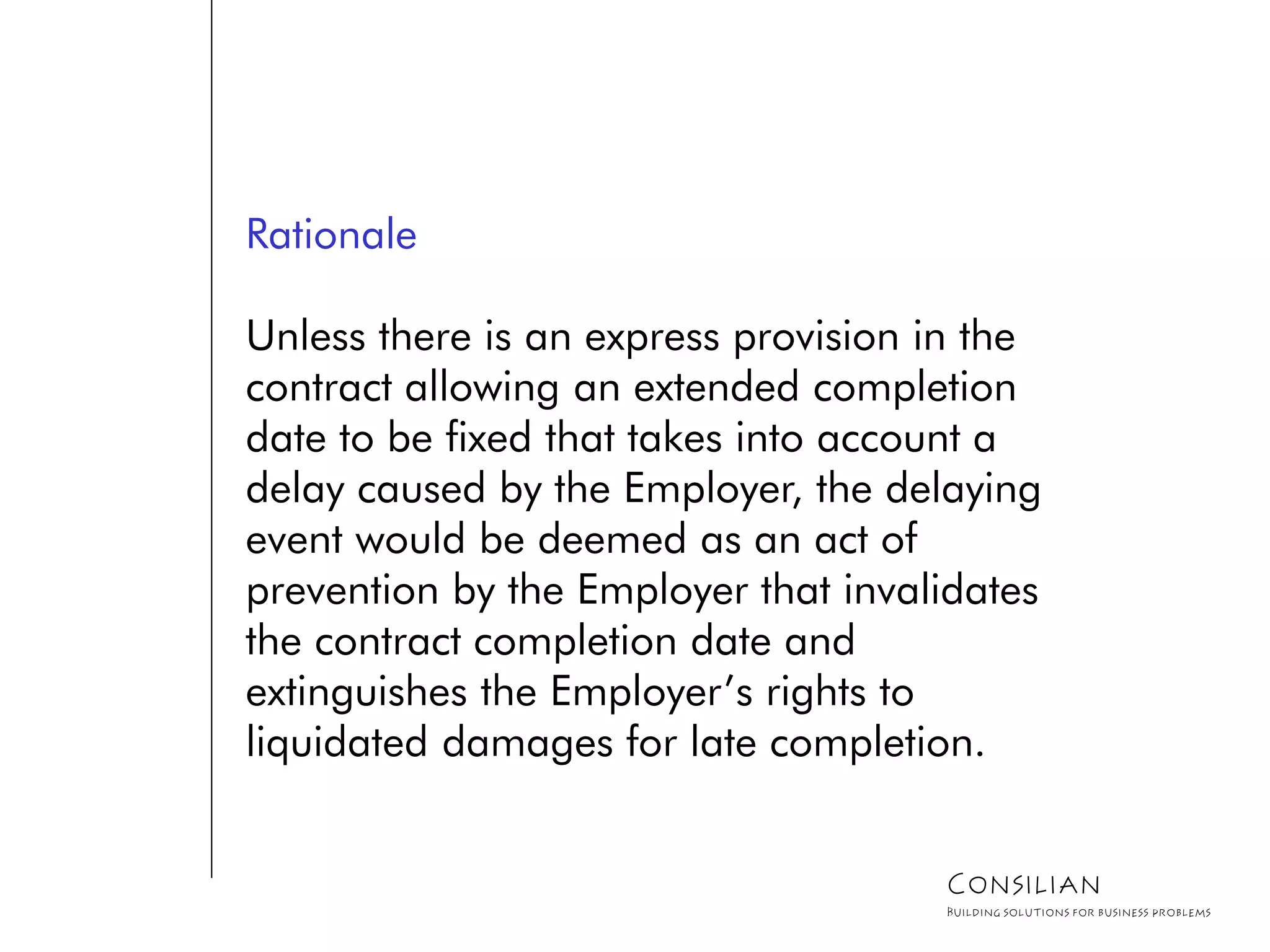

Rationale
Unless there is an express provision in the
contract allowing an extended completion
date to be fixed that takes into account a
delay caused by the Employer, the delaying
event would be deemed as an act of
prevention by the Employer that invalidates
the contract completion date and
extinguishes the Employer’s rights to
liquidated damages for late completion.
Consilian

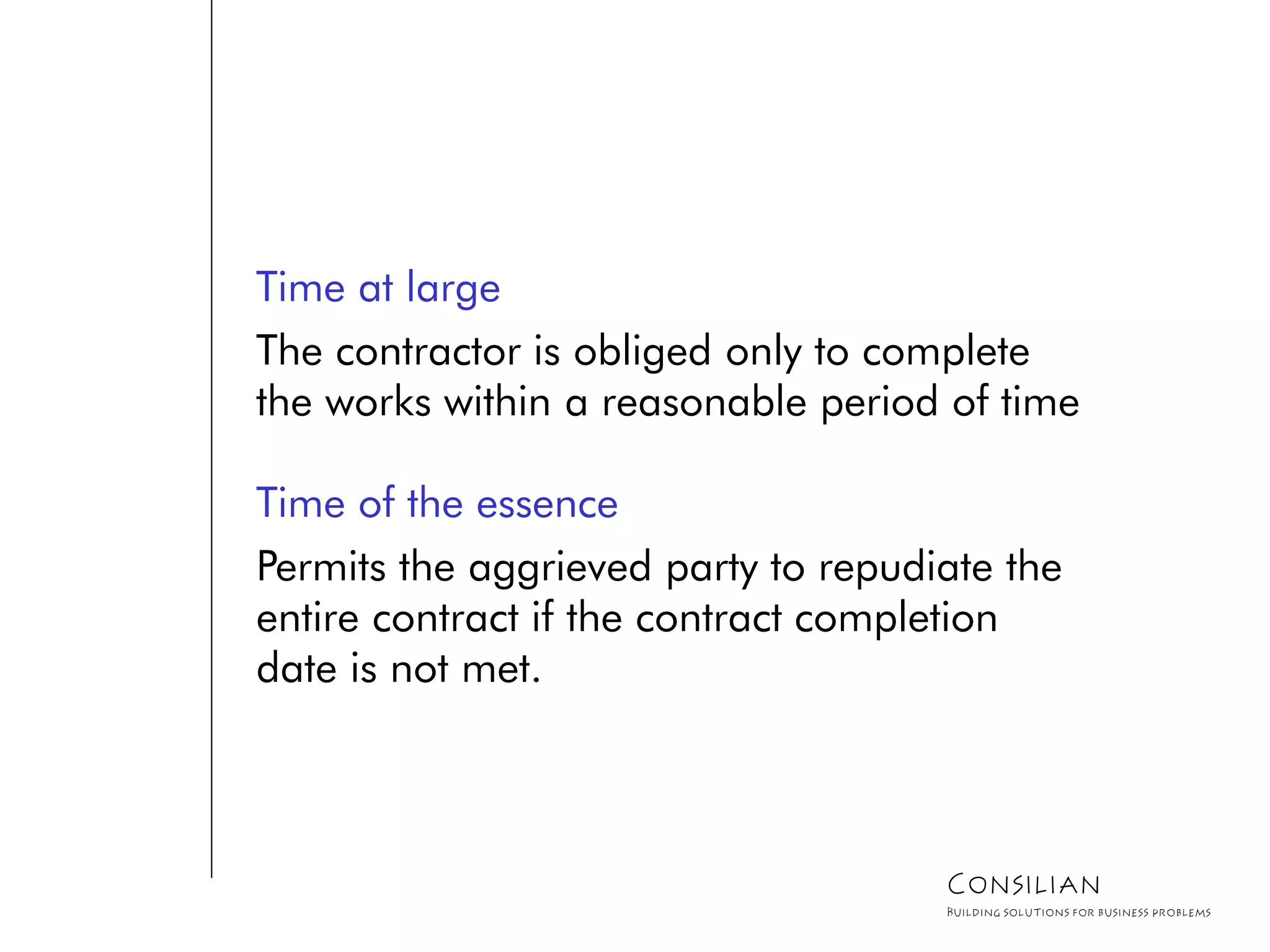

Time at large
The contractor is obliged only to complete
the works within a reasonable period of time
Time of the essence
Permits the aggrieved party to repudiate the
entire contract if the contract completion
date is not met.
Consilian

Peniffan
Management Ltd

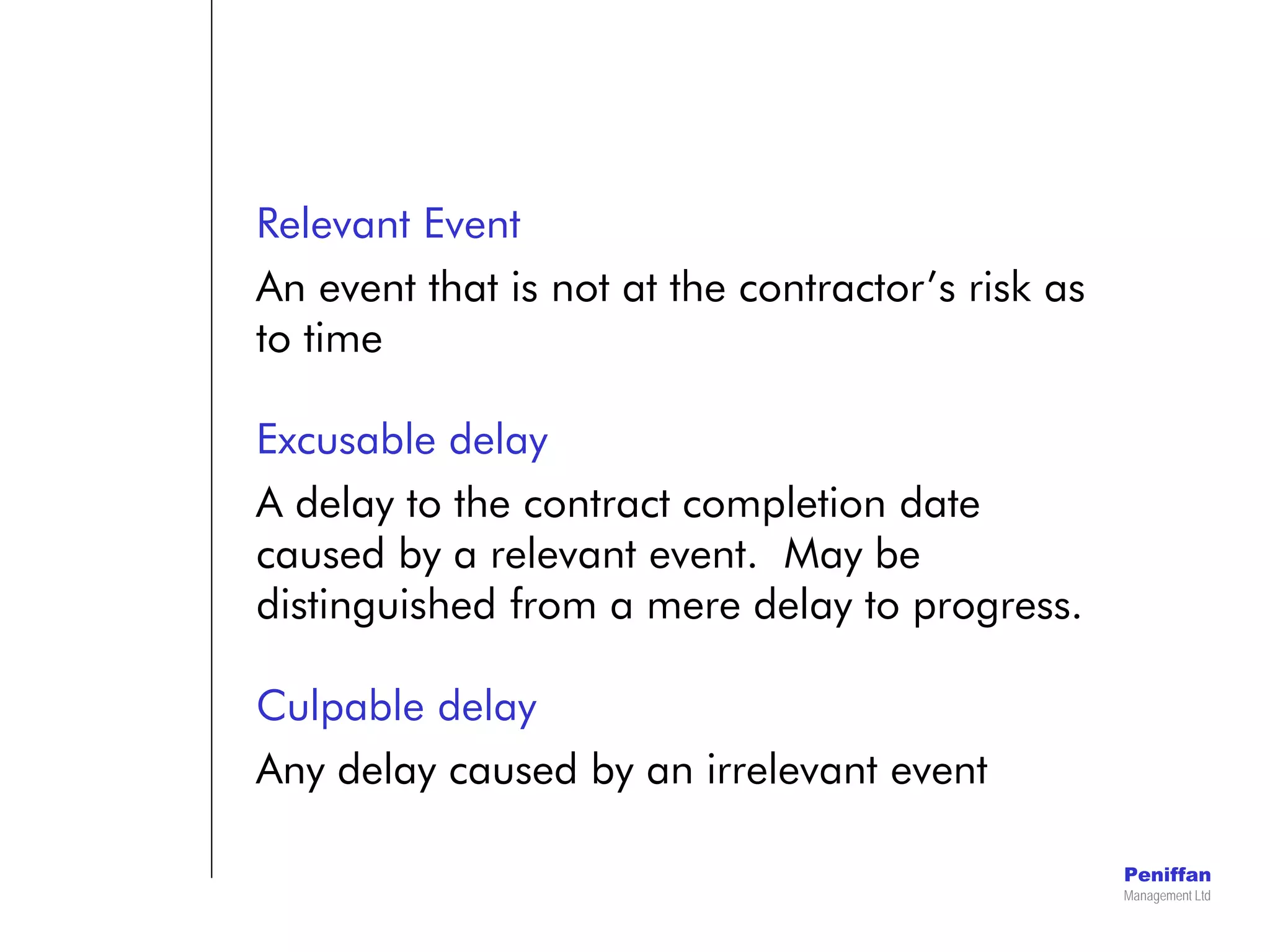

Relevant Event
An event that is not at the contractor’s risk as
to time
Excusable delay
A delay to the contract completion date
caused by a relevant event. May be
distinguished from a mere delay to progress.
Culpable delay
Any delay caused by an irrelevant event

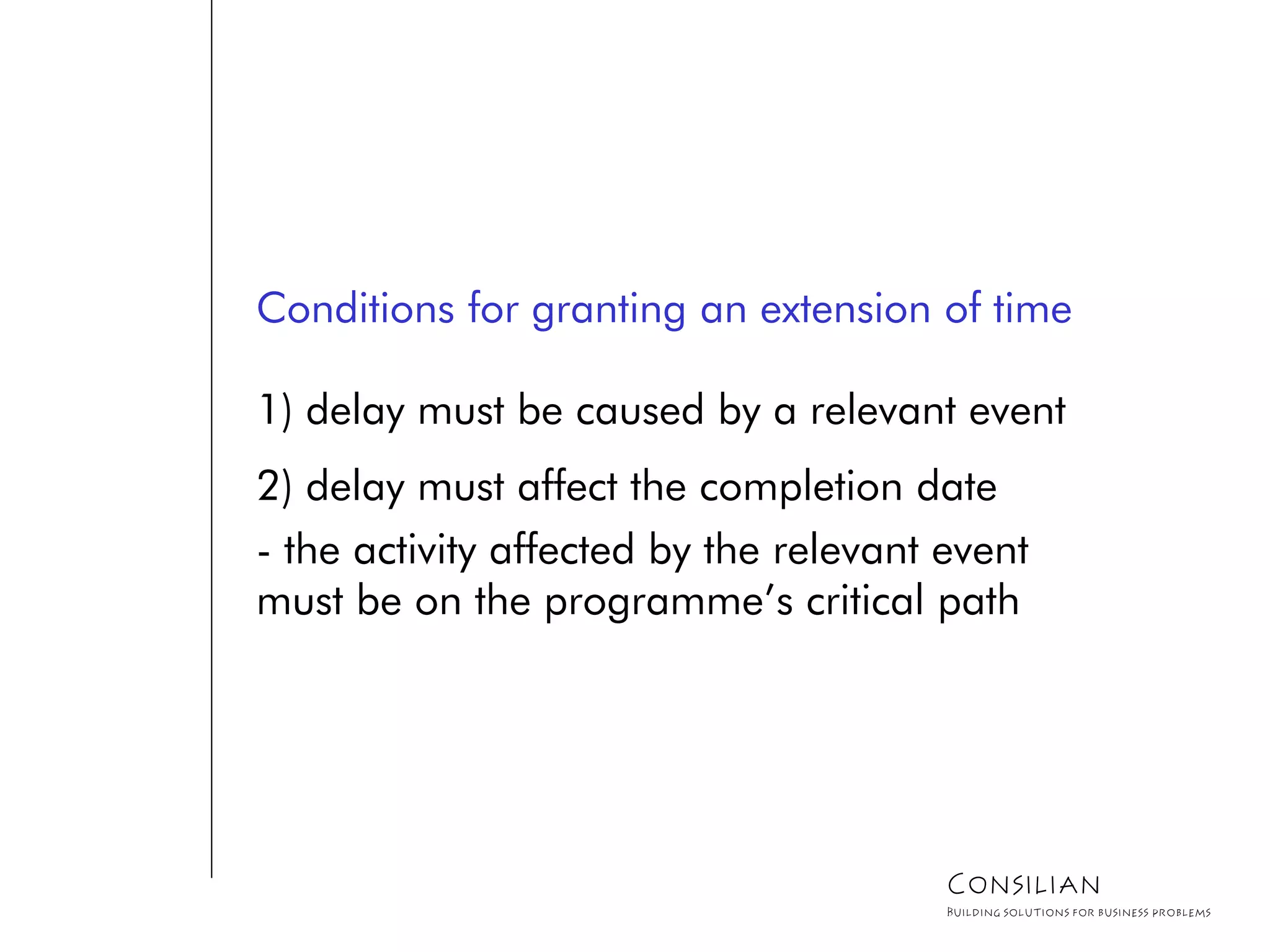

Conditions for granting an extension of time
1) delay must be caused by a relevant event
2) delay must affect the completion date
- the activity affected by the relevant event
must be on the programme’s critical path
Consilian

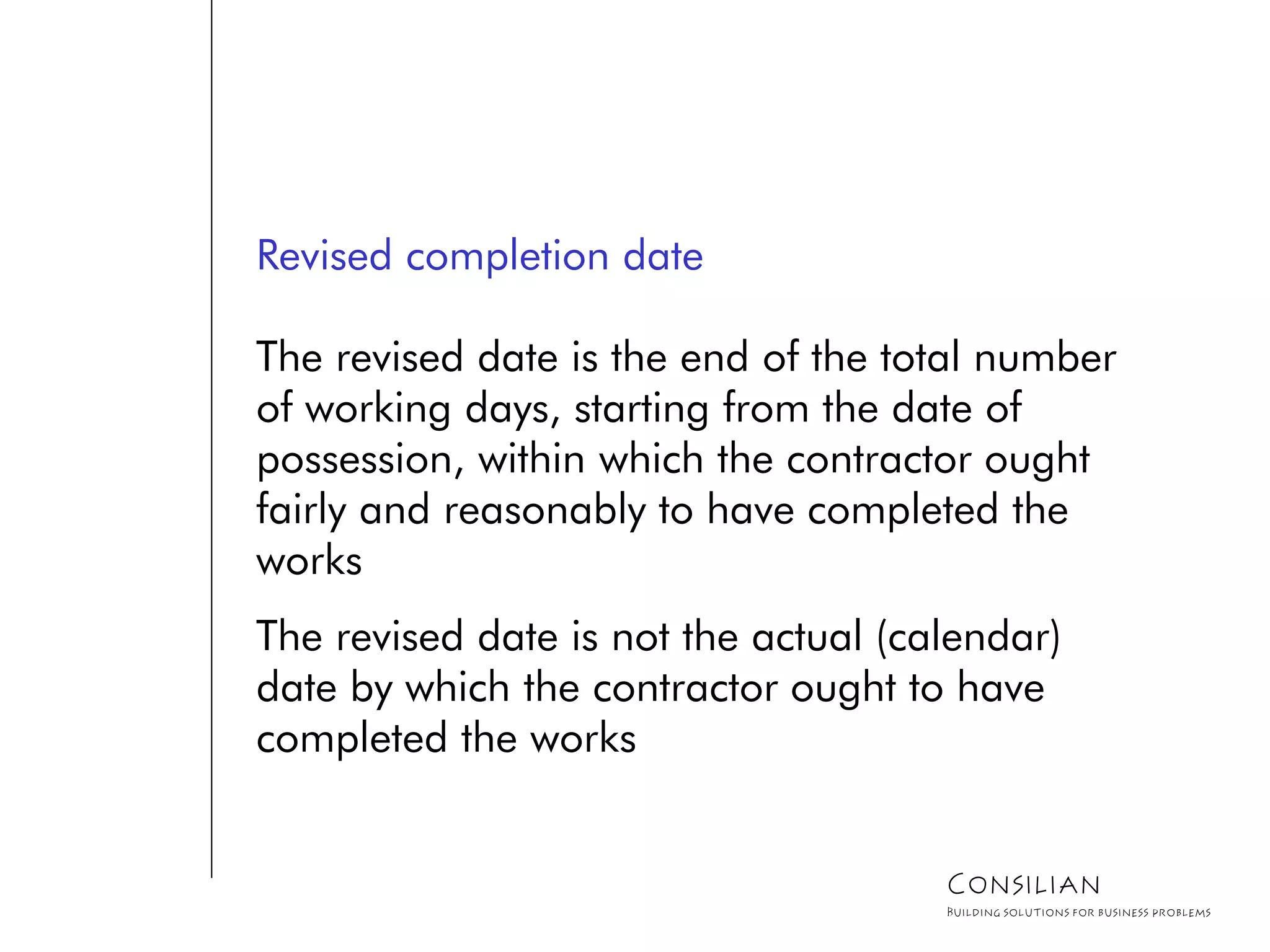

Revised completion date
The revised date is the end of the total number
of working days, starting from the date of
possession, within which the contractor ought
fairly and reasonably to have completed the
works
The revised date is not the actual (calendar)
date by which the contractor ought to have
completed the works
Consilian

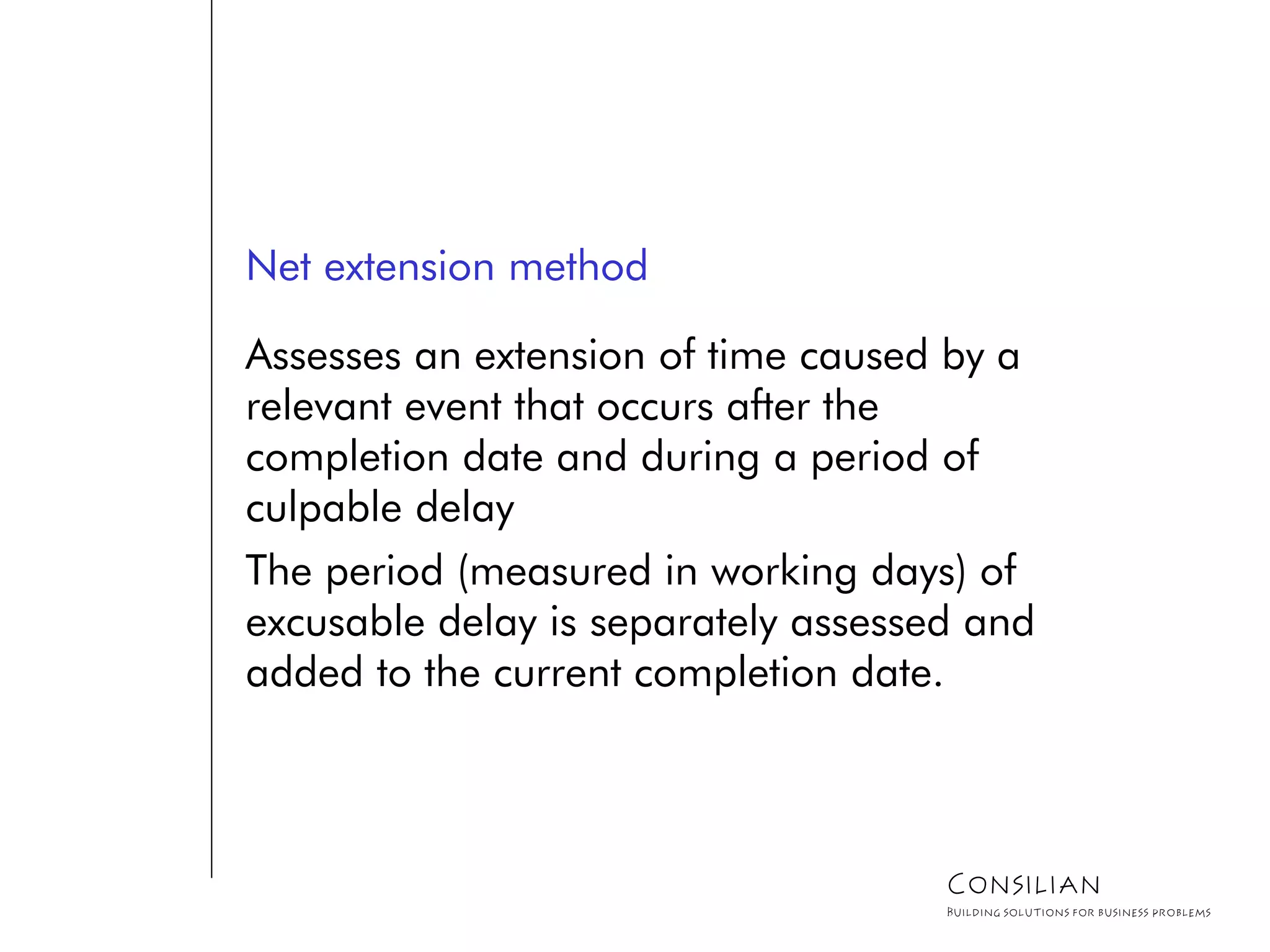

Net extension method
Assesses an extension of time caused by a
relevant event that occurs after the
completion date and during a period of
culpable delay
The period (measured in working days) of
excusable delay is separately assessed and
added to the current completion date.
Consilian

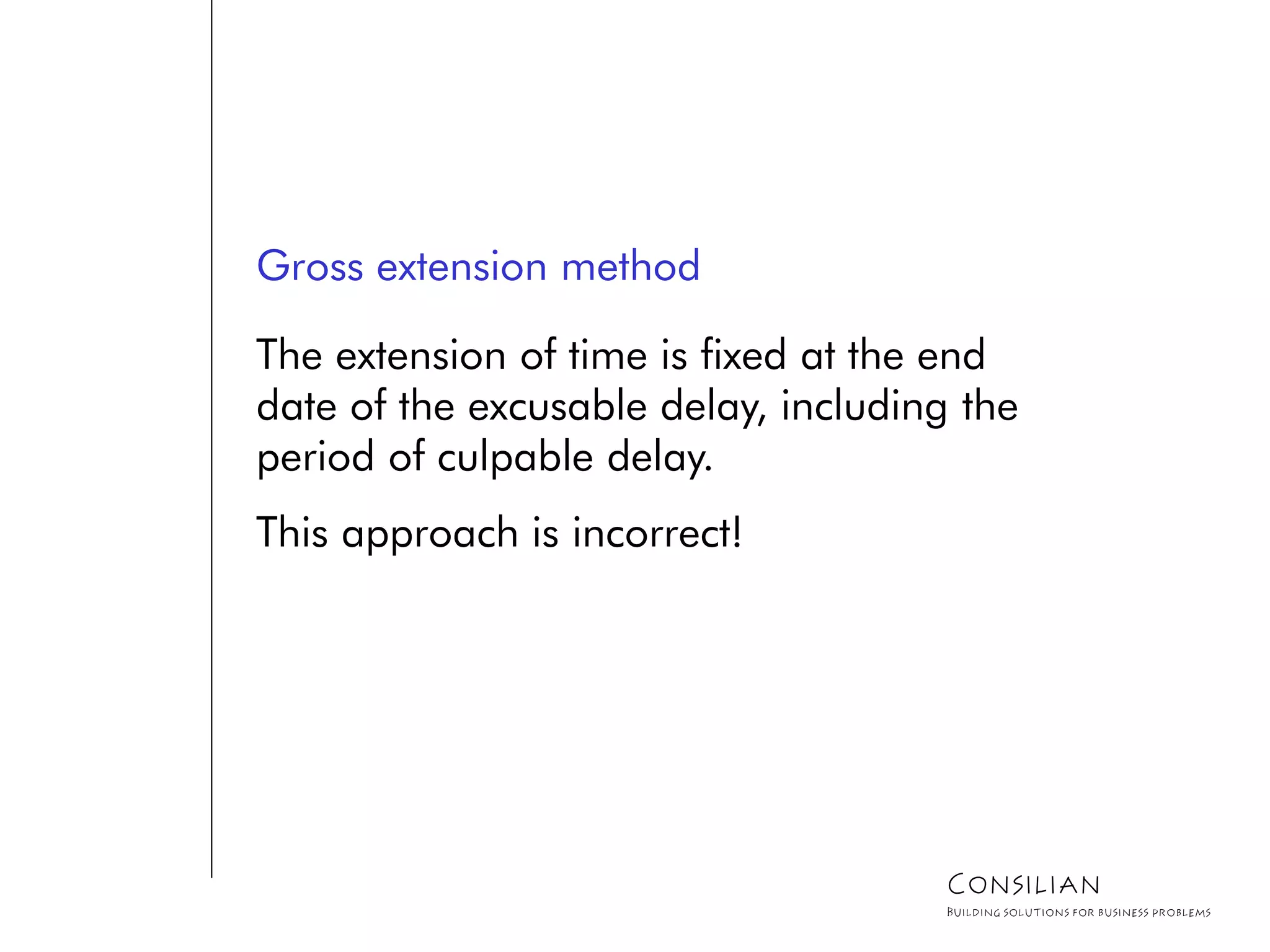

Gross extension method
The extension of time is fixed at the end
date of the excusable delay, including the
period of culpable delay.
This approach is incorrect!
Consilian

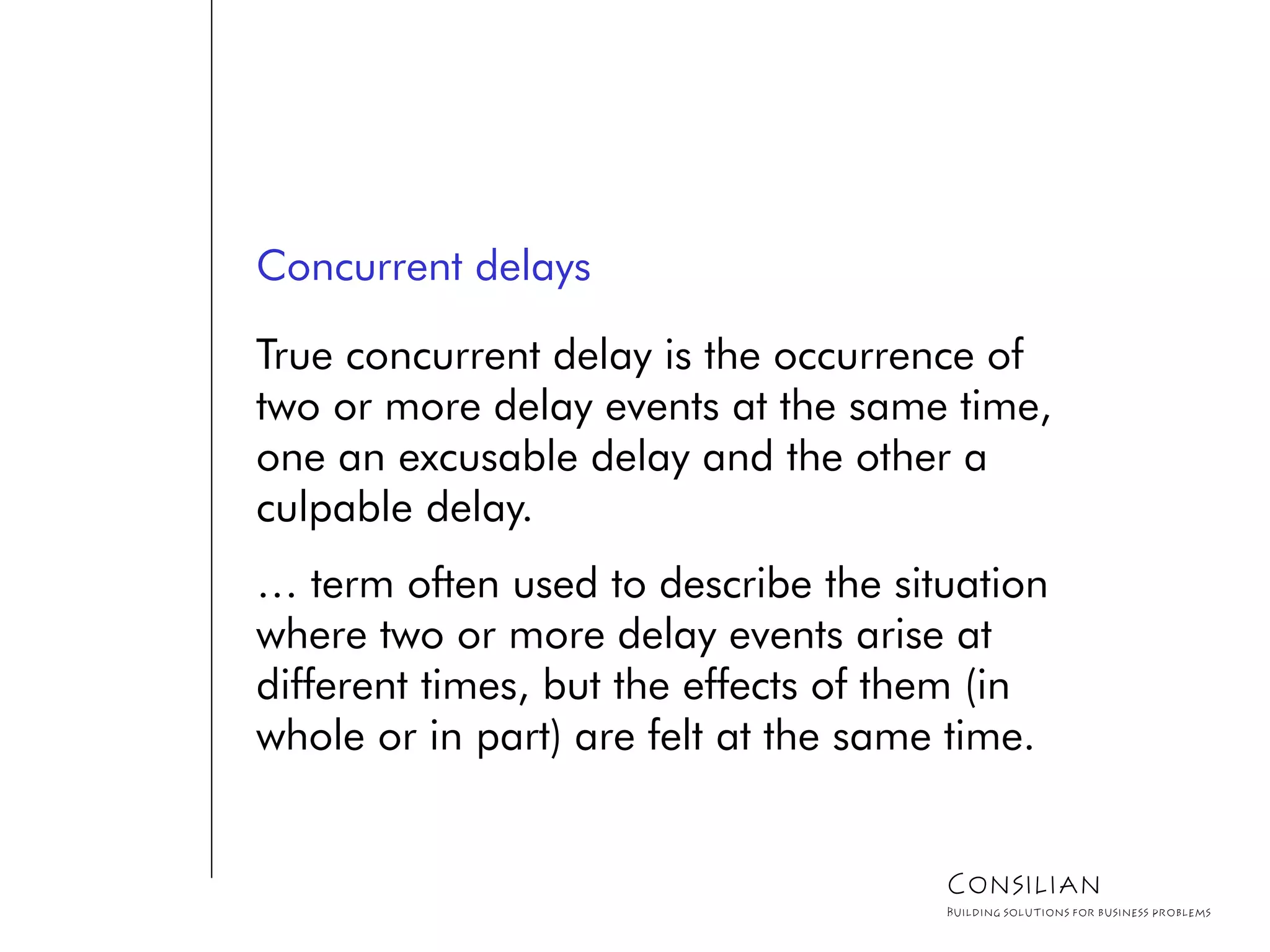

Concurrent delays
True concurrent delay is the occurrence of
two or more delay events at the same time,
one an excusable delay and the other a
culpable delay.
… term often used to describe the situation
where two or more delay events arise at
different times, but the effects of them (in
whole or in part) are felt at the same time.
Consilian

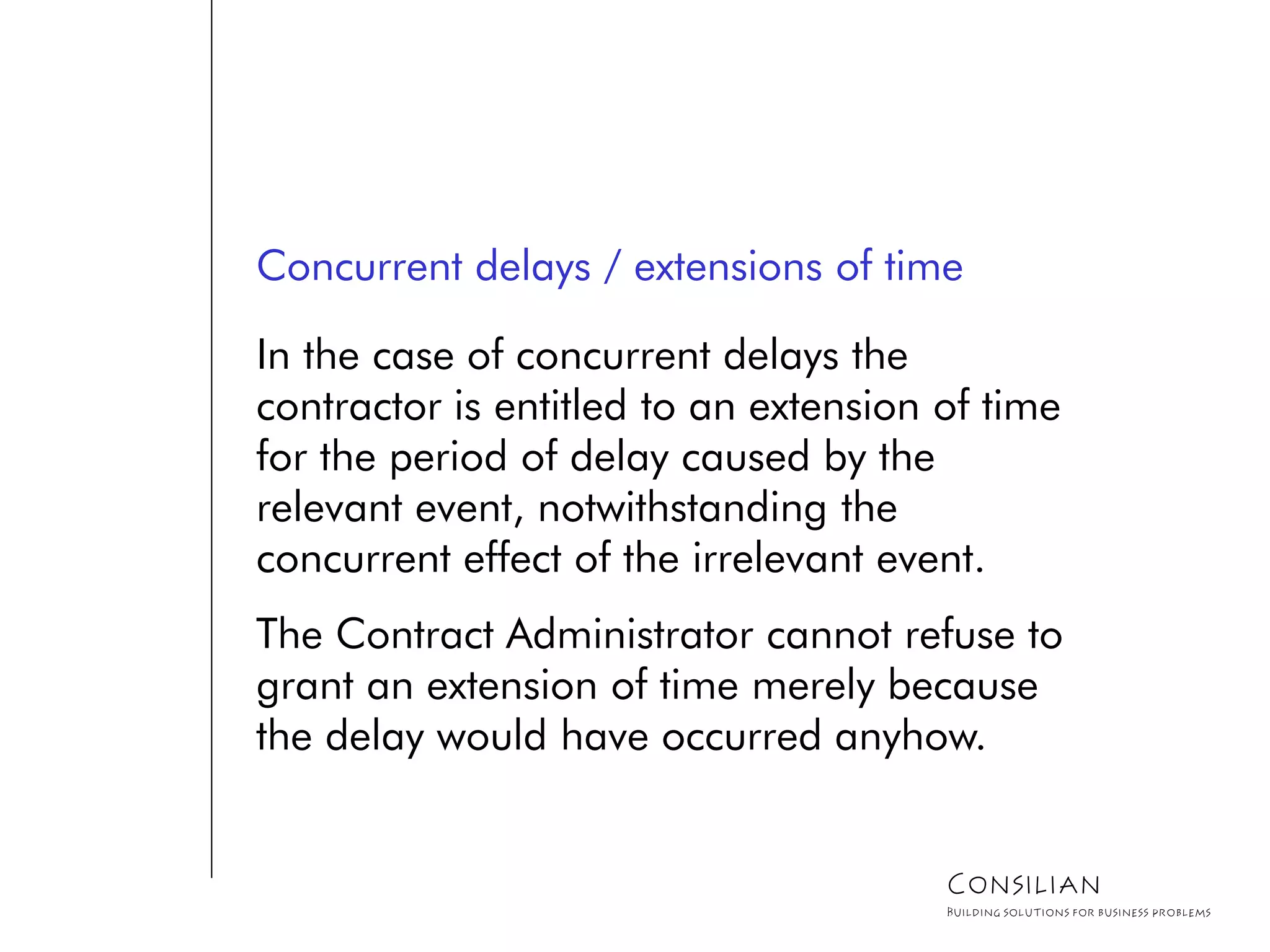

Concurrent delays / extensions of time
In the case of concurrent delays the
contractor is entitled to an extension of time
for the period of delay caused by the
relevant event, notwithstanding the
concurrent effect of the irrelevant event.
The Contract Administrator cannot refuse to
grant an extension of time merely because
the delay would have occurred anyhow.
Consilian

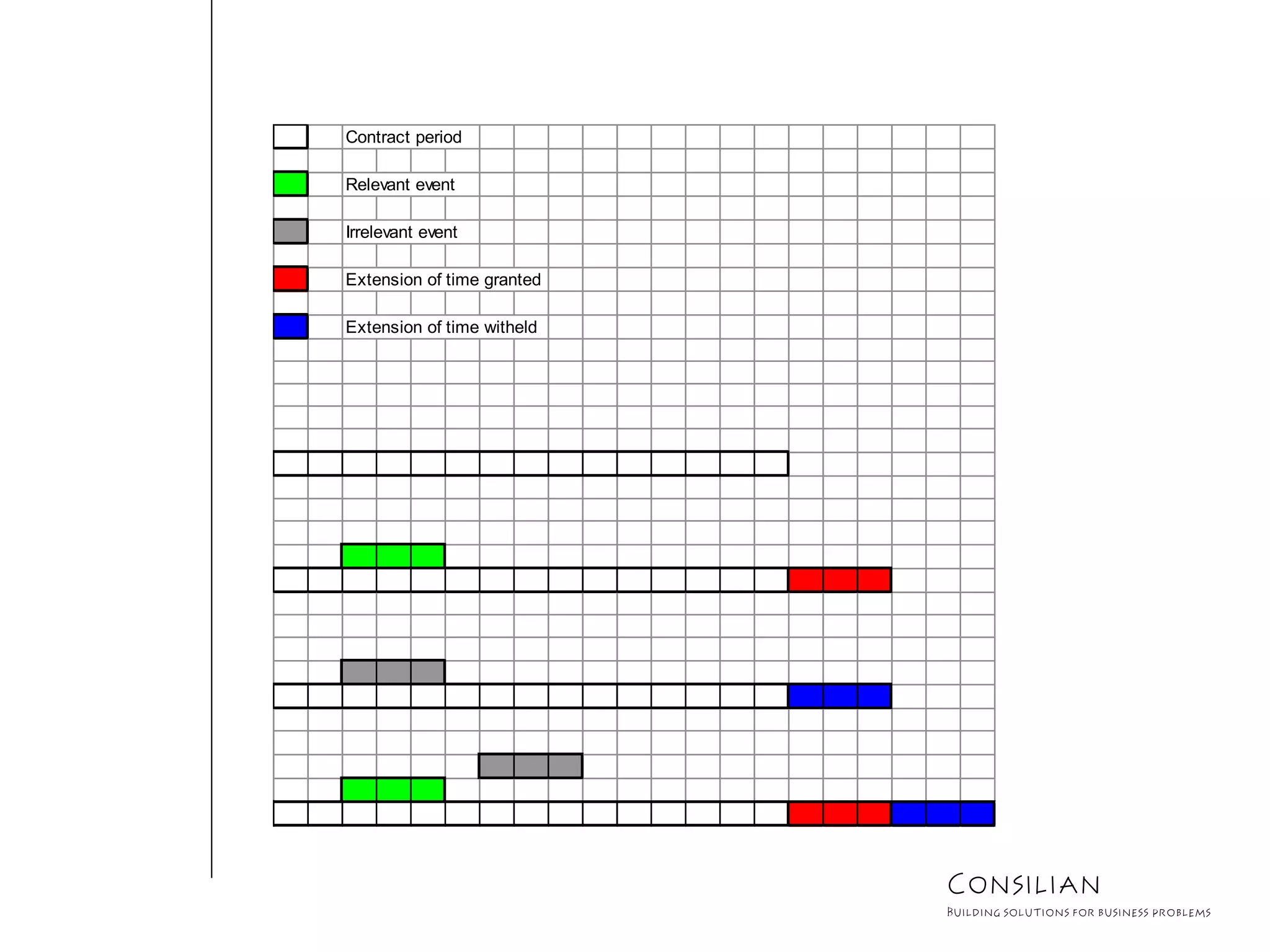

Contract period
Relevant event
Irrelevant event
Extension of time granted
Extension of time witheld
Consilian

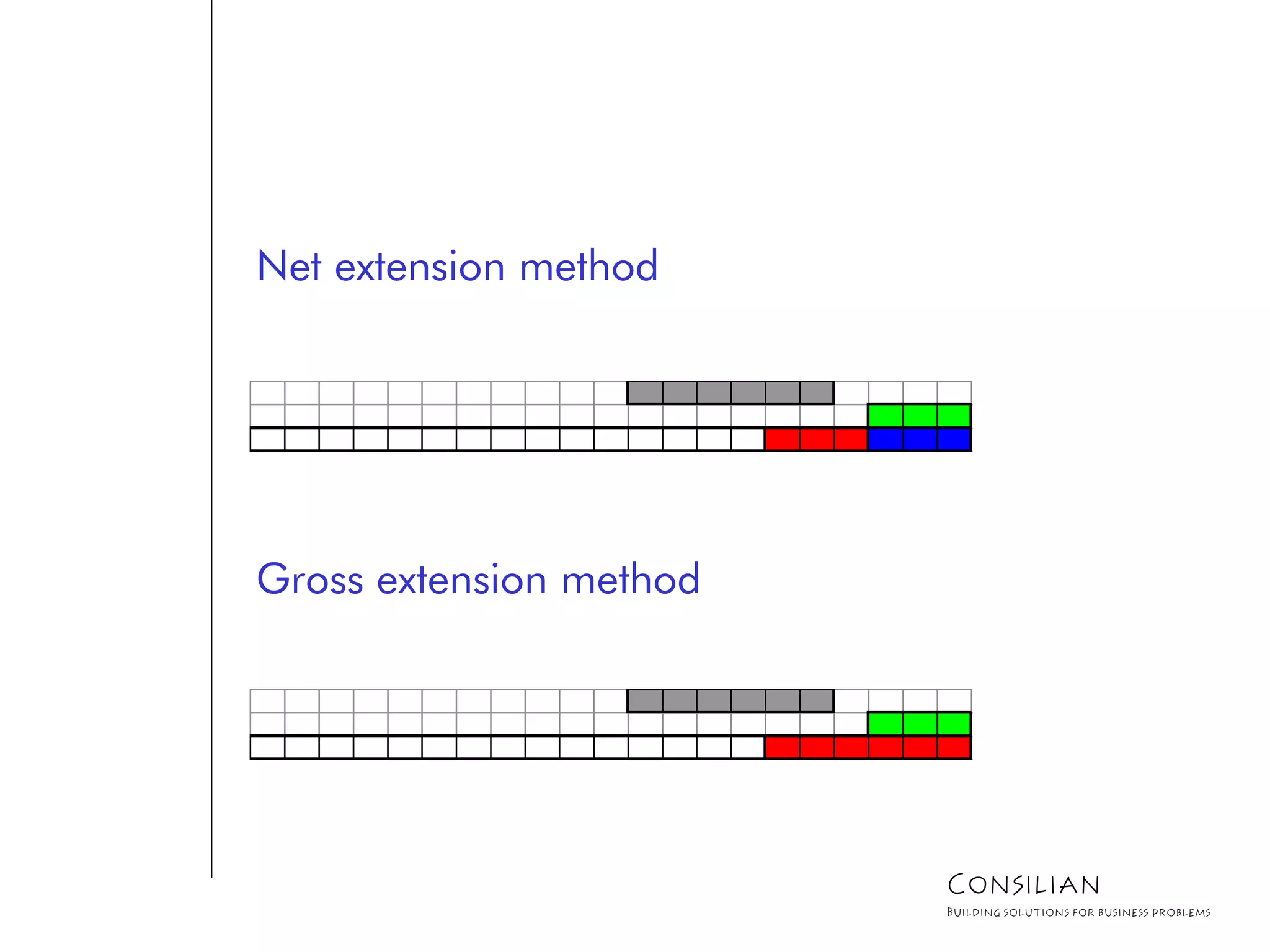

Net extension method
Gross extension method
Consilian

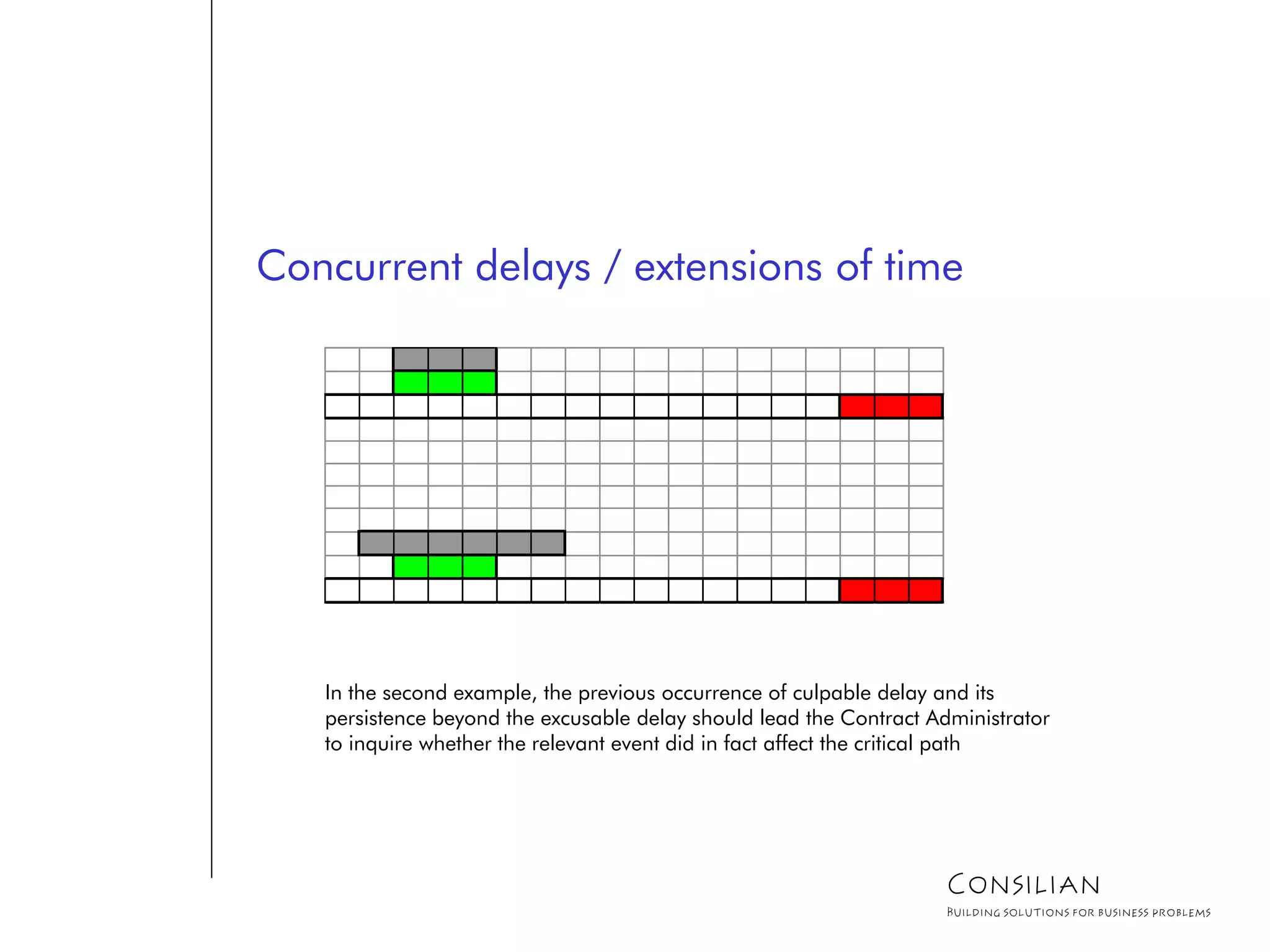

Concurrent delays / extensions of time
In the second example, the previous occurrence of culpable delay and its
persistence beyond the excusable delay should lead the Contract Administrator
to inquire whether the relevant event did in fact affect the critical path
Consilian

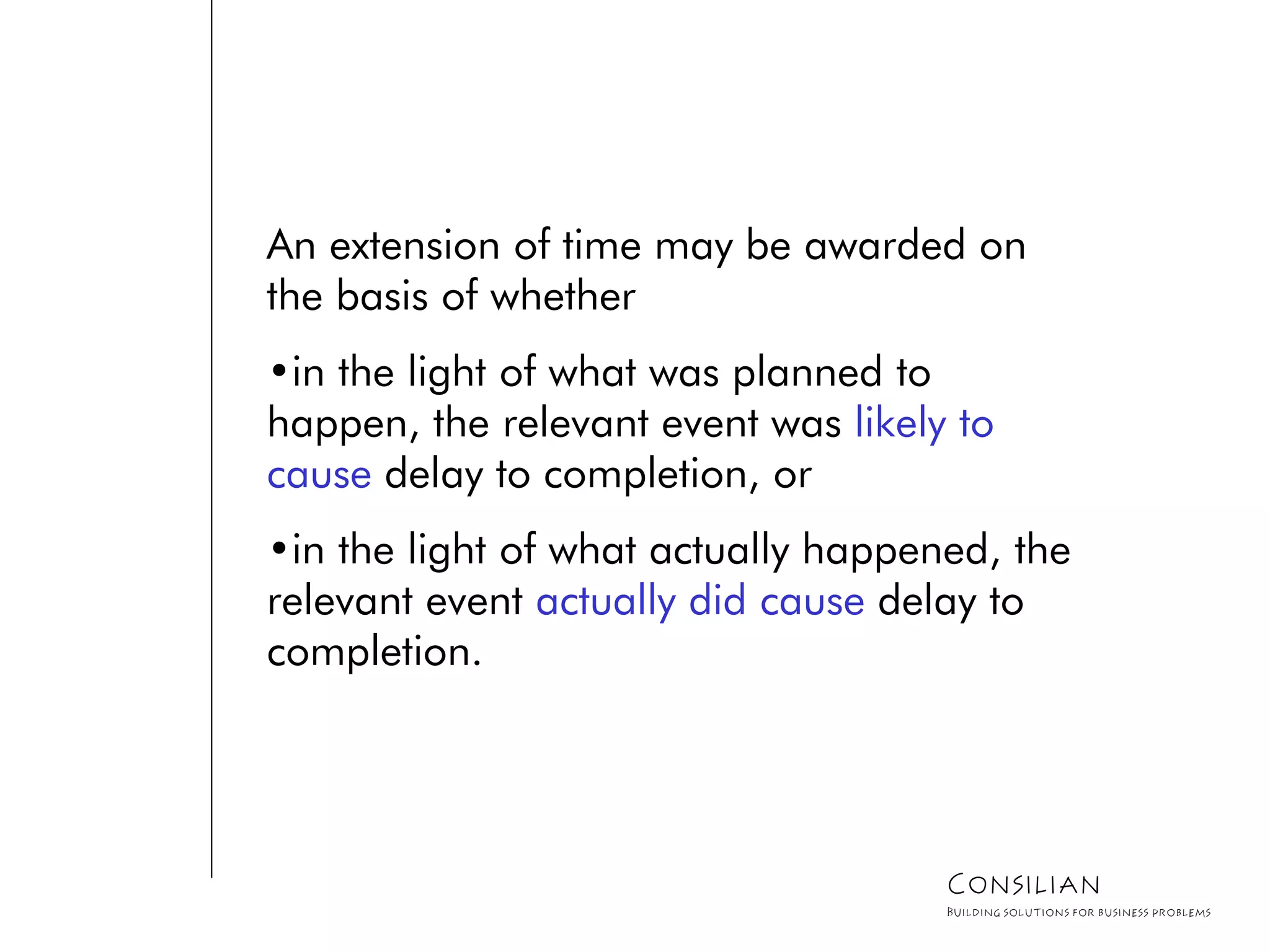

An extension of time may be awarded on
the basis of whether
•in the light of what was planned to
happen, the relevant event was likely to
cause delay to completion, or
•in the light of what actually happened, the
relevant event actually did cause delay to
completion.
Consilian

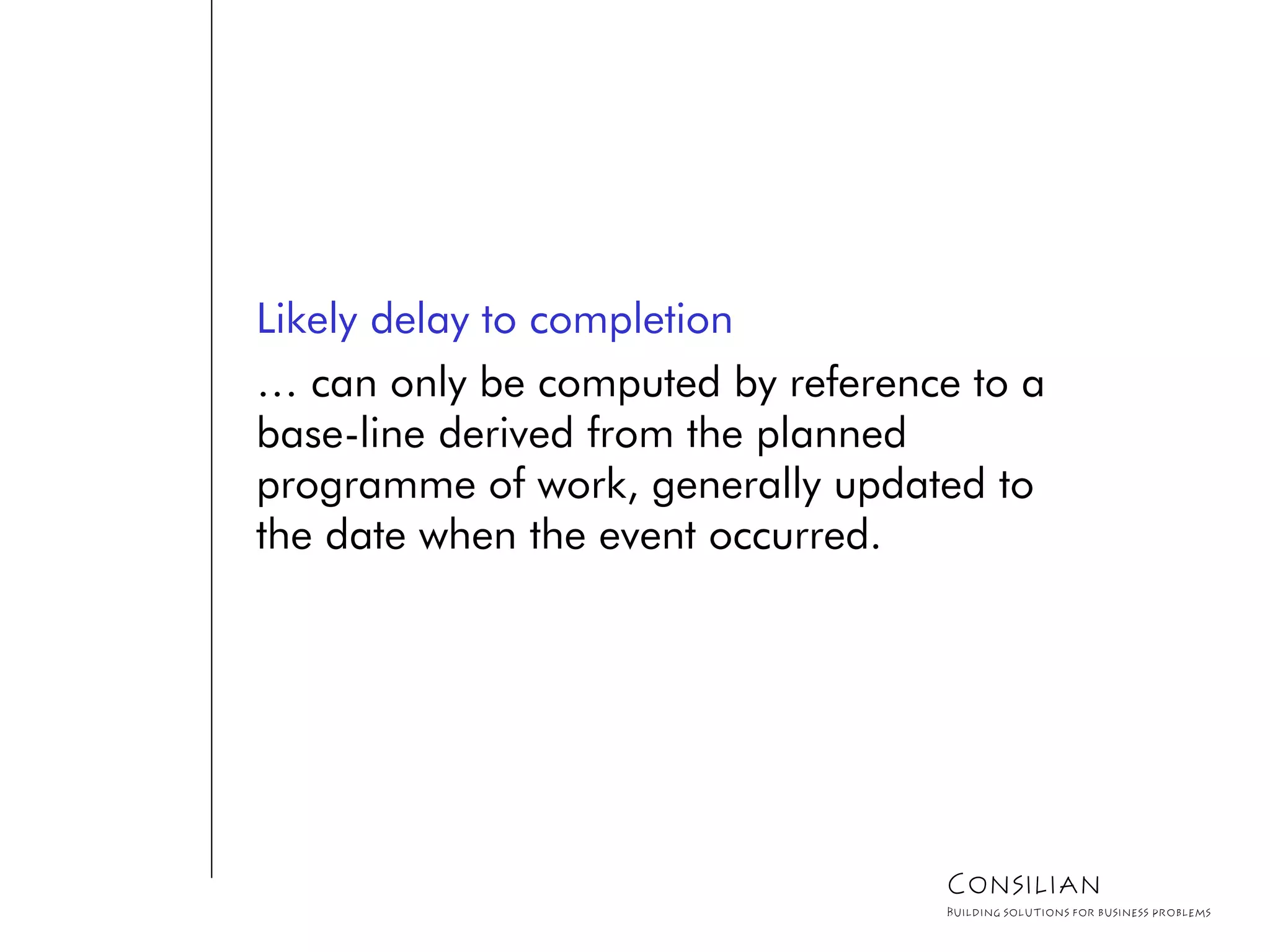

Likely delay to completion
… can only be computed by reference to a
base-line derived from the planned
programme of work, generally updated to
the date when the event occurred.
Consilian

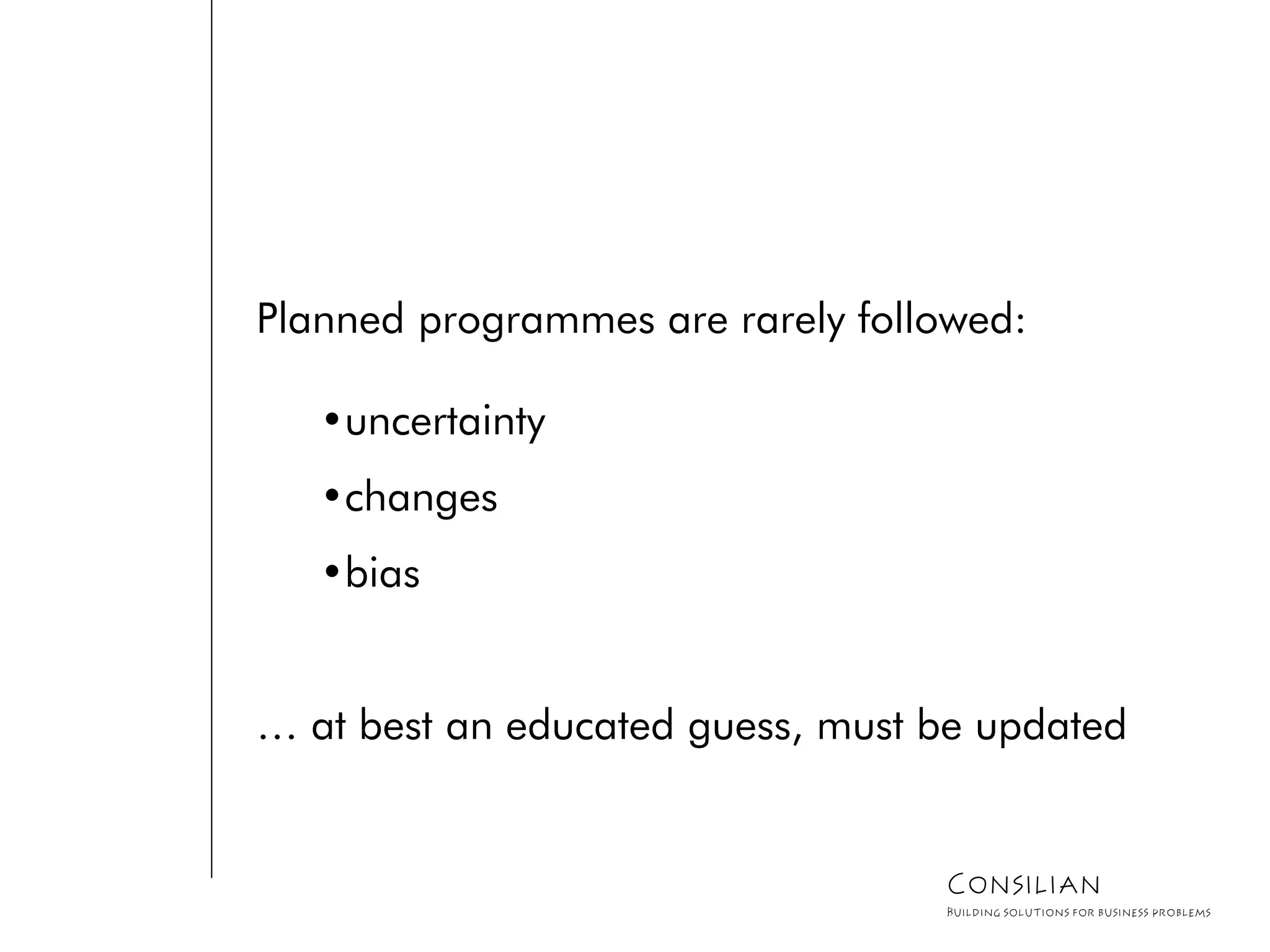

Planned programmes are rarely followed:
•uncertainty
•changes
•bias
… at best an educated guess, must be updated
Consilian

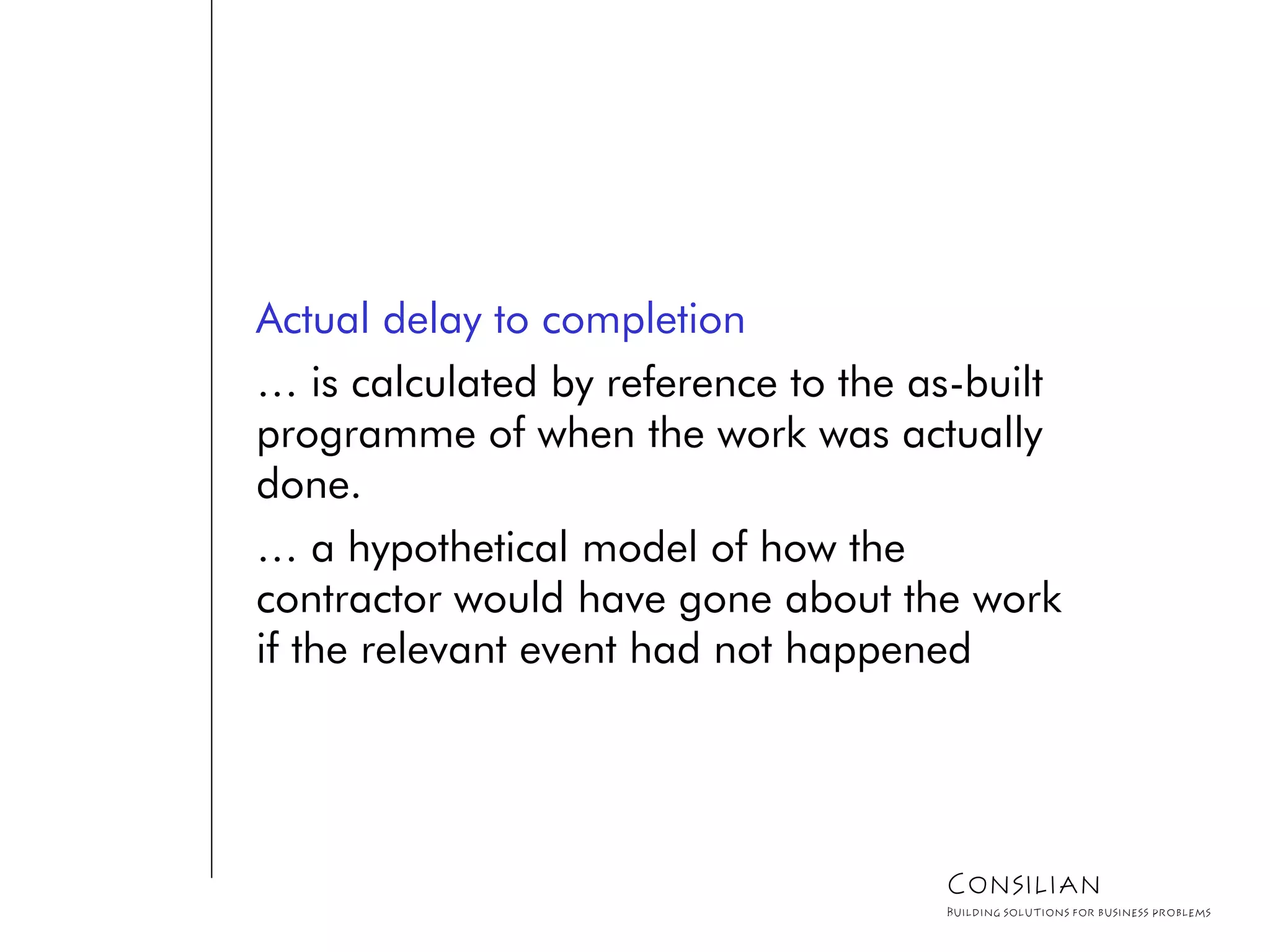

Actual delay to completion
… is calculated by reference to the as-built
programme of when the work was actually
done.
… a hypothetical model of how the
contractor would have gone about the work
if the relevant event had not happened
Consilian

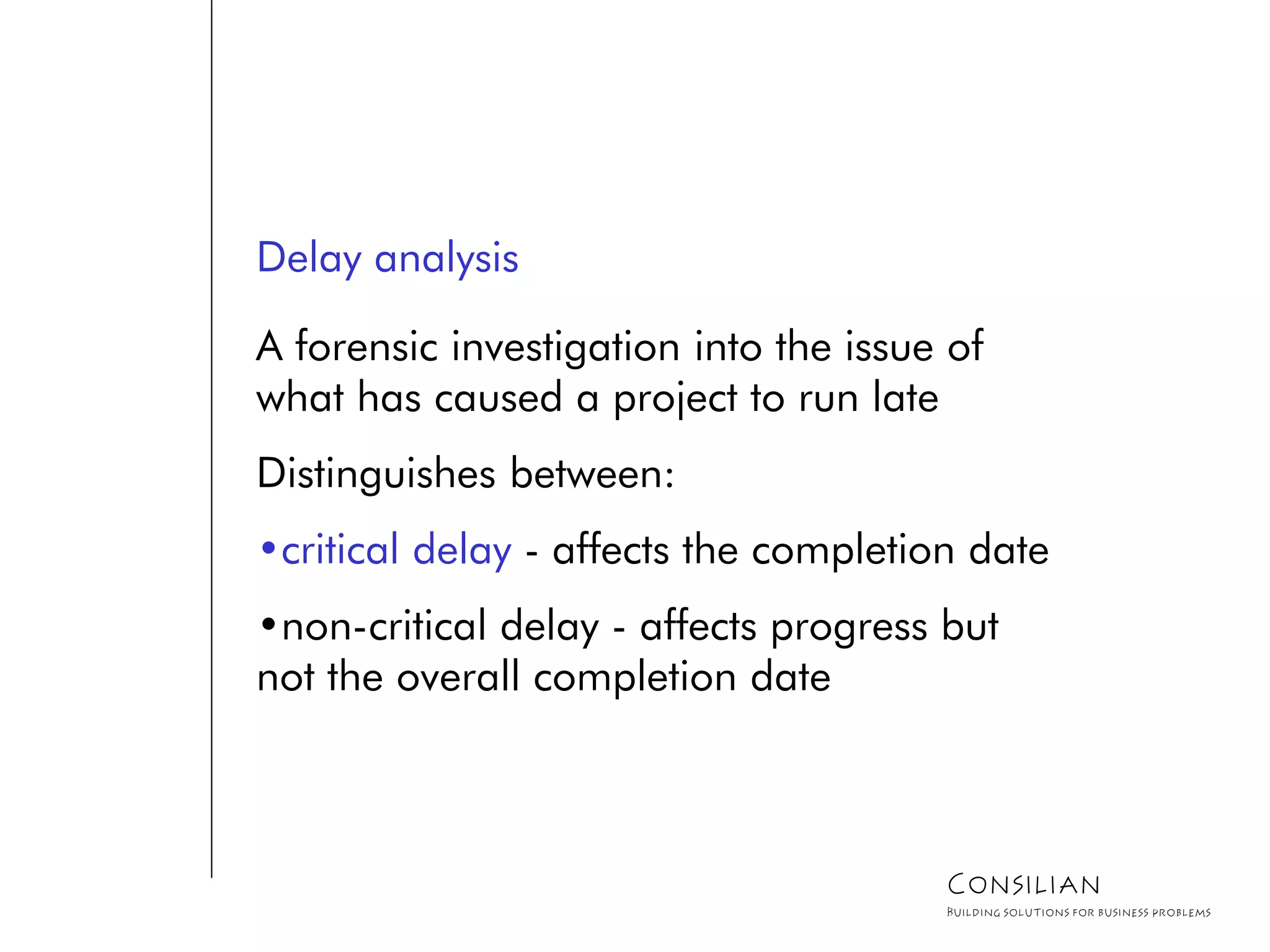

Delay analysis
A forensic investigation into the issue of
what has caused a project to run late
Distinguishes between:
•critical delay - affects the completion date
•non-critical delay - affects progress but
not the overall completion date
Consilian

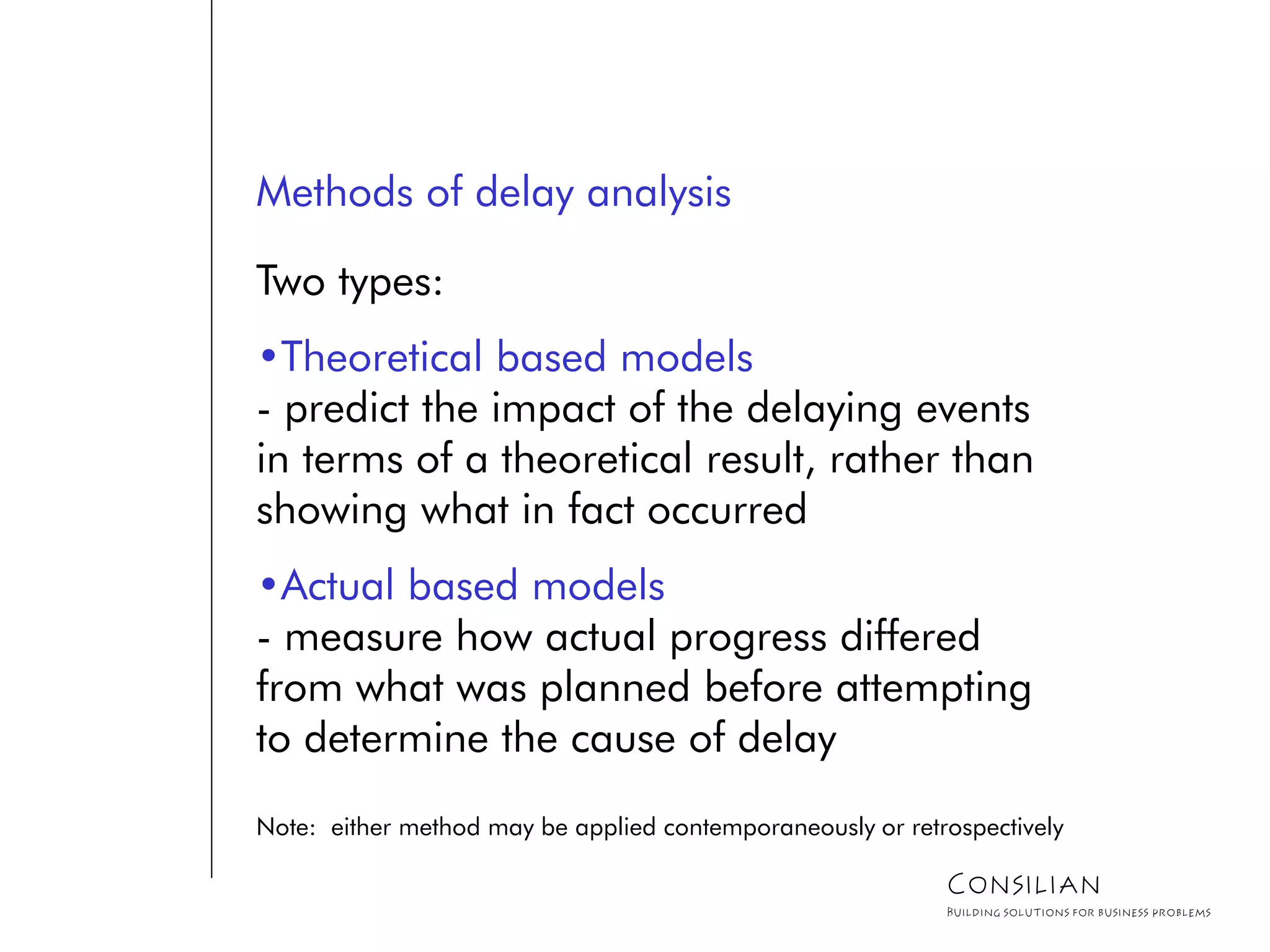

Methods of delay analysis
Two types:
•Theoretical based models
- predict the impact of the delaying events
in terms of a theoretical result, rather than
showing what in fact occurred
•Actual based models
- measure how actual progress differed
from what was planned before attempting
to determine the cause of delay
Note: either method may be applied contemporaneously or retrospectively
Consilian

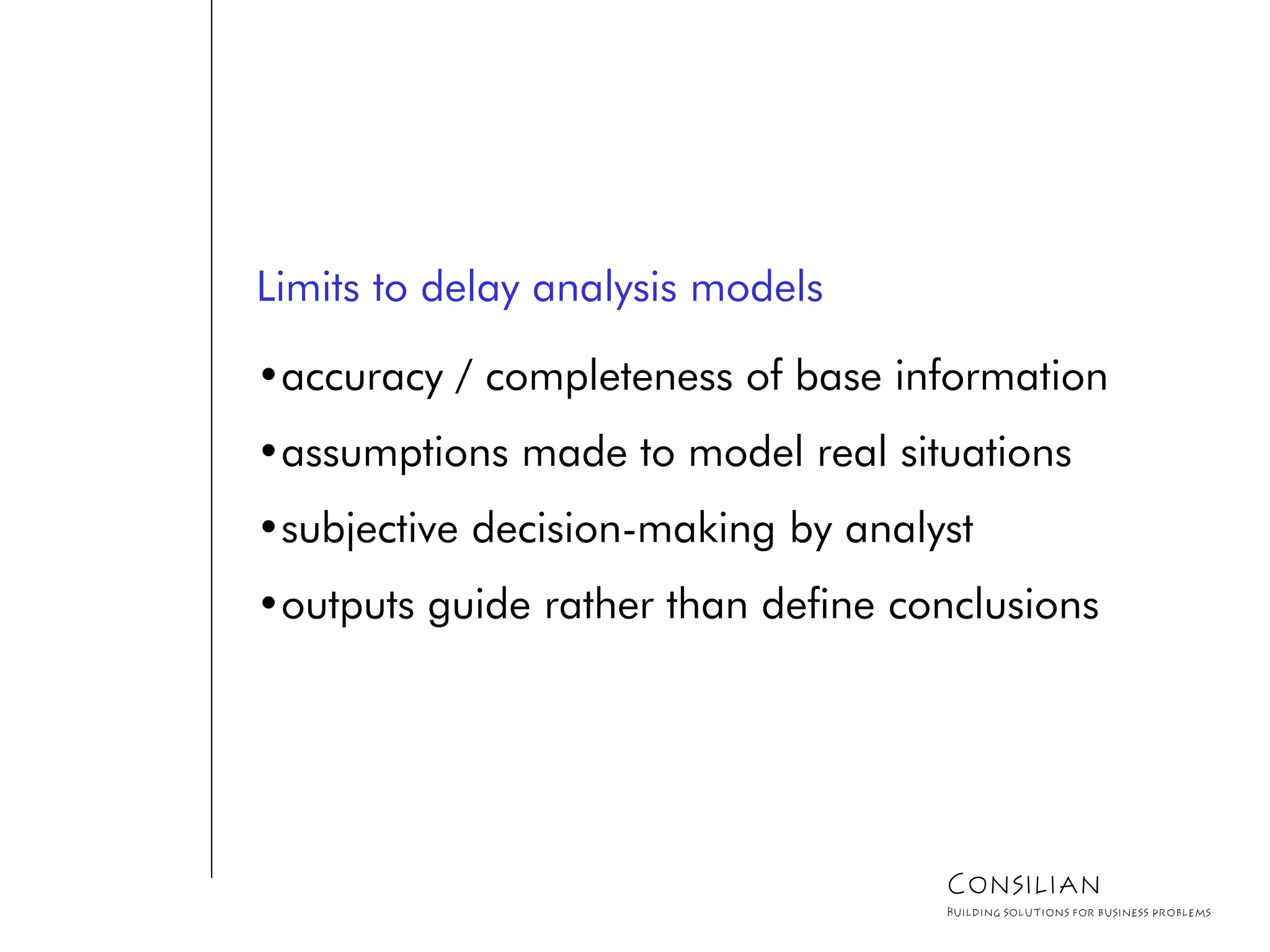

Limits to delay analysis models
•accuracy / completeness of base information
•assumptions made to model real situations
•subjective decision-making by analyst
•outputs guide rather than define conclusions
Consilian

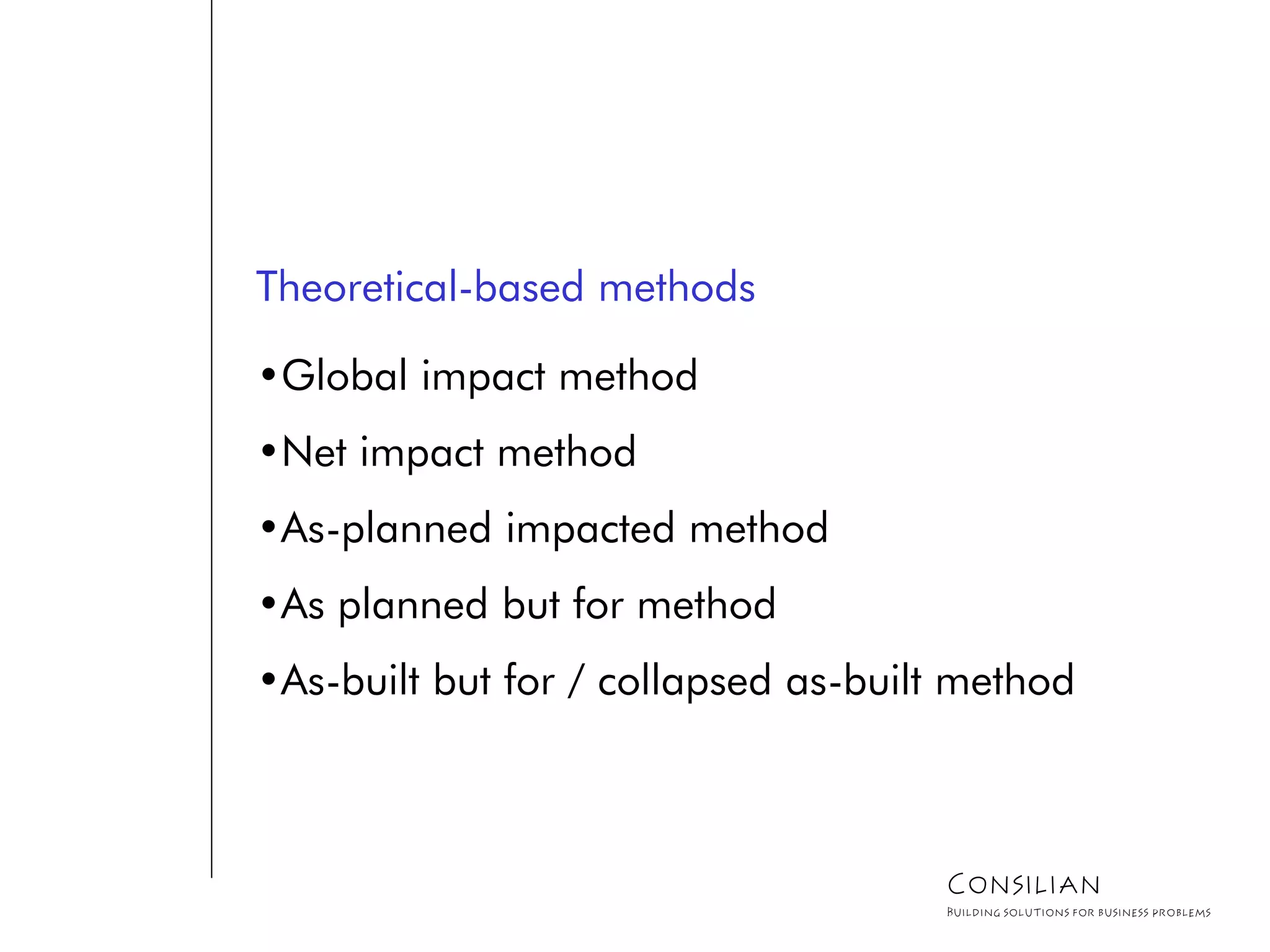

Theoretical-based methods
•Global impact method
•Net impact method
•As-planned impacted method
•As planned but for method
•As-built but for / collapsed as-built method
Consilian

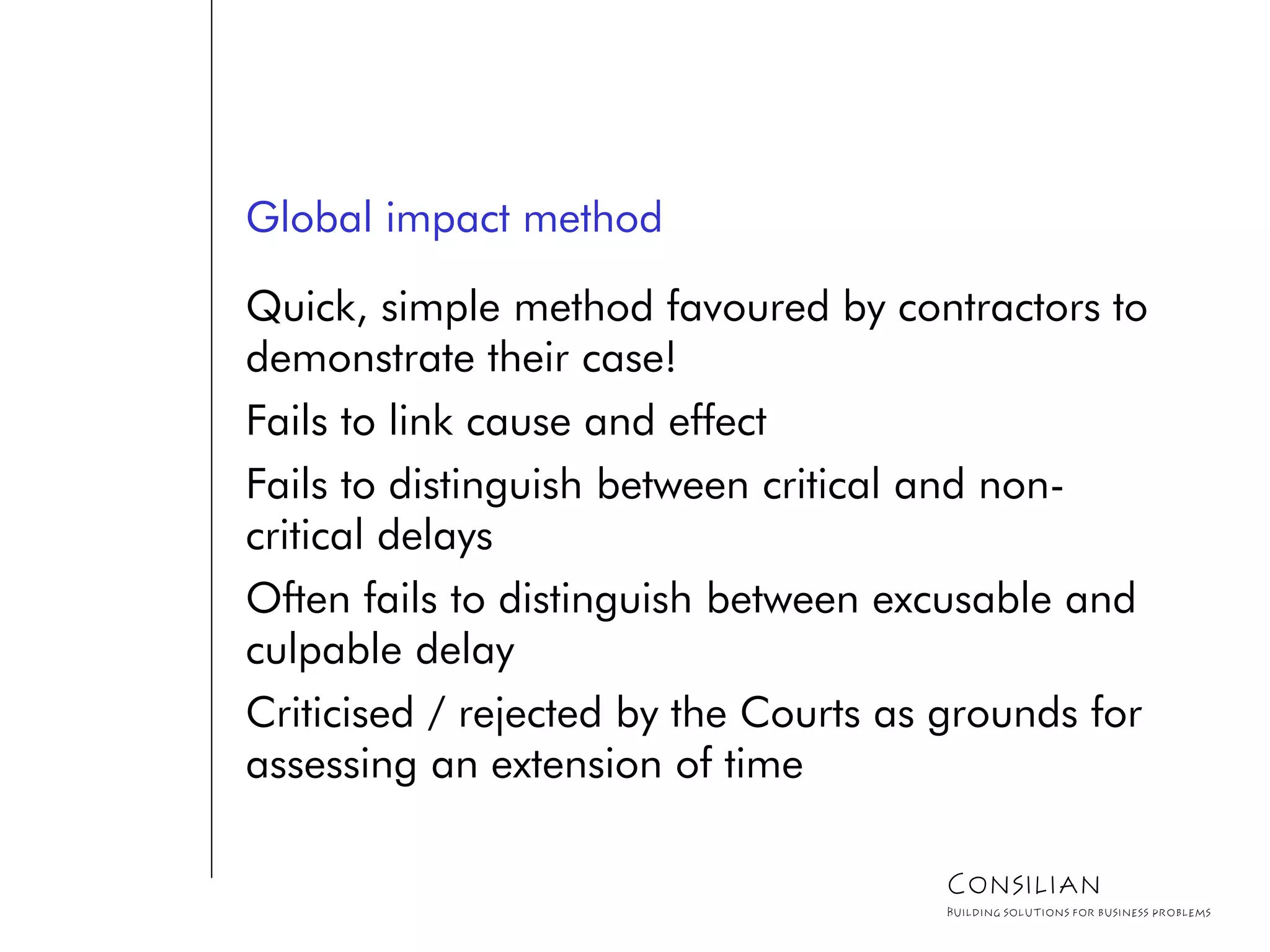

Global impact method
Quick, simple method favoured by contractors to
demonstrate their case!
Fails to link cause and effect
Fails to distinguish between critical and non-
critical delays
Often fails to distinguish between excusable and
culpable delay
Criticised / rejected by the Courts as grounds for
assessing an extension of time
Consilian

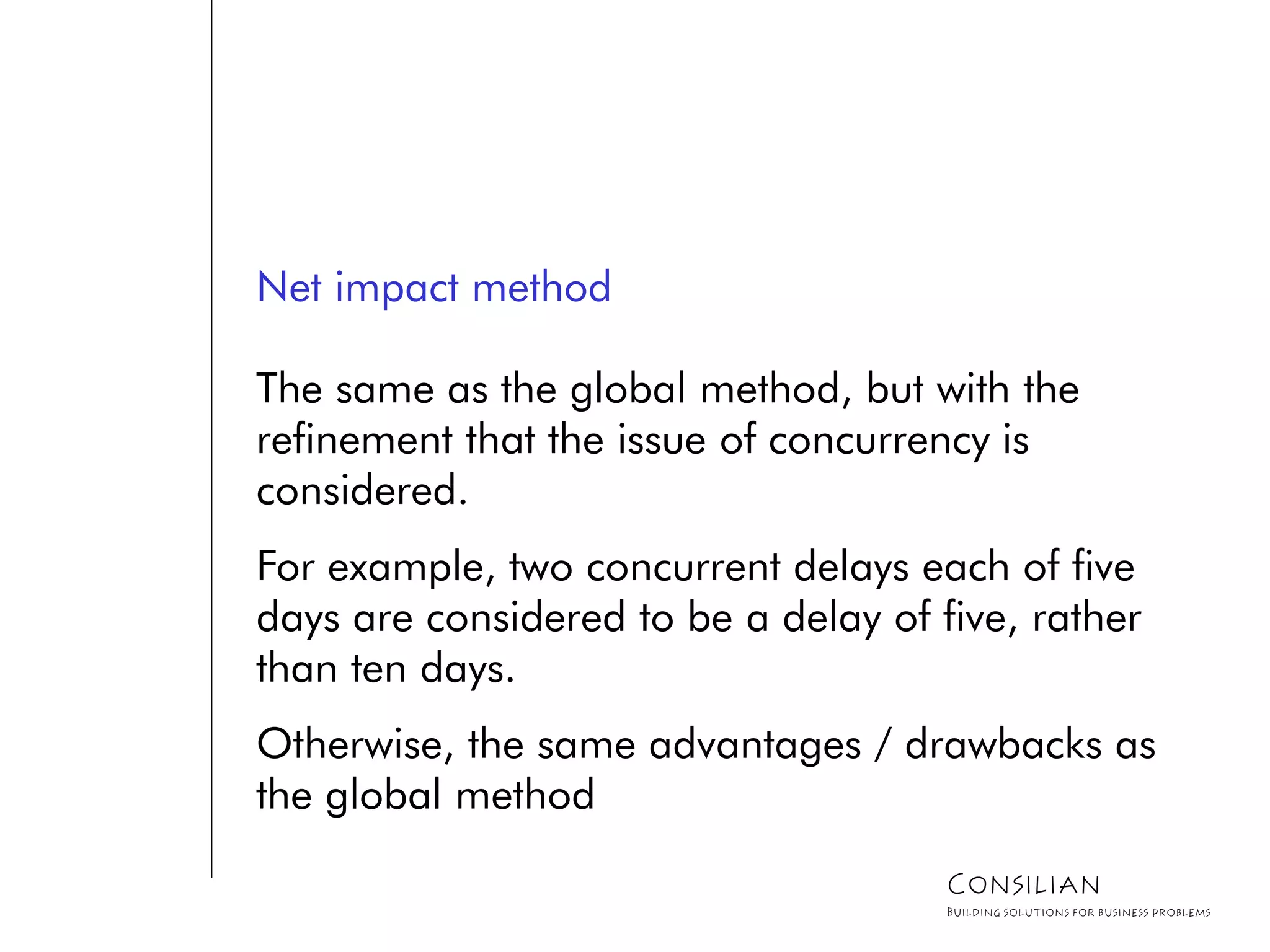

Net impact method
The same as the global method, but with the
refinement that the issue of concurrency is
considered.
For example, two concurrent delays each of five
days are considered to be a delay of five, rather
than ten days.
Otherwise, the same advantages / drawbacks as
the global method
Consilian

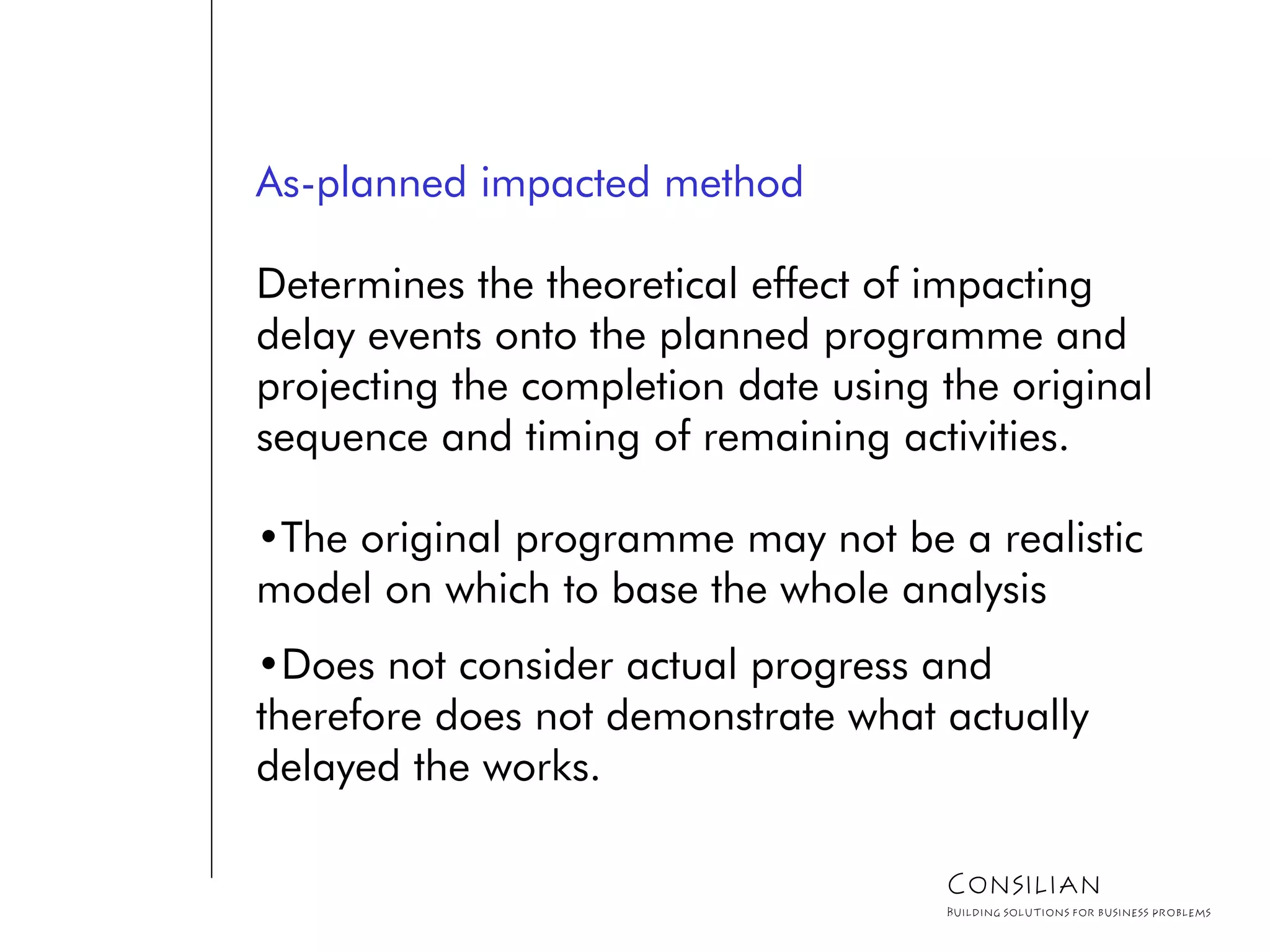

As-planned impacted method
Determines the theoretical effect of impacting
delay events onto the planned programme and
projecting the completion date using the original
sequence and timing of remaining activities.
•The original programme may not be a realistic
model on which to base the whole analysis
•Does not consider actual progress and
therefore does not demonstrate what actually
delayed the works.
Consilian

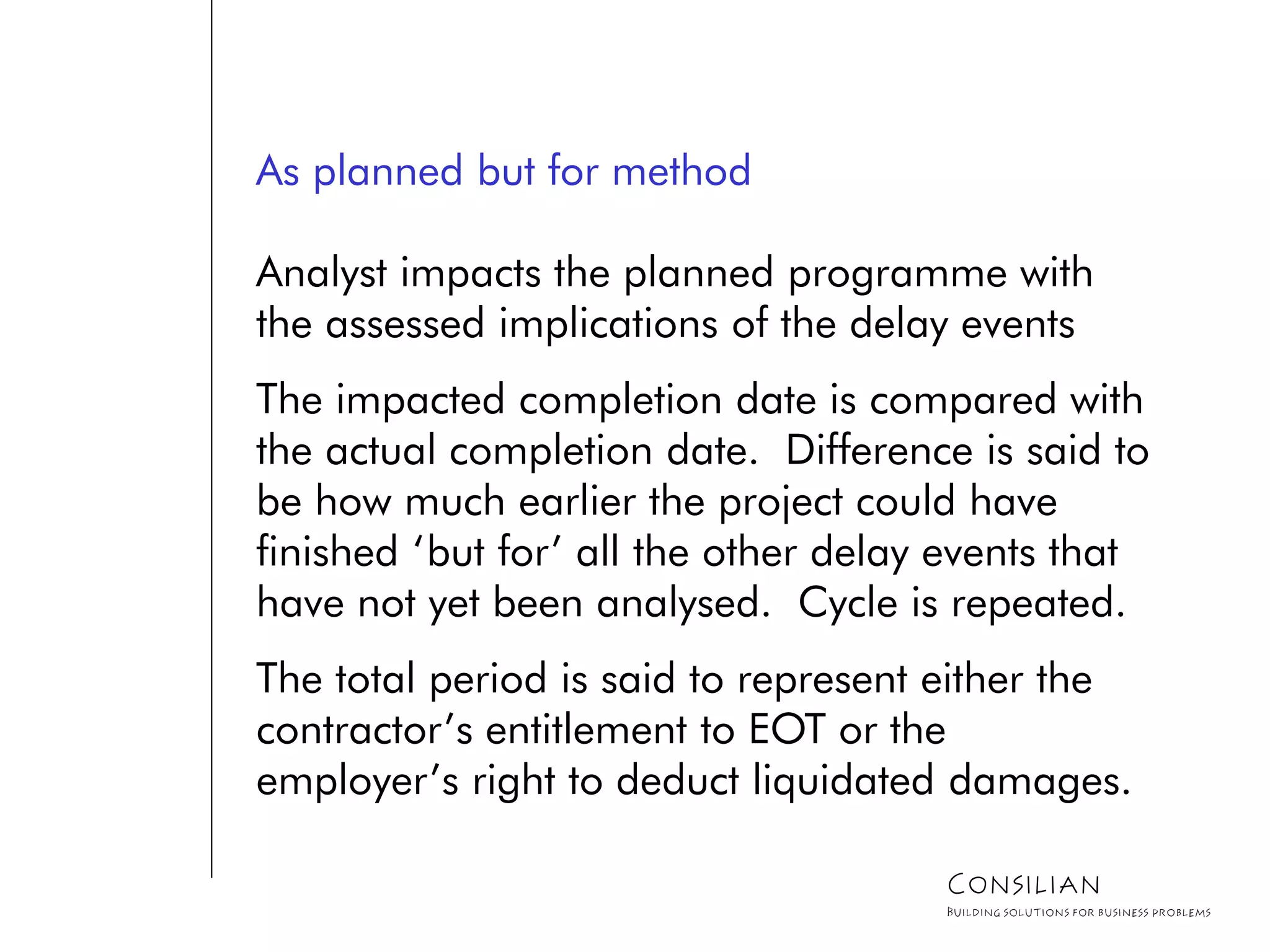

As planned but for method
Analyst impacts the planned programme with
the assessed implications of the delay events
The impacted completion date is compared with
the actual completion date. Difference is said to
be how much earlier the project could have
finished ‘but for’ all the other delay events that
have not yet been analysed. Cycle is repeated.
The total period is said to represent either the
contractor’s entitlement to EOT or the
employer’s right to deduct liquidated damages.
Consilian

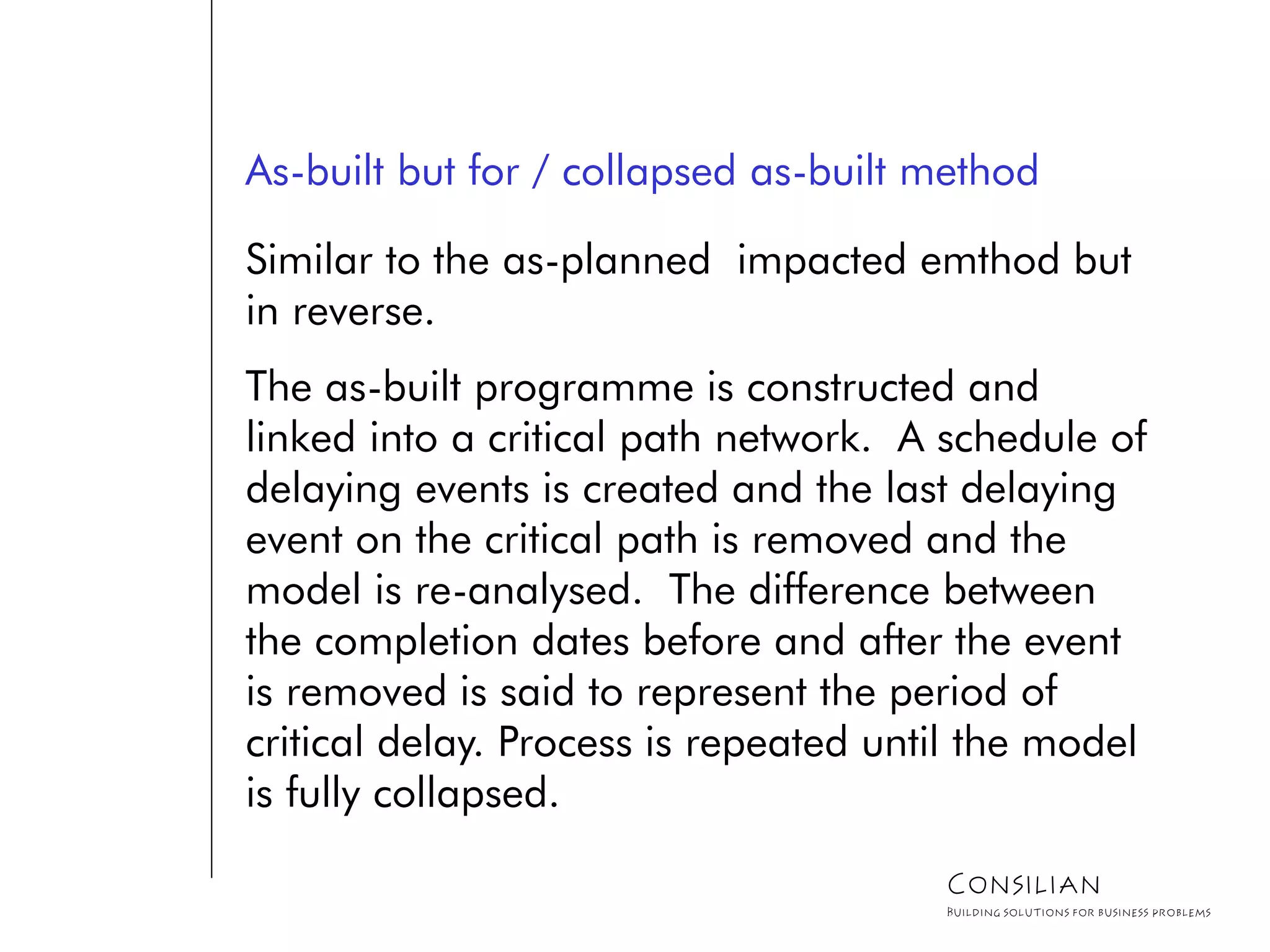

As-built but for / collapsed as-built method
Similar to the as-planned impacted emthod but
in reverse.
The as-built programme is constructed and
linked into a critical path network. A schedule of
delaying events is created and the last delaying
event on the critical path is removed and the
model is re-analysed. The difference between
the completion dates before and after the event
is removed is said to represent the period of
critical delay. Process is repeated until the model
is fully collapsed.
Consilian

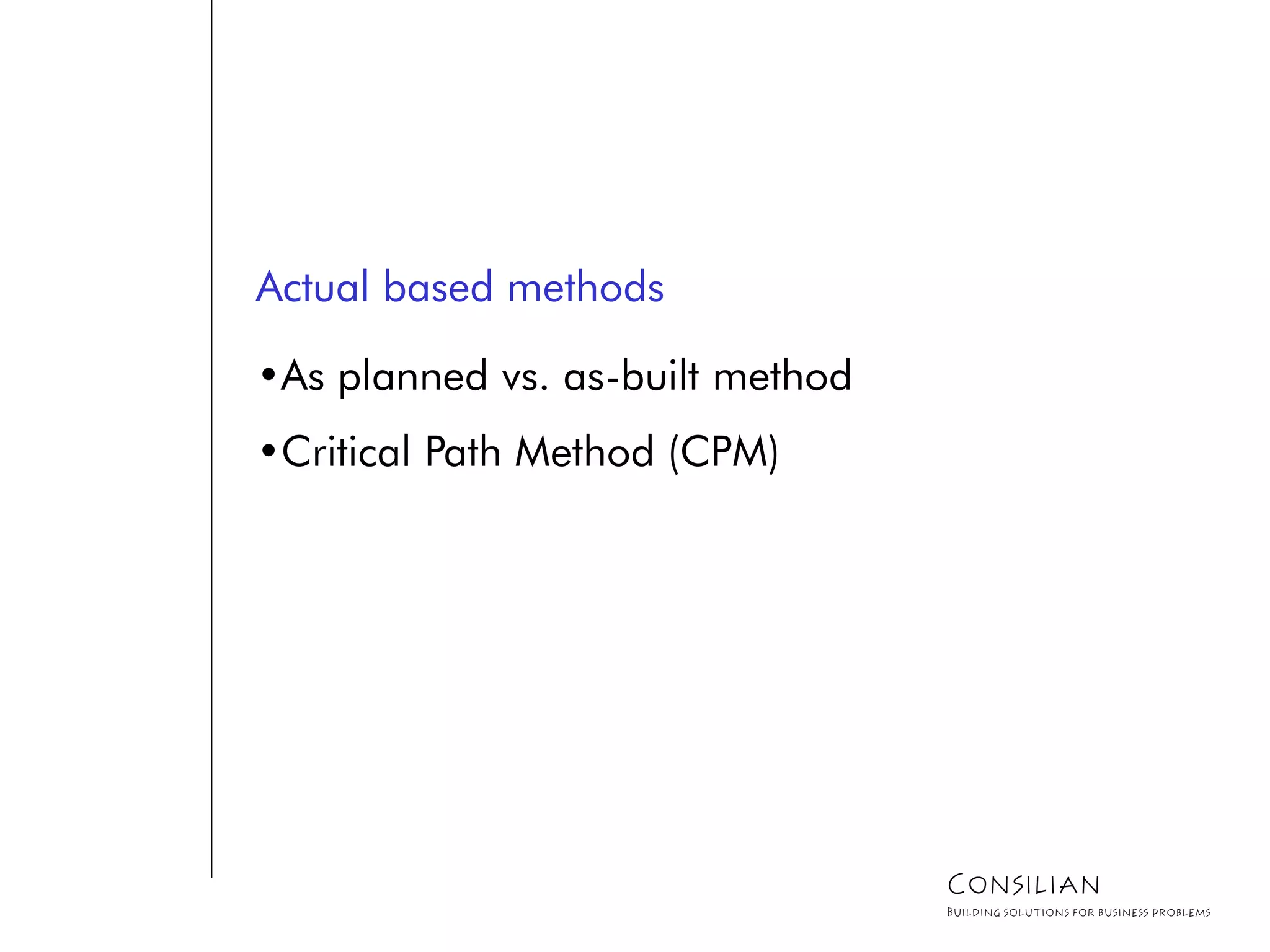

Actual based methods
•As planned vs. as-built method
•Critical Path Method (CPM)
Consilian

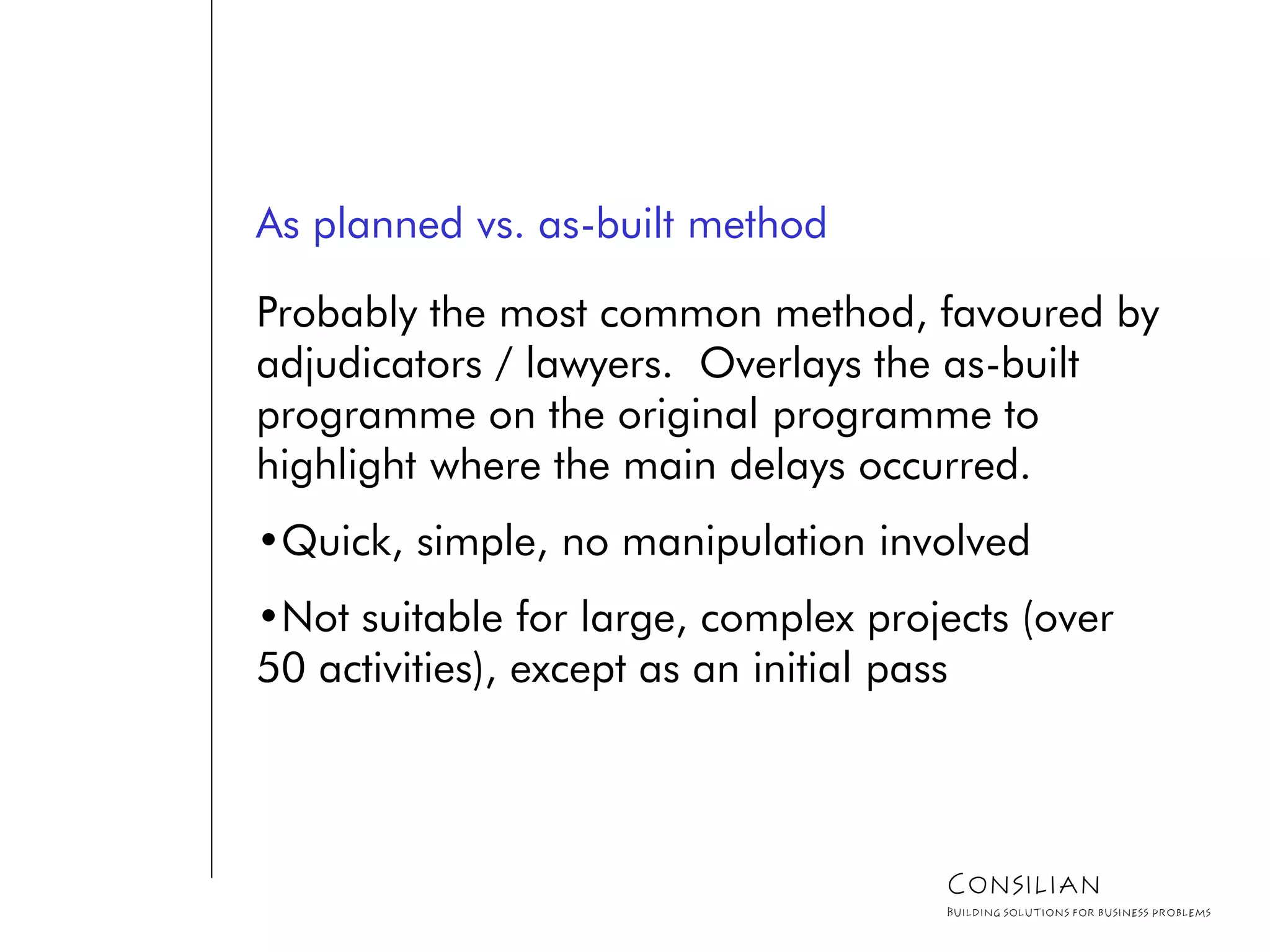

As planned vs. as-built method
Probably the most common method, favoured by
adjudicators / lawyers. Overlays the as-built
programme on the original programme to
highlight where the main delays occurred.
•Quick, simple, no manipulation involved
•Not suitable for large, complex projects (over
50 activities), except as an initial pass
Consilian

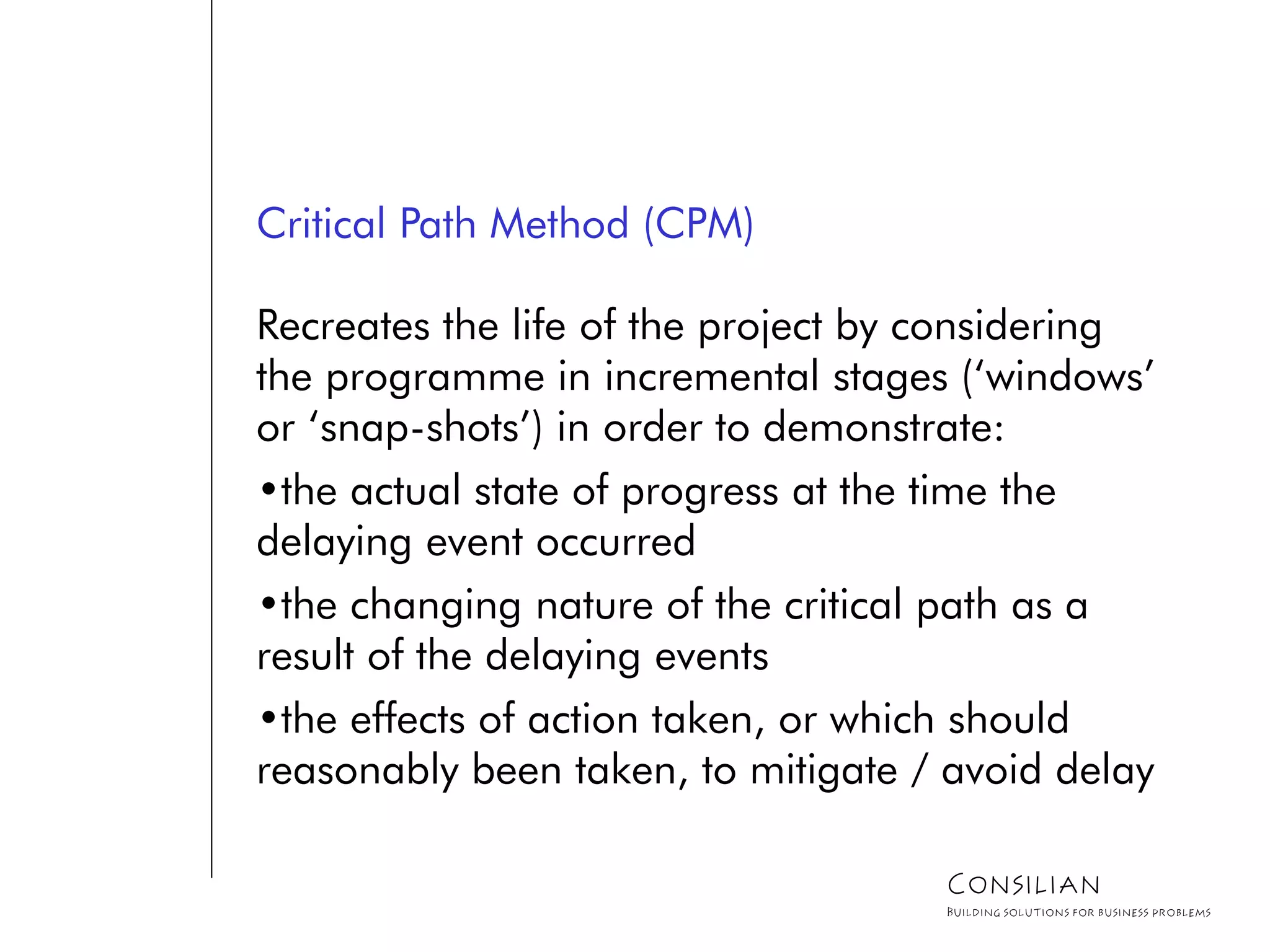

Critical Path Method (CPM)
Recreates the life of the project by considering
the programme in incremental stages (‘windows’
or ‘snap-shots’) in order to demonstrate:
•the actual state of progress at the time the
delaying event occurred
•the changing nature of the critical path as a
result of the delaying events
•the effects of action taken, or which should
reasonably been taken, to mitigate / avoid delay
Consilian

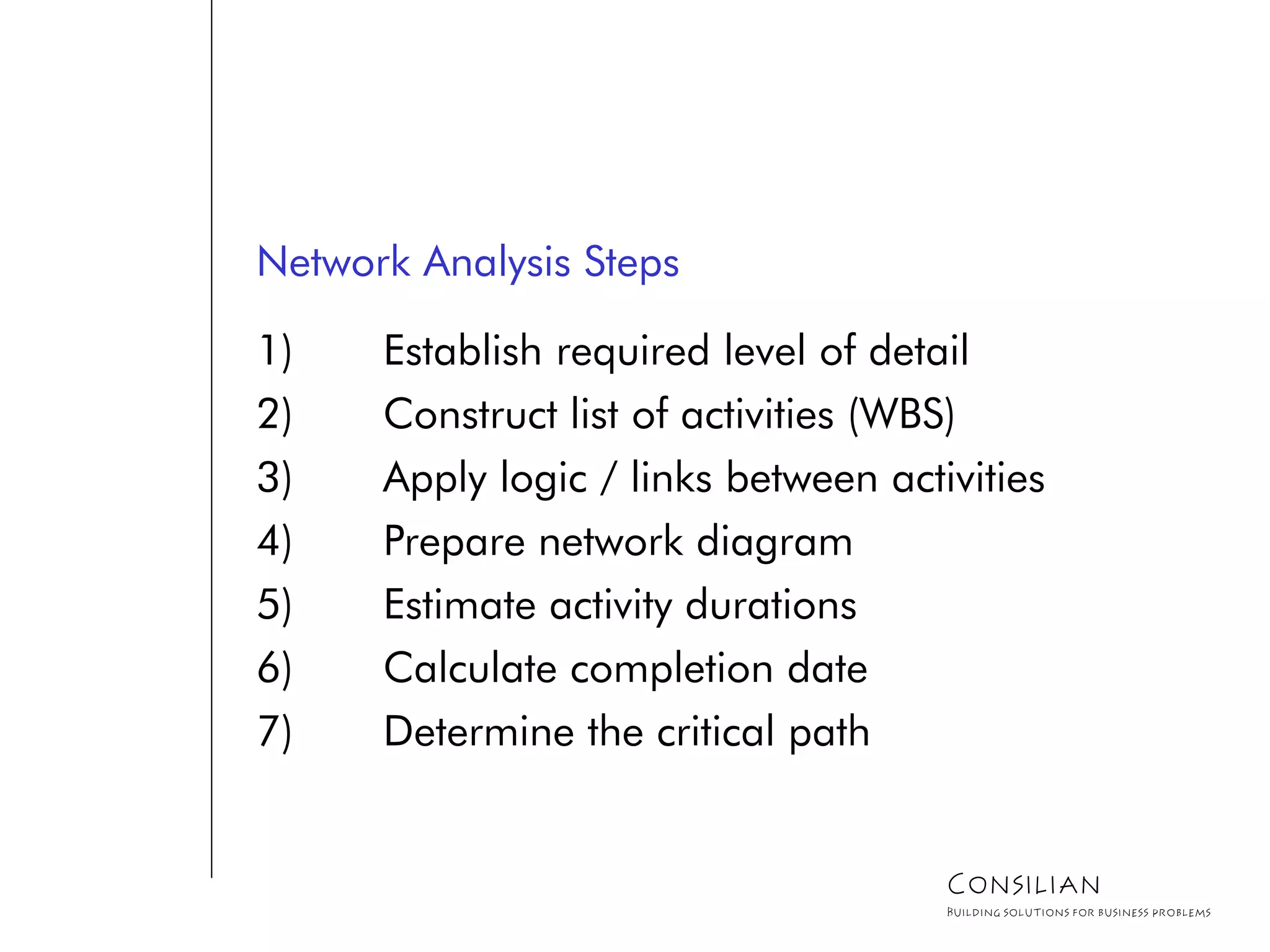

Network Analysis Steps
1) Establish required level of detail
2) Construct list of activities (WBS)
3) Apply logic / links between activities
4) Prepare network diagram
5) Estimate activity durations
6) Calculate completion date
7) Determine the critical path
Consilian

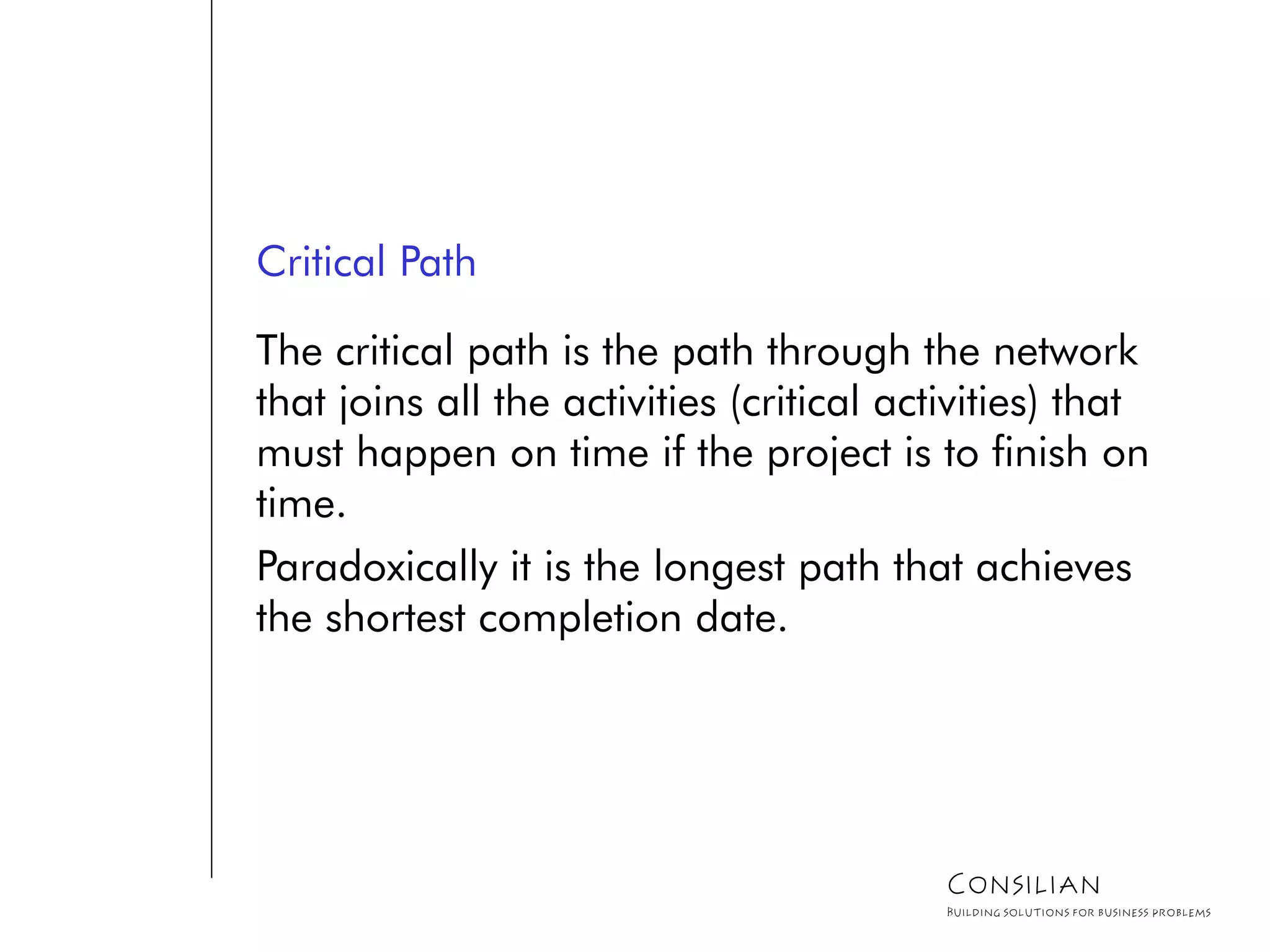

Critical Path
The critical path is the path through the network
that joins all the activities (critical activities) that
must happen on time if the project is to finish on
time.
Paradoxically it is the longest path that achieves
the shortest completion date.
Consilian

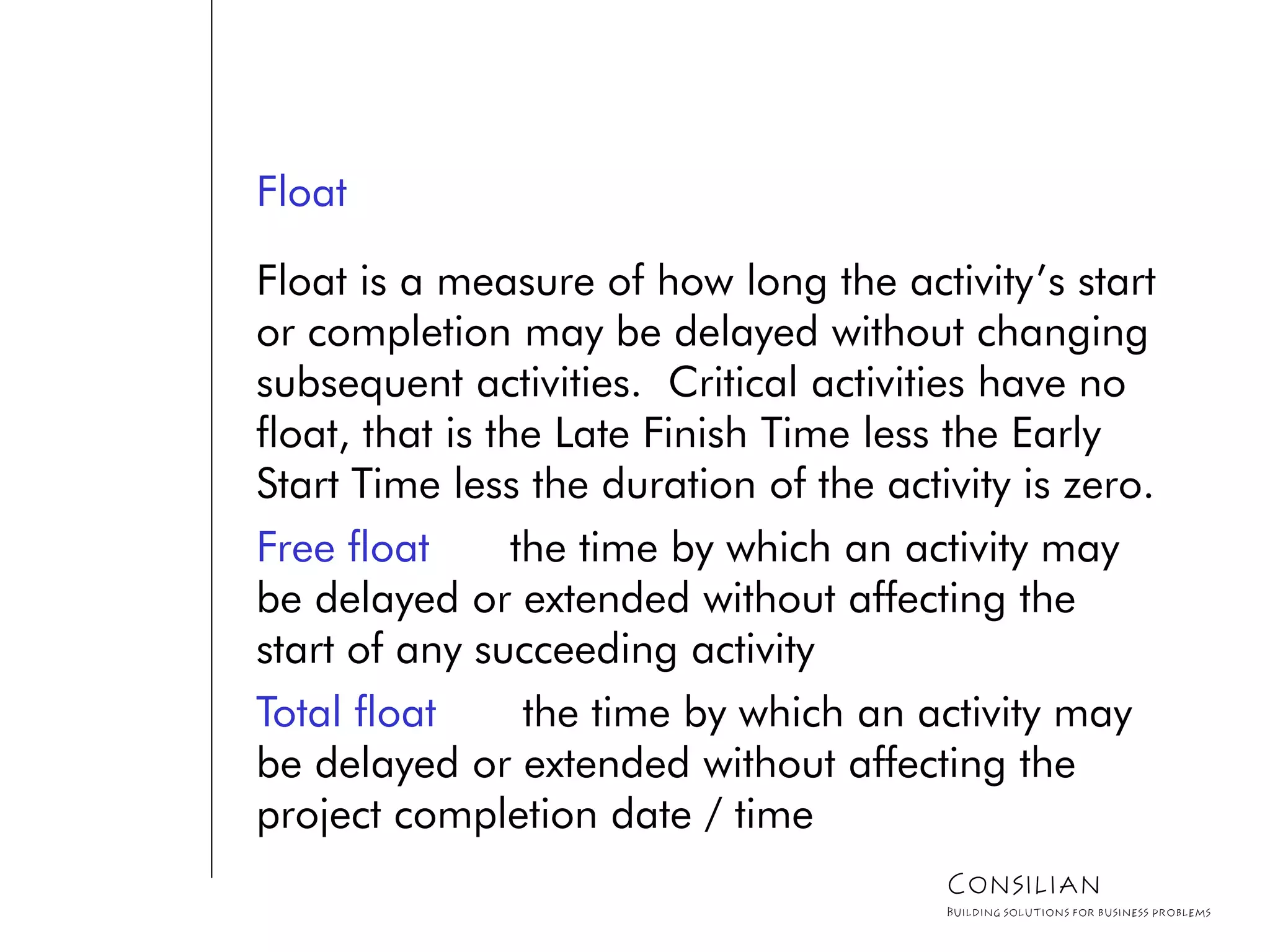

Float
Float is a measure of how long the activity’s start
or completion may be delayed without changing
subsequent activities. Critical activities have no
float, that is the Late Finish Time less the Early
Start Time less the duration of the activity is zero.
Free float the time by which an activity may
be delayed or extended without affecting the
start of any succeeding activity
Total float the time by which an activity may
be delayed or extended without affecting the
project completion date / time
Consilian

60
31
31
70
34
34
F
15
G
3
20
4
4
10
0
0
A
4
30
10
12
B
6
C
12
50
16
16
28
31
D
4
E
12
H
Early
Event
Time
Late
Event
Time
Event
label
LEGEND

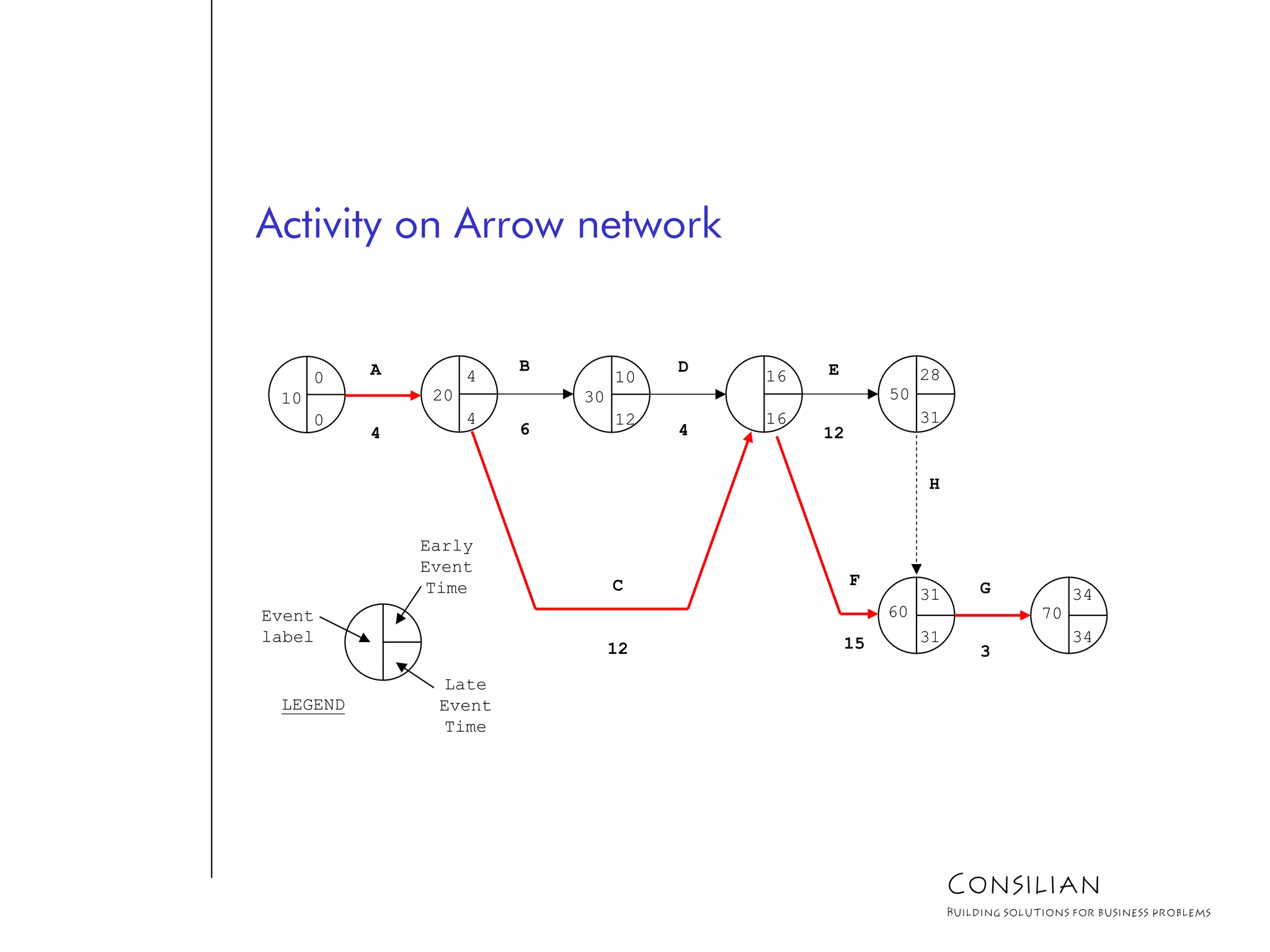

Activity on Arrow network
Consilian

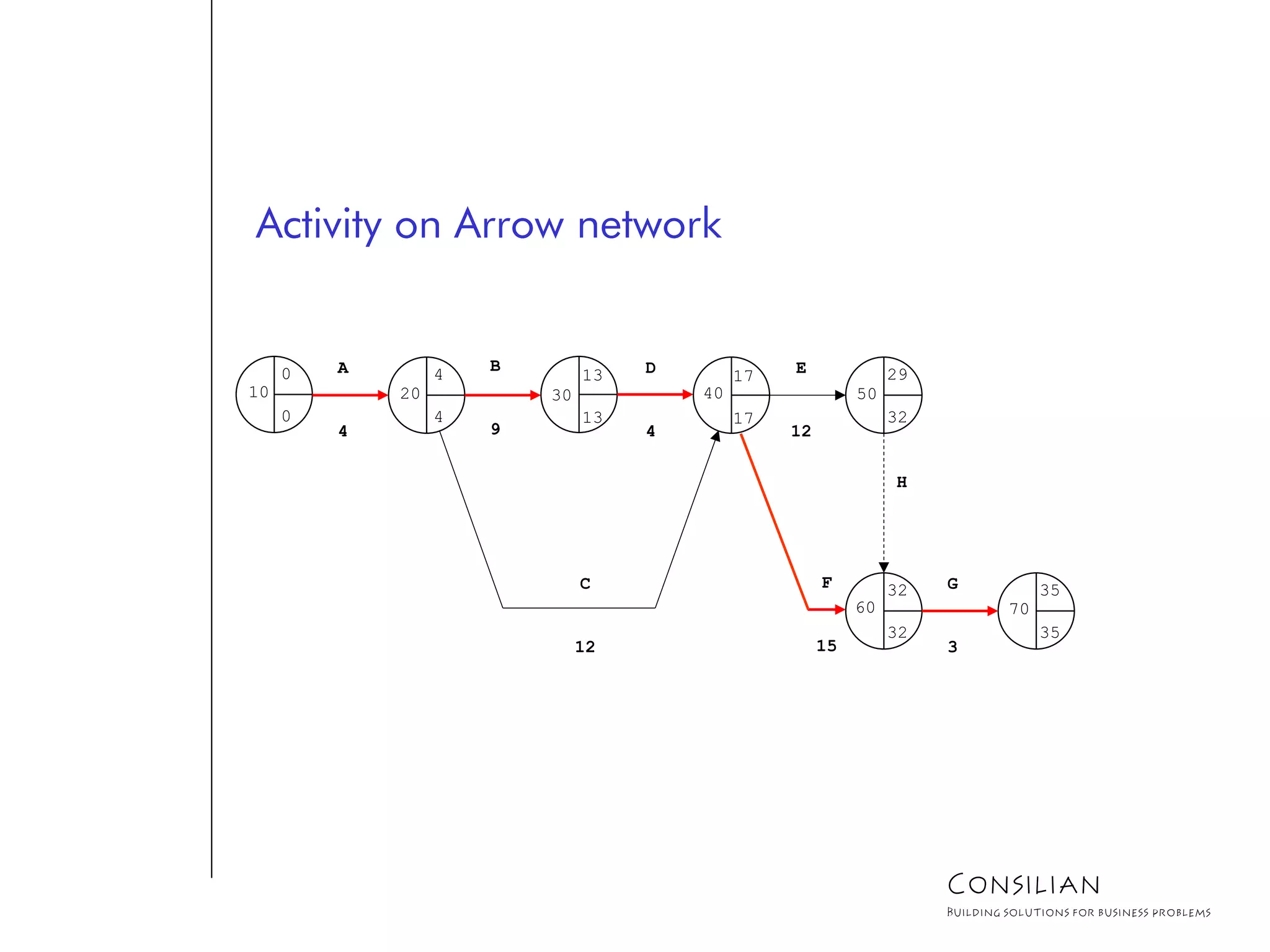

Activity on Arrow network
10
0
0
A
4
C
12
20
4
4
30
13
13
B
9
40
17
17
D
4
E
12
F
15
60
32
32
70
35
35
G
3
50
29
32
H
Consilian

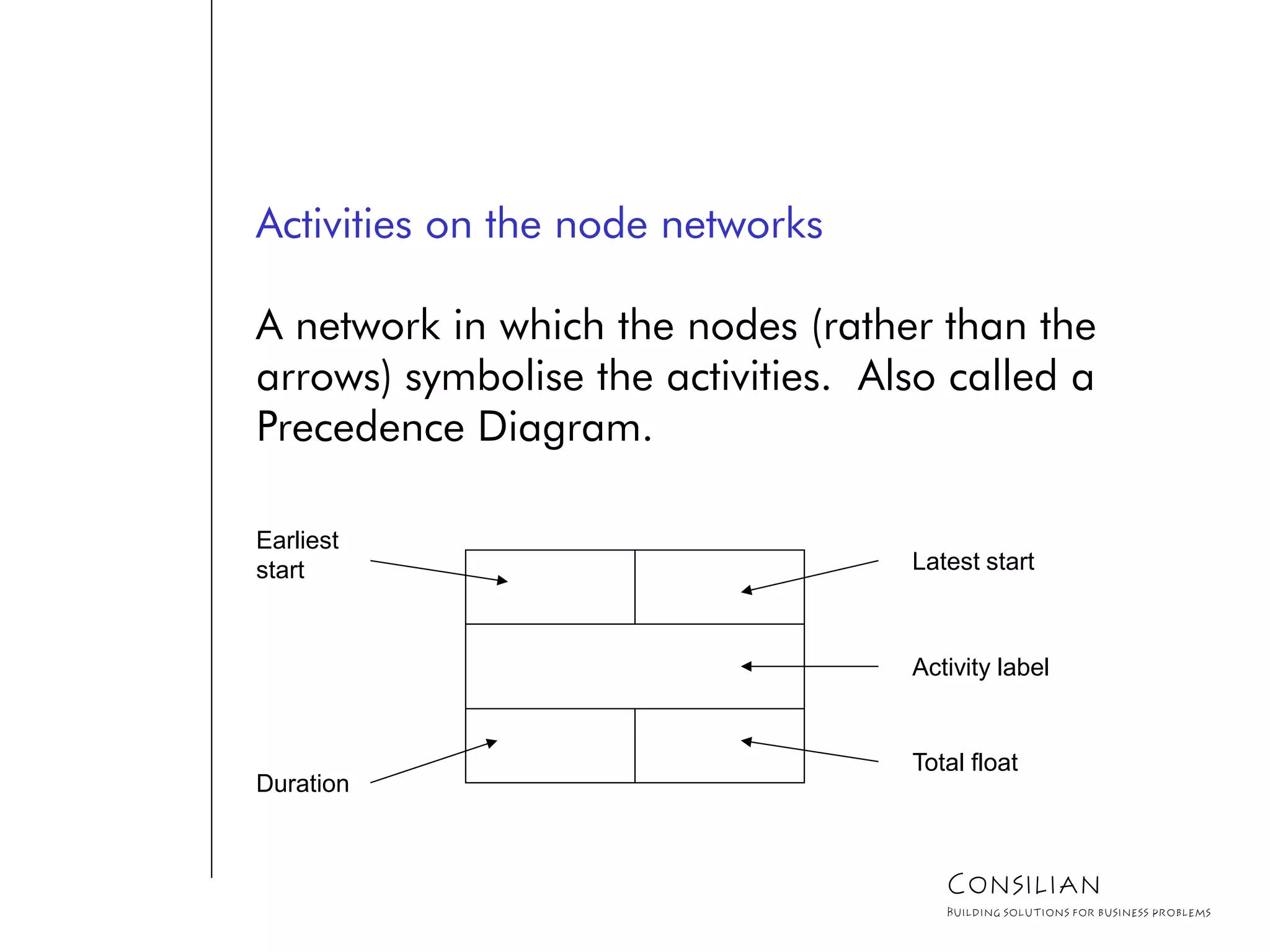

Activities on the node networks
A network in which the nodes (rather than the
arrows) symbolise the activities. Also called a
Precedence Diagram.
Latest start
Activity label
Total float
Earliest
start
Duration
Consilian

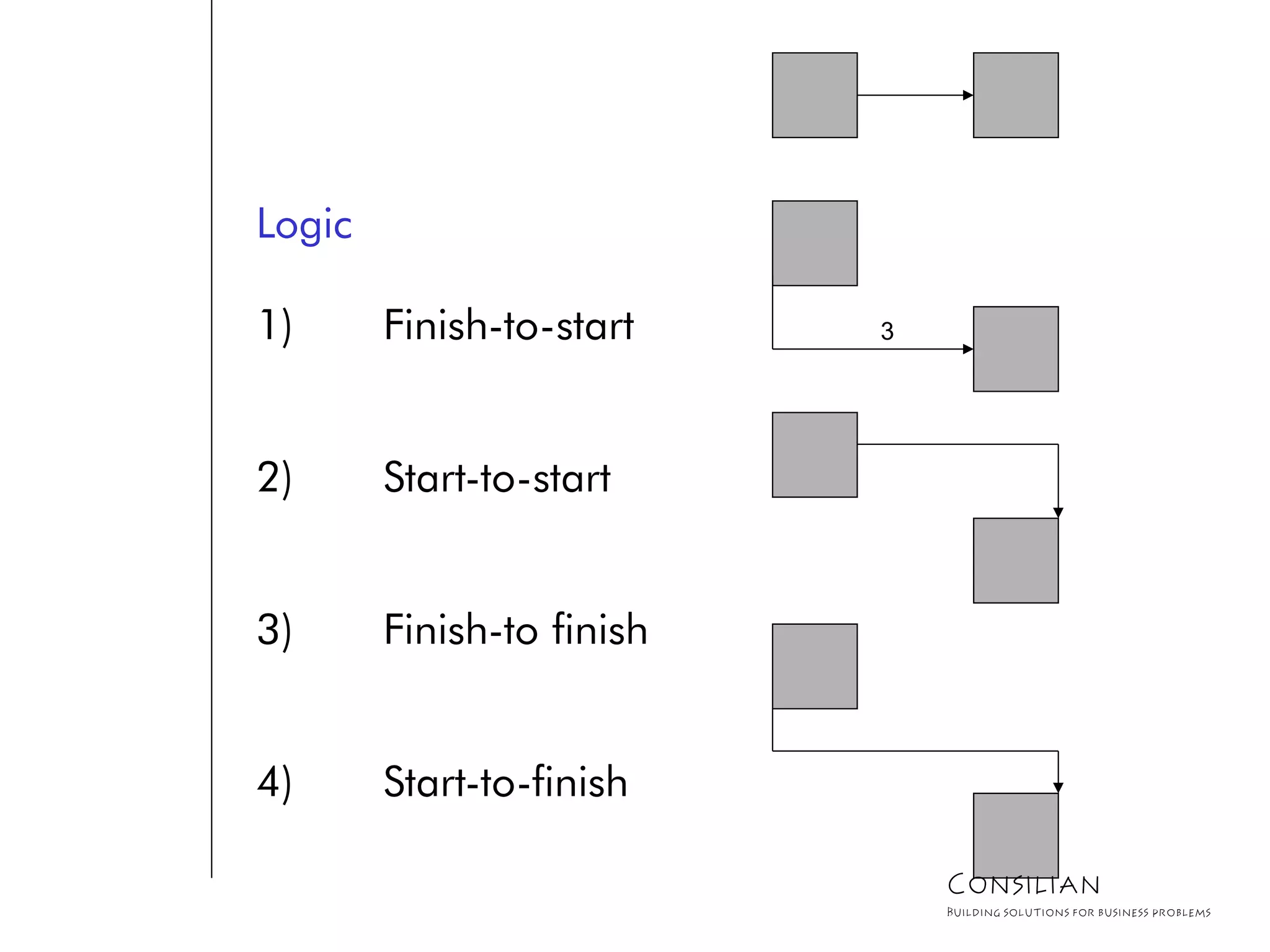

Logic
1) Finish-to-start
2) Start-to-start
3) Finish-to finish
4) Start-to-finish
3
Consilian

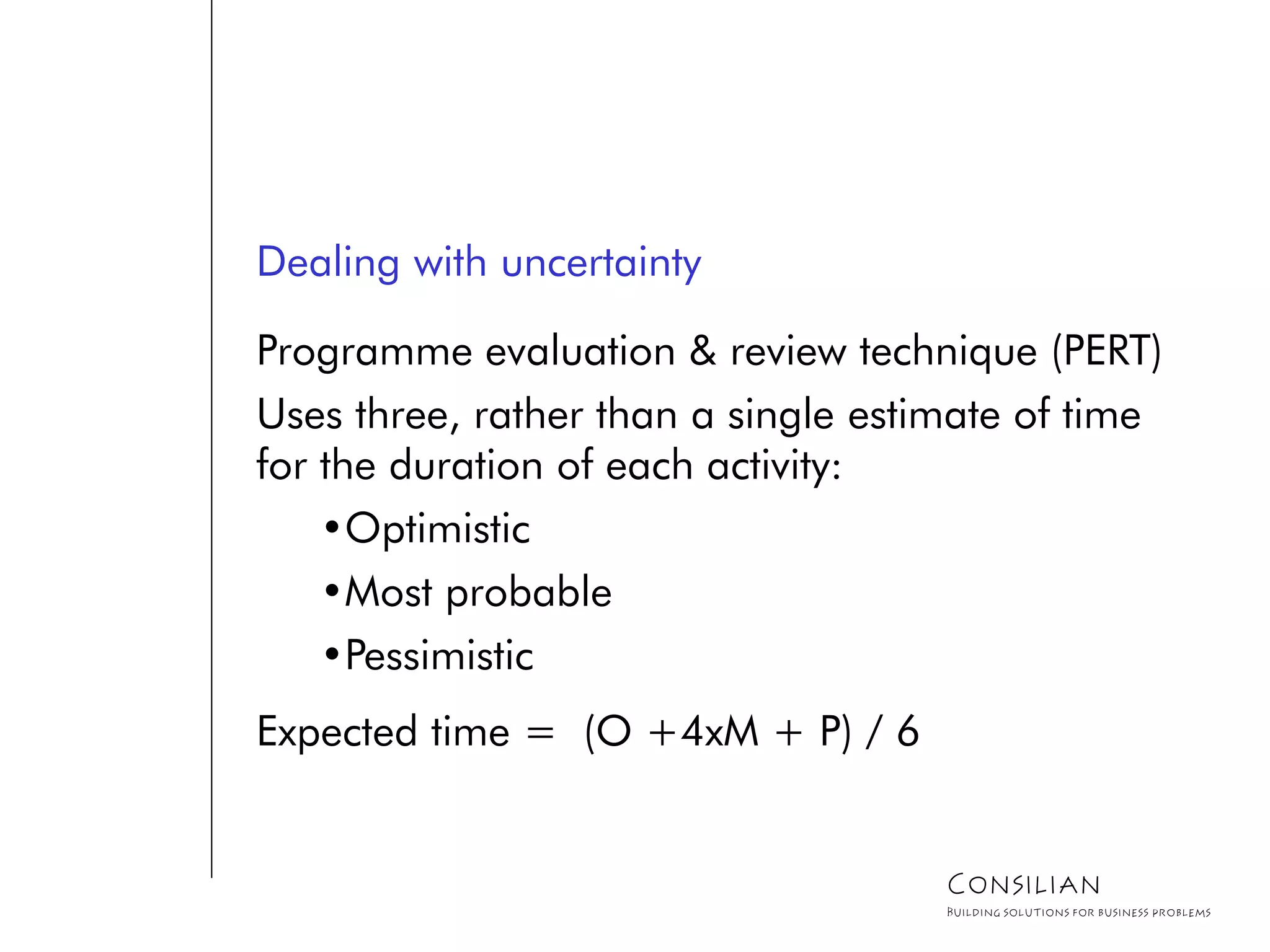

Dealing with uncertainty
Programme evaluation & review technique (PERT)
Uses three, rather than a single estimate of time
for the duration of each activity:
•Optimistic
•Most probable
•Pessimistic
Expected time = (O +4xM + P) / 6
Consilian

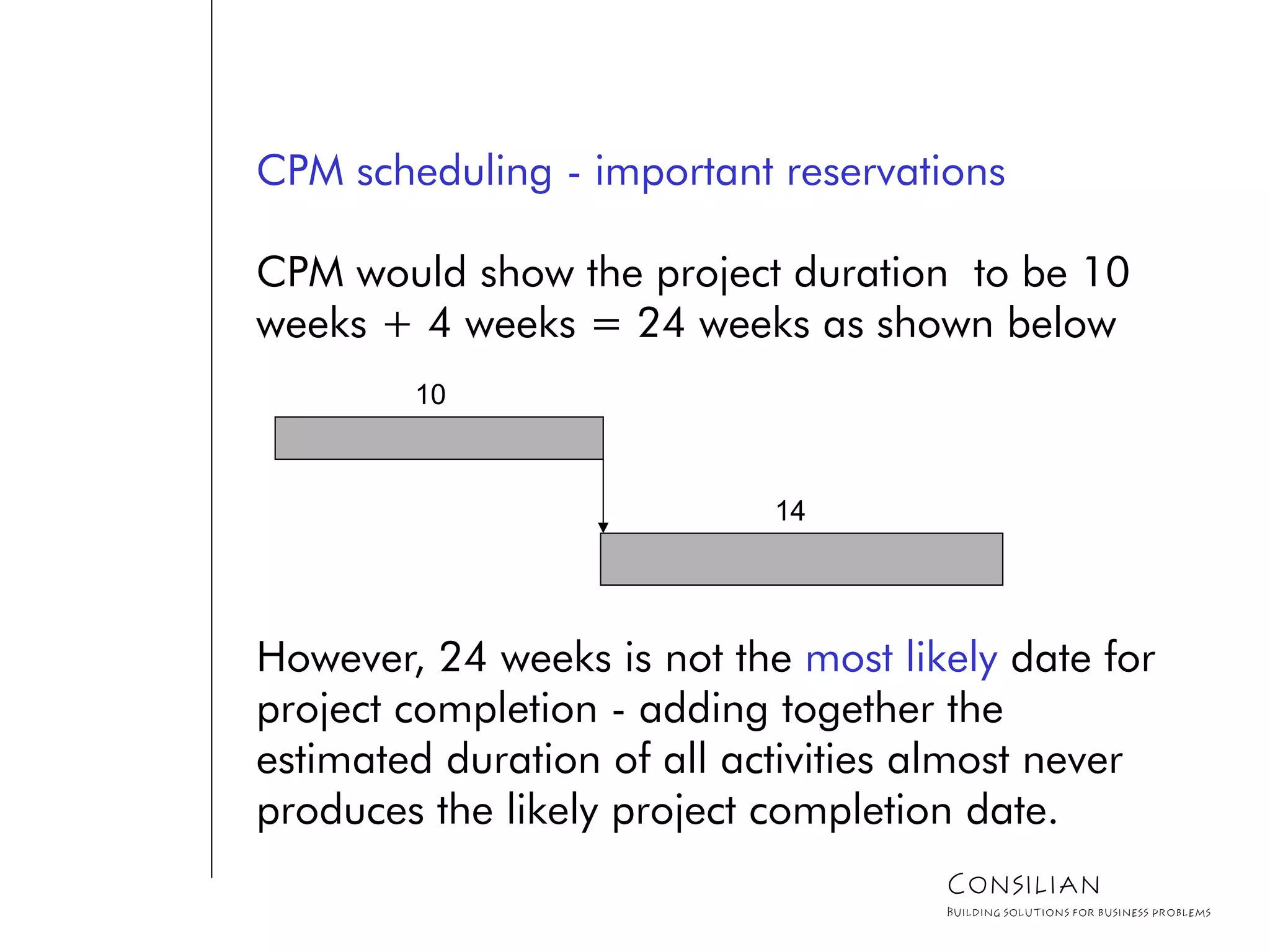

CPM scheduling - important reservations
CPM would show the project duration to be 10
weeks + 4 weeks = 24 weeks as shown below
10
14
However, 24 weeks is not the most likely date for
project completion - adding together the
estimated duration of all activities almost never
produces the likely project completion date.
Consilian

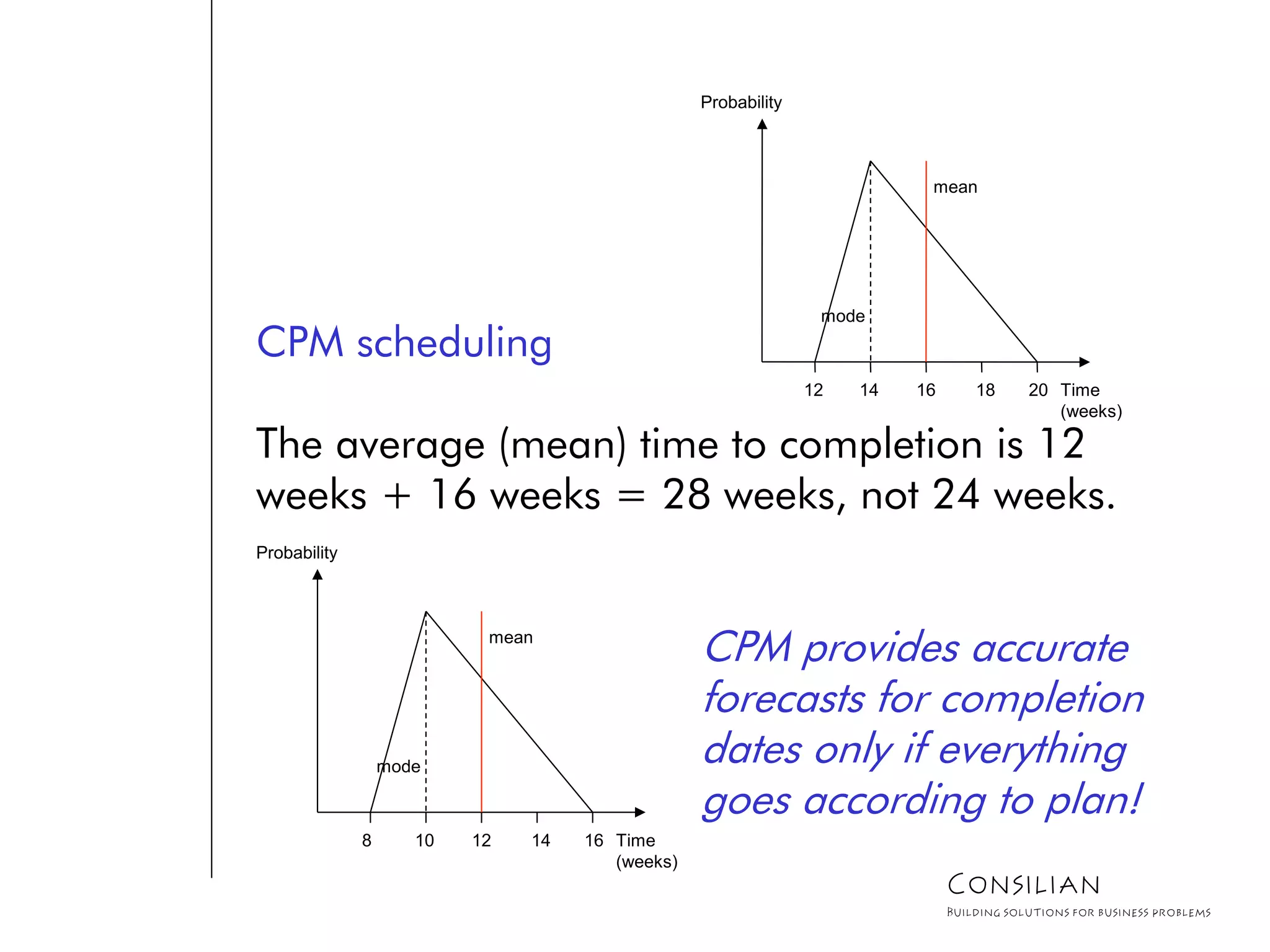

CPM scheduling
The average (mean) time to completion is 12
weeks + 16 weeks = 28 weeks, not 24 weeks.
8 10 12 14 16 Time
(weeks)
Probability
mean
mode
12 14 16 18 20 Time
(weeks)
Probability
mean
mode
CPM provides accurate
forecasts for completion
dates only if everything
goes according to plan!
Consilian

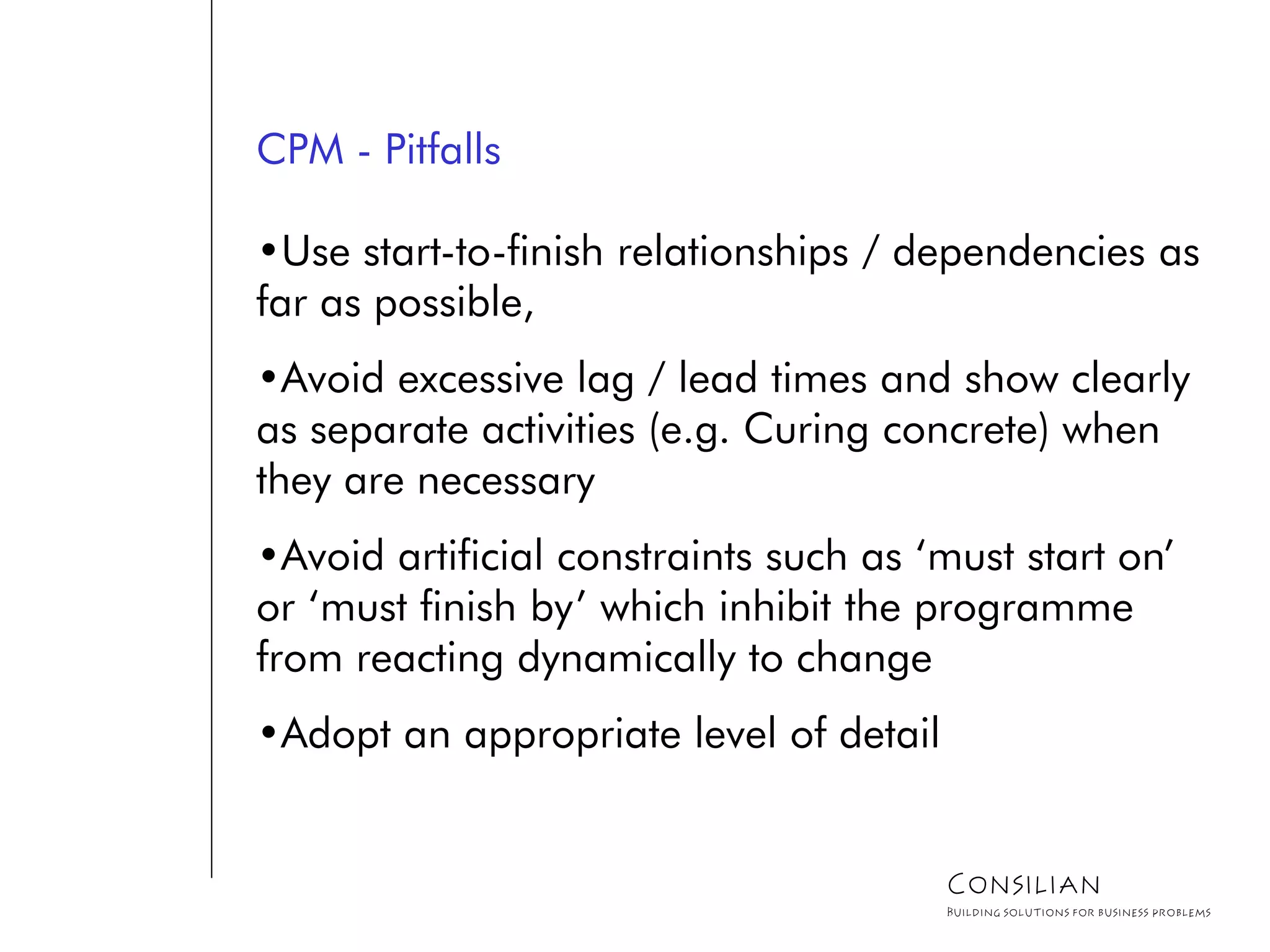

CPM - Pitfalls
•Use start-to-finish relationships / dependencies as
far as possible,
•Avoid excessive lag / lead times and show clearly
as separate activities (e.g. Curing concrete) when
they are necessary
•Avoid artificial constraints such as ‘must start on’
or ‘must finish by’ which inhibit the programme
from reacting dynamically to change
•Adopt an appropriate level of detail
Consilian

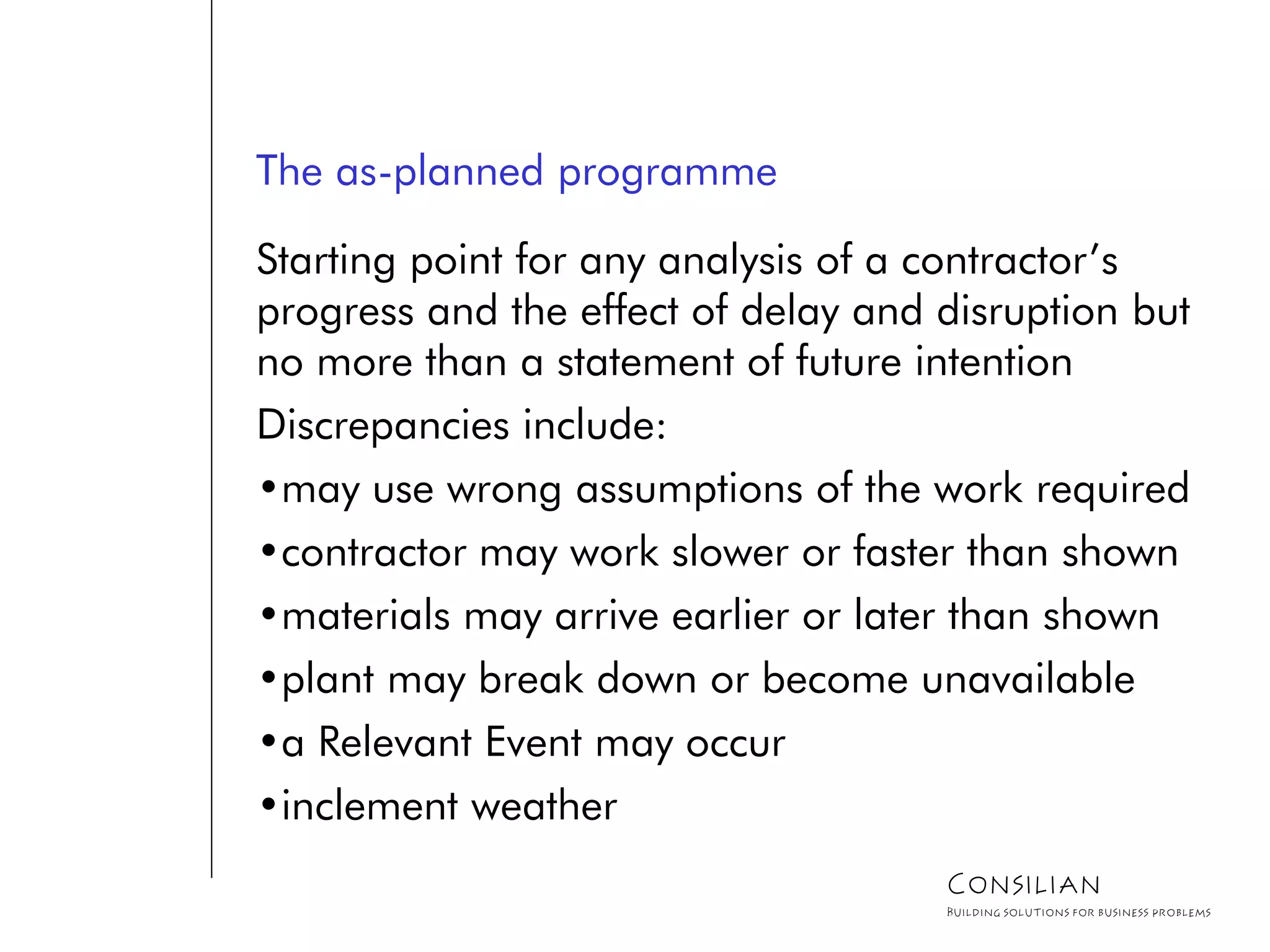

The as-planned programme
Starting point for any analysis of a contractor’s
progress and the effect of delay and disruption but
no more than a statement of future intention
Discrepancies include:
•may use wrong assumptions of the work required
•contractor may work slower or faster than shown
•materials may arrive earlier or later than shown
•plant may break down or become unavailable
•a Relevant Event may occur
•inclement weather
Consilian

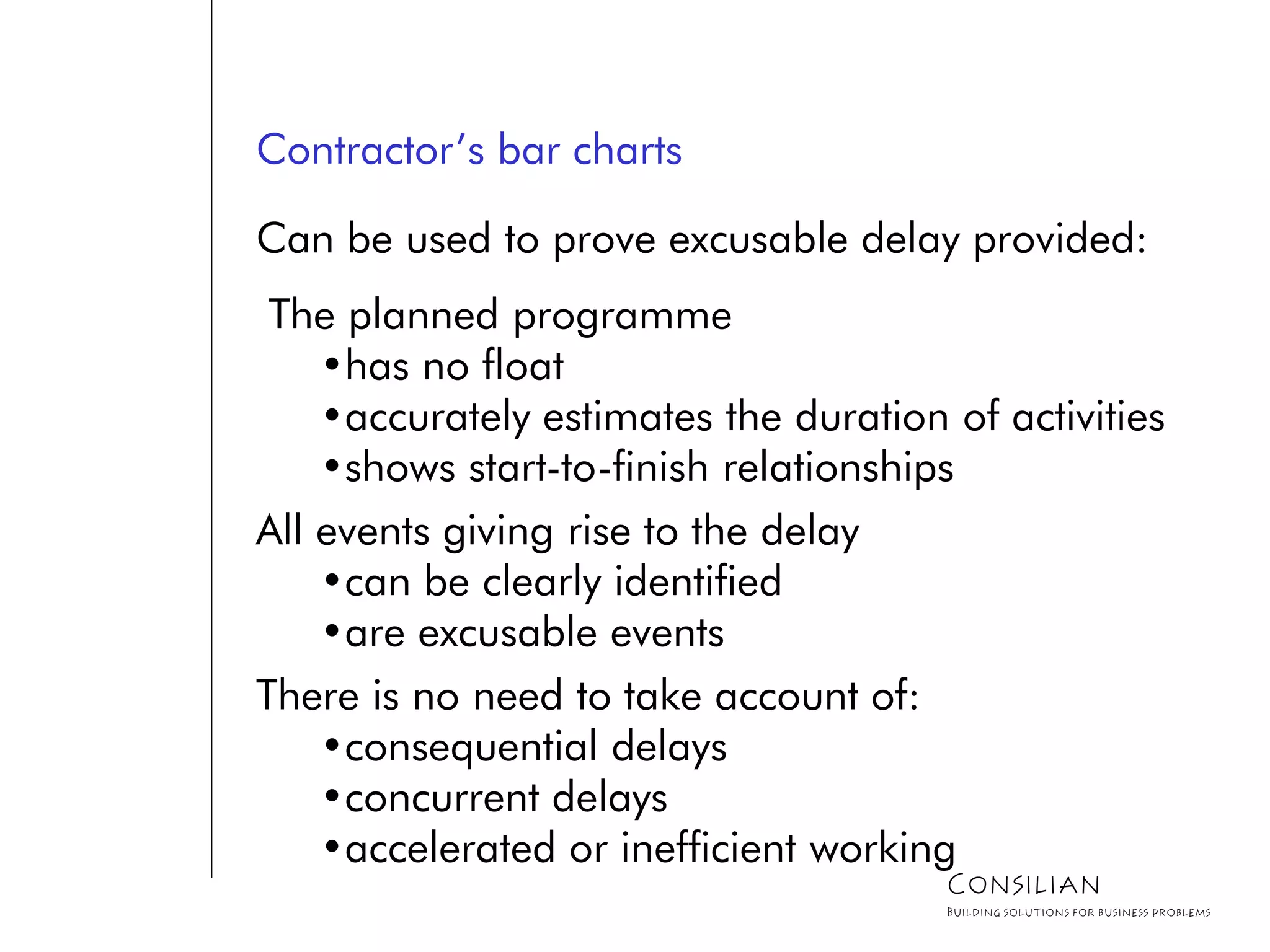

Contractor’s bar charts
Can be used to prove excusable delay provided:
The planned programme
•has no float
•accurately estimates the duration of activities
•shows start-to-finish relationships
All events giving rise to the delay
•can be clearly identified
•are excusable events
There is no need to take account of:
•consequential delays
•concurrent delays
•accelerated or inefficient working
Consilian

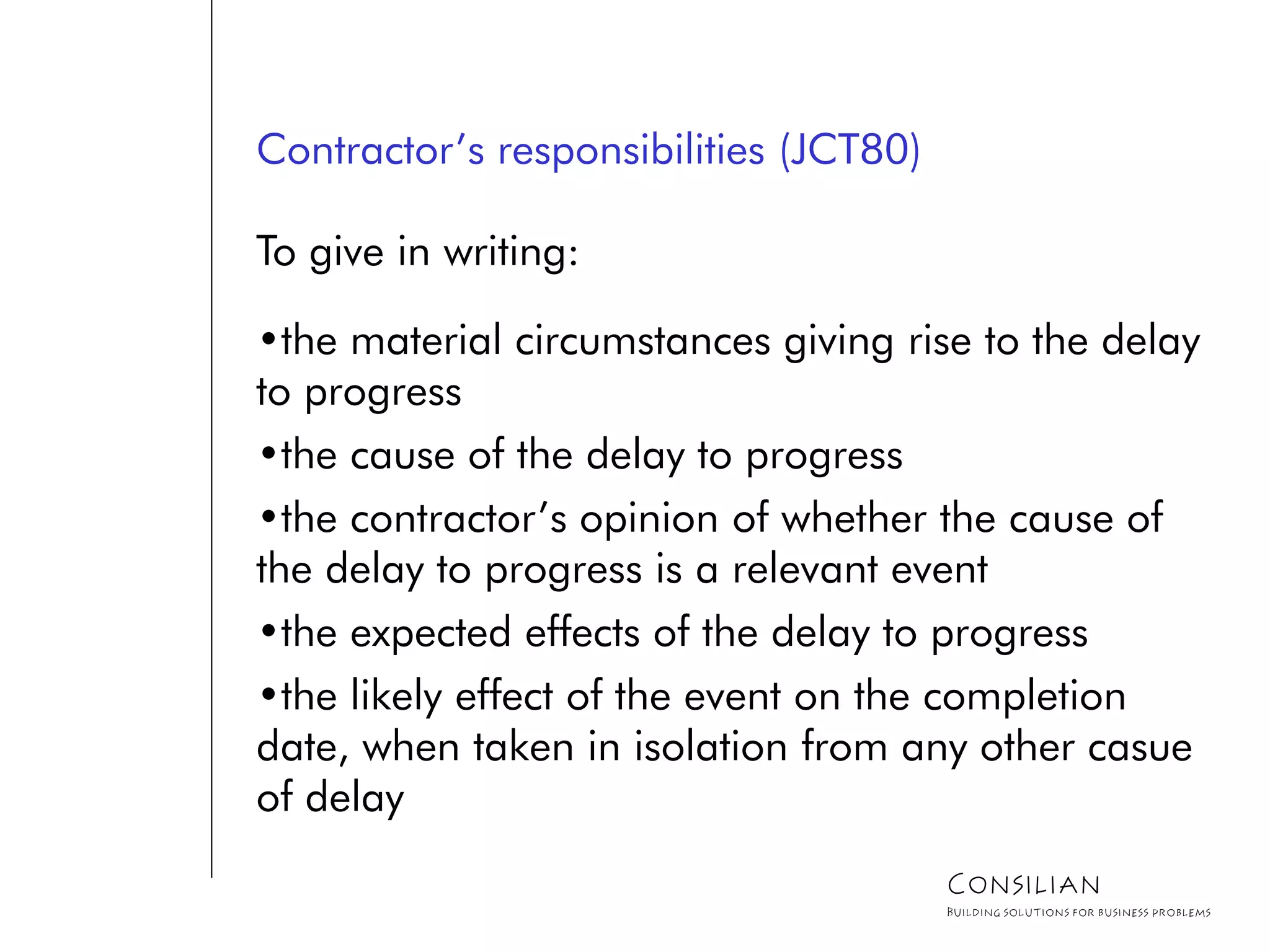

Contractor’s responsibilities (JCT80)
To give in writing:
•the material circumstances giving rise to the delay
to progress
•the cause of the delay to progress
•the contractor’s opinion of whether the cause of
the delay to progress is a relevant event
•the expected effects of the delay to progress
•the likely effect of the event on the completion
date, when taken in isolation from any other casue
of delay
Consilian

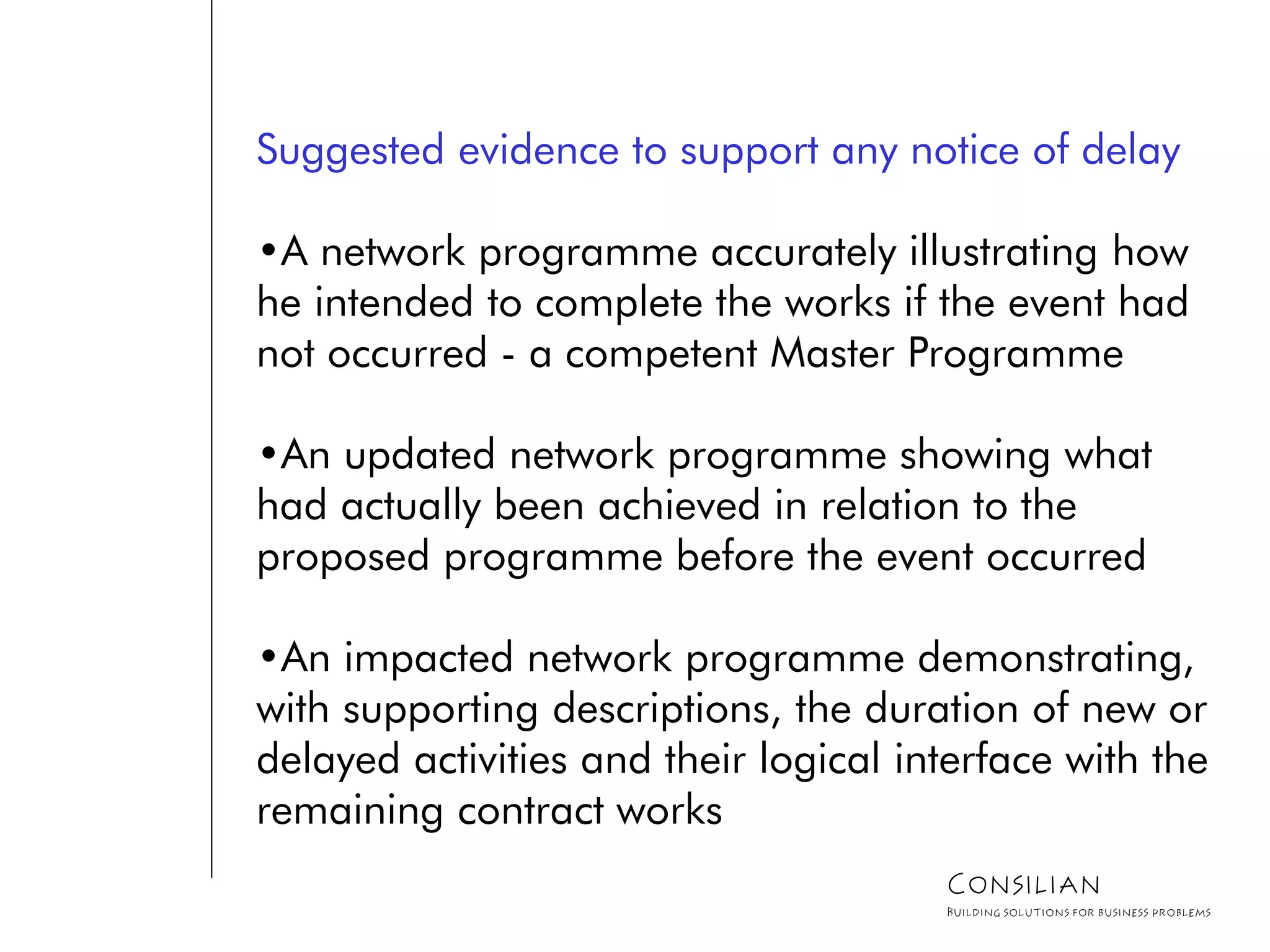

Suggested evidence to support any notice of delay
•A network programme accurately illustrating how
he intended to complete the works if the event had
not occurred - a competent Master Programme
•An updated network programme showing what
had actually been achieved in relation to the
proposed programme before the event occurred
•An impacted network programme demonstrating,
with supporting descriptions, the duration of new or
delayed activities and their logical interface with the
remaining contract works
Consilian

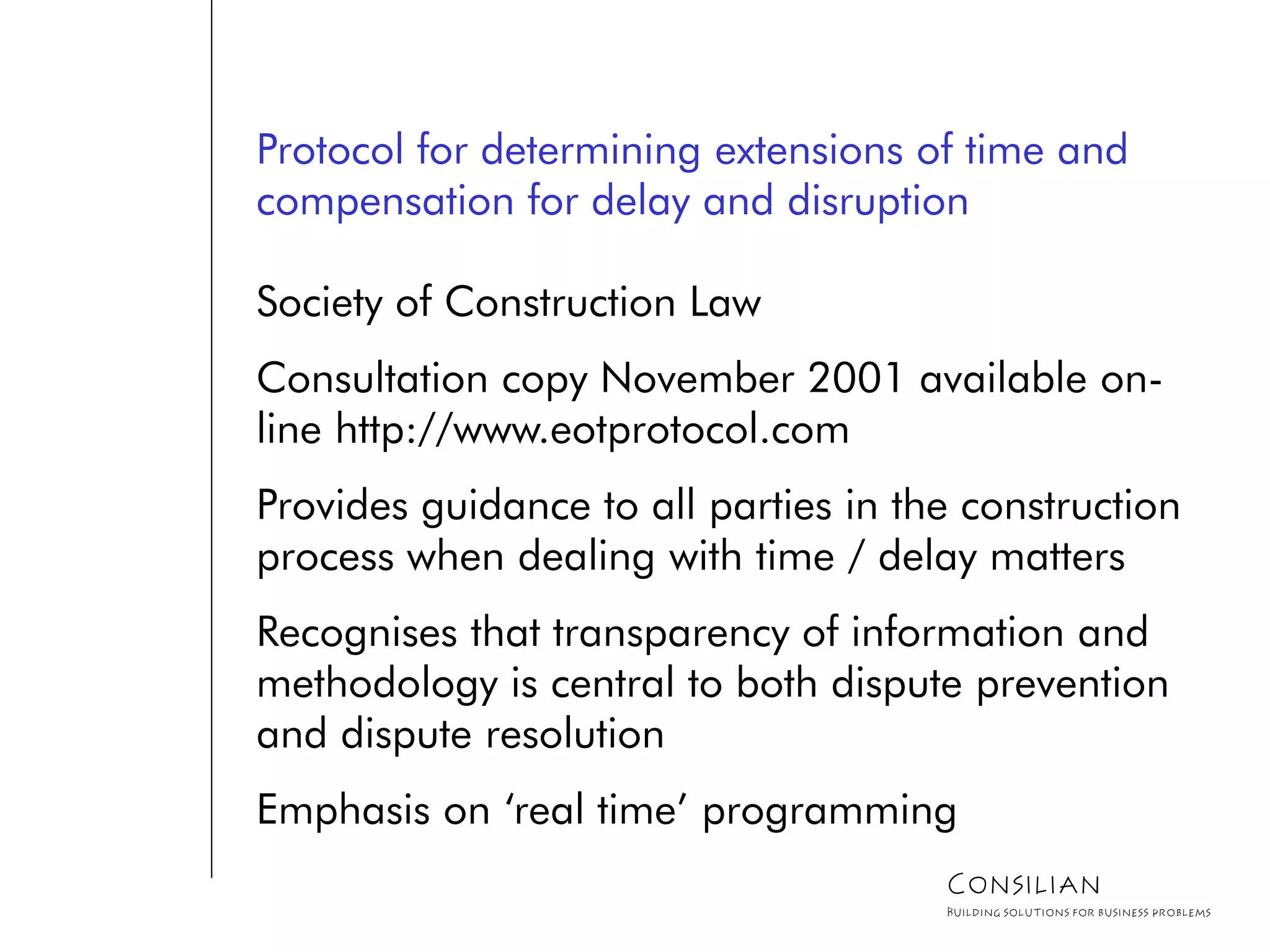

Protocol for determining extensions of time and
compensation for delay and disruption
Society of Construction Law
Consultation copy November 2001 available on-
line http://www.eotprotocol.com
Provides guidance to all parties in the construction
process when dealing with time / delay matters
Recognises that transparency of information and
methodology is central to both dispute prevention
and dispute resolution
Emphasis on ‘real time’ programming
Consilian

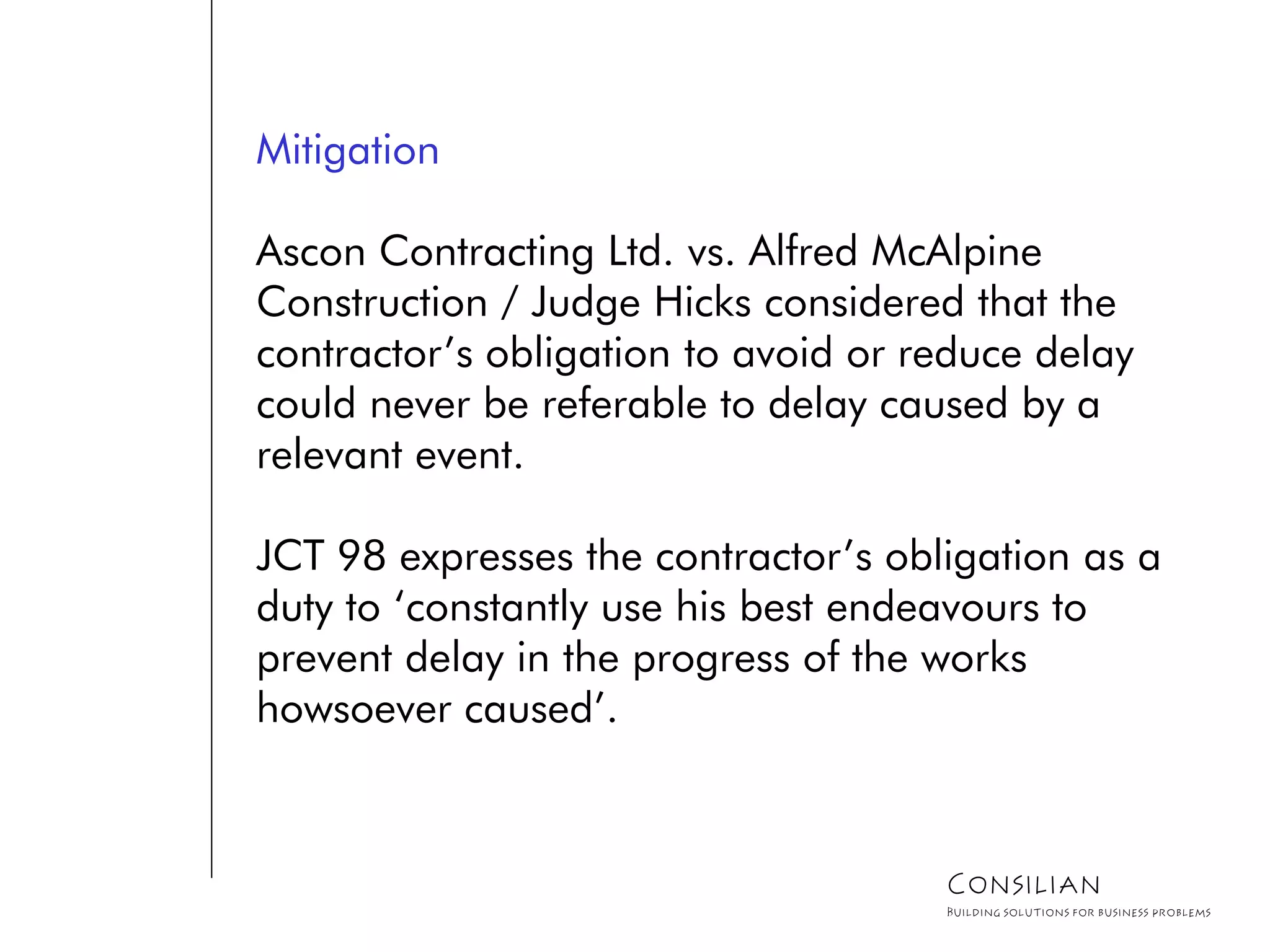

Mitigation
Ascon Contracting Ltd. vs. Alfred McAlpine
Construction / Judge Hicks considered that the
contractor’s obligation to avoid or reduce delay
could never be referable to delay caused by a
relevant event.
JCT 98 expresses the contractor’s obligation as a
duty to ‘constantly use his best endeavours to
prevent delay in the progress of the works
howsoever caused’.
Consilian

Consilian

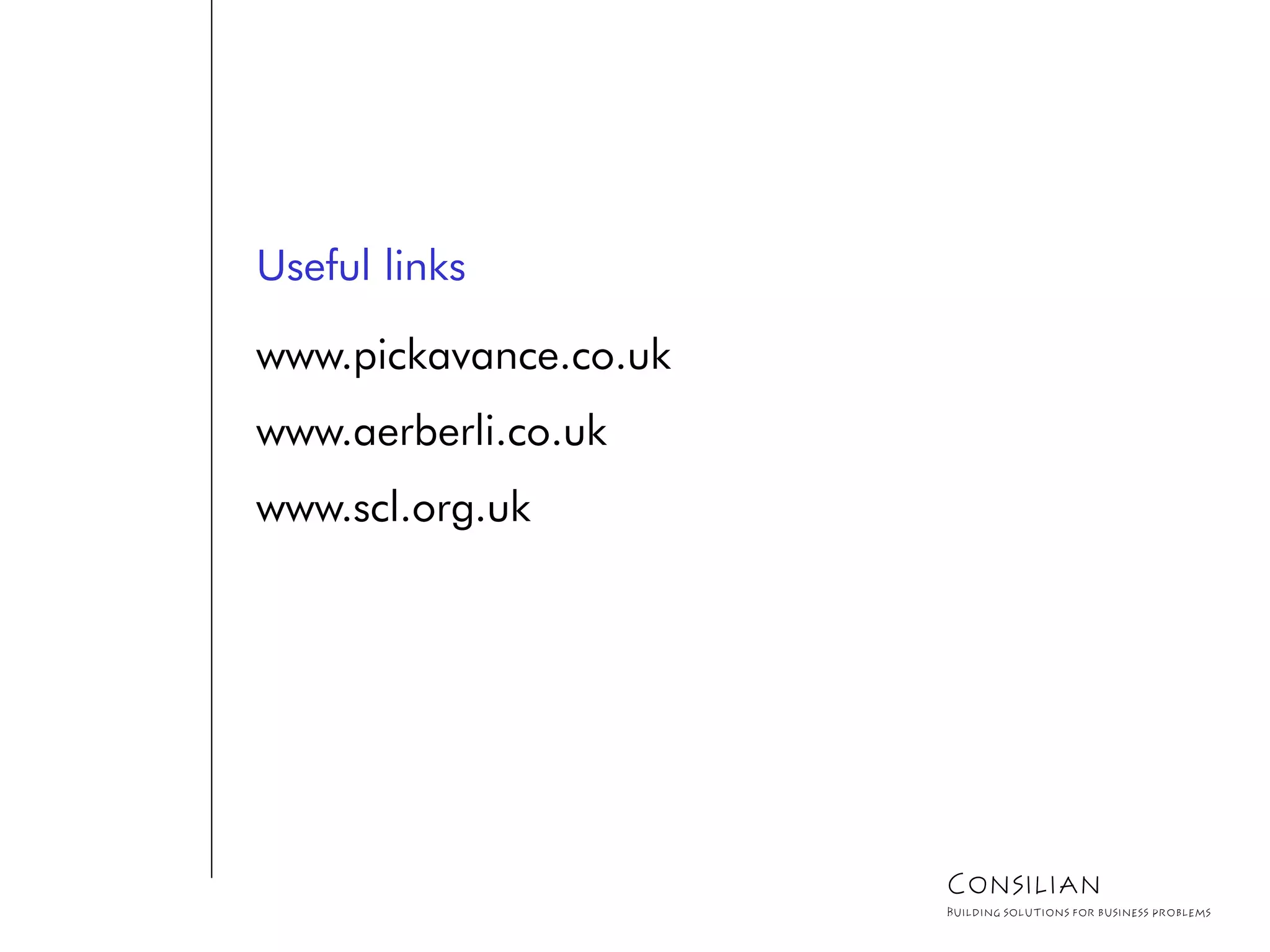

Useful links
www.pickavance.co.uk
www.aerberli.co.uk
www.scl.org.uk

Consilian

Delay analysis ... wise after the event.

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Delay analysis ... wise after the event.

Similar to Delay analysis ... wise after the event. (20)

Recently uploaded

Recently uploaded (20)

Delay analysis ... wise after the event.
