Defi6 is a portable automatic external defibrillator (AED) that is lightweight, easy to use, and guides the user through the defibrillation process. It analyzes the patient's heart rhythm and will either prompt the user to deliver a shock if needed or begin CPR instructions. The AED is designed to be used in situations where emergency responders may be several minutes away. It uses adhesive pads to deliver the shock and has features like voice prompts, ECG analysis, and event recording for reporting.

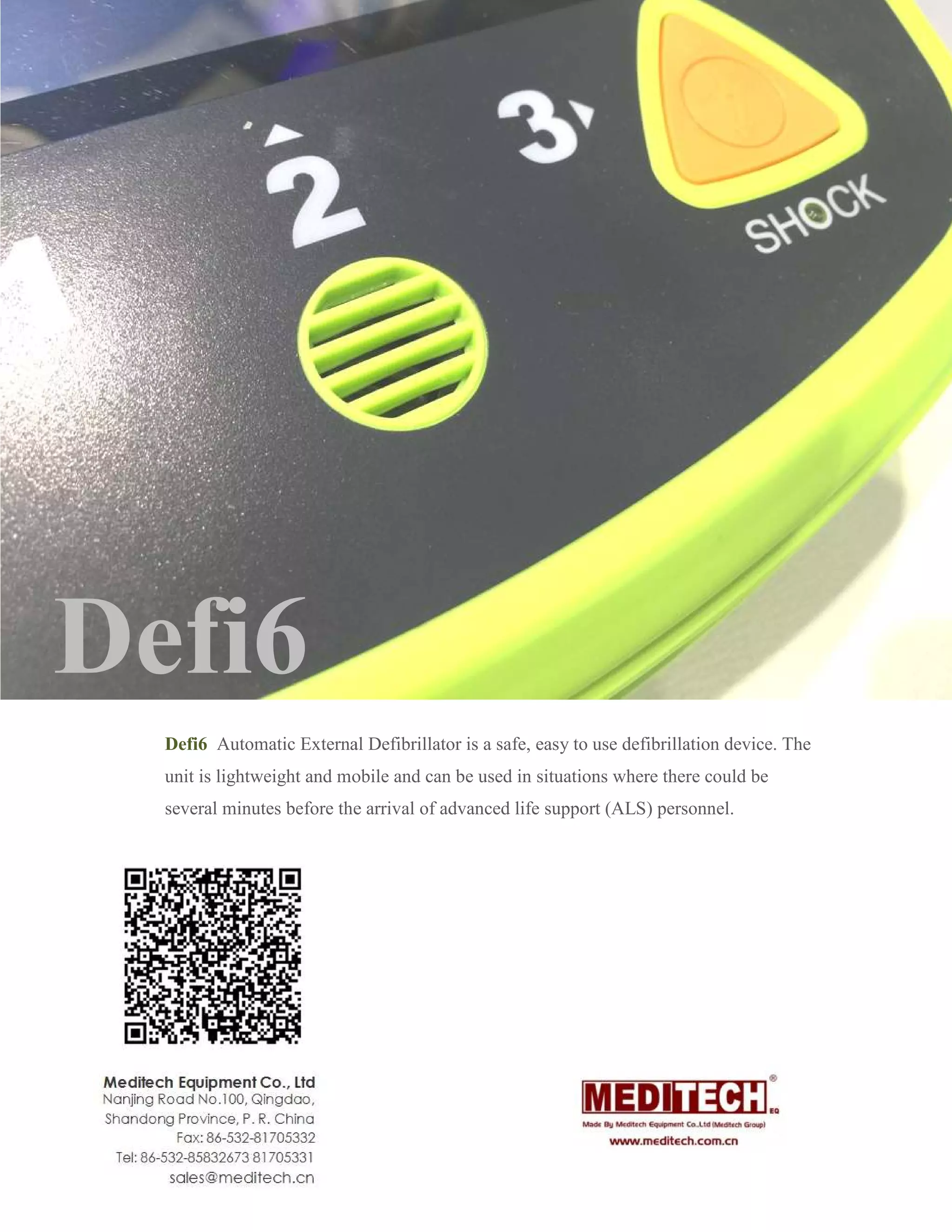

1. Defi6
Defi6 Automatic External Defibrillator is a safe, easy to use defibrillation device. The
unit is lightweight and mobile and can be used in situations where there could be
several minutes before the arrival of advanced life support (ALS)
Automatic External Defibrillator is a safe, easy to use defibrillation device. The
unit is lightweight and mobile and can be used in situations where there could be
several minutes before the arrival of advanced life support (ALS) personnel.
Automatic External Defibrillator is a safe, easy to use defibrillation device. The
unit is lightweight and mobile and can be used in situations where there could be
personnel.

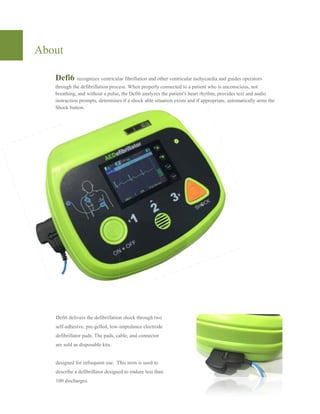

2. About
Defi6 recognizes ventricular fibrillation and other ventricular tachycardia and guides operators
through the defibrillation process. When properly connected to a patient who is unconscious, not
breathing, and without a pulse, the
instruction prompts, determines if a shock able situation exists and if appropriate, automatically arms the
Shock button.
Defi6 delivers the defibrillation shock through two
self-adhesive, pre-gelled, low-impedance electrode
defibrillator pads. The pads, cable, and connector
are sold as disposable kits.
designed for infrequent use. This term is used to
describe a defibrillator designed to endure less than
100 discharges.
recognizes ventricular fibrillation and other ventricular tachycardia and guides operators
through the defibrillation process. When properly connected to a patient who is unconscious, not
breathing, and without a pulse, the Defi6 analyzes the patient's heart rhythm, provides text and audio
instruction prompts, determines if a shock able situation exists and if appropriate, automatically arms the
Defi6 delivers the defibrillation shock through two
impedance electrode
defibrillator pads. The pads, cable, and connector
designed for infrequent use. This term is used to
describe a defibrillator designed to endure less than
recognizes ventricular fibrillation and other ventricular tachycardia and guides operators
through the defibrillation process. When properly connected to a patient who is unconscious, not
rt rhythm, provides text and audio
instruction prompts, determines if a shock able situation exists and if appropriate, automatically arms the

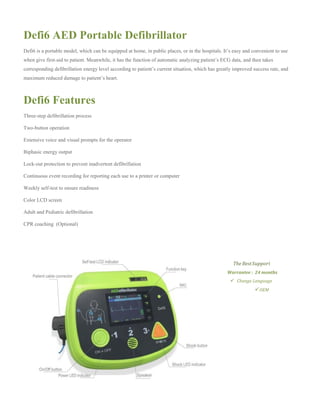

3. Defi6 AED Portable Defibrillator
Defi6 is a portable model, which can be equipped at home, in public places, or in the hospitals. It’s easy and convenient to use
when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient’s ECG data, and then takes
corresponding defibrillation energy level according to patient’s current situation, which has greatly improved success rate, and
maximum reduced damage to patient’s heart.
Defi6 Features
Three-step defibrillation process
Two-button operation
Extensive voice and visual prompts for the operator
Biphasic energy output
Lock-out protection to prevent inadvertent defibrillation
Continuous event recording for reporting each use to a printer or computer
Weekly self-test to ensure readiness
Color LCD screen
Adult and Pediatric defibrillation
CPR coaching (Optional)
The BestSupport
Warrantee : 24 months
Change Language
OEM

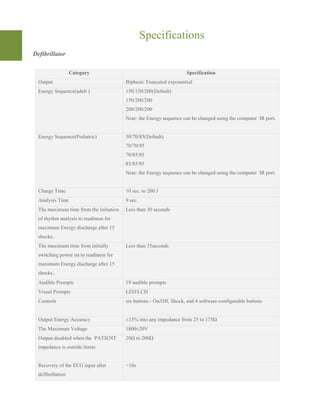

4. Specifications
Defibrillator
Category Specification
Output Biphasic Truncated exponential
Energy Sequence(adult ) 150/150/200(Default)
150/200/200
200/200/200
Note: the Energy sequence can be changed using the computer IR port.
Energy Sequence(Pediatric) 50/70/85(Default)
70/70/85
70/85/85
85/85/85
Note: the Energy sequence can be changed using the computer IR port.
Charge Time 10 sec. to 200 J
Analysis Time 9 sec.
The maximum time from the initiation
of rhythm analysis to readiness for
maximum Energy discharge after 15
shocks.
Less than 30 seconds
The maximum time from initially
switching power on to readiness for
maximum Energy discharge after 15
shocks..
Less than 35seconds
Audible Prompts 19 audible prompts
Visual Prompts LED/LCD
Controls six buttons - On/Off, Shock, and 4 software-configurable buttons
Output Energy Accuracy ±15% into any impedance from 25 to 175
The Maximum Voltage 1800±20V
Output disabled when the PATIENT
impedance is outside limits
20 to 200
Recovery of the ECG input after
defibrillation
<10s

5. Physical
Category Specification
Dimensions 225 x 200 x 85mm
Weight 2.0 kg
Operating Temperature 0℃ to 40℃
Operating Humidity Relative humidity between 30% and 95% (non-condensing)
Altitude -300 to 15,000 ft( -91m to 4573m)
Pressure 102.4kPa~57.2kPa(768mmHg~429mmHg)
Storage Temperature
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
Up to 93% (non-condensing)
Particle and Water Ingress IP24
Electrical Isolation
Category Specification
Power Unit operates on internal battery only
External Electrical Connections No external devices are attached to the unit
Risk Current Category Internally powered equipment with defibrillator-proof BF type patient
applied part (as per definition of IEC 60601-1 standard)
Defi6 start menu
A: Defibrillation counter
B: SD card icon
C: Pressure sensor icon
D: Heart rate
E: Date and time
F: Battery
G: System configuration menu
H: Pressure sensor intensity bar
I: User mode
J: System status
K: Pad status
L: Filter status
M: Ecg waveform area

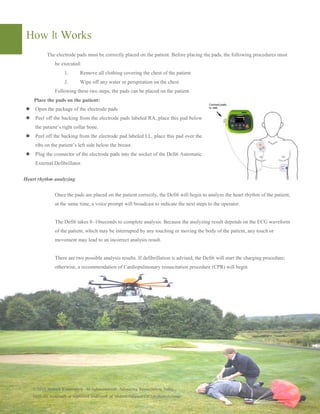

6. How It Works
The electrode pads must be correctly placed on the patient. Before placing the pads, the following procedures must
be executed:
1. Remove all clothing covering the chest of the patient
2. Wipe off any water or
Following these two steps, the pads can be placed on the patient.
Place the pads on the patient:
Open the package of the electrode pads
Peel off the backing from the electrode pads labeled RA, place this pad below
the patient’s right collar bone.
Peel off the backing from the electrode pad labeled LL, place this pad over the
ribs on the patient’s left side below the breast.
Plug the connector of the electrode pads into the socket of the
External Defibrillator.
Heart rhythm analyzing
Once the pads are placed on the patient correctly, the
at the same time, a voice prompt will broadcast to indicate the next steps to the operator.
The Defi6 takes 8~10seconds to complete analysis. Because the analyzing result depends on the ECG waveform
of the patient, which may be interrupted by any touching or moving the body of the
movement may lead to an incorrect analysis result.
There are two possible analysis results. If defibrillation is advised, the
otherwise, a recommendation of Cardiopulmonary resuscita
©2015 Meditech Corporation. All rights reserved. Advancing
Defi6 are trademark or registered trademark of Meditech Equipment Col. Ltd (Meditech Gr
The electrode pads must be correctly placed on the patient. Before placing the pads, the following procedures must
Remove all clothing covering the chest of the patient
Wipe off any water or perspiration on the chest.
Following these two steps, the pads can be placed on the patient.
Peel off the backing from the electrode pads labeled RA, place this pad below
Peel off the backing from the electrode pad labeled LL, place this pad over the
ribs on the patient’s left side below the breast.
ctor of the electrode pads into the socket of the Defi6 Automatic
Once the pads are placed on the patient correctly, the Defi6 will begin to analyze the heart rhythm of the patient,
rompt will broadcast to indicate the next steps to the operator.
takes 8~10seconds to complete analysis. Because the analyzing result depends on the ECG waveform
of the patient, which may be interrupted by any touching or moving the body of the patient, any touch or
movement may lead to an incorrect analysis result.
There are two possible analysis results. If defibrillation is advised, the Defi6 will start the charging procedure;
otherwise, a recommendation of Cardiopulmonary resuscitation procedure (CPR) will begin
Advancing Resuscitation. Today.,
Meditech Equipment Col. Ltd (Meditech Group)
The electrode pads must be correctly placed on the patient. Before placing the pads, the following procedures must
will begin to analyze the heart rhythm of the patient,
rompt will broadcast to indicate the next steps to the operator.
takes 8~10seconds to complete analysis. Because the analyzing result depends on the ECG waveform
patient, any touch or
will start the charging procedure;
edure (CPR) will begin
