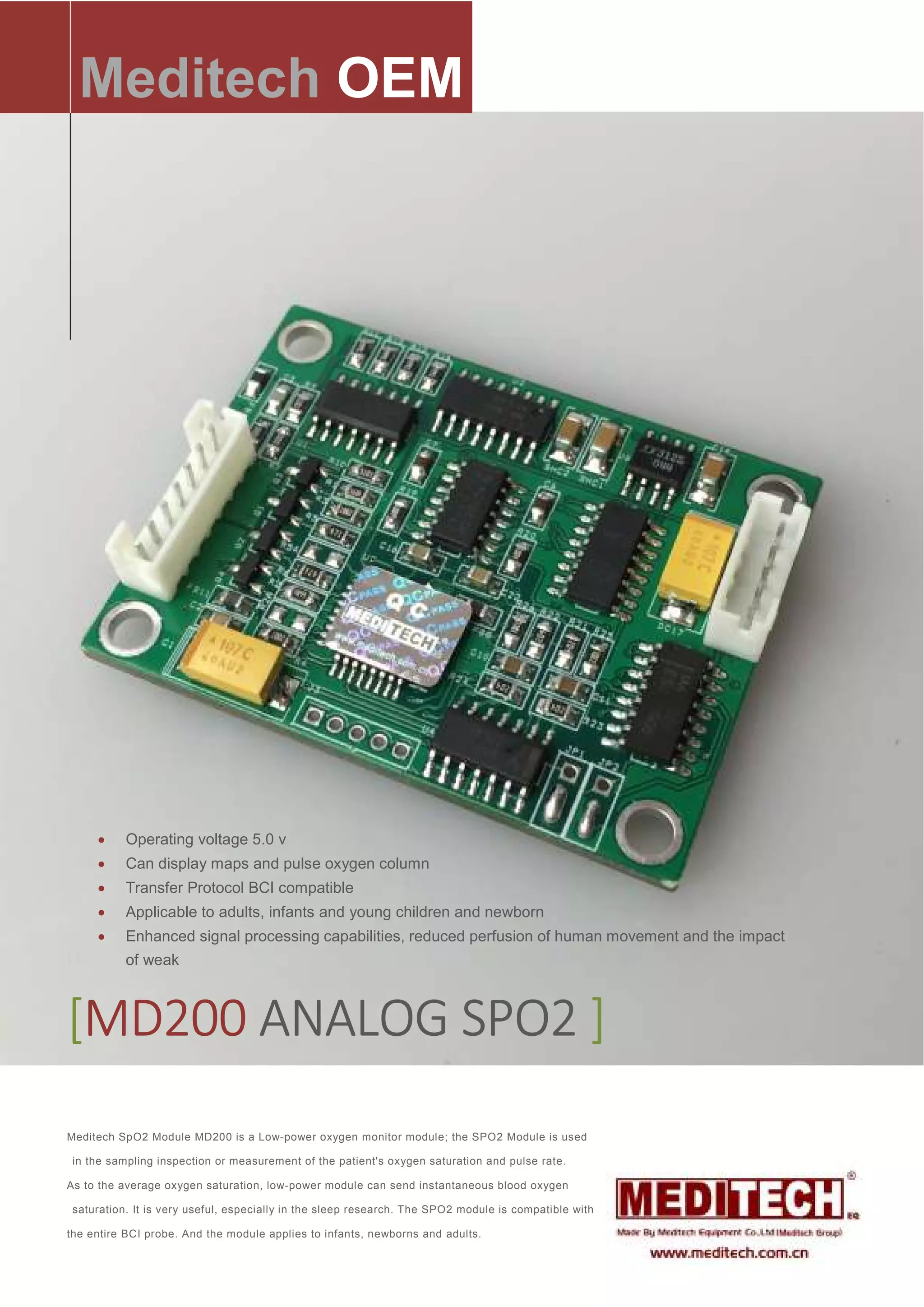

SpO2 Module Compatible with BCI (probe & Transfer Protocol ),high accuracy and small in size

1. • Operating voltage 5.0 v
• Can display maps and pulse oxygen column
• Transfer Protocol BCI compatible
• Applicable to adults, infants and young children and newborn
• Enhanced signal processing capabilities, reduced perfusion of human movement and the impact
of weak
Meditech.OEM
[[[[MDMDMDMD222200000000 ANALOGANALOGANALOGANALOG SPO2SPO2SPO2SPO2 ]]]]
Meditech SpO2 Module MD200 is a Low-power oxygen monitor module; the SPO2 Module is used
in the sampling inspection or measurement of the patient's oxygen saturation and pulse rate.
As to the average oxygen saturation, low-power module can send instantaneous blood oxygen
saturation. It is very useful, especially in the sleep research. The SPO2 module is compatible with
the entire BCI probe. And the module applies to infants, newborns and adults.

2. Page 2 of 3

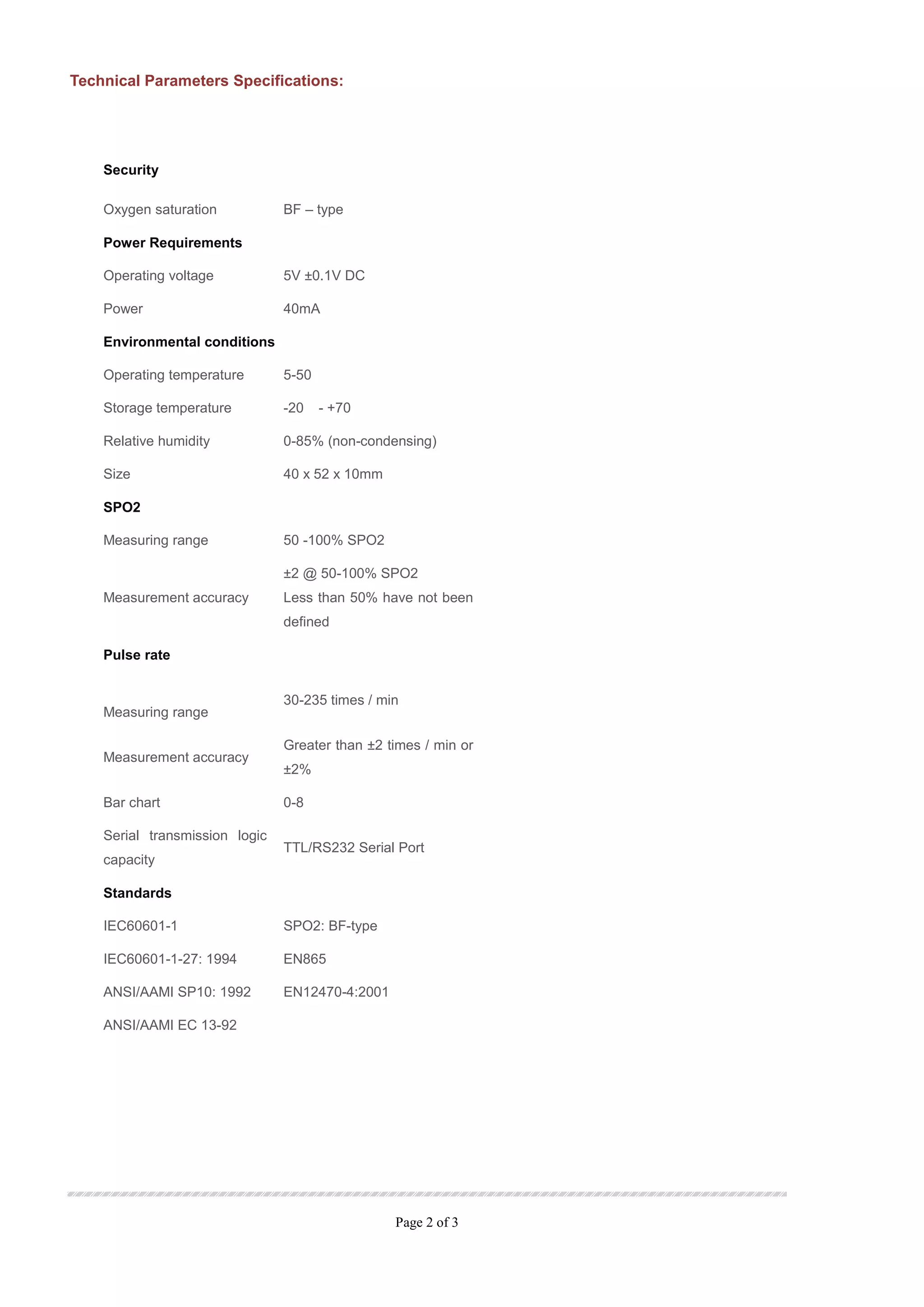

Technical Parameters Specifications:
Security
Oxygen saturation BF – type
Power Requirements
Operating voltage 5V ±0.1V DC
Power 40mA
Environmental conditions
Operating temperature 5-50
Storage temperature -20 - +70
Relative humidity 0-85% (non-condensing)
Size 40 x 52 x 10mm
SPO2
Measuring range 50 -100% SPO2
Measurement accuracy
±2 @ 50-100% SPO2
Less than 50% have not been
defined
Pulse rate
Measuring range
30-235 times / min
Measurement accuracy
Greater than ±2 times / min or
±2%
Bar chart 0-8
Serial transmission logic
capacity
TTL/RS232 Serial Port
Standards
IEC60601-1 SPO2: BF-type
IEC60601-1-27: 1994 EN865
ANSI/AAMI SP10: 1992 EN12470-4:2001
ANSI/AAMI EC 13-92

3. Page 3 of 3
Sensor
BCI sensor can be used for this module.
