The document discusses defibrillation, which uses electric shocks to stop abnormal heart rhythms and allow a normal rhythm to resume. It defines defibrillation and describes the history and mechanisms involved. The types of defibrillators are explained, including automated external defibrillators. Precautions for defibrillation and troubleshooting defibrillators are also reviewed.

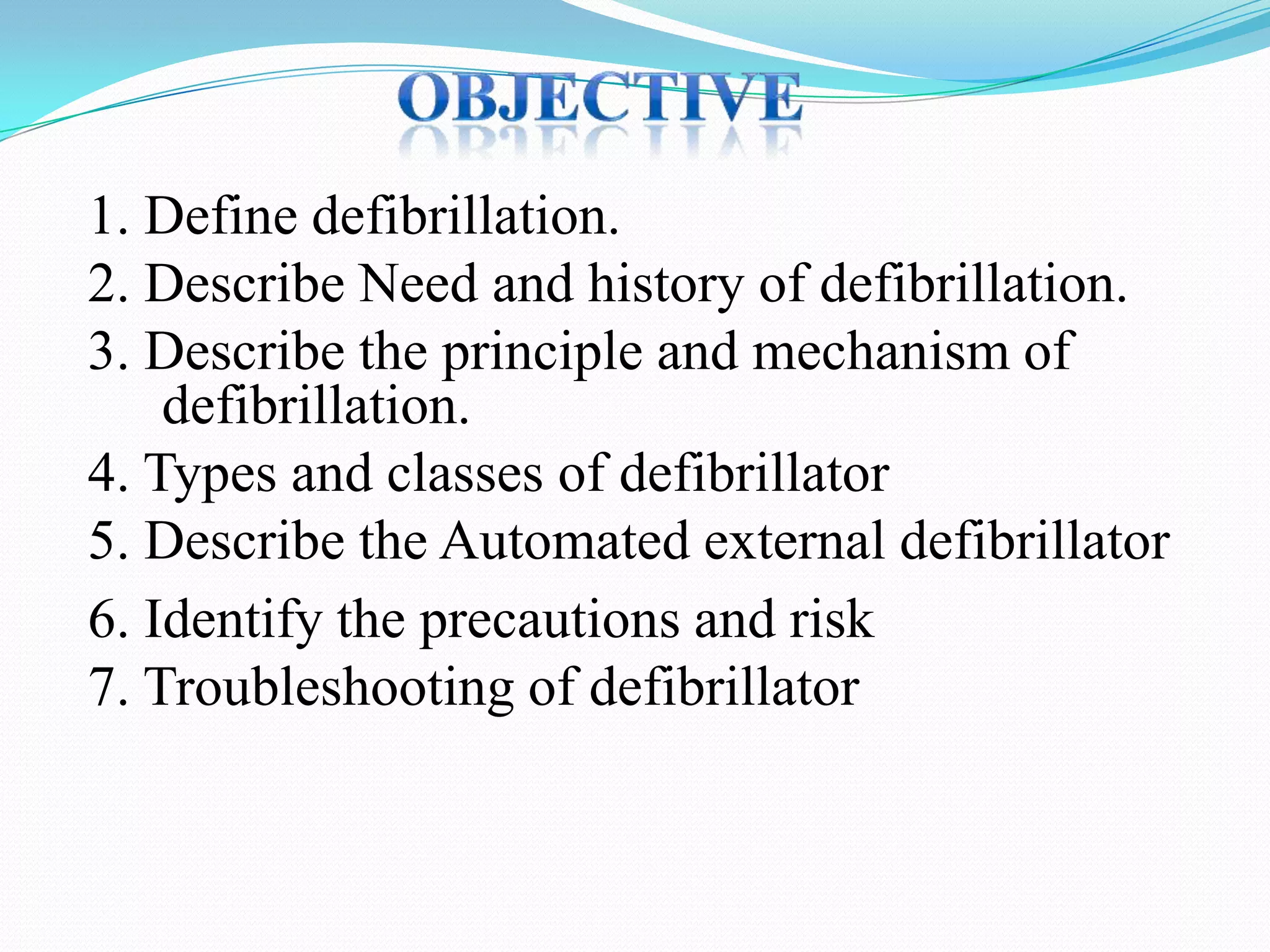

2. 1. Define defibrillation.
2. Describe Need and history of defibrillation.
3. Describe the principle and mechanism of
defibrillation.
4. Types and classes of defibrillator
5. Describe the Automated external defibrillator
6. Identify the precautions and risk
7. Troubleshooting of defibrillator

4. Definition:
Defibrillation is a process in which an electronic device
sends an electric shock to the heart to stop an extremely
rapid, irregular heartbeat, and restore the normal heart
rhythm.
Defibrillation is a common treatment for life
threatening cardiac dysrhythmias, ventricular
fibrillation, and pulse less ventricular tachycardia.

5. Ventricular fibrillation is a serious cardiac emergency
resulting from asynchronous contraction of the heart
muscles.
 Due to ventricular fibrillation, there is an irregular
rapid heart rhythm.
Fig. Ventricular fibrillation
Fig. Normal heart beat

6.  Ventricular fibrillation can be converted into a more
efficient rhythm by applying a high energy shock
to the heart.
 This sudden surge across the heart causes all muscle
fibres to contract simultaneously.
 Possibly, the fibres may then respond to normal
physiological pace making pulses.
 The instrument for administering the shock is called
a DEFIBRILLATOR.

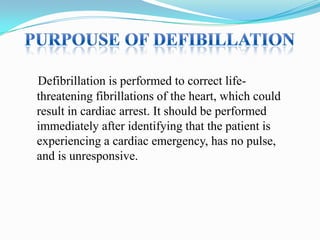

7. Defibrillation is performed to correct lifethreatening fibrillations of the heart, which could
result in cardiac arrest. It should be performed
immediately after identifying that the patient is
experiencing a cardiac emergency, has no pulse,
and is unresponsive.

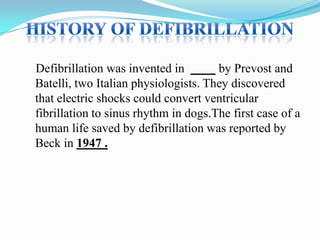

8. Defibrillation was invented in
by Prevost and
Batelli, two Italian physiologists. They discovered
that electric shocks could convert ventricular
fibrillation to sinus rhythm in dogs.The first case of a
human life saved by defibrillation was reported by
Beck in 1947 .

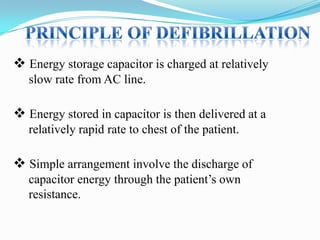

9.  Energy storage capacitor is charged at relatively
slow rate from AC line.
 Energy stored in capacitor is then delivered at a
relatively rapid rate to chest of the patient.
 Simple arrangement involve the discharge of
capacitor energy through the patient‟s own
resistance.

10. Fig: Schematic diagram of a defibrillator

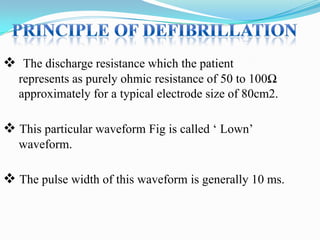

11.  The discharge resistance which the patient
represents as purely ohmic resistance of 50 to 100Ω
approximately for a typical electrode size of 80cm2.
 This particular waveform Fig is called „ Lown‟
waveform.
 The pulse width of this waveform is generally 10 ms.

12. current (amps)
defibrillation
occurs
no defibrillation
pulse duration

13. • minimum defibrillation energy occurs for pulse
durations of 3 - 10 ms (for most pulse shapes).
• pulse amplitude in tens of amperes (few
thousand volts).

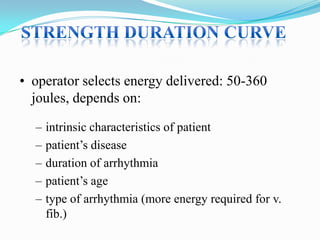

14. • operator selects energy delivered: 50-360
joules, depends on:
–
–
–
–
–
intrinsic characteristics of patient
patient‟s disease
duration of arrhythmia
patient‟s age
type of arrhythmia (more energy required for v.
fib.)

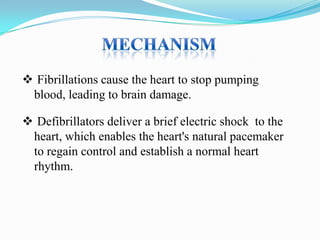

15.  Fibrillations cause the heart to stop pumping
blood, leading to brain damage.
 Defibrillators deliver a brief electric shock to the
heart, which enables the heart's natural pacemaker
to regain control and establish a normal heart
rhythm.

16.  Higher voltages are required for external defibrillation
than for internal defibrillation.
 A corrective shock of 750-800 volts is applied within a
tenth of a second.
 That is the same voltage as 500-533 no of AA batteries!

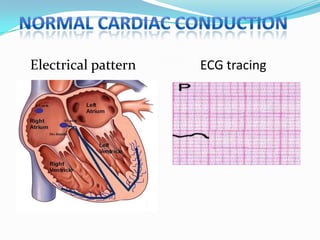

17. Electrical pattern
ECG tracing

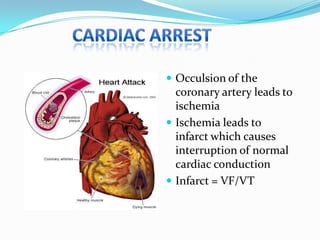

18.  Occulsion of the
coronary artery leads to
ischemia
 Ischemia leads to
infarct which causes
interruption of normal
cardiac conduction
 Infarct = VF/VT

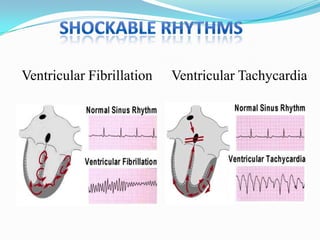

19. Ventricular Fibrillation
Ventricular Tachycardia

20.  Types of Defibrillator electrodes:a) Spoon shaped electrode
• Applied directly to the heart.
b) Paddle type electrode
• Applied against the chest wall
c) Pad type electrode
• Applied directly on chest wall

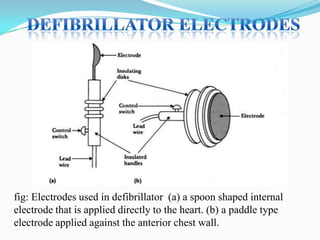

21. fig: Electrodes used in defibrillator (a) a spoon shaped internal
electrode that is applied directly to the heart. (b) a paddle type
electrode applied against the anterior chest wall.

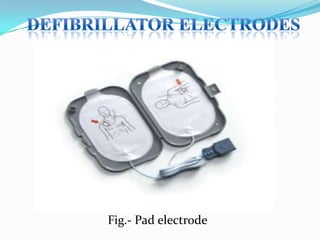

22. Fig.- Pad electrode

23. Anterior electrode pad
Apex electrode pad
Fig: anterior –apex scheme of electrode placement

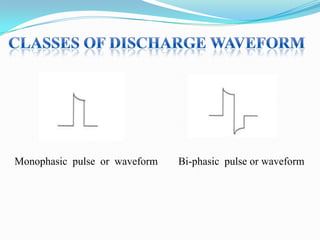

24. Monophasic pulse or waveform
Bi-phasic pulse or waveform

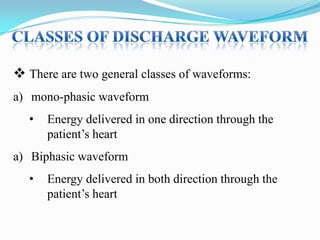

25.  There are two general classes of waveforms:
a) mono-phasic waveform
•
Energy delivered in one direction through the
patient‟s heart
a) Biphasic waveform
•
Energy delivered in both direction through the
patient‟s heart

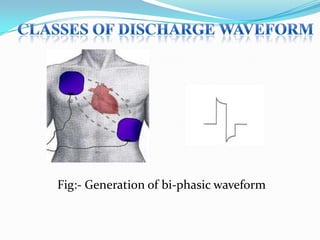

26. Fig:- Generation of bi-phasic waveform

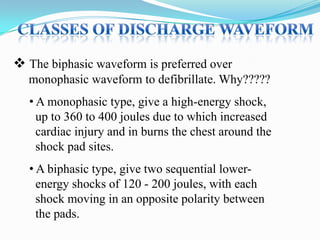

27.  The biphasic waveform is preferred over
monophasic waveform to defibrillate. Why?????
• A monophasic type, give a high-energy shock,
up to 360 to 400 joules due to which increased
cardiac injury and in burns the chest around the
shock pad sites.
• A biphasic type, give two sequential lowerenergy shocks of 120 - 200 joules, with each
shock moving in an opposite polarity between
the pads.

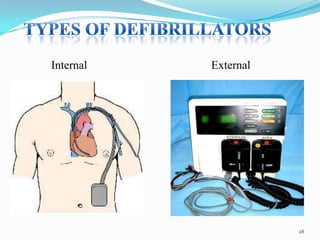

28. Internal
External
28

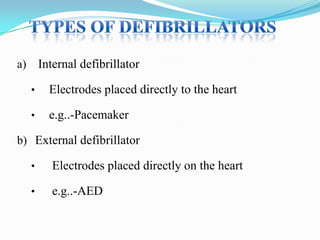

29. Internal defibrillator
a)
•
Electrodes placed directly to the heart
•
e.g..-Pacemaker
b) External defibrillator
•
Electrodes placed directly on the heart
•
e.g..-AED

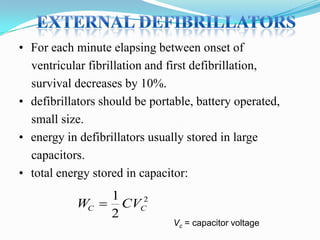

30. • For each minute elapsing between onset of
ventricular fibrillation and first defibrillation,
survival decreases by 10%.
• defibrillators should be portable, battery operated,
small size.
• energy in defibrillators usually stored in large
capacitors.
• total energy stored in capacitor:
WC
1
CVC2
2
Vc = capacitor voltage

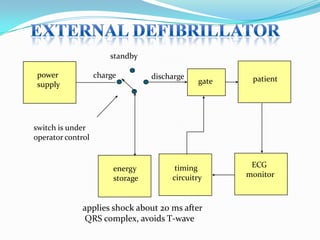

31. standby
power
supply
charge
discharge
gate
patient
switch is under
operator control
energy
storage
timing
circuitry
applies shock about 20 ms after
QRS complex, avoids T-wave
ECG
monitor

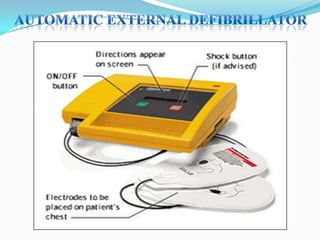

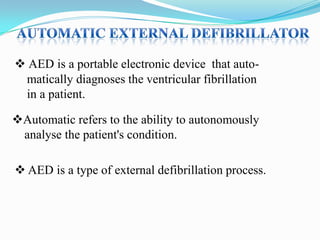

33.  AED is a portable electronic device that automatically diagnoses the ventricular fibrillation
in a patient.
Automatic refers to the ability to autonomously
analyse the patient's condition.
 AED is a type of external defibrillation process.

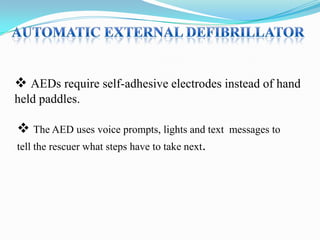

34.  AEDs require self-adhesive electrodes instead of hand
held paddles.
 The AED uses voice prompts, lights and text
tell the rescuer what steps have to take next.
messages to

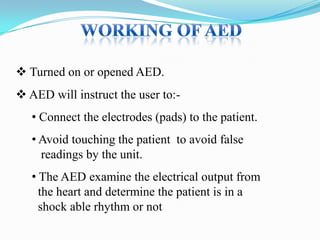

35.  Turned on or opened AED.
 AED will instruct the user to:-
• Connect the electrodes (pads) to the patient.
• Avoid touching the patient to avoid false
readings by the unit.
• The AED examine the electrical output from
the heart and determine the patient is in a
shock able rhythm or not

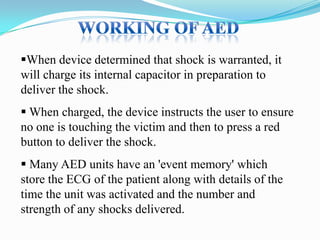

36. When device determined that shock is warranted, it
will charge its internal capacitor in preparation to
deliver the shock.
 When charged, the device instructs the user to ensure
no one is touching the victim and then to press a red
button to deliver the shock.
 Many AED units have an 'event memory' which
store the ECG of the patient along with details of the
time the unit was activated and the number and
strength of any shocks delivered.

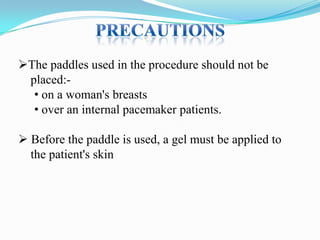

37. The paddles used in the procedure should not be
placed:• on a woman's breasts
• over an internal pacemaker patients.
 Before the paddle is used, a gel must be applied to
the patient's skin

38. • Skin burns from the defibrillator paddles are the
most common complication of defibrillation.
• Other risks include injury to the heart muscle,
abnormal heart rhythms, and blood clots.

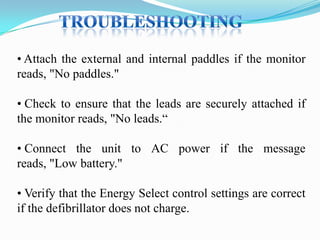

39. • Attach the external and internal paddles if the monitor
reads, "No paddles."
• Check to ensure that the leads are securely attached if
the monitor reads, "No leads.“
• Connect the unit to AC power if the message
reads, "Low battery."
• Verify that the Energy Select control settings are correct
if the defibrillator does not charge.

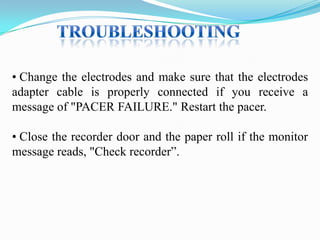

40. • Change the electrodes and make sure that the electrodes
adapter cable is properly connected if you receive a
message of "PACER FAILURE." Restart the pacer.
• Close the recorder door and the paper roll if the monitor
message reads, "Check recorder”.

41. 




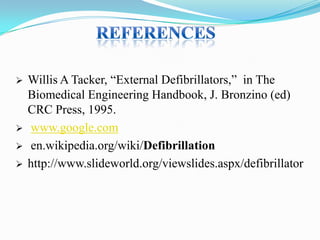

Willis A Tacker, “External Defibrillators,” in The
Biomedical Engineering Handbook, J. Bronzino (ed)
CRC Press, 1995.
