1. SUBMITTED BY
PANKAJ SINGH RANA
NURSE PRACTITIONER
SRHU
DEEP VEIN
THROMBOSIS

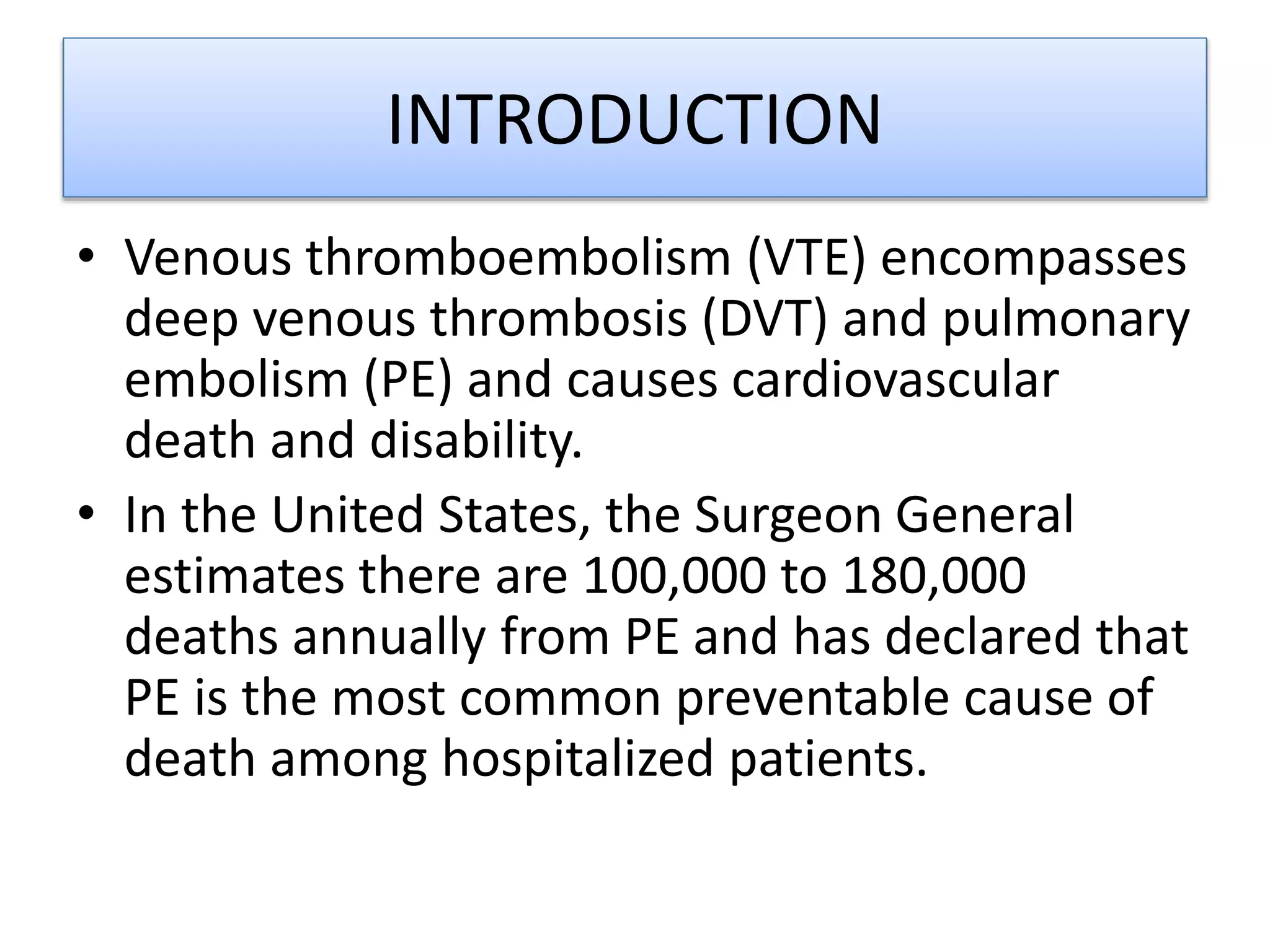

2. INTRODUCTION
• Venous thromboembolism (VTE) encompasses
deep venous thrombosis (DVT) and pulmonary
embolism (PE) and causes cardiovascular
death and disability.
• In the United States, the Surgeon General
estimates there are 100,000 to 180,000
deaths annually from PE and has declared that
PE is the most common preventable cause of
death among hospitalized patients.

3. DEEP VEIN THROMBOSIS

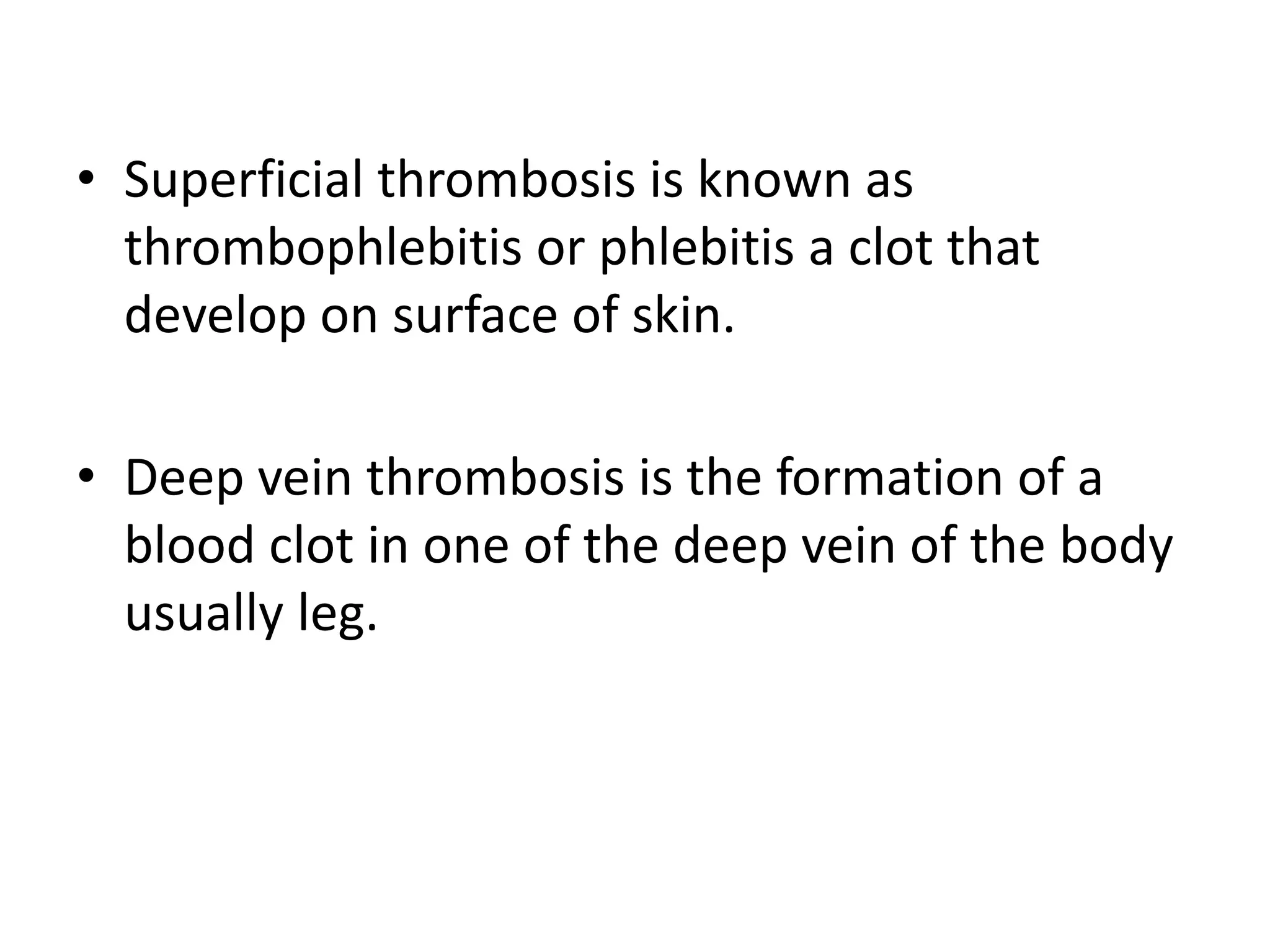

4. • Superficial thrombosis is known as
thrombophlebitis or phlebitis a clot that
develop on surface of skin.
• Deep vein thrombosis is the formation of a
blood clot in one of the deep vein of the body
usually leg.

5. • Deep Venous Thrombosis Lower extremity DVT usually
begins in the calf and propagates proximally to the popliteal
vein, femoral vein, and iliac veins.
• Leg DVT is about 10 times more common than upper
extremity DVT, which is often precipitated by placement of
pacemakers, internal cardiac defibrillators, or indwelling
central venous catheters.
• Superficial venous thrombosis usually presents with
erythema, tenderness, and a “palpable cord.” Patients are at
risk for extension of the thrombosis to the deep venous
system.

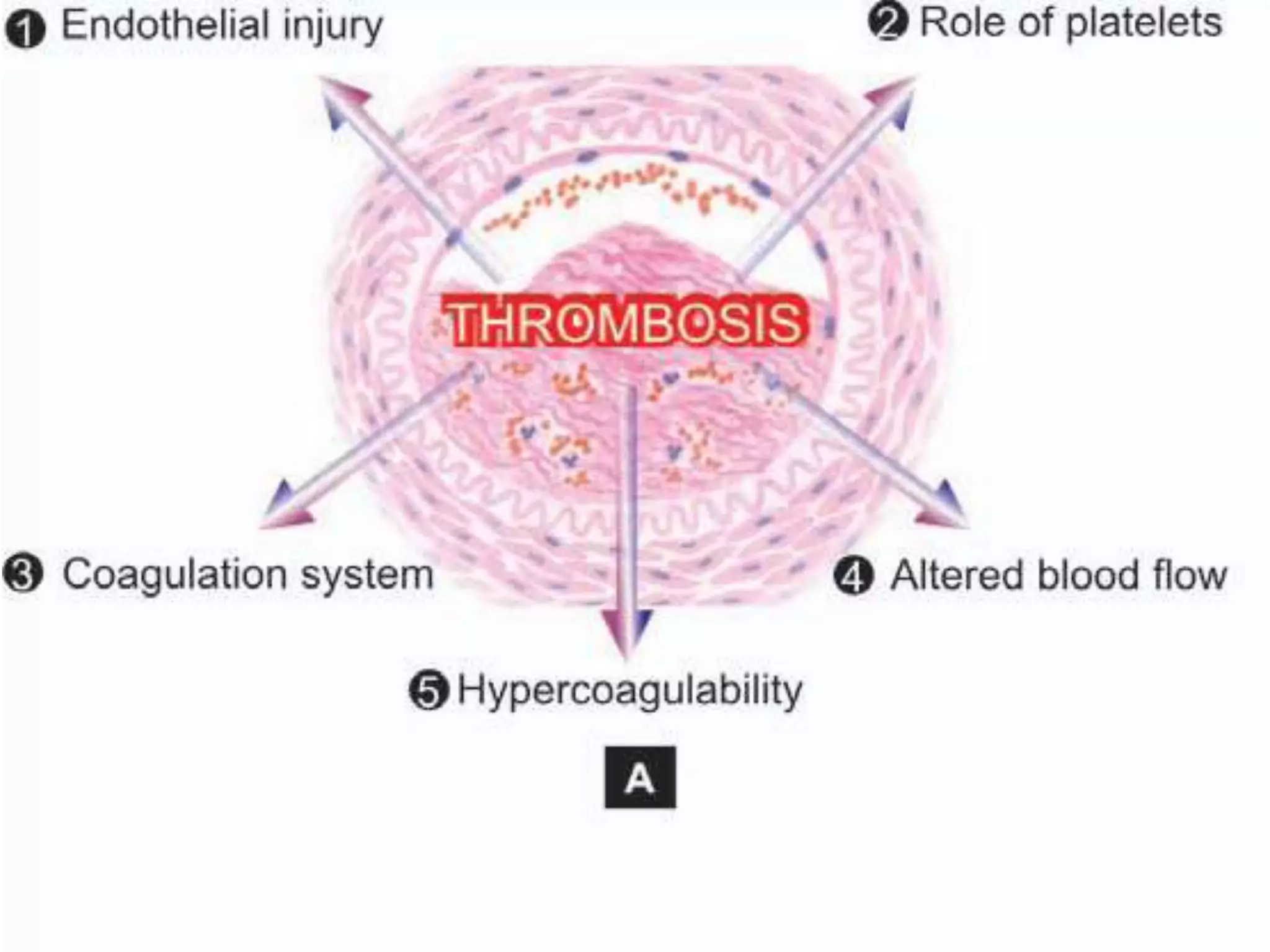

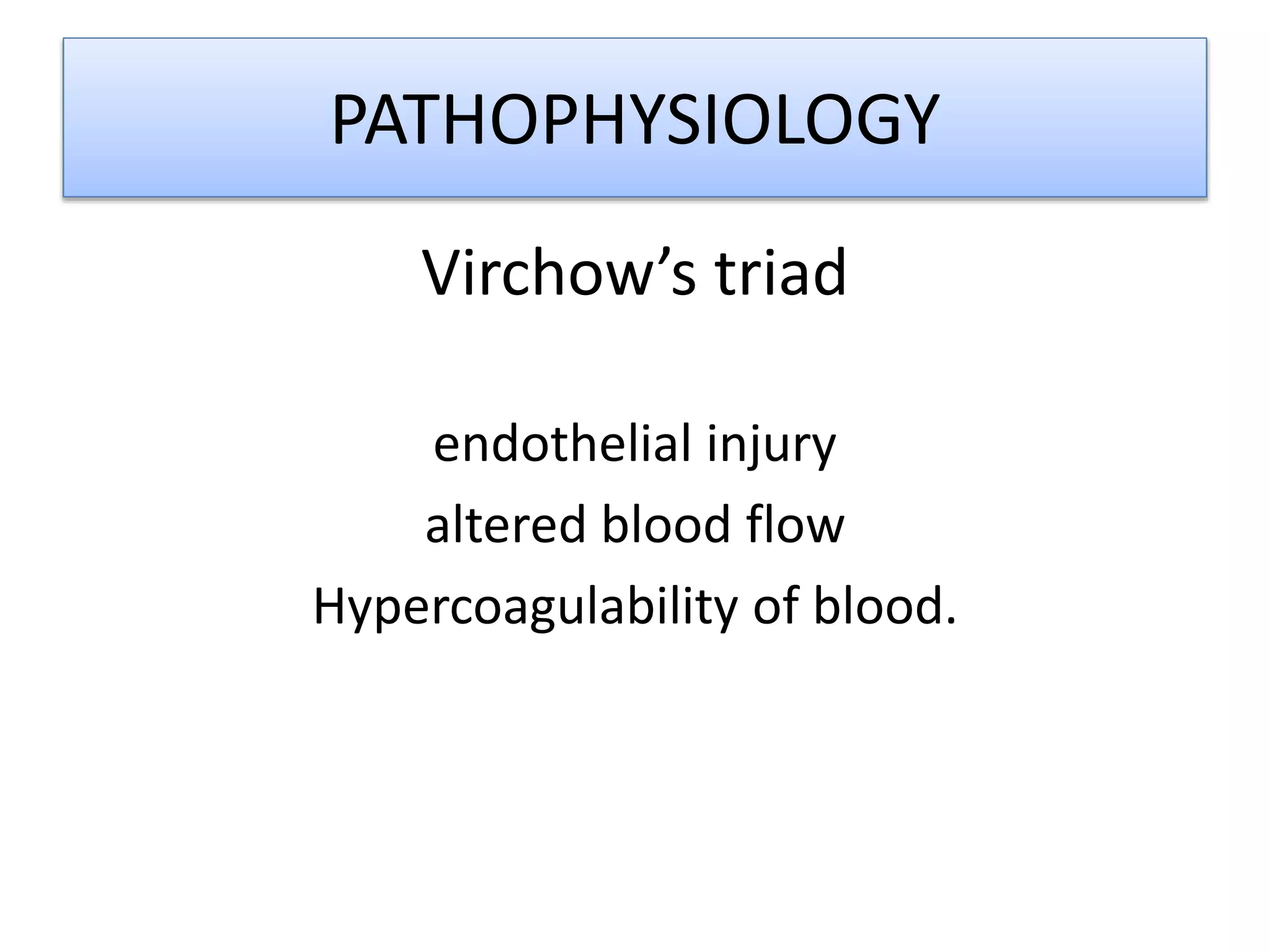

6. PATHOPHYSIOLOGY
Virchow’s triad
endothelial injury
altered blood flow
Hypercoagulability of blood.

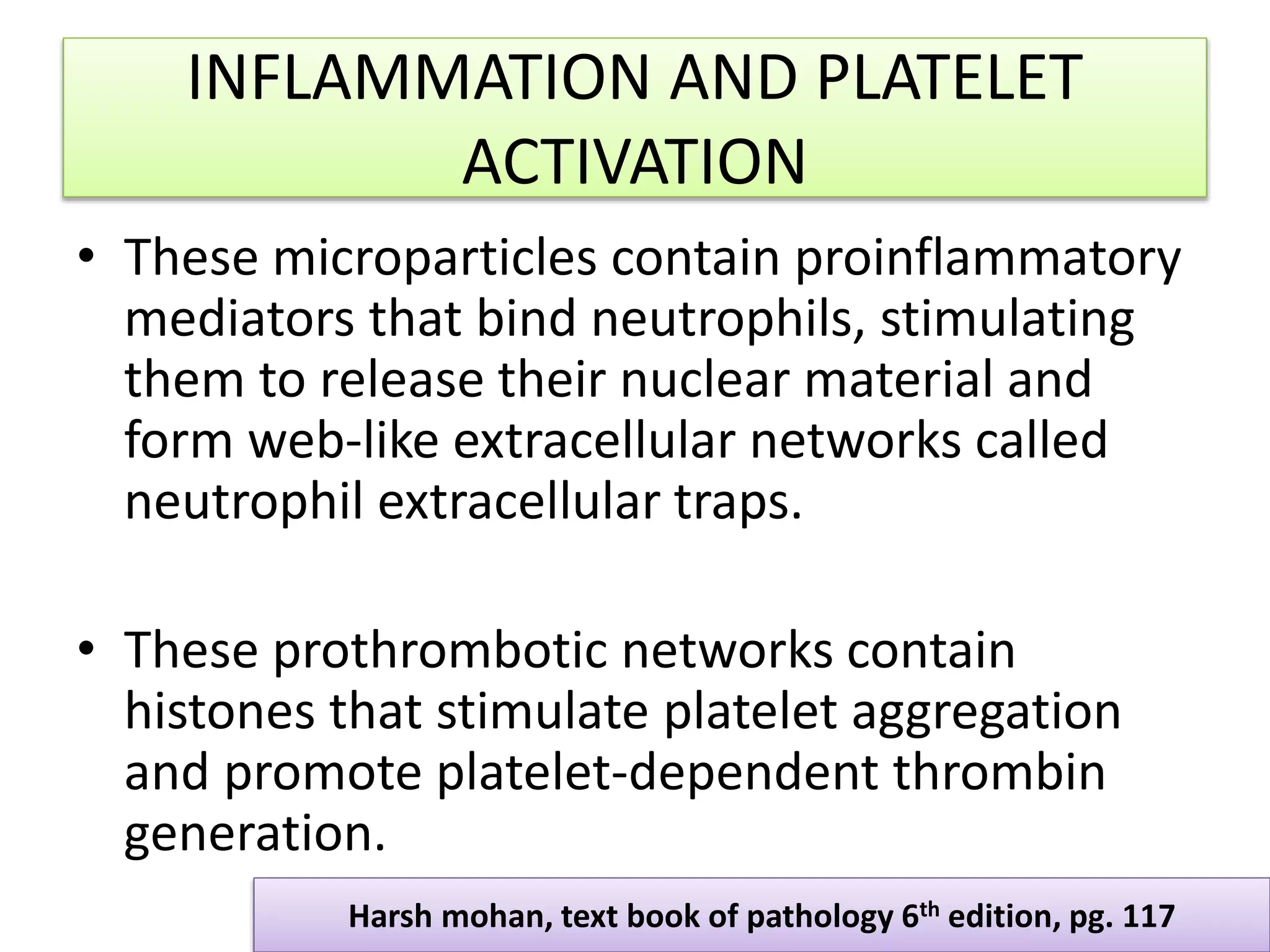

8. INFLAMMATION AND PLATELET
ACTIVATION
• These microparticles contain proinflammatory
mediators that bind neutrophils, stimulating
them to release their nuclear material and
form web-like extracellular networks called
neutrophil extracellular traps.
• These prothrombotic networks contain
histones that stimulate platelet aggregation
and promote platelet-dependent thrombin
generation.
Harsh mohan, text book of pathology 6th edition, pg. 117

9. ALTERATION OF BLOOD FLOW
Turbulence means unequal flow while stasis means slowing.
i) Normally, there is axial flow of blood in which the most
rapidly-moving central stream consists of leucocytes and
red cells. The platelets are present in the slow-moving
laminar stream adjacent to the central stream while the
peripheral stream consists of most slow-moving cell-free
plasma close to endothelial layer.
ii) Turbulence and stasis occur in thrombosis in which the
normal axial flow of blood is disturbed. When blood slows
thrombi is facilitated by turbulence in the blood flow, while
stasis initiates the venous thrombi even without evidence of
endothelial injury.
Harsh mohan, text book of pathology 6th edition, pg. 117

10. Stasis
• Surgery, trauma, immobility, paresis
• Increasing age
• Pregnancy and postpartum
• Heart or respiratory failure
• Obesity
Geerts WH, Pineo GF, Heit JA, Bergqvist D, Lassen MR,
Colwell CW, et al. Prevention of venous
thromboembolism: the seventh ACCP conference on
antithrombotic and thrombolytic therapy. Chest2004

12. HYPERCOAGULABILITY OF BLOOD
• The effect of hypercoagulability on thrombosis is favoured by
advancing age, smoking, use of oral contraceptives and
obesity. Hypercoagulability may occur by the following
changes in the composition of blood:
i) Increase in coagulation factors e.g. fibrinogen, prothrombin,
factor VIIa, VIIIa and Xa.
ii) Increase in platelet count and their adhesiveness.
iii) Decreased levels of coagulation inhibitors e.g. antithrombin III
Harsh Mohan, text book of pathology 6th edition, pg. 117

13. • Increasing age
• Malignancy or cancer therapy
• Oestrogen therapy (contraception or hormone
replacement)
• Acute medical illness
• Inflammatory bowel disease
• Nephrotic syndrome
• Myeloproliferative disorders
• Inherited or acquired thrombophilia
Geerts WH, Pineo GF, Heit JA, Bergqvist D, Lassen MR, Colwell CW,
et al. Prevention of venous thromboembolism: the seventh ACCP
conference on antithrombotic and thrombolytic
therapy. Chest2004

14. ENDOTHELIAL INJURY
• Trauma
• Surgery
• Invasive procedure may distrupt venous
integrity
• Iatrogenic cause of venous thrombosis like
CVC cause upper limb DVT.

15. PRESENTATION AND CLINICAL
EXAMINATION
• PAIN AND TENDERNESS
• SWELLING (USUALLY IN ONE LIMB)
• REDNESS
• WARMTH
• EDEMA
• CYANOSIS
• HOMANS SIGN ( dorsiflexion of foot while
knee is extended)

19. DIAGNOSIS
• PE is known as “the Great Masquerader.”
Diagnosis is difficult because symptoms and
signs are nonspecific.
• With DVT, the most common symptom is a
cramp or “charley horse” in the lower calf that
persists and intensifies over several days.

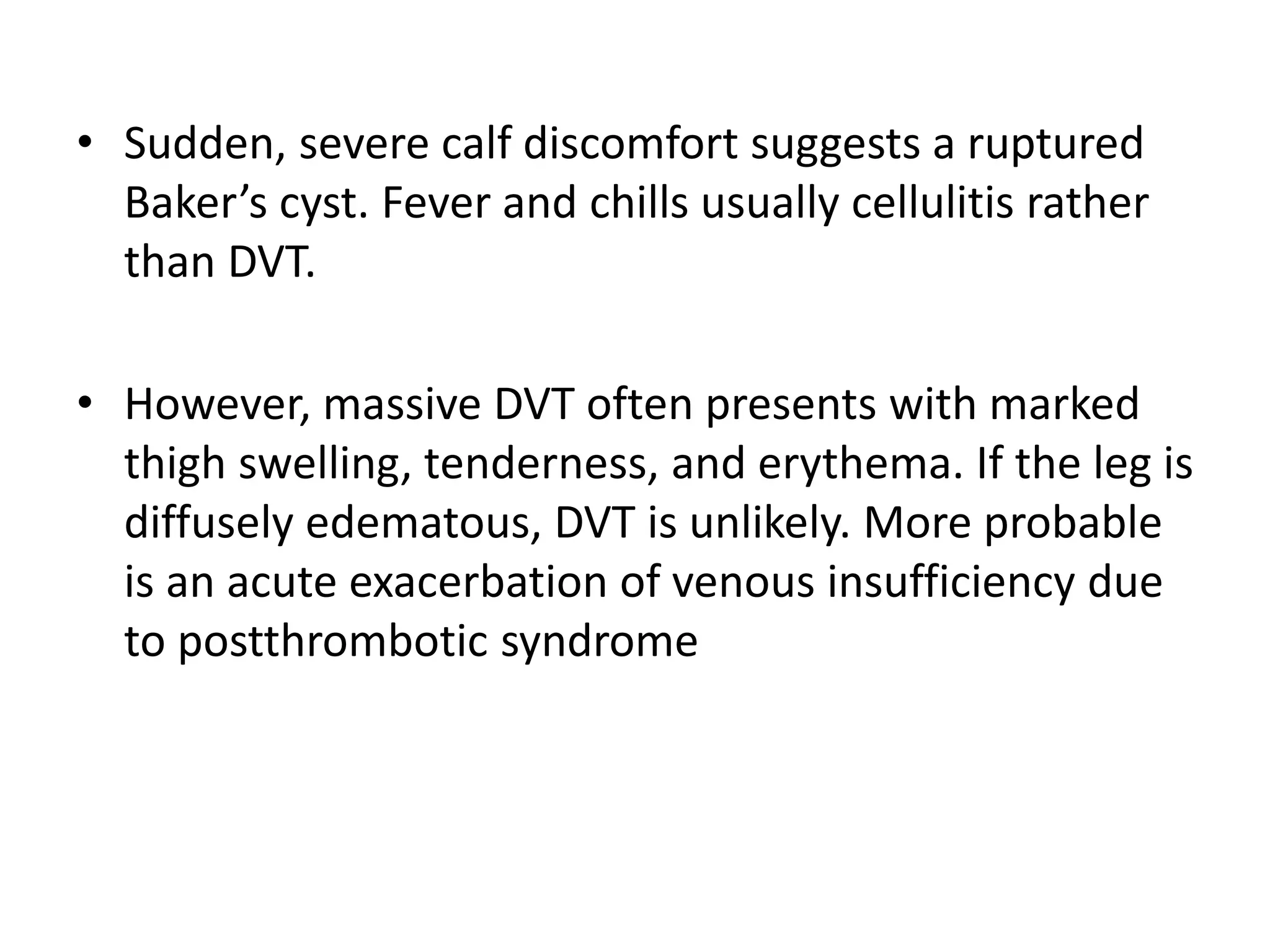

20. • Sudden, severe calf discomfort suggests a ruptured
Baker’s cyst. Fever and chills usually cellulitis rather
than DVT.
• However, massive DVT often presents with marked
thigh swelling, tenderness, and erythema. If the leg is
diffusely edematous, DVT is unlikely. More probable
is an acute exacerbation of venous insufficiency due
to postthrombotic syndrome

21. Differential Diagnosis
• DVT
• Ruptured Baker’s cyst
• Cellulitis
• Postphlebitic syndrome/venous insufficiency
Harrison principle of internal medicine 19th edition, pg. 1367

22. D-DIMER ASSAY
• The quantitative plasma d-dimer enzyme-
linked immunosorbent assay (ELISA) rises in
the presence of DVT or PE because of the
breakdown of fibrin by plasmin. Elevation of
D-dimer indicates endogenous although often
clinically ineffective thrombolysis.
• The sensitivity of the D-dimer is >80% or DVT
(including isolated calf DVT) and >95% for PE.

23. • However, the D-dimer assay is not specific. Levels
increase in patients with myocardial infarction,
pneumonia, sepsis, cancer, and the postoperative
state and those in the second or third trimester of
pregnancy.
• Therefore, D-dimer rarely has a useful role among
hospitalized patients, because levels are frequently
elevated due to systemic illness.

24. Clinical Variable DVT Score
Active cancer 1
Paralysis, paresis, or recent cast 1
Bedridden for >3 days; major surgery <12 weeks 1
Tenderness along distribution of deep veins 1
Entire leg swelling 1
Unilateral calf swelling >3 cm 1
Pitting edema 1
Collateral superficial nonvaricose veins 1
Alternative diagnosis at least as likely as DVT -2

25. Low Clinical Likelihood of DVT if Point
Score Is Zero or Less; Moderate
Likelihood if Score Is 1 to 2; High
Likelihood if Score Is 3 or Greater
Harrison principle of internal medicine 19th edition, pg. 1366
Wells' Criteria for DVT

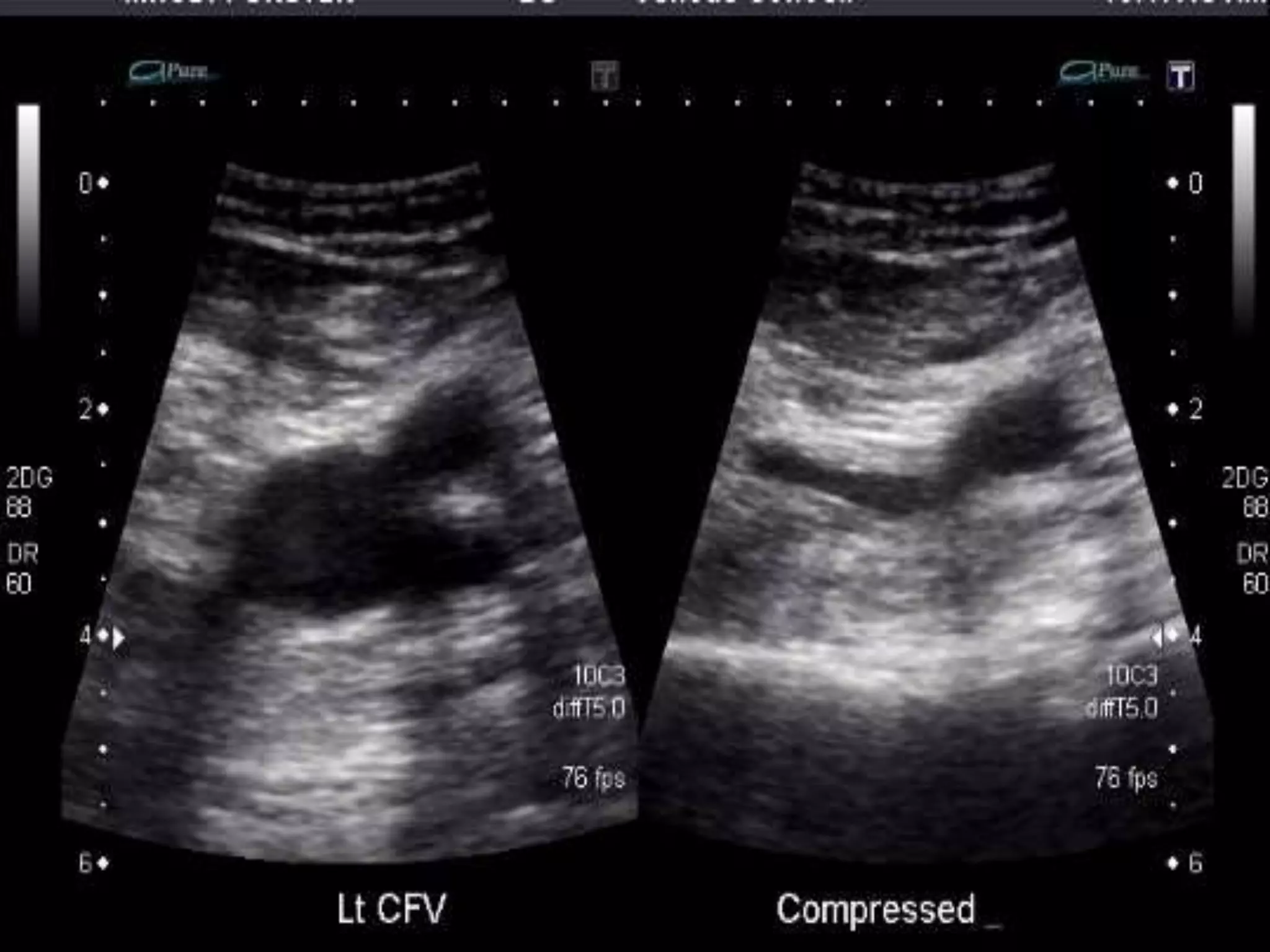

26. Noninvasive Imaging Modalities
• Venous ultrasonography
Ultrasonography of the deep venous system relies on loss
of vein compressibility as the primary criterion for DVT.
When a normal vein is imaged in cross-section, it readily
collapses with gentle manual pressure from the
ultrasound transducer. This creates the illusion of a
“wink.” With acute DVT, the vein loses its compressibility
because of passive distention by acute thrombus.
• The diagnosis of acute DVT is even more secure when
thrombus is directly visualized. It appears homogeneous
and has low echogenicity.

27. • The vein itself often appears mildly dilated, and
collateral channels may be absent. Venous flow
dynamics can be examined with Doppler imaging.
Normally, manual calf compression causes
augmentation of the Doppler flow pattern. Loss of
normal respiratory variation is caused by an
Obstructing DVT or by any obstructive process within
the pelvis.

29. • color-flow Duplex scanning is the imaging test
of choice for patients with suspected DVT
• inexpensive,
• noninvasive,
• widely available
• Ultrasound can also distinguish other causes
of leg swelling, such as tumor, popliteal cyst,
abscess, aneurysm, or hematoma.

30. LIMITATION
• Expensive
• reader dependent
• Duplex scans are less likely to detect
nonoccluding thrombi.
• During the second half of pregnancy,
ultrasound becomes less specific, because the
gravid uterus compresses the inferior vena
cava, thereby changing Doppler flow in the
lower extremities

31. Magnetic resonance (MR) (contrast-
enhanced) imaging When ultrasound
• MR is equivocal, MR venography with
gadolinium contrast is an excellent imaging
modality to diagnose DVT
• It detects leg, pelvis, and pulmonary thrombi
and is 97% sensitive and 95% specific for DVT.
• It distinguishes a mature from an immature
clot.
• MRI is safe in all stages of pregnancy.

32. Contrast phlebography
• has virtually replaced contrast phlebography
as the diagnostic test for suspected DVT.

33. TREATMENT
 Ambulation early and often (simplest and most cost
effective means to reduce risk of DVT)
 Intermittent External Compression Devices:
 Also called sequential compression devices or SCDs
 They increase rate/velocity of venous blood and reduce
pooling in the peripheral veins
 Compression should begin pre-operatively and be
continued until the patient is fully ambulatory
 Anticoagulant Medication Therapy

34. COMPRESSIVE STOCKING

36. Compressive stocking pressure
• Mild- 8-15 mm/Hg
• Moderate 15-20 mm/Hg
• Firm 15-30 mm/Hg
• Extra firm 30-40 mm/Hg

37. Intermittent External Compression Devices:
Also called sequential compression devices or SCDs
They increase rate/velocity of venous blood and reduce pooling in the
peripheral veins

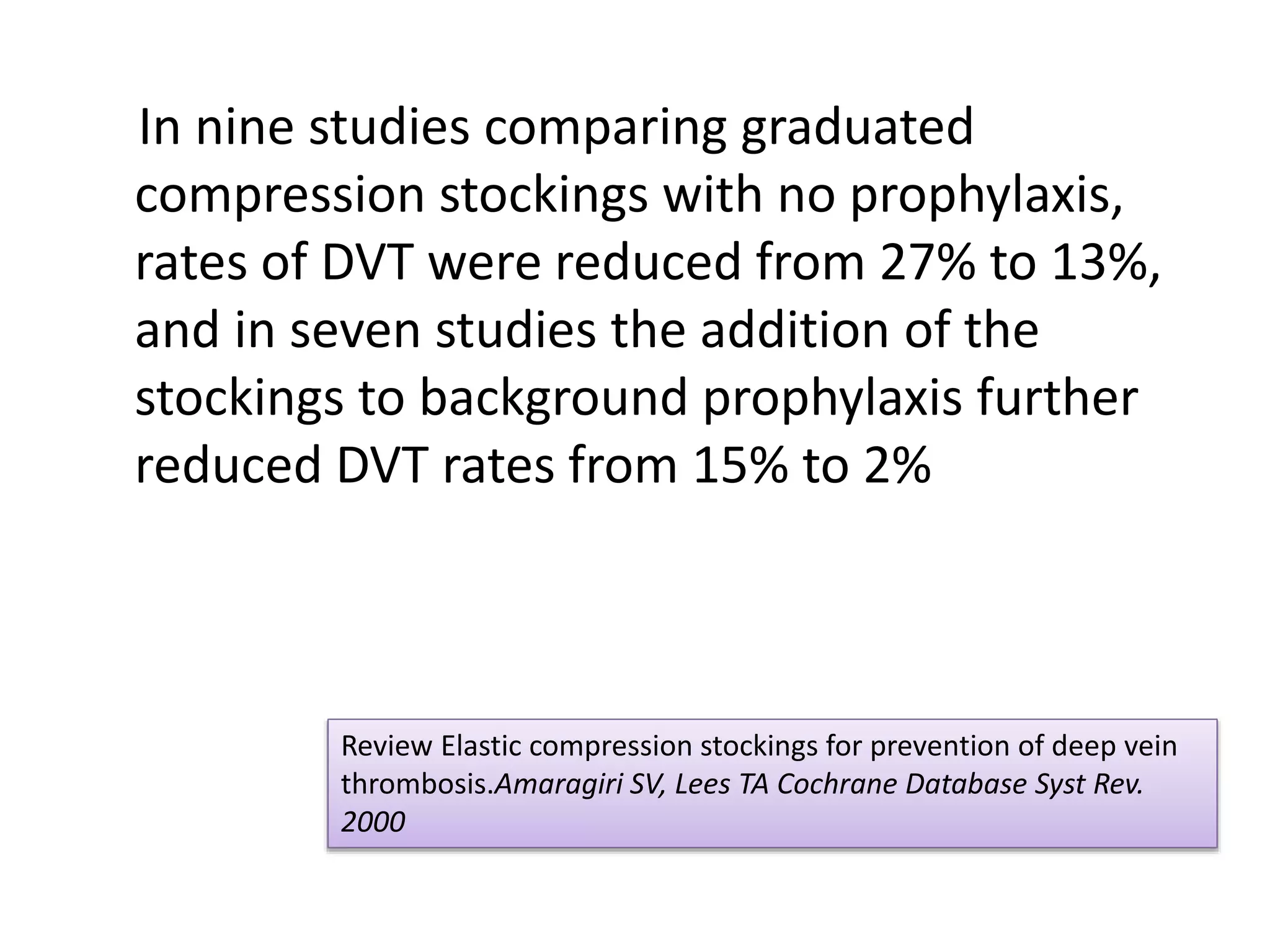

38. In nine studies comparing graduated
compression stockings with no prophylaxis,
rates of DVT were reduced from 27% to 13%,
and in seven studies the addition of the
stockings to background prophylaxis further
reduced DVT rates from 15% to 2%
Review Elastic compression stockings for prevention of deep vein
thrombosis.Amaragiri SV, Lees TA Cochrane Database Syst Rev.
2000

39. Intermittent External Compression
Devices
Every cycle of compressive dvt pump contain
12 sec inflate
48 sec deflate
Total pressure 40 mm/hg

40. EARLY MOBILIZATION

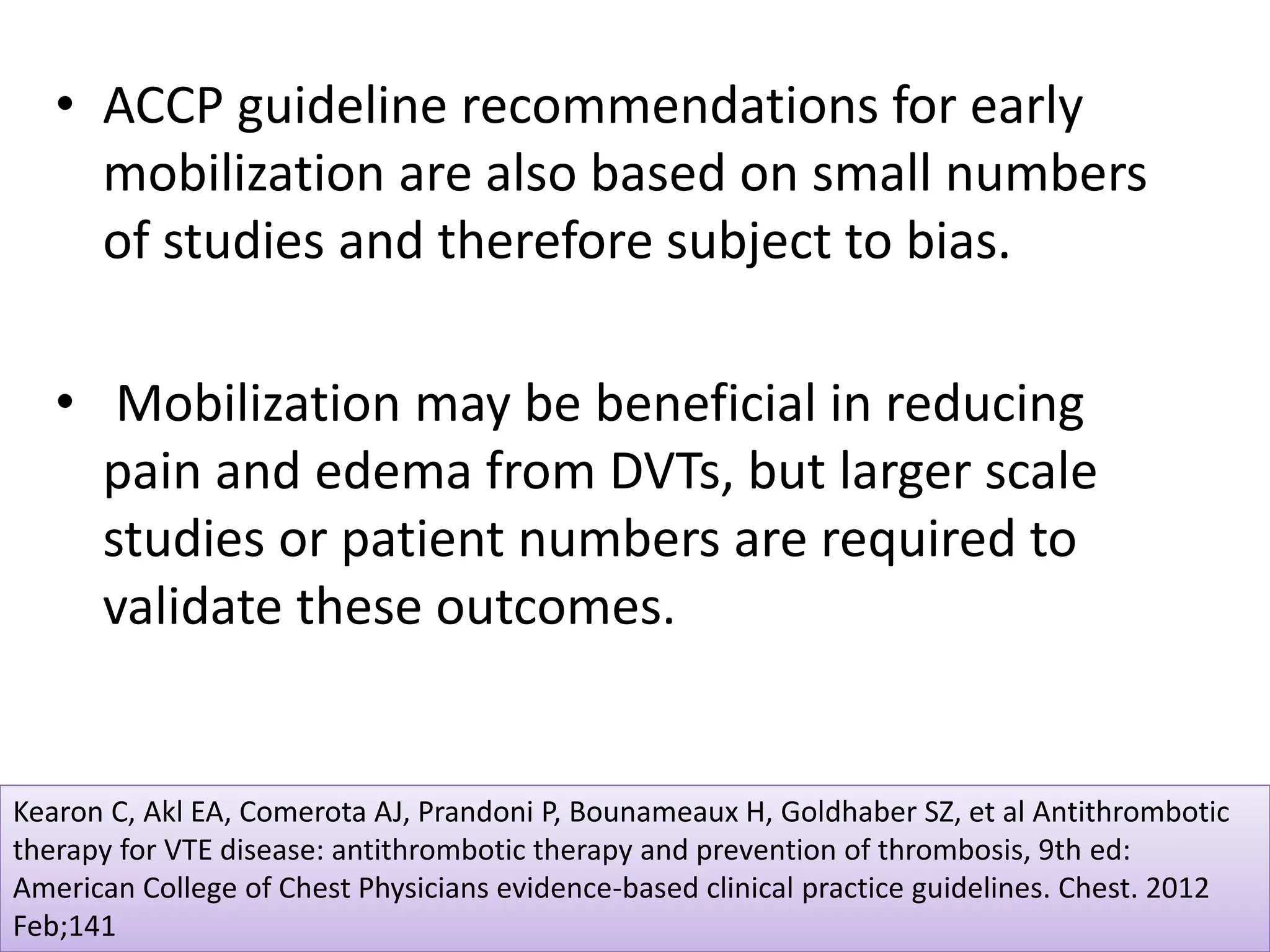

41. • ACCP guideline recommendations for early
mobilization are also based on small numbers
of studies and therefore subject to bias.
• Mobilization may be beneficial in reducing
pain and edema from DVTs, but larger scale
studies or patient numbers are required to
validate these outcomes.
Kearon C, Akl EA, Comerota AJ, Prandoni P, Bounameaux H, Goldhaber SZ, et al Antithrombotic
therapy for VTE disease: antithrombotic therapy and prevention of thrombosis, 9th ed:
American College of Chest Physicians evidence-based clinical practice guidelines. Chest. 2012
Feb;141

42. Low-Molecular-Weight Heparins
• Low-Molecular-Weight Heparins These
fragments of UFH exhibit less binding to
plasma proteins and endothelial cells and
consequently have greater bioavailability, a
more predictable dose response, and a longer
half-life than does UFH. No monitoring or
dose adjustment is needed unless the patient
is markedly obese or has chronic kidney
disease.

43. • Fondaparinux Fondaparinux, an anti-Xa
pentasaccharide, is administered as a weight-based
once-daily subcutaneous injection in a prefilled syringe.
• No laboratory monitoring is required. Fondaparinux is
synthesized in a laboratory and, unlike LMWH or UFH,
is not derived from animal products.
• It does not cause heparin-induced thrombocytopenia.
• The dose must be adjusted downward for patients with
renal dysfunction.

44. Unfractionated Heparin
• UFH anticoagulates by binding to and accelerating the
activity of antithrombin, thus preventing additional
thrombus formation.
• UFH is dosed to achieve a target activated partial
thromboplastin time (aPTT) of 60–80 s. The most
popular nomogram uses an initial bolus of 80 U/kg,
followed by an initial infusion rate of 18 U/kg per h.
• The major advantage of UFH is its short half-life, which
is especially useful in patients in whom hour-to-hour
control of the intensity of anticoagulation is desired.

45. Warfarin
• This vitamin K antagonist prevents carboxylation
activation of coagulation factors II, VII, IX, and X.
• The full effect of warfarin requires at least 5 days,
even if the prothrombin time, used for monitoring,
becomes elevated more rapidly. If warfarin is
initiated as monotherapy during an acute thrombotic
illness, a paradoxical exacerbation of
hypercoagulability increases the likelihood of
thrombosis.

46. Overlapping UFH, LMWH, fondaparinux, or parenteral direct
thrombin inhibitors with warfarin for at least 5 days will nullify
the early procoagulant effect of warfarin. Warfarin Dosing In
an average-size adult, warfarin is often initiated in a dose of 5
mg. The prothrombin time is standardized by calculating the
international normalized ratio (INR), which assesses the
anticoagulant effect of warfarin.
The target INR is usually
• 2.5, with a range of 2.0–3.0. The warfarin dose is usually
titrated empirically to achieve the target INR.

47. Prevention of Venous Thromboembolism
Among Hospitalized Patients
High-risk non orthopedic surgery
• Unfractionated heparin 5000 units SC bid or tid
• Enoxaparin 40 mg daily
• Dalteparin 2500 or 5000 units daily
Harrison principle of internal medicine 19th edition, pg. 1367

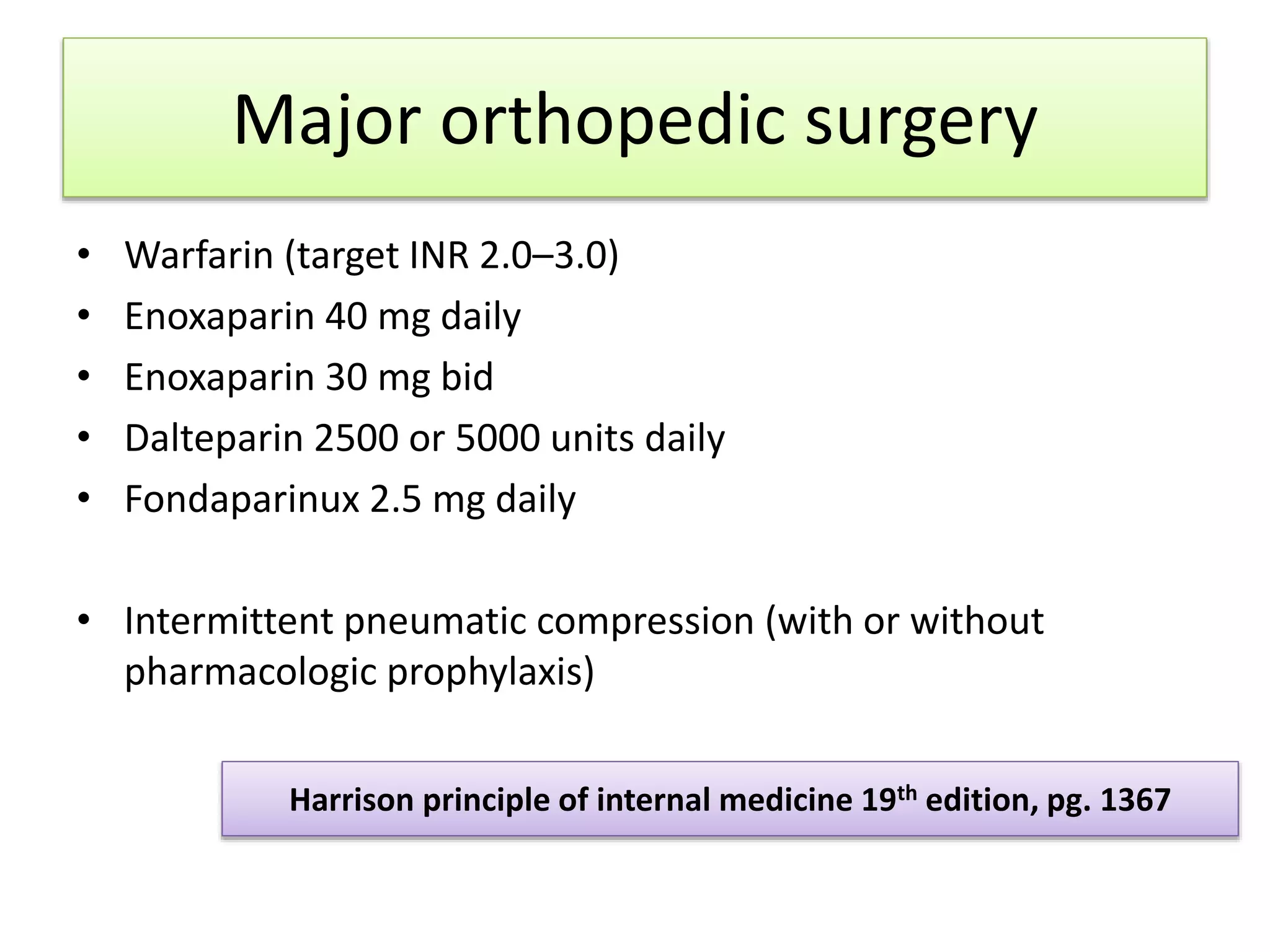

48. Major orthopedic surgery
• Warfarin (target INR 2.0–3.0)
• Enoxaparin 40 mg daily
• Enoxaparin 30 mg bid
• Dalteparin 2500 or 5000 units daily
• Fondaparinux 2.5 mg daily
• Intermittent pneumatic compression (with or without
pharmacologic prophylaxis)
Harrison principle of internal medicine 19th edition, pg. 1367

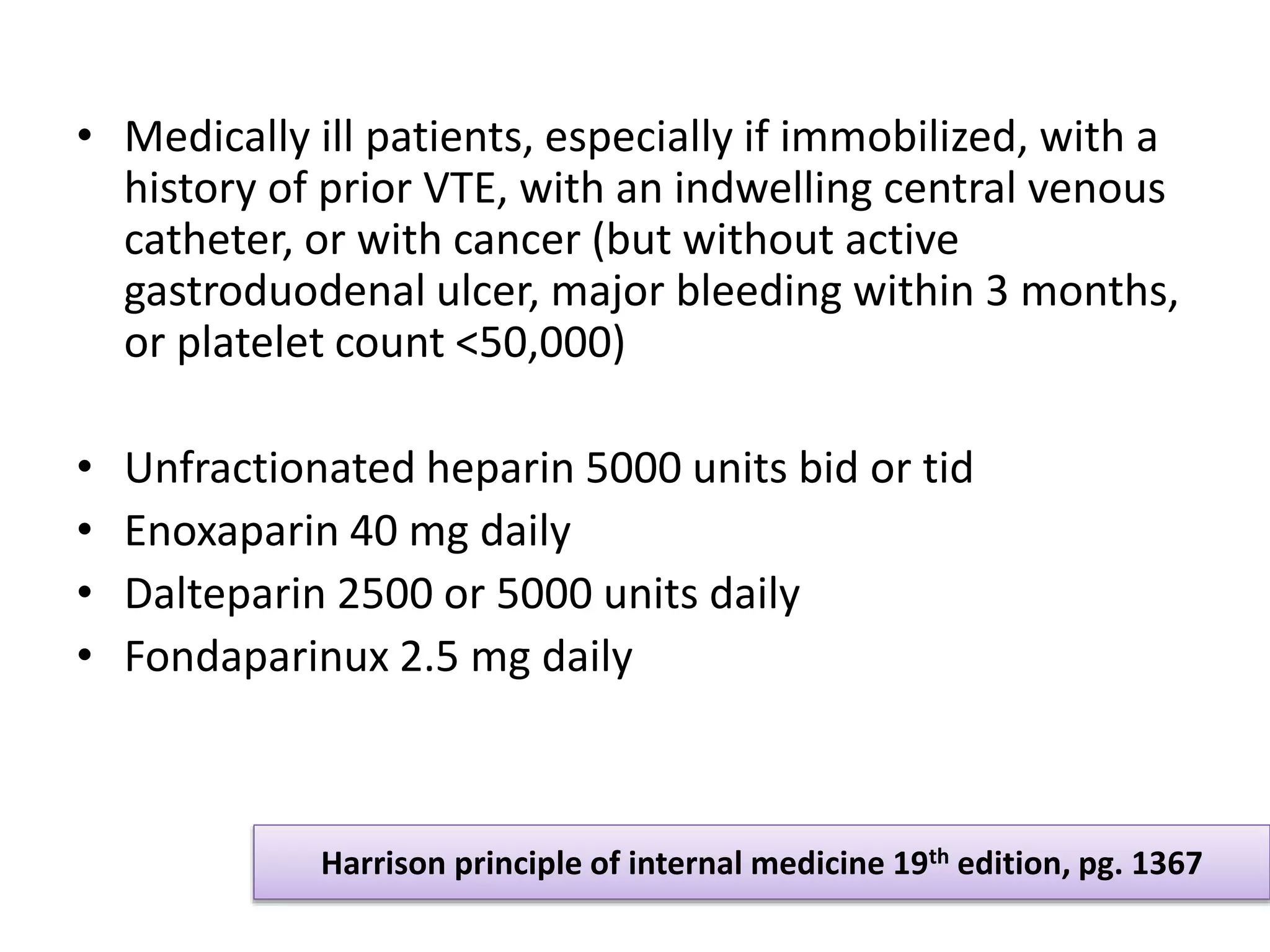

49. • Medically ill patients, especially if immobilized, with a
history of prior VTE, with an indwelling central venous
catheter, or with cancer (but without active
gastroduodenal ulcer, major bleeding within 3 months,
or platelet count <50,000)
• Unfractionated heparin 5000 units bid or tid
• Enoxaparin 40 mg daily
• Dalteparin 2500 or 5000 units daily
• Fondaparinux 2.5 mg daily
Harrison principle of internal medicine 19th edition, pg. 1367

50. Harrison principle of internal medicine 19th edition, pg. 1367
• Anticoagulation contraindicated Intermittent
pneumatic compression devices (but whether
graduated compression stockings are effective
in medical patients is controversial)

51. Summary of Evidence-Based
Recommendations for VTE Prevention
Strong evidence exists for the following:
• For highest risk patients combine pharmacologic and
mechanical prevention methods:
• All patients admitted to the critical care unit must be
assessed for risk of VTE
• Most critically ill patients will require
thromboprophylaxis
• Aspirin alone should not be used for VTE prophylaxis
for any patient group
• Pharmacologic thromboprophylaxis with low dose
UFH or LMEH (SQ), fondaparinus or rivaroxaban

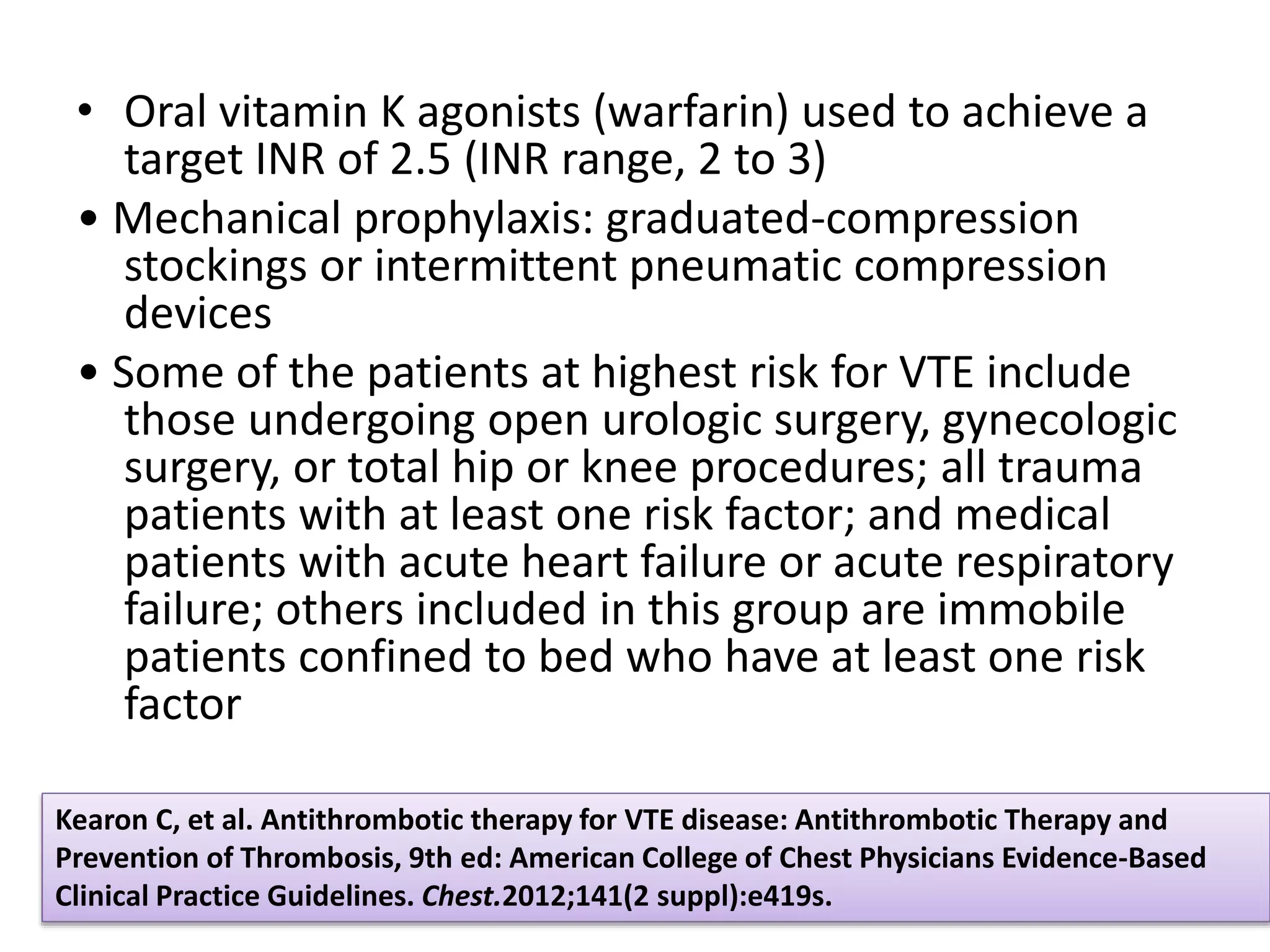

52. • Oral vitamin K agonists (warfarin) used to achieve a
target INR of 2.5 (INR range, 2 to 3)
• Mechanical prophylaxis: graduated-compression
stockings or intermittent pneumatic compression
devices
• Some of the patients at highest risk for VTE include
those undergoing open urologic surgery, gynecologic
surgery, or total hip or knee procedures; all trauma
patients with at least one risk factor; and medical
patients with acute heart failure or acute respiratory
failure; others included in this group are immobile
patients confined to bed who have at least one risk
factor
Kearon C, et al. Antithrombotic therapy for VTE disease: Antithrombotic Therapy and
Prevention of Thrombosis, 9th ed: American College of Chest Physicians Evidence-Based
Clinical Practice Guidelines. Chest.2012;141(2 suppl):e419s.

53. THANK YOU
