Covers key aspects of SharePoint 2013 apps, with a focus on SharePoint-hosted apps. Includes detail on app parts, using web parts within an app, configuring SSL, troubleshooting apps and possible reasons to move away from a SharePoint-hosted app to a cloud app. Also covers "high-privilege" apps which provision to the host web.

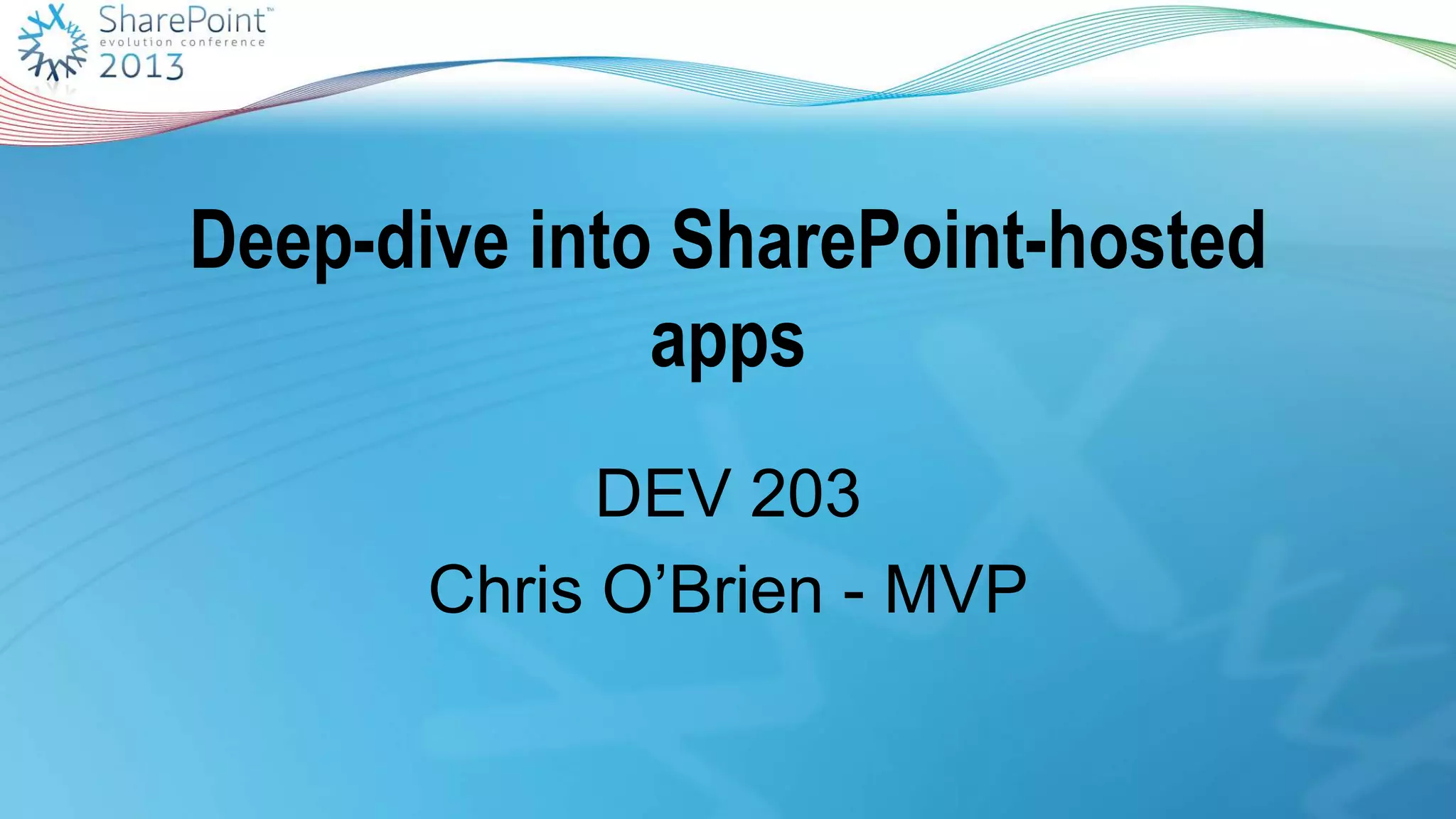

1. Deep-dive into SharePoint-hosted
apps
DEV 203
Chris O‟Brien - MVP

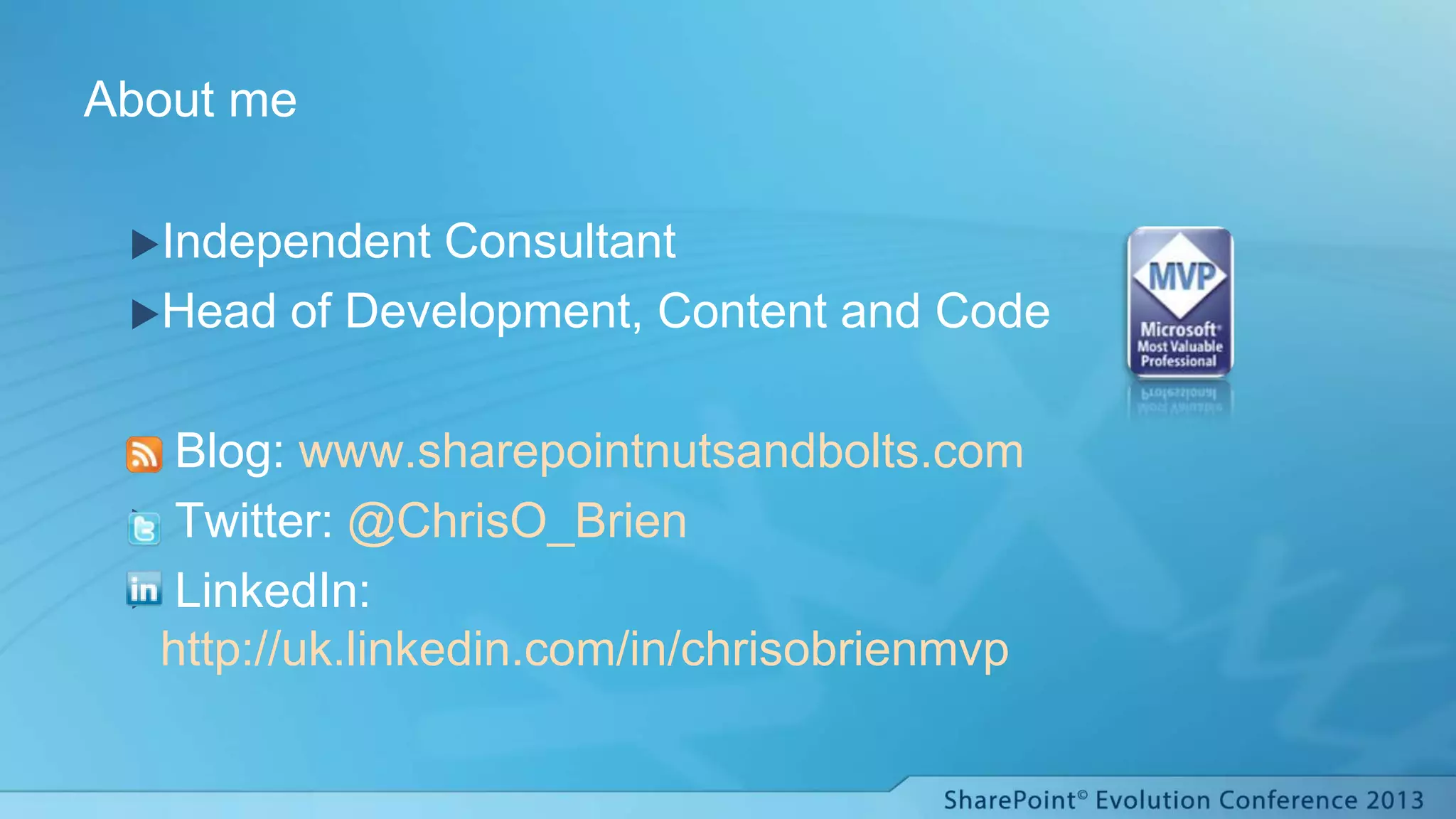

2. About me
Independent Consultant
Head of Development, Content and Code
 Blog: www.sharepointnutsandbolts.com
 Twitter: @ChrisO_Brien
 LinkedIn:
http://uk.linkedin.com/in/chrisobrienmvp

3. Why apps?
End-user familiarity
Phones, Windows 8 etc.
Move server-side code off SharePoint
..which solves MANY problems for Microsoft 
Game-changer for Office 365
No more sandbox restrictions

4. Customizing SharePoint – official guidance
Microsoft:
The most important guidance we can give you is
to develop an app for SharePoint rather than a
classic solution whenever you can.
http://msdn.microsoft.com/en-us/library/jj163114(office.15).aspx

5. App hosting options
SharePoint-hosted
JavaScript only
Cloud app
Provider-hosted (YOU deal with hosting)
–IIS, PHP/LAMP, something else!
Auto-hosted (O365 + Azure)
–E.g. automatically create database in SQL Azure

6. 3 decisions to make on apps
Are we going to allow apps?
Configuration, infrastructure, obtain wildcard SSL certificate etc.
Are we going to allow ANY app from the SharePoint Store to be
installed?
Or are we going to restrict to certain „approved‟ apps via the
internal App Catalog?
Will our own customisations be developed as apps?

7. The SharePoint apps “enterprise planning loop”
DAY
1:

8. The SharePoint apps “enterprise planning loop”
DAY
2:

9. The SharePoint apps “enterprise planning loop”
DAY
3:

10. The SharePoint apps “enterprise planning loop”
DAY
4:

11. The SharePoint apps “enterprise planning loop”
DAY
5:

12. The SharePoint apps “enterprise planning loop”
DAY
6:

13. How users obtain apps
User-driven:
Public store (if
enabled)
Internal “App
Catalog” – admin-
approved apps
Administrator-
driven:
Installed to
selected sites via
PowerShell
“Tenant-install” –
one shared
instance (not
instance per site)

14. My app‟s architecture

15. Ingredients of a nice 2013 “learning” app
Creates and uses some content types/lists/files in app web
Fetches some data from host web (with permission request)
Uses JSOM/REST
Provisions an app part for UX within host web
Consumes farm/tenant services e.g. search
(SharePoint-hosted)

16. CUSTOM SHAREPOINT-HOSTED
APPS

17. Developing SharePoint-
hosted apps

18. SharePoint 2013 client APIs
(for use in SharePoint-hosted apps)

19. Even though hosted on SP, app area is on an “isolated” domain
(IIS web application)
URL = https://cob-387fbe6473fd9e.spapps.dev/MyApp
–App prefix (configurable)
–ID (generated on each install/upgrade)
–App domain (should be a distinct domain)
–App name
Effectively an IIS trick – content is in same site collection!
Provides some security against XSS + allows identification of app
requests
How the app web works

20. Accessing Site Contents page (ViewLsts.aspx)
Accessing Site Settings page (Settings.aspx)
Accessing Features pages
(Features.aspx?Scope=Site/Web)
Computer says no:

21. Yes:
• ListView web part
• XsltListView web part
• Content Search web part
• Search Core Results
web part
• PageViewer web part
No:
• Content Query web part
• DataView web part
• ..probably many others
Which web parts can I use in the app web?

22. App parts

23. App parts - gotchas
Need appropriate JS files referenced
 See Stephane Eskeyens post - http://www.silver-
it.com/node/126
No _spPageContextInfo if code hosted in app
part
 Be careful if you have code which uses it
 But do have access to SPAppWebUrl/SPHostUrl
Need <meta http-equiv=”X-UA-Compatible”..
element
Useful trick:
App part page
dynamically
resizing parent
iFrame (using
postMessage)

24. Apps which provision into the
host web

25. ..brand a SharePoint site?
..provision files into a SharePoint site?
..delete end-user data?
ANSWER:
If it has the right permissions, yes (*)
Full Control of Web = do anything 
Host web considerations: can an app?
* Assumes that:
• User ALSO has
appropriate
permissions
OR
• App uses “app-
only” policy (not
SP-hosted app)

26. Office 365 submission policy – no Full Control
http://msdn.microsoft.com/en-us/library/jj938162.aspx

27. APPS WHICH PROVISION INTO THE
HOST WEB

28. Other things

29.  SPHostUrl bug – this URL param „lost‟ when navigating
around app web (causing code to fail)
 Search bug – app with Permission Request for
Search/QueryAsUserIgnoreAppPrincipal gives “Only
tenant administrators can install this app” for on-premises
installations
ALSO: can now run multiple app domains with reverse
proxy/AAM
Bugs fixed in March 2013 update (all undocumented!)

30. Microsoft:
Secure Sockets Layer (SSL) is a requirement for web applications
that are deployed in scenarios that support server-to-server
authentication and app authentication.
http://technet.microsoft.com/en-us/library/ee806885(v=office.15).aspx
Apps and SSL

31. Configuring SSL in dev
Pre-reqs:
 DNS - entries created (wildcard for apps, unique IP for apps WA)
 IIS - ensure apps WA uses „All Unassigned‟
Use SELFSSL to generate certs
 Sites (wildcard = *.cob.dev, or individual)
 Apps (wildcard = *.spapps.dev)
Export as .pfx then import (SELFSSL bug)
Re-bind certs in IIS
IISReset!

32. Continuous Integration for apps
Microsoft have released PS scripts
 See http://officesharepointci.codeplex.com
 Works with on-premises or Office 365
 Uses PS + .NET CSOM to install app
Support for:
 SharePoint-hosted apps
 Provider-hosted apps (via WebDeploy)
Can be used with visualstudio.com (TFS online)

33. Can I use navigation controls/providers?
 Unlikely. Providers have context of host web, not app
web.
 Static links likely to be better
WebDAV is disabled for apps
SP-hosted apps currently cannot be used on SAML
claims sites
Other notes:

34. Some beginner issues
1. Error occurred in deployment step 'Install app for SharePoint': Sideloading of apps is
not enabled on this site
 You tried to “F5 deploy” to a site not based on Developer Site template OR sideloading
Feature is not activated
2. JavaScript runtime error: 'Type' is undefined
 JavaScript dependency issue – MicrosoftAjax.js needs to be earlier!
3. App part difficulties (e.g. JavaScript errors)
 Need correct JS references – see http://www.silver-it.com/node/126
 Need AllowFraming tag and <meta http-equiv..tags
 No _spPageContextInfo
Troubleshooting apps

35. Advanced topics
1. Updatability – CSS/JS/images are difficult to update across app instances
(OR SANDBOX!)
 ANSWER: Use Azure (or internally hosted location) to centralise
2. Architecture – should I deploy to the host web?
 ANSWER :
–Maybe, if the app is trusted
–But what is the app framework giving you over a sandbox/farm solution?
Designing SharePoint-hosted apps

36. Possible reasons for cloud app
Need to go beyond JavaScript
to develop functionality
 E.g. service layer
 E.g. use of back-end non-
SharePoint data
Needs Remote Event
Receivers (app installed, app
upgraded etc.)
Needs scheduled process
On-prem SharePoint sites
using SAML claims
You don‟t want to develop
entire app in JavaScript
 OR, you want to leverage
.Net/PHP/whatever skills

37. Thank you for attending!
www.sharepointnutsandbolts.com
@ChrisO_Brien
