1. APP MODEL FOR
SHAREPOINT 2013
Introduction

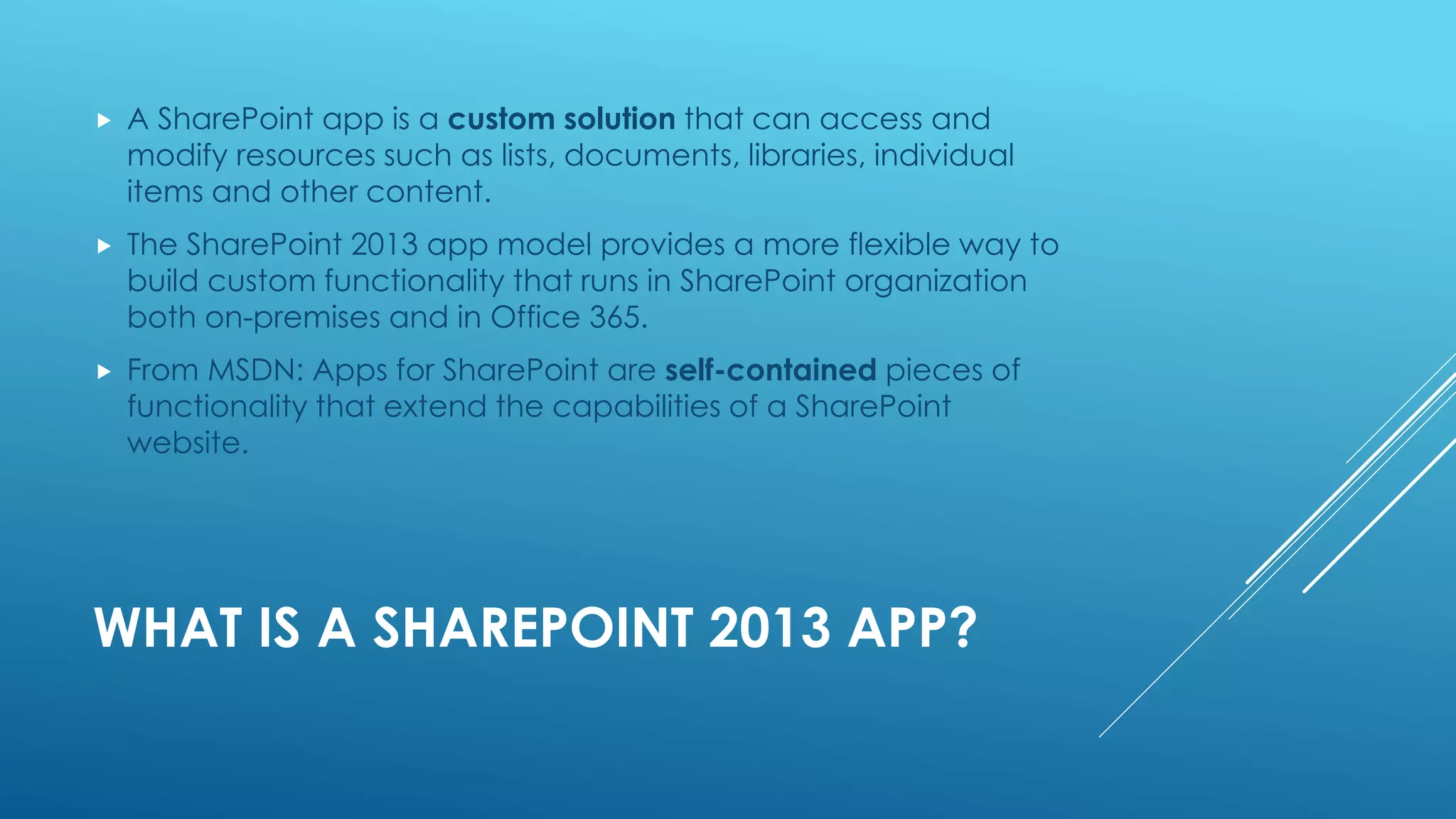

2. WHAT IS A SHAREPOINT 2013 APP?
 A SharePoint app is a custom solution that can access and
modify resources such as lists, documents, libraries, individual
items and other content.
 The SharePoint 2013 app model provides a more flexible way to
build custom functionality that runs in SharePoint organization
both on-premises and in Office 365.
 From MSDN: Apps for SharePoint are self-contained pieces of
functionality that extend the capabilities of a SharePoint
website.

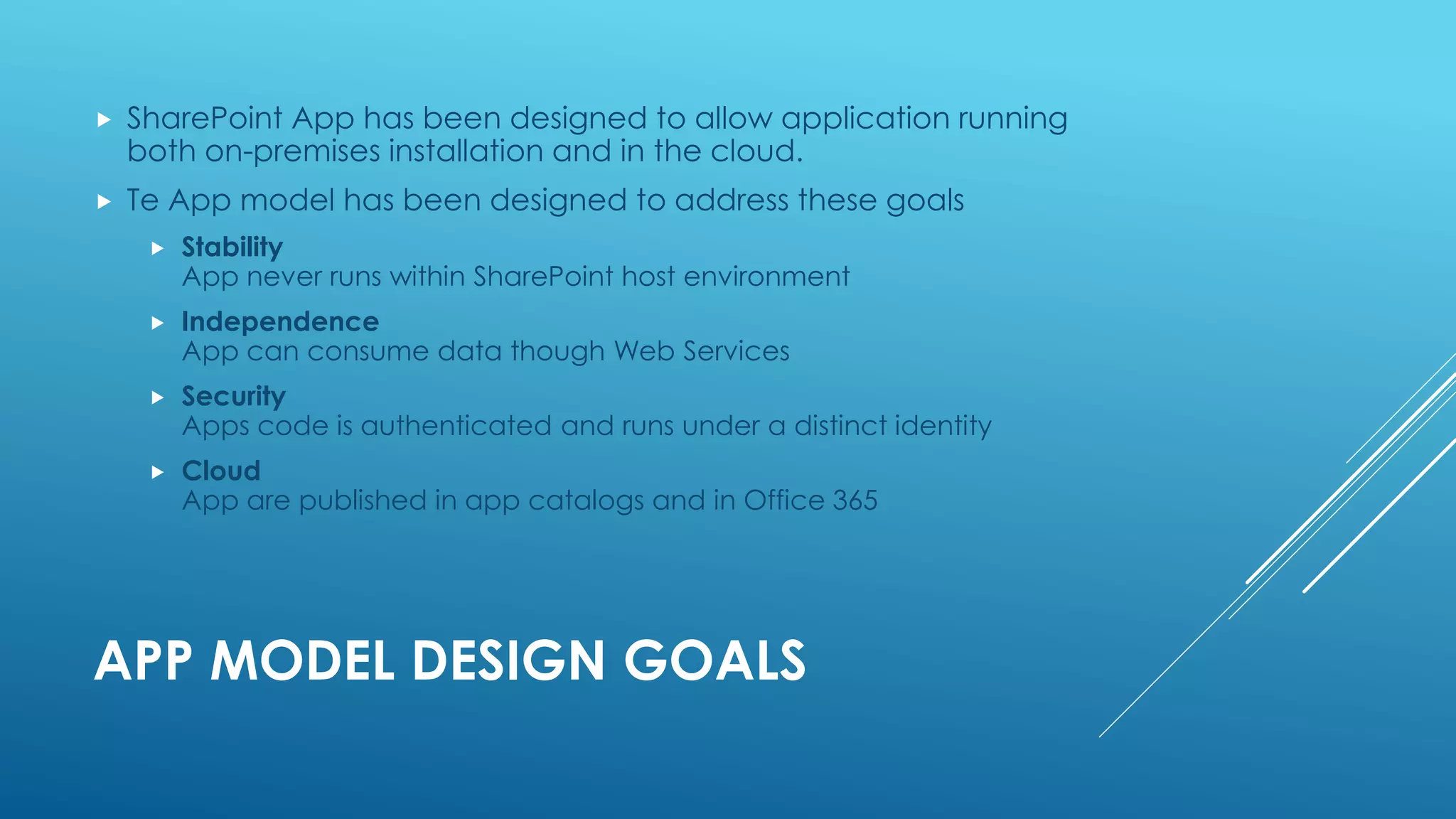

3. APP MODEL DESIGN GOALS
 SharePoint App has been designed to allow application running
both on-premises installation and in the cloud.
 Te App model has been designed to address these goals
 Stability
App never runs within SharePoint host environment
 Independence
App can consume data though Web Services
 Security
Apps code is authenticated and runs under a distinct identity
 Cloud
App are published in app catalogs and in Office 365

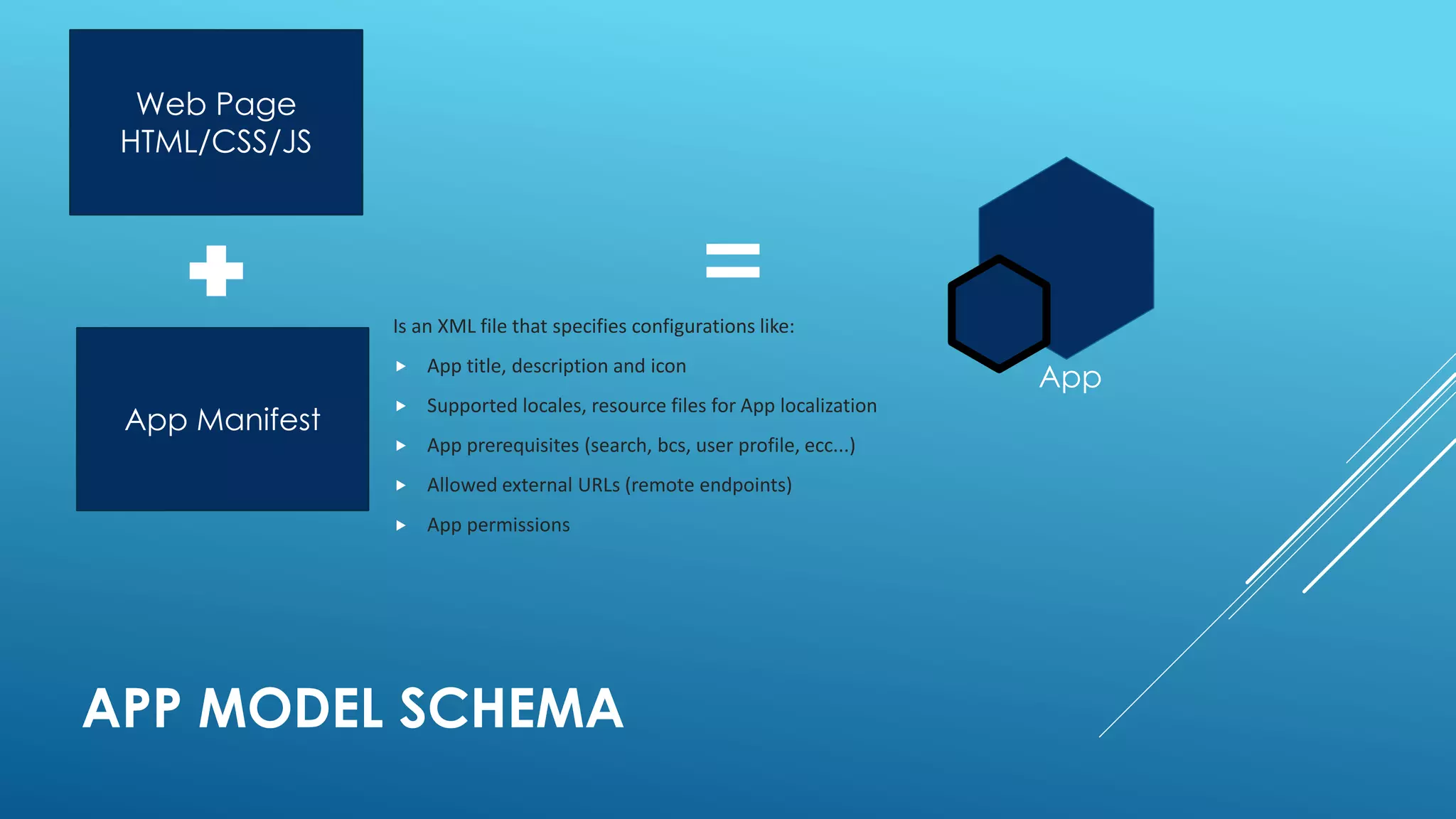

4. APP MODEL SCHEMA
App Manifest
Web Page
HTML/CSS/JS
App
Is an XML file that specifies configurations like:
 App title, description and icon
 Supported locales, resource files for App localization
 App prerequisites (search, bcs, user profile, ecc...)
 Allowed external URLs (remote endpoints)
 App permissions

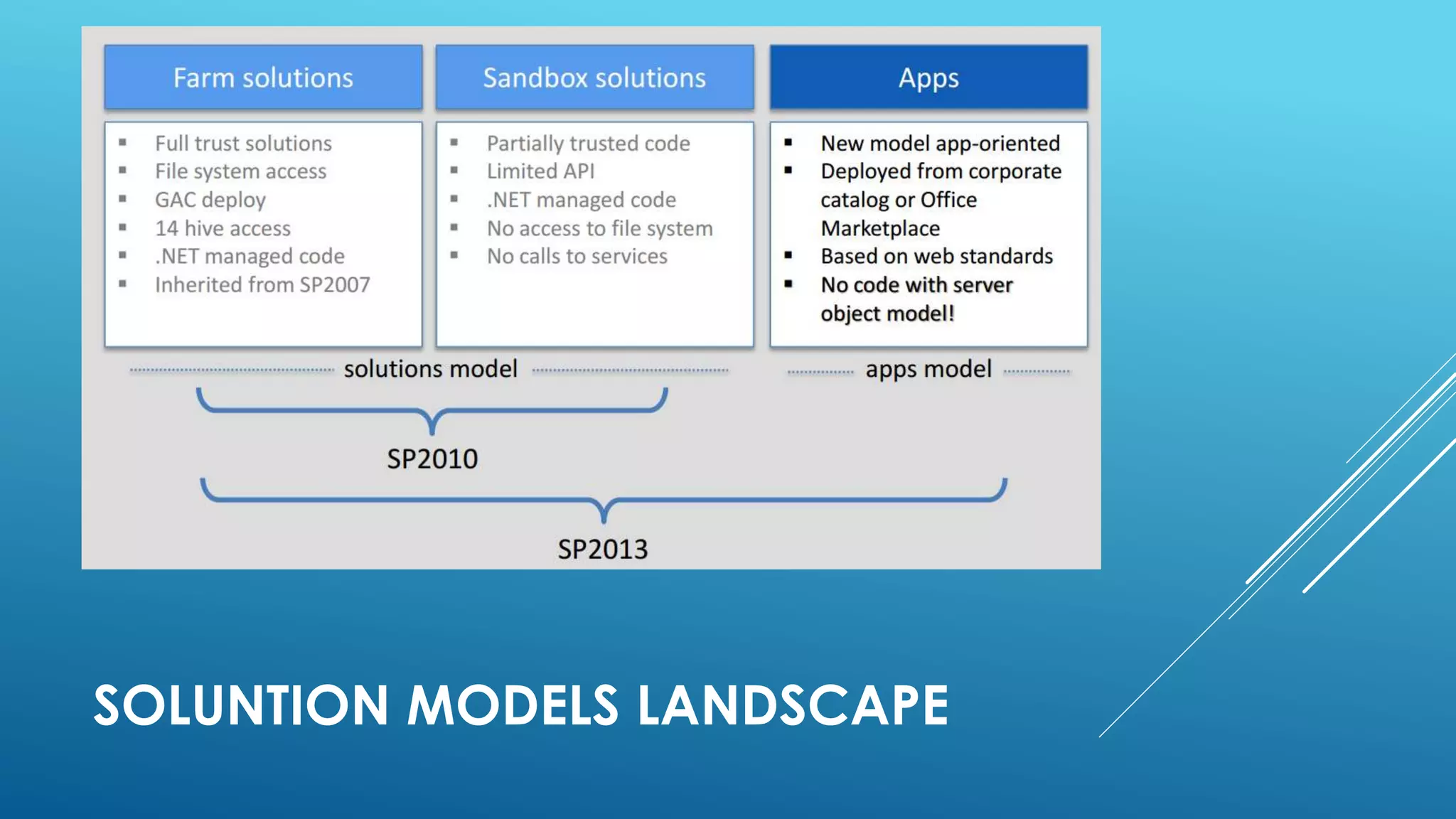

5. SOLUNTION MODELS LANDSCAPE

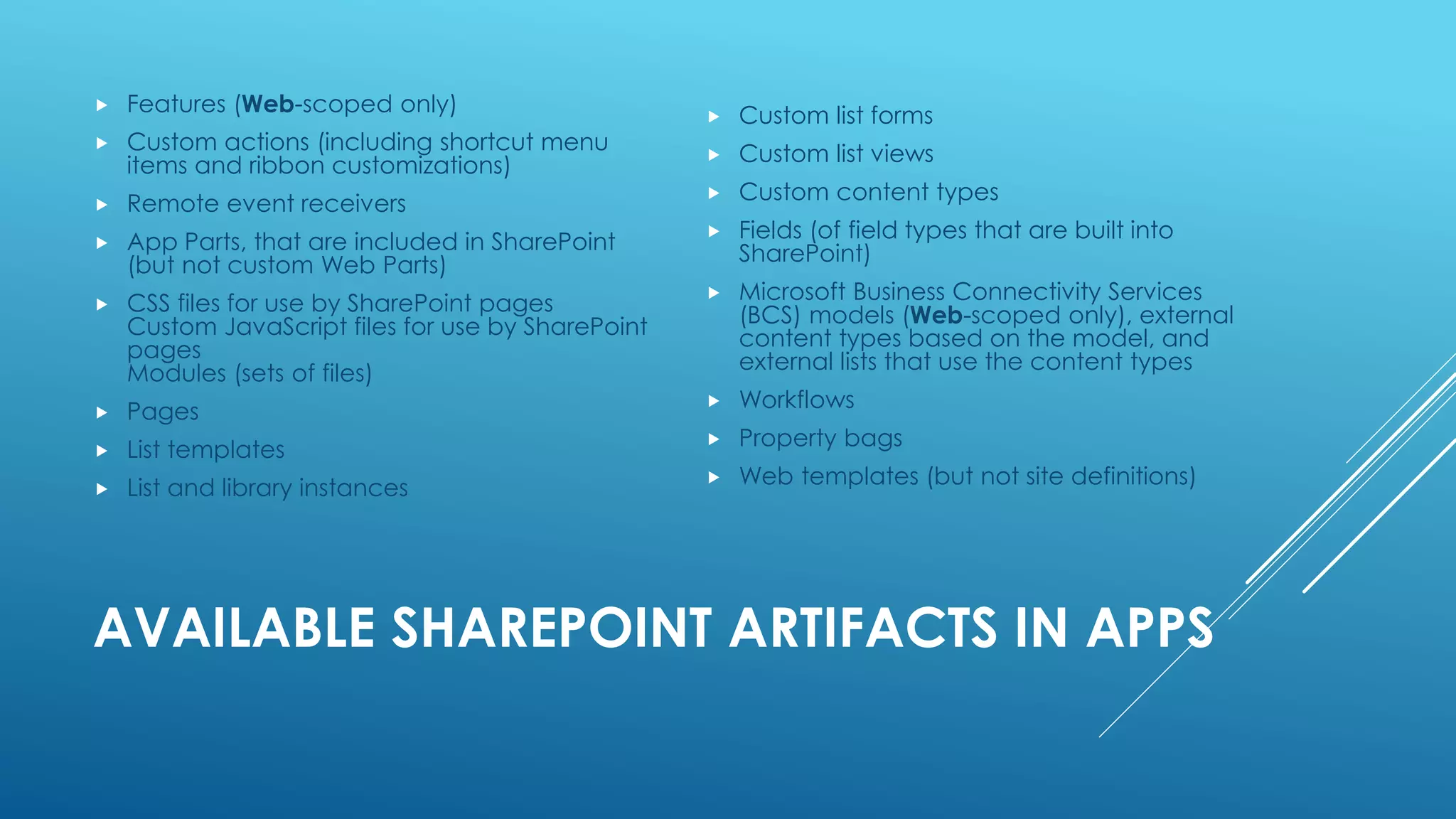

6. AVAILABLE SHAREPOINT ARTIFACTS IN APPS
 Features (Web-scoped only)
 Custom actions (including shortcut menu
items and ribbon customizations)
 Remote event receivers
 App Parts, that are included in SharePoint
(but not custom Web Parts)
 CSS files for use by SharePoint pages
Custom JavaScript files for use by SharePoint
pages
Modules (sets of files)
 Pages
 List templates
 List and library instances
 Custom list forms
 Custom list views
 Custom content types
 Fields (of field types that are built into
SharePoint)
 Microsoft Business Connectivity Services
(BCS) models (Web-scoped only), external
content types based on the model, and
external lists that use the content types
 Workflows
 Property bags
 Web templates (but not site definitions)

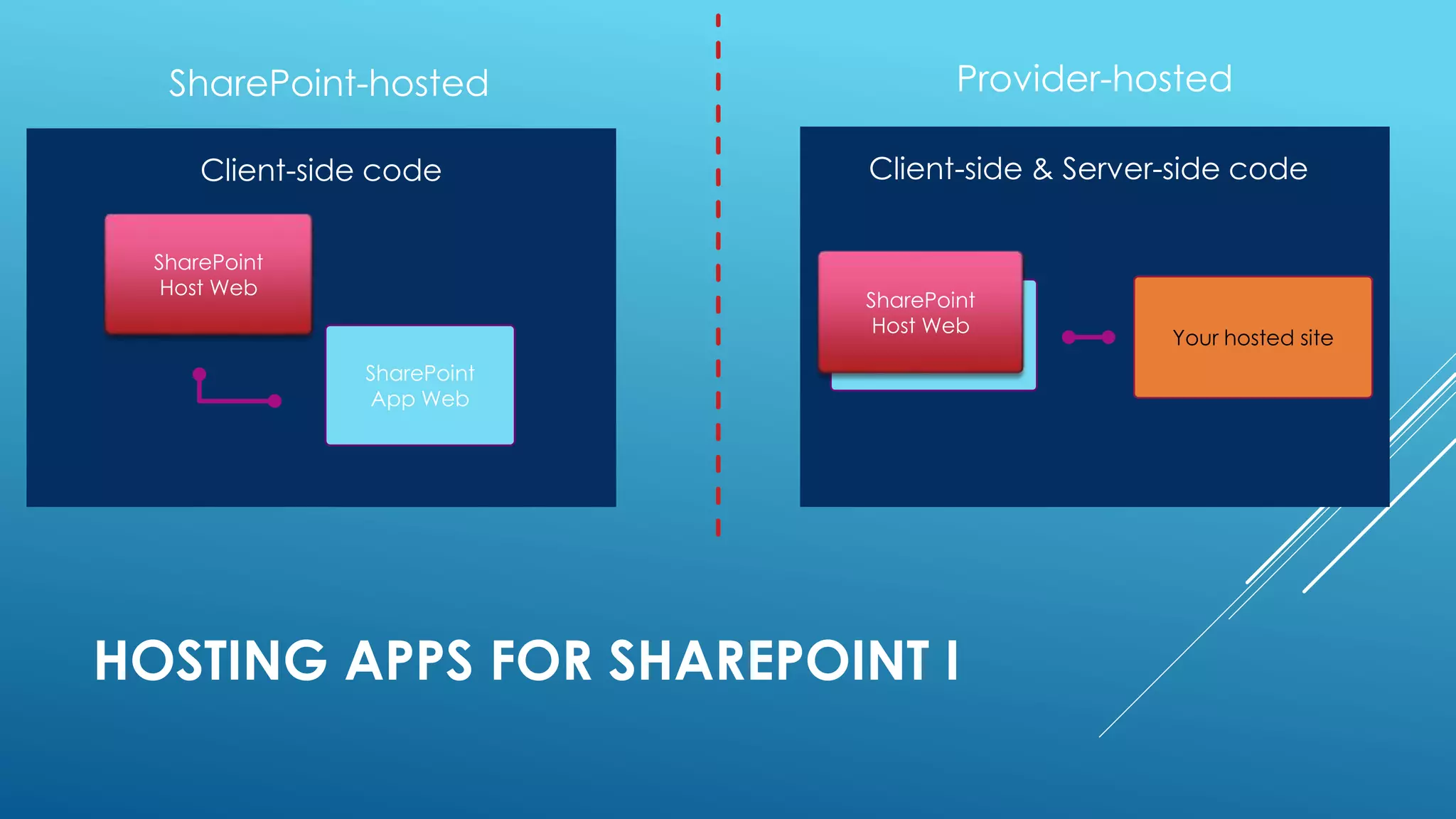

7. HOSTING APPS FOR SHAREPOINT I
SharePoint
App Web
SharePoint
Host Web
Client-side code
Your hosted site
SharePoint
Host Web
Client-side & Server-side code

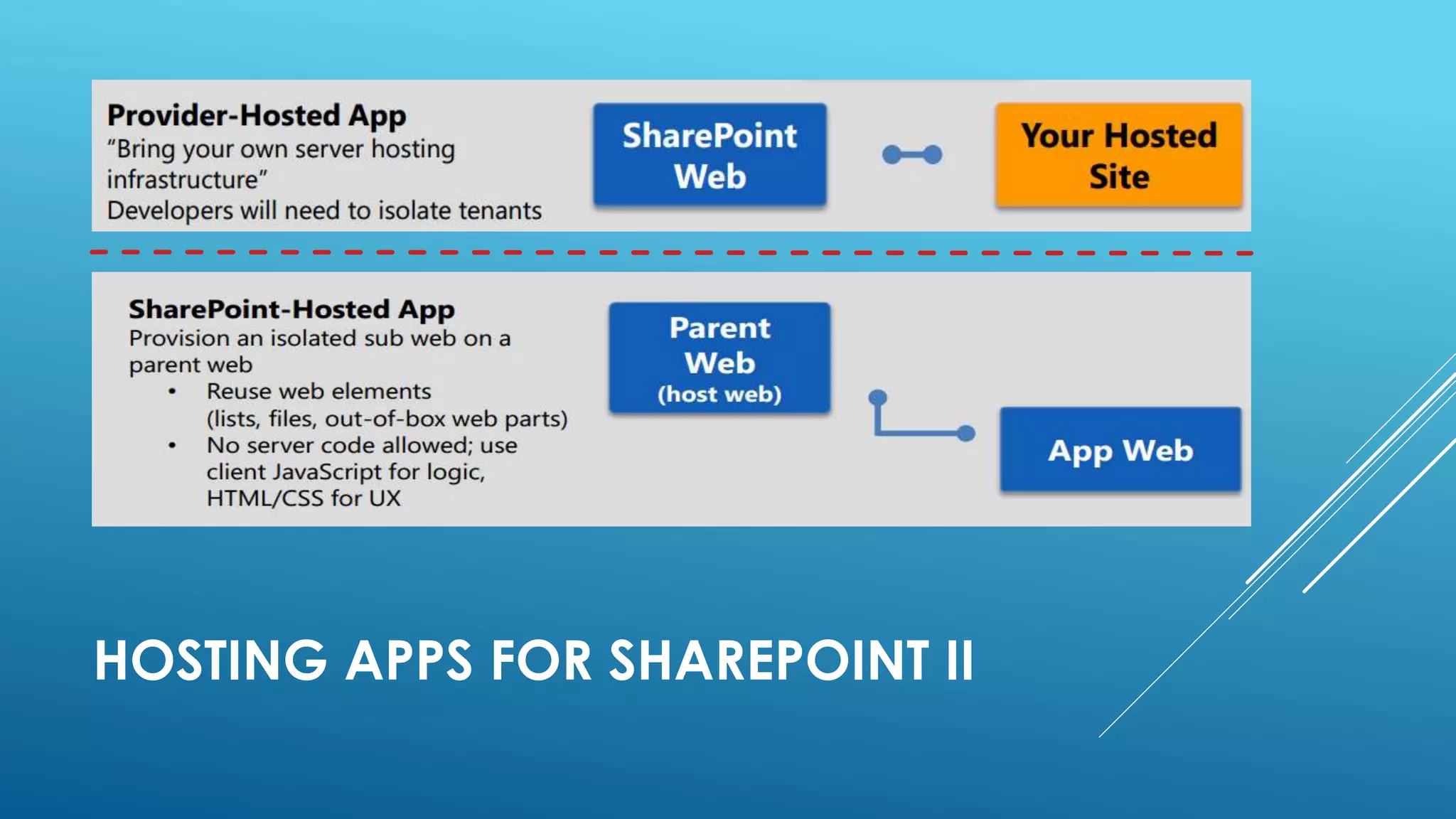

8. HOSTING APPS FOR SHAREPOINT II

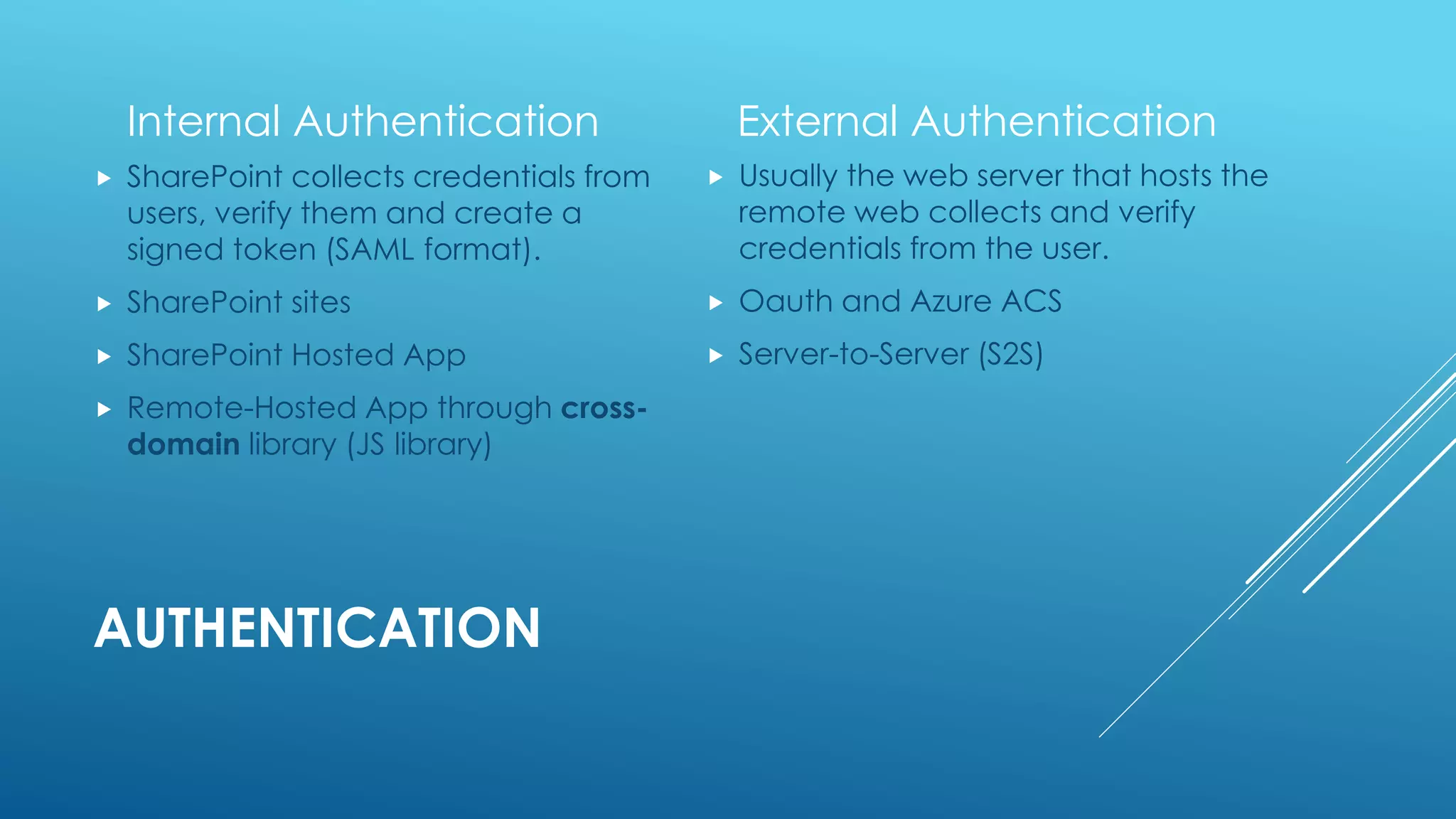

9. AUTHENTICATION
Internal Authentication
 SharePoint collects credentials from
users, verify them and create a
signed token (SAML format).
 SharePoint sites
 SharePoint Hosted App
 Remote-Hosted App through cross-
domain library (JS library)
External Authentication
 Usually the web server that hosts the
remote web collects and verify
credentials from the user.
 Oauth and Azure ACS
 Server-to-Server (S2S)

10. SHAREPOINT HOSTED APP
Every App follow this URL pattern:
http://[APPPREFIX]-[APPHASH].[APPDOMAIN]/[APPNAME]?{StandardTokens}
 APPPREFIX: our farm-related tenant
 APPHASH: unique id, generated on every app installation
 APPDOMAIN: our domain for Apps
 APPNAME: the name of the App
 {StandardTokens}: default querystrings for Apps:
 SPHostUrl={HostUrl}
 SPAppWebUrl={AppWebUrl}
 SPLanguage={Language}
 SPClientTag={ClientTag}
 SPProductNumber={ProductNumber}

11. SHAREPOINT HOSTED APP

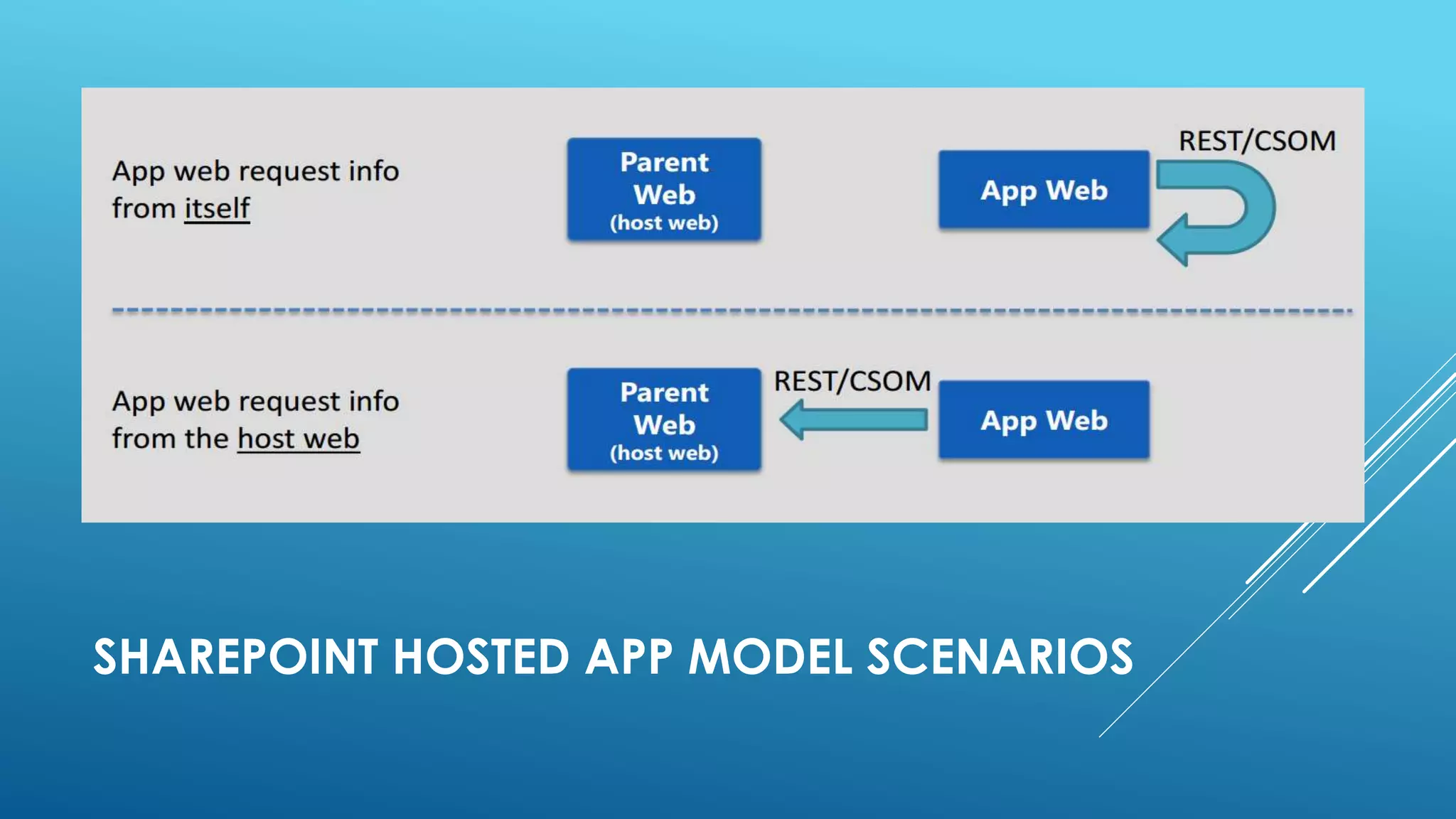

12. SHAREPOINT HOSTED APP MODEL SCENARIOS

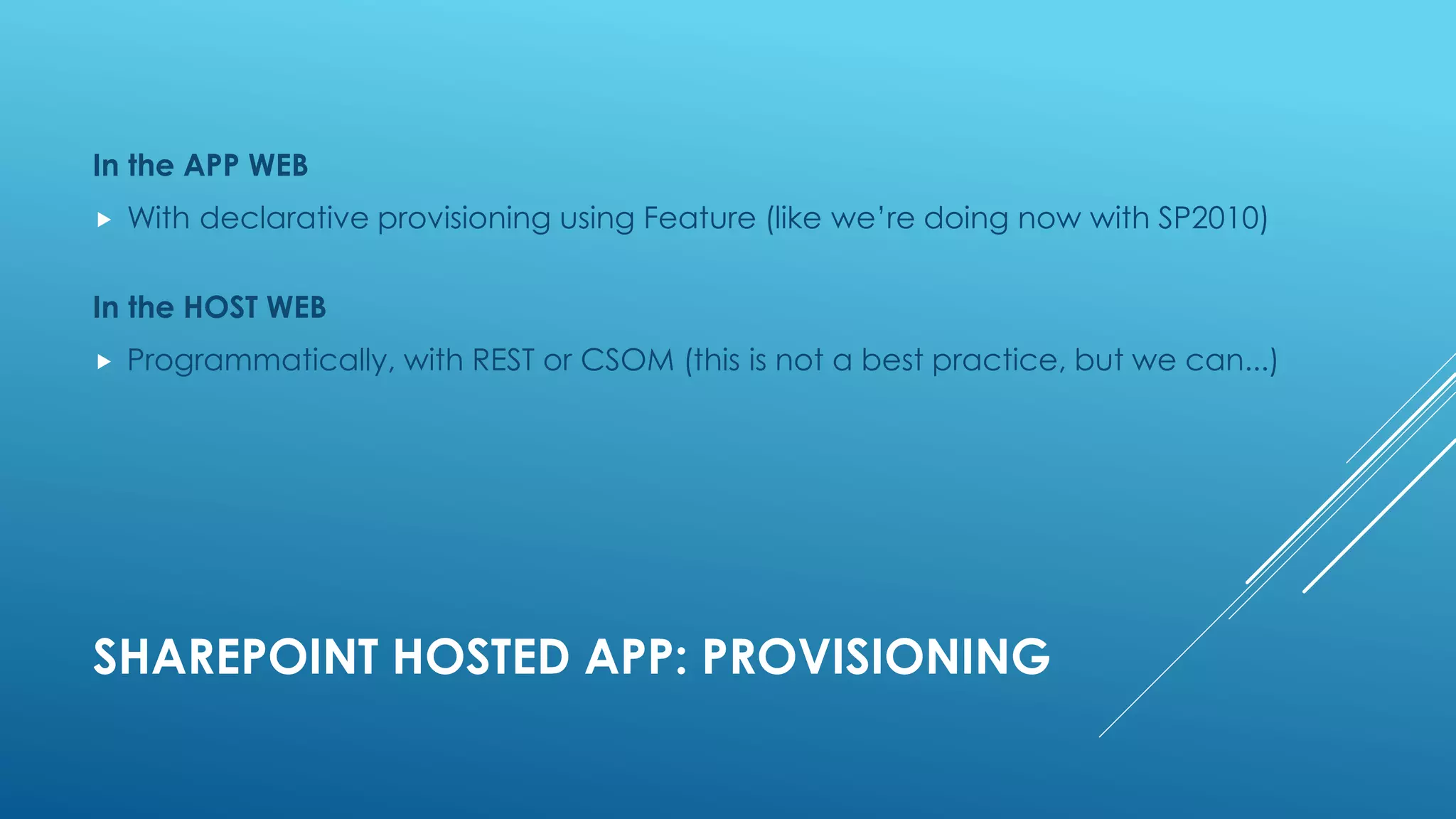

13. SHAREPOINT HOSTED APP: PROVISIONING
In the APP WEB
 With declarative provisioning using Feature (like we’re doing now with SP2010)
In the HOST WEB
 Programmatically, with REST or CSOM (this is not a best practice, but we can...)

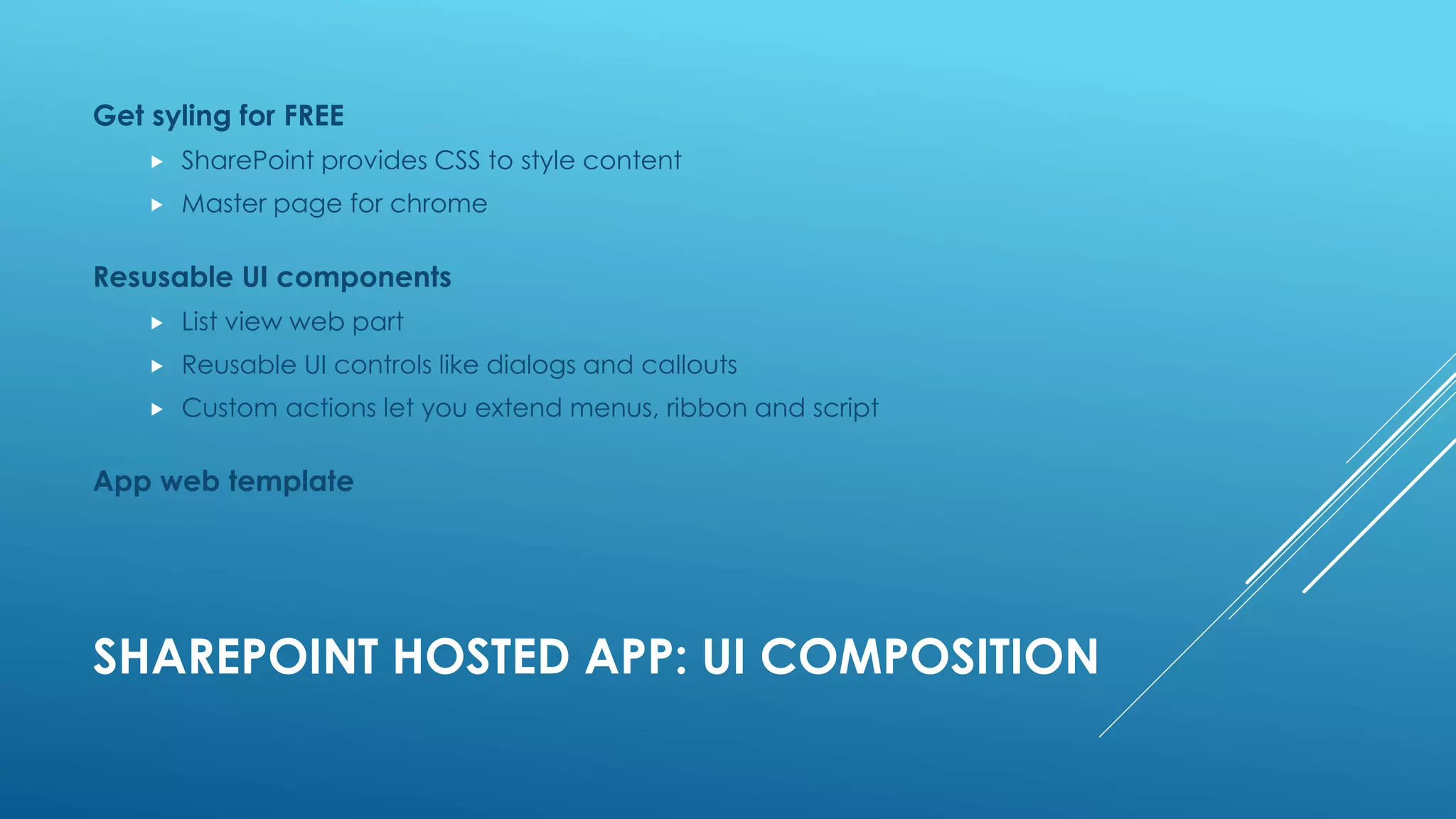

14. SHAREPOINT HOSTED APP: UI COMPOSITION
Get syling for FREE
 SharePoint provides CSS to style content
 Master page for chrome
Resusable UI components
 List view web part
 Reusable UI controls like dialogs and callouts
 Custom actions let you extend menus, ribbon and script
App web template

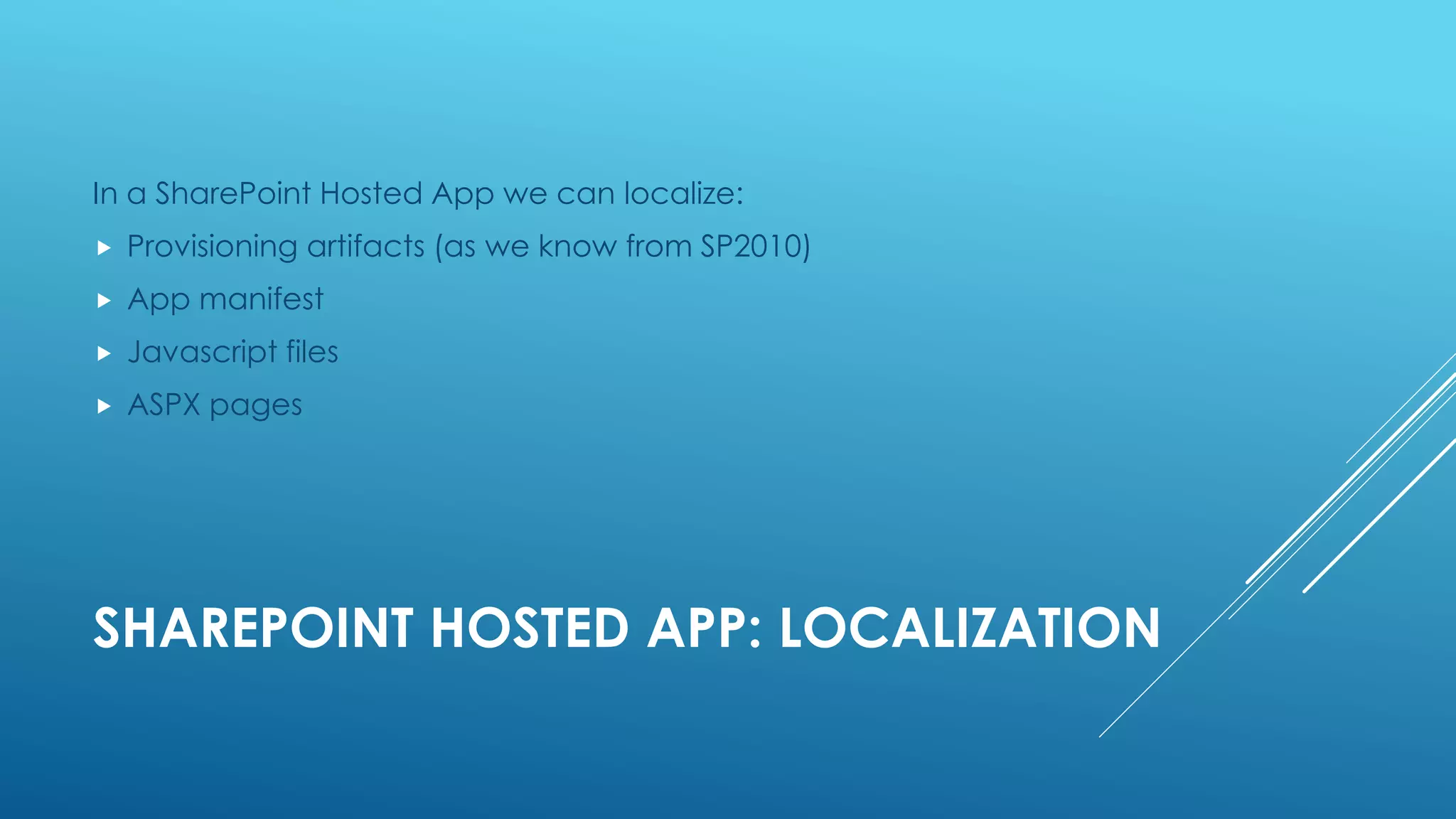

15. SHAREPOINT HOSTED APP: LOCALIZATION
In a SharePoint Hosted App we can localize:
 Provisioning artifacts (as we know from SP2010)
 App manifest
 Javascript files
 ASPX pages

16. PROVIDER HOSTED APP

17. PROVIDER-HOSTED APPS
 You, or your provider for you, are the responsible for the
hosting of your App and its data
 So, you’re the responsible for hosting the App, for multi-tenancy
support, availability and all the plumbing that you may know from
hosting web services.
 Every Provider-Hosted App need a "clientId" and a "client certificate" in
order to complete trust
 IISExpress is used to host the web project
 Local DB is used for the SQL Database

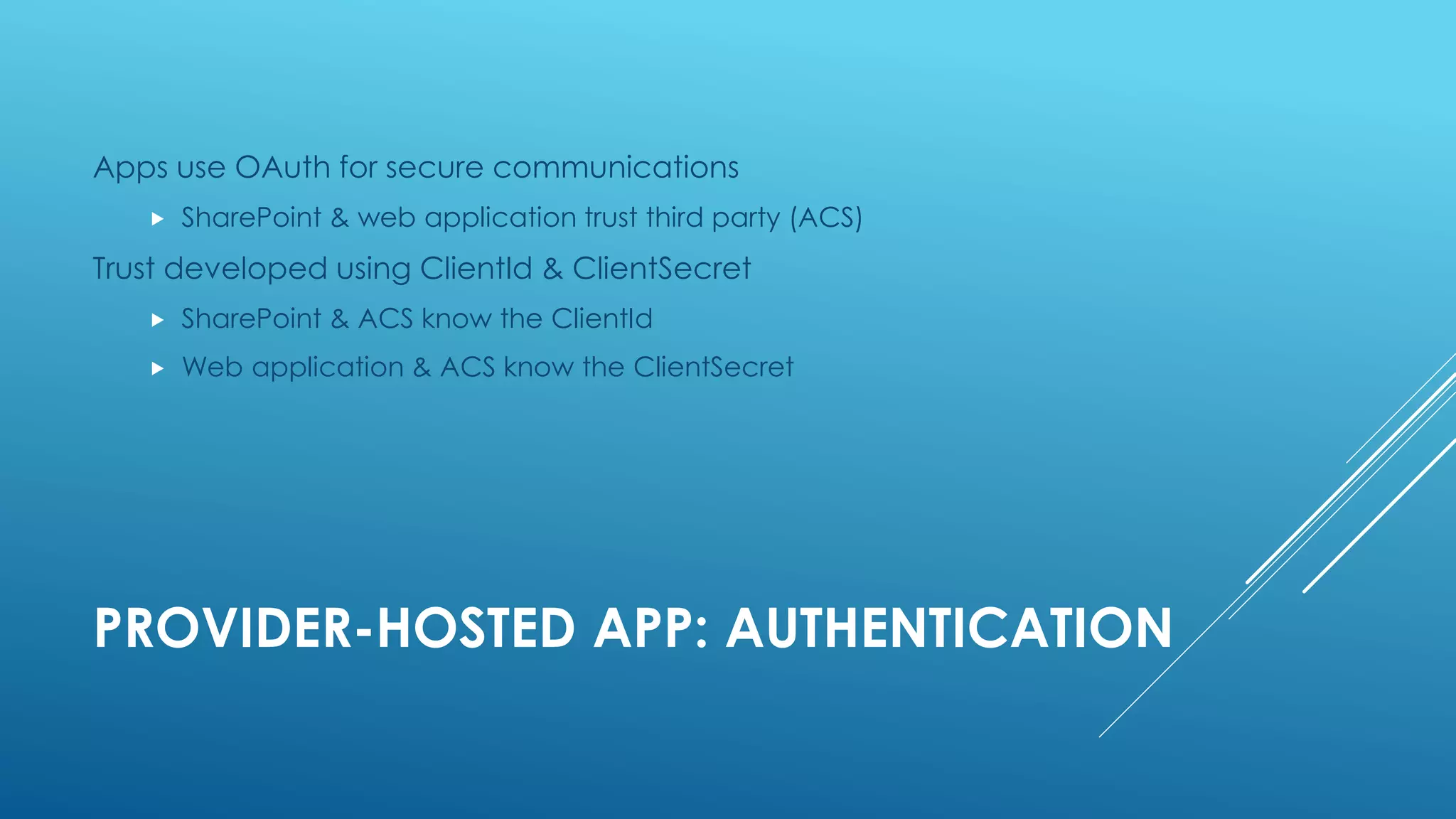

18. PROVIDER-HOSTED APP: AUTHENTICATION
Apps use OAuth for secure communications
 SharePoint & web application trust third party (ACS)
Trust developed using ClientId & ClientSecret
 SharePoint & ACS know the ClientId
 Web application & ACS know the ClientSecret

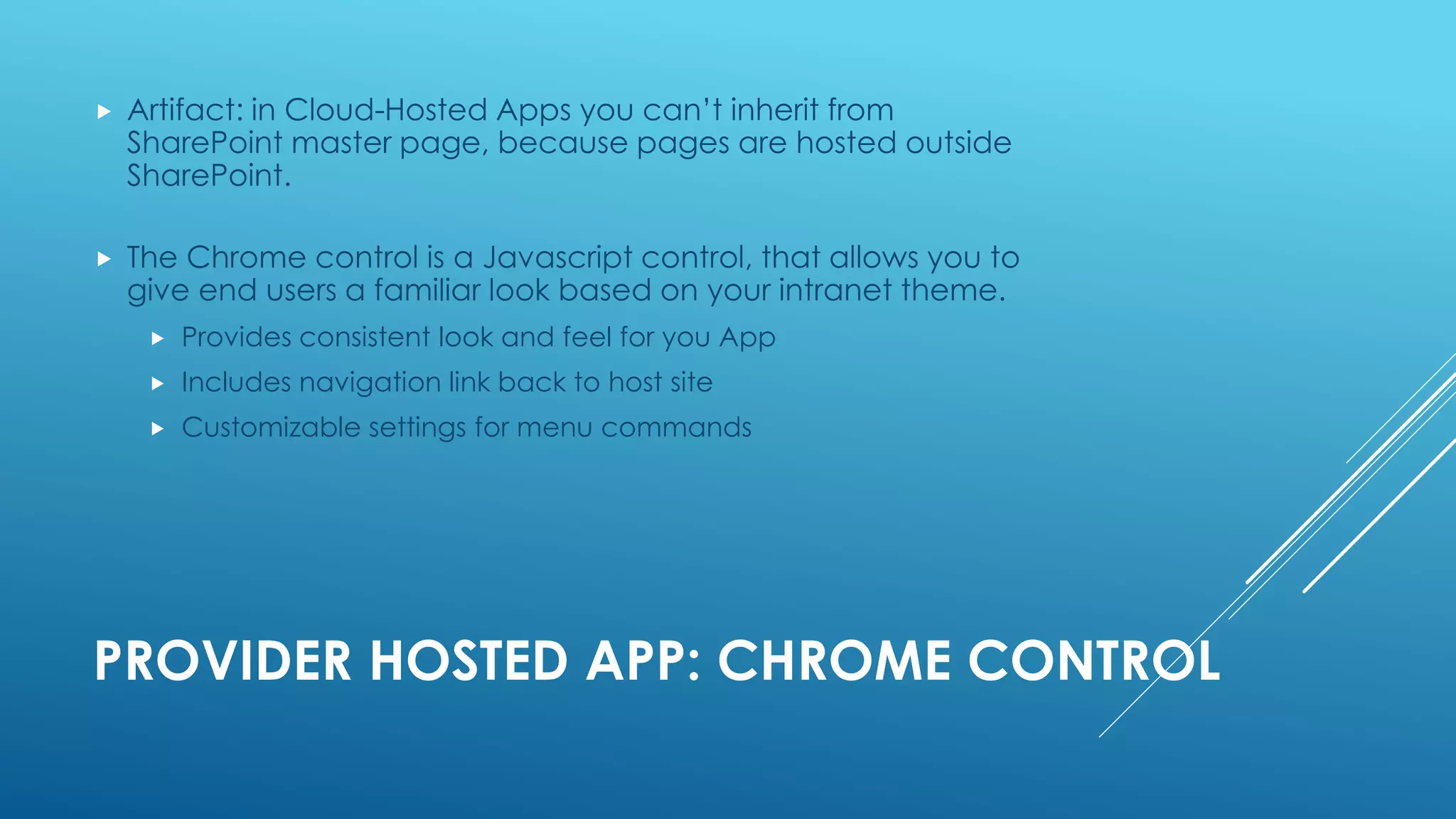

19. PROVIDER HOSTED APP: CHROME CONTROL
 Artifact: in Cloud-Hosted Apps you can’t inherit from
SharePoint master page, because pages are hosted outside
SharePoint.
 The Chrome control is a Javascript control, that allows you to
give end users a familiar look based on your intranet theme.
 Provides consistent look and feel for you App
 Includes navigation link back to host site
 Customizable settings for menu commands

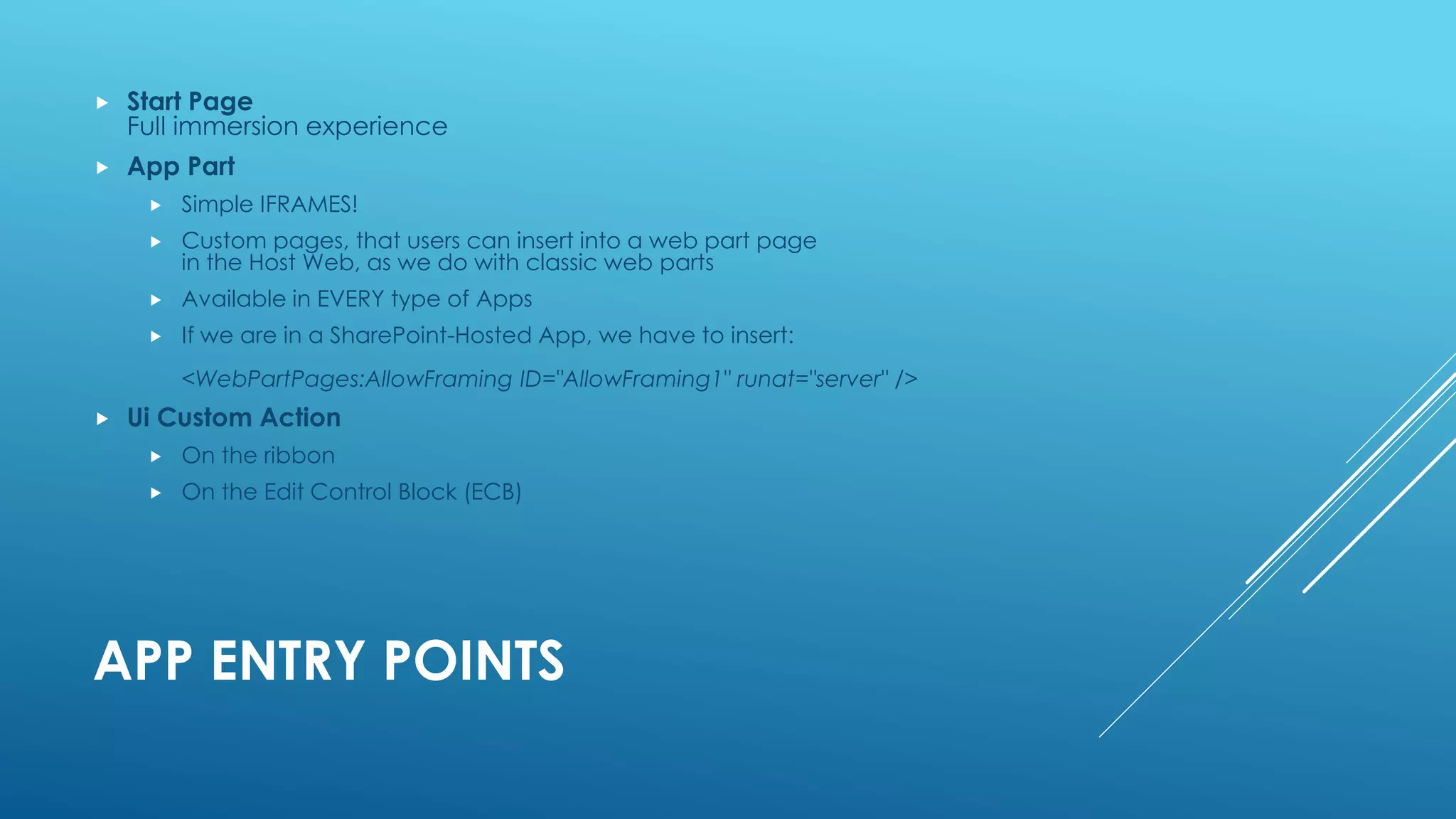

20. APP ENTRY POINTS
 Start Page
Full immersion experience
 App Part
 Simple IFRAMES!
 Custom pages, that users can insert into a web part page
in the Host Web, as we do with classic web parts
 Available in EVERY type of Apps
 If we are in a SharePoint-Hosted App, we have to insert:
<WebPartPages:AllowFraming ID="AllowFraming1" runat="server" />
 Ui Custom Action
 On the ribbon
 On the Edit Control Block (ECB)

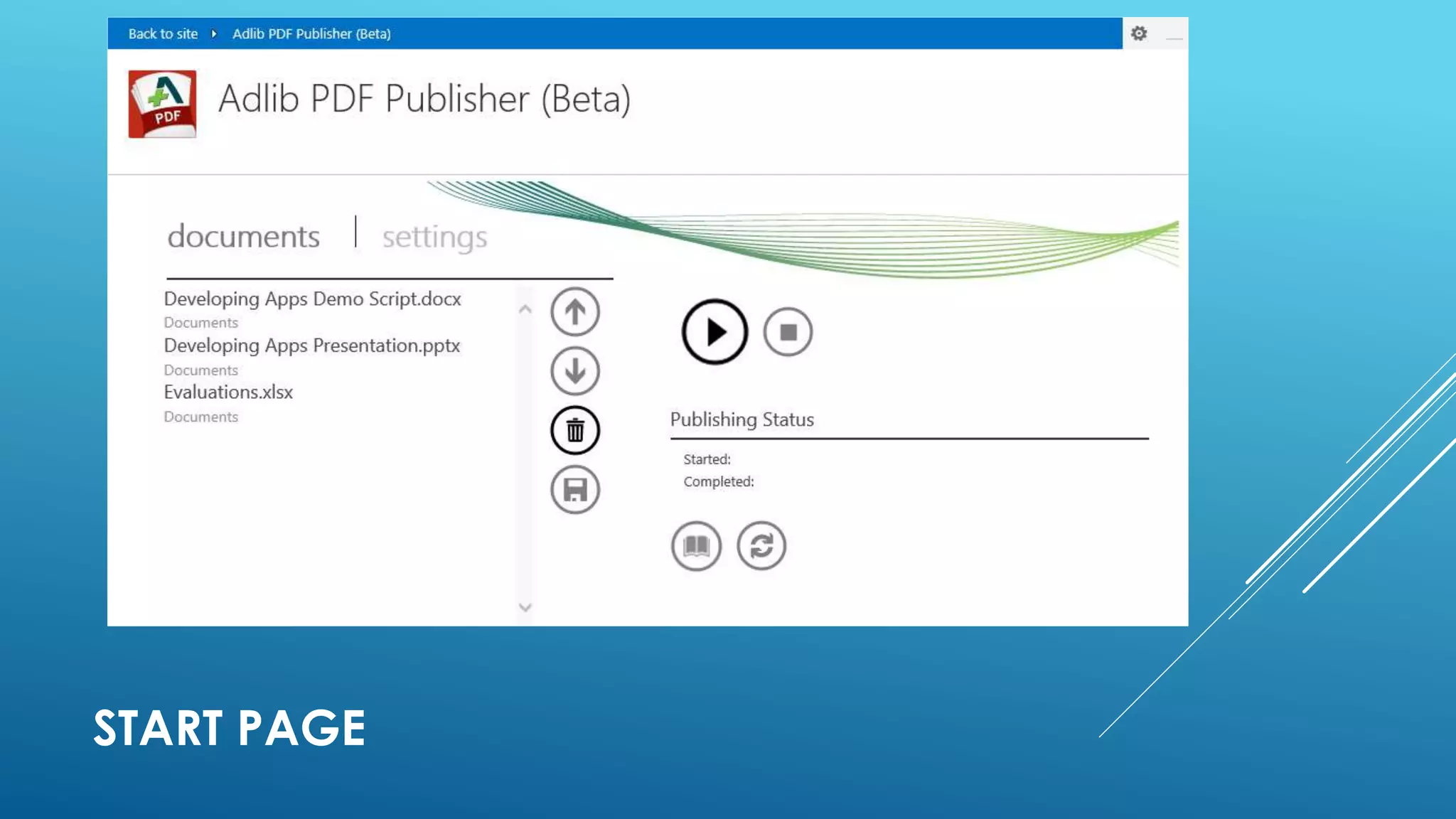

21. START PAGE

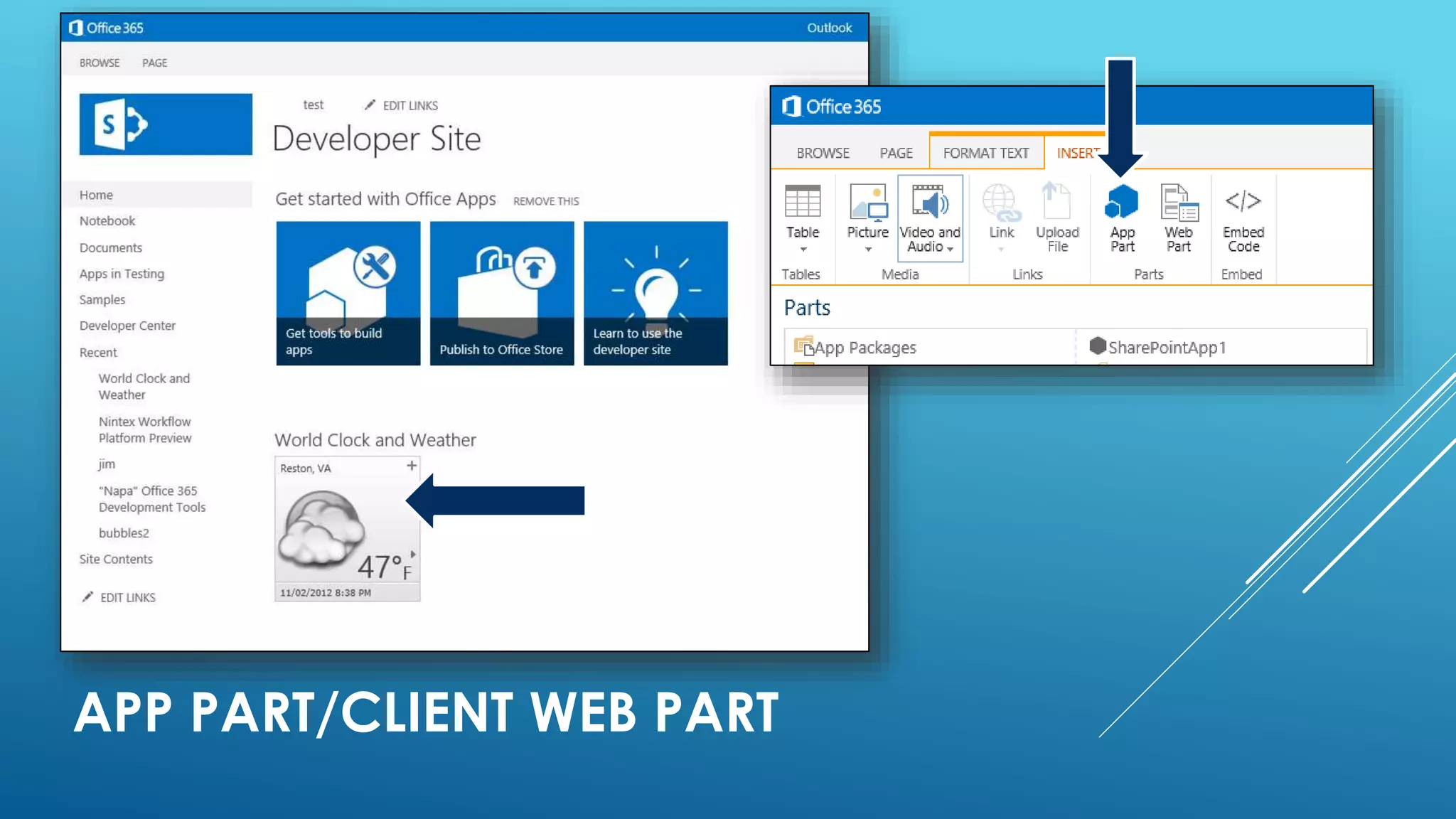

22. APP PART/CLIENT WEB PART

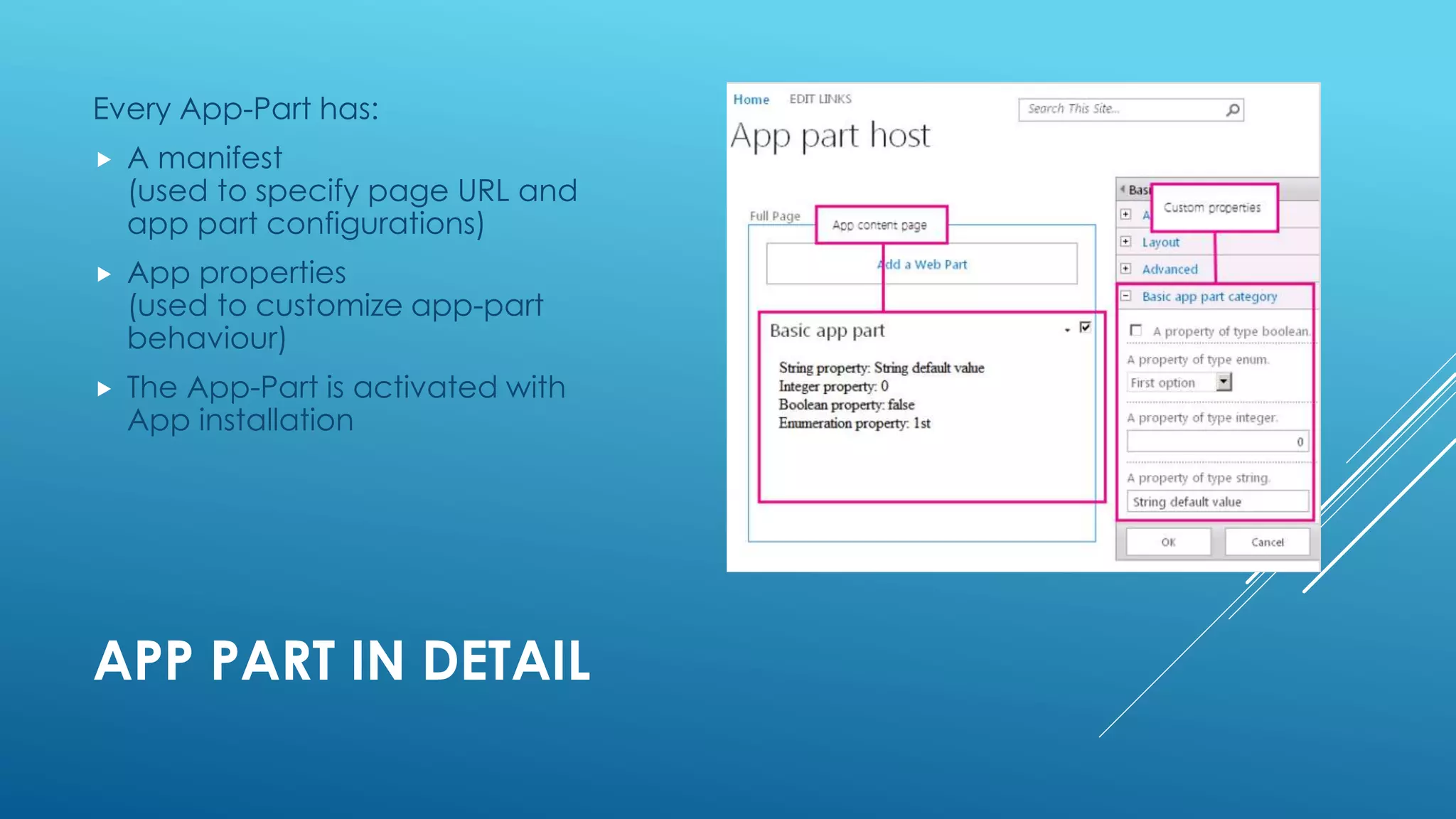

23. APP PART IN DETAIL
Every App-Part has:
 A manifest
(used to specify page URL and
app part configurations)
 App properties
(used to customize app-part
behaviour)
 The App-Part is activated with
App installation

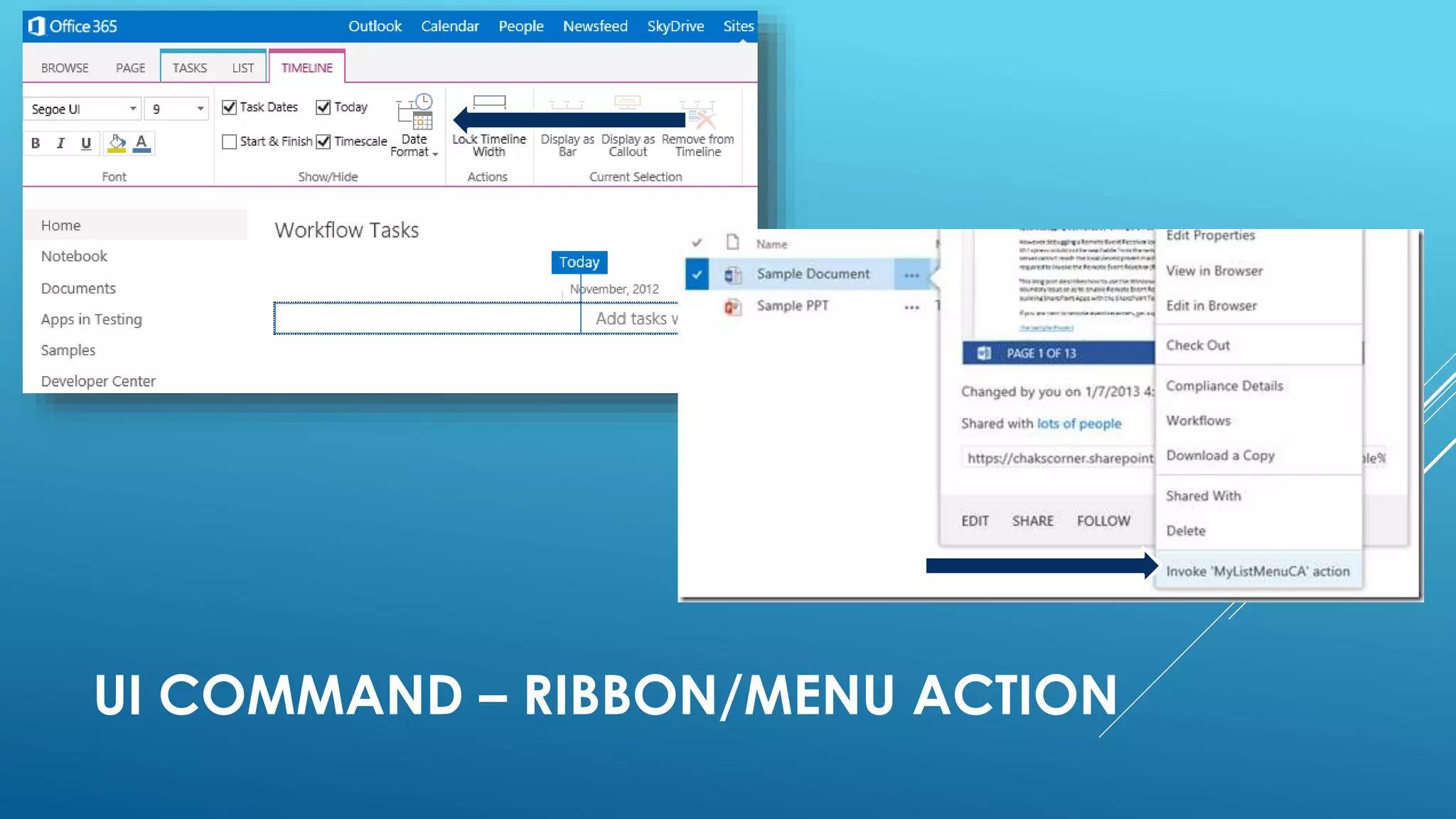

24. UI COMMAND – RIBBON/MENU ACTION

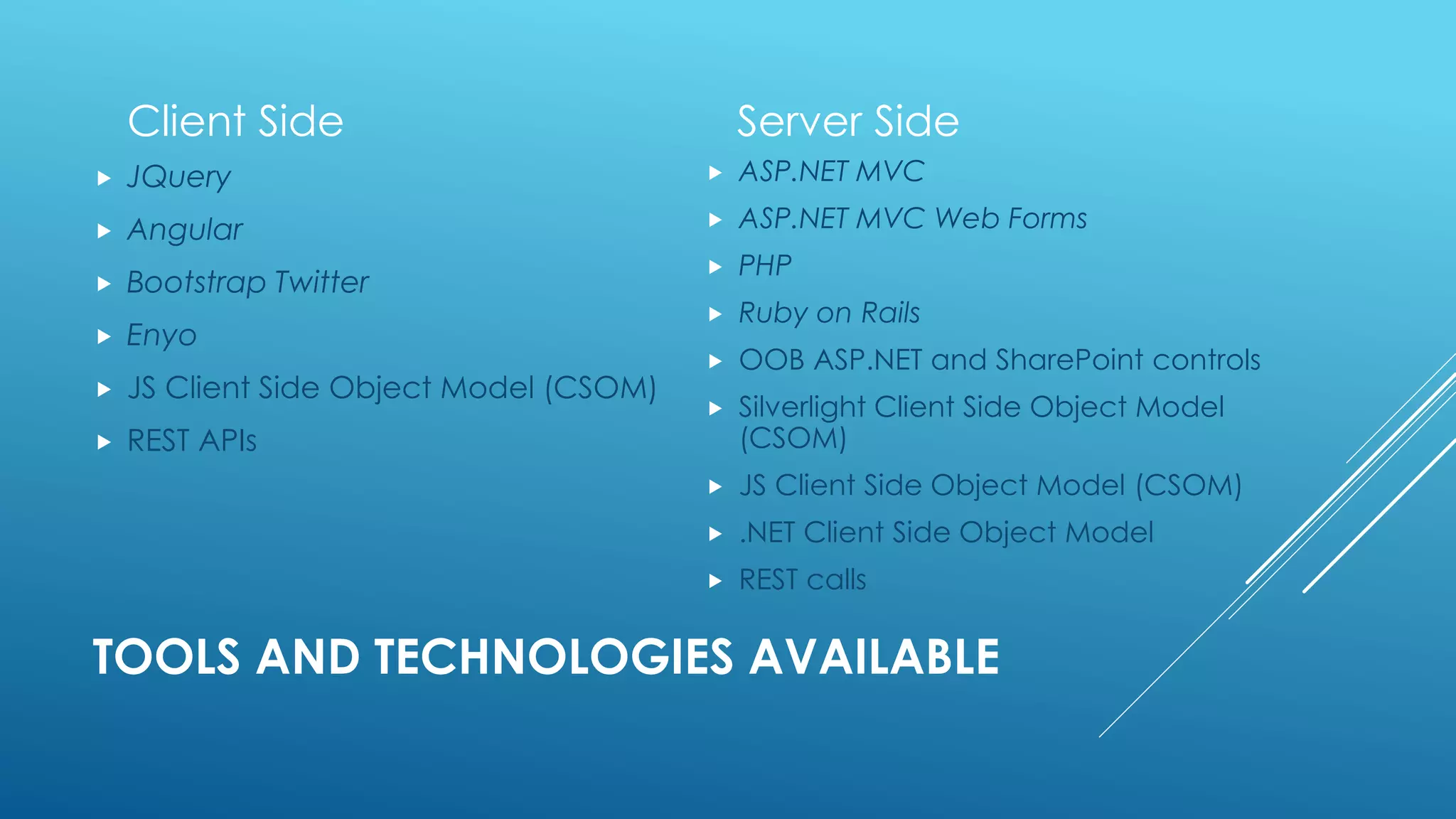

25. TOOLS AND TECHNOLOGIES AVAILABLE
Client Side
 JQuery
 Angular
 Bootstrap Twitter
 Enyo
 JS Client Side Object Model (CSOM)
 REST APIs
Server Side
 ASP.NET MVC
 ASP.NET MVC Web Forms
 PHP
 Ruby on Rails
 OOB ASP.NET and SharePoint controls
 Silverlight Client Side Object Model
(CSOM)
 JS Client Side Object Model (CSOM)
 .NET Client Side Object Model
 REST calls

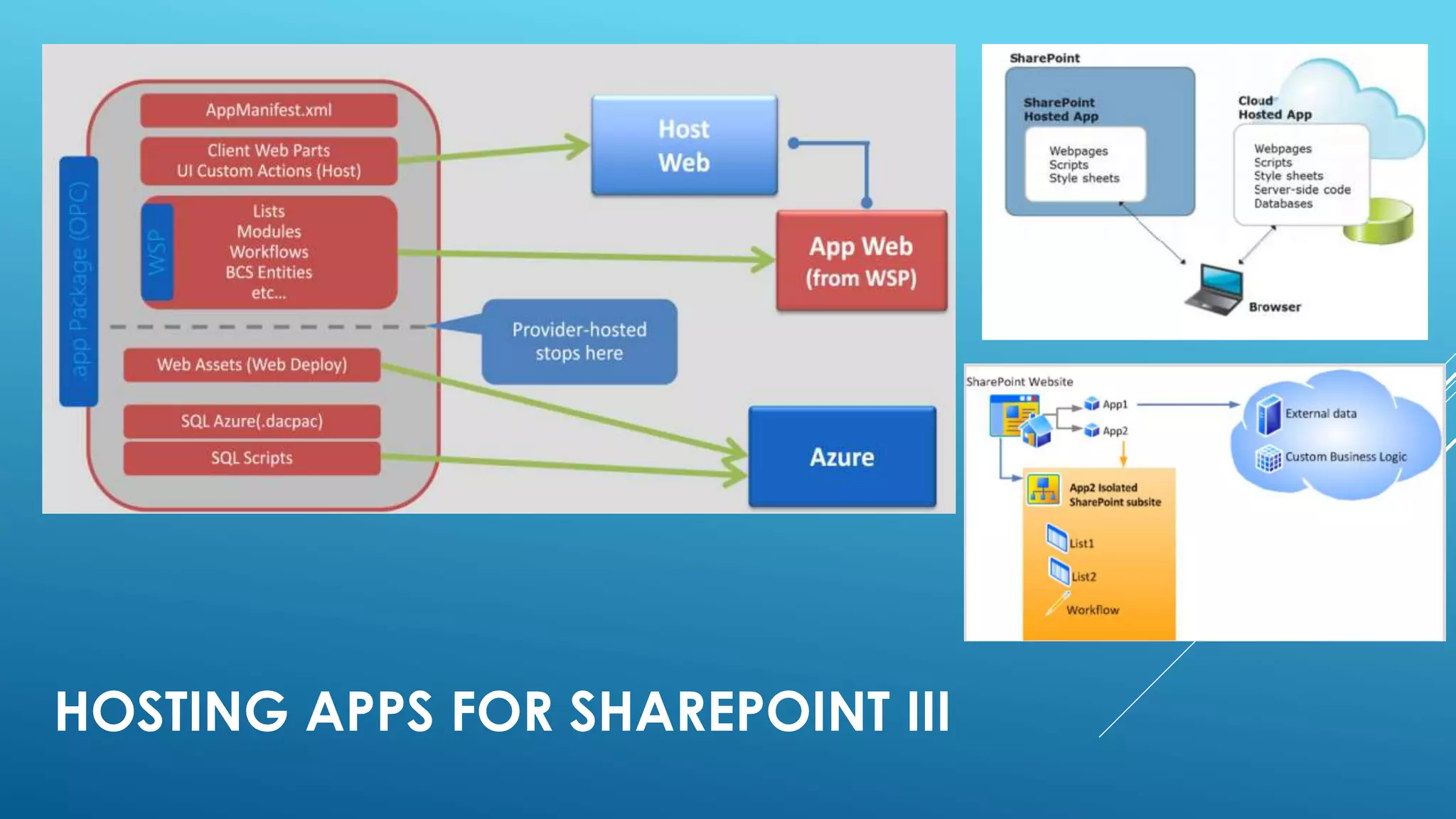

26. HOSTING APPS FOR SHAREPOINT III

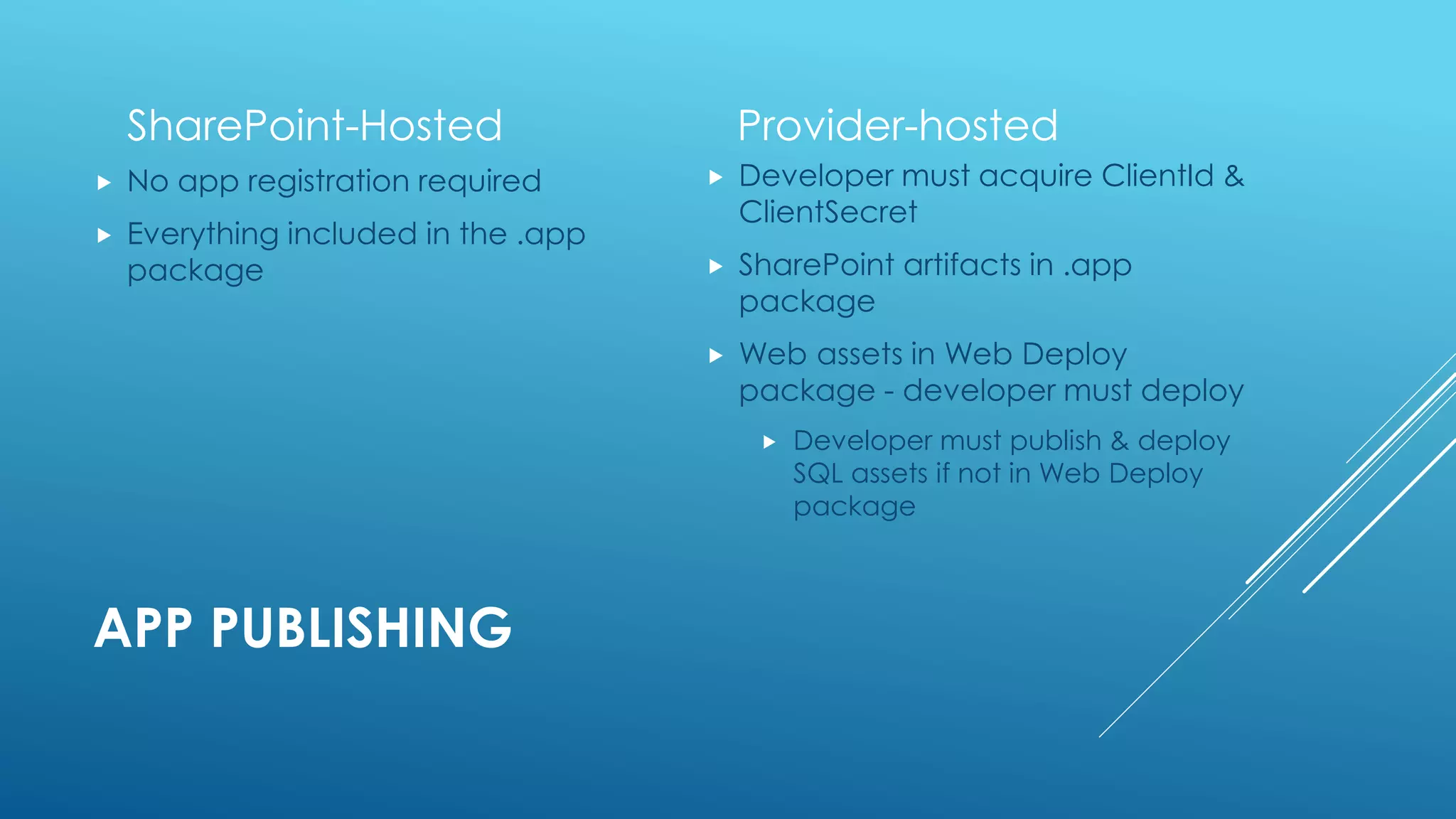

27. APP PUBLISHING
SharePoint-Hosted
 No app registration required
 Everything included in the .app
package
Provider-hosted
 Developer must acquire ClientId &
ClientSecret
 SharePoint artifacts in .app
package
 Web assets in Web Deploy
package - developer must deploy
 Developer must publish & deploy
SQL assets if not in Web Deploy
package

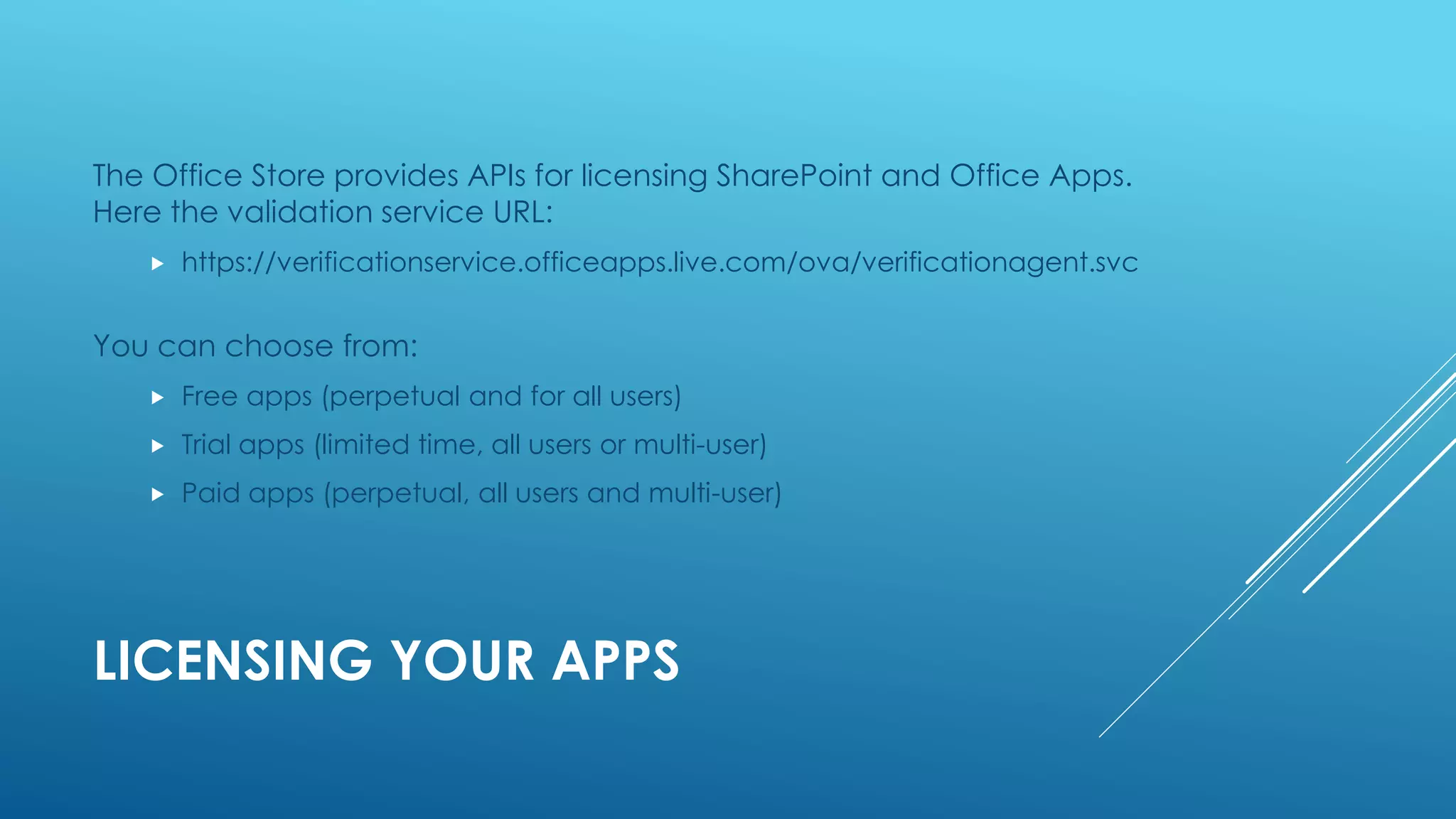

28. LICENSING YOUR APPS
The Office Store provides APIs for licensing SharePoint and Office Apps.
Here the validation service URL:
 https://verificationservice.officeapps.live.com/ova/verificationagent.svc
You can choose from:
 Free apps (perpetual and for all users)
 Trial apps (limited time, all users or multi-user)
 Paid apps (perpetual, all users and multi-user)

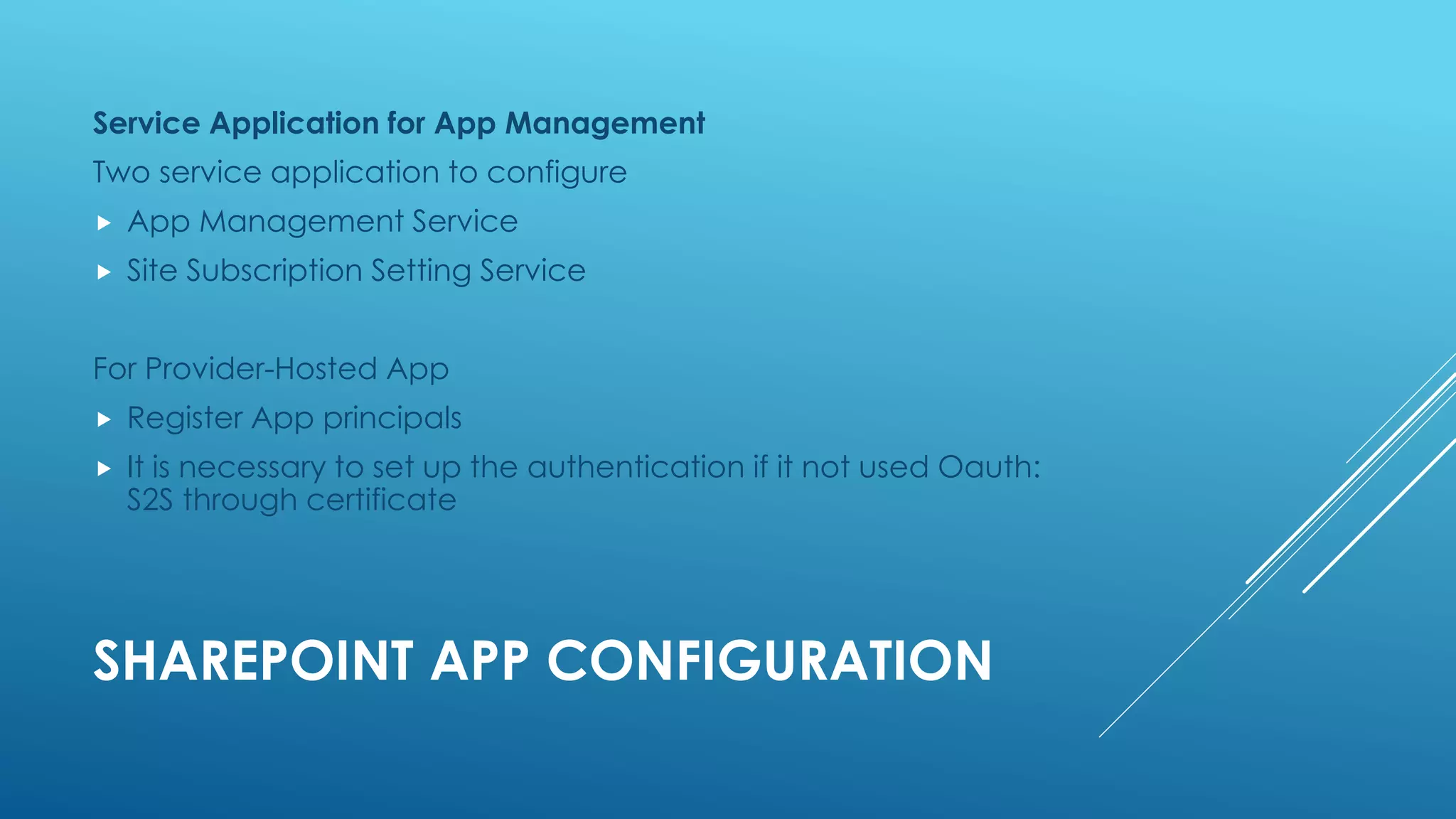

29. SHAREPOINT APP CONFIGURATION
Service Application for App Management
Two service application to configure
 App Management Service
 Site Subscription Setting Service
For Provider-Hosted App
 Register App principals
 It is necessary to set up the authentication if it not used Oauth:
S2S through certificate

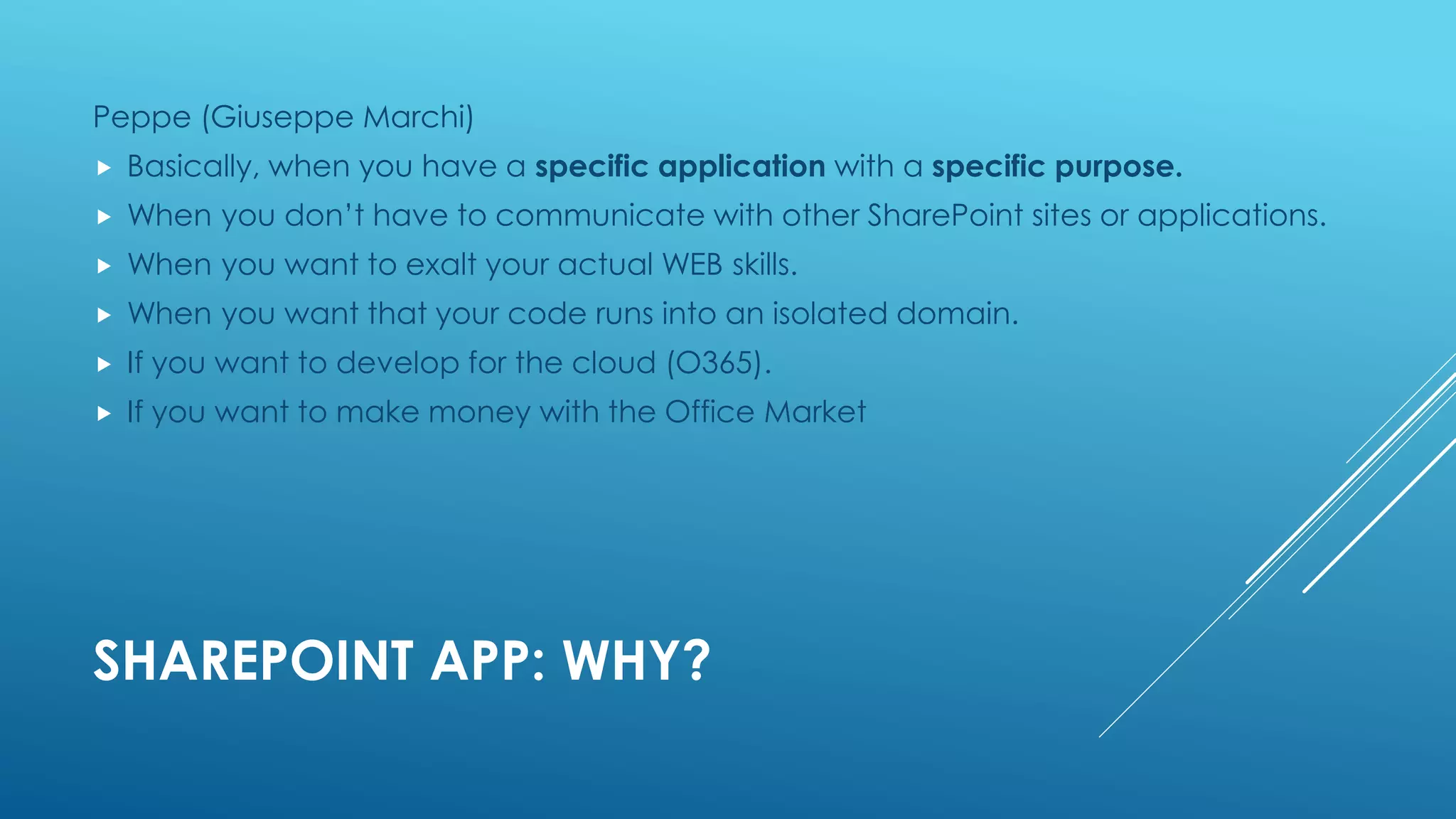

30. SHAREPOINT APP: WHY?
Peppe (Giuseppe Marchi)
 Basically, when you have a specific application with a specific purpose.
 When you don’t have to communicate with other SharePoint sites or applications.
 When you want to exalt your actual WEB skills.
 When you want that your code runs into an isolated domain.
 If you want to develop for the cloud (O365).
 If you want to make money with the Office Market

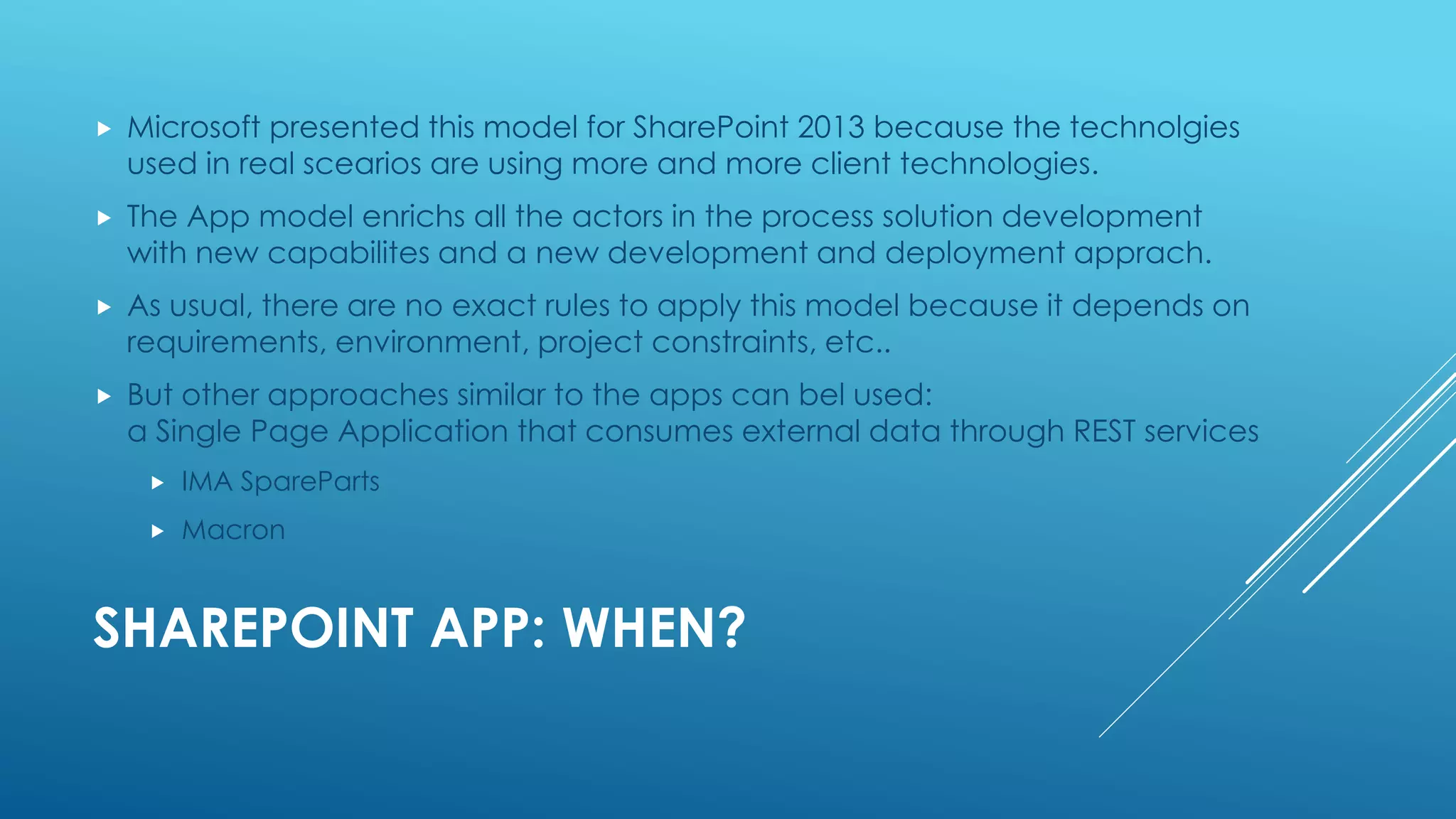

31. SHAREPOINT APP: WHEN?
 Microsoft presented this model for SharePoint 2013 because the technolgies
used in real scearios are using more and more client technologies.
 The App model enrichs all the actors in the process solution development
with new capabilites and a new development and deployment apprach.
 As usual, there are no exact rules to apply this model because it depends on
requirements, environment, project constraints, etc..
 But other approaches similar to the apps can bel used:
a Single Page Application that consumes external data through REST services
 IMA SpareParts
 Macron

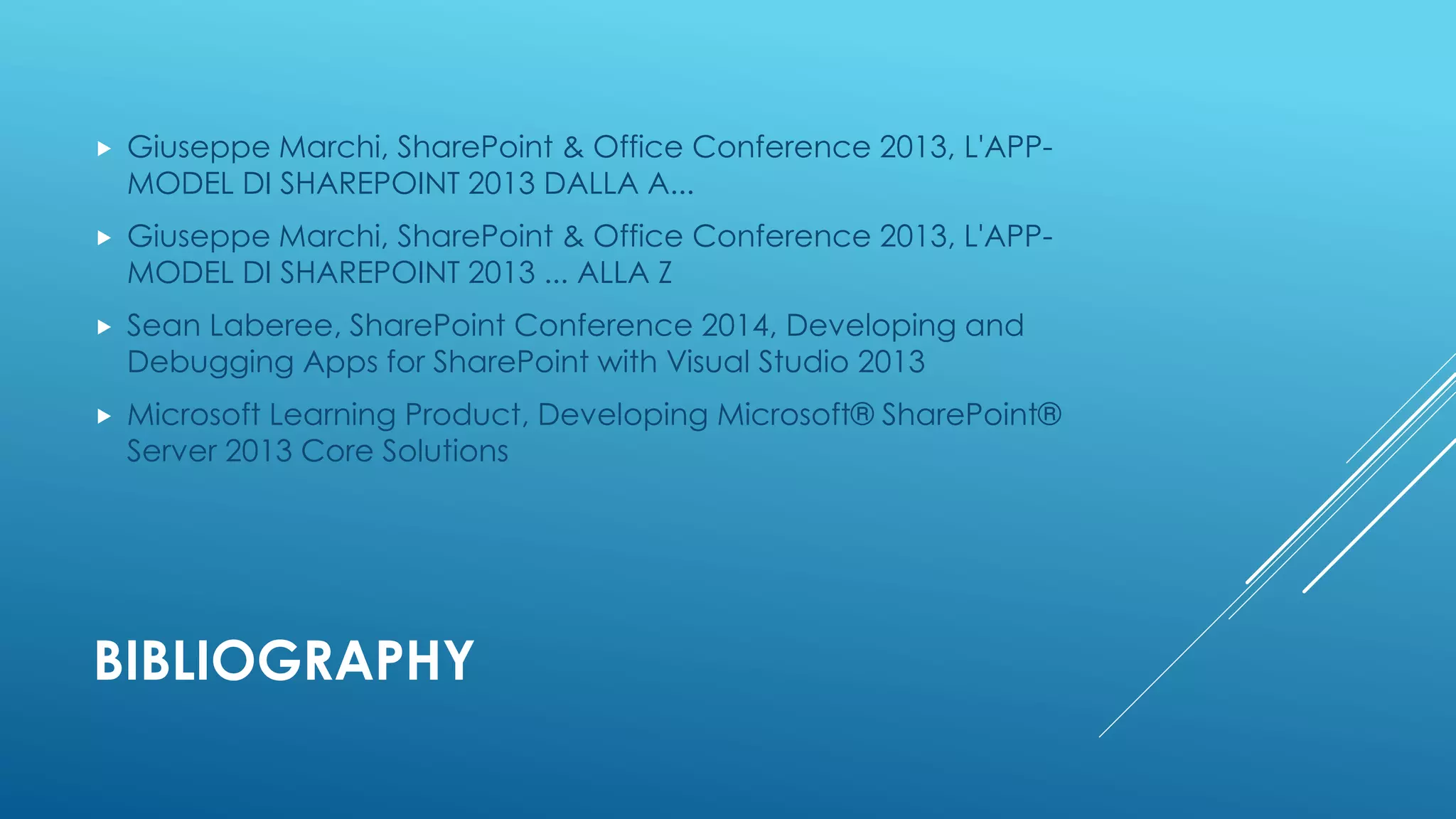

32. BIBLIOGRAPHY
 Giuseppe Marchi, SharePoint & Office Conference 2013, L'APP-
MODEL DI SHAREPOINT 2013 DALLA A...
 Giuseppe Marchi, SharePoint & Office Conference 2013, L'APP-
MODEL DI SHAREPOINT 2013 ... ALLA Z
 Sean Laberee, SharePoint Conference 2014, Developing and
Debugging Apps for SharePoint with Visual Studio 2013
 Microsoft Learning Product, Developing Microsoft® SharePoint®
Server 2013 Core Solutions
