The document discusses the evolution of SharePoint apps, highlighting the benefits of the new app model that eliminates the need for custom server-side code and facilitates easier upgrades, particularly in Office 365. It outlines various hosting options such as SharePoint-hosted, provider-hosted, and cloud-hosted apps, along with the development requirements and security considerations. Additionally, it covers app permissions, deployment processes, and potential challenges in on-premise site configurations.

2. SharePoint Apps in 2013
By: Ryan Schouten
Intermountain Technology Group
SharePoint Saturday Silicon Valley June 22nd, 2013

5. About Me
Ryan Schouten
Worked with SharePoint for 6 years
I have experience with SharePoint 2003 – 2013
I have worked with ASP.Net for 10 years
Contact Information
Ryan.Schouten@itg-mail.com
@shrpntknight
http://www.sharepointknight.com

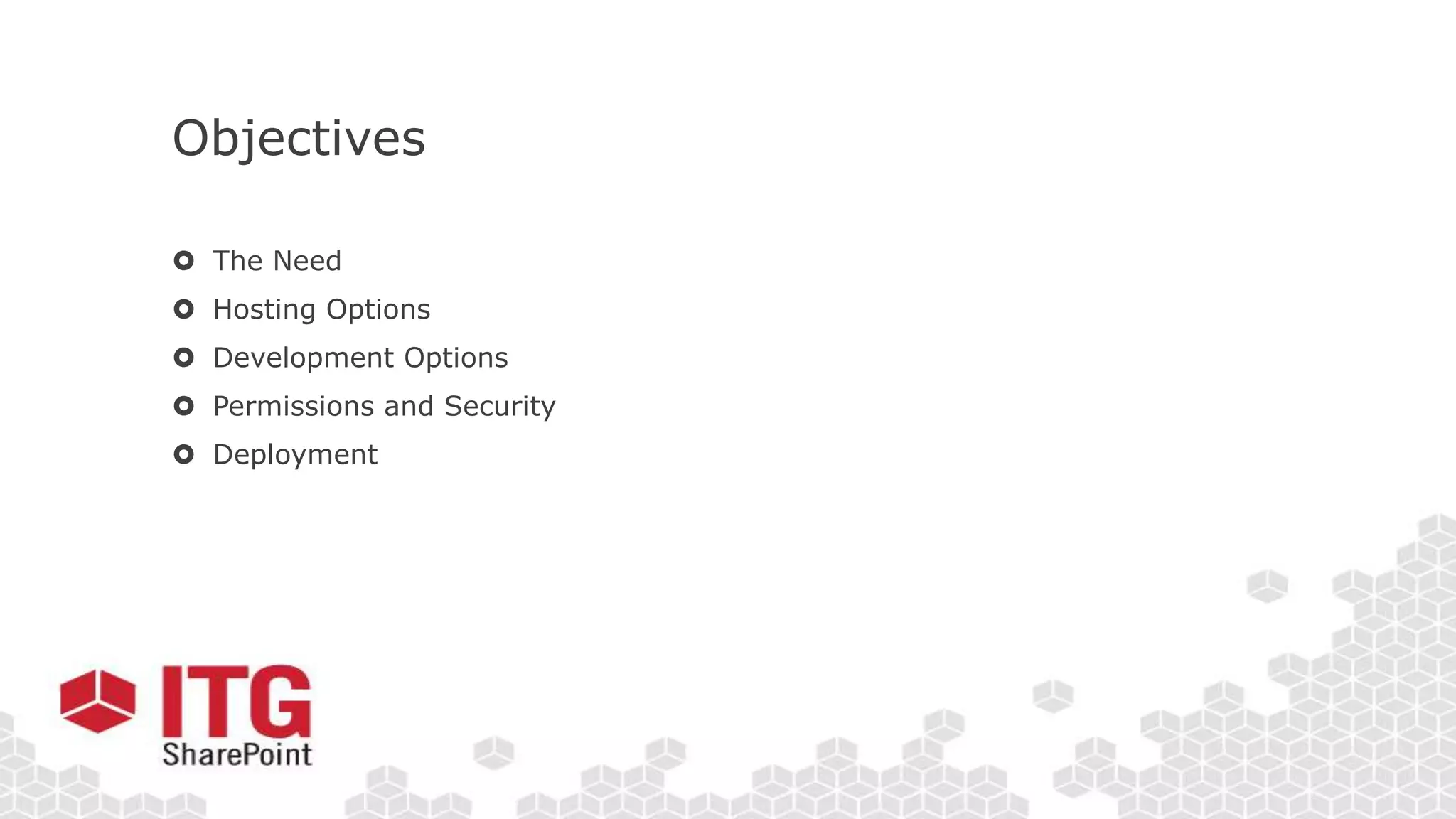

6. Objectives
 The Need
 Hosting Options
 Development Options
 Permissions and Security
 Deployment

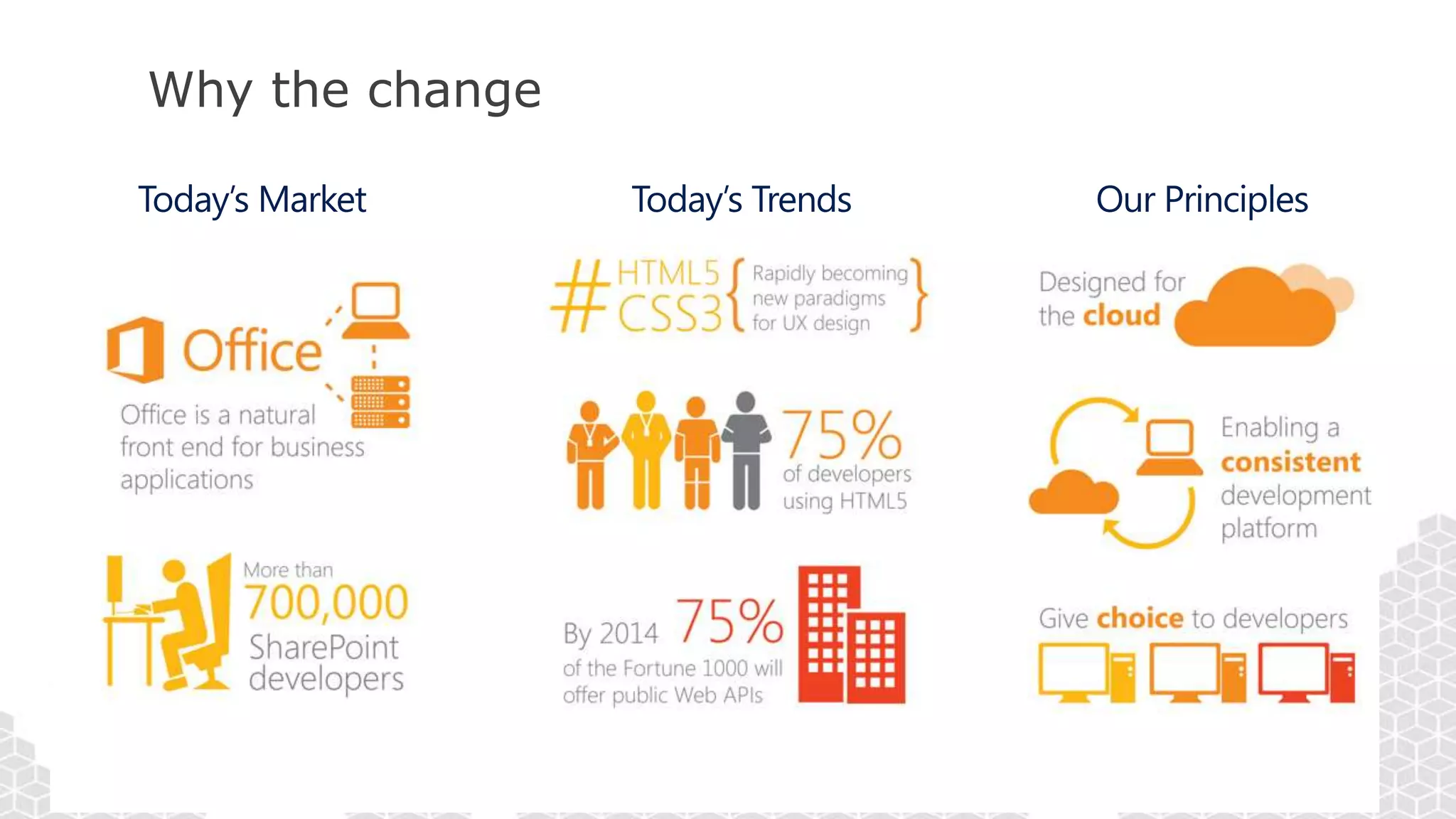

7. Why the change

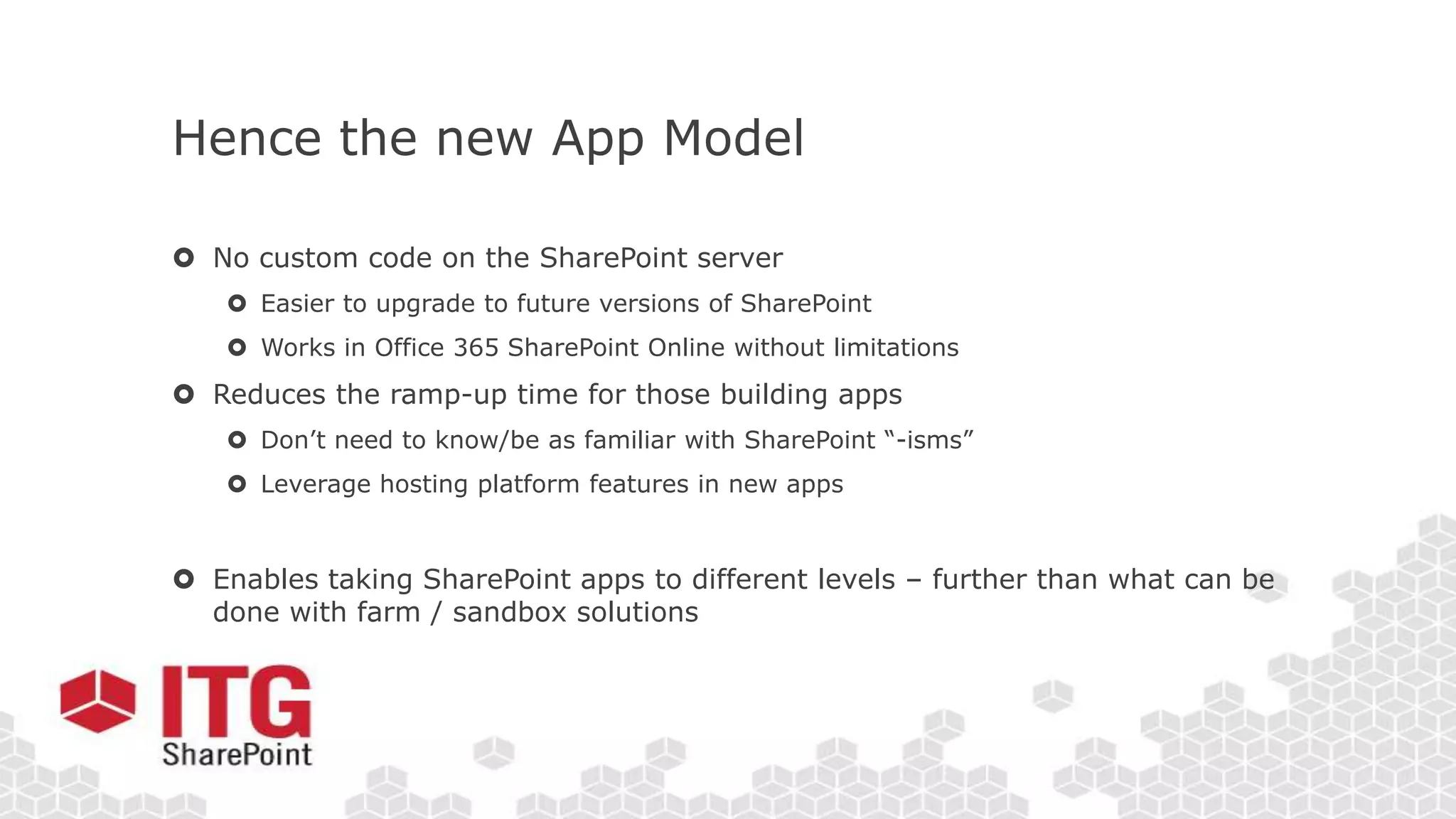

8. Hence the new App Model
 No custom code on the SharePoint server
 Easier to upgrade to future versions of SharePoint
 Works in Office 365 SharePoint Online without limitations
 Reduces the ramp-up time for those building apps
 Don’t need to know/be as familiar with SharePoint “-isms”
 Leverage hosting platform features in new apps
 Enables taking SharePoint apps to different levels – further than what can be
done with farm / sandbox solutions

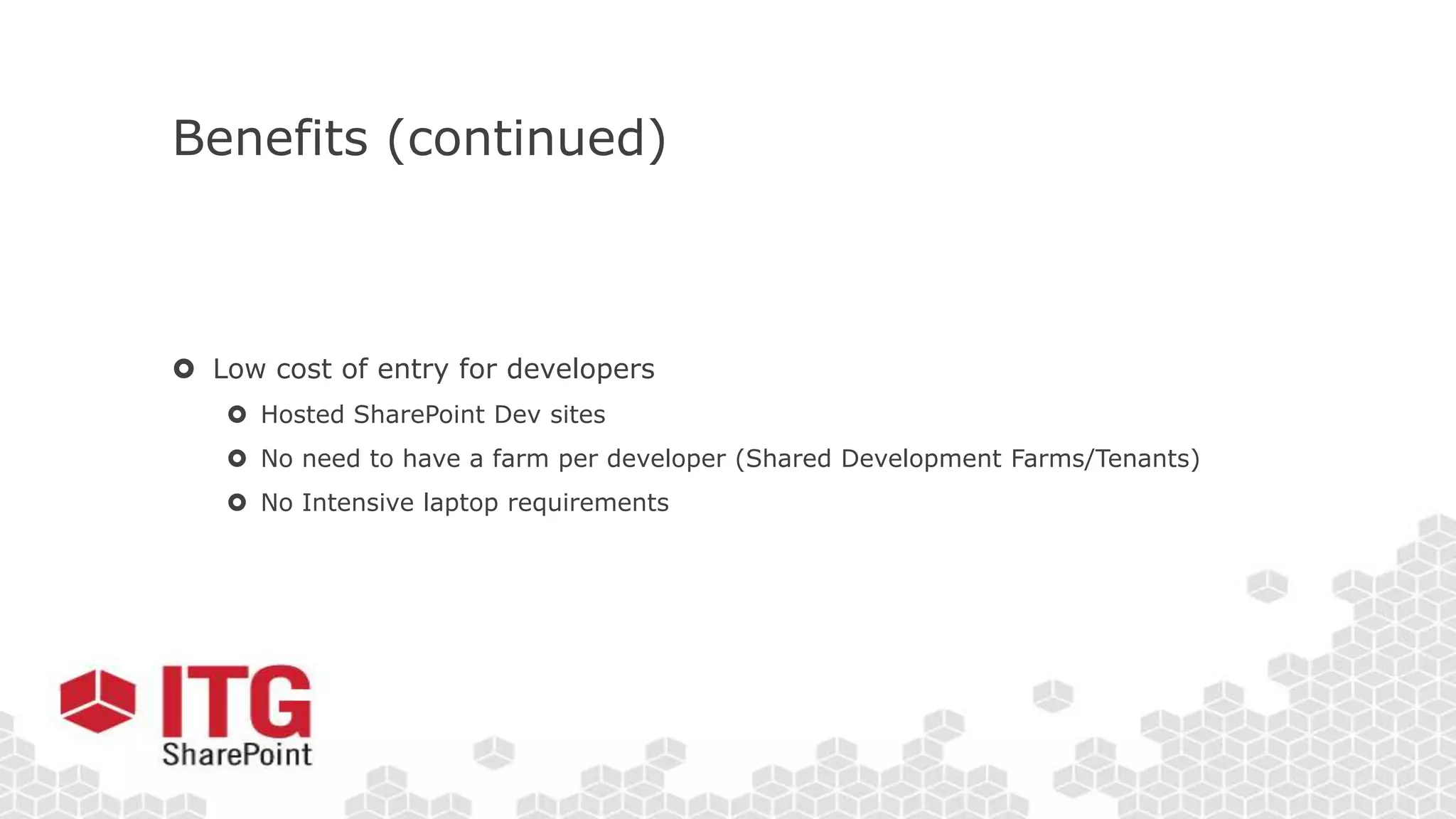

9. Benefits (continued)
 Low cost of entry for developers
 Hosted SharePoint Dev sites
 No need to have a farm per developer (Shared Development Farms/Tenants)
 No Intensive laptop requirements

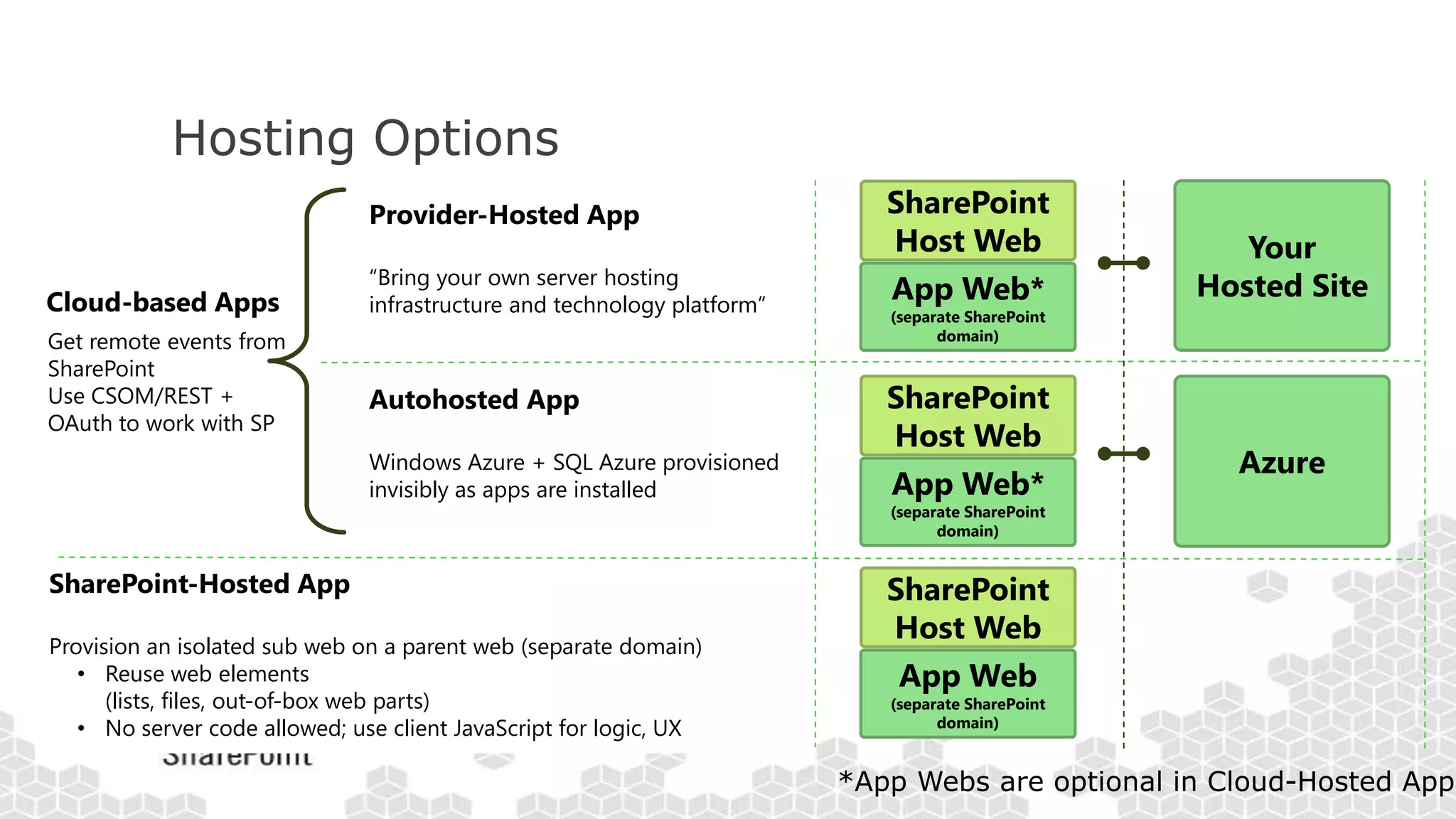

10. Hosting Options
SharePoint-Hosted App
Provision an isolated sub web on a parent web (separate domain)
• Reuse web elements
(lists, files, out-of-box web parts)
• No server code allowed; use client JavaScript for logic, UX
Provider-Hosted App
“Bring your own server hosting
infrastructure and technology platform”
Get remote events from
SharePoint
Use CSOM/REST +
OAuth to work with SP
Cloud-based Apps
Your
Hosted Site
Autohosted App
Windows Azure + SQL Azure provisioned
invisibly as apps are installed
Azure
SharePoint
Host Web
App Web*
(separate SharePoint
domain)
SharePoint
Host Web
App Web*
(separate SharePoint
domain)
SharePoint
Host Web
App Web
(separate SharePoint
domain)

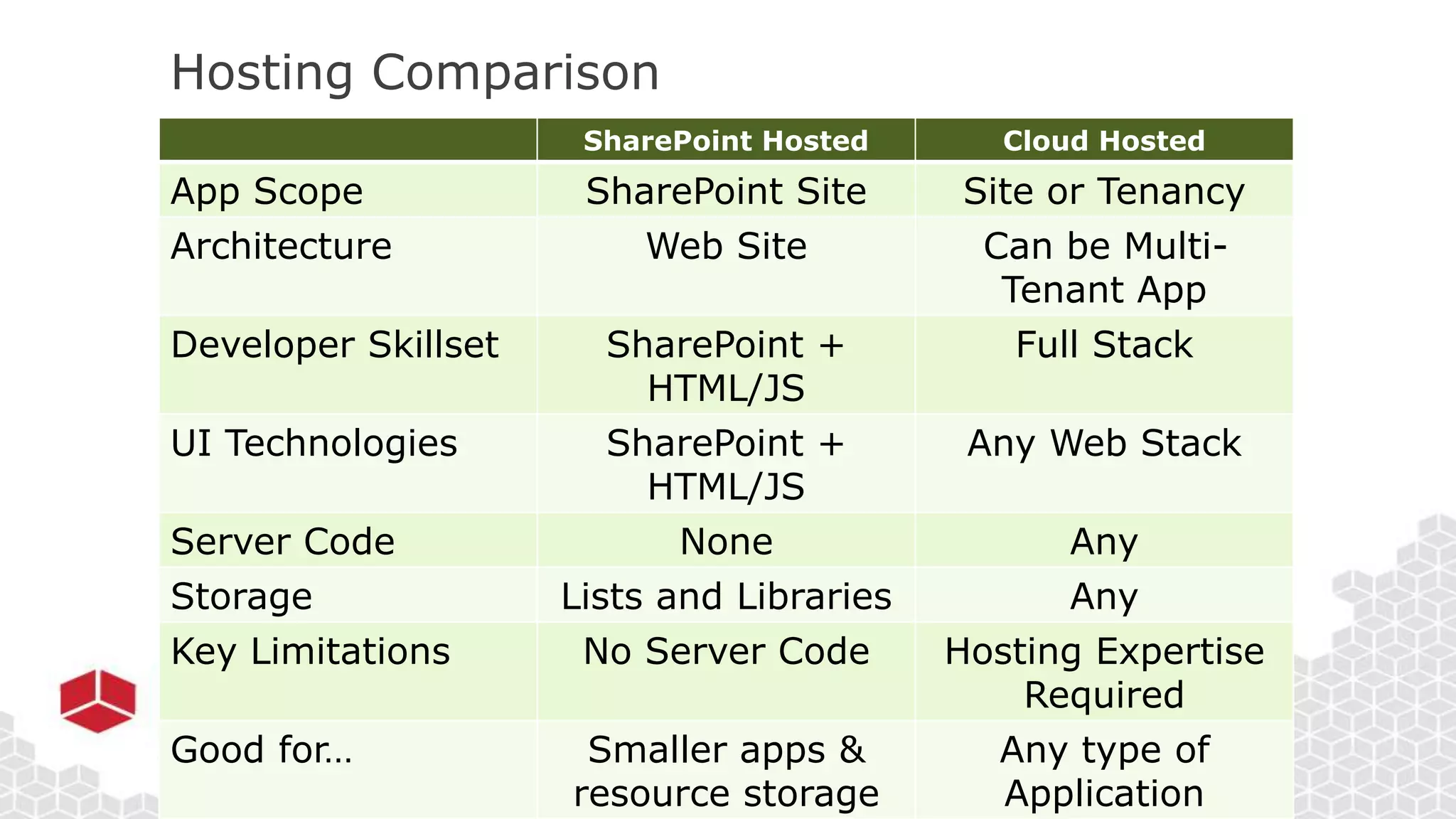

11. Hosting Comparison
SharePoint Hosted Cloud Hosted
App Scope SharePoint Site Site or Tenancy
Architecture Web Site Can be Multi-
Tenant App
Developer Skillset SharePoint +
HTML/JS
Full Stack
UI Technologies SharePoint +
HTML/JS
Any Web Stack
Server Code None Any
Storage Lists and Libraries Any
Key Limitations No Server Code Hosting Expertise
Required
Good for… Smaller apps &
resource storage
Any type of
Application

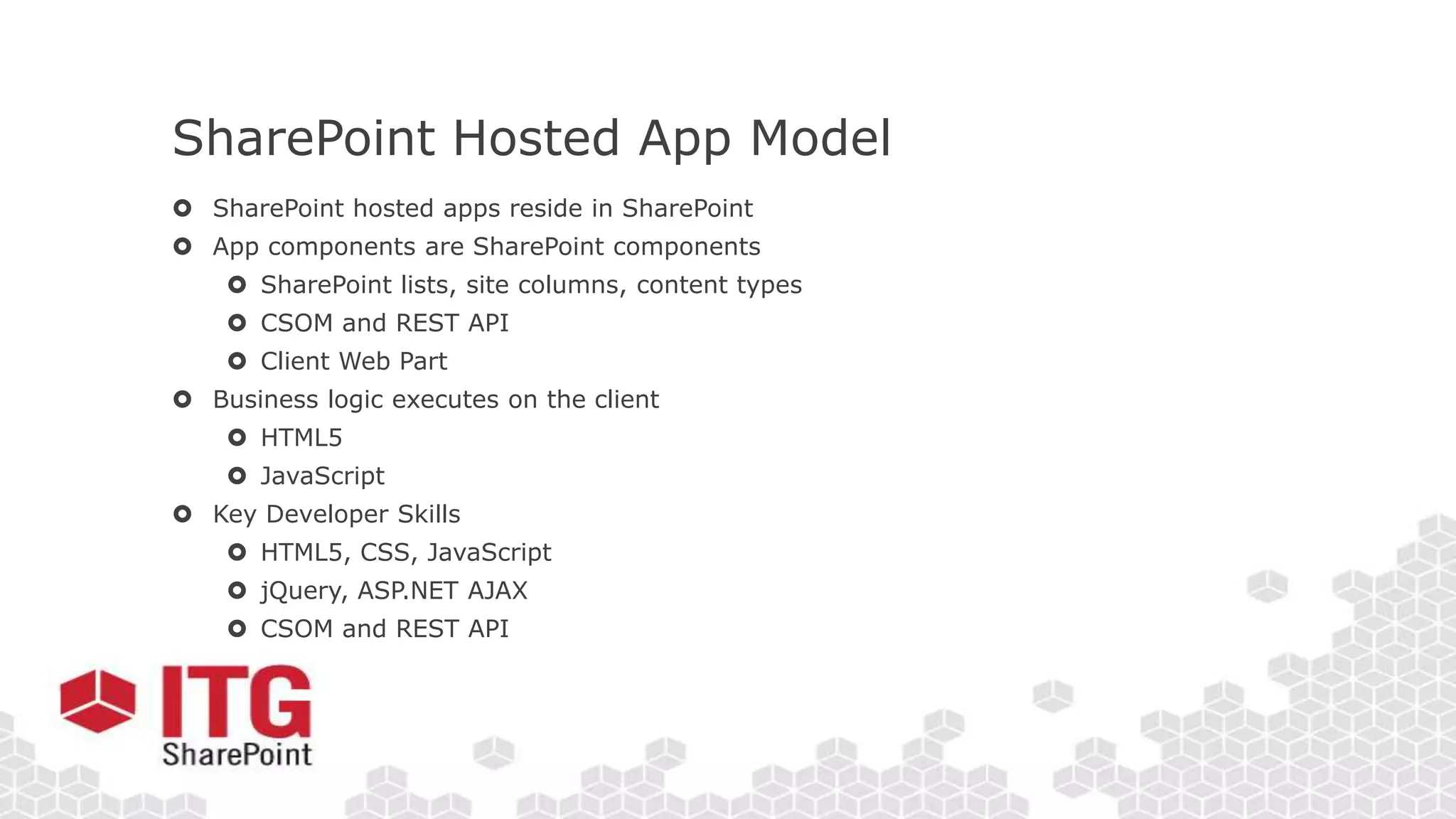

12. SharePoint Hosted App Model
 SharePoint hosted apps reside in SharePoint
 App components are SharePoint components
 SharePoint lists, site columns, content types
 CSOM and REST API
 Client Web Part
 Business logic executes on the client
 HTML5
 JavaScript
 Key Developer Skills
 HTML5, CSS, JavaScript
 jQuery, ASP.NET AJAX
 CSOM and REST API

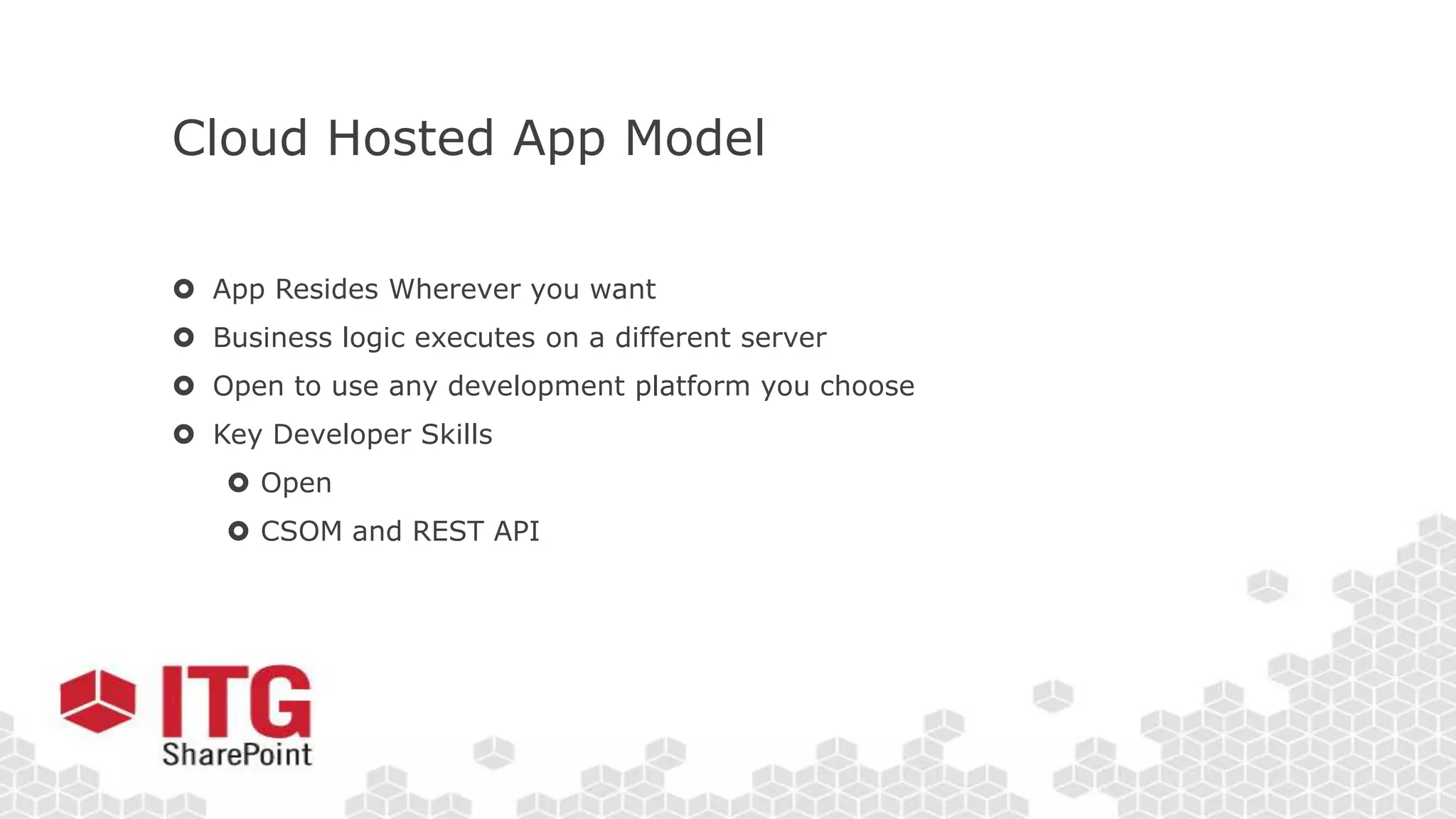

13. Cloud Hosted App Model
 App Resides Wherever you want
 Business logic executes on a different server
 Open to use any development platform you choose
 Key Developer Skills
 Open
 CSOM and REST API

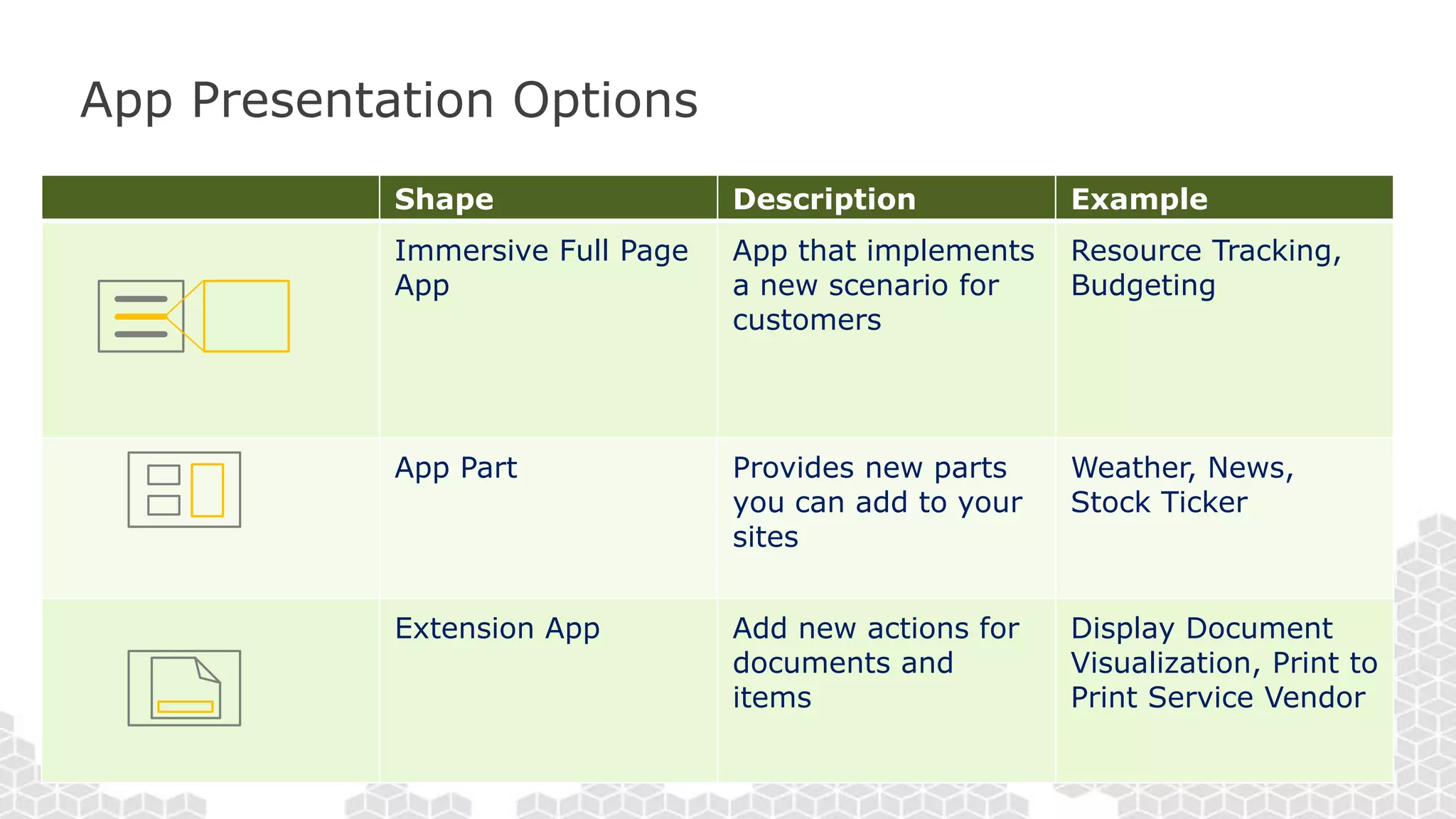

14. App Presentation Options
Shape Description Example
Immersive Full Page
App
App that implements
a new scenario for
customers
Resource Tracking,
Budgeting
App Part Provides new parts
you can add to your
sites
Weather, News,
Stock Ticker
Extension App Add new actions for
documents and
items
Display Document
Visualization, Print to
Print Service Vendor

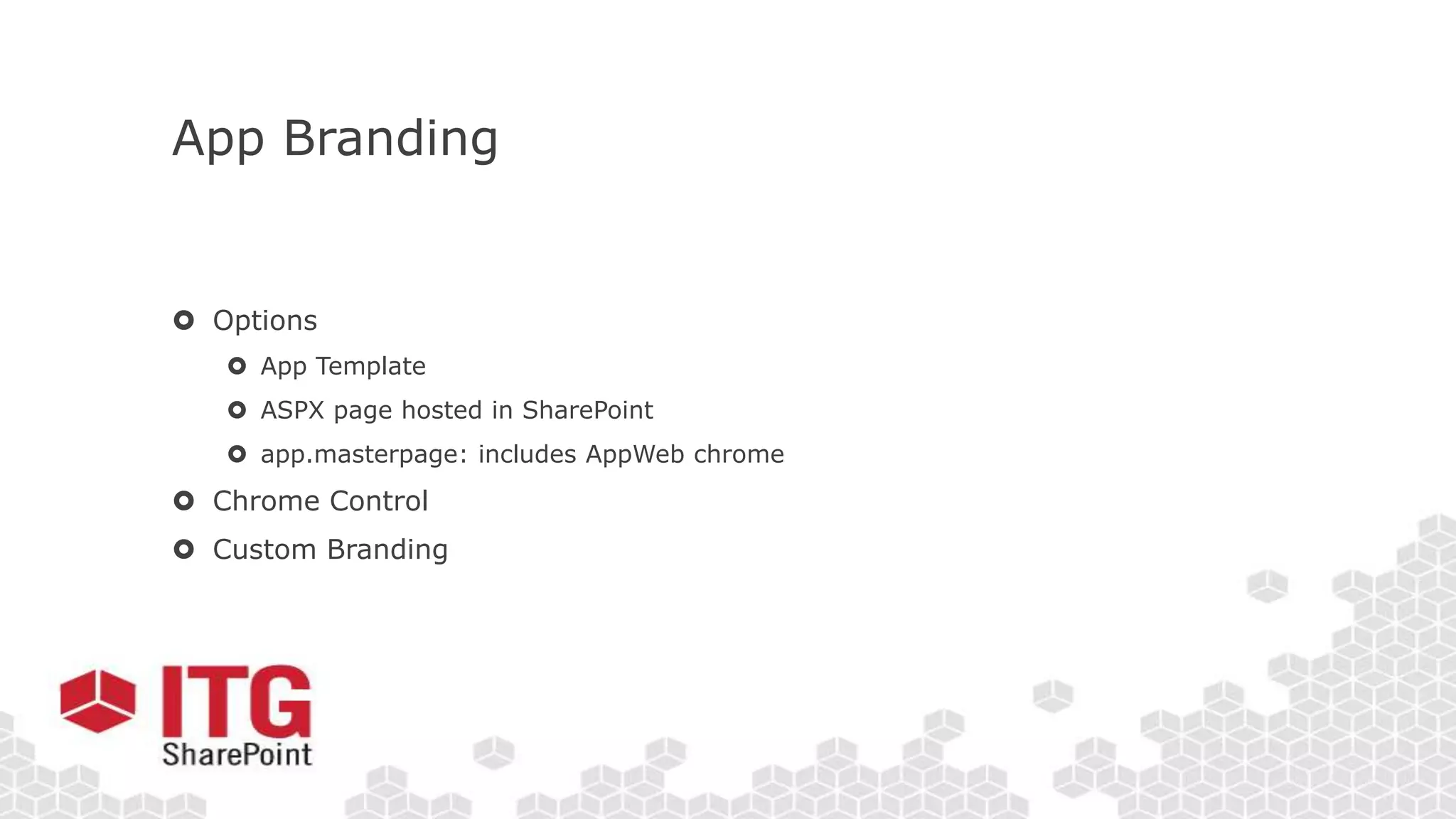

15. App Branding
 Options
 App Template
 ASPX page hosted in SharePoint
 app.masterpage: includes AppWeb chrome
 Chrome Control
 Custom Branding

16. Let’s See how this Looks

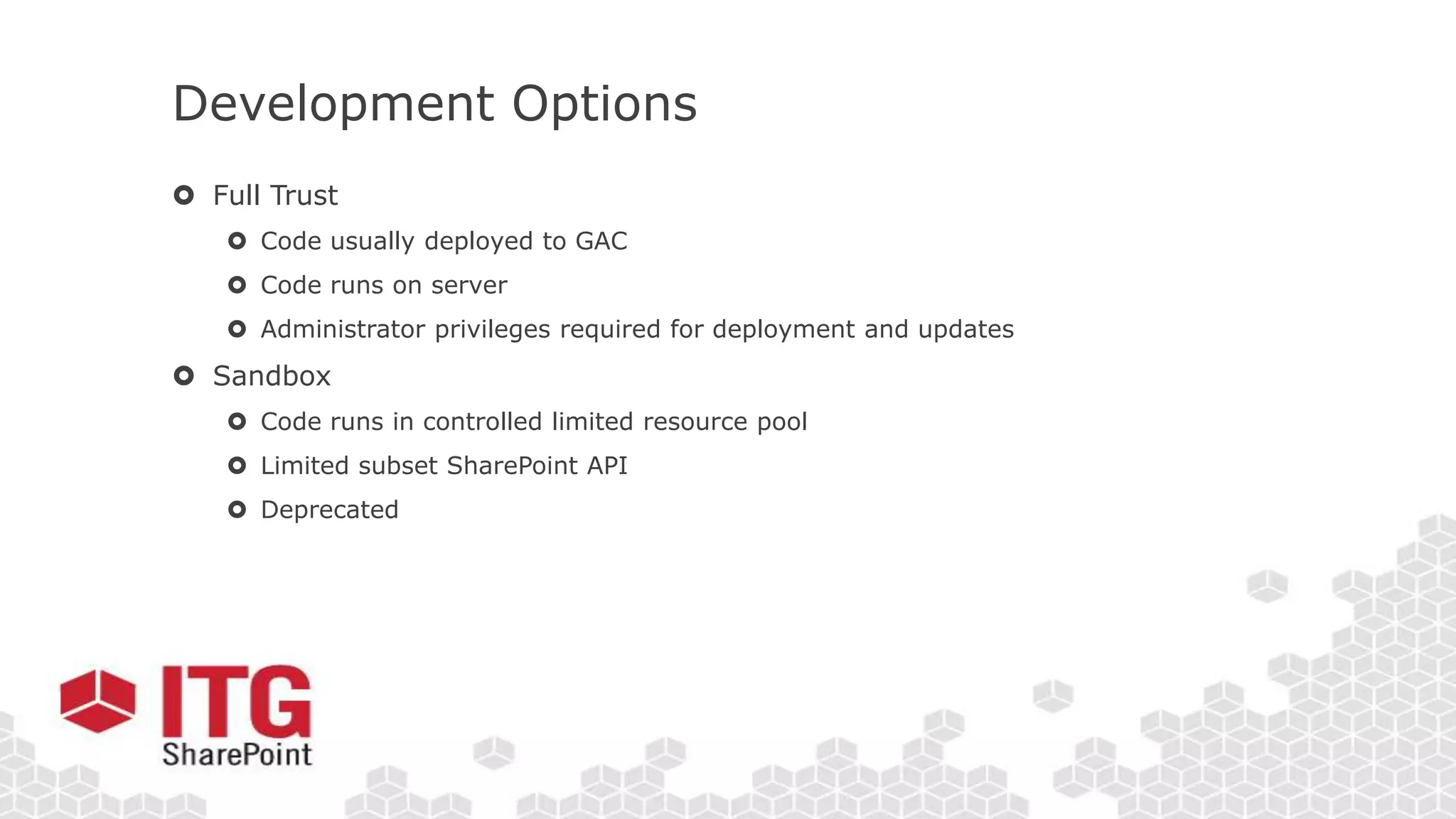

17. Development Options
 Full Trust
 Code usually deployed to GAC
 Code runs on server
 Administrator privileges required for deployment and updates
 Sandbox
 Code runs in controlled limited resource pool
 Limited subset SharePoint API
 Deprecated

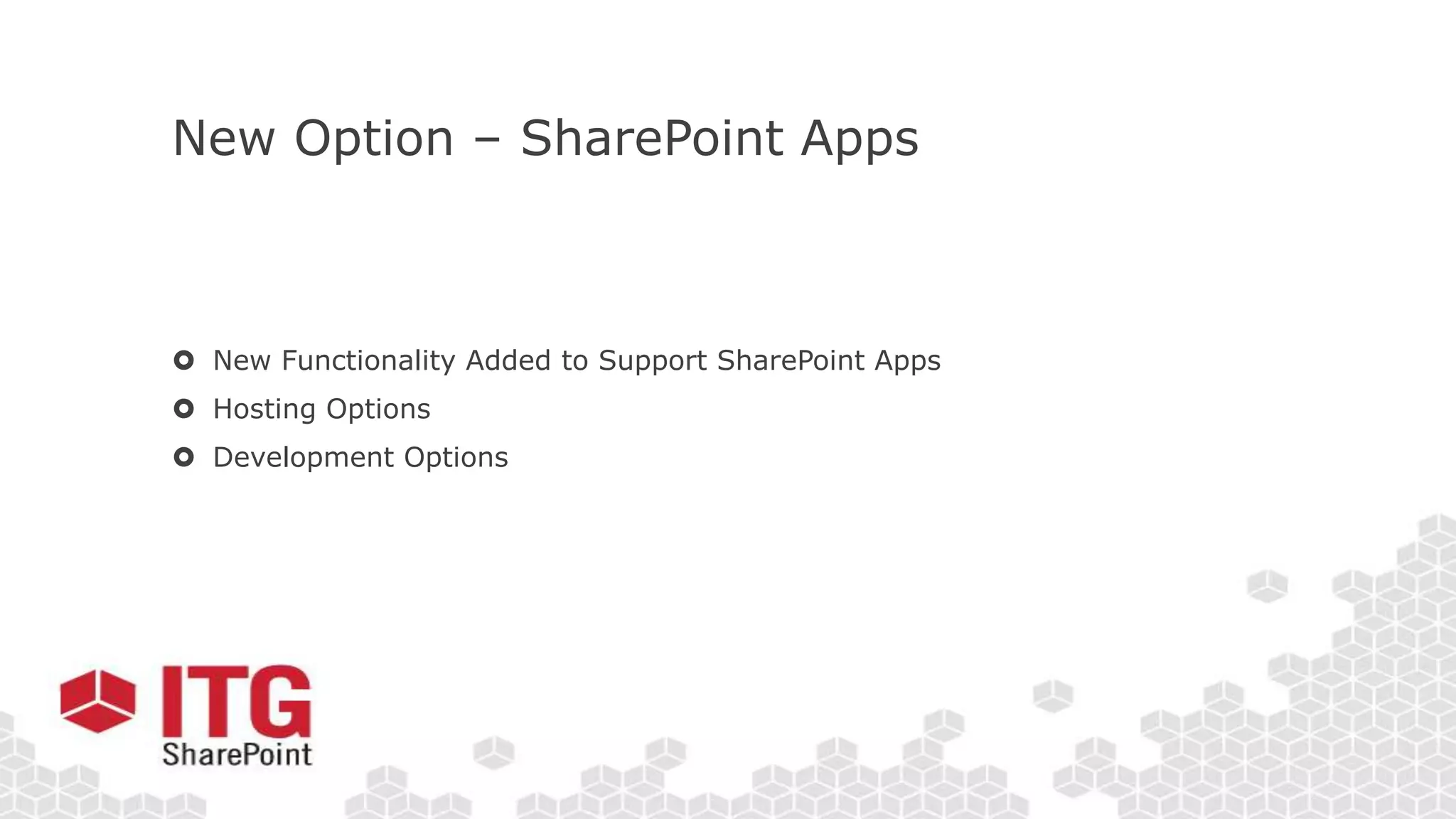

18. New Option – SharePoint Apps
 New Functionality Added to Support SharePoint Apps
 Hosting Options
 Development Options

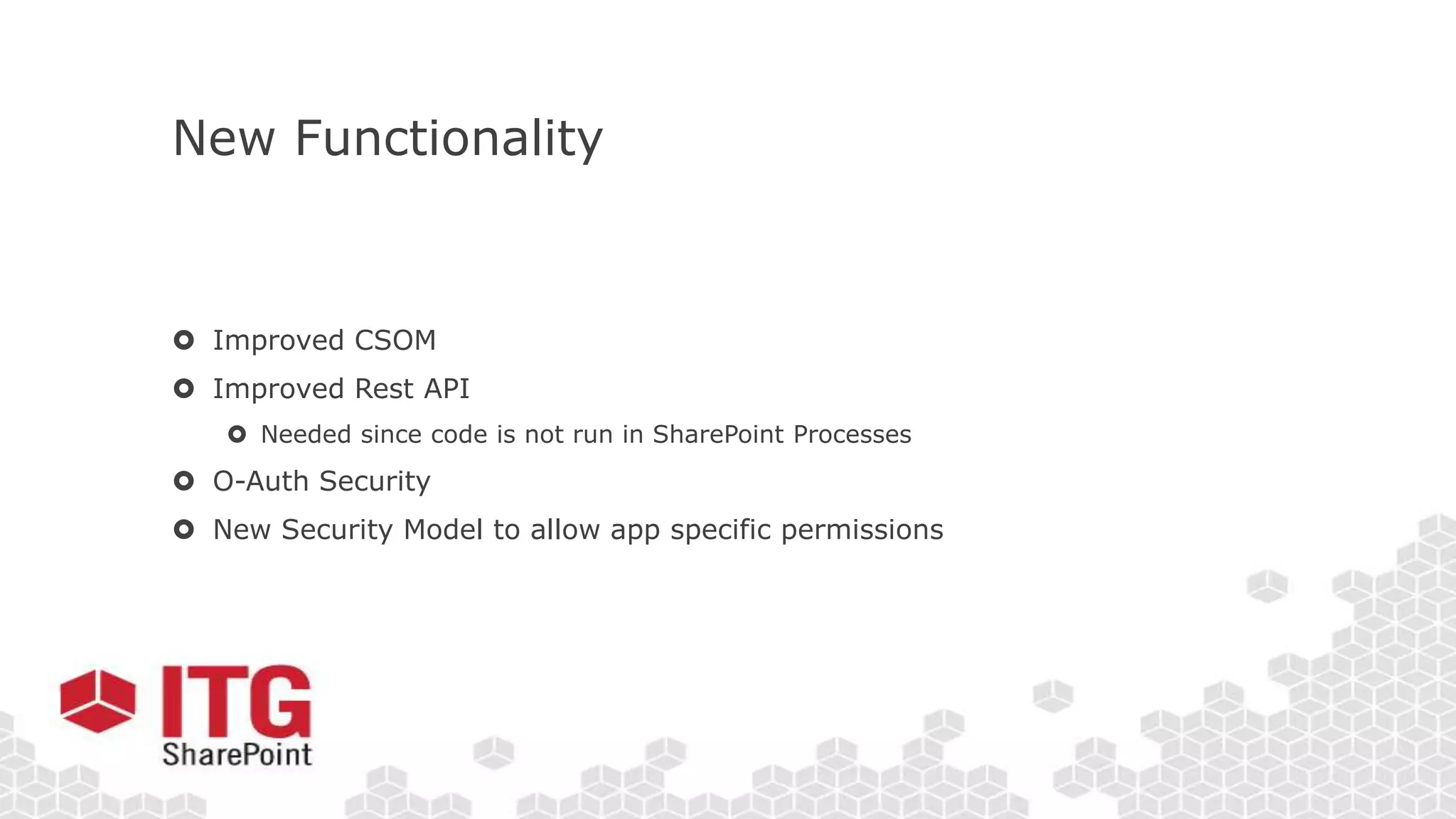

19. New Functionality
 Improved CSOM
 Improved Rest API
 Needed since code is not run in SharePoint Processes
 O-Auth Security
 New Security Model to allow app specific permissions

20. Let’s Create Our First App

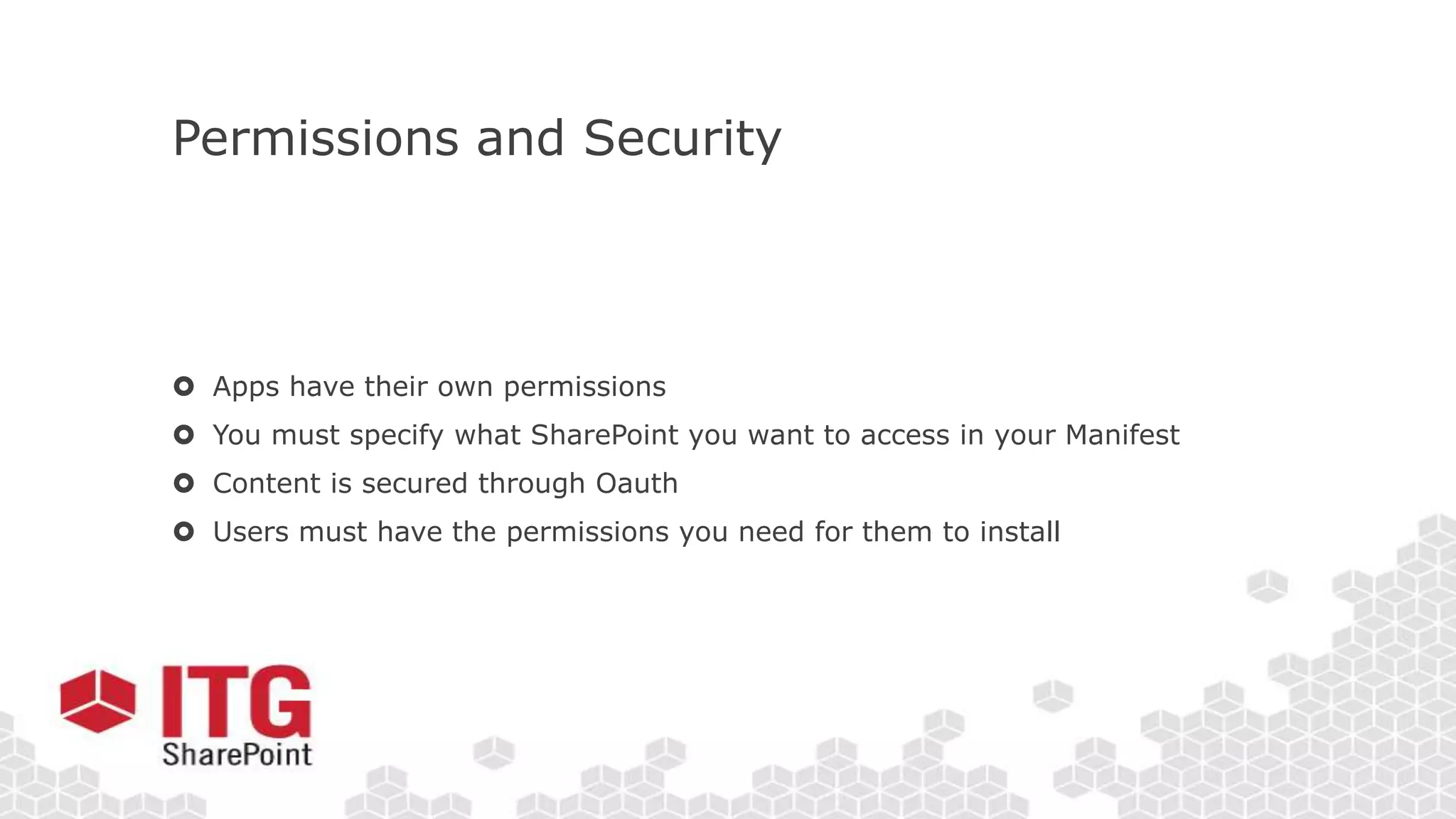

21. Permissions and Security
 Apps have their own permissions
 You must specify what SharePoint you want to access in your Manifest
 Content is secured through Oauth
 Users must have the permissions you need for them to install

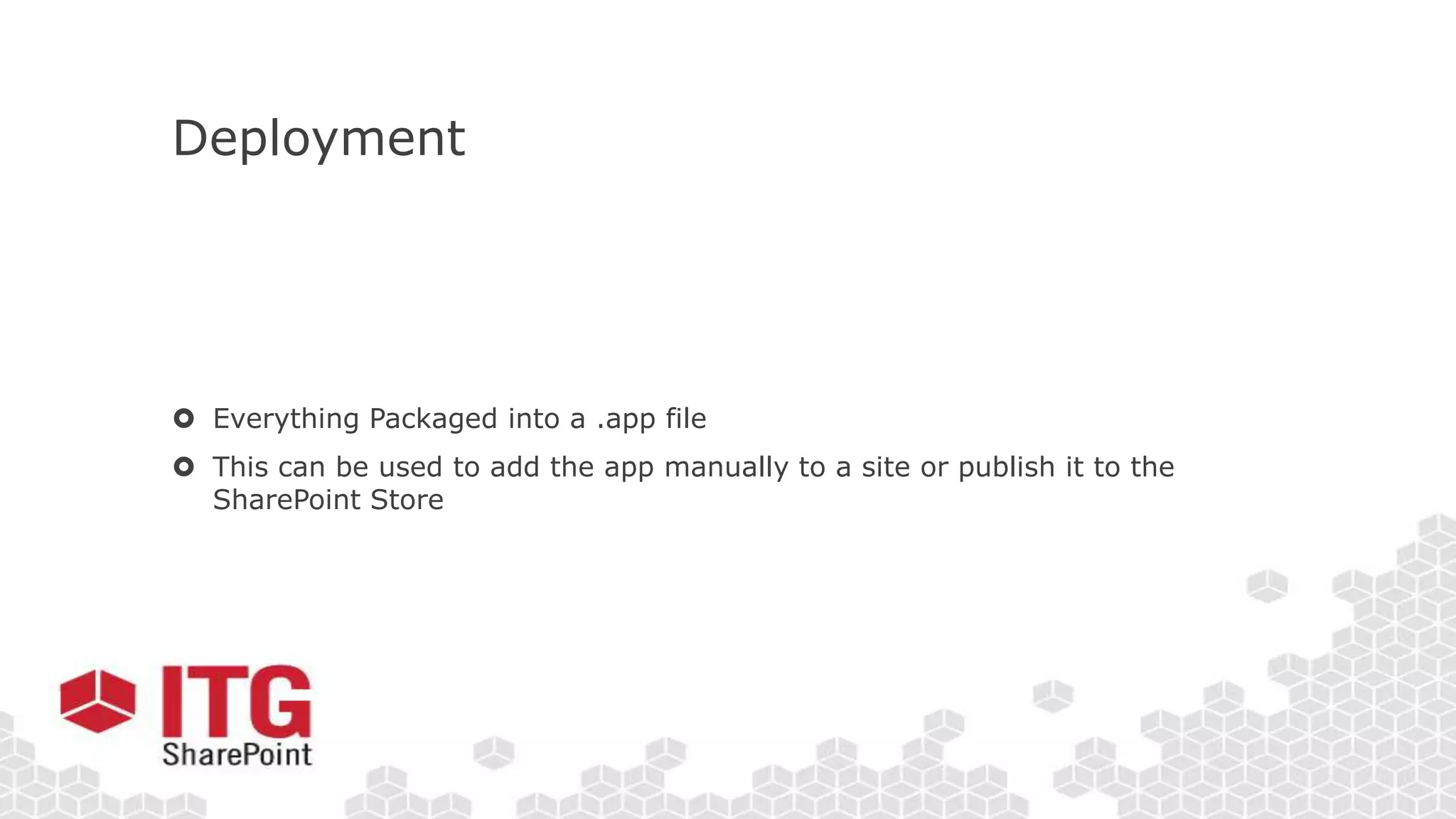

22. Deployment
 Everything Packaged into a .app file
 This can be used to add the app manually to a site or publish it to the
SharePoint Store

23. Let’s Examine How this works

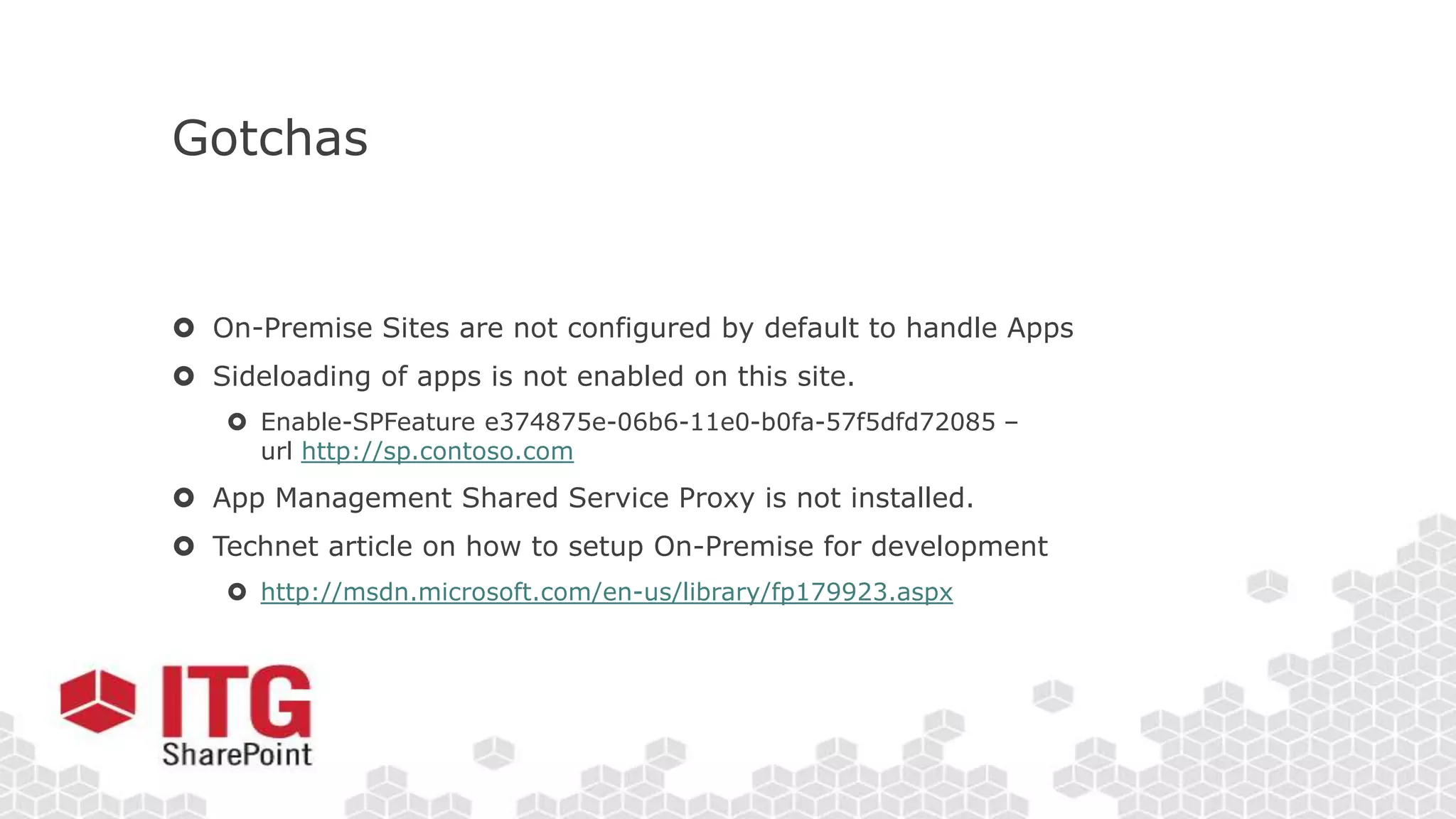

24. Gotchas
 On-Premise Sites are not configured by default to handle Apps
 Sideloading of apps is not enabled on this site.
 Enable-SPFeature e374875e-06b6-11e0-b0fa-57f5dfd72085 –
url http://sp.contoso.com
 App Management Shared Service Proxy is not installed.
 Technet article on how to setup On-Premise for development
 http://msdn.microsoft.com/en-us/library/fp179923.aspx
