1. MAXIMO Integration to
Other Systems
Bashar Mahasen – Technical Manager

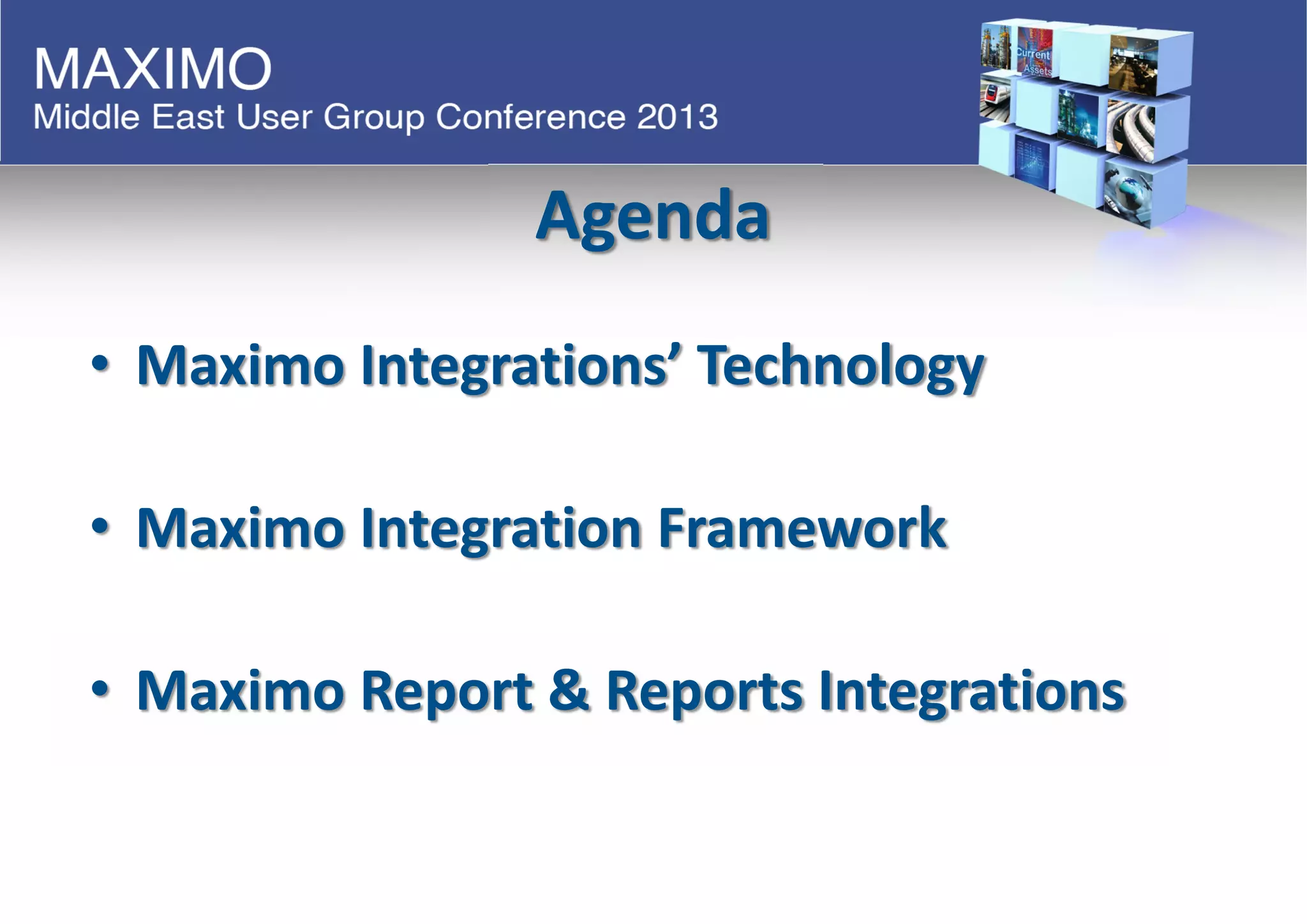

2. Agenda
• Maximo Integrations’ Technology
• Maximo Integration Framework
• Maximo Report & Reports Integrations

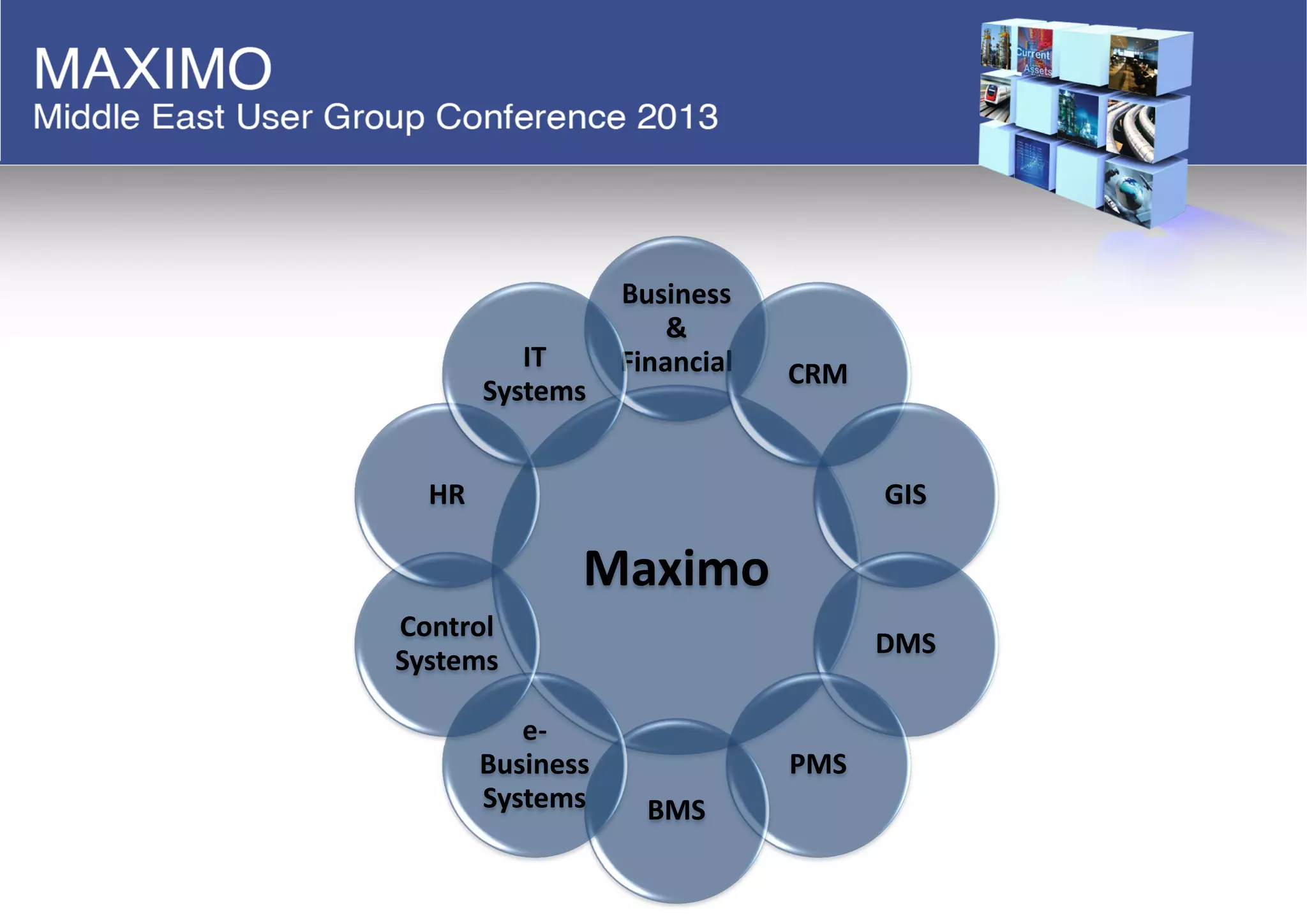

3. Maximo
Business
&
Financial CRM
GIS
DMS
PMS
BMS
e-
Business
Systems
Control
Systems
HR
IT
Systems

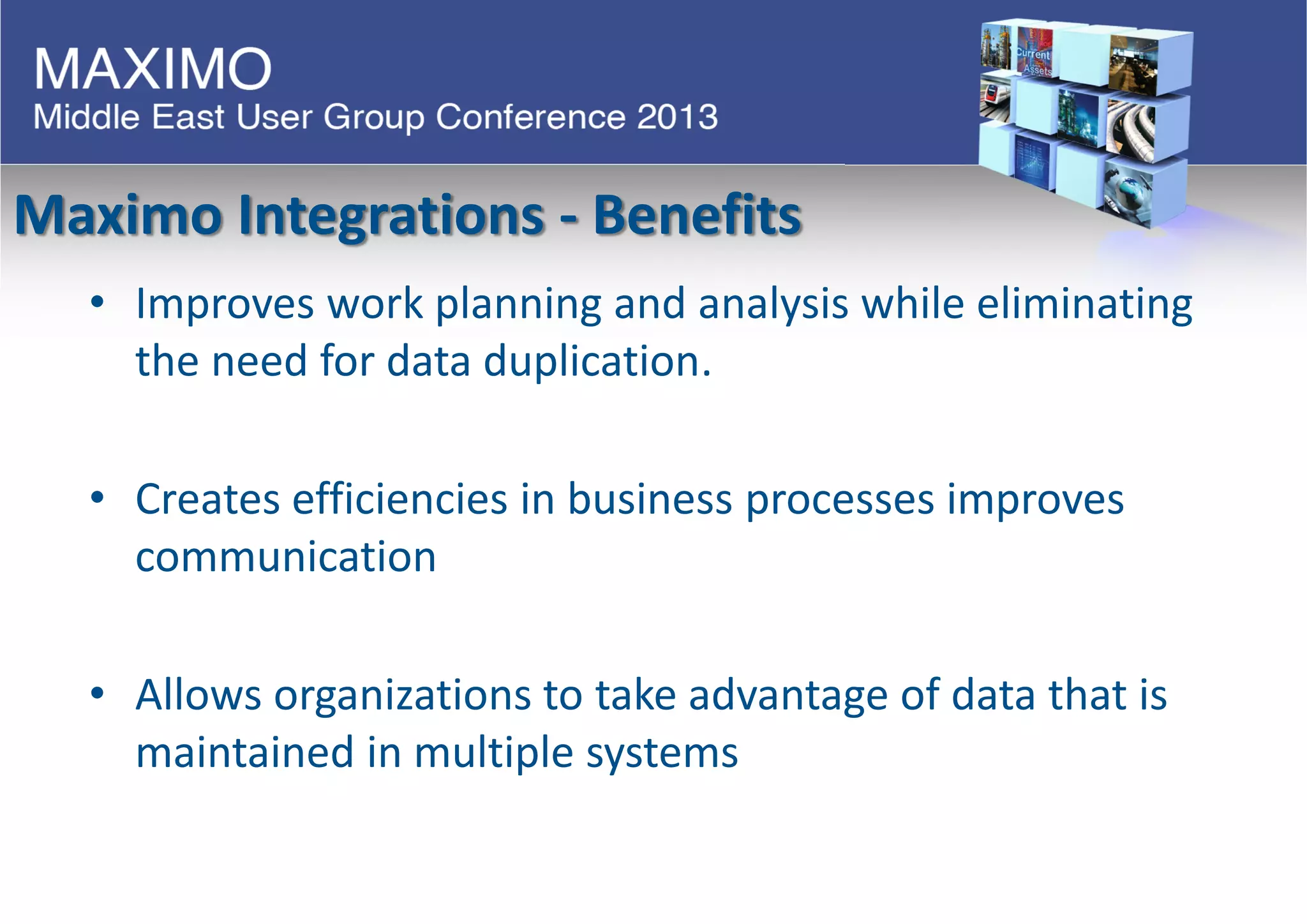

4. Maximo Integrations - Benefits
• Improves work planning and analysis while eliminating
the need for data duplication.
• Creates efficiencies in business processes improves
communication
• Allows organizations to take advantage of data that is
maintained in multiple systems

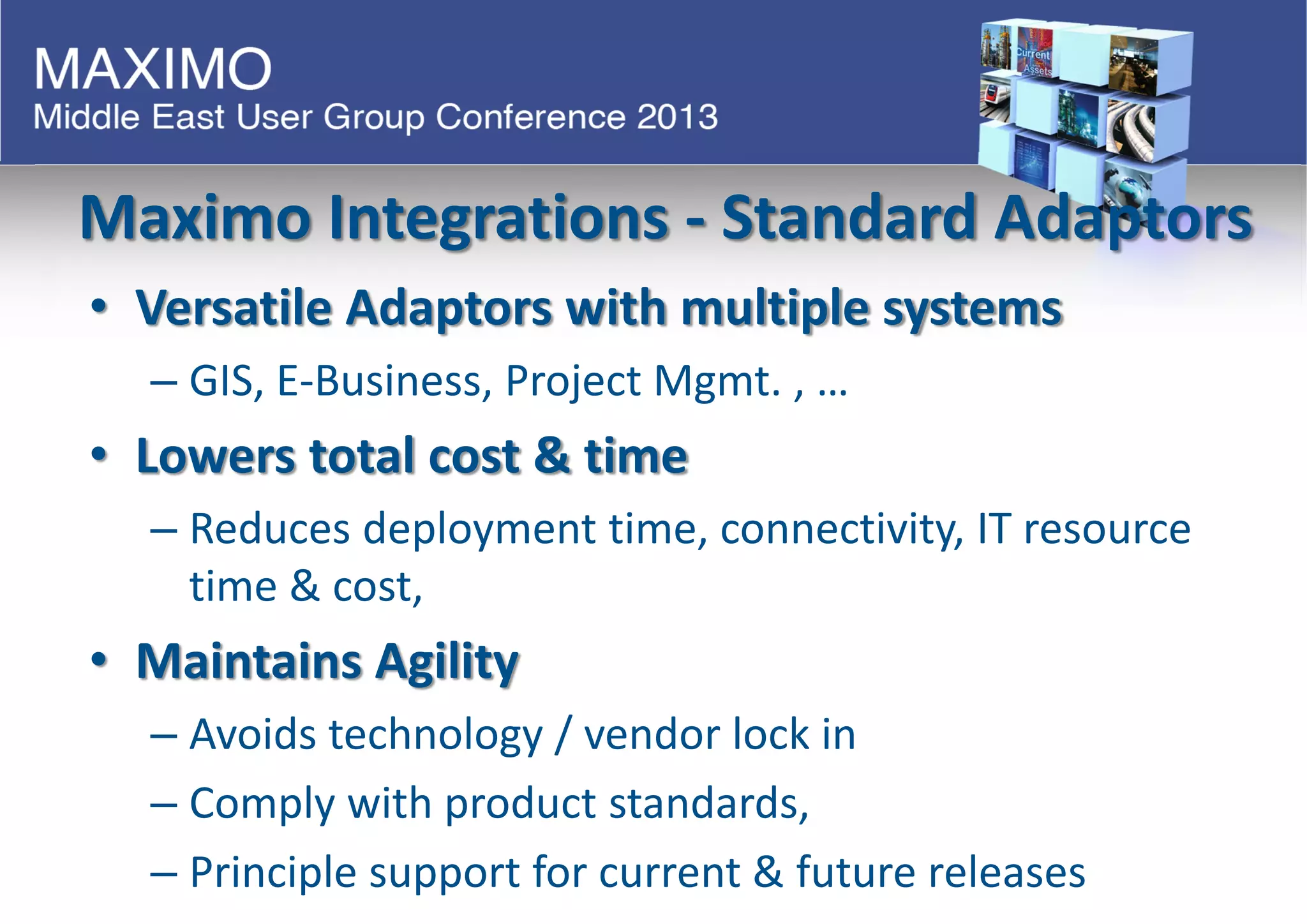

5. Maximo Integrations - Standard Adaptors
• Versatile Adaptors with multiple systems
– GIS, E-Business, Project Mgmt. , …
• Lowers total cost & time
– Reduces deployment time, connectivity, IT resource
time & cost,
• Maintains Agility
– Avoids technology / vendor lock in
– Comply with product standards,
– Principle support for current & future releases

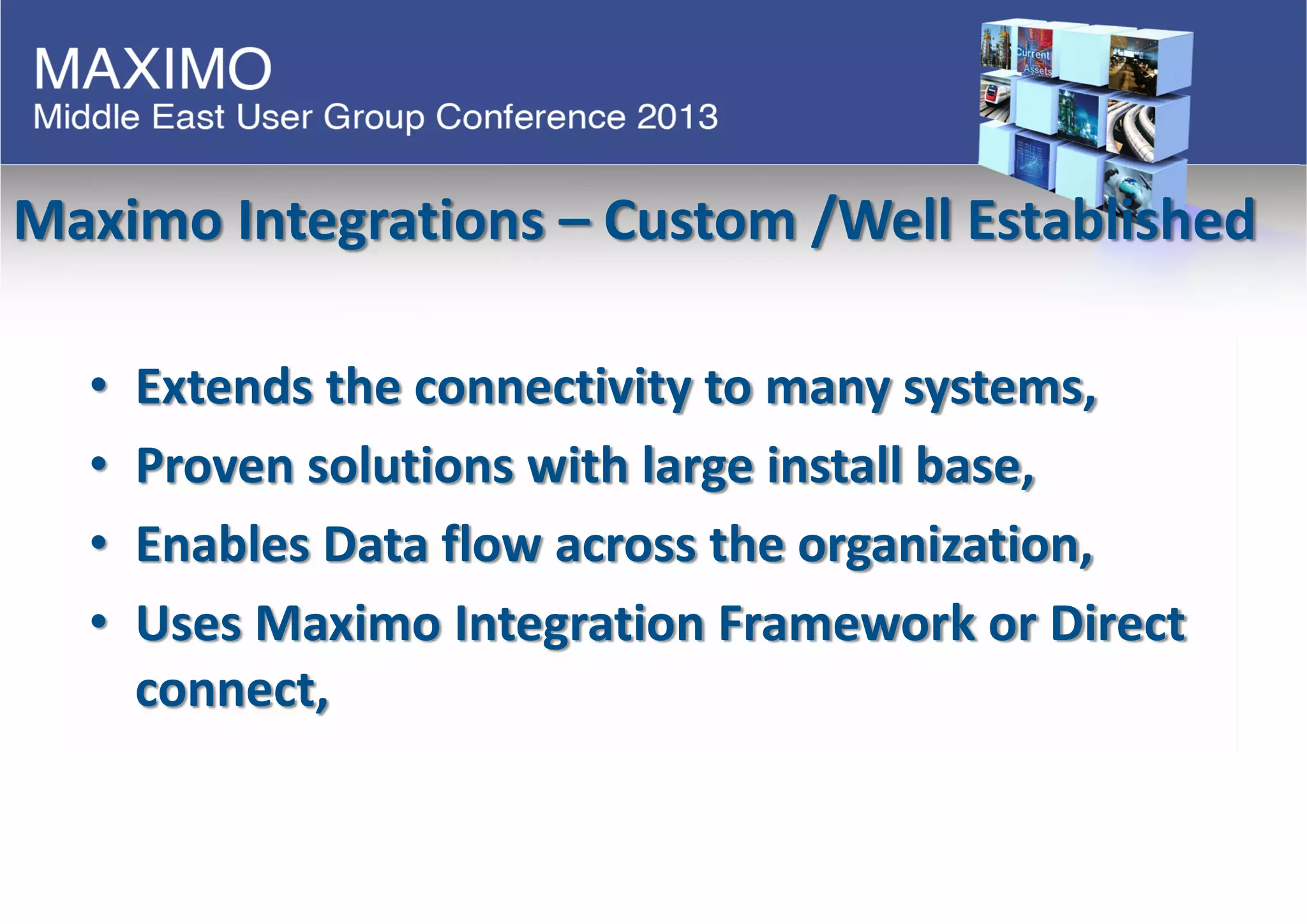

6. Maximo Integrations – Custom /Well Established
• Extends the connectivity to many systems,
• Proven solutions with large install base,
• Enables Data flow across the organization,
• Uses Maximo Integration Framework or Direct
connect,

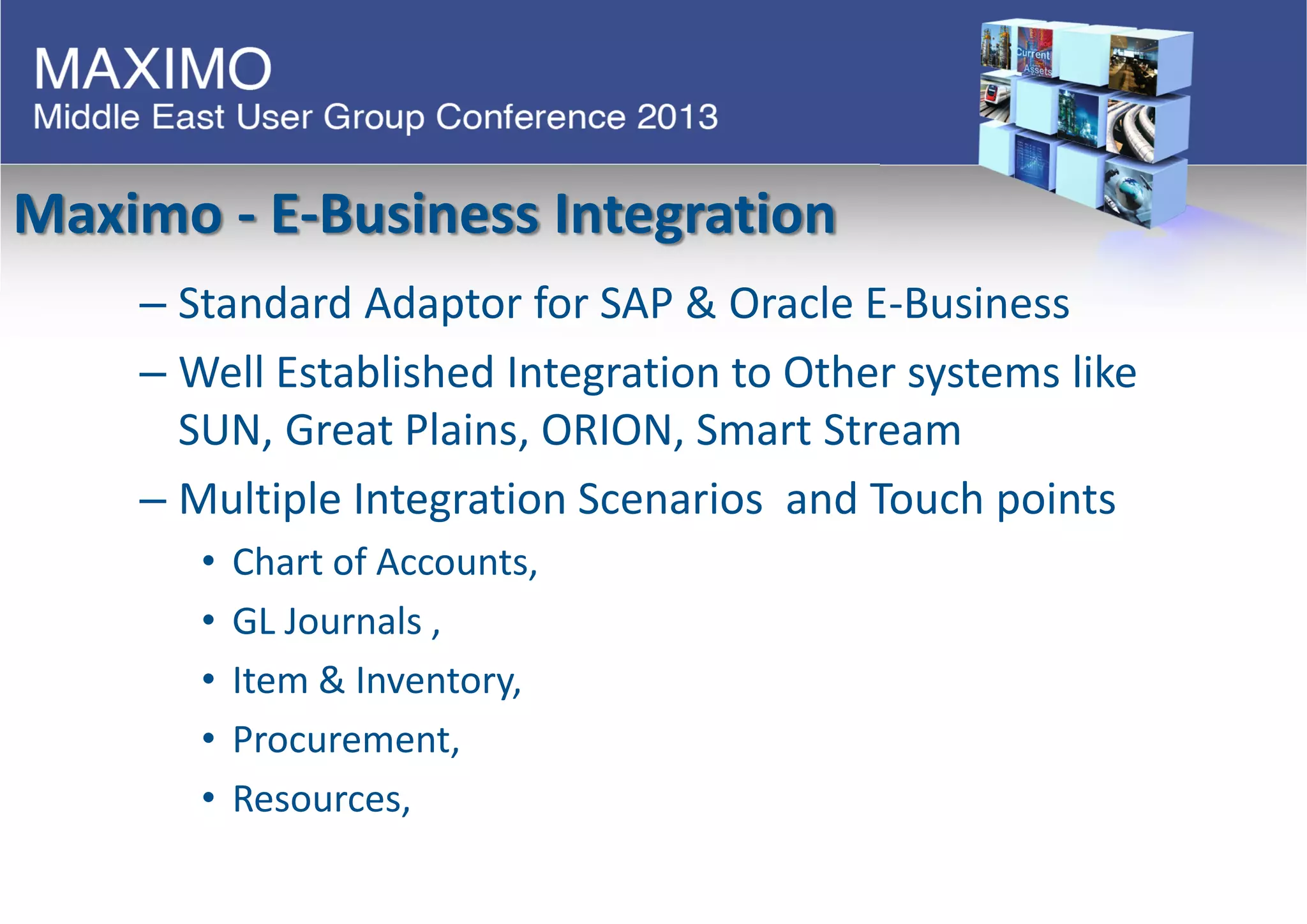

7. Maximo - E-Business Integration
– Standard Adaptor for SAP & Oracle E-Business
– Well Established Integration to Other systems like
SUN, Great Plains, ORION, Smart Stream
– Multiple Integration Scenarios and Touch points
• Chart of Accounts,
• GL Journals ,
• Item & Inventory,
• Procurement,
• Resources,

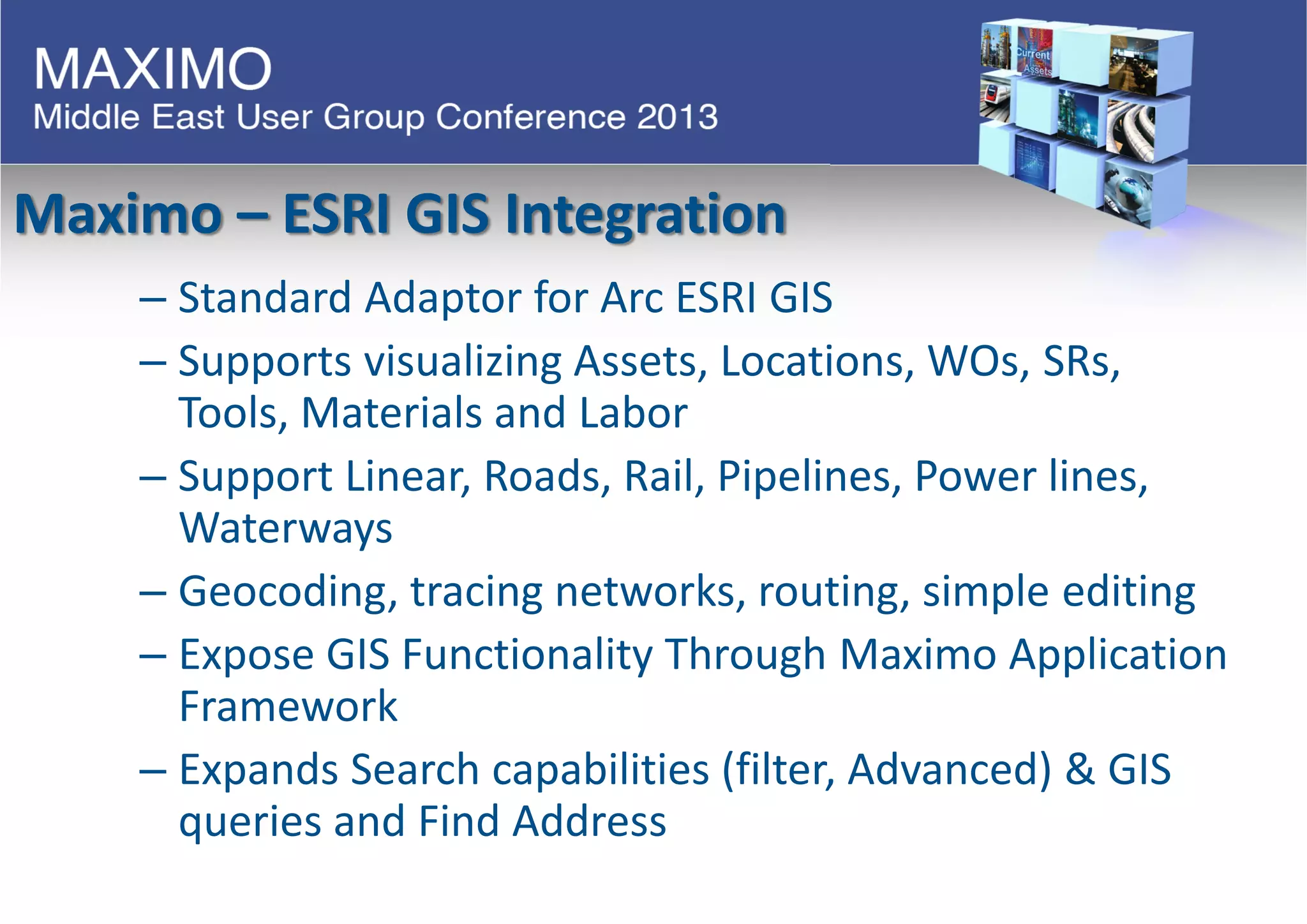

8. Maximo – ESRI GIS Integration
– Standard Adaptor for Arc ESRI GIS
– Supports visualizing Assets, Locations, WOs, SRs,
Tools, Materials and Labor
– Support Linear, Roads, Rail, Pipelines, Power lines,
Waterways
– Geocoding, tracing networks, routing, simple editing
– Expose GIS Functionality Through Maximo Application
Framework
– Expands Search capabilities (filter, Advanced) & GIS
queries and Find Address

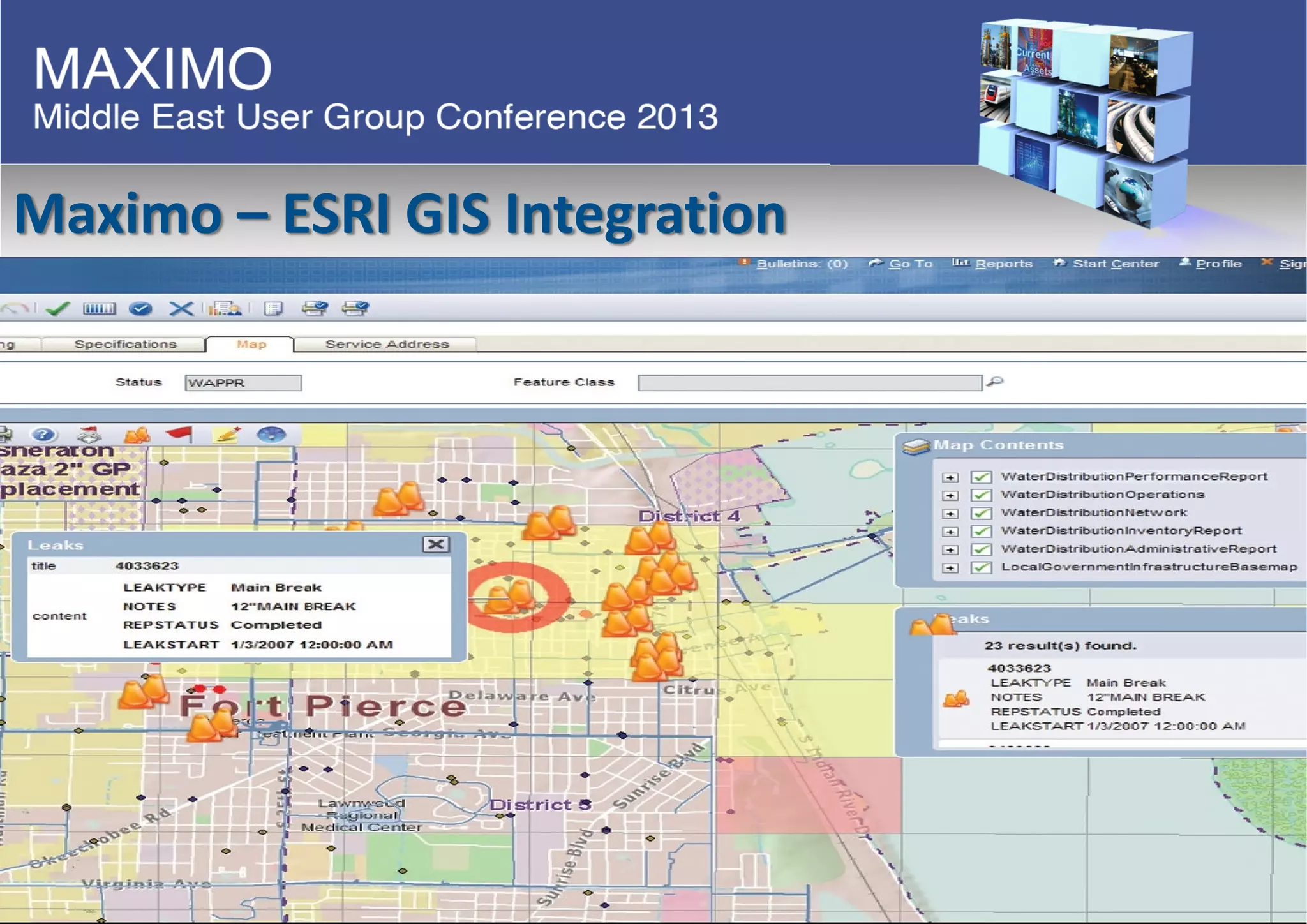

9. Maximo – ESRI GIS Integration

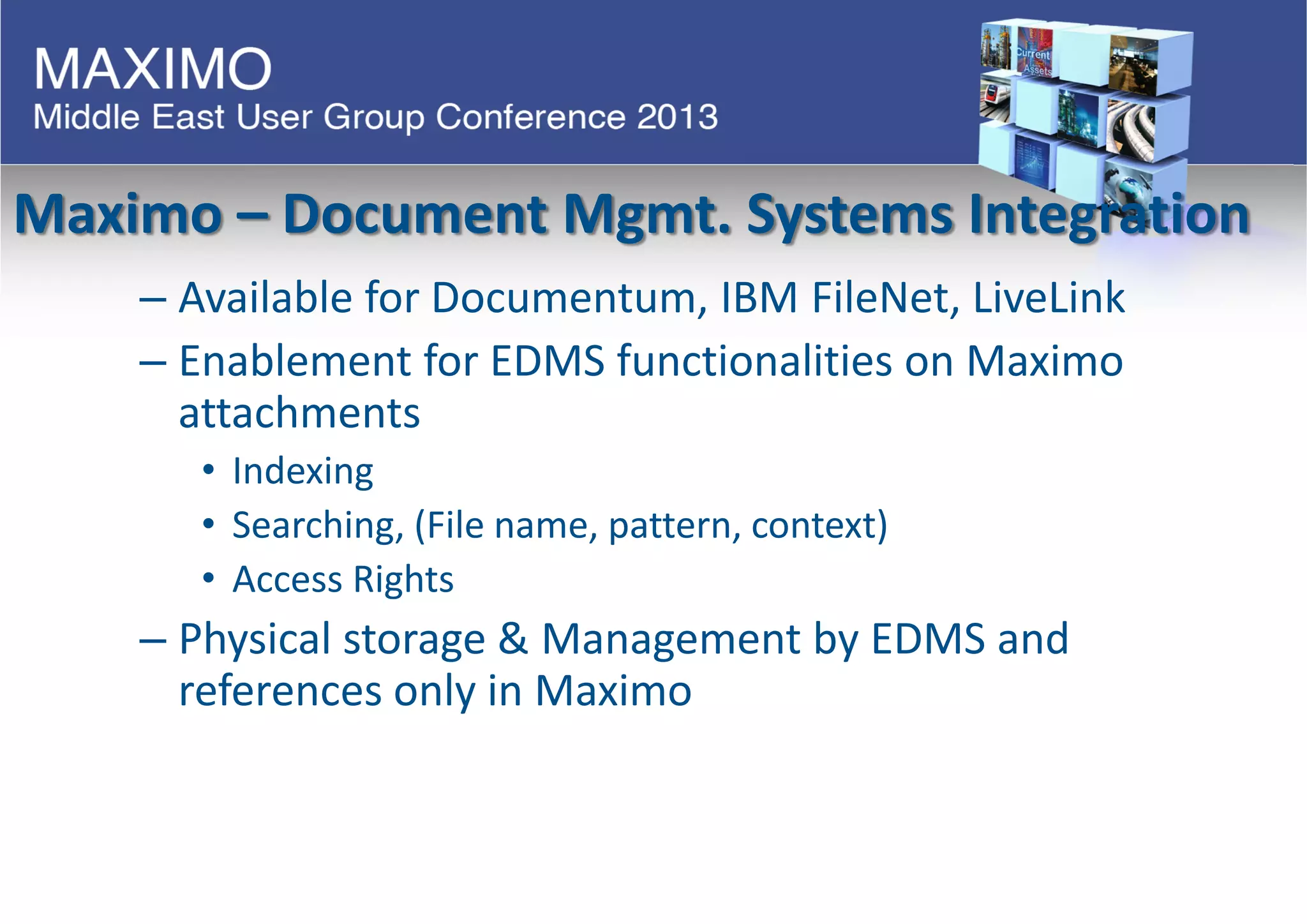

10. Maximo – Document Mgmt. Systems Integration
– Available for Documentum, IBM FileNet, LiveLink
– Enablement for EDMS functionalities on Maximo
attachments
• Indexing
• Searching, (File name, pattern, context)
• Access Rights
– Physical storage & Management by EDMS and
references only in Maximo

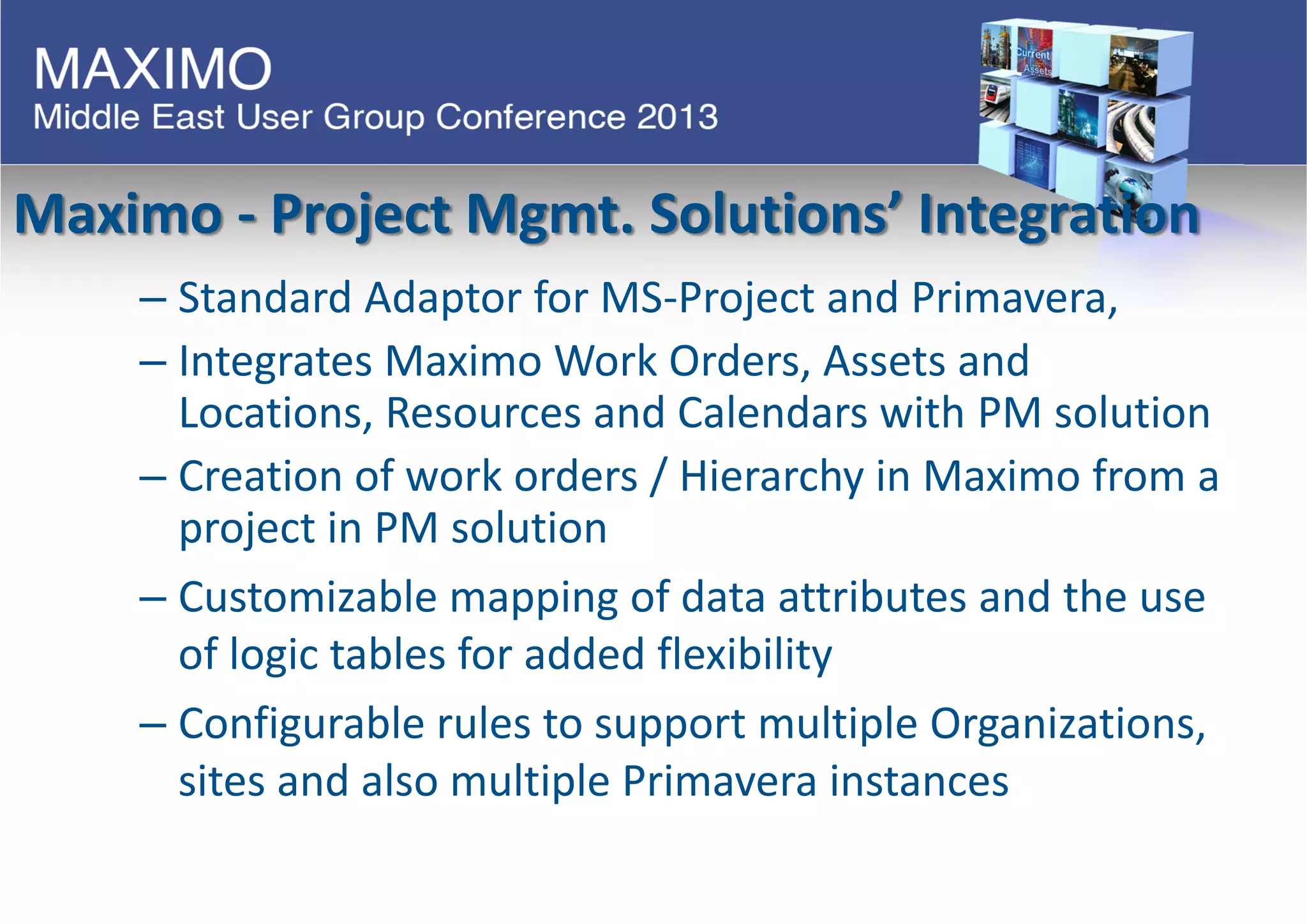

11. Maximo - Project Mgmt. Solutions’ Integration
– Standard Adaptor for MS-Project and Primavera,
– Integrates Maximo Work Orders, Assets and
Locations, Resources and Calendars with PM solution
– Creation of work orders / Hierarchy in Maximo from a
project in PM solution
– Customizable mapping of data attributes and the use
of logic tables for added flexibility
– Configurable rules to support multiple Organizations,
sites and also multiple Primavera instances

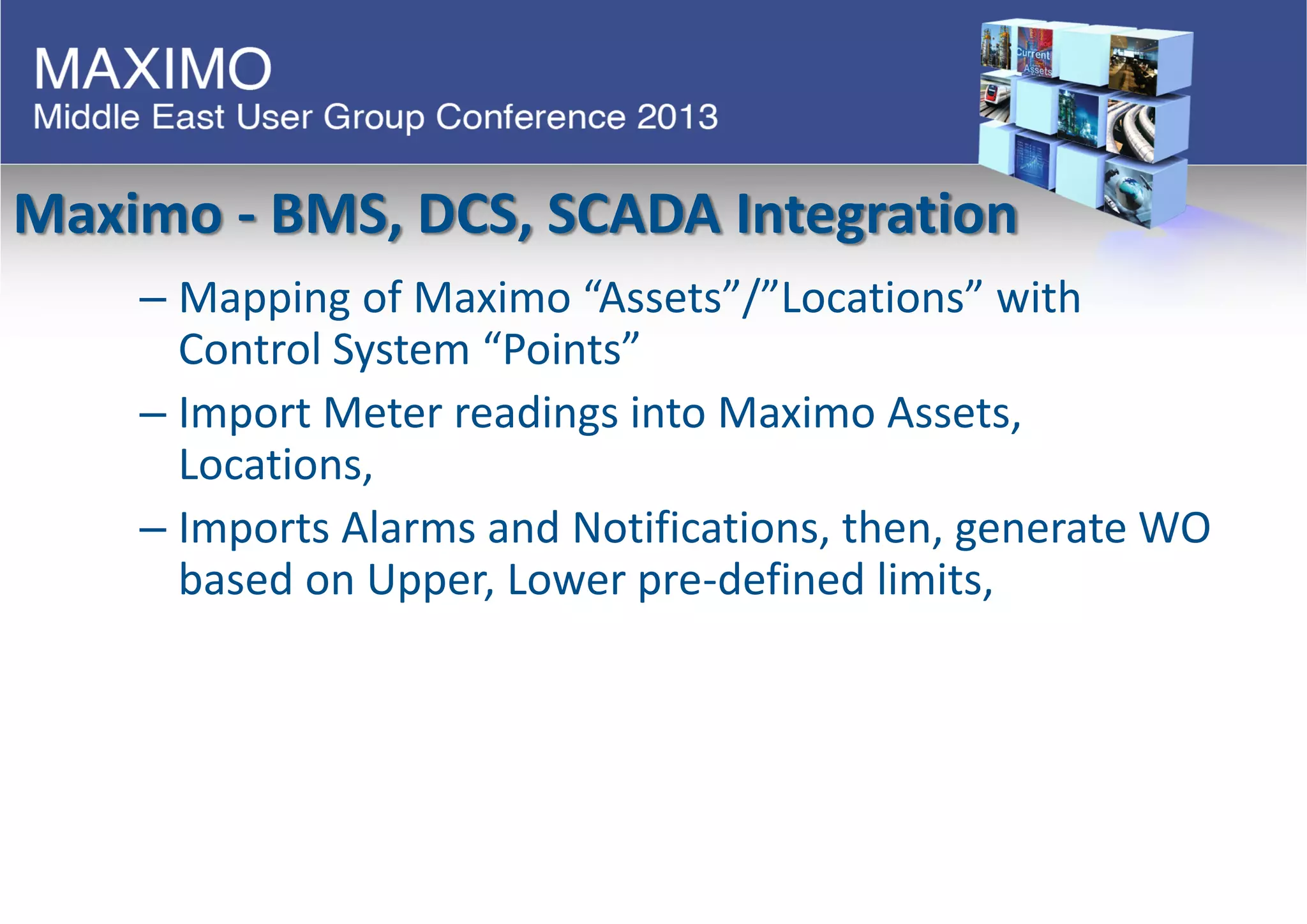

12. Maximo - BMS, DCS, SCADA Integration
– Mapping of Maximo “Assets”/”Locations” with
Control System “Points”
– Import Meter readings into Maximo Assets,
Locations,
– Imports Alarms and Notifications, then, generate WO
based on Upper, Lower pre-defined limits,

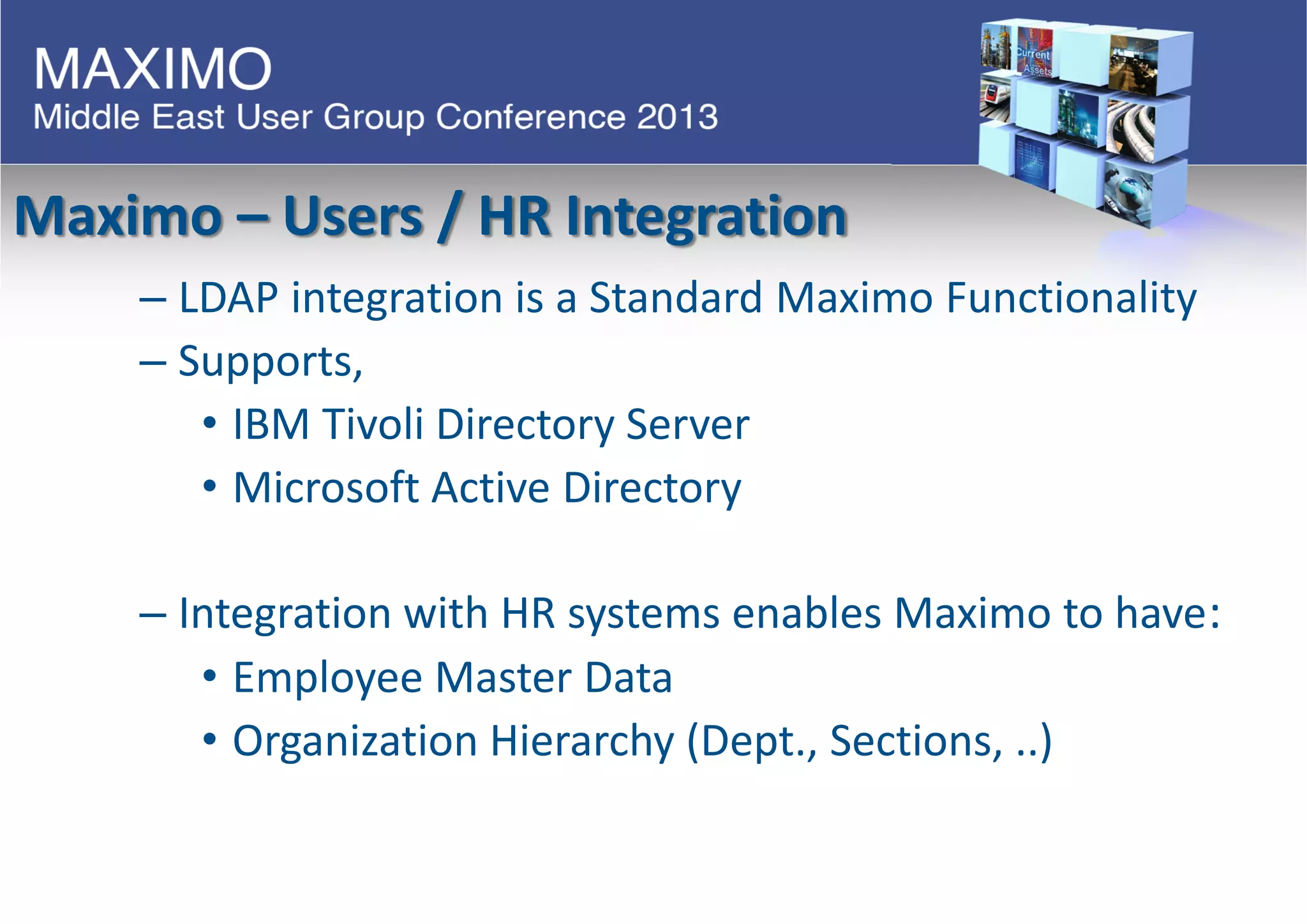

13. Maximo – Users / HR Integration
– LDAP integration is a Standard Maximo Functionality
– Supports,
• IBM Tivoli Directory Server
• Microsoft Active Directory
– Integration with HR systems enables Maximo to have:
• Employee Master Data
• Organization Hierarchy (Dept., Sections, ..)

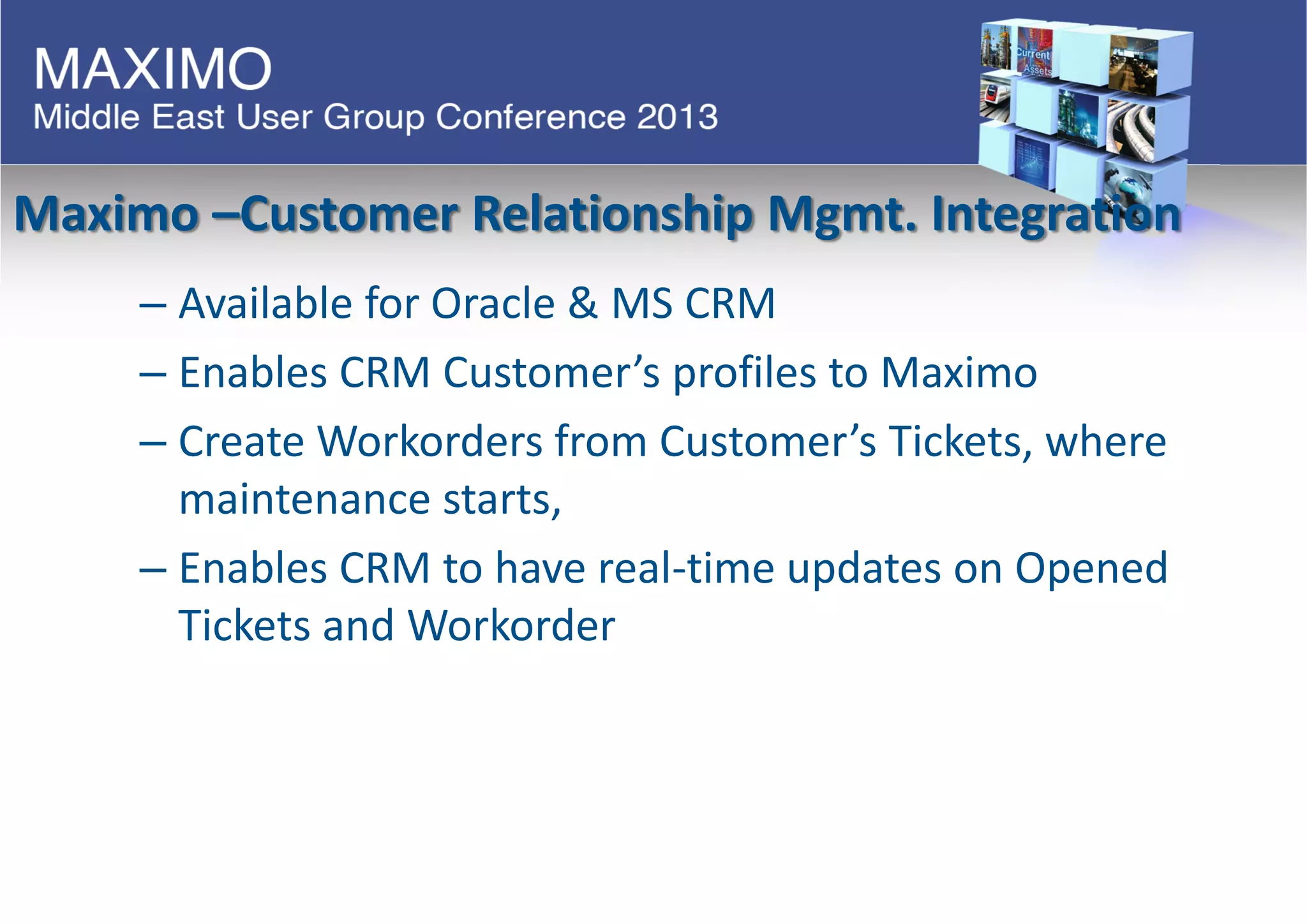

14. Maximo –Customer Relationship Mgmt. Integration
– Available for Oracle & MS CRM
– Enables CRM Customer’s profiles to Maximo
– Create Workorders from Customer’s Tickets, where
maintenance starts,
– Enables CRM to have real-time updates on Opened
Tickets and Workorder

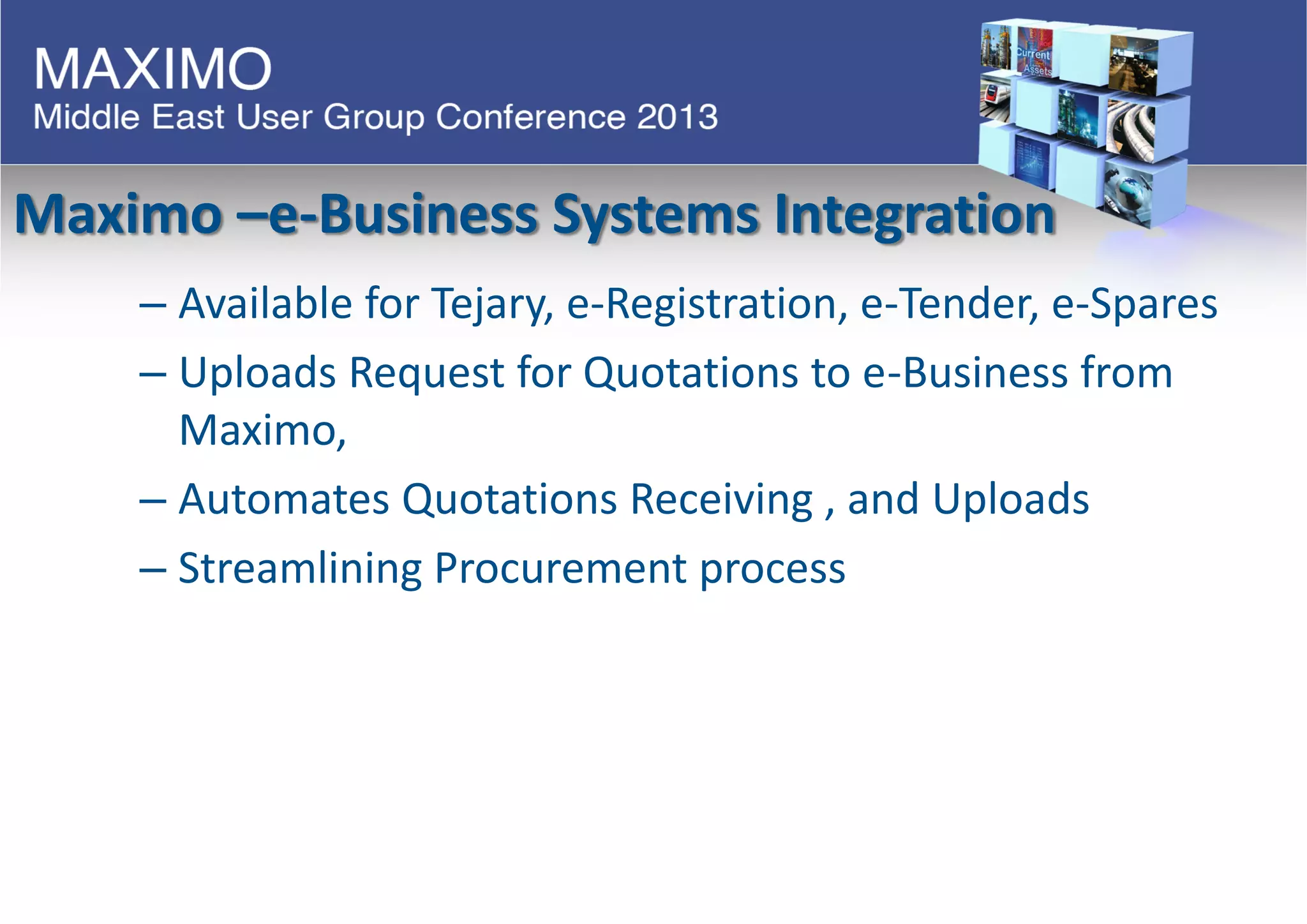

15. Maximo –e-Business Systems Integration
– Available for Tejary, e-Registration, e-Tender, e-Spares
– Uploads Request for Quotations to e-Business from
Maximo,
– Automates Quotations Receiving , and Uploads
– Streamlining Procurement process

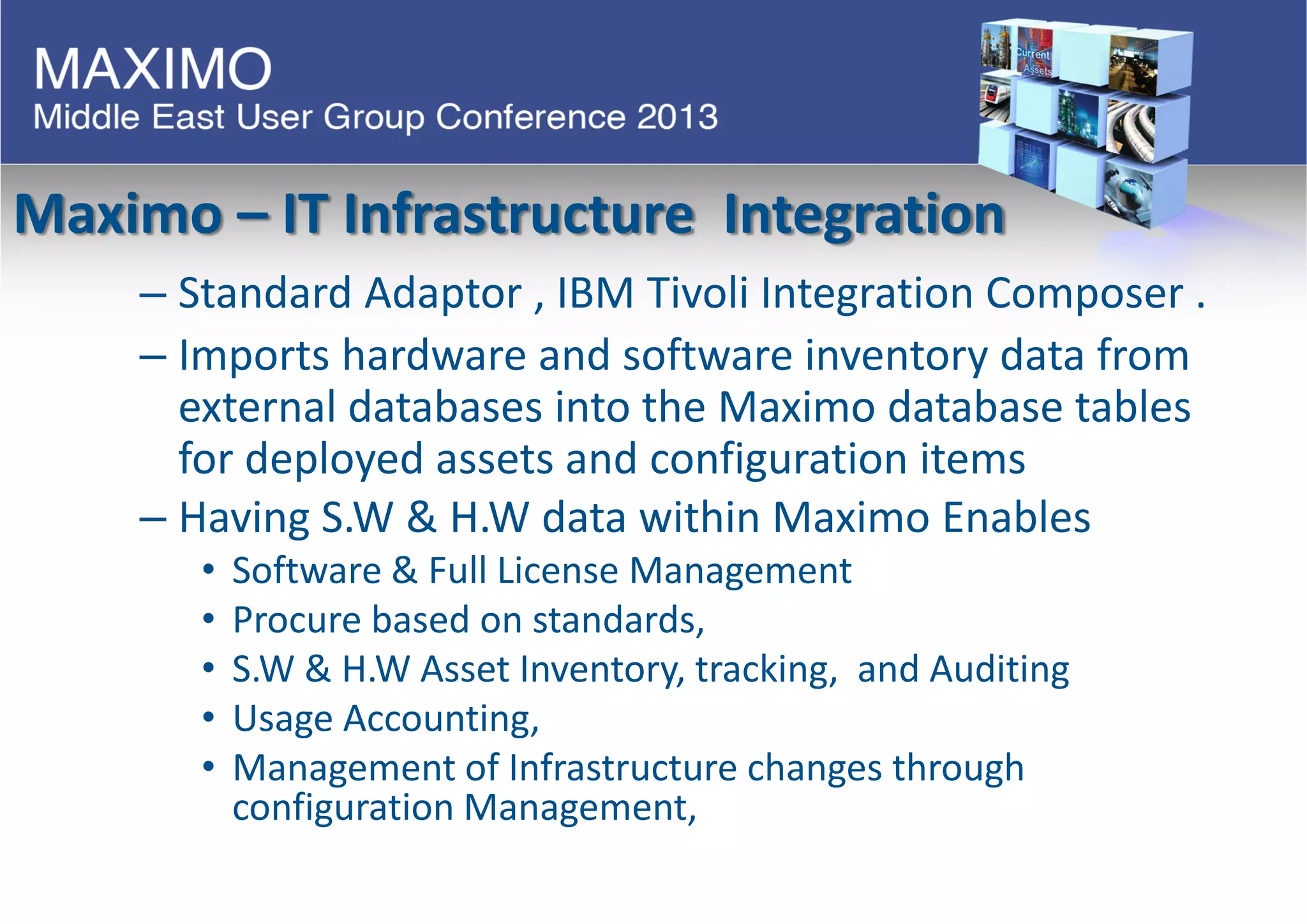

16. Maximo – IT Infrastructure Integration
– Standard Adaptor , IBM Tivoli Integration Composer .
– Imports hardware and software inventory data from
external databases into the Maximo database tables
for deployed assets and configuration items
– Having S.W & H.W data within Maximo Enables
• Software & Full License Management
• Procure based on standards,
• S.W & H.W Asset Inventory, tracking, and Auditing
• Usage Accounting,
• Management of Infrastructure changes through
configuration Management,

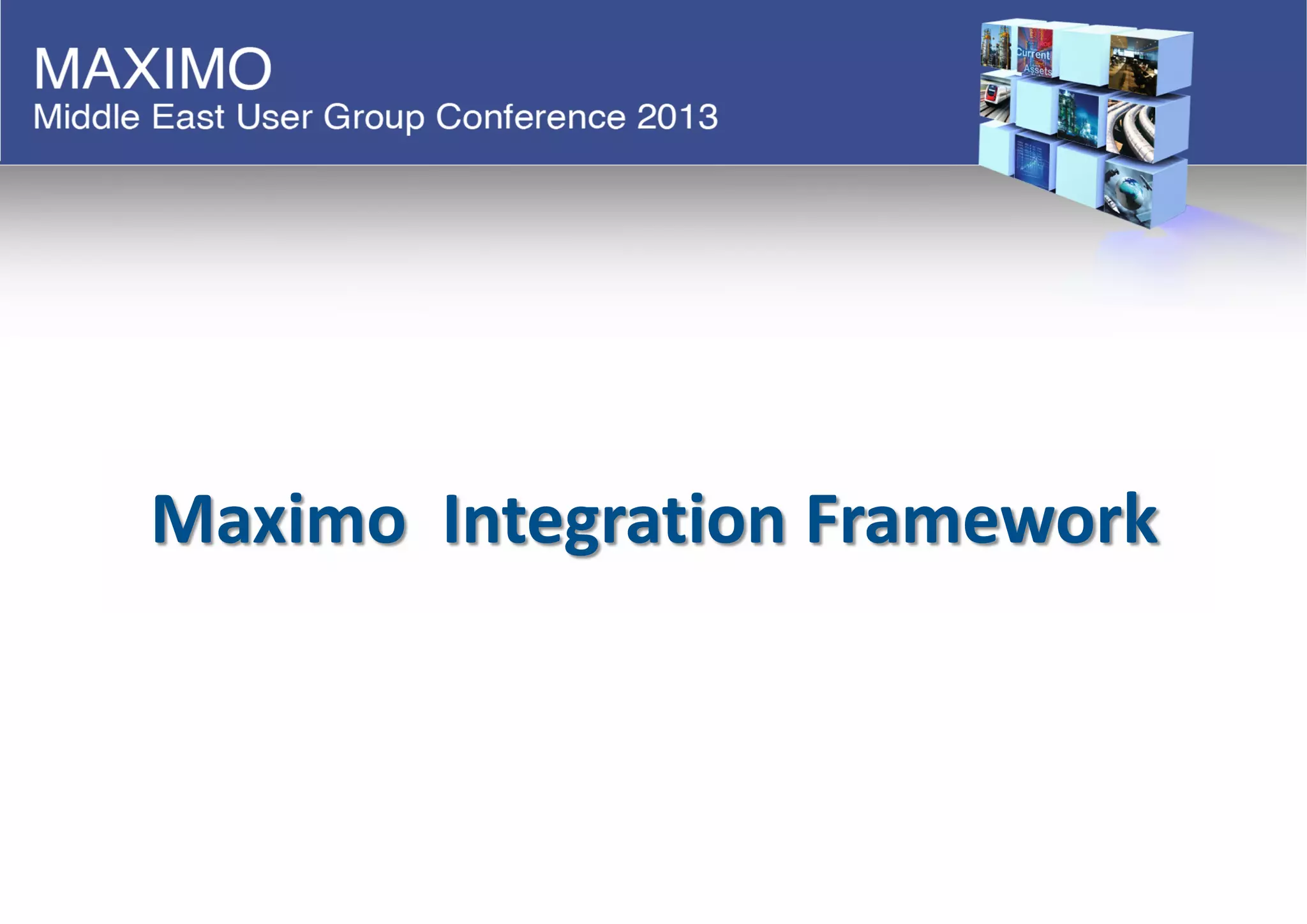

17. Maximo Integration Framework

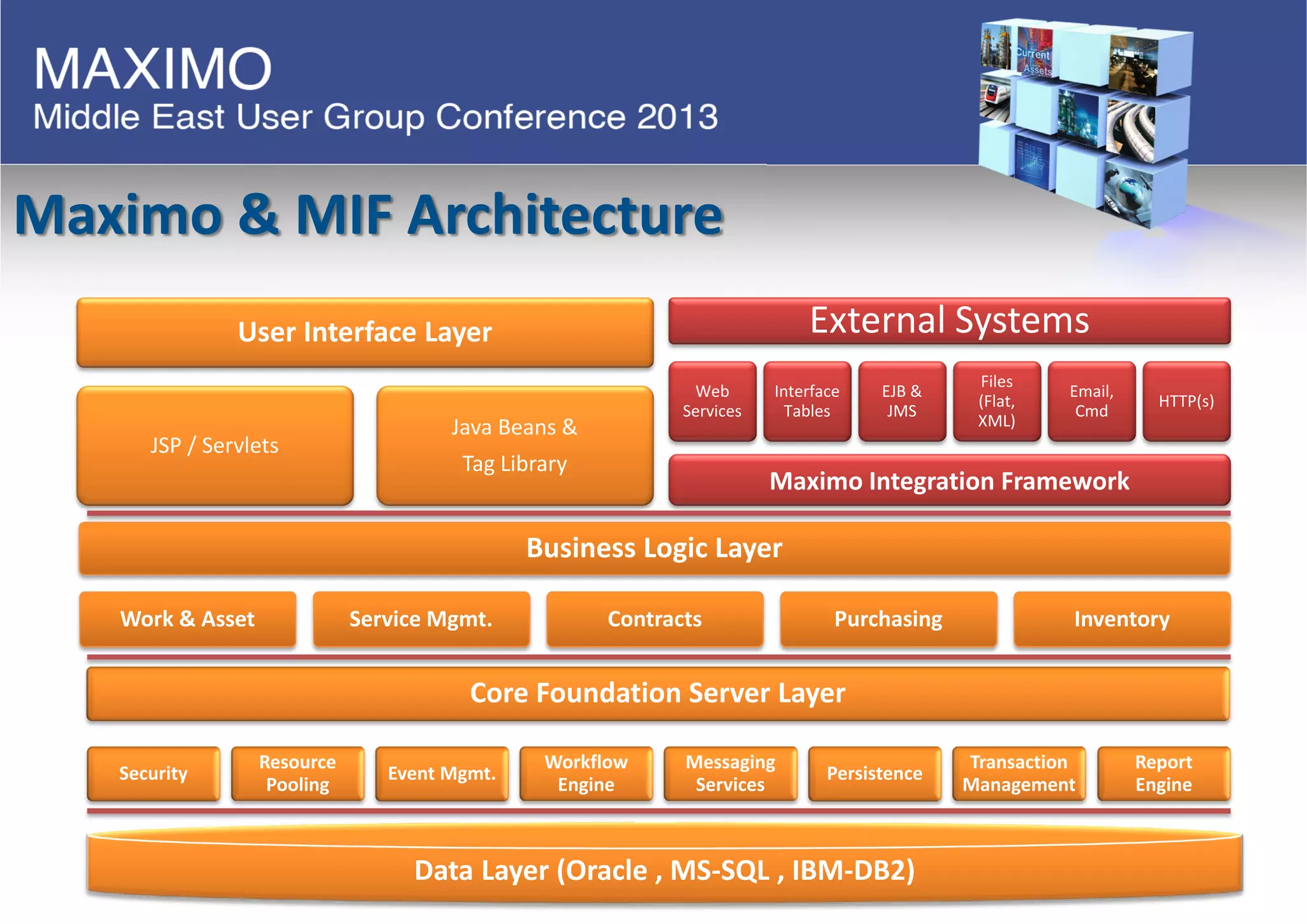

18. Maximo & MIF Architecture
External Systems
Web
Services
Interface
Tables
EJB &
JMS
Files
(Flat,
XML)
Email,
Cmd
HTTP(s)
Maximo Integration Framework
User Interface Layer
JSP / Servlets
Java Beans &
Tag Library
Business Logic Layer
Work & Asset Service Mgmt. Contracts Purchasing Inventory
Core Foundation Server Layer
Security
Resource
Pooling
Event Mgmt.
Workflow
Engine
Messaging
Services
Persistence
Transaction
Management
Report
Engine
Data Layer (Oracle , MS-SQL , IBM-DB2)

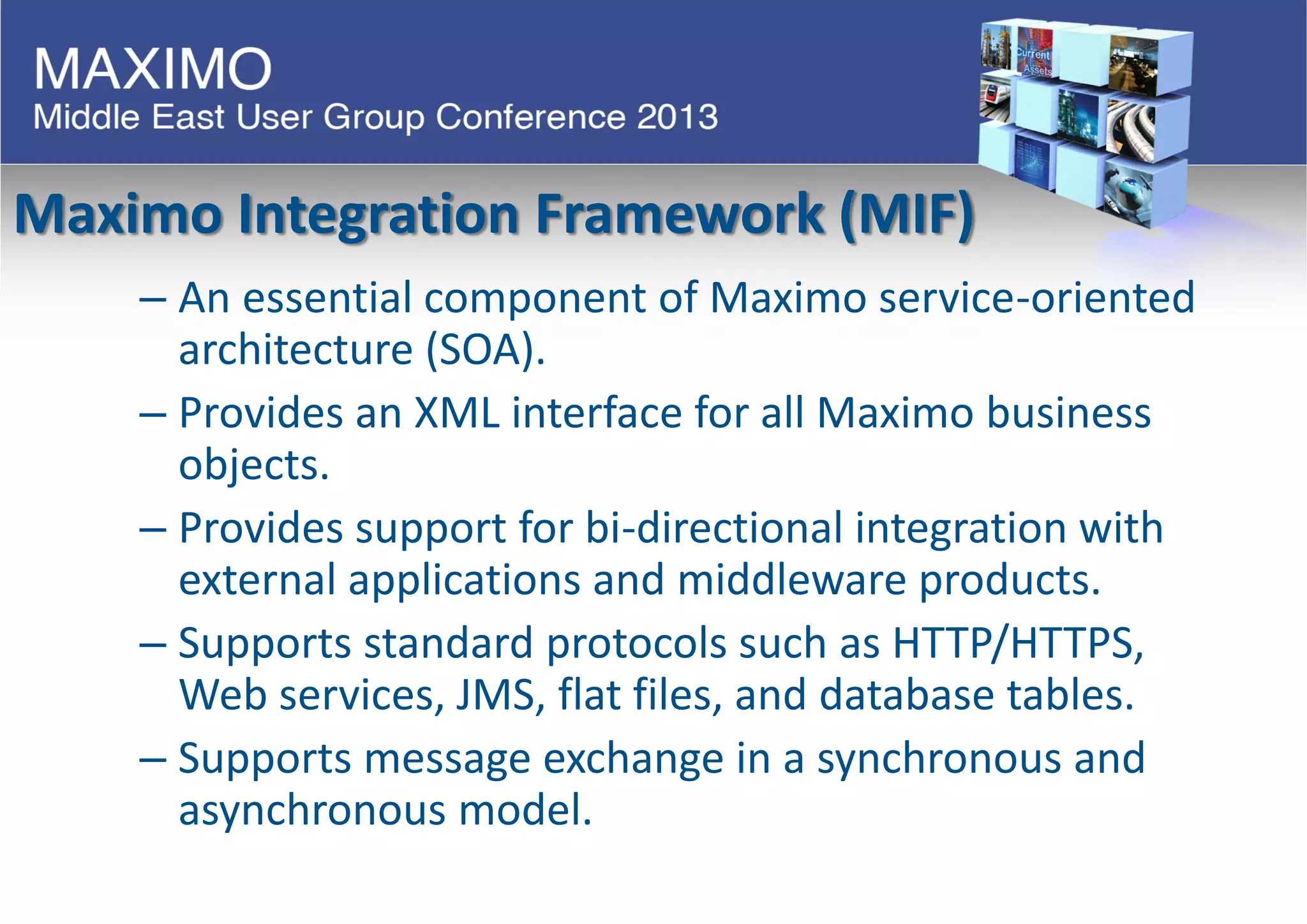

19. Maximo Integration Framework (MIF)
– An essential component of Maximo service-oriented
architecture (SOA).
– Provides an XML interface for all Maximo business
objects.
– Provides support for bi-directional integration with
external applications and middleware products.
– Supports standard protocols such as HTTP/HTTPS,
Web services, JMS, flat files, and database tables.
– Supports message exchange in a synchronous and
asynchronous model.

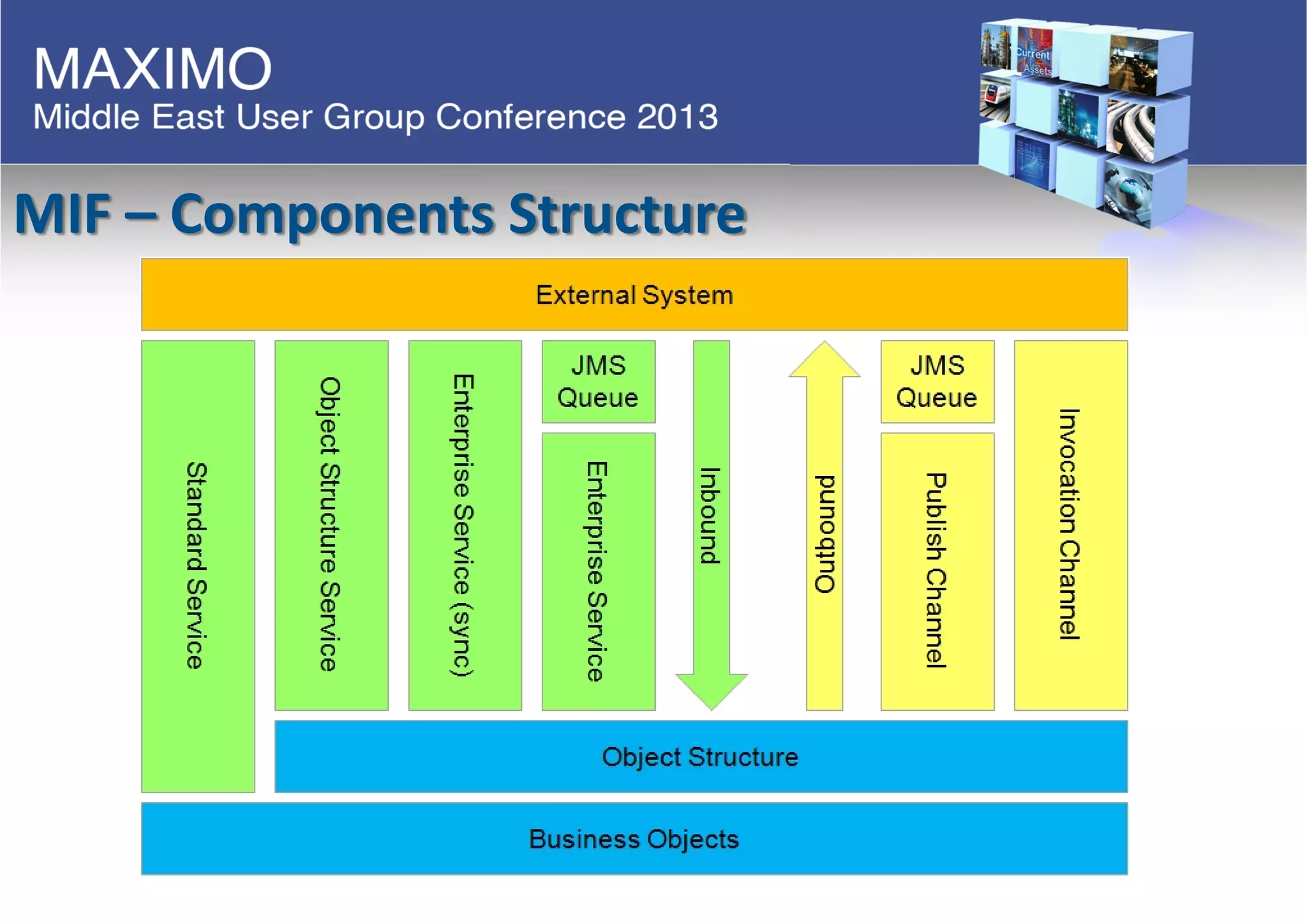

20. MIF – Components Structure

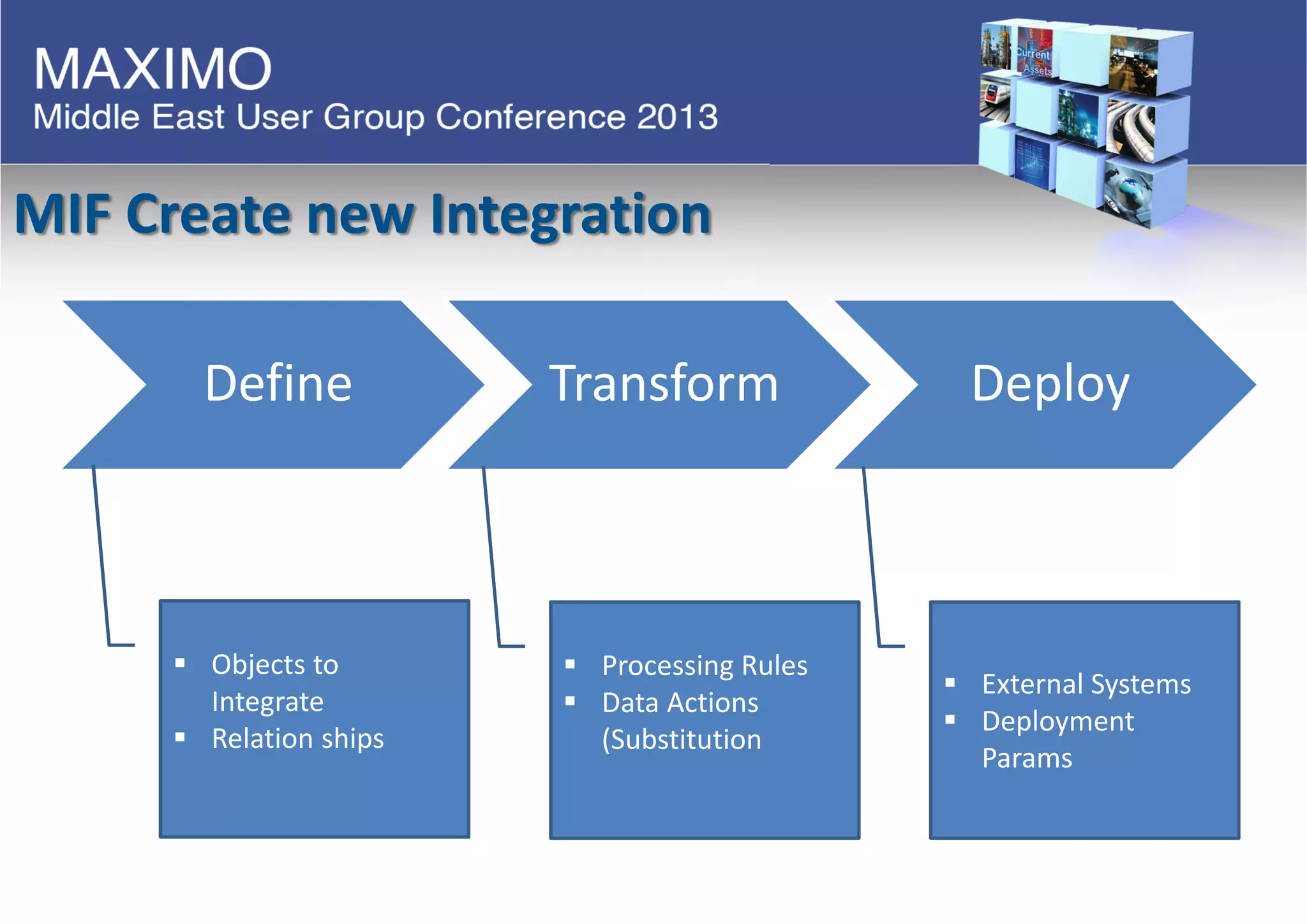

21. MIF Create new Integration
Define Transform Deploy
 Processing Rules
 Data Actions
(Substitution
 External Systems
 Deployment
Params
 Objects to
Integrate
 Relation ships

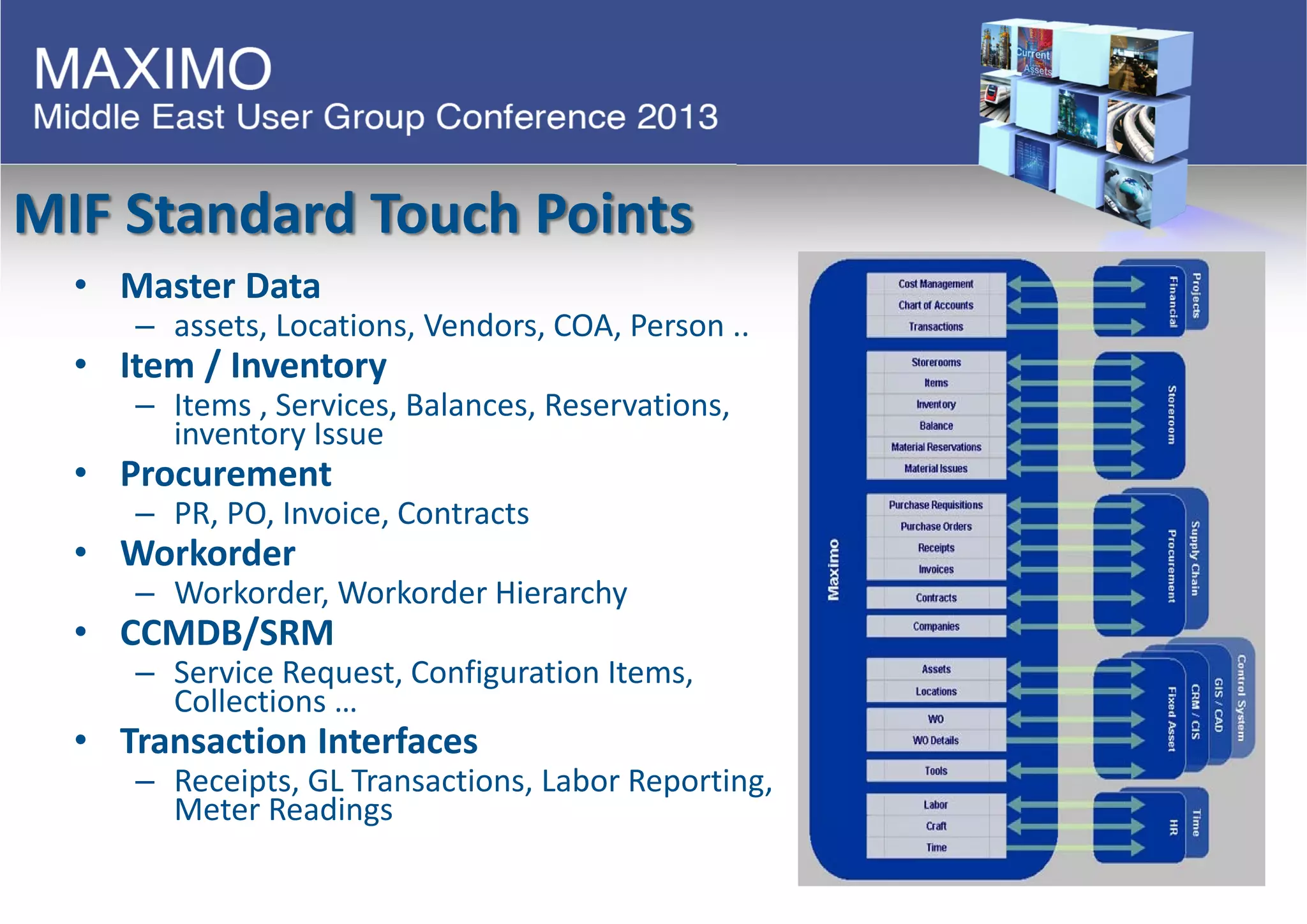

22. MIF Standard Touch Points
• Master Data
– assets, Locations, Vendors, COA, Person ..
• Item / Inventory
– Items , Services, Balances, Reservations,
inventory Issue
• Procurement
– PR, PO, Invoice, Contracts
• Workorder
– Workorder, Workorder Hierarchy
• CCMDB/SRM
– Service Request, Configuration Items,
Collections …
• Transaction Interfaces
– Receipts, GL Transactions, Labor Reporting,
Meter Readings

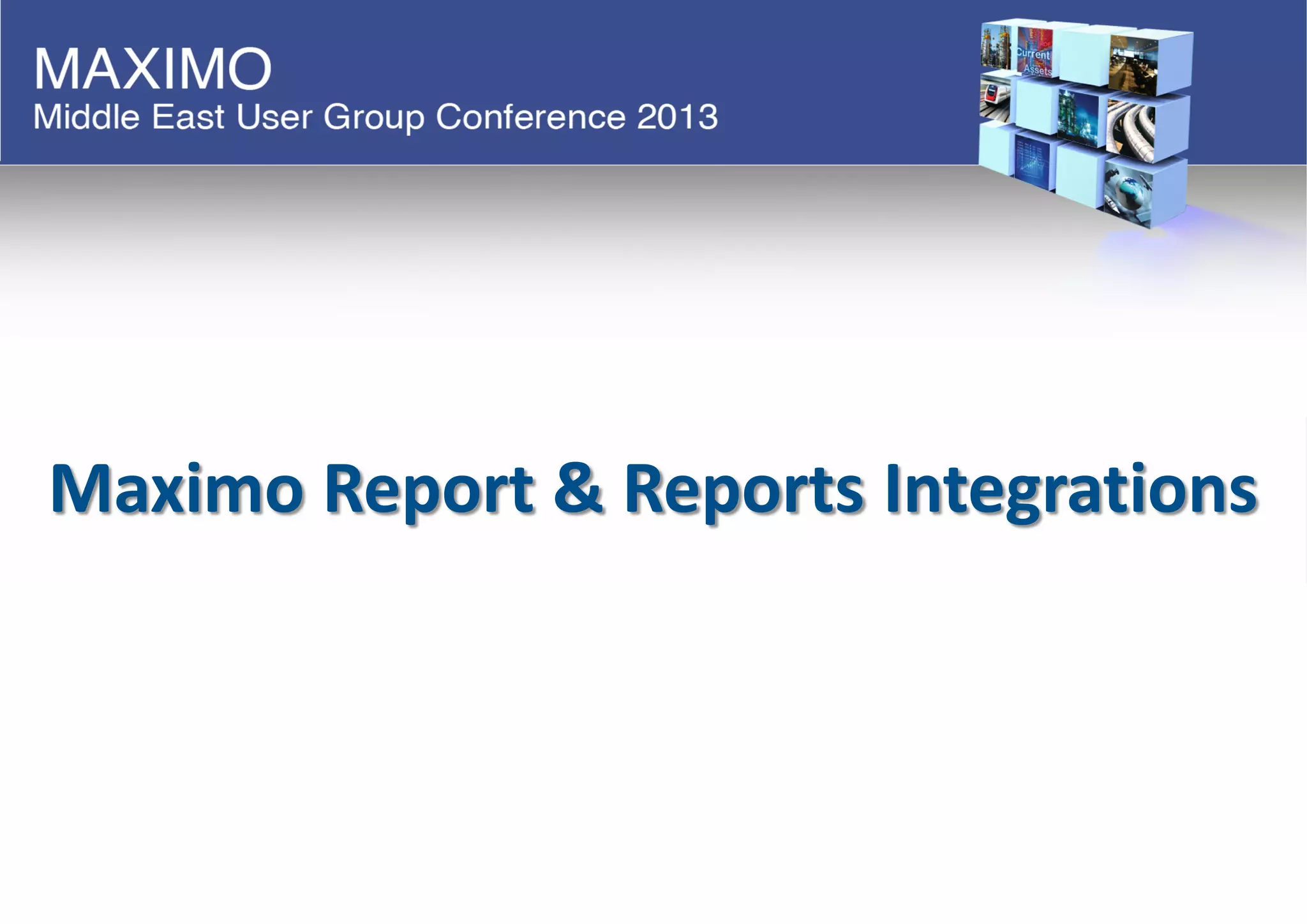

23. Maximo Report & Reports Integrations

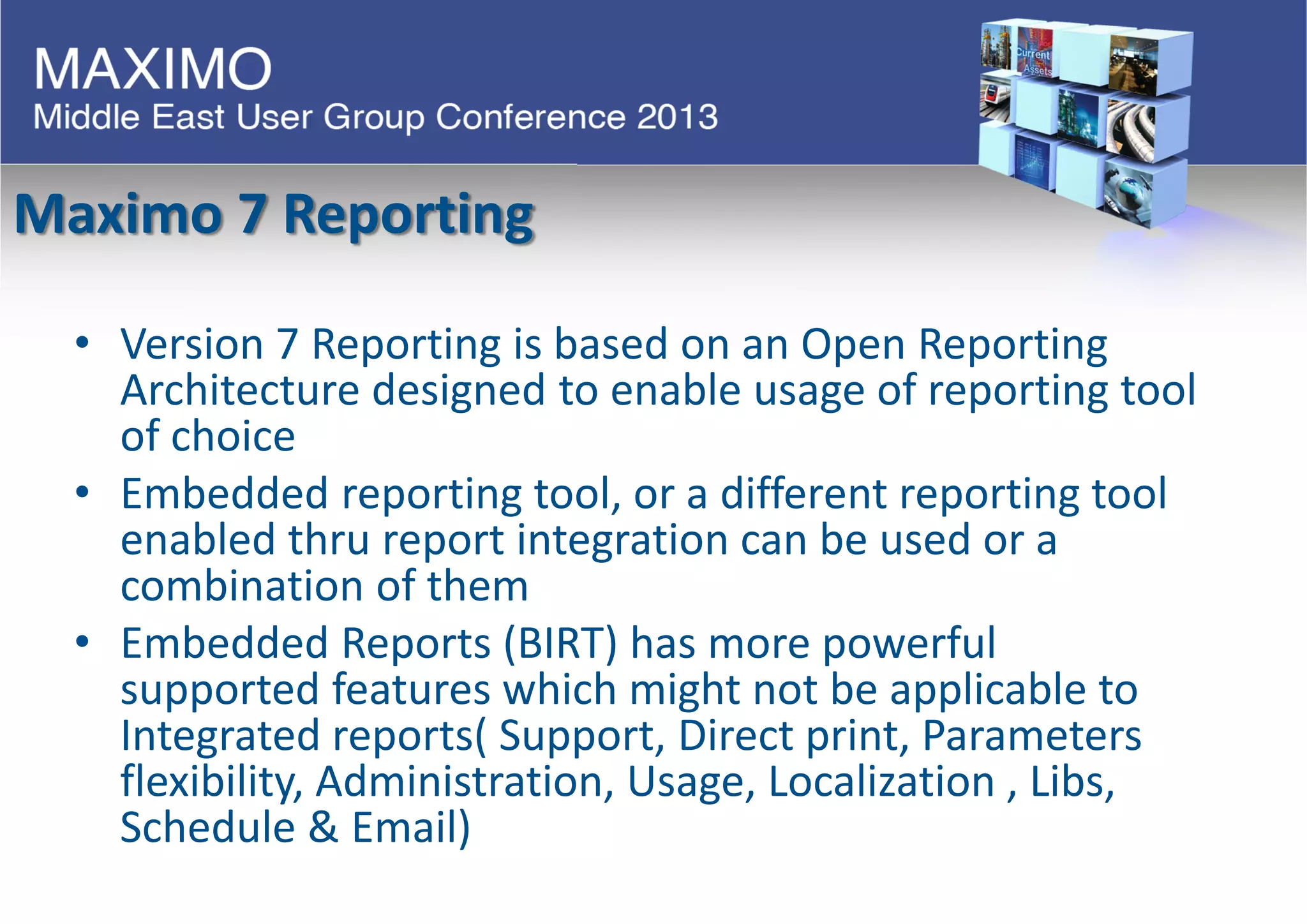

24. Maximo 7 Reporting
• Version 7 Reporting is based on an Open Reporting
Architecture designed to enable usage of reporting tool
of choice
• Embedded reporting tool, or a different reporting tool
enabled thru report integration can be used or a
combination of them
• Embedded Reports (BIRT) has more powerful
supported features which might not be applicable to
Integrated reports( Support, Direct print, Parameters
flexibility, Administration, Usage, Localization , Libs,
Schedule & Email)

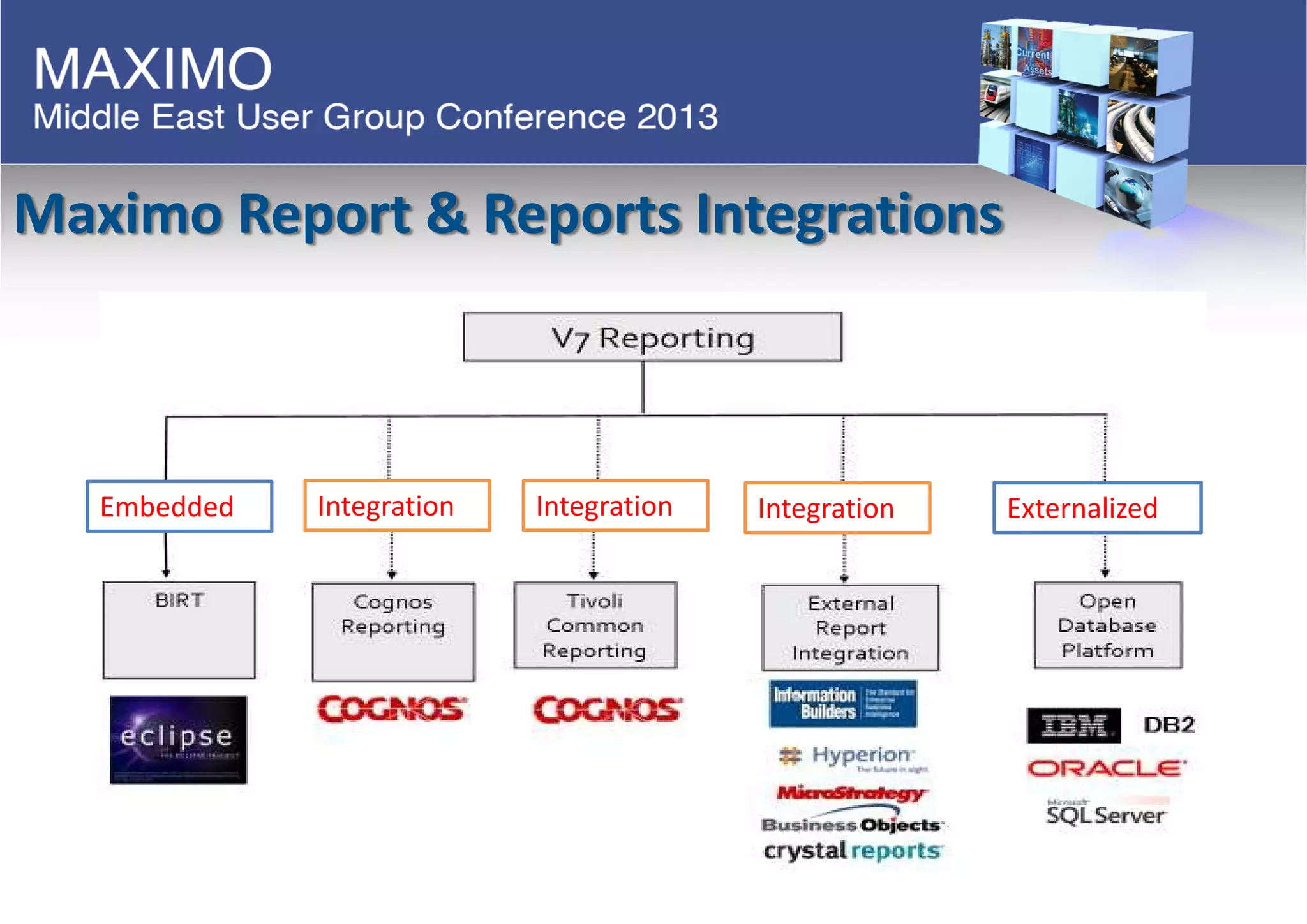

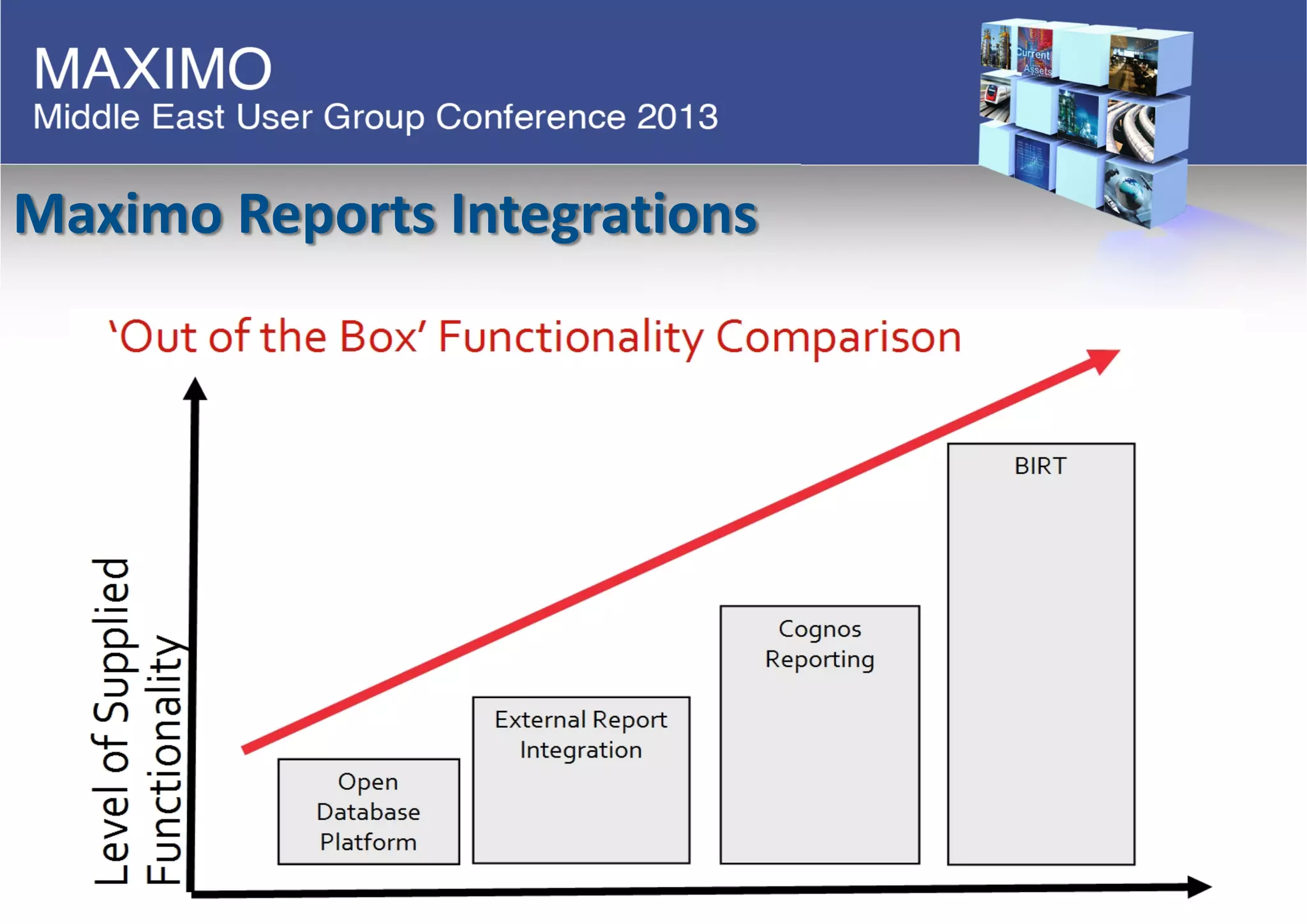

25. Maximo Report & Reports Integrations
Embedded Integration Integration Integration Externalized

26. Maximo Reports Integrations
