1. Fit For Purpose:
The New Database Revolution
Mark Madsen & Robin Bloor

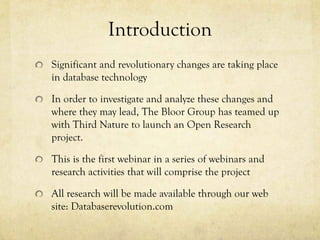

2. Introduction
Significant and revolutionary changes are taking place
in database technology
In order to investigate and analyze these changes and
where they may lead, The Bloor Group has teamed up
with Third Nature to launch an Open Research
project.
This is the first webinar in a series of webinars and
research activities that will comprise the project
All research will be made available through our web
site: Databaserevolution.com

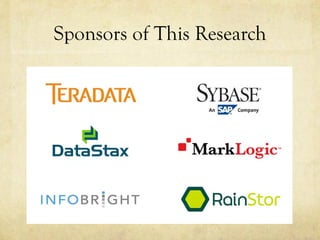

3. Sponsors of This Research

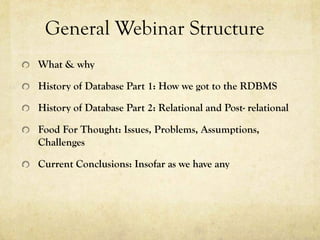

4. General Webinar Structure
What & why
History of Database Part 1: How we got to the RDBMS
History of Database Part 2: Relational and Post- relational
Food For Thought: Issues, Problems, Assumptions,
Challenges
Current Conclusions: Insofar as we have any

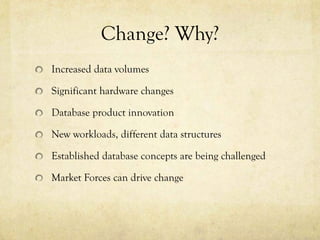

5. Change? Why?
Increased data volumes
Significant hardware changes
Database product innovation
New workloads, different data structures
Established database concepts are being challenged
Market Forces can drive change

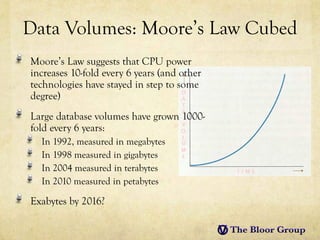

6. Data Volumes: Moore’s Law Cubed
Moore’s Law suggests that CPU power
increases 10-fold every 6 years (and other
technologies have stayed in step to some
degree)
Large database volumes have grown 1000-
fold every 6 years:
In 1992, measured in megabytes
In 1998 measured in gigabytes
In 2004 measured in terabytes
In 2010 measured in petabytes
Exabytes by 2016?

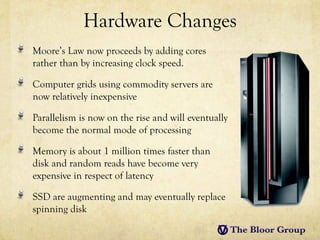

7. Hardware Changes
Moore’s Law now proceeds by adding cores
rather than by increasing clock speed.
Computer grids using commodity servers are
now relatively inexpensive
Parallelism is now on the rise and will eventually
become the normal mode of processing
Memory is about 1 million times faster than
disk and random reads have become very
expensive in respect of latency
SSD are augmenting and may eventually replace
spinning disk

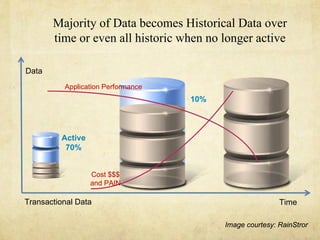

8. Majority of Data becomes Historical Data over
time or even all historic when no longer active
Data
Application Performance
10%
100%
Active
70%
90%
Static
30% Cost $$$
and PAIN
Transactional Data Time
Image courtesy: RainStror

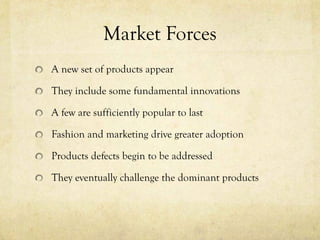

9. Market Forces
A new set of products appear
They include some fundamental innovations
A few are sufficiently popular to last
Fashion and marketing drive greater adoption
Products defects begin to be addressed
They eventually challenge the dominant products

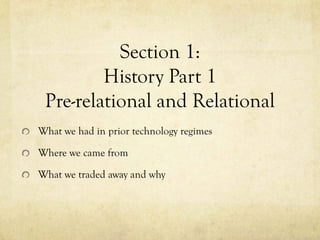

10. Section 1:
History Part 1
Pre-relational and Relational
What we had in prior technology regimes
Where we came from
What we traded away and why

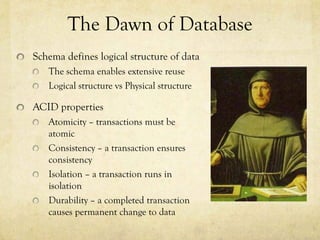

11. The Dawn of Database
Schema defines logical structure of data
The schema enables extensive reuse
Logical structure vs Physical structure
ACID properties
Atomicity – transactions must be
atomic
Consistency – a transaction ensures
consistency
Isolation – a transaction runs in
isolation
Durability – a completed transaction
causes permanent change to data

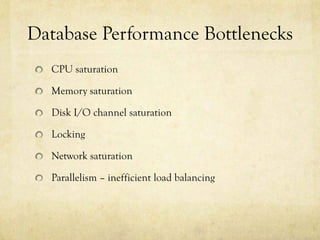

12. Database Performance Bottlenecks
CPU saturation
Memory saturation
Disk I/O channel saturation
Locking
Network saturation
Parallelism – inefficient load balancing

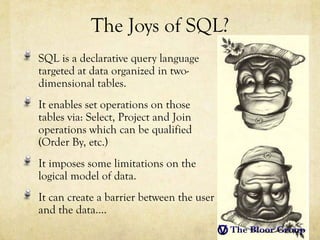

13. The Joys of SQL?
SQL is a declarative query language
targeted at data organized in two-
dimensional tables.
It enables set operations on those
tables via: Select, Project and Join
operations which can be qualified
(Order By, etc.)
It imposes some limitations on the
logical model of data.
It can create a barrier between the user
and the data....

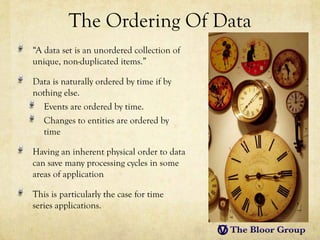

14. The Ordering Of Data
“A data set is an unordered collection of
unique, non-duplicated items.”
Data is naturally ordered by time if by
nothing else.
Events are ordered by time.
Changes to entities are ordered by
time
Having an inherent physical order to data
can save many processing cycles in some
areas of application
This is particularly the case for time
series applications.

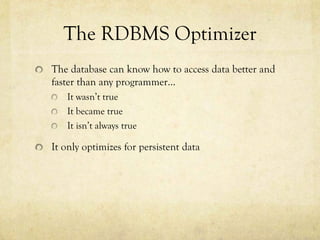

15. The RDBMS Optimizer
The database can know how to access data better and
faster than any programmer…
It wasn’t true
It became true
It isn’t always true
It only optimizes for persistent data

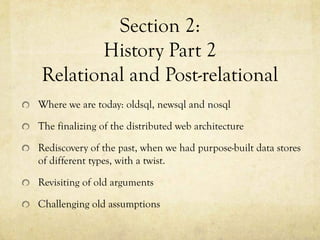

16. Section 2:
History Part 2
Relational and Post-relational
Where we are today: oldsql, newsql and nosql
The finalizing of the distributed web architecture
Rediscovery of the past, when we had purpose-built data stores
of different types, with a twist.
Revisiting of old arguments
Challenging old assumptions

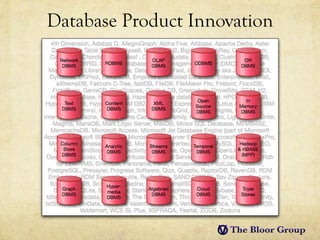

17. Database Product Innovation

18. Column Stores and Query-biased Workloads
Column store databases are still RDBMSs
Most SQL queries do not require all columns of a table
So partitioning data by columns (vertically) will usually
be better than partitioning by rows (horizontally)
And data compression can be more efficient
Column store databases scale up [somewhat] better
than traditional RDBMSs depending on workload,
queries, etc.
Column store <> column family

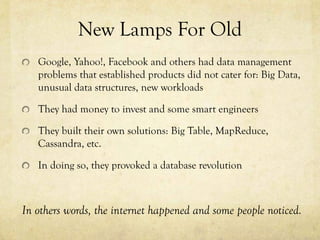

19. New Lamps For Old
Google, Yahoo!, Facebook and others had data management
problems that established products did not cater for: Big Data,
unusual data structures, new workloads
They had money to invest and some smart engineers
They built their own solutions: Big Table, MapReduce,
Cassandra, etc.
In doing so, they provoked a database revolution
In others words, the internet happened and some people noticed.

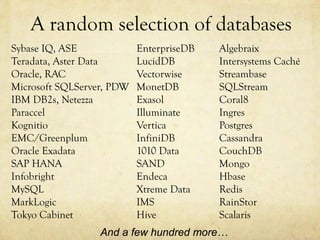

20. A random selection of databases
Sybase IQ, ASE EnterpriseDB Algebraix
Teradata, Aster Data LucidDB Intersystems Caché
Oracle, RAC Vectorwise Streambase
Microsoft SQLServer, PDW MonetDB SQLStream
IBM DB2s, Netezza Exasol Coral8
Paraccel Illuminate Ingres
Kognitio Vertica Postgres
EMC/Greenplum InfiniDB Cassandra
Oracle Exadata 1010 Data CouchDB
SAP HANA SAND Mongo
Infobright Endeca Hbase
MySQL Xtreme Data Redis
MarkLogic IMS RainStor
Tokyo Cabinet Hive Scalaris
And a few hundred more…

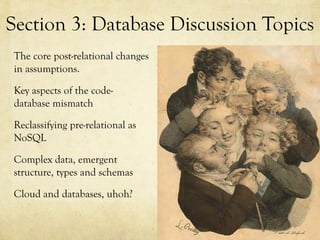

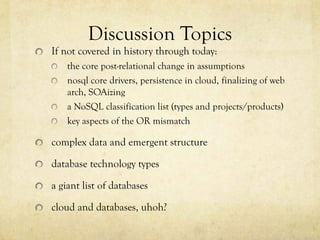

21. Section 3: Database Discussion Topics
The core post-relational changes
in assumptions.
Key aspects of the code-
database mismatch
Reclassifying pre-relational as
NoSQL
Complex data, emergent
structure, types and schemas
Cloud and databases, uhoh?

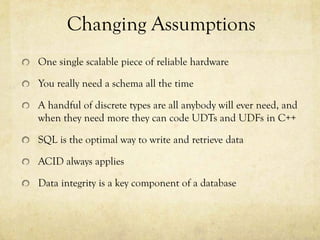

22. Changing Assumptions
One single scalable piece of reliable hardware
You really need a schema all the time
A handful of discrete types are all anybody will ever need, and
when they need more they can code UDTs and UDFs in C++
SQL is the optimal way to write and retrieve data
ACID always applies
Data integrity is a key component of a database

23. No SQL, New Concepts
Maybe SQL is an unacceptable constraint
Maybe SQL is unnecessary for some fit-for-purpose databases,
or perhaps just unimportant
Maybe the impedance mismatch can be avoided
Maybe a formal schema is a constraint
Maybe ACID properties can be compromised

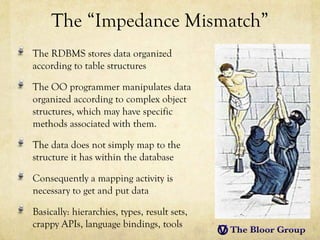

24. The “Impedance Mismatch”
The RDBMS stores data organized
according to table structures
The OO programmer manipulates data
organized according to complex object
structures, which may have specific
methods associated with them.
The data does not simply map to the
structure it has within the database
Consequently a mapping activity is
necessary to get and put data
Basically: hierarchies, types, result sets,
crappy APIs, language bindings, tools

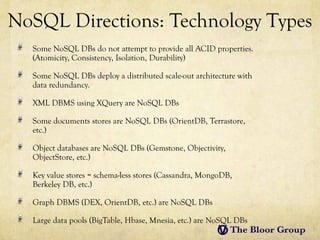

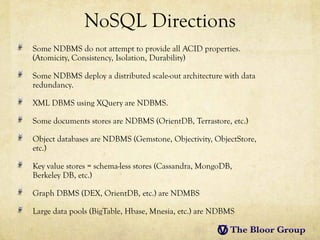

25. NoSQL Directions: Technology Types
Some NoSQL DBs do not attempt to provide all ACID properties.
(Atomicity, Consistency, Isolation, Durability)
Some NoSQL DBs deploy a distributed scale-out architecture with
data redundancy.
XML DBMS using XQuery are NoSQL DBs
Some documents stores are NoSQL DBs (OrientDB, Terrastore,
etc.)
Object databases are NoSQL DBs (Gemstone, Objectivity,
ObjectStore, etc.)
Key value stores = schema-less stores (Cassandra, MongoDB,
Berkeley DB, etc.)
Graph DBMS (DEX, OrientDB, etc.) are NoSQL DBs
Large data pools (BigTable, Hbase, Mnesia, etc.) are NoSQL DBs

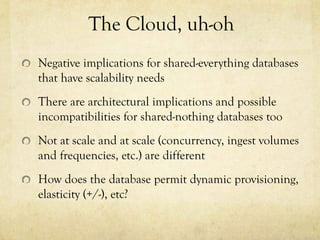

26. The Cloud, uh-oh
Negative implications for shared-everything databases
that have scalability needs
There are architectural implications and possible
incompatibilities for shared-nothing databases too
Not at scale and at scale (concurrency, ingest volumes
and frequencies, etc.) are different
How does the database permit dynamic provisioning,
elasticity (+/-), etc?

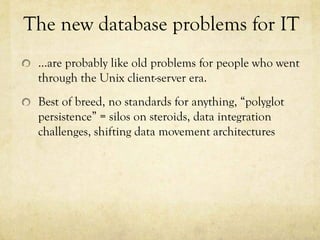

27. The new database problems for IT
…are probably like old problems for people who went
through the Unix client-server era.
Best of breed, no standards for anything, “polyglot
persistence” = silos on steroids, data integration
challenges, shifting data movement architectures

28. Recognize Tradeoffs
Read consistency vs programmatic correction
Schema vs a program to interpret each data structure
Standard access interface vs an API for each type of store
Data integrity enforcement vs programmatic control
Query performance for arbitrary queries vs planned access paths
Space efficiency vs simplicity / latency
Network transfer performance vs simplicity / latency
For the primary goals of
Horizontal scale
Looser coupling
Flexibility for developers building and changing applications

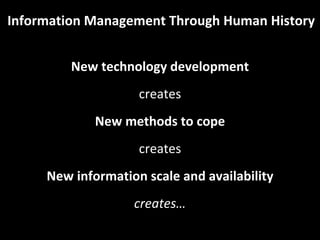

29. Information Management Through Human History
New technology development
creates
New methods to cope
creates
New information scale and availability
creates…

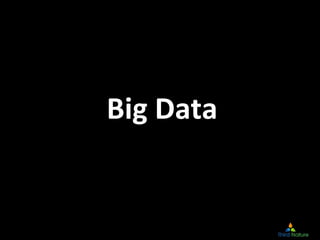

30. Big Data

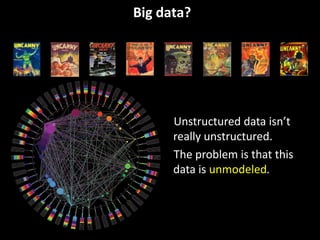

31. Big data?
Unstructured data isn’t
really unstructured.
The problem is that this
data is unmodeled.

32. The holy grail of databases under current market hype
The other problem is that
we’re talking mostly about
computation over data
when we talk about “big
data” and analytics,
another potential
mismatch.

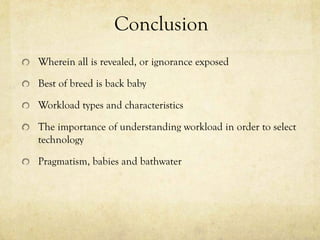

33. Conclusion
Wherein all is revealed, or ignorance exposed
Best of breed is back baby
Workload types and characteristics
The importance of understanding workload in order to select
technology
Pragmatism, babies and bathwater

34. Solving the Problem Depends on the Diagnosis

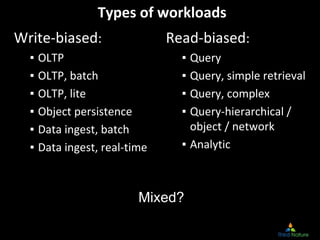

35. Types of workloads
Write‐biased: Read‐biased:
▪ OLTP ▪ Query
▪ OLTP, batch ▪ Query, simple retrieval
▪ OLTP, lite ▪ Query, complex
▪ Object persistence ▪ Query‐hierarchical /
▪ Data ingest, batch object / network
▪ Data ingest, real‐time ▪ Analytic
Mixed?

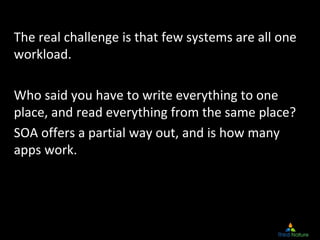

36. The real challenge is that few systems are all one
workload.
Who said you have to write everything to one
place, and read everything from the same place?
SOA offers a partial way out, and is how many
apps work.

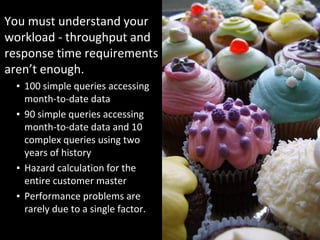

37. You must understand your
workload ‐ throughput and
response time requirements
aren’t enough.
▪ 100 simple queries accessing
month‐to‐date data
▪ 90 simple queries accessing
month‐to‐date data and 10
complex queries using two
years of history
▪ Hazard calculation for the
entire customer master
▪ Performance problems are
rarely due to a single factor.

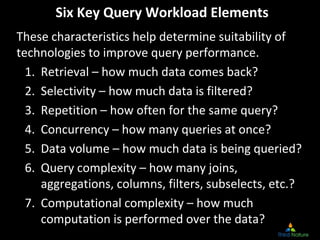

38. Six Key Query Workload Elements
These characteristics help determine suitability of
technologies to improve query performance.
1. Retrieval – how much data comes back?
2. Selectivity – how much data is filtered?
3. Repetition – how often for the same query?
4. Concurrency – how many queries at once?
5. Data volume – how much data is being queried?
6. Query complexity – how many joins,
aggregations, columns, filters, subselects, etc.?
7. Computational complexity – how much
computation is performed over the data?

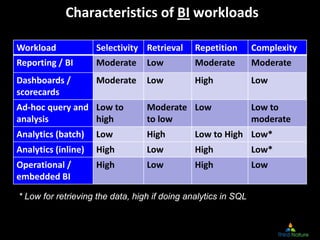

39. Characteristics of BI workloads
Workload Selectivity Retrieval Repetition Complexity
Reporting / BI Moderate Low Moderate Moderate
Dashboards / Moderate Low High Low
scorecards
Ad‐hoc query and Low to Moderate Low Low to
analysis high to low moderate
Analytics (batch) Low High Low to High Low*
Analytics (inline) High Low High Low*
Operational / High Low High Low
embedded BI
* Low for retrieving the data, high if doing analytics in SQL

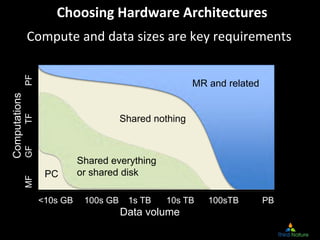

40. Choosing Hardware Architectures
Compute and data sizes are key requirements
PF
MR and related
Computations
TF
Shared nothing
GF
Shared everything
PC or shared disk
MF
<10s GB 100s GB 1s TB 10s TB 100sTB PB
Data volume
40

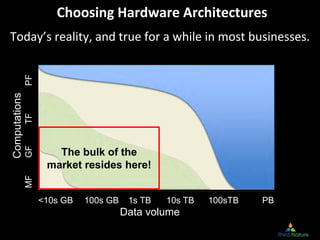

41. Choosing Hardware Architectures
Today’s reality, and true for a while in most businesses.
PF
Computations
TF
GF
The bulk of the
market resides here!
MF
<10s GB 100s GB 1s TB 10s TB 100sTB PB
Data volume
41

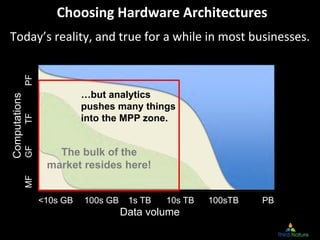

42. Choosing Hardware Architectures
Today’s reality, and true for a while in most businesses.
PF
…but analytics
Computations
pushes many things
TF
into the MPP zone.
GF
The bulk of the
market resides here!
MF
<10s GB 100s GB 1s TB 10s TB 100sTB PB
Data volume
42

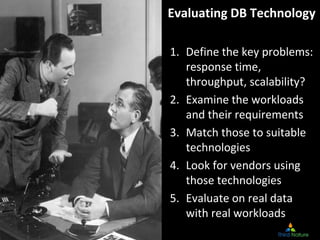

43. Evaluating DB Technology
1. Define the key problems:
response time,
throughput, scalability?
2. Examine the workloads
and their requirements
3. Match those to suitable
technologies
4. Look for vendors using
those technologies
5. Evaluate on real data
with real workloads
Slide 43
Copyright Third Nature, Inc.

44. Thank You
For Your
Attention

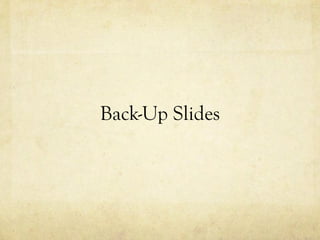

45. Back-Up Slides

46. NoSQL Directions
Some NDBMS do not attempt to provide all ACID properties.
(Atomicity, Consistency, Isolation, Durability)
Some NDBMS deploy a distributed scale-out architecture with data
redundancy.
XML DBMS using XQuery are NDBMS.
Some documents stores are NDBMS (OrientDB, Terrastore, etc.)
Object databases are NDBMS (Gemstone, Objectivity, ObjectStore,
etc.)
Key value stores = schema-less stores (Cassandra, MongoDB,
Berkeley DB, etc.)
Graph DBMS (DEX, OrientDB, etc.) are NDMBS
Large data pools (BigTable, Hbase, Mnesia, etc.) are NDBMS

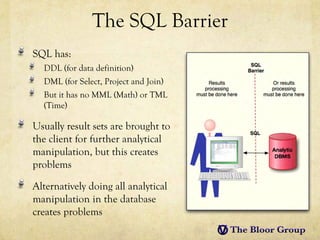

47. The SQL Barrier
SQL has:
DDL (for data definition)
DML (for Select, Project and Join)
But it has no MML (Math) or TML
(Time)
Usually result sets are brought to
the client for further analytical
manipulation, but this creates
problems
Alternatively doing all analytical
manipulation in the database
creates problems

48. Discussion Topics
If not covered in history through today:
the core post-relational change in assumptions
nosql core drivers, persistence in cloud, finalizing of web
arch, SOAizing
a NoSQL classification list (types and projects/products)
key aspects of the OR mismatch
complex data and emergent structure
database technology types
a giant list of databases
cloud and databases, uhoh?
