This document discusses database management systems and the three-level architecture. It describes the internal, conceptual, and external levels, and how mappings between these levels provide data independence which shields applications from changes in storage structures or access strategies. Logical data independence means changes to the conceptual model do not affect external views, while physical data independence means changes to the internal model do not affect the conceptual model. The document also reviews DBMS functions like transaction support and recovery services, and different DBMS environments like single-user, multi-user, and client-server systems.

1. © Virtual University of Pakistan
Database
Management
Systems
Lecture - 4

2. © Virtual University of Pakistan

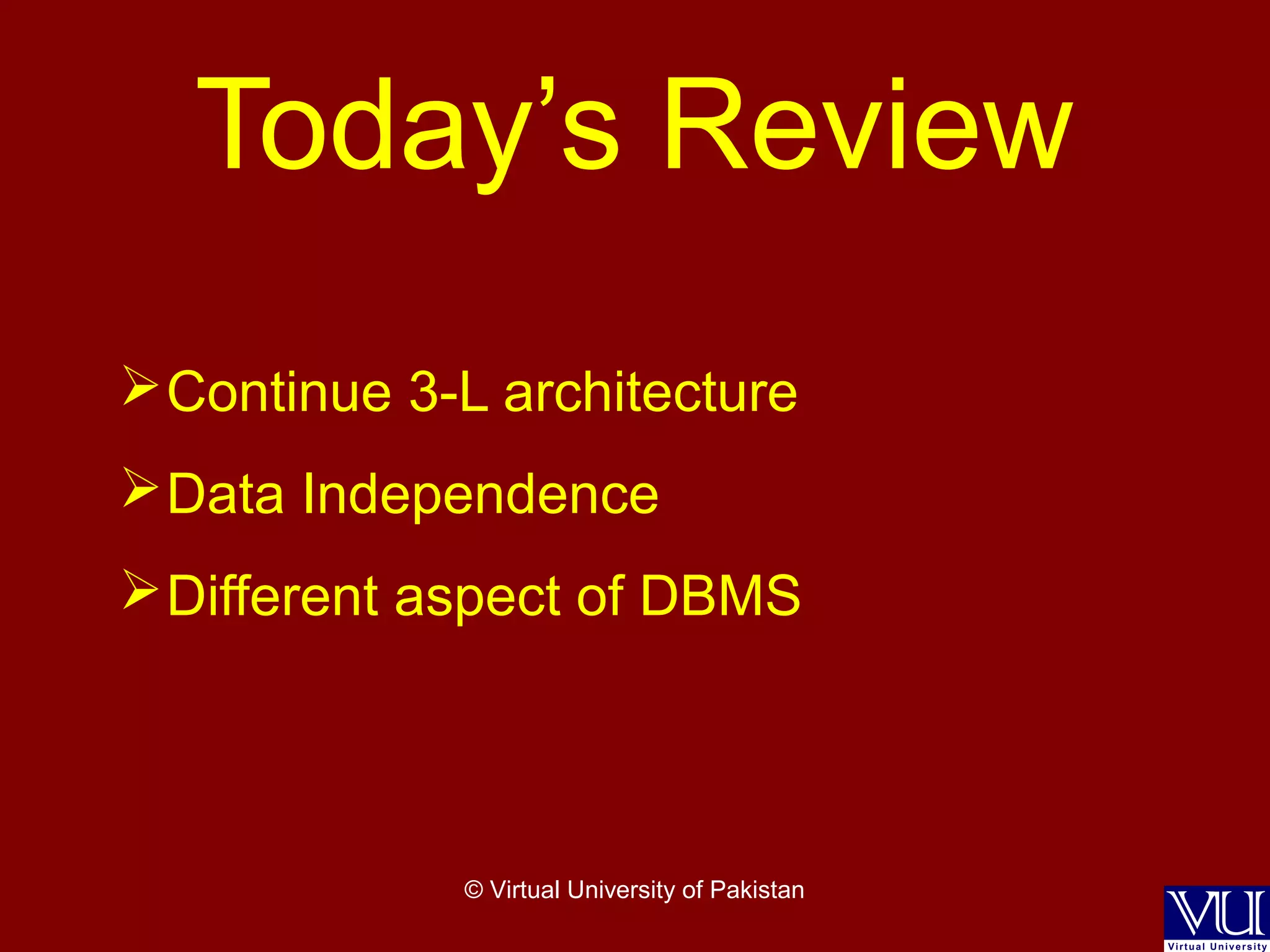

Today’s Review
Continue 3-L architecture
Data Independence
Different aspect of DBMS

3. © Virtual University of Pakistan
Level 3
Internal or Physical
View
Concerns about the physical implementation of
the database

4. © Virtual University of Pakistan
Internal View
DBMS chooses type of data structures
lays out data on storage devices with
operating system access methods

5. © Virtual University of Pakistan
Internal View
Internal record: a single stored record
Does not just contain what we see at the
conceptual level
DBMS adds other data

6. © Virtual University of Pakistan
Physical Level
Generally same as Internal
Actual representation of data on the
storage device
In the binary format
OS responsibility

7. © Virtual University of Pakistan
Inter-Schema
Mappings
Also a part of 3-level architecture
External/conceptual mapping
Conceptual/Internal

8. © Virtual University of Pakistan
Ext/Con Mapping
Specifies mapping between objects in the
external view to those in the logical model

9. © Virtual University of Pakistan
Con/Int Mapping
Specifies mapping between objects in the
logical model to those in the physical model-
data independence

10. © Virtual University of Pakistan
3-Level Architecture
External Level
Conceptual Level
Internal Level
Physical Data
Organization
Ext/Con Mapping
View 1 View 2 View n
Conceptual
Schema
Internal
Schema
Database
User 1 User 2 User n
Con/Int Mapping

11. © Virtual University of Pakistan
Name DoB Deps DepId
Rana Aslam 12/09/70 5 D001
Marya Wasti 29/02/80 0 D005
First Name: Rana
Last Name: Aslam
Date of Birth:
12 Sep, 1970
Name: R. Aslam
Age: 24y,10d
Dept: Sales
Saleem
Saleema
01110011010011100101001010100101010010101…..
BH RH Rana Aslam 120970 5 D001 RH Marya Wasti…

12. © Virtual University of Pakistan
Data
Independence

13. © Virtual University of Pakistan
Data Independence
A major outcome of 3-L Arch
The immunity of applications to change in
storage structure and access strategy

14. © Virtual University of Pakistan
Changes in lower level do not affect the
upper levels
Don’t take it word to word
Mind the direction please
Data Independence

15. © Virtual University of Pakistan
Data Independence
Types
• Logical Data Independence
• Physical Data Independence

16. © Virtual University of Pakistan
Logical Data
Independence
Changes in conceptual model do not affect the
external views
Immunity of external level from changes at
conceptual level

17. © Virtual University of Pakistan
Types of Changes
Adding a new file/index etc.
Adding a new field in a file
Changing type/size
Deleting an attribute

18. © Virtual University of Pakistan
Physical Data
Independence
 Changes in the internal model do not affect the
conceptual model
 Immunity of Conceptual level from changes at
Internal level

19. © Virtual University of Pakistan
Changes Examples
Changing file organization
Index implementation, hash, tree etc.
Changing storage medium

20. © Virtual University of Pakistan
3-Level Architecture
External Level
Conceptual Level
Internal Level
Physical Data
Organization
Ext/Con Mapping
View 1 View n
Conceptual
Schema
Internal
Schema
Database
User 1 User n
Con/Int Mapping
Conceptual Data Ind
Physical
Data Ind

21. © Virtual University of Pakistan
Functions of DBMS
 Data Processing
 A User Accessible Catalog
 Transaction Support
 Concurrency Control Services

22. © Virtual University of Pakistan
Functions of DBMS
 Recovery Services
 Authorization Services
 Support for Data Communication
 Integrity Services

23. © Virtual University of Pakistan
DBMS Environments
Single User
Multi-user
Teleprocessing
File Servers
Client-Server

24. © Virtual University of Pakistan
Teleprocessing
All processing at
a central computer
Dumb Terminals

25. © Virtual University of Pakistan
File Servers
LAN
File returned Data request
Database
Workstation Workstation
File Server

26. © Virtual University of Pakistan
Client-Server
LAN
Selected data returned Data request
Database
Client Client
Server
(with DBMS)

27. © Virtual University of Pakistan
Today’s Summary
Completed 3-L architecture
Discussed data independence
Discussion on DBMS

28. © Virtual University of Pakistan
Thanks and
Allah Hafiz

29. © Virtual University of Pakistan
Database
Management
Systems
Lecture - 4
