Introduction to Data tapes
Data tapes are magnetic storage devices that read and write data on magnetic tape, commonly used for digital recording of audio and video. They have evolved from open reels for large computers to more compact cartridges with improved recording techniques and varying densities. Various companies, such as Sony and IBM, continue to produce different tape formats for enterprise-level data storage, ensuring backward compatibility and advanced features like data compression and encryption.
More Related Content
!["GPS" Global Positioning System [PDF]](https://cdn.slidesharecdn.com/ss_thumbnails/globalpositioningsystemgpsmainpdf-101105164539-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Introduction to Data tapes
Introduction to Data tapes
- 2. What are DataTapes?
- 3. “Data storage devicethat reads and writes data on a magnetic tape” • Magnetic Tape – Long and narrow strip of plastic film – Magnetized undercoating of strip – Various levels of magnetized data are stored on strip • Magnetic Tape Data Storage – Digital recording on magnetic tape to store digital information – Commonly enclosed in cartridges and cassettes – Tape Drive performs writing or reading of data
- 4.
- 5. • Digital Recording –Digital audio and video are directly recorded on a storage device – Direct encoding of data into the stream of discrete numbers which represents: • Changes in air pressure for audio and chroma & luminance values for video through time • Recording Process – Recording – Playback • Techniques to Record to Commercial Media – Digital Cassettes • Read/write head moves quickly in order to maintain a high enough speed to keep the bits at a manageable size – Optical Disc Recording • A laser is used to burn microscopic holes into the dye layer of the medium • A weaker laser is used to read these signals • Digital Information – Discrete, discontinuous representations of information or works
- 6. History of DataTapes
- 7. • Open Reels –Wound on large (10.5 in/26.67 cm) reels – Standard for large computers • Univac – First commercial data tape UNIVAC I - 1951. – Used in UNISERVO – Drive’s recording medium: • A thin metal strip of 0.5 inch wide – Nickel-plated phosphor bronze • Recording density was 128 characters per inch – Linear speed of 100 in/s • Eight tracks: – Six data tracks – One parity track – One timing track
- 8. • IBM Formats –Used ferrous-oxide coated tape – Magnetic tape dimensions were 0.5 inch – Wound on removable reels up to 10.5 inches in diameter – Different tape lengths were available • 1200 ft., 2400 ft. • Introduction of half inch tapes – Tape lengths increased in 1980’s • Started using PET film – Early half-inch tape had 7 parallel tracks of data along the length – 9 track tapes supported the new 8-bit characters – Effective recording density increased over time • Common 7-track densities started at 200, then 556, and finally 800 cpi • 9-track tapes had densities of 800, 1600, and 6250 cpi • End of file was designated by a tape mark • End of tape by two tape marks

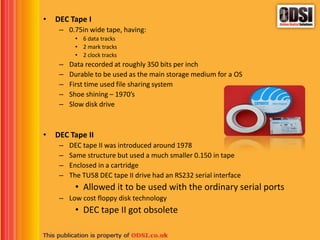

- 9. • DEC TapeI – 0.75in wide tape, having: • 6 data tracks • 2 mark tracks • 2 clock tracks – Data recorded at roughly 350 bits per inch – Durable to be used as the main storage medium for a OS – First time used file sharing system – Shoe shining – 1970’s – Slow disk drive • DEC Tape II – DEC tape II was introduced around 1978 – Same structure but used a much smaller 0.150 in tape – Enclosed in a cartridge – The TU58 DEC tape II drive had an RS232 serial interface • Allowed it to be used with the ordinary serial ports – Low cost floppy disk technology • DEC tape II got obsolete
- 10. • Cartridges andCassettes – Cassette • An enclosure that holds two reels • Single span of magnetic tape – Cartridge • A single reel of tape in a plastic enclosure
- 11.

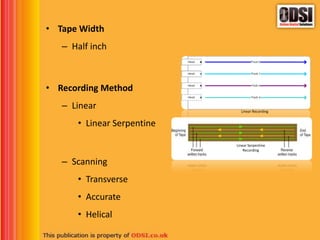

- 12. • Tape Width –Half inch • Recording Method – Linear • Linear Serpentine – Scanning • Transverse • Accurate • Helical Linear Recording Linear Serpentine Recording
- 13. • Data Blocks –Data is written on tape in blocks – Important to keep up with data rate • Data Buffer • Modern tapes offer speed matching feature • Sequential Access to Data – Tape provides sequential access to data • Takes 10s to reposition the tape head – Hard disk performs the action in 10s of milliseconds • Offers random access to data
- 14. • Access Time –Tape • Long latency for random accesses – Alternatives available • Indexing • Marking blocks with a tape mark • Data Compression – A ratio of 2:1 is typical – Some enterprise tape drives can encrypt data
- 15. Companies Venturing inData Tapes
- 16. • 3M • DEC •Sony • HP • Quantum • Storage Tek • Maxell • IBM • Etc
- 17. Tape Products Availableat ODSI

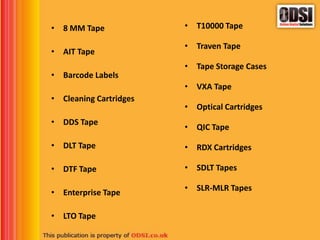

- 18. • 8 MMTape • AIT Tape • Barcode Labels • Cleaning Cartridges • DDS Tape • DLT Tape • DTF Tape • Enterprise Tape • LTO Tape • T10000 Tape • Traven Tape • Tape Storage Cases • VXA Tape • Optical Cartridges • QIC Tape • RDX Cartridges • SDLT Tapes • SLR-MLR Tapes
- 19.

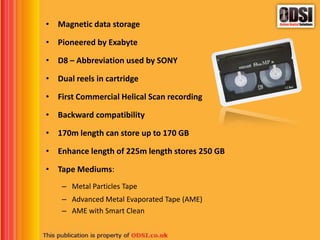

- 20. • Magnetic datastorage • Pioneered by Exabyte • D8 – Abbreviation used by SONY • Dual reels in cartridge • First Commercial Helical Scan recording • Backward compatibility • 170m length can store up to 170 GB • Enhance length of 225m length stores 250 GB • Tape Mediums: – Metal Particles Tape – Advanced Metal Evaporated Tape (AME) – AME with Smart Clean
- 21.

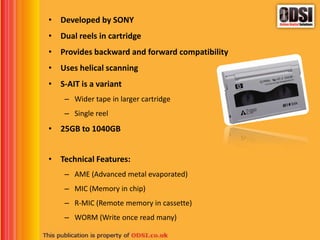

- 22. • Developed bySONY • Dual reels in cartridge • Provides backward and forward compatibility • Uses helical scanning • S-AIT is a variant – Wider tape in larger cartridge – Single reel • 25GB to 1040GB • Technical Features: – AME (Advanced metal evaporated) – MIC (Memory in chip) – R-MIC (Remote memory in cassette) – WORM (Write once read many)
- 23.
- 24. • Barcodes hasadhesive backing • Use for effective management of data tapes • Alphanumeric coding
- 25.
- 27. Digital Data StorageTapes (DDS)
- 28. • Store digitaldata on DAT Tape • Tape width is 3.8mm • Latest formats are 8mm wide • Helical scan recording method • Length can be increased • 2GB to 160GB • DAT Tape: – Developed by SONY – Sequential transmission of data – Ability to record digital data at: • Higher lower and equal sampling rate
- 29. Digital Linear Tapes(DLT)

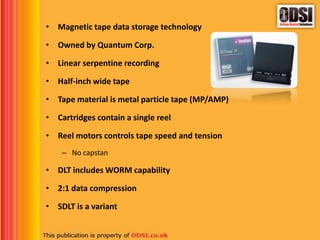

- 30. • Magnetic tapedata storage technology • Owned by Quantum Corp. • Linear serpentine recording • Half-inch wide tape • Tape material is metal particle tape (MP/AMP) • Cartridges contain a single reel • Reel motors controls tape speed and tension – No capstan • DLT includes WORM capability • 2:1 data compression • SDLT is a variant
- 31. Digital Tape Format(DTF)

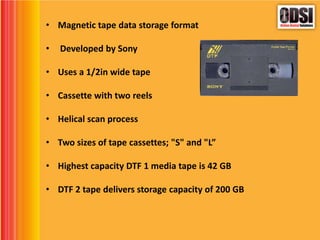

- 32. • Magnetic tapedata storage format • Developed by Sony • Uses a 1/2in wide tape • Cassette with two reels • Helical scan process • Two sizes of tape cassettes; "S" and "L” • Highest capacity DTF 1 media tape is 42 GB • DTF 2 tape delivers storage capacity of 200 GB
- 33.
- 34. • Half-inch tapetechnology • Few are able to encrypt data • Leading brands – Sun – Imation – Fuji – IBM
- 35. Linear Tape Open(LTO)

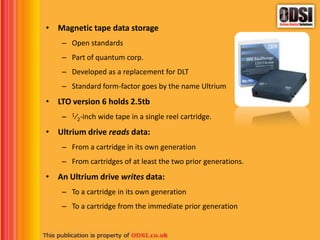

- 36. • Magnetic tapedata storage – Open standards – Part of quantum corp. – Developed as a replacement for DLT – Standard form-factor goes by the name Ultrium • LTO version 6 holds 2.5tb – 1⁄2-inch wide tape in a single reel cartridge. • Ultrium drive reads data: – From a cartridge in its own generation – From cartridges of at least the two prior generations. • An Ultrium drive writes data: – To a cartridge in its own generation – To a cartridge from the immediate prior generation
- 37.

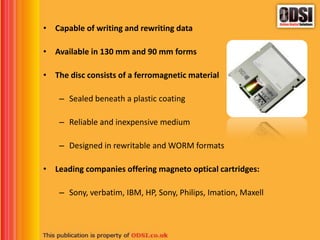

- 38. • Capable ofwriting and rewriting data • Available in 130 mm and 90 mm forms • The disc consists of a ferromagnetic material – Sealed beneath a plastic coating – Reliable and inexpensive medium – Designed in rewritable and WORM formats • Leading companies offering magneto optical cartridges: – Sony, verbatim, IBM, HP, Sony, Philips, Imation, Maxell
- 39.
- 40. • Magnetic tapedata storage format • Enclosed in a package of aluminum and plastic – Holds two tape reels driven by a single belt • The tape was originally 1⁄4-inch wide • Length is 300 to 1,500 feet – Motorized capstan • Data is written linearly along the length • Could also be written in "serpentine”
- 41.

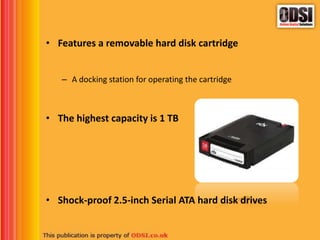

- 42. • Features aremovable hard disk cartridge – A docking station for operating the cartridge • The highest capacity is 1 TB • Shock-proof 2.5-inch Serial ATA hard disk drives
- 43.

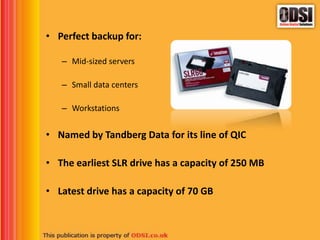

- 44. • Perfect backupfor: – Mid-sized servers – Small data centers – Workstations • Named by Tandberg Data for its line of QIC • The earliest SLR drive has a capacity of 250 MB • Latest drive has a capacity of 70 GB
- 45.

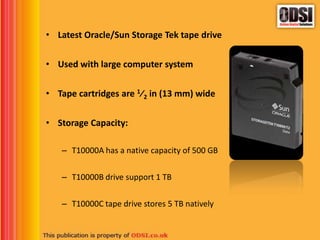

- 46. • Latest Oracle/SunStorage Tek tape drive • Used with large computer system • Tape cartridges are 1⁄2 in (13 mm) wide • Storage Capacity: – T10000A has a native capacity of 500 GB – T10000B drive support 1 TB – T10000C tape drive stores 5 TB natively
- 47.

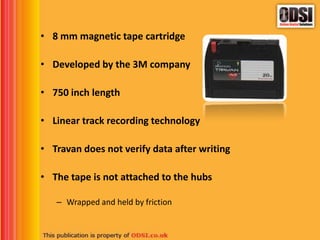

- 48. • 8 mmmagnetic tape cartridge • Developed by the 3M company • 750 inch length • Linear track recording technology • Travan does not verify data after writing • The tape is not attached to the hubs – Wrapped and held by friction
- 49.
- 51.
- 52. • “Packet technology”data format • Helical scan technology • 2 read heads for Each stripe – Each stripe starts with a unique packet ID – Ends with an ECC packet checksum • Ensures data integrity
- 53. Thank You Website: www.odsi.co.ukContact: +44 (0) 203 005 9500 Email: Sales@odsi.co.uk Source: Wikipedia
