Module-4 Introduction Embedded
Linux
Tushar B Kute
tushar@tusharkute.com
http://snashlug.org
contact@snashlug.org

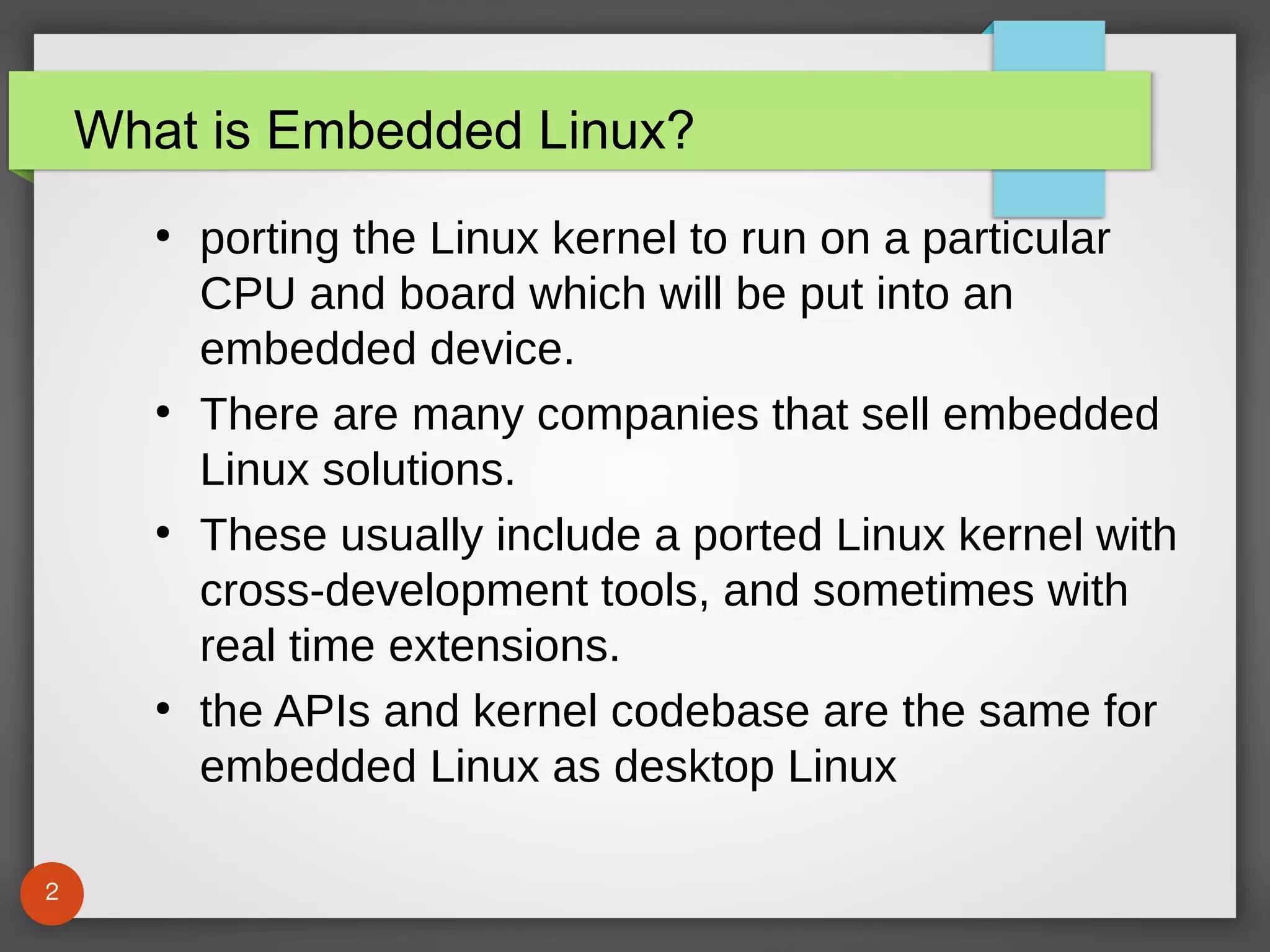

What is Embedded Linux?
●
porting the Linux kernel to run on a particular
CPU and board which will be put into an
embedded device.
●
There are many companies that sell embedded
Linux solutions.
●
These usually include a ported Linux kernel with
cross-development tools, and sometimes with
real time extensions.
●
the APIs and kernel codebase are the same for
embedded Linux as desktop Linux
2

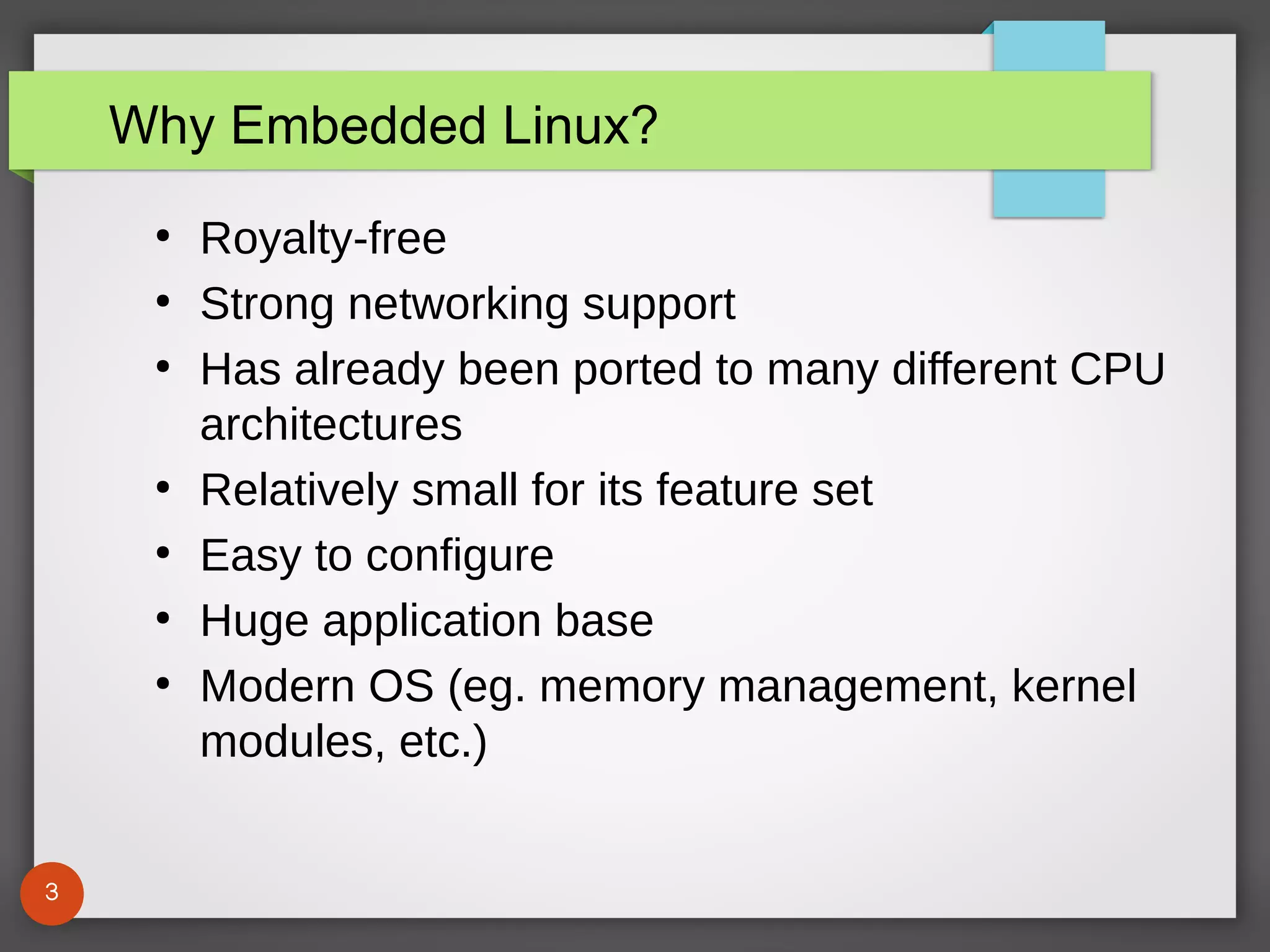

Why Embedded Linux?
●
Royalty-free
●
Strong networking support
●
Has already been ported to many different CPU
architectures
●
Relatively small for its feature set
●
Easy to configure
●
Huge application base
●
Modern OS (eg. memory management, kernel
modules, etc.)
3

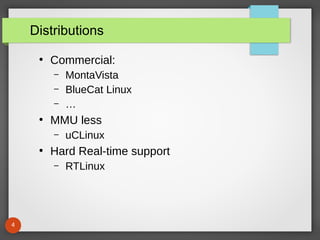

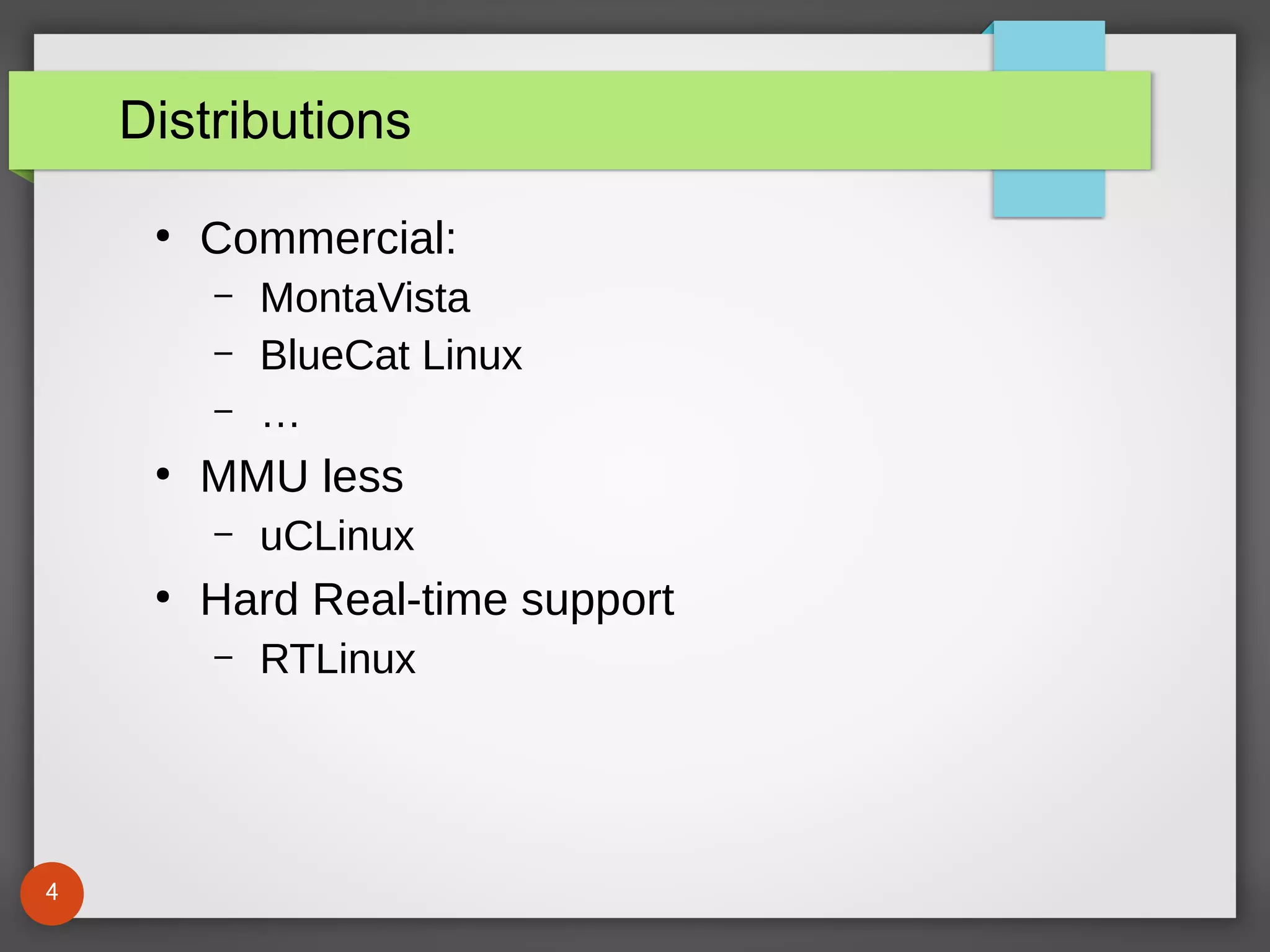

Distributions
●
Commercial:
– MontaVista
– BlueCat Linux
– …
●
MMU less
– uCLinux
●
Hard Real-time support
– RTLinux
4

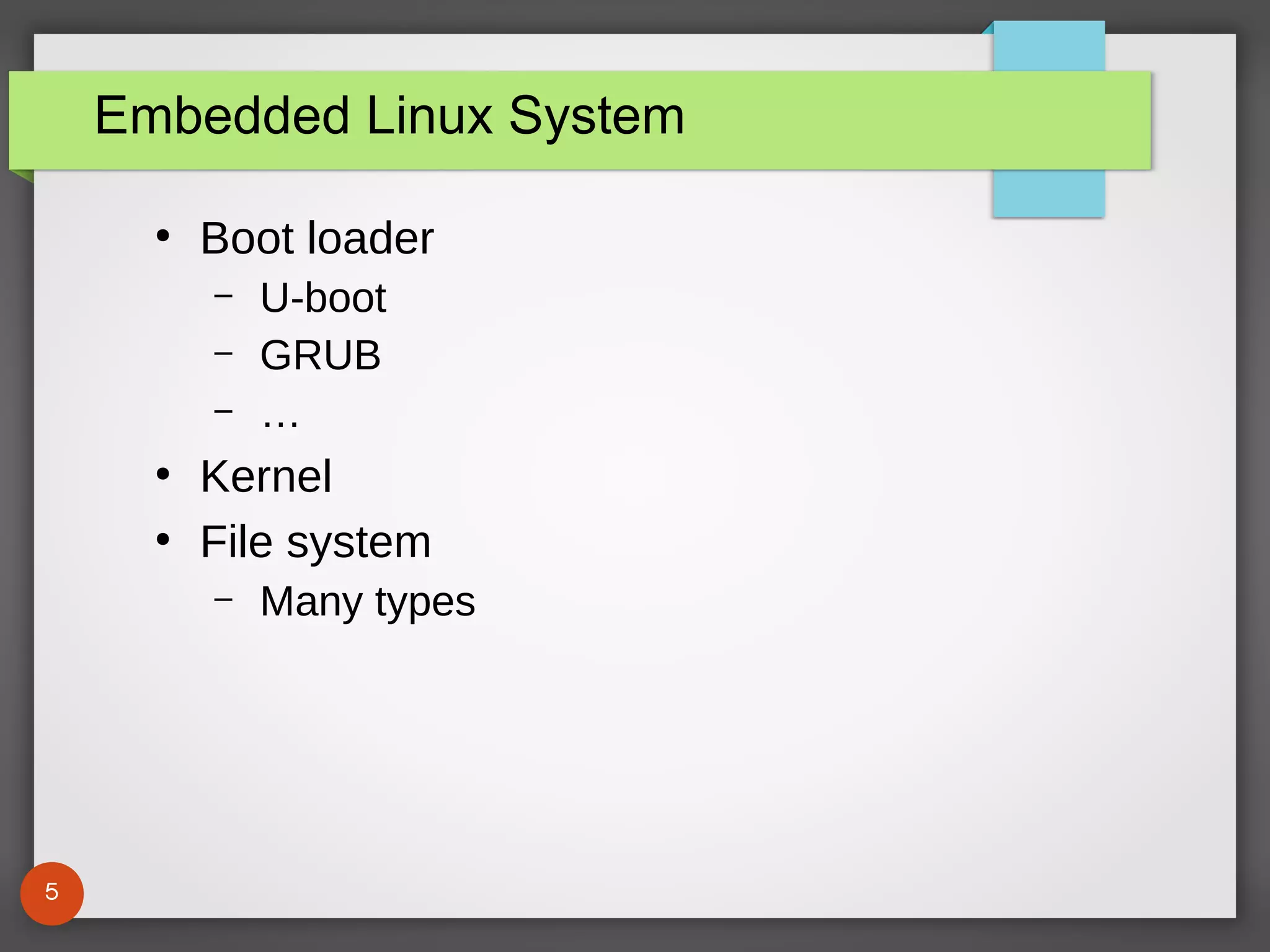

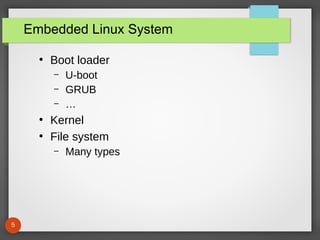

Embedded Linux System
●
Boot loader
– U-boot
– GRUB
– …
●
Kernel
●
File system
– Many types
5

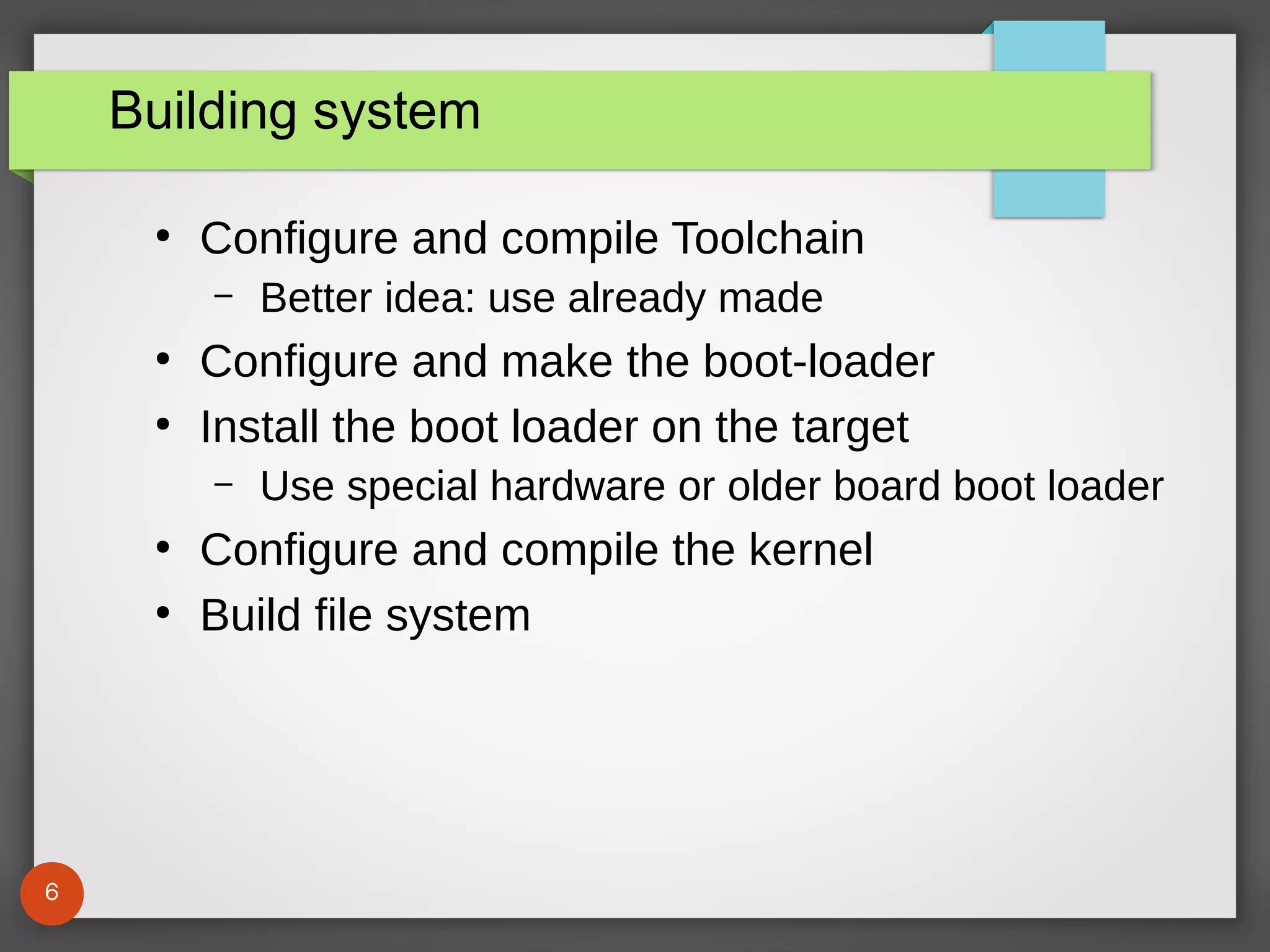

Building system
●
Configure and compile Toolchain
– Better idea: use already made
●
Configure and make the boot-loader
●
Install the boot loader on the target
– Use special hardware or older board boot loader
●
Configure and compile the kernel
●
Build file system
6

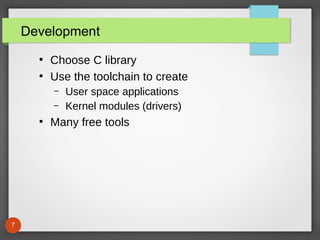

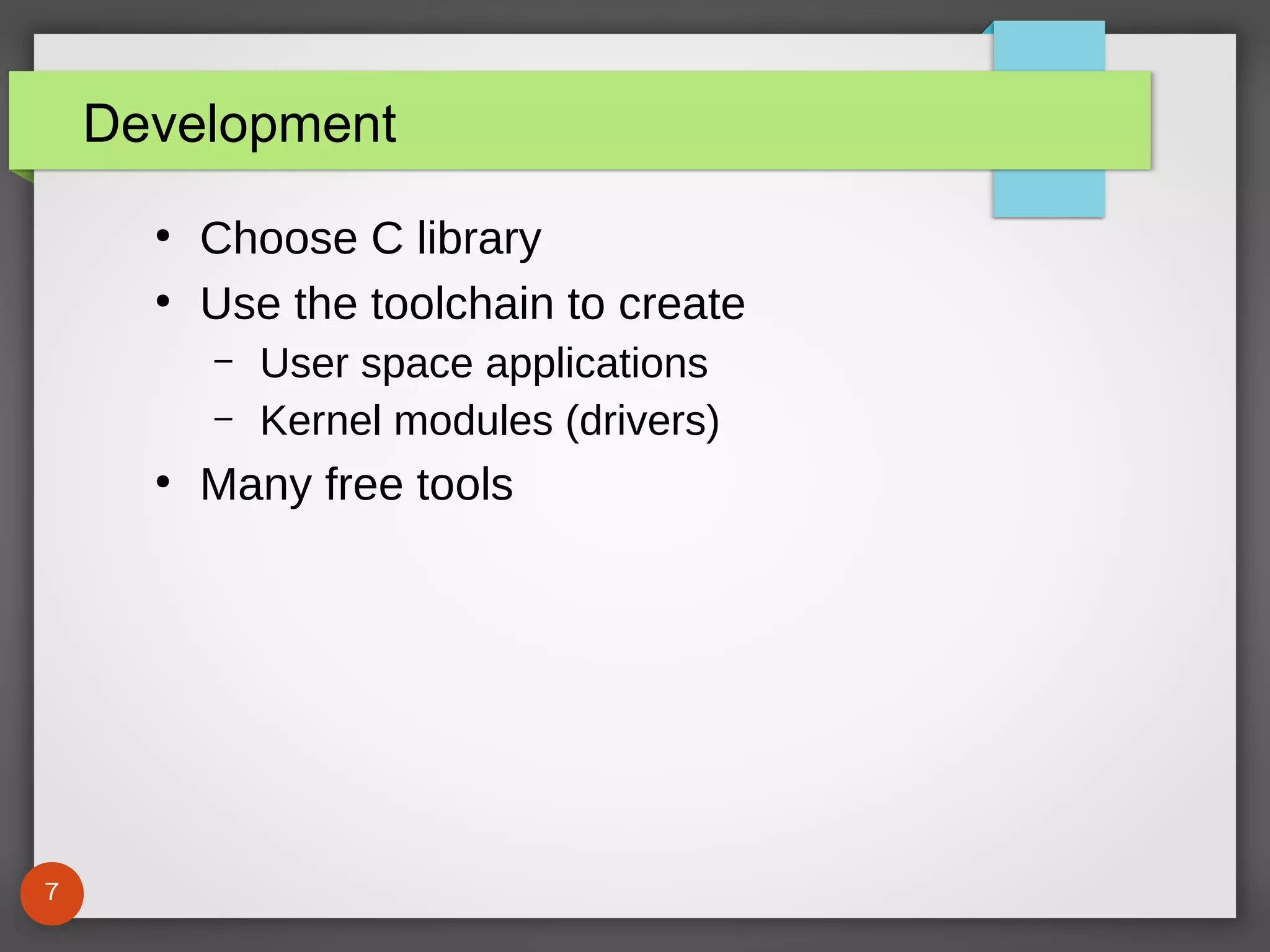

Development
●
Choose C library
●
Use the toolchain to create
– User space applications
– Kernel modules (drivers)
●
Many free tools
7

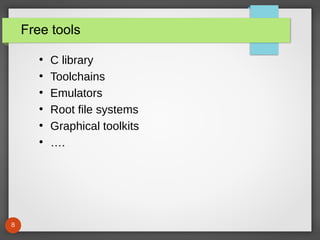

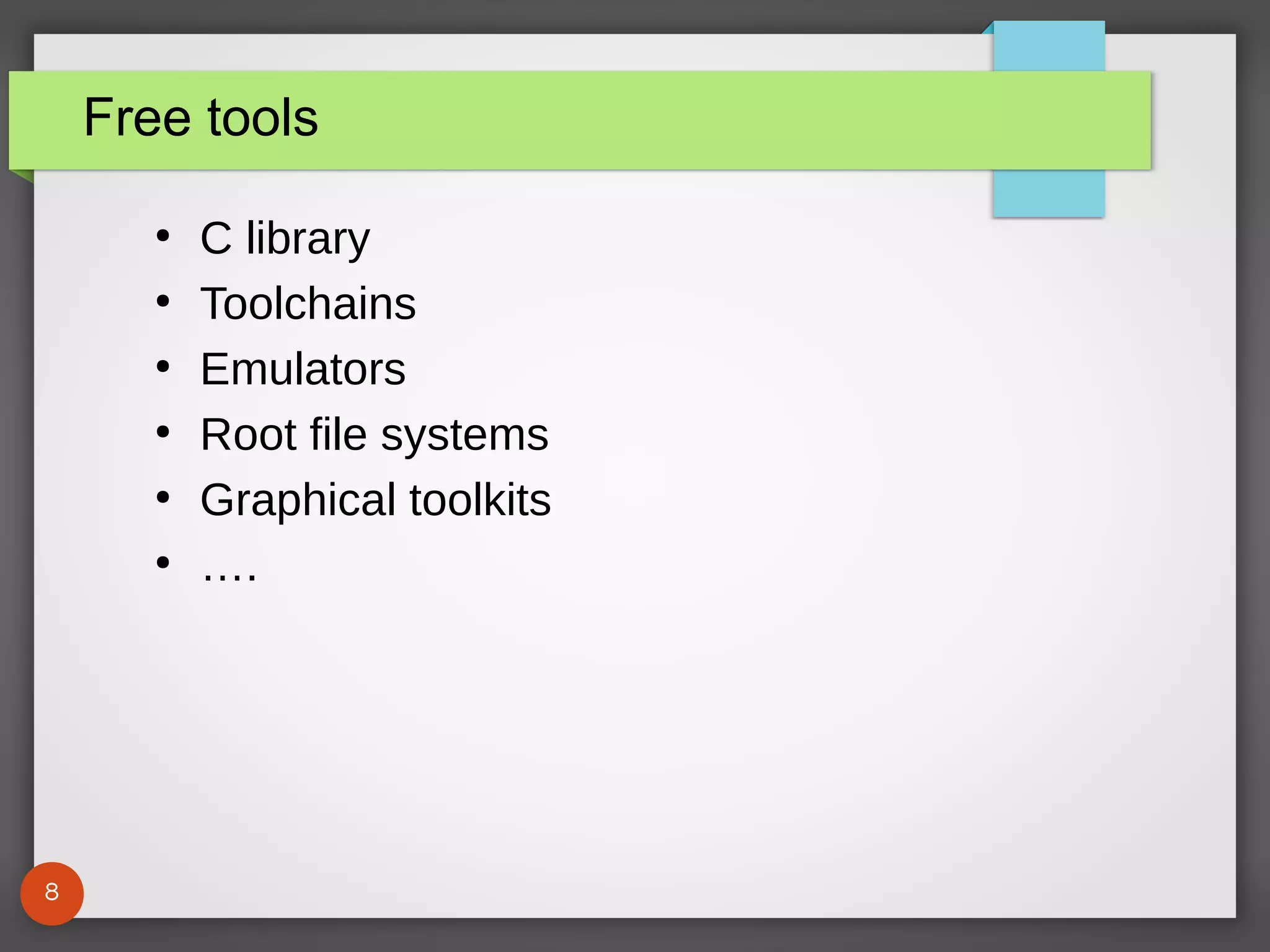

Free tools
●
C library
●
Toolchains
●
Emulators
●
Root file systems
●
Graphical toolkits
●
….
8

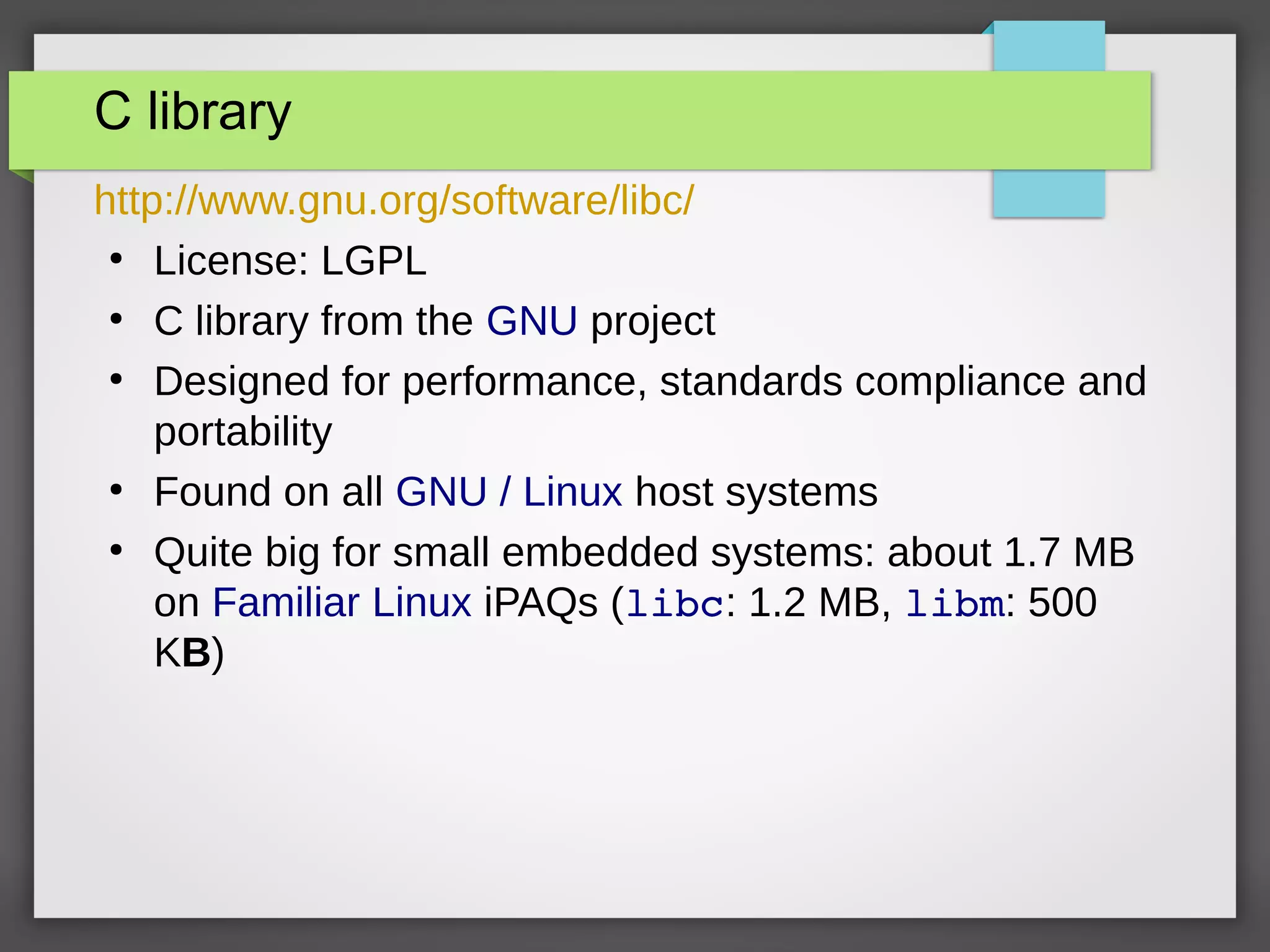

C library
http://www.gnu.org/software/libc/
●
License: LGPL
●
C library from the GNU project
●
Designed for performance, standards compliance and
portability
●
Found on all GNU / Linux host systems
●
Quite big for small embedded systems: about 1.7 MB
on Familiar Linux iPAQs (libc: 1.2 MB, libm: 500
KB)

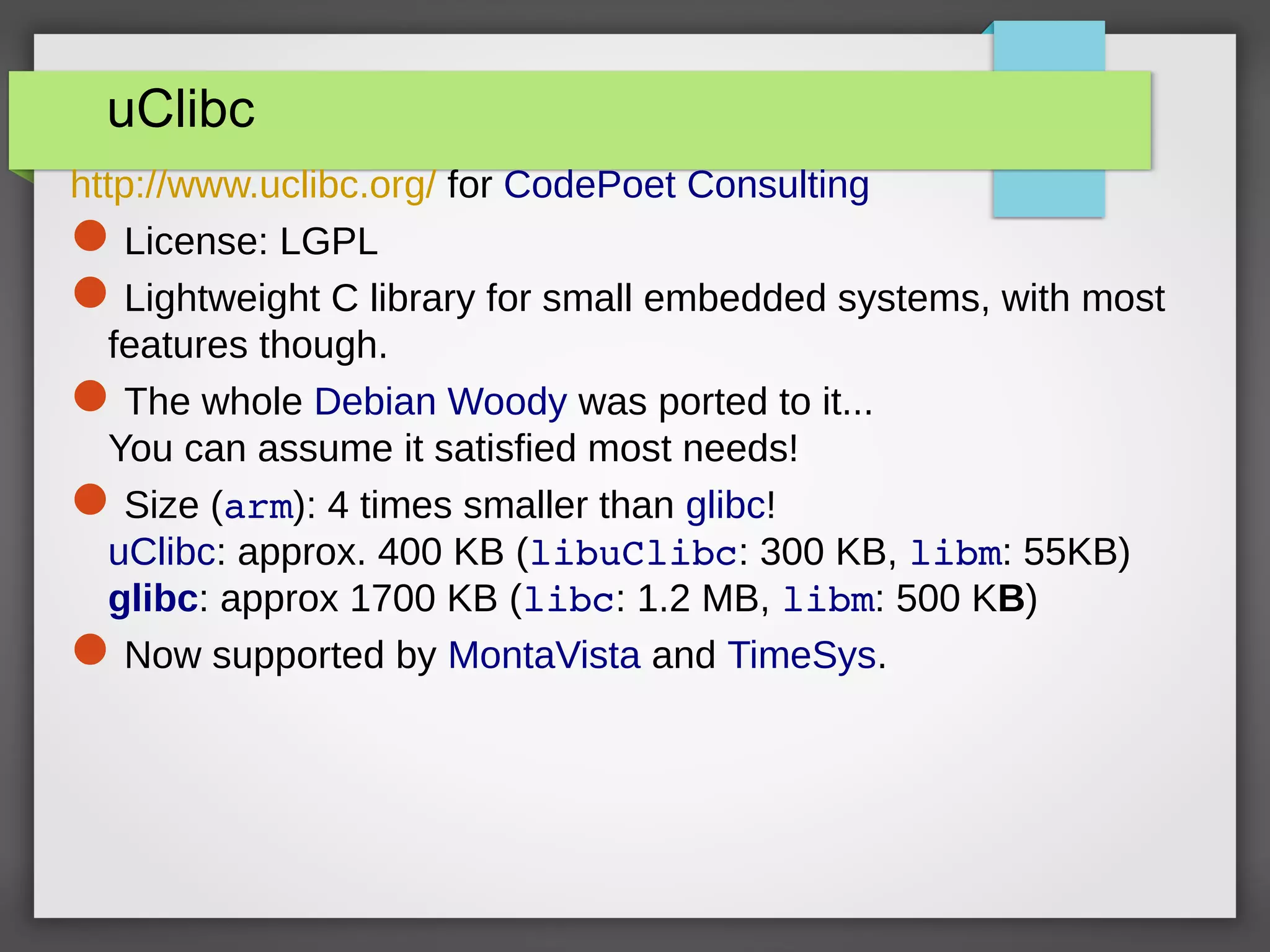

uClibc
http://www.uclibc.org/ for CodePoet Consulting
License: LGPL
Lightweight C library for small embedded systems, with most
features though.
The whole Debian Woody was ported to it...
You can assume it satisfied most needs!
Size (arm): 4 times smaller than glibc!
uClibc: approx. 400 KB (libuClibc: 300 KB, libm: 55KB)
glibc: approx 1700 KB (libc: 1.2 MB, libm: 500 KB)
Now supported by MontaVista and TimeSys.

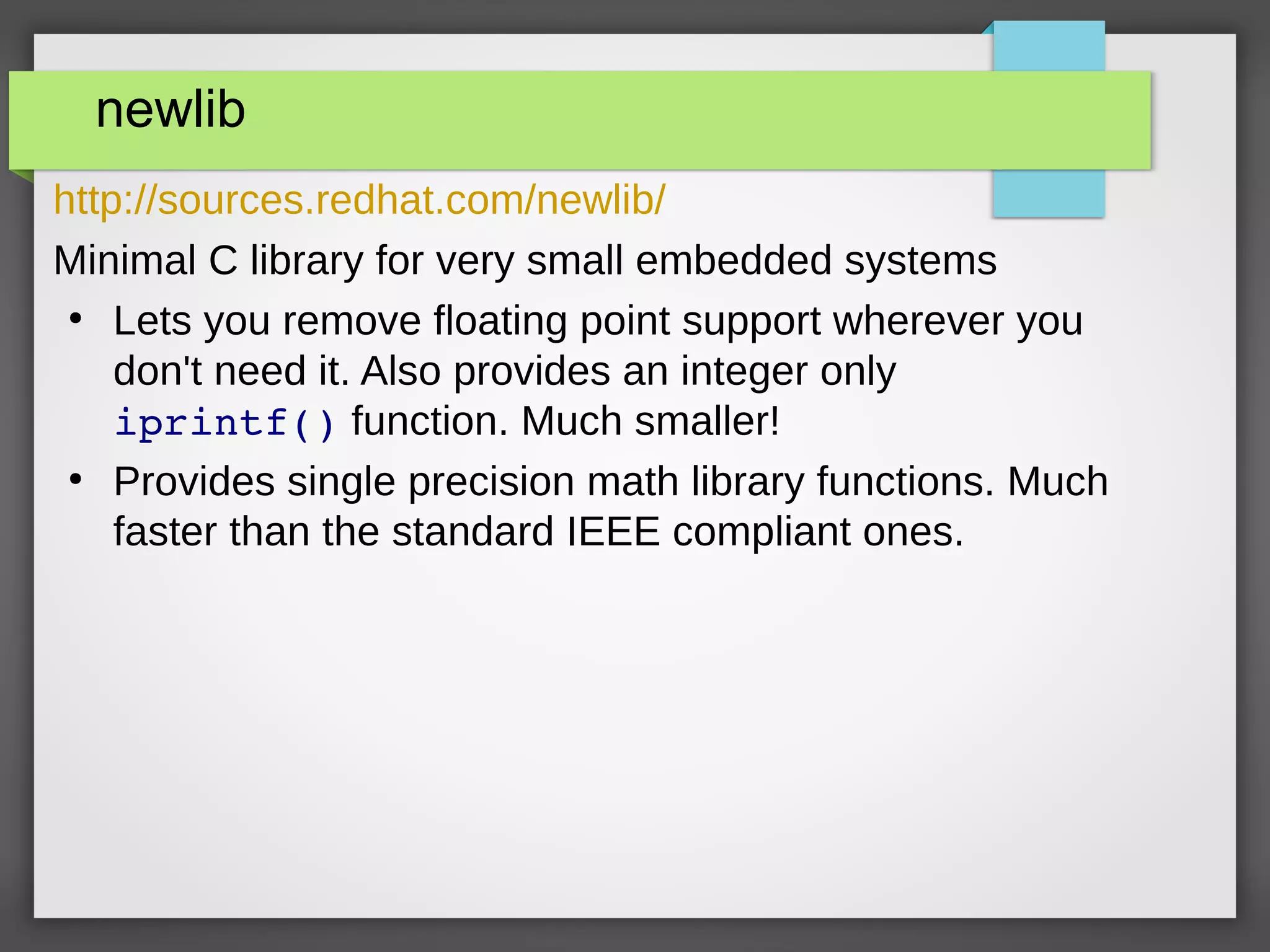

newlib
http://sources.redhat.com/newlib/
Minimal C library for very small embedded systems
●
Lets you remove floating point support wherever you
don't need it. Also provides an integer only
iprintf() function. Much smaller!
●
Provides single precision math library functions. Much
faster than the standard IEEE compliant ones.

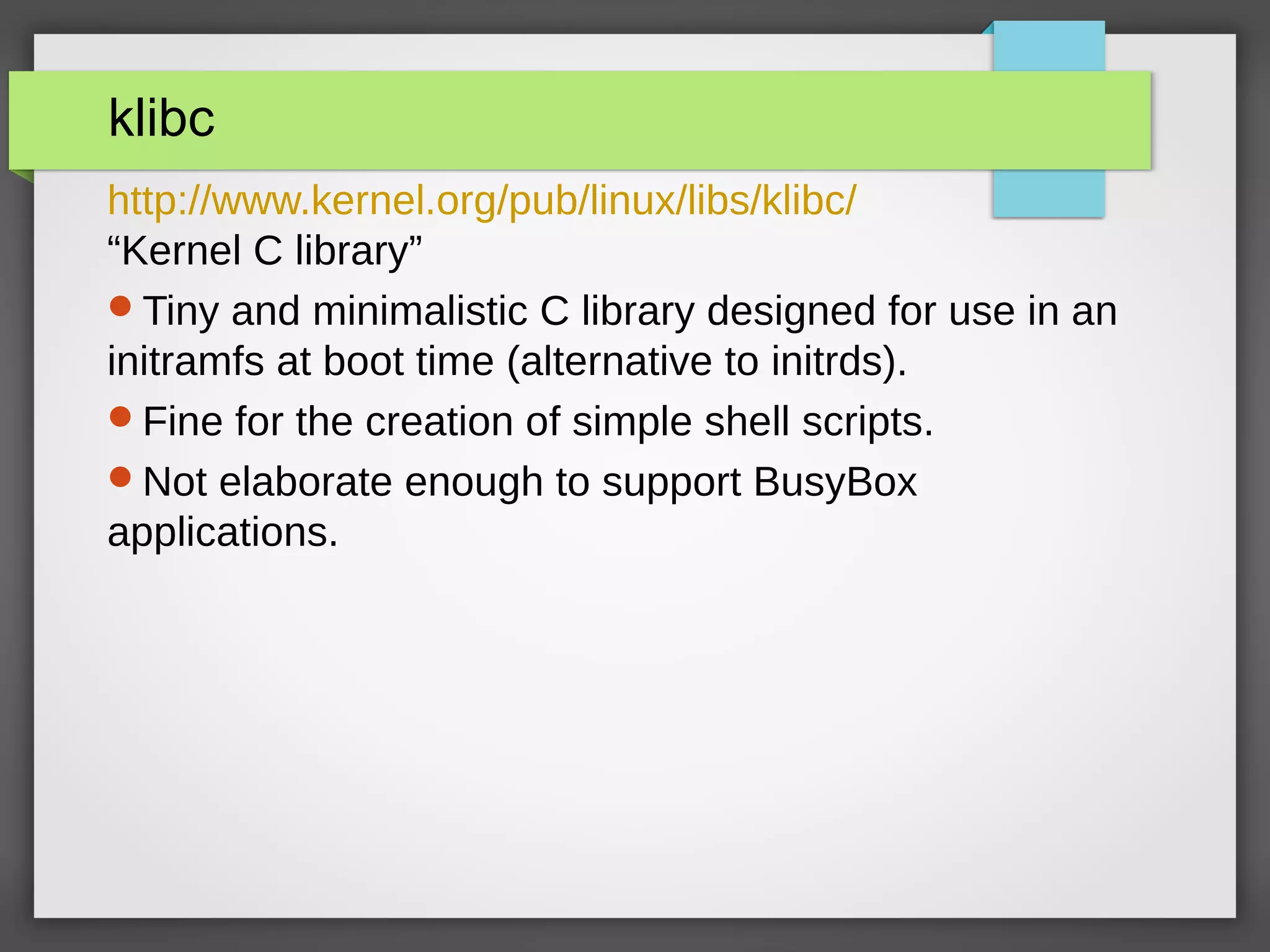

klibc
http://www.kernel.org/pub/linux/libs/klibc/
“Kernel C library”
Tiny and minimalistic C library designed for use in an
initramfs at boot time (alternative to initrds).
Fine for the creation of simple shell scripts.
Not elaborate enough to support BusyBox
applications.

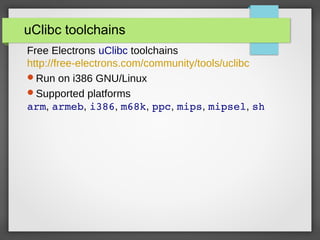

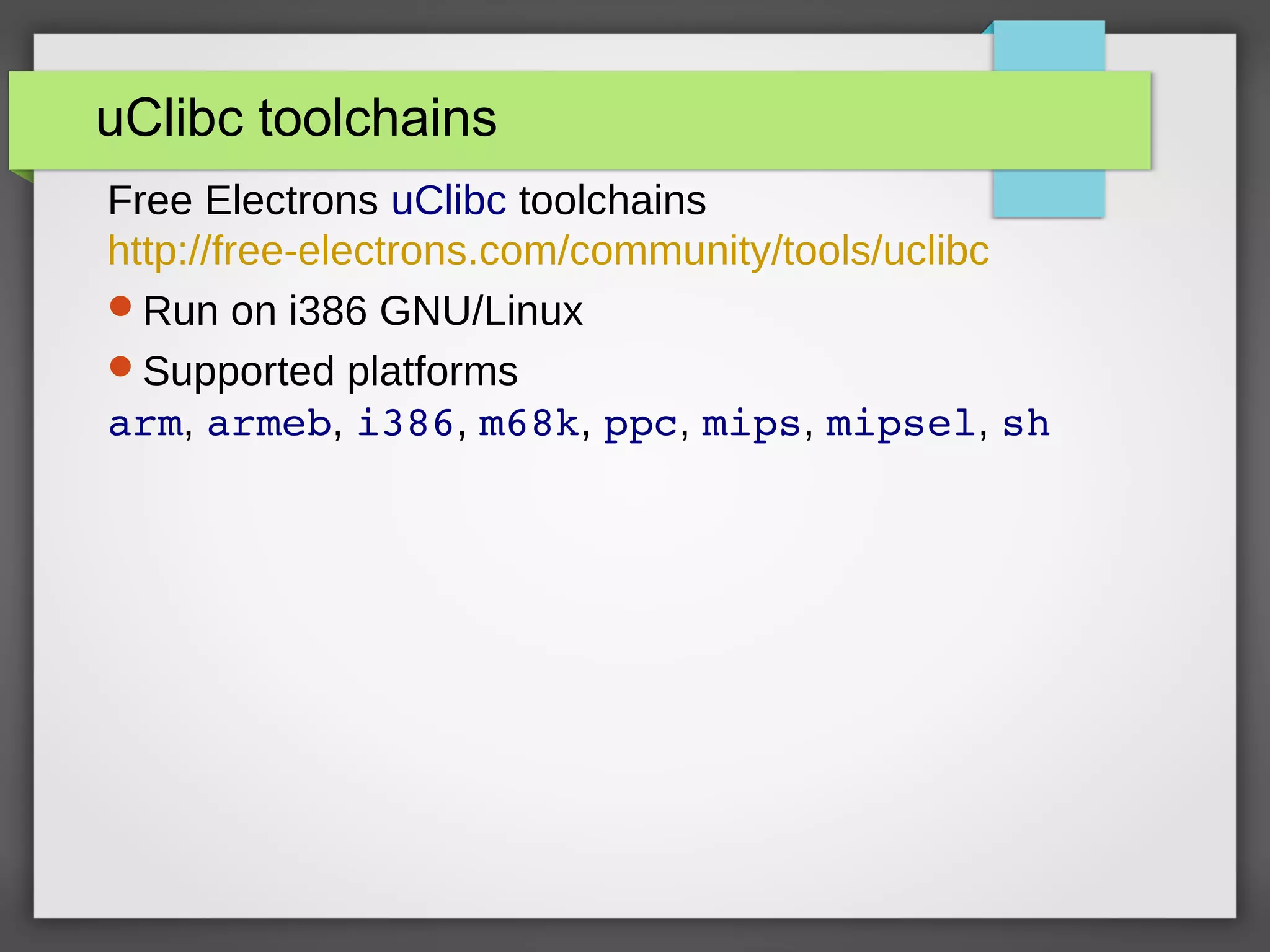

uClibc toolchains
Free Electrons uClibc toolchains
http://free-electrons.com/community/tools/uclibc
Run on i386 GNU/Linux
Supported platforms
arm, armeb, i386, m68k, ppc, mips, mipsel, sh

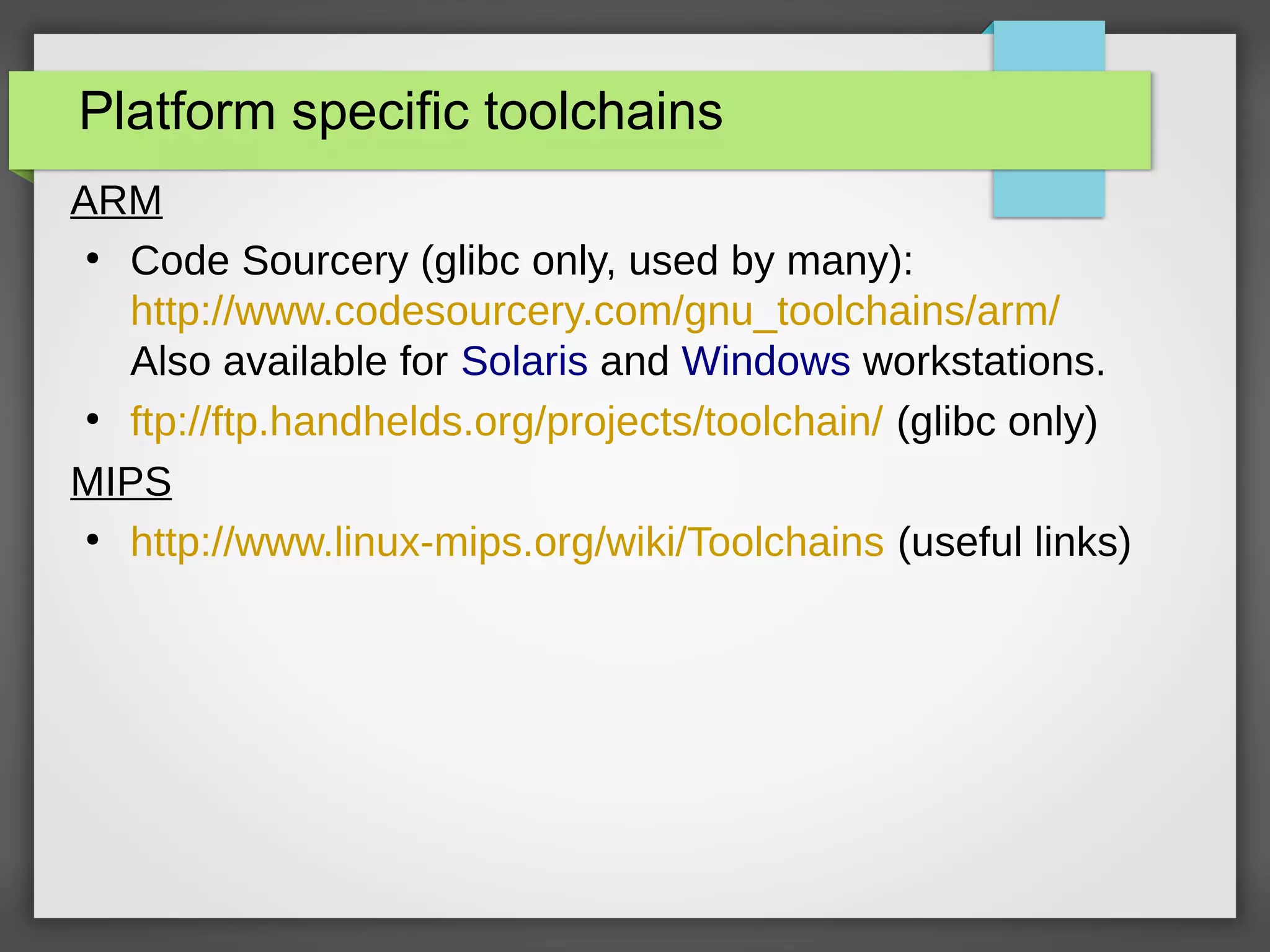

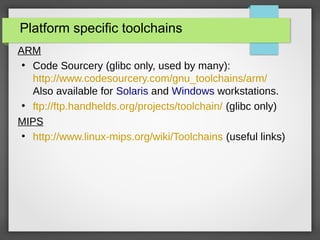

Platform specific toolchains
ARM
●
Code Sourcery (glibc only, used by many):
http://www.codesourcery.com/gnu_toolchains/arm/
Also available for Solaris and Windows workstations.
●
ftp://ftp.handhelds.org/projects/toolchain/ (glibc only)
MIPS
●
http://www.linux-mips.org/wiki/Toolchains (useful links)

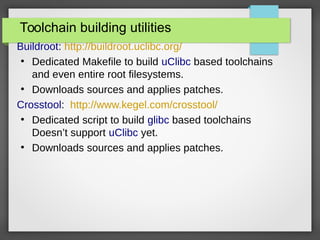

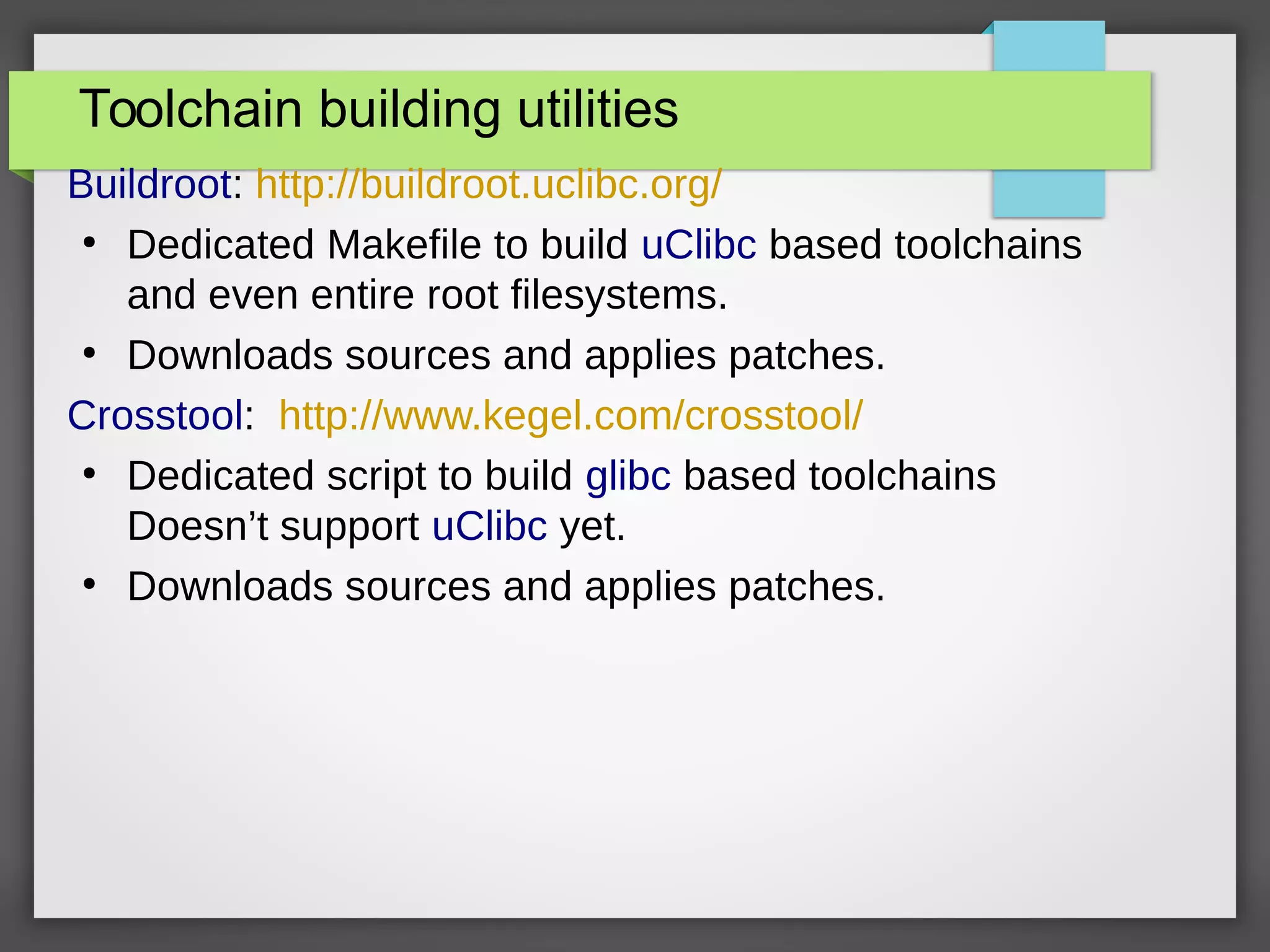

Toolchain building utilities
Buildroot: http://buildroot.uclibc.org/
●
Dedicated Makefile to build uClibc based toolchains
and even entire root filesystems.
●
Downloads sources and applies patches.
Crosstool: http://www.kegel.com/crosstool/
●
Dedicated script to build glibc based toolchains
Doesn’t support uClibc yet.
●
Downloads sources and applies patches.

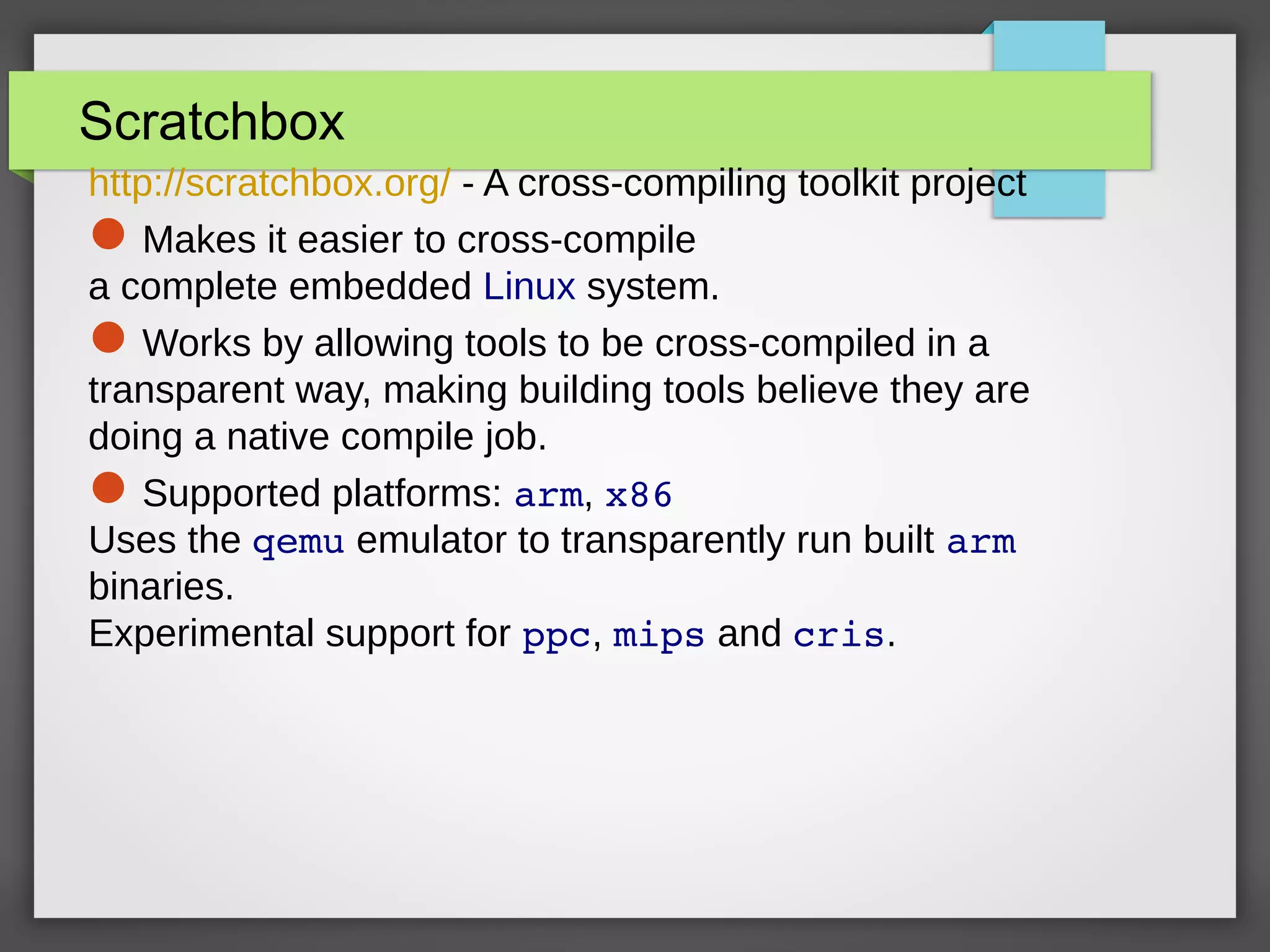

Scratchbox
http://scratchbox.org/ - A cross-compiling toolkit project
Makes it easier to cross-compile
a complete embedded Linux system.
Works by allowing tools to be cross-compiled in a
transparent way, making building tools believe they are
doing a native compile job.
Supported platforms: arm, x86
Uses the qemu emulator to transparently run built arm
binaries.
Experimental support for ppc, mips and cris.

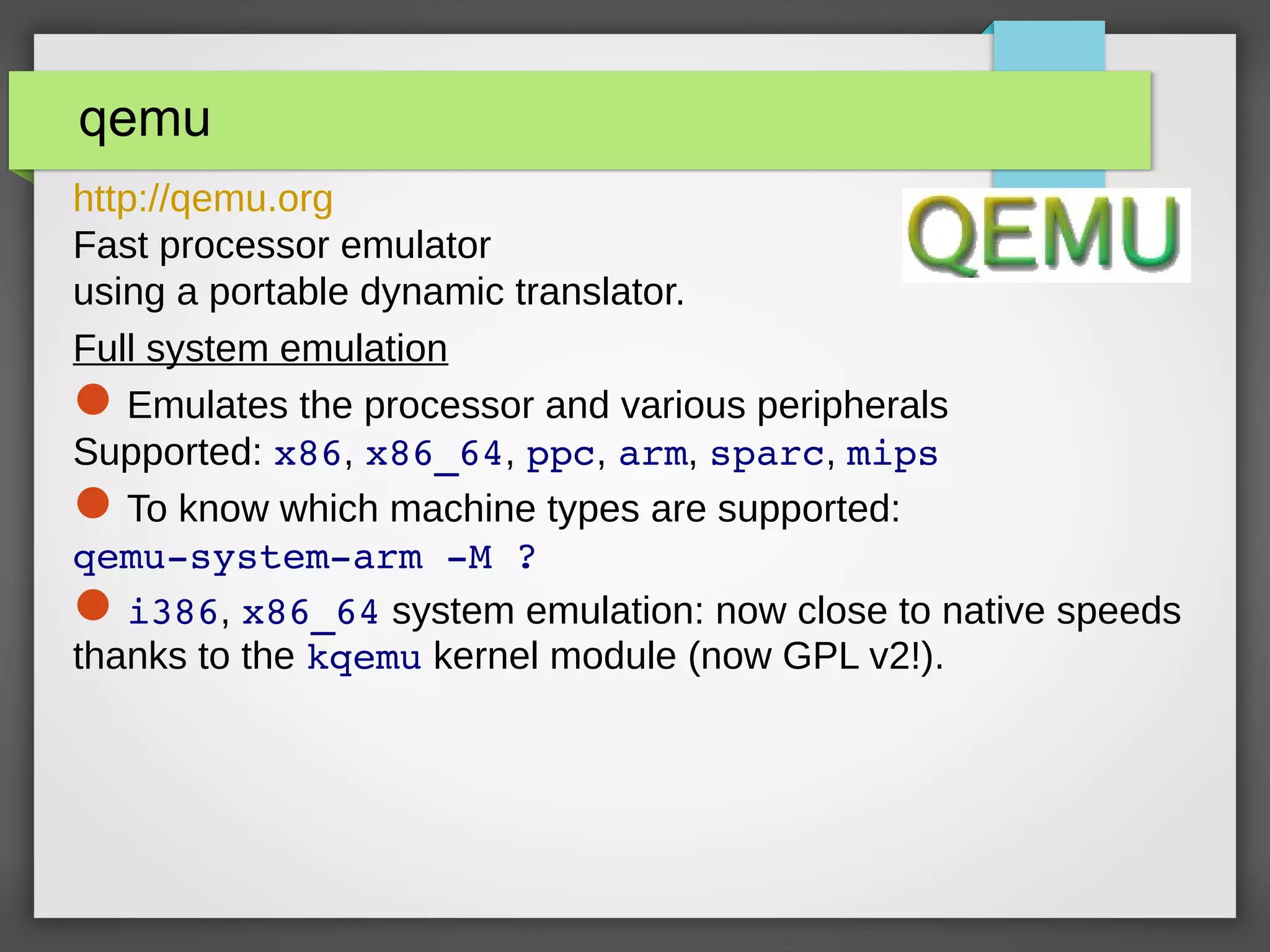

qemu
http://qemu.org
Fast processor emulator
using a portable dynamic translator.
Full system emulation
Emulates the processor and various peripherals
Supported: x86, x86_64, ppc, arm, sparc, mips
To know which machine types are supported:
qemu­system­arm ­M ?
i386, x86_64 system emulation: now close to native speeds
thanks to the kqemu kernel module (now GPL v2!).

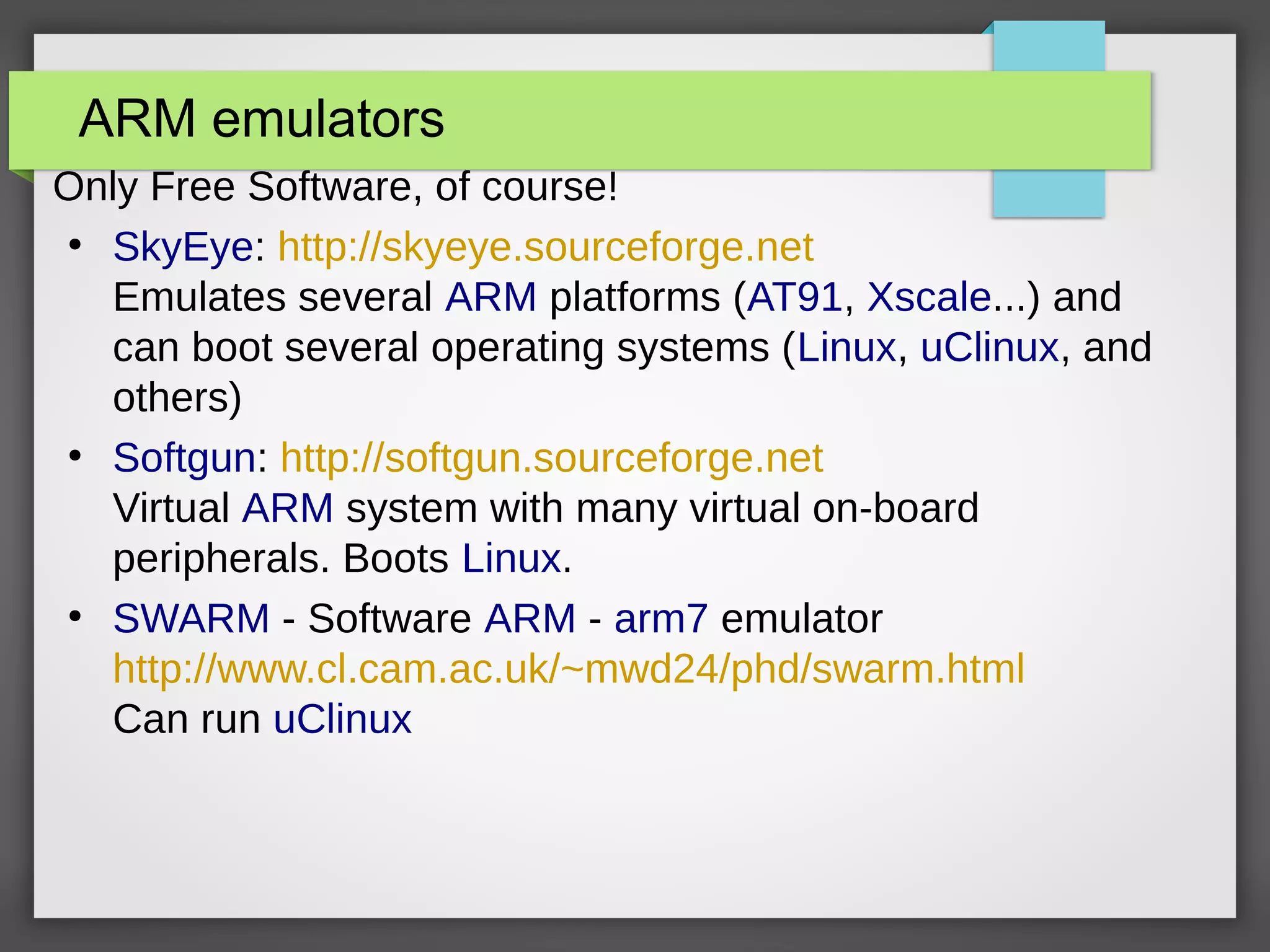

ARM emulators
Only Free Software, of course!
●
SkyEye: http://skyeye.sourceforge.net
Emulates several ARM platforms (AT91, Xscale...) and
can boot several operating systems (Linux, uClinux, and
others)
●
Softgun: http://softgun.sourceforge.net
Virtual ARM system with many virtual on-board
peripherals. Boots Linux.
●
SWARM - Software ARM - arm7 emulator
http://www.cl.cam.ac.uk/~mwd24/phd/swarm.html
Can run uClinux

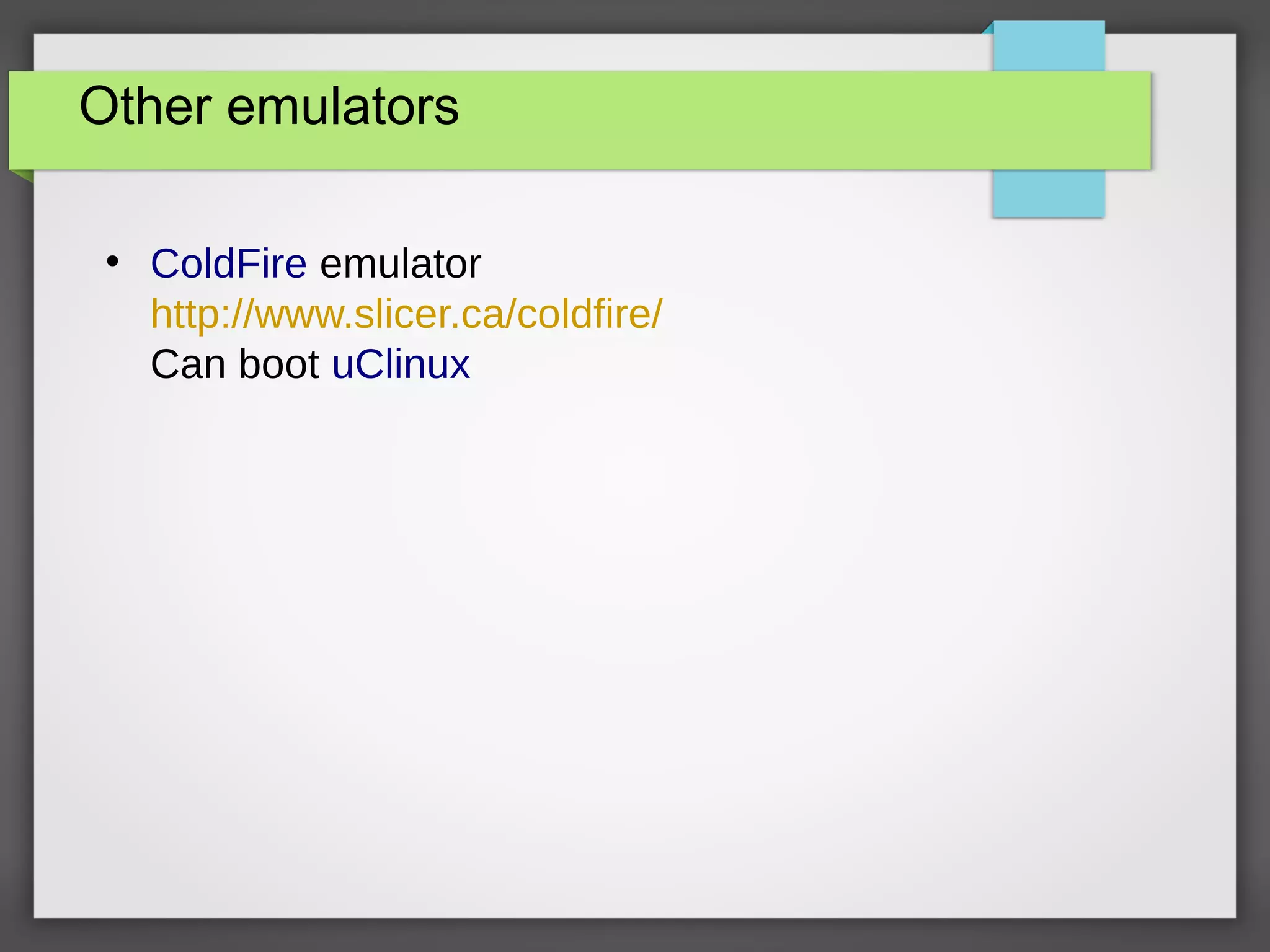

Other emulators
●
ColdFire emulator
http://www.slicer.ca/coldfire/
Can boot uClinux

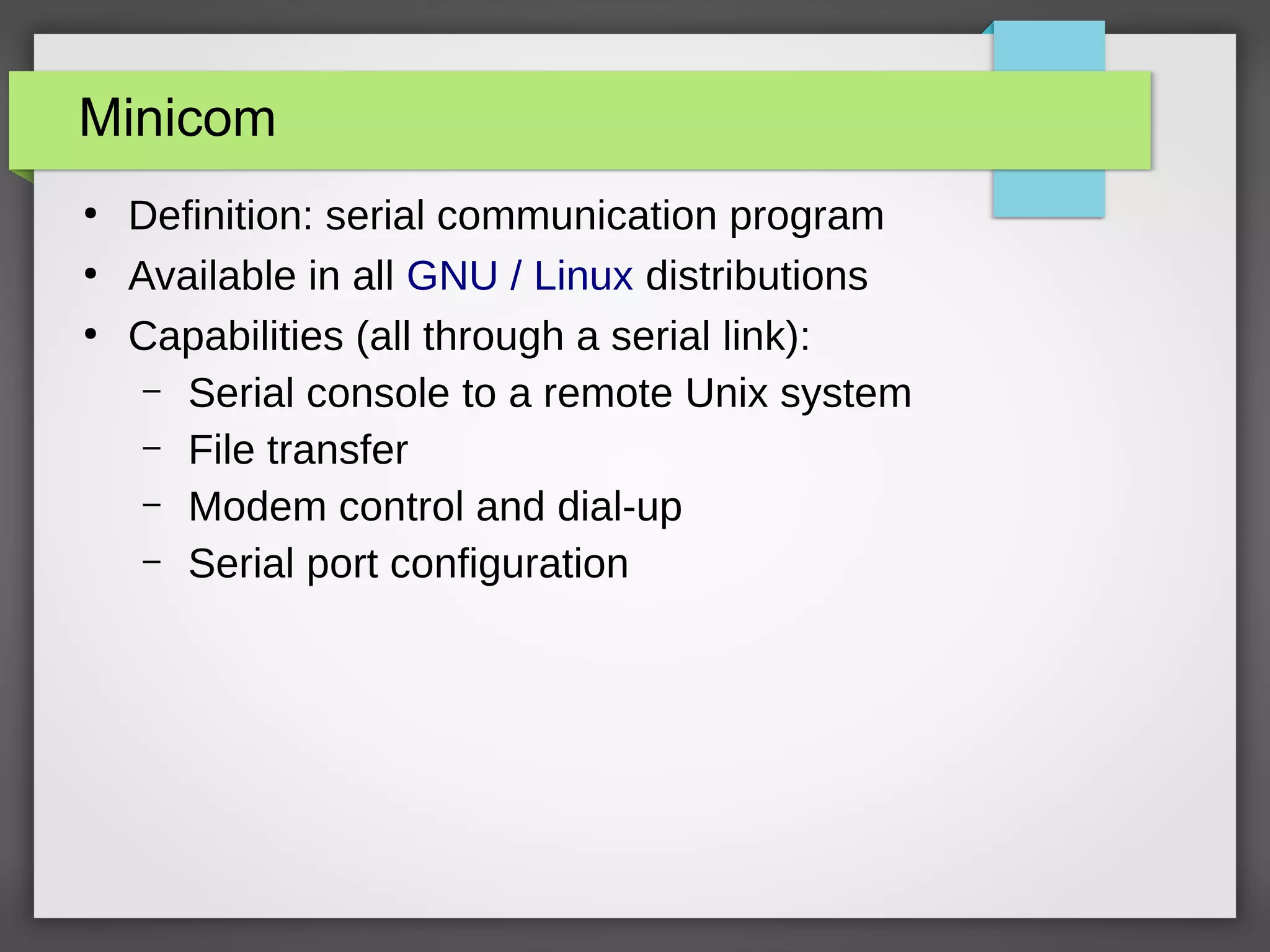

Minicom
●
Definition: serial communication program
●
Available in all GNU / Linux distributions
●
Capabilities (all through a serial link):
– Serial console to a remote Unix system
– File transfer
– Modem control and dial-up
– Serial port configuration

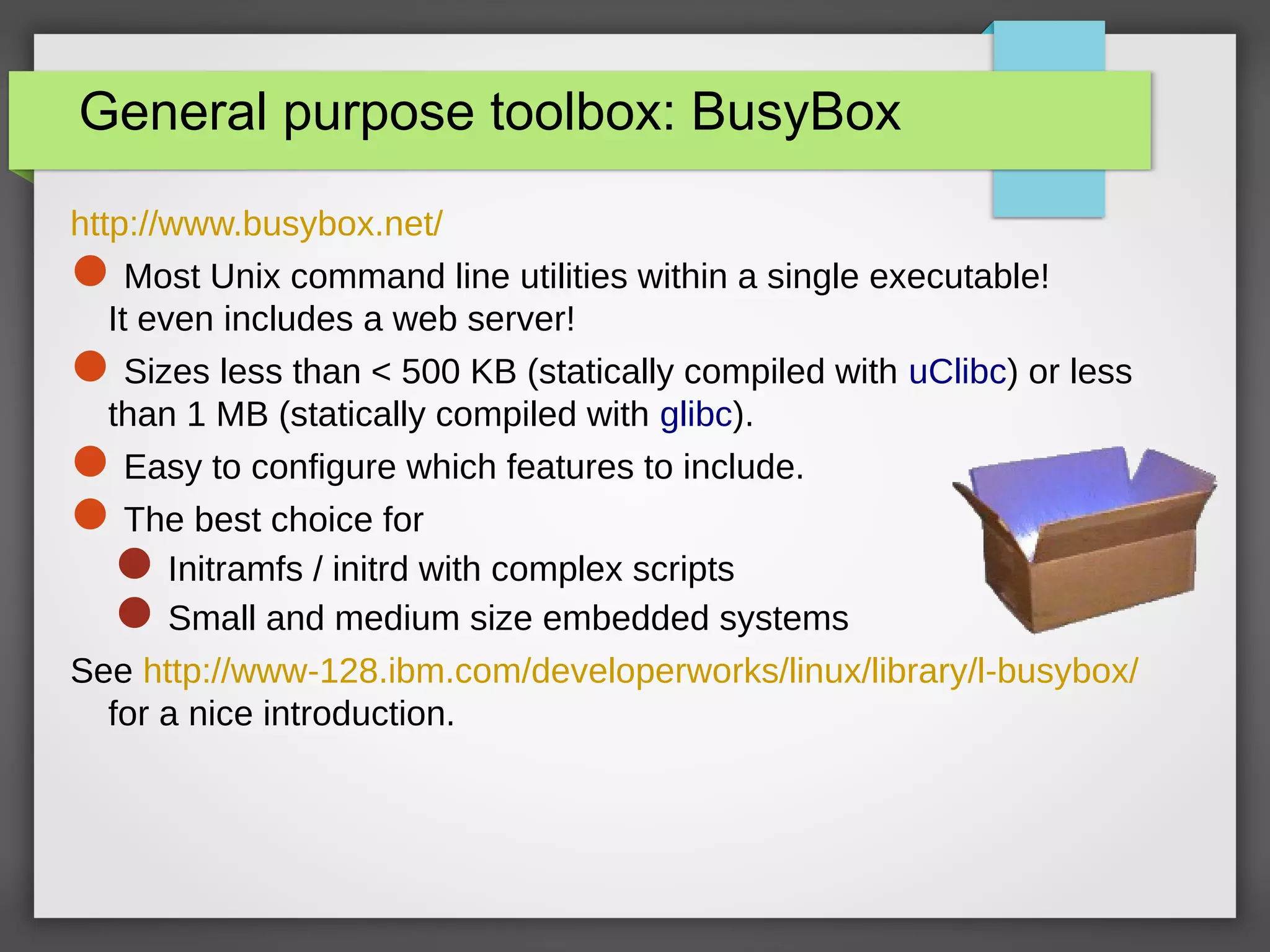

General purpose toolbox: BusyBox
http://www.busybox.net/
Most Unix command line utilities within a single executable!
It even includes a web server!
Sizes less than < 500 KB (statically compiled with uClibc) or less
than 1 MB (statically compiled with glibc).
Easy to configure which features to include.
The best choice for
Initramfs / initrd with complex scripts
Small and medium size embedded systems
See http://www-128.ibm.com/developerworks/linux/library/l-busybox/
for a nice introduction.

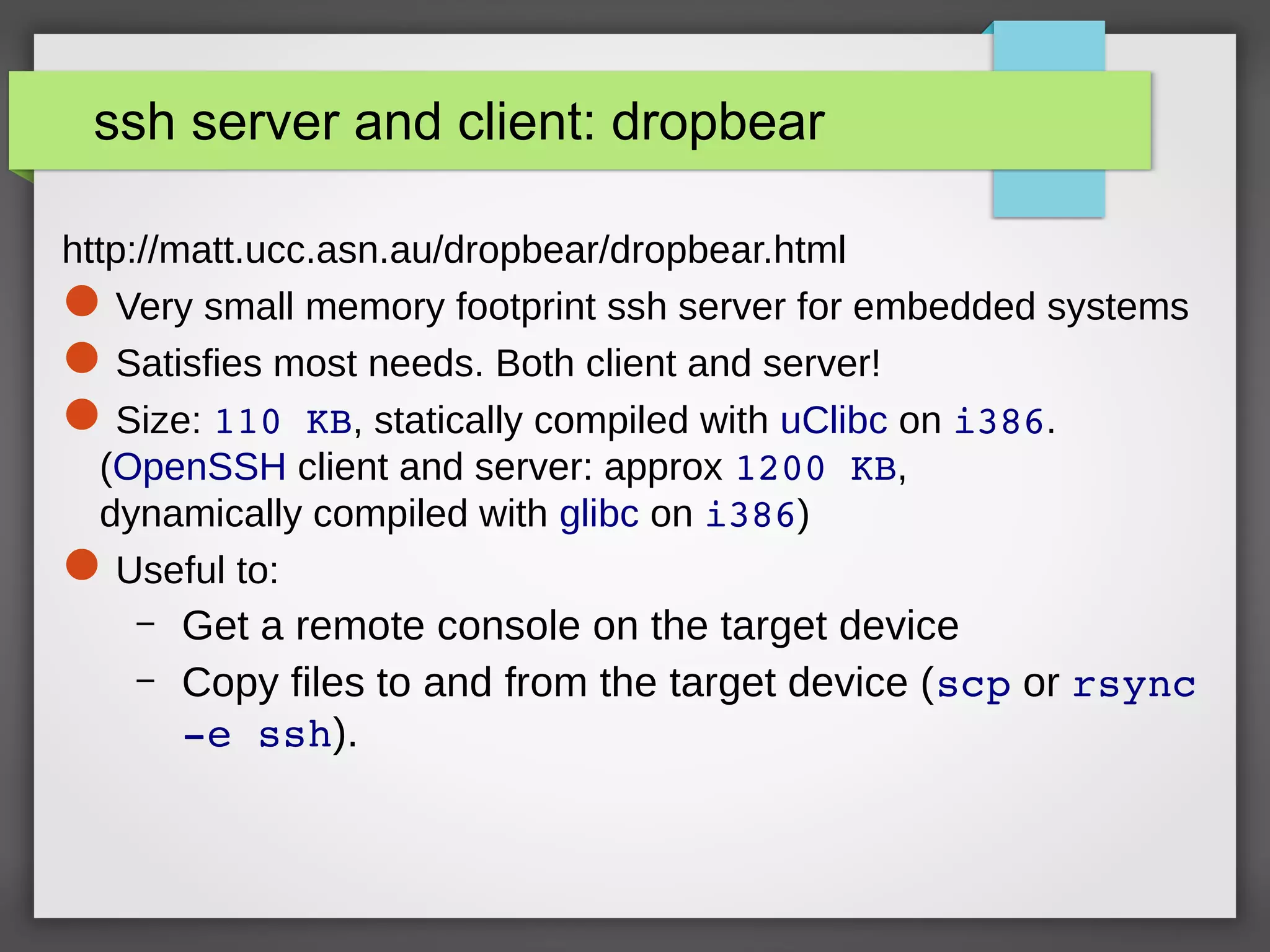

ssh server and client: dropbear
http://matt.ucc.asn.au/dropbear/dropbear.html
Very small memory footprint ssh server for embedded systems
Satisfies most needs. Both client and server!
Size: 110 KB, statically compiled with uClibc on i386.
(OpenSSH client and server: approx 1200 KB,
dynamically compiled with glibc on i386)
Useful to:
– Get a remote console on the target device
– Copy files to and from the target device (scp or rsync
­e ssh).

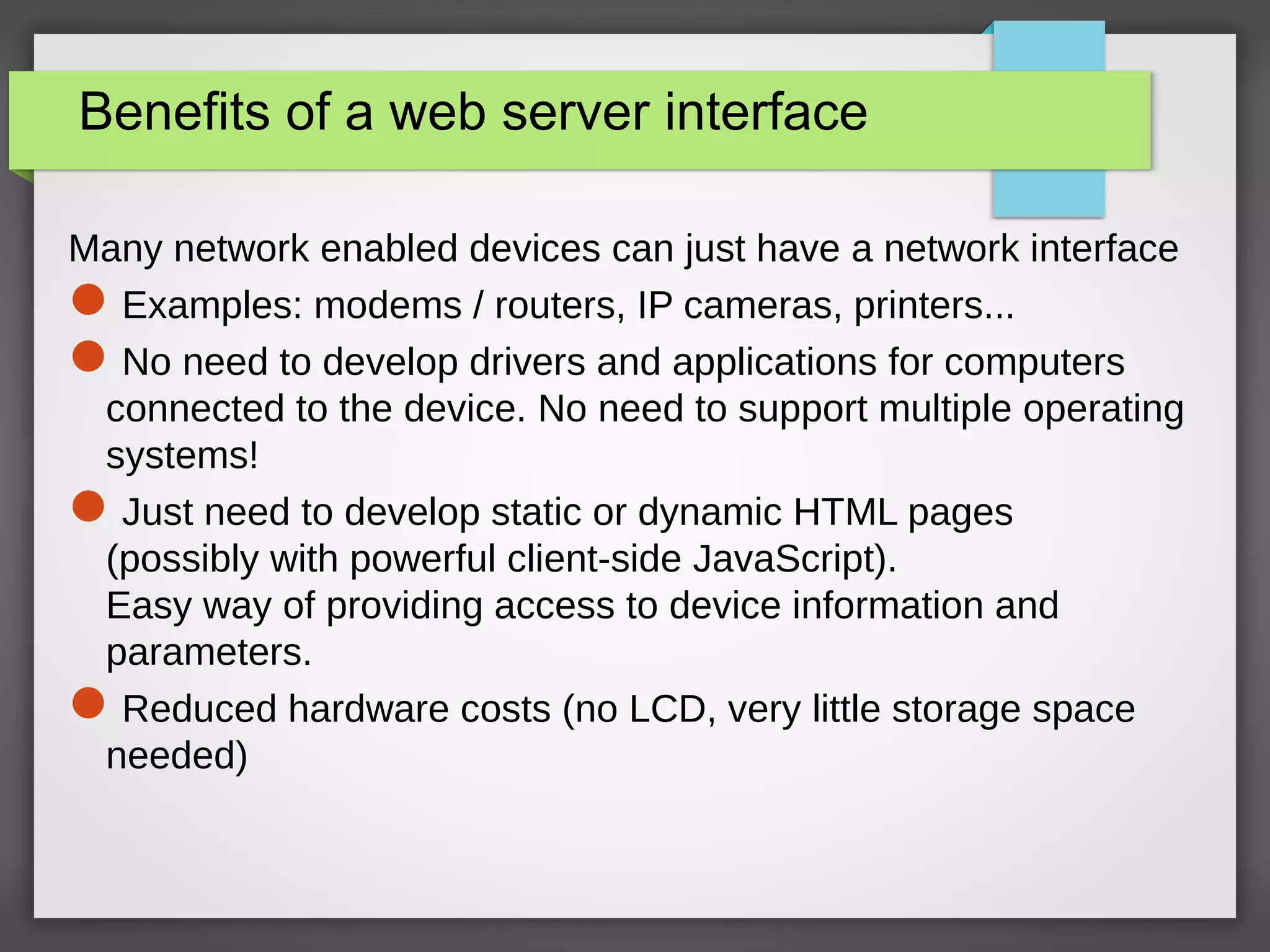

Benefits of a web server interface
Many network enabled devices can just have a network interface
Examples: modems / routers, IP cameras, printers...
No need to develop drivers and applications for computers
connected to the device. No need to support multiple operating
systems!
Just need to develop static or dynamic HTML pages
(possibly with powerful client-side JavaScript).
Easy way of providing access to device information and
parameters.
Reduced hardware costs (no LCD, very little storage space
needed)

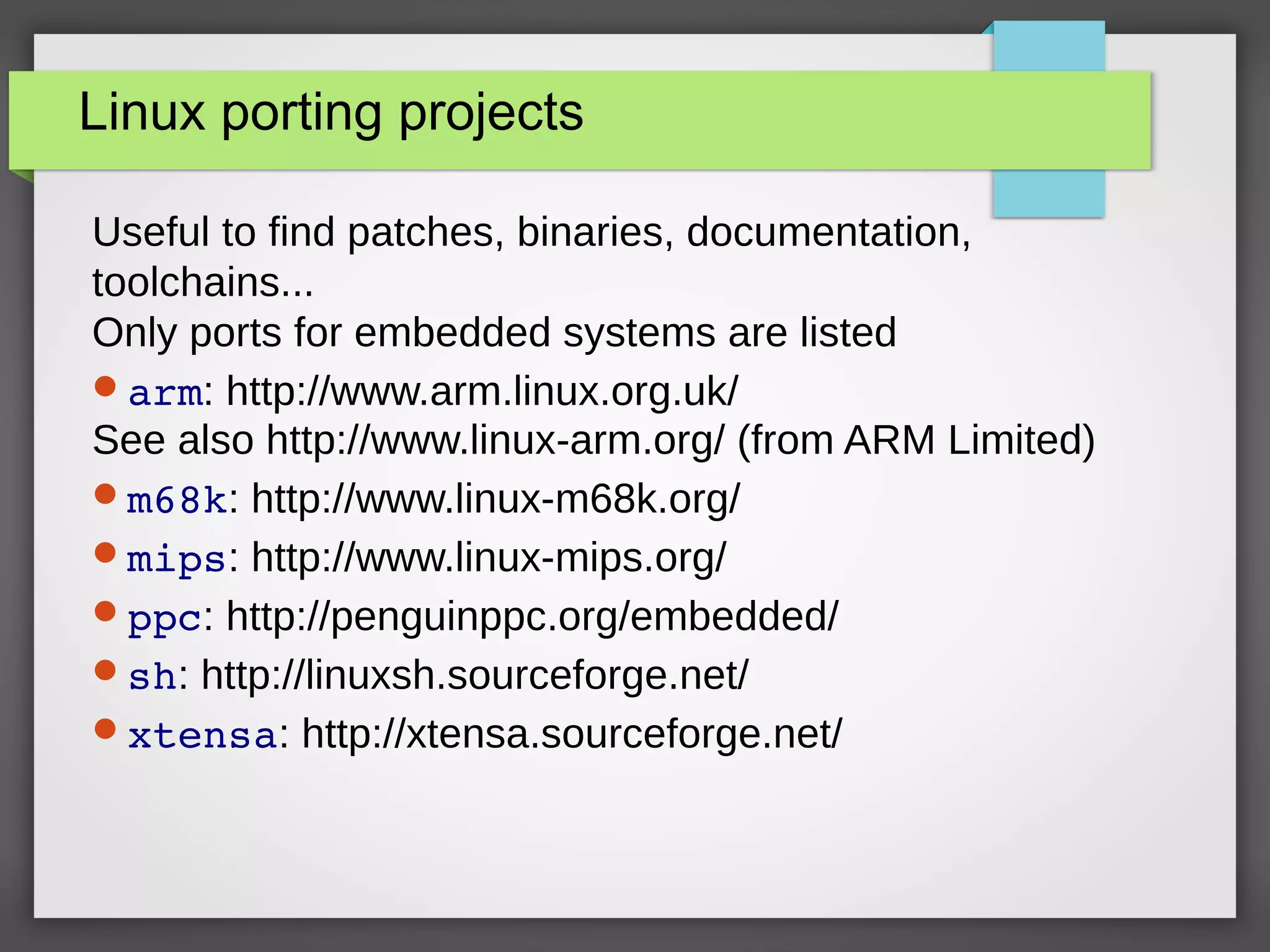

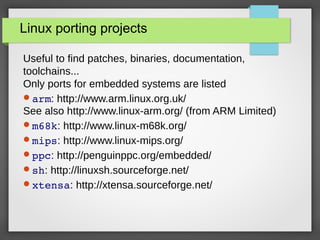

Linux porting projects
Useful to find patches, binaries, documentation,
toolchains...
Only ports for embedded systems are listed
arm: http://www.arm.linux.org.uk/
See also http://www.linux-arm.org/ (from ARM Limited)
m68k: http://www.linux-m68k.org/
mips: http://www.linux-mips.org/
ppc: http://penguinppc.org/embedded/
sh: http://linuxsh.sourceforge.net/
xtensa: http://xtensa.sourceforge.net/

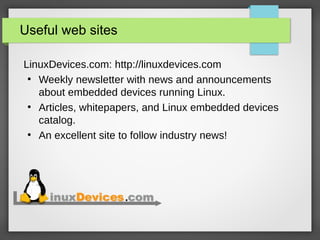

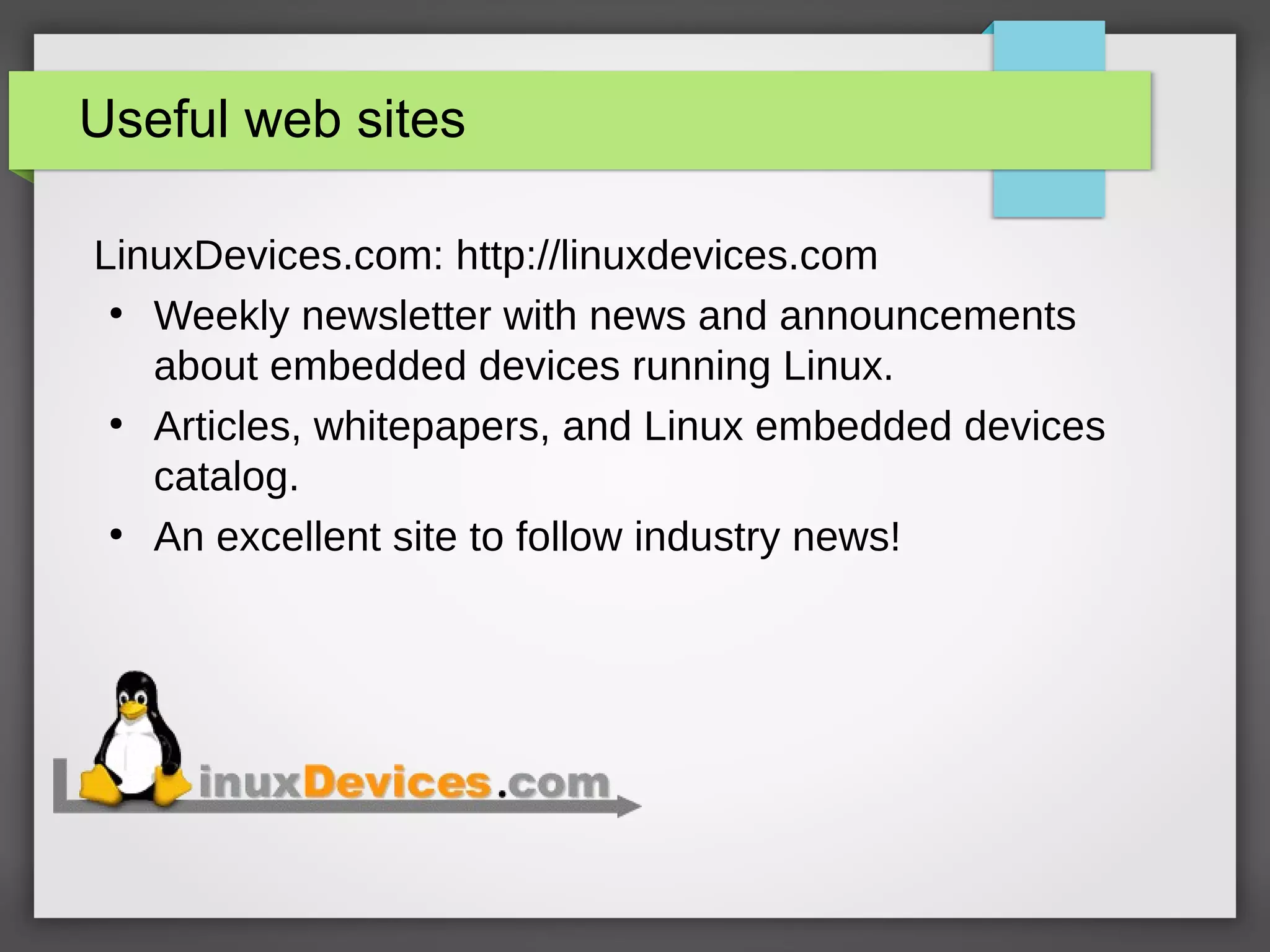

Useful web sites
LinuxDevices.com: http://linuxdevices.com
●
Weekly newsletter with news and announcements
about embedded devices running Linux.
●
Articles, whitepapers, and Linux embedded devices
catalog.
●
An excellent site to follow industry news!

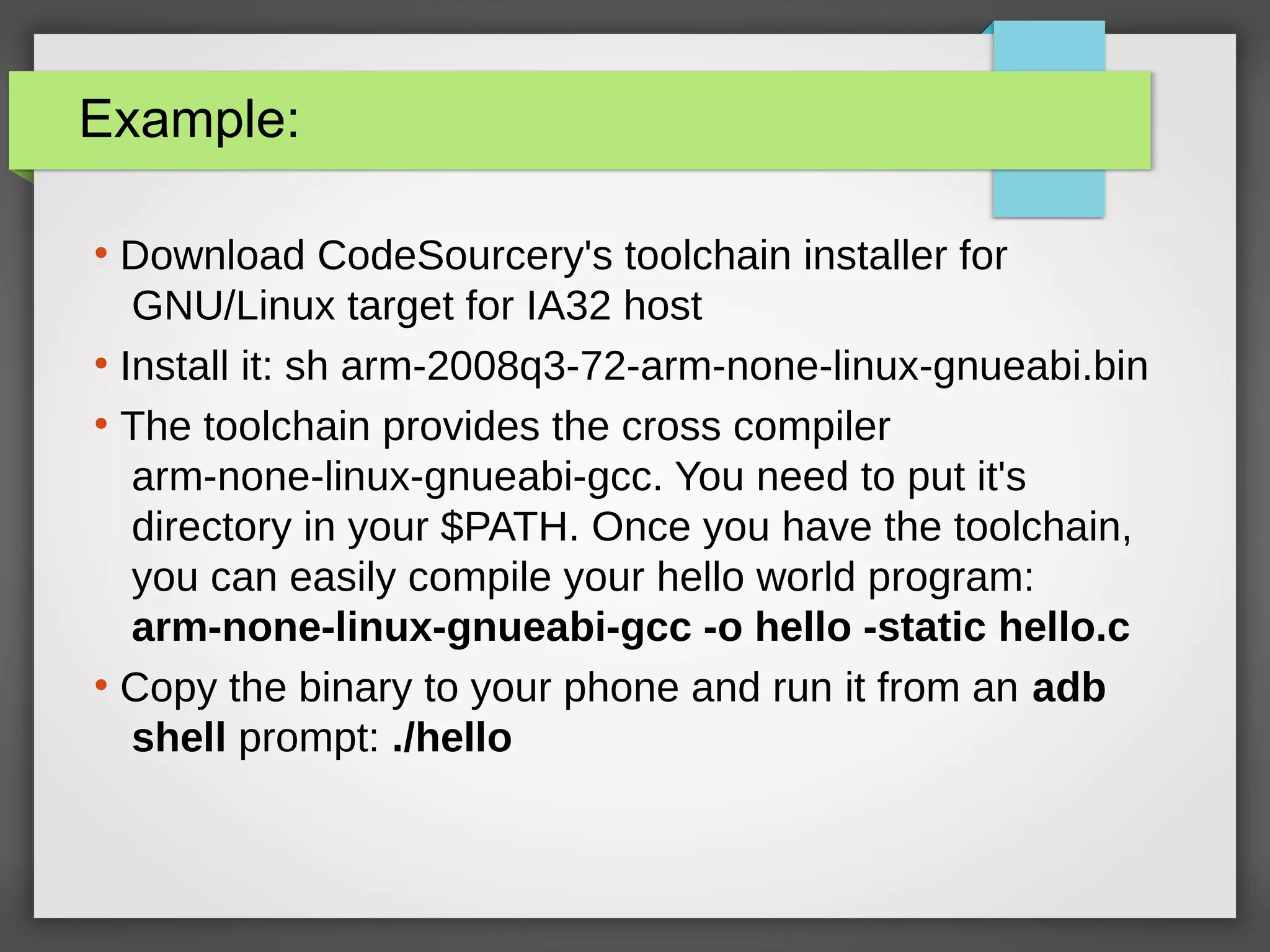

Example:
●
Download CodeSourcery's toolchain installer for
GNU/Linux target for IA32 host
●
Install it: sh arm-2008q3-72-arm-none-linux-gnueabi.bin
●
The toolchain provides the cross compiler
arm-none-linux-gnueabi-gcc. You need to put it's
directory in your $PATH. Once you have the toolchain,
you can easily compile your hello world program:
arm-none-linux-gnueabi-gcc -o hello -static hello.c
●
Copy the binary to your phone and run it from an adb
shell prompt: ./hello

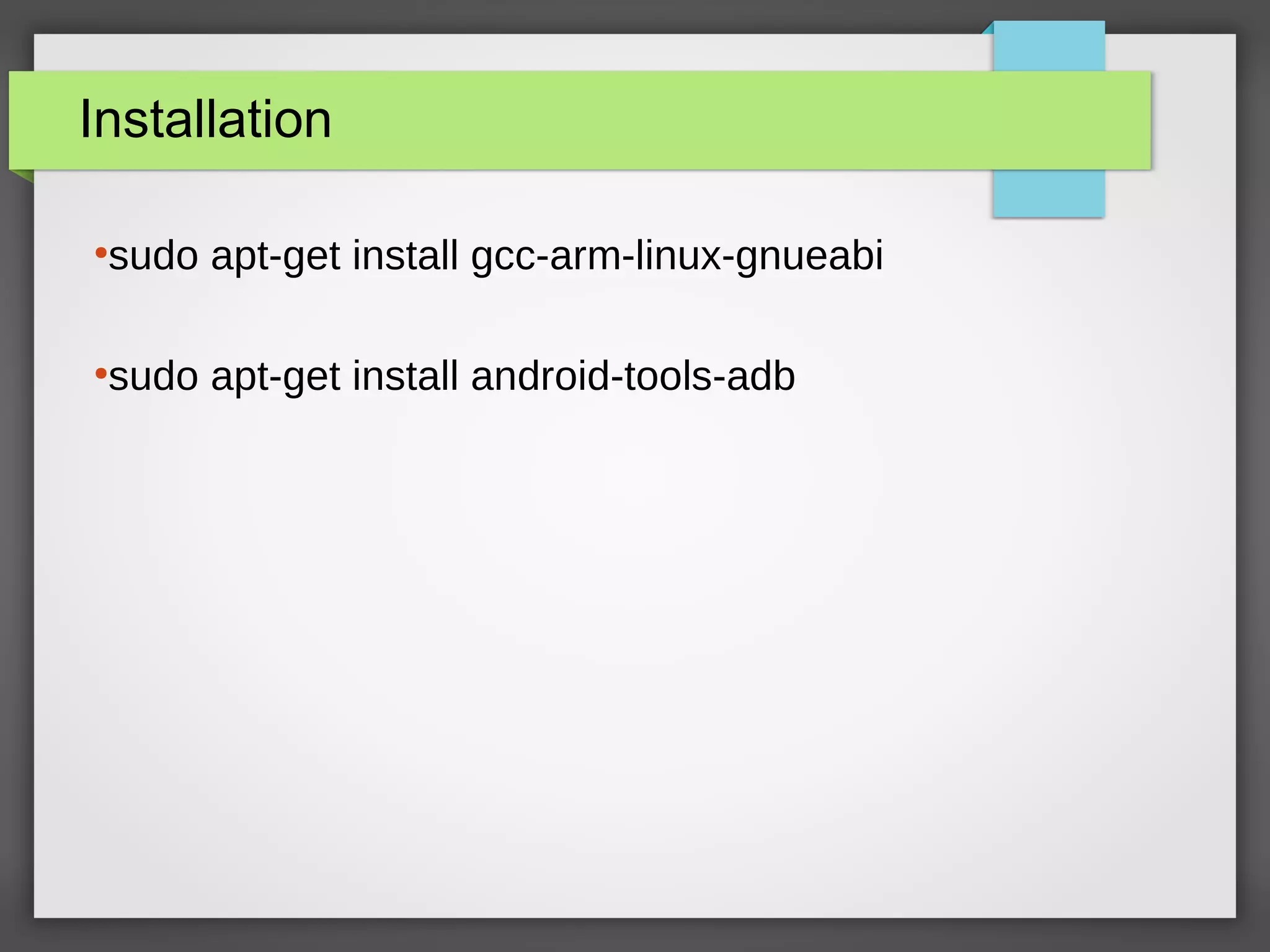

Installation
●
sudo apt-get install gcc-arm-linux-gnueabi
●
sudo apt-get install android-tools-adb

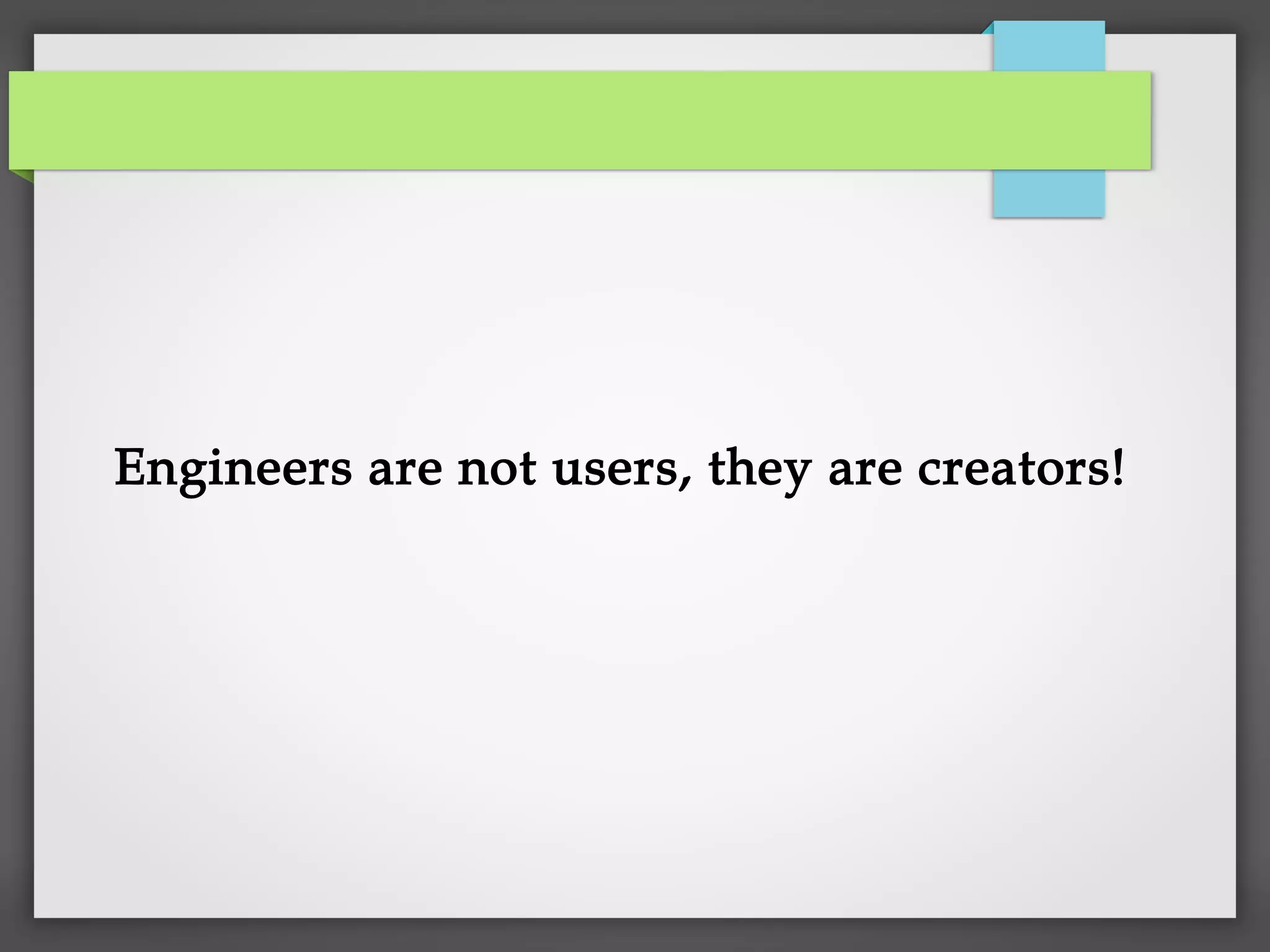

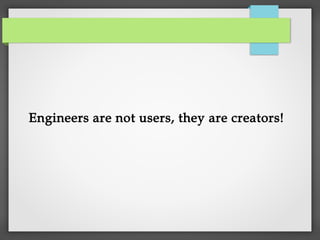

Engineers are not users, they are creators!

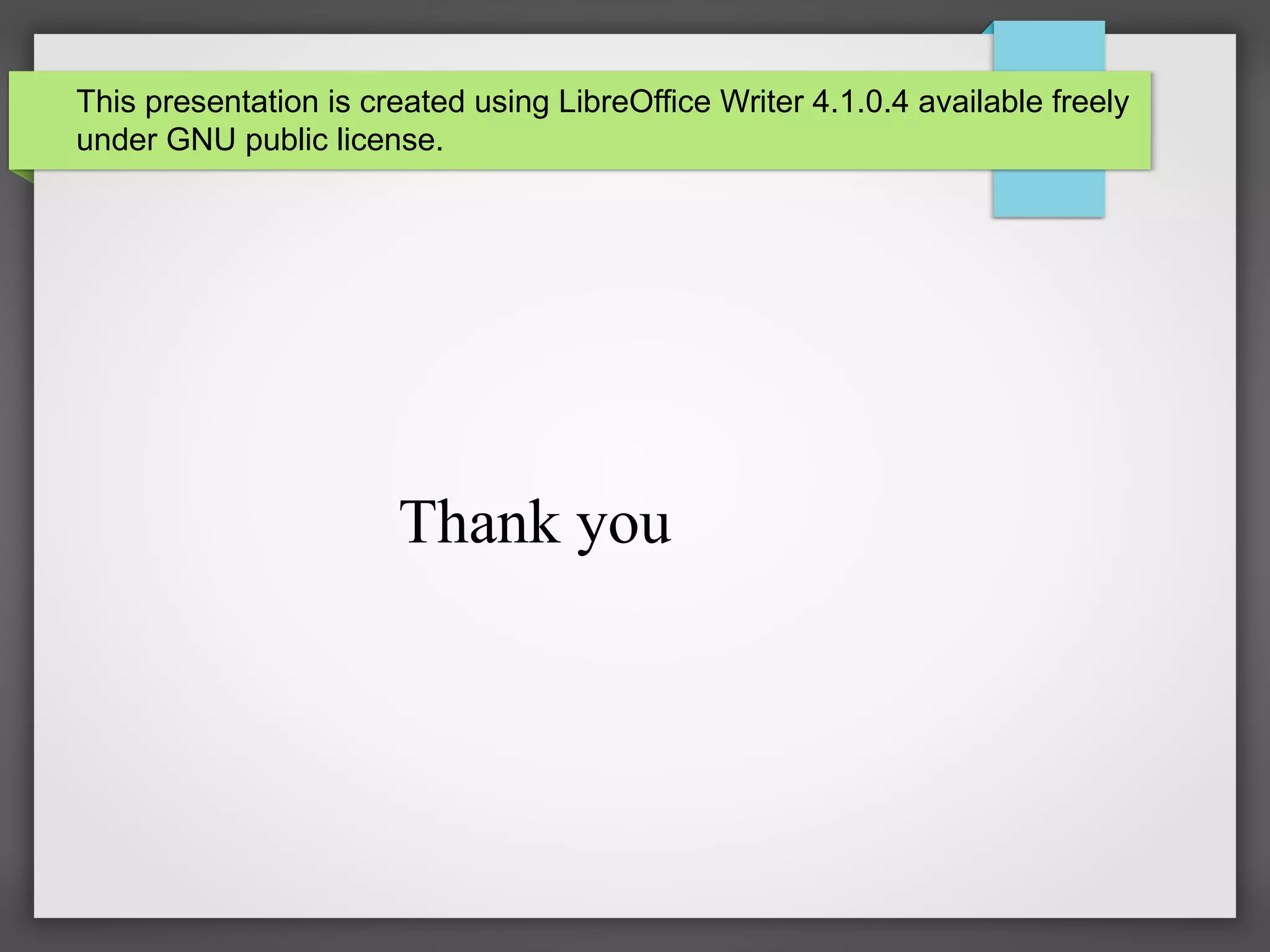

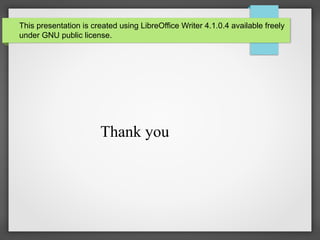

This presentation is created using LibreOffice Writer 4.1.0.4 available freely
under GNU public license.
Thank you
