1. Circular Linked List
Adam M.B.

2. DEFINITION


3. Linked list that hasn’t null (nil) value in its
connection field.
Circular Linked List
2 4 5 9
Awal Akhir
2 4 5 9
Awal Akhir
Circular Single Linked list
Circular Double Linked list

4. Operation
• Creation
• Insertion
• Delete
• Traversal
• Searching
• Sorting
• Destroy
Same with linear single
or double linked list

5. INSERTION


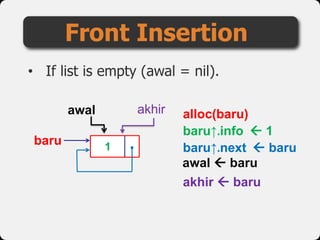

6. • If list is empty (awal = nil).
Front Insertion
awal akhir
baru 1
akhir  baru
awal  baru
baru↑.info  1
baru↑.next  baru
alloc(baru)

7. • If list isn’t empty (awal ≠ nil). For example,
there is list that has two nodes:
Front Insertion (cont’d)
baru 1
alloc(baru)
baru↑.info  1
akhirawal
2 3

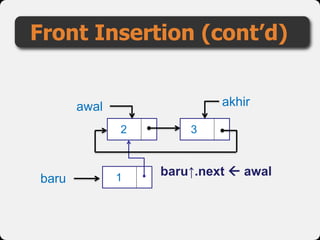

8. Front Insertion (cont’d)
baru 1
baru↑.next  awal
akhirawal
2 3

9. Front Insertion (cont’d)
awal  baru
baru 1
akhirawal
2 3

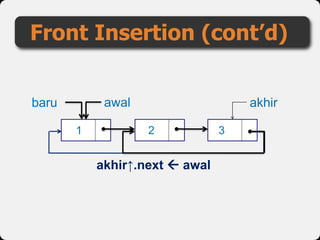

10. Front Insertion (cont’d)
baru
1
akhirawal
2 3
akhir↑.next  awal

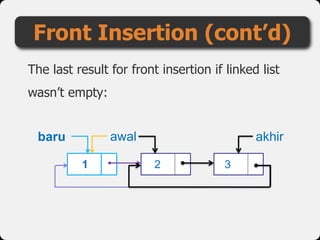

11. The last result for front insertion if linked list
wasn’t empty:
Front Insertion (cont’d)
baru
1
akhirawal
2 3

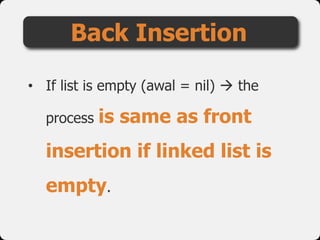

12. • If list is empty (awal = nil)  the
process is same as front
insertion if linked list is
empty.
Back Insertion

13. • If list isn’t empty (awal ≠ nil). For example,
there is list that has two nodes:
Back Insertion (cont’d)
akhirawal
2 3

14. New node will be inserted after the node that
was refered by akhir.
Back Insertion (cont’d)
baru 1
alloc(baru)
baru↑.info  1

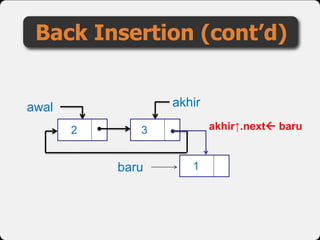

15. Back Insertion (cont’d)
baru 1
akhir↑.next baru
akhirawal
2 3

16. Back Insertion (cont’d)
akhir  baru
akhirawal
3 2
baru 1
akhir↑.next awal

17. The last result for back insertion if linked list
wasn’t empty:
Back Insertion (cont’d)
akhirawal
3 2
baru
1

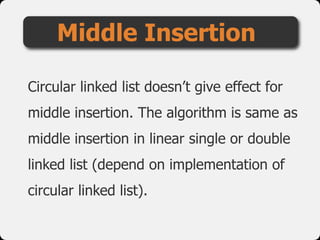

18. Circular linked list doesn’t give effect for
middle insertion. The algorithm is same as
middle insertion in linear single or double
linked list (depend on implementation of
circular linked list).
Middle Insertion

19. DELETION


20. • Delete one node in beggining of linked list if
linked list has only one node (awal = akhir).
Front Deletion
awal akhir
1 THEN
elemen
phapus
phapus  awal elemen  phapus↑.info
awal  nil
awal
akhir
akhir  nil
dealloc(phapus)

21. • If linked list has more than one node (awal ≠
akhir). For example, linked list has two
nodes.
Front Deletion (cont’d)
akhirawal
2 3

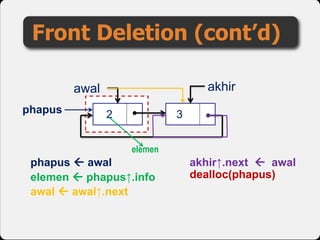

22. Front Deletion (cont’d)
akhirawal
2 3
phapus  awal
phapus
elemen
elemen  phapus↑.info
awal  awal↑.next
akhir↑.next  awal
dealloc(phapus)

23. The last result for front deletion if linked list has
more than one node:
Front Deletion (cont’d)
akhirawal
2 3phapus
elemen

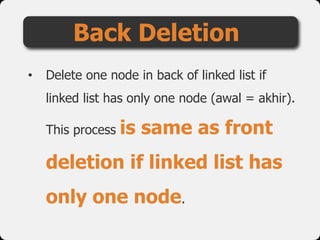

24. • Delete one node in back of linked list if
linked list has only one node (awal = akhir).
This process is same as front
deletion if linked list has
only one node.
Back Deletion

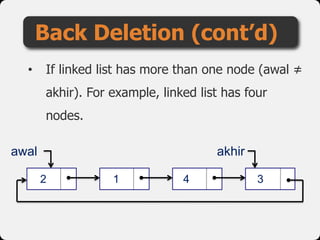

25. • If linked list has more than one node (awal ≠
akhir). For example, linked list has four
nodes.
Back Deletion (cont’d)
akhir
3
awal
1 42

26. Back Deletion (cont’d)
akhir
phapus  awal
phapus
elemen
elemen  akhir↑.info akhir  phapus
akhir↑.next  awal
dealloc(phapus)
3
awal
1 42
phapus
phapus  phapus↑.nextwhile (phapus↑.next ≠ akhir)
do
phapus  phapus↑.next
endwhile

27. The last result for back deletion if linked list has
more than one node:
Back Deletion (cont’d)
akhirphapus
elemen
3
awal
1 42
phapus

28. Other operations of circular linked list are same
as linear single or double linked list but be
careful of overlooping (endless looping)because
there aren’t null value in its connection fields.
Other Operation
