1. LINKED LISTS
DATA STRUCTURES
AND ALGORITHMS
1

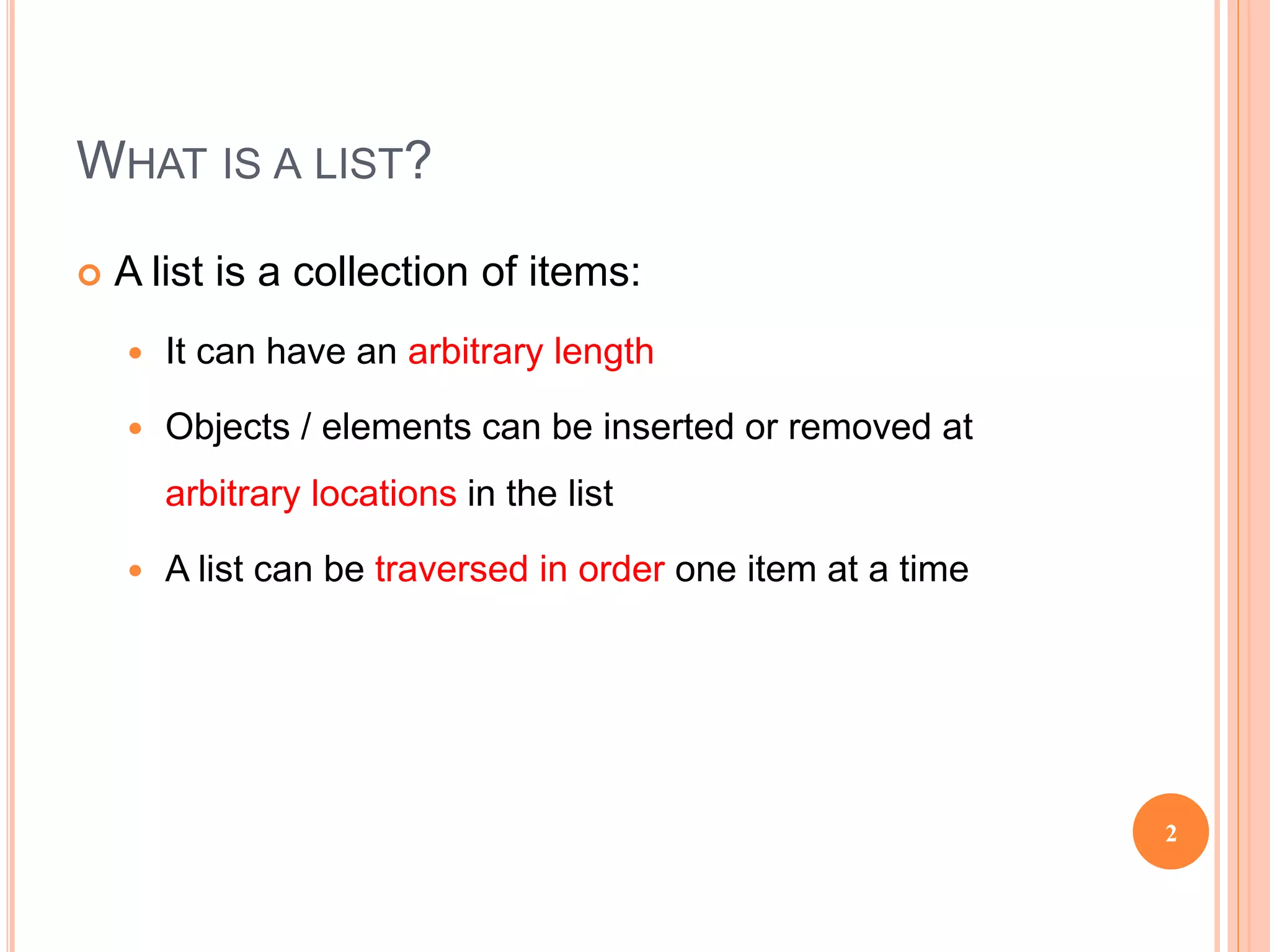

2. WHAT IS A LIST?
 A list is a collection of items:
 It can have an arbitrary length
 Objects / elements can be inserted or removed at
arbitrary locations in the list
 A list can be traversed in order one item at a time
2

3. LIST AS AN ADT
 A list is a finite sequence (possibly empty) of
elements with basic operations that vary from
one application to another.
 Basic operations commonly include:
 Construction: Allocate and initialize a list object
(usually empty)
 Empty: Check if list is empty
 Insert: Add an item to the list at any point
 Delete: Remove an item from the list at any point
 Traverse: Visiting each node of list
3

4. VARIATIONS OF LINKED LISTS
 Singly linked lists
 Circular linked lists
 Doubly linked lists
 Circular doubly linked list
4

5. LINKED LIST
Minimal Requirements
 Locate the first element
 Given the location of any list element, find its successor
 Determine if at the end of the list
5

6. LINKED LIST TERMINOLOGIES
 Traversal of List
 Means to visit every element or node in the list
beginning from first to last.
 Predecessor and Successor
 In the list of elements, for any location n, (n-1) is
predecessor and (n+1) is successor
 In other words, for any location n in the list, the left
element is predecessor and the right element is
successor.
 Also, the first element does not have predecessor
and the last element does not have successor. 6

7. LINKED LISTS
 A linked list is a series of connected nodes
 Each node contains at least
 A piece of data (any type)
 Pointer to the next node in the list
 Head: pointer to the first node
 The last node points to NULL
A 
Head
B C
A
data pointer
node
7

8. LISTS – ANOTHER PERSPECTIVE
A list is a linear collection of varying length of
homogeneous components.
Homogeneous: All components are of the same
type.
Linear: Components are ordered in a line (hence
called Linear linked lists).
8

9. ARRAYS VS LISTS
• Arrays are lists that have a fixed size in memory.
• The programmer must keep track of the length of the
array
• No matter how many elements of the array are used
in a program, the array has the same amount of
allocated space.
• Array elements are stored in successive memory
locations. Also, order of elements stored in array is
same logically and physically.
9

10. • A linked list takes up only as much space in memory
as is needed for the length of the list.
• The list expands or contracts as you add or delete
elements.
• In linked list the elements are not stored in successive
memory location
• Elements can be added to (or deleted from) either
end, or added to (or deleted from)the middle of the
list.
ARRAYS VS LISTS
10

11. ARRAY VERSUS LINKED LISTS
 Linked lists are more complex to code and manage
than arrays, but they have some distinct advantages.
 Dynamic: a linked list can easily grow and shrink in size.
 We don’t need to know how many nodes will be in the list. They
are created in memory as needed.
 In contrast, the size of a C++ array is fixed at compilation time.
 Easy and fast insertions and deletions
 To insert or delete an element in an array, we need to copy to
temporary variables to make room for new elements or close the
gap caused by deleted elements.
 With a linked list, no need to move other nodes. Only need to reset
some pointers.
11

12. A Linked List
12
An Array

13. BASIC OPERATIONS OF LINKED LIST
 Linked List, a linear collection of data items, called
nodes, where order is given y means of pointers.
 Elements:
 Each node is divided into two parts:
 Information
 Link ( pointing towards the next node)
 (Common) Operations of Linked List
 IsEmpty: determine whether or not the list is empty
 InsertNode: insert a new node at a particular position
 FindNode: find a node with a given value
 DeleteNode: delete a node with a given value
 DisplayList: print all the nodes in the list
13

14. AN INTEGER LINKED LIST
list
10 13 5 2
First Node of List
data next NULL
Last Node of List
14

15. CREATING A LIST NODE
p 10
struct Node {
int data; // data in node
Node *next; // Pointer to next node
};
Node *p;
p = new Node;
p - > data = 10;
p - > next = NULL;
15

16. CREATING A LIST NODE
p 10
class Node {
public:
int data; // data in node
Node *next; // Pointer to next node
};
Node *p;
p = new Node;
p - > data = 10;
p - > next = NULL;
16
To avoid get/set methods

17. THE NULL POINTER
NULL is a special pointer value that does not reference
any memory cell.
If a pointer is not currently in use, it should be set to
NULL so that one can determine that it is not pointing
to a valid address:
int *p;
p = NULL;
17

18. 18
Singly Linked List

19. AN INTEGER (SINGLY) LINKED LIST
list
10 13 5 2
First Node of List
data next NULL
Last Node of List
class Node {
public:
int data;
Node *next;
};
Basic Concepts
19

20. JOINING TWO NODES
Node *p, *q;
p = new Node;
p - > data = 10;
p - > next = NULL;
q = new Node;
q - > data = 6;
q - > next = NULL;
p - > next = q;
p 10
q 6
6p 10
q
Basic Concepts
20

21. ACCESSING LIST DATA
Expression
p
p - > data
p - > next
p - > next - > data
p - > next - > next
6p 10
Node 1 Node 2
Value
Pointer to first node (head)
10
Pointer to next node
6
NULL pointer
Basic Concepts
21

22. BUILDING A LIST FROM 1 TO N
class Node {
public:
int data;
Node *next;
};
Node *head = NULL; // pointer to the list head
Node *lastNodePtr = NULL; // pointer to last node
head lastNodePtr
Basic Concepts
23

23. CREATING THE FIRST NODE
Node *ptr; // declare a pointer to Node
ptr = new Node; // create a new Node
ptr - > data = 1;
ptr - > next = NULL;
head = ptr; // new node is first
lastNodePtr = ptr; // and last node in list
head 1
ptr
lastNodePtr
Basic Concepts
24

24. ADDING MORE NODES
for (int i = 2; i < = n; i ++ ) {
ptr = new Node;
ptr - > data = i;
ptr - > next = NULL;
lastNodePtr - > next = ptr; // order is
lastNodePtr = ptr; // important
}
2head 1
ptr
lastNodePtr
Basic Concepts
25

25. 2head 1
ptr
lastNodePtr
2head 1
ptr
lastNodePtr
3
•Create a new node with data field set to 3
•Its next pointer should point to NULL
Initially
Basic Concepts
26

26. 2head 1
ptr
lastNodePtr
2head 1
ptr
lastNodePtr
3
The next pointer of the node which was previously
last should now point to newly created node
“lastNodePtr->next=ptr”
Basic Concepts
27

27. 2head 1
ptr
lastNodePtr
2head 1
ptr
lastNodePtr
3
The next pointer of the node which was previously
last should now point to newly created node
“lastNodePtr->next=ptr”
Basic Concepts
28

28. 2head 1
ptr
lastNodePtr
2head 1
ptr
lastNodePtr
3
LastNodePtr should now point to the newly created
Node “lastNodePtr = ptr;”
Basic Concepts
29

29. 3head 1
ptr
lastNodePtr
2
RE-ARRANGING THE VIEW
Basic Concepts
30

30. BASIC LINKED LIST OPERATIONS
 Traversing through the list
 Node Insertion
 Insertion at the beginning of the list
 Insertion at the end of the list
 Insertion in the middle of the list
 Node Deletion
 Deletion at the beginning of the list
 Deletion at the end of the list
 Deletion from the middle of the list
31

31. 32
Traversing the list

32. TRAVERSING THE LIST
33
ptr = first;
while (ptr != null_value)
{
Process data part of node pointed to by ptr
ptr = next part of node pointed to by ptr;
}

33. 34
9 17 22 26 34first
ptr
9 17 22 26 34first
ptr
..
.
9 17 22 26 34first
ptr
9 17 22 26 34first
ptr
ptr = first;
while (ptr != null_value)
{
Process data part of
node pointed to by ptr;
ptr = next part of node
pointed to by ptr;
}

34. TRAVERSING THE LIST
35
Node * currNode;
currNode = head;
while (currNode != NULL)
{
cout<< currNode->data;
currNode = currNode->next;
}

35. NODE INSERTION
 Insertion at the beginning of the list
 Insertion at the end of the list
 Insertion in the middle of the list
36

36. NODE INSERTION AT THE BEGINNING
Steps:
 Create a node
 Set the node data values
 Connect the pointers
48 17 142head //
Step 1 Step 2
Initial list
List after Step 3
head 93

37. NODE INSERTION AT THE BEGINNING
48 17 142head //Initial list
head
Node *ptr;
ptr = new Node;
ptr - > data = 93;
ptr - > next = head;
head = ptr; 93
head 93
Rearrange:
ptr
ptr
head

38. NODE INSERTION AT THE END
Steps:
 Create a Node
 Set the node data values
 Connect the pointers
48 17 142head //
Step 1 Step 2
List after Step 3
Initial list

39. NODE INSERTION AT THE END
48 17 142head //Initial list
ptr
Node * ptr;
ptr = head;
while (ptr->next != NULL)
{
ptr = ptr->next;
}
Need a pointer at the last
node

40. NODE INSERTION AT THE END
48 17 142head //Initial list
ptr
Node * p;
p = new Node;
p -> data = 150;
p -> next = NULL;
150 //
p

41. NODE INSERTION AT THE END
48 17 142head
ptr
Node * p;
p = new Node;
p -> data = 150;
p -> next = NULL;
ptr -> next = p;
150 //
p

42. NODE INSERTION AT ARBITRARY POSITION
Steps:
 Create a Node
 Set the node data values
 Break pointer connection
 Re-connect the pointers
Step 1 Step 2
Step 3
Step 4

43. NODE INSERTION AT ARBITRARY POSITION
Steps:
 Create a Node
 Set the node data values
 Break pointer connection
 Re-connect the pointers
Need a pointer on the node after which a new node is to be
Inserted. For instance, if new node is to be inserted after
the node having value ‘17’, we need a pointer at this node
ptr
How to get pointer on desired node?

44. NODE INSERTION AT ARBITRARY POSITION
Suppose we want to insert a node after the node having
value ‘x’:
ptr
Node * ptr;
ptr = head;
while (ptr->data != x)
{
ptr = ptr->next;
}

45. NODE INSERTION AT ARBITRARY POSITION
ptr
Node * ptr;
ptr = head;
while (ptr->data != x)
{
ptr = ptr->next;
}
Node * p;
p = new Node;
p -> data = 100;
p -> next = NULL;
150 //
p

46. NODE INSERTION AT ARBITRARY POSITION
ptr
Node * ptr;
ptr = head;
while (ptr->data != x)
{
ptr = ptr->next;
}
Node * p;
p = new Node;
p -> data = 150;
p -> next = NULL;
p -> next = ptr -> next;
ptr -> next = p;
150
p

47. NODE DELETION
 Deleting from the beginning of the list
 Deleting from the end of the list
 Deleting from the middle of the list

48. DELETING FROM THE BEGINNING
Steps:
 Break the pointer connection
 Re-connect the nodes
 Delete the node
4 17head 426
4 17
head
426
4 17head 42

49. DELETING FROM THE BEGINNING
4 17
head
426
head
4 17 426
4 17head 42
Node * ptr;
ptr = head;
head = head ->next;
delete ptr;
ptr
ptr
head

50. DELETING FROM THE END
Steps:
 Break the pointer connection
 Set previous node pointer to NULL
 Delete the node
4 17head 426
4 17head 426
4 176head

51. DELETING FROM THE END
4 17head 426
We need a pointer one node before the node to be deleted
predPtr
Node * ptr;
Node * predPtr;
ptr = head;
predPtr = NULL;
while (ptr->next != NULL)
{
predPtr = ptr;
ptr = ptr->next;
}
ptr

52. DELETING FROM THE END
4 176head
predPtr -> next = NULL;
delete ptr;
4 17head 426
predPtr ptr
4 17head 426
predPtr ptr
4 17head 426
predPtr ptr

53. DELETING FROM AN ARBITRARY POSITION
Steps:
 Set previous Node pointer to next node
 Break Node pointer connection
 Delete the node
4 17 42head
4 17head 42
4head 42

54. DELETING FROM AN ARBITRARY POSITION
4 17 42head
We need a pointer on the node to be deleted (as well a pointer to one
node before the node to be deleted)
predPtr ptr
Node * ptr;
Node * predPtr;
ptr = head;
predPtr = NULL;
while (ptr->data != x)
{
predPtr = ptr;
ptr = ptr->next;
}
Given the value of the node to be
deleted, assume this to be variable
‘x’
Keep moving a pointer until the
required node is reached

55. DELETING FROM AN ARBITRARY POSITION
4 17 42head
predPtr ptr
predPtr -> next = ptr -> next;
delete ptr;
4 17 42head
predPtr ptr
4 17 42head
predPtr ptr

56. PROS AND CONS OF LINKED LISTS
• Access any item as long as external link to first item
maintained
• Insert new item without shifting
• Delete existing item without shifting
• Can expand/contract as necessary
• Overhead of links: used only internally, pure overhead
• No longer have direct access to each element of the
list
• We must go through first element, and then second,
and then third, etc. 57
