Introduction to Excel 2007 Data Mining Plug-In using SQL Server 2008. The presentation starts with definitions and statistical theory (without equations). Then, the audience interactively participates in four demos showing the power and possibilities of the Microsoft Data Mining Algorithms.

1. Data Mining with Excel 2007
and SQL Server 2008
Mark Tabladillo Ph.D.
http://www.marktab.net
November 10, 2008

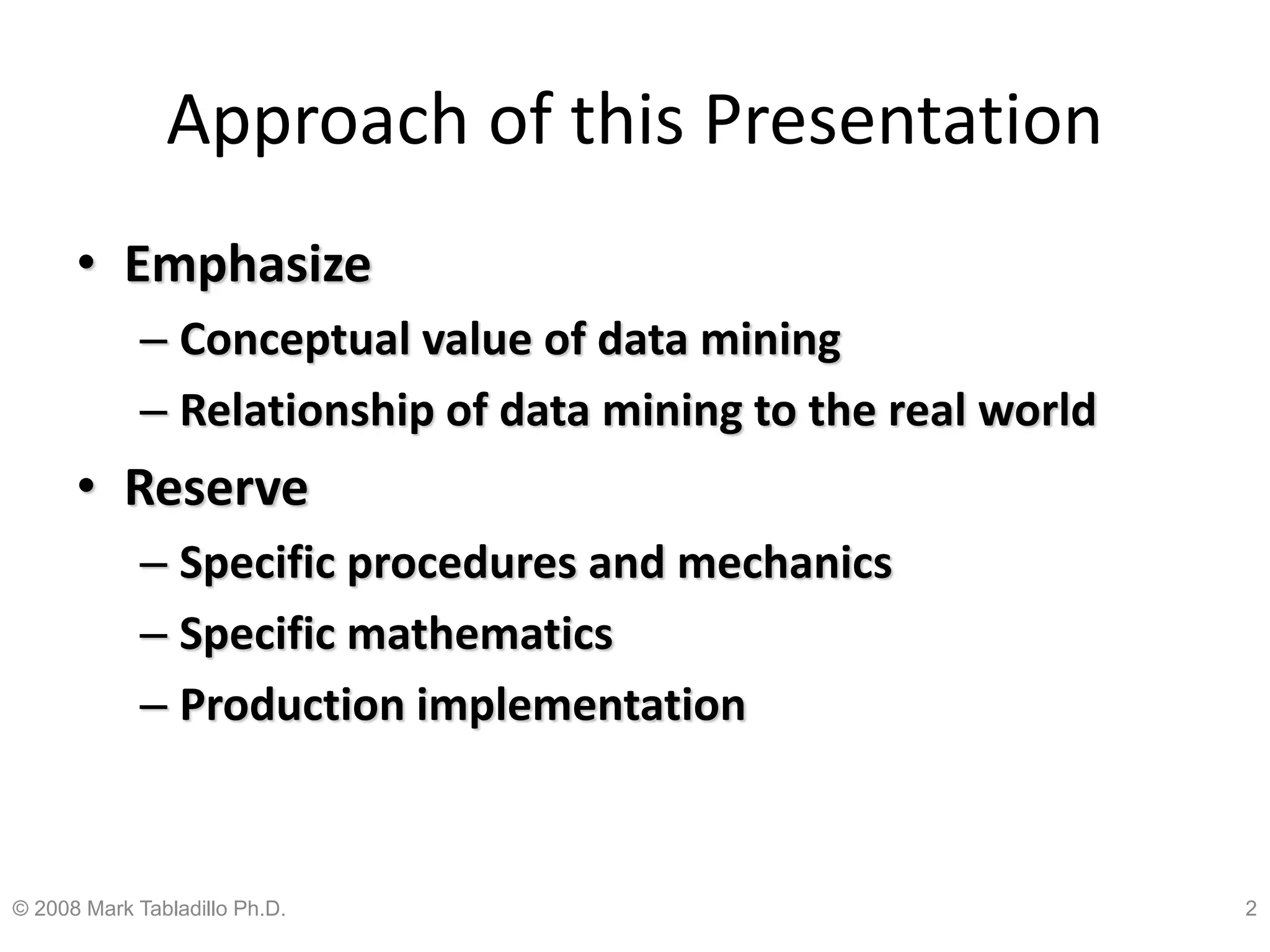

2. Approach of this Presentation
• Emphasize
– Conceptual value of data mining
– Relationship of data mining to the real world
• Reserve
– Specific procedures and mechanics
– Specific mathematics
– Production implementation
© 2008 Mark Tabladillo Ph.D. 2

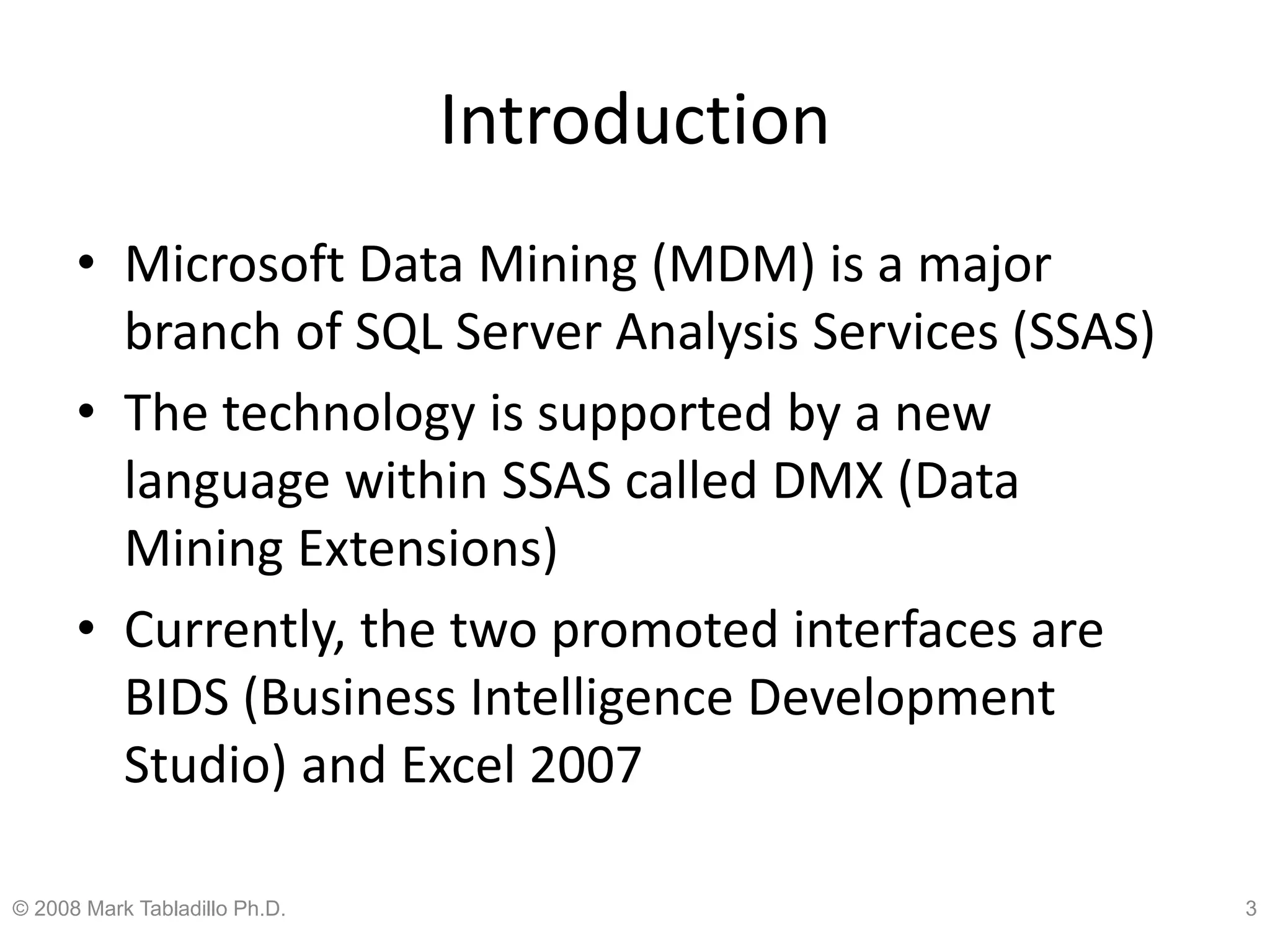

3. Introduction
• Microsoft Data Mining (MDM) is a major
branch of SQL Server Analysis Services (SSAS)
• The technology is supported by a new
language within SSAS called DMX (Data
Mining Extensions)
• Currently, the two promoted interfaces are
BIDS (Business Intelligence Development
Studio) and Excel 2007
© 2008 Mark Tabladillo Ph.D. 3

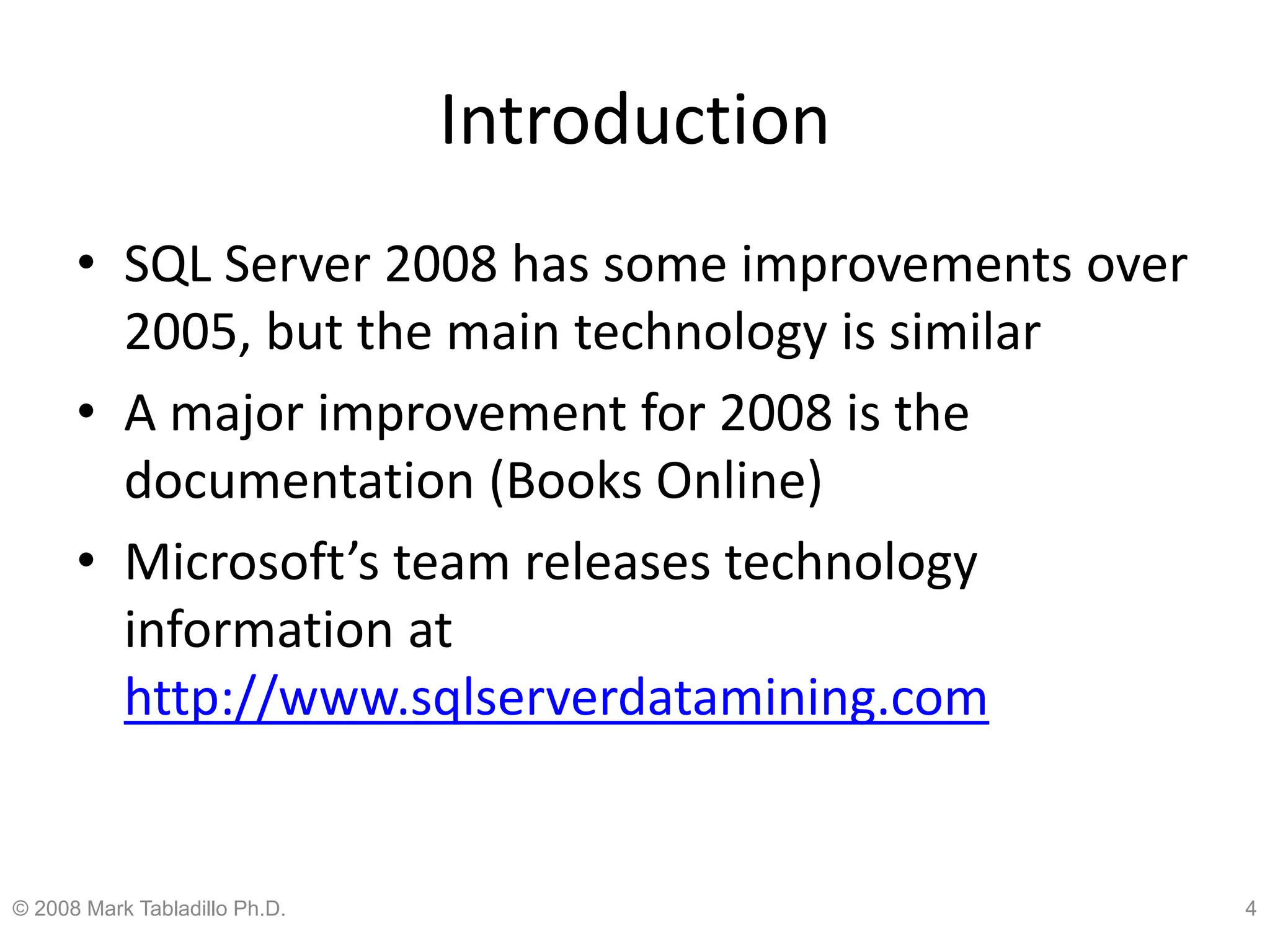

4. Introduction
• SQL Server 2008 has some improvements over
2005, but the main technology is similar
• A major improvement for 2008 is the
documentation (Books Online)
• Microsoft’s team releases technology
information at
http://www.sqlserverdatamining.com
© 2008 Mark Tabladillo Ph.D. 4

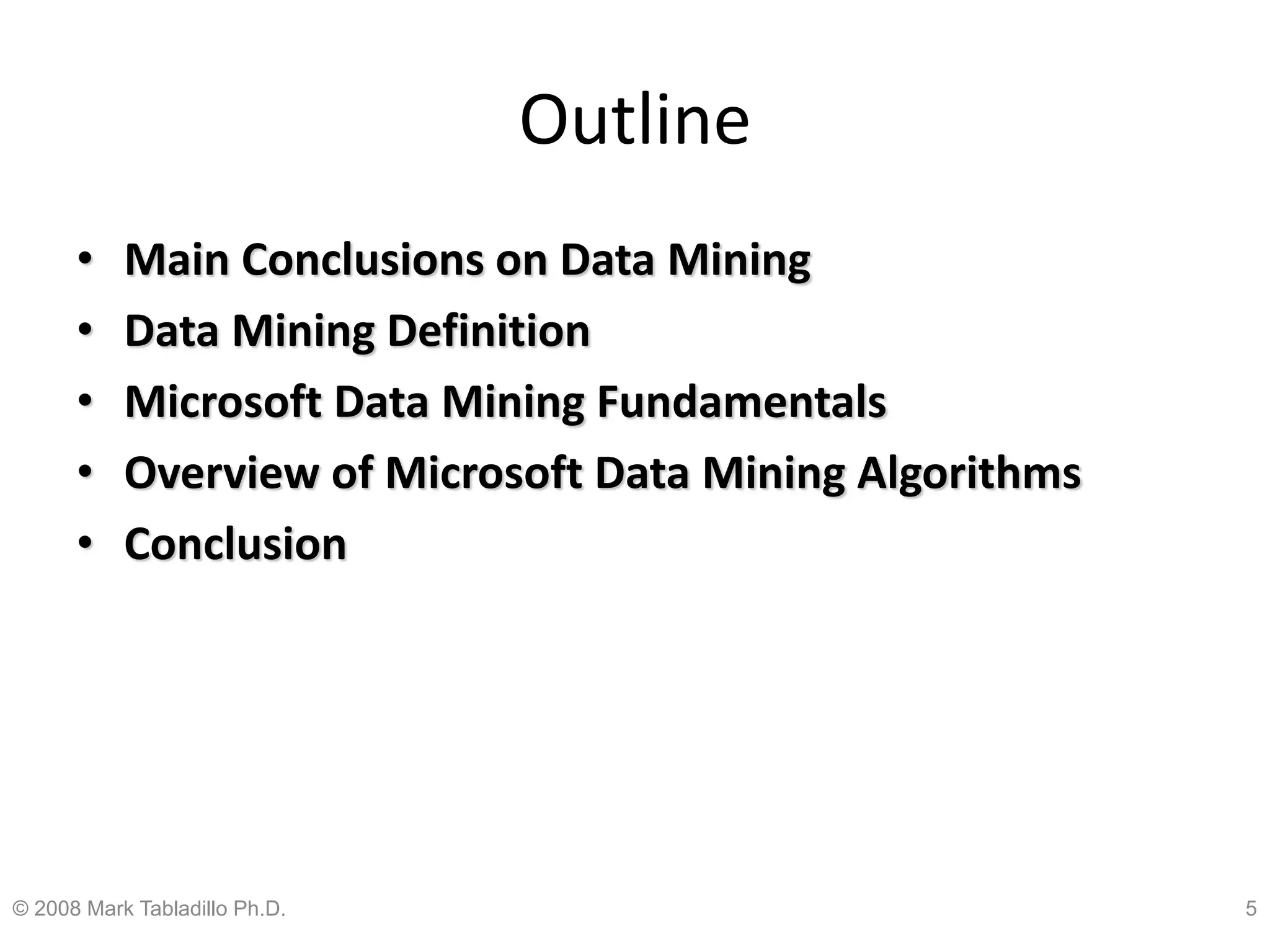

5. Outline
• Main Conclusions on Data Mining
• Data Mining Definition
• Microsoft Data Mining Fundamentals
• Overview of Microsoft Data Mining Algorithms
• Conclusion
© 2008 Mark Tabladillo Ph.D. 5

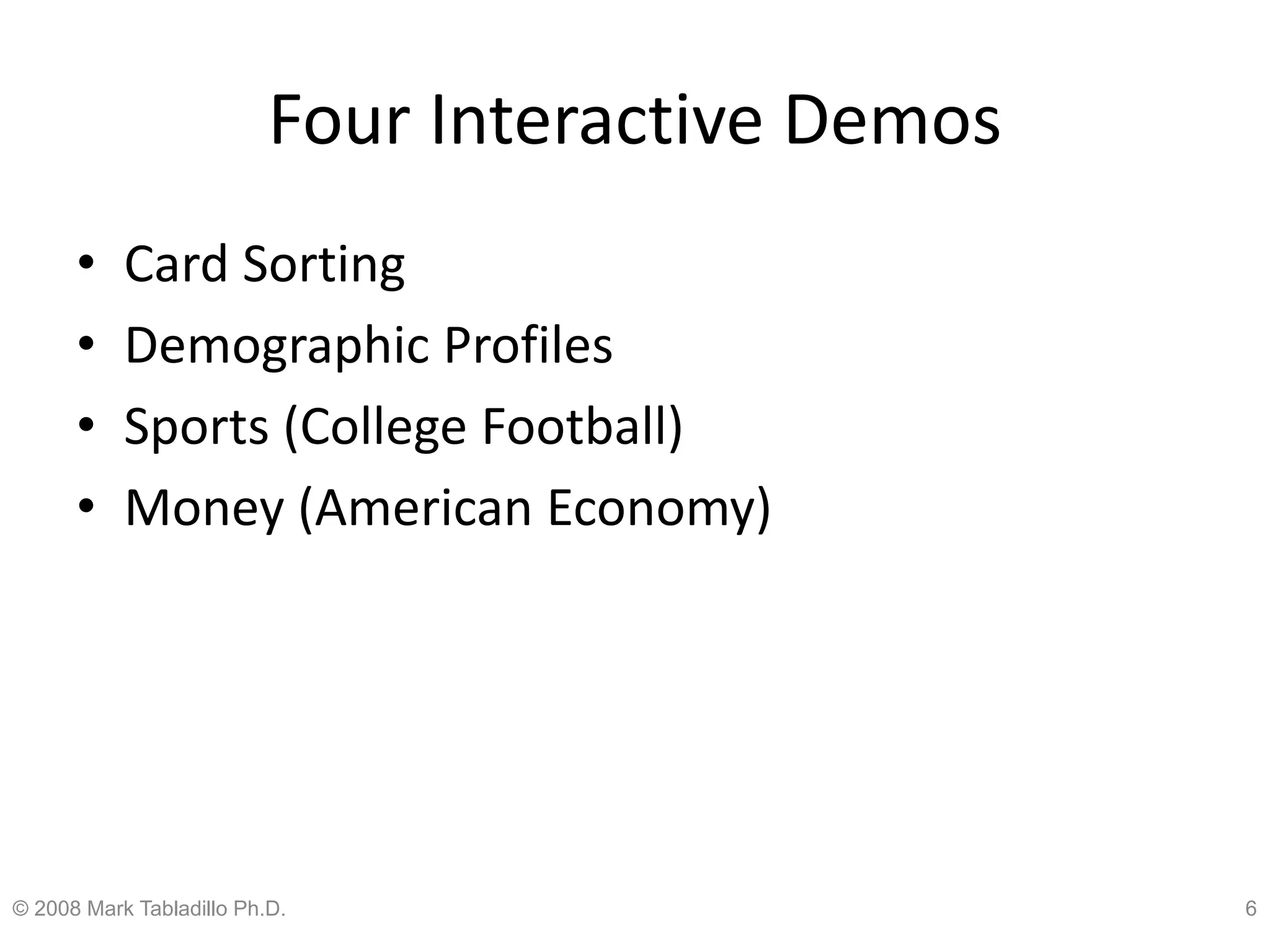

6. Four Interactive Demos
• Card Sorting
• Demographic Profiles
• Sports (College Football)
• Money (American Economy)
© 2008 Mark Tabladillo Ph.D. 6

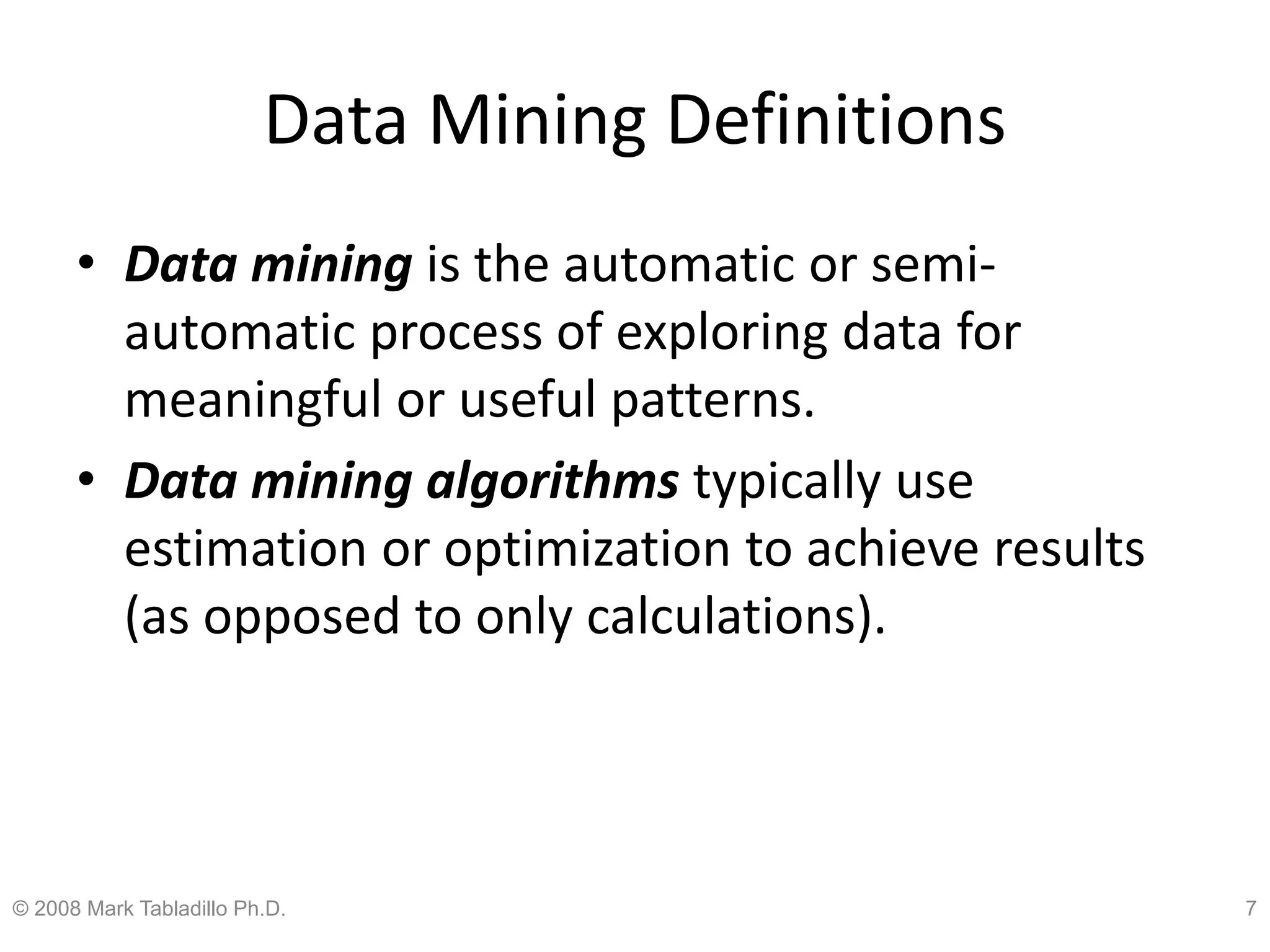

7. Data Mining Definitions
• Data mining is the automatic or semi-
automatic process of exploring data for
meaningful or useful patterns.
• Data mining algorithms typically use
estimation or optimization to achieve results
(as opposed to only calculations).
© 2008 Mark Tabladillo Ph.D. 7

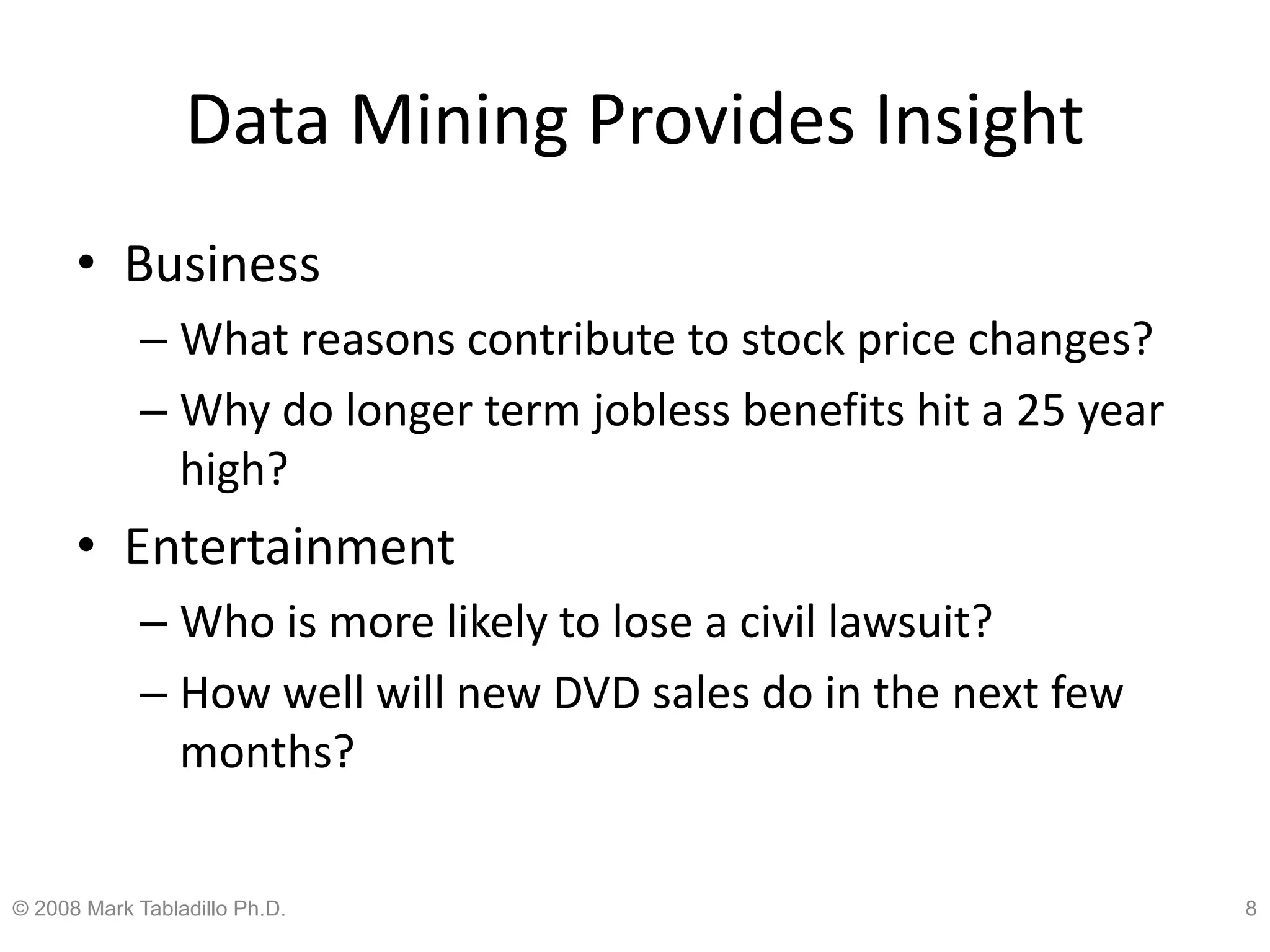

8. Data Mining Provides Insight
• Business
– What reasons contribute to stock price changes?
– Why do longer term jobless benefits hit a 25 year
high?
• Entertainment
– Who is more likely to lose a civil lawsuit?
– How well will new DVD sales do in the next few
months?
© 2008 Mark Tabladillo Ph.D. 8

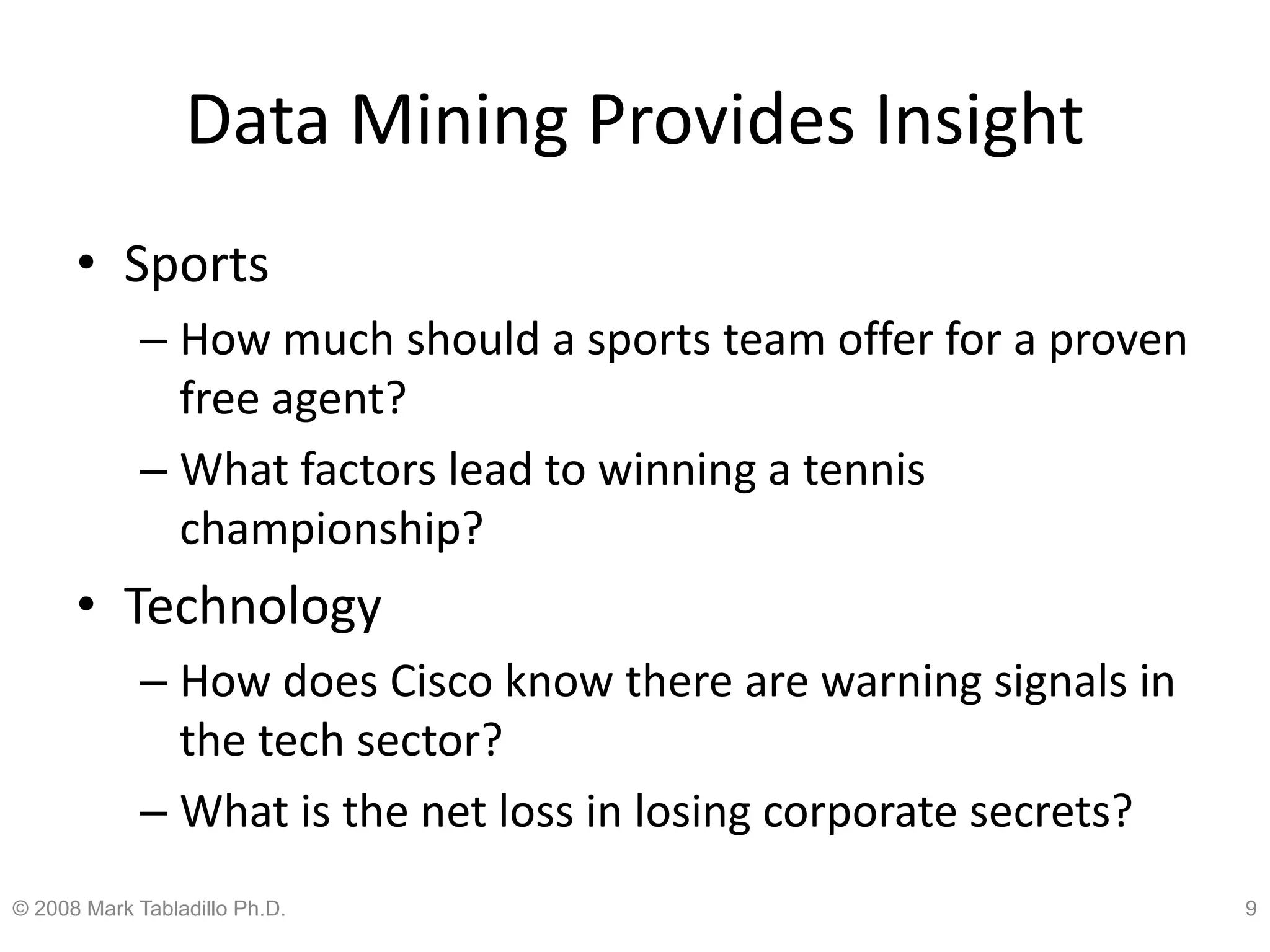

9. Data Mining Provides Insight
• Sports
– How much should a sports team offer for a proven
free agent?
– What factors lead to winning a tennis
championship?
• Technology
– How does Cisco know there are warning signals in
the tech sector?
– What is the net loss in losing corporate secrets?
© 2008 Mark Tabladillo Ph.D. 9

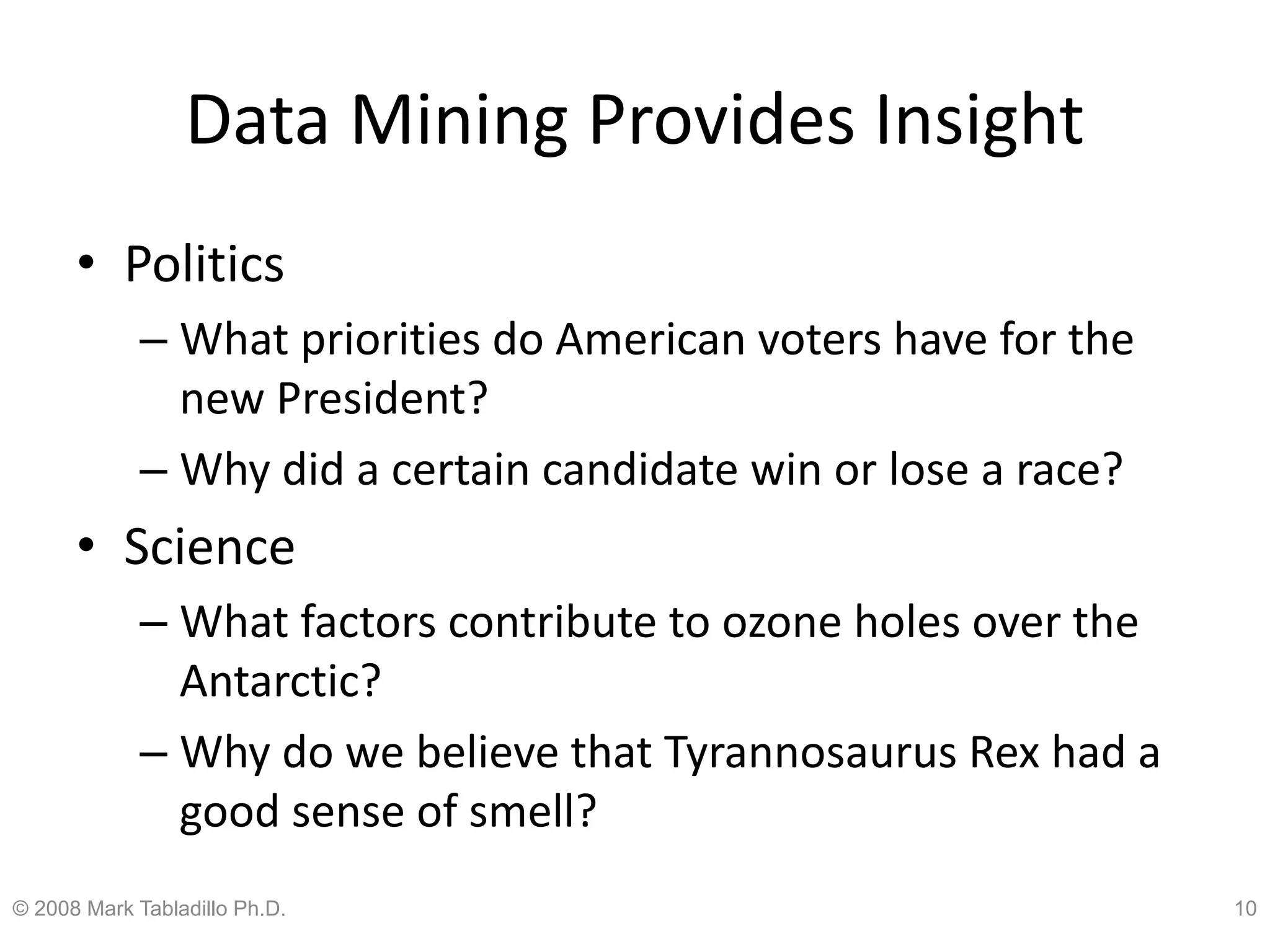

10. Data Mining Provides Insight
• Politics
– What priorities do American voters have for the
new President?
– Why did a certain candidate win or lose a race?
• Science
– What factors contribute to ozone holes over the
Antarctic?
– Why do we believe that Tyrannosaurus Rex had a
good sense of smell?
© 2008 Mark Tabladillo Ph.D. 10

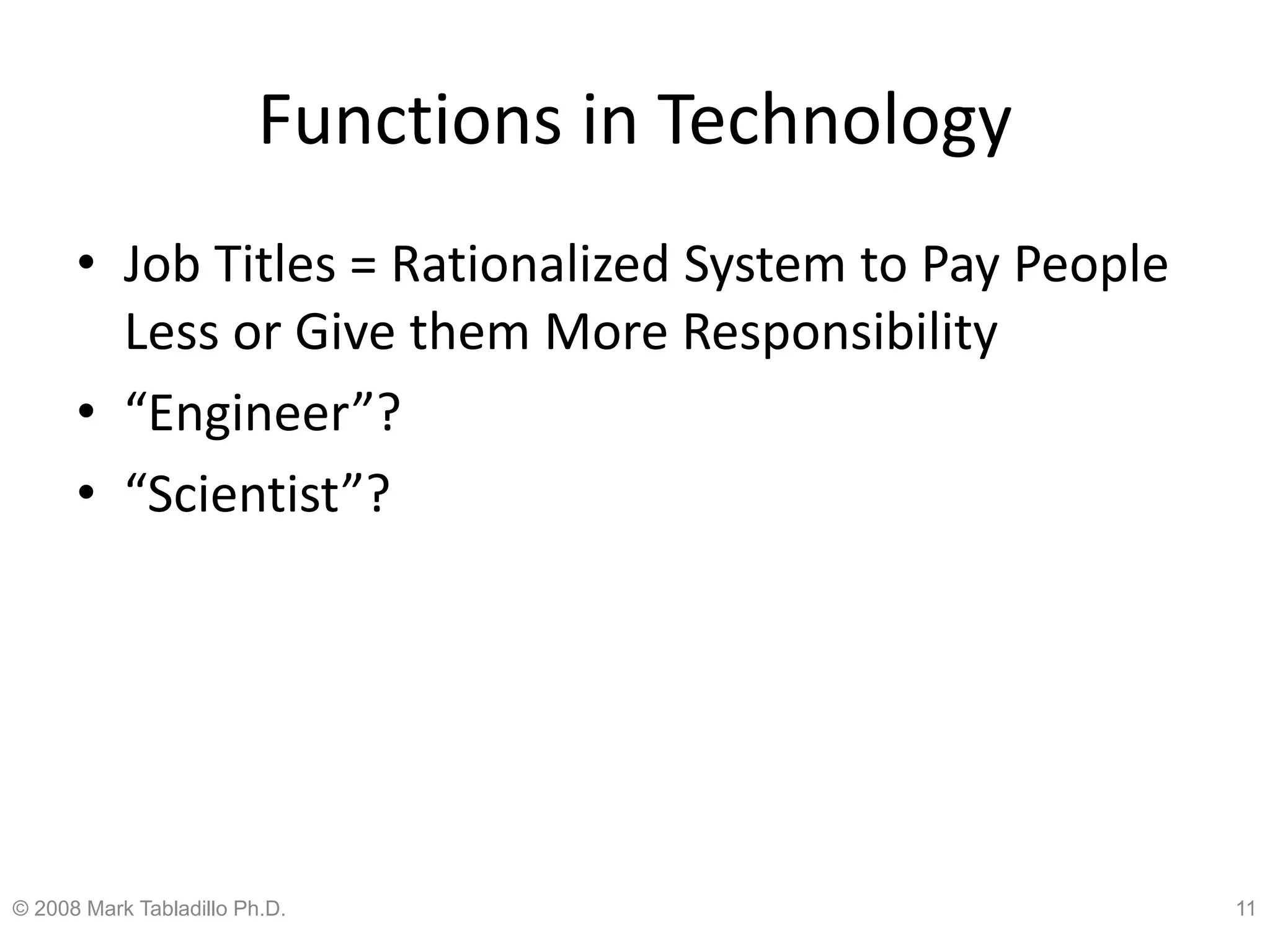

11. Functions in Technology
• Job Titles = Rationalized System to Pay People
Less or Give them More Responsibility
• “Engineer”?
• “Scientist”?
© 2008 Mark Tabladillo Ph.D. 11

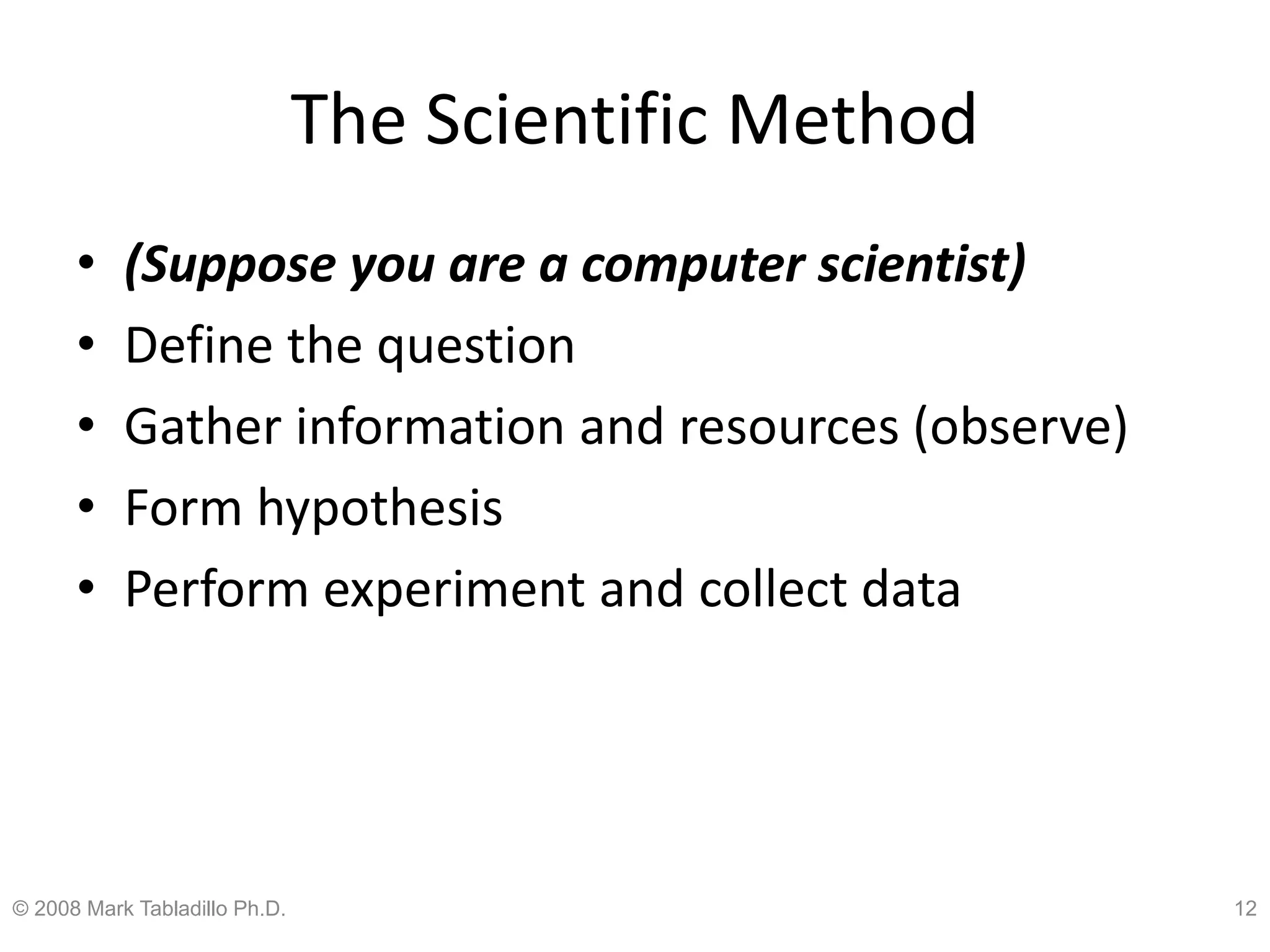

12. The Scientific Method
• (Suppose you are a computer scientist)
• Define the question
• Gather information and resources (observe)
• Form hypothesis
• Perform experiment and collect data
© 2008 Mark Tabladillo Ph.D. 12

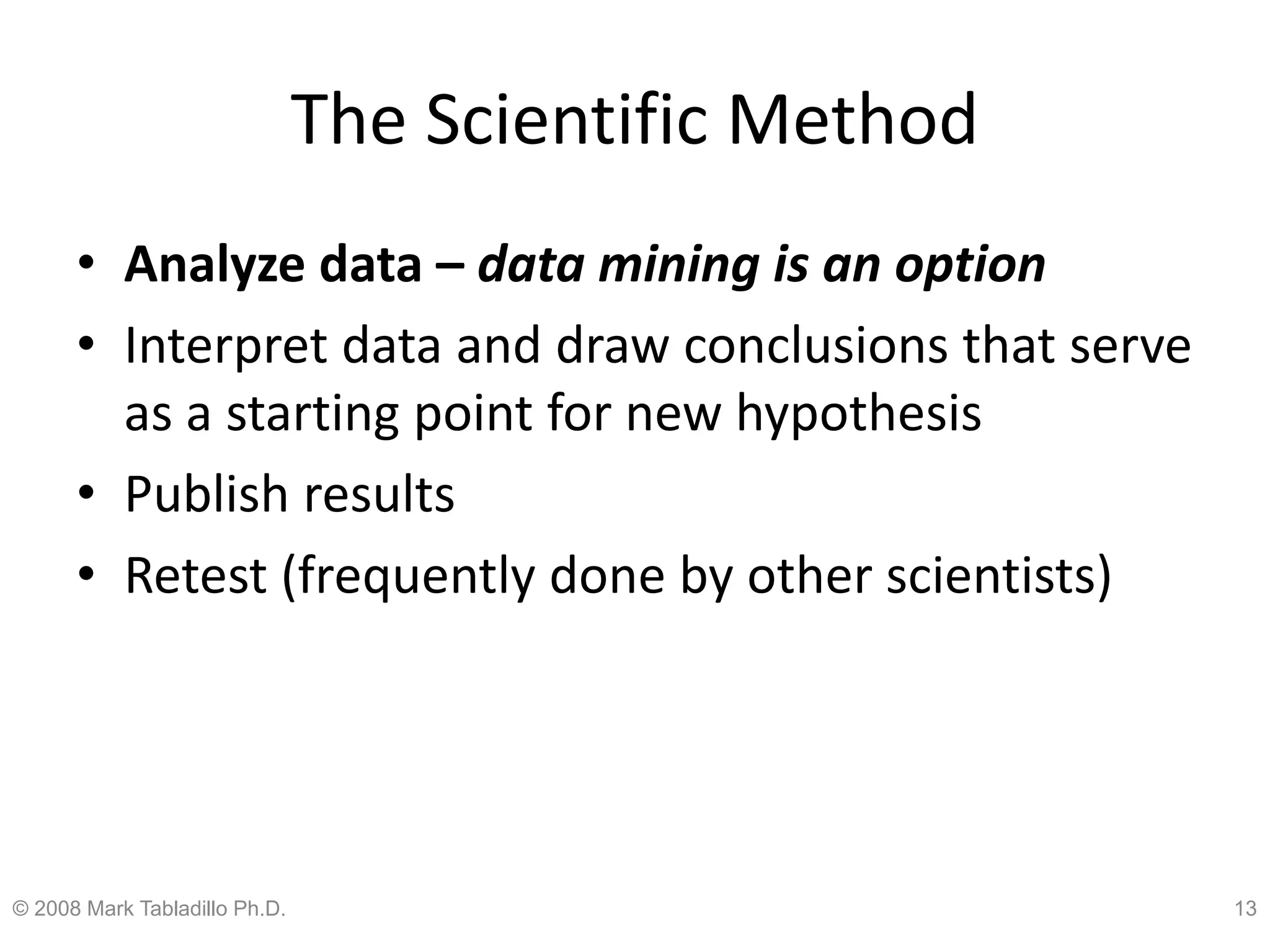

13. The Scientific Method
• Analyze data – data mining is an option
• Interpret data and draw conclusions that serve
as a starting point for new hypothesis
• Publish results
• Retest (frequently done by other scientists)
© 2008 Mark Tabladillo Ph.D. 13

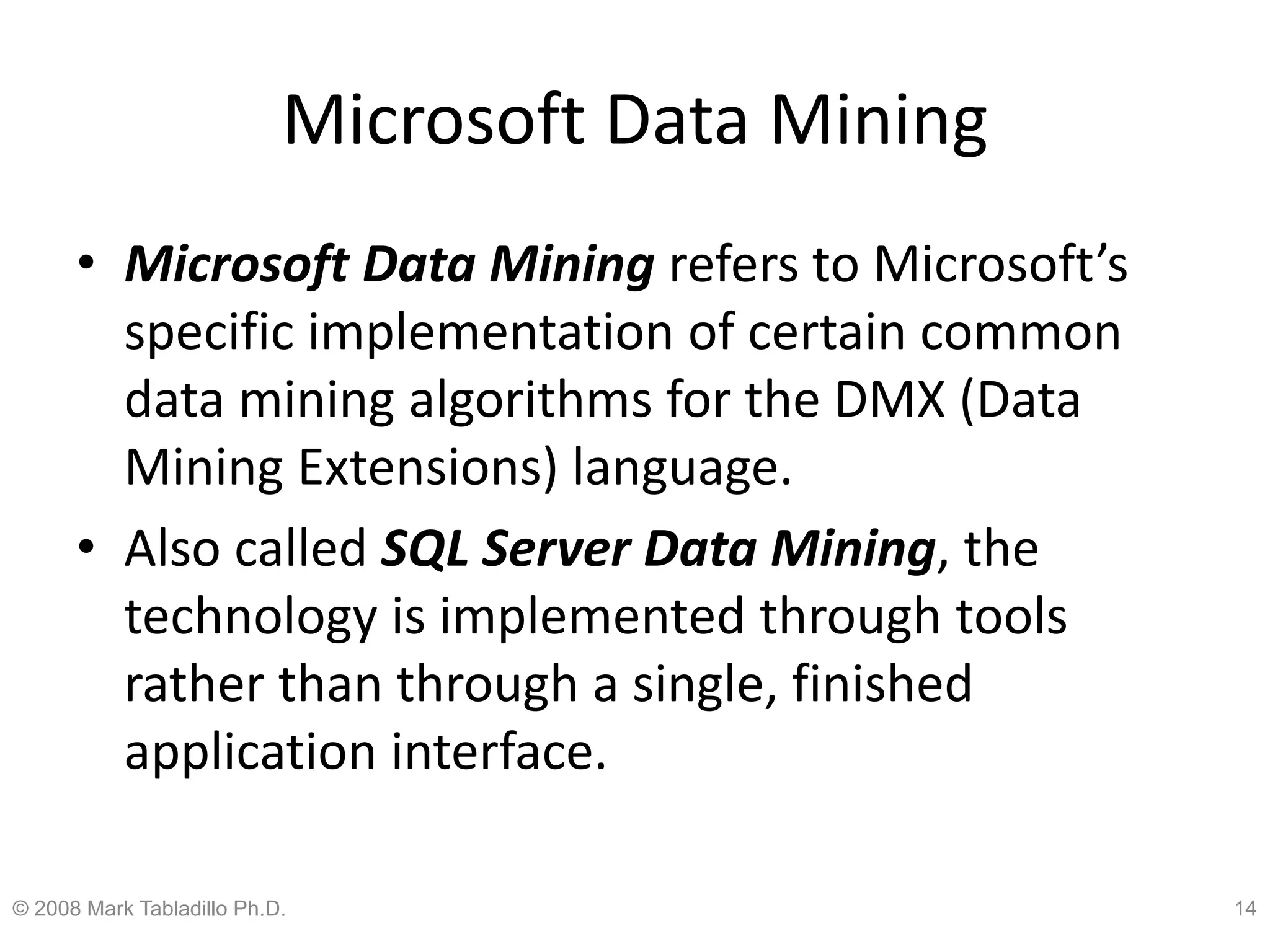

14. Microsoft Data Mining
• Microsoft Data Mining refers to Microsoft’s
specific implementation of certain common
data mining algorithms for the DMX (Data
Mining Extensions) language.
• Also called SQL Server Data Mining, the
technology is implemented through tools
rather than through a single, finished
application interface.
© 2008 Mark Tabladillo Ph.D. 14

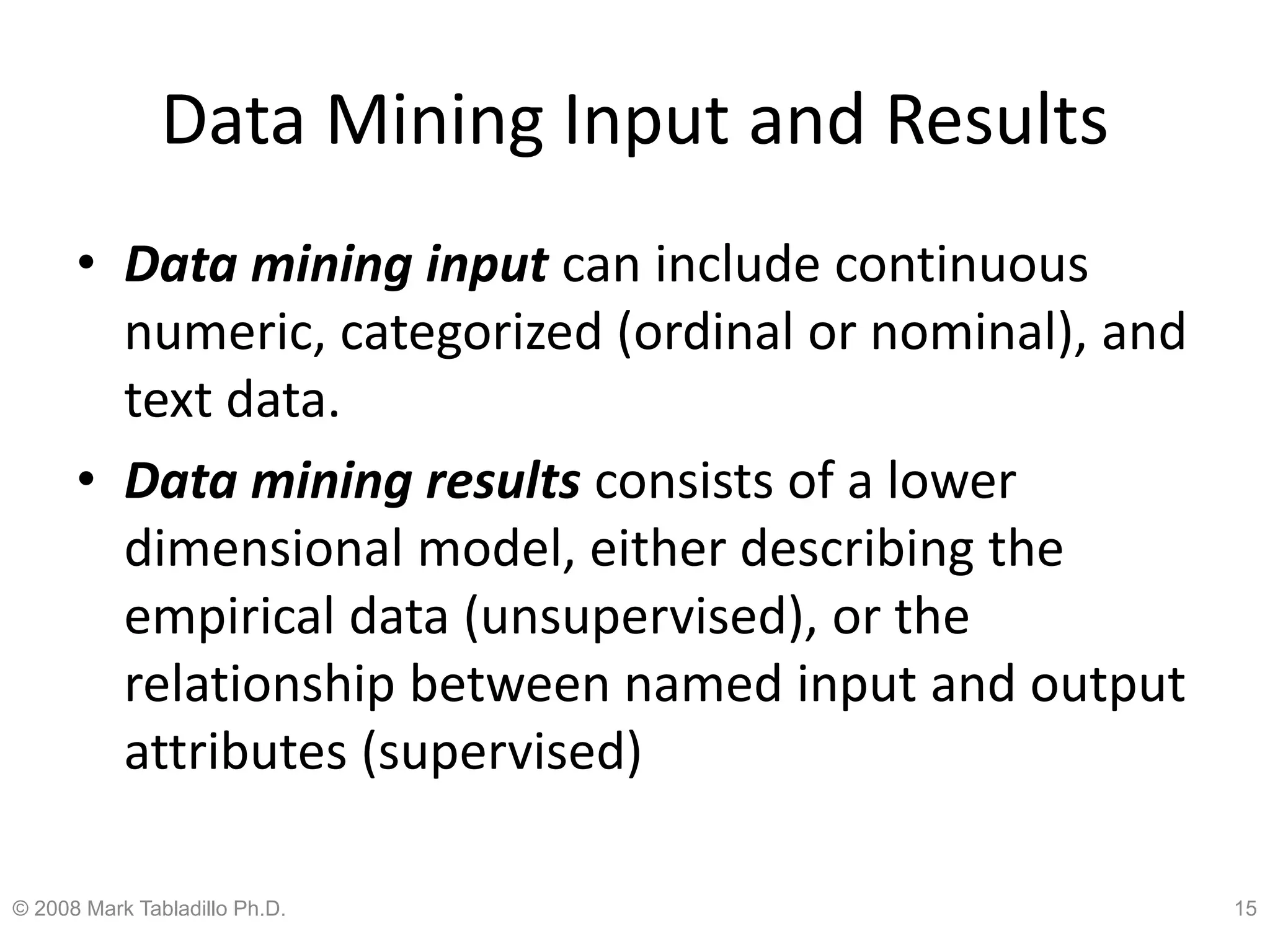

15. Data Mining Input and Results
• Data mining input can include continuous
numeric, categorized (ordinal or nominal), and
text data.
• Data mining results consists of a lower
dimensional model, either describing the
empirical data (unsupervised), or the
relationship between named input and output
attributes (supervised)
© 2008 Mark Tabladillo Ph.D. 15

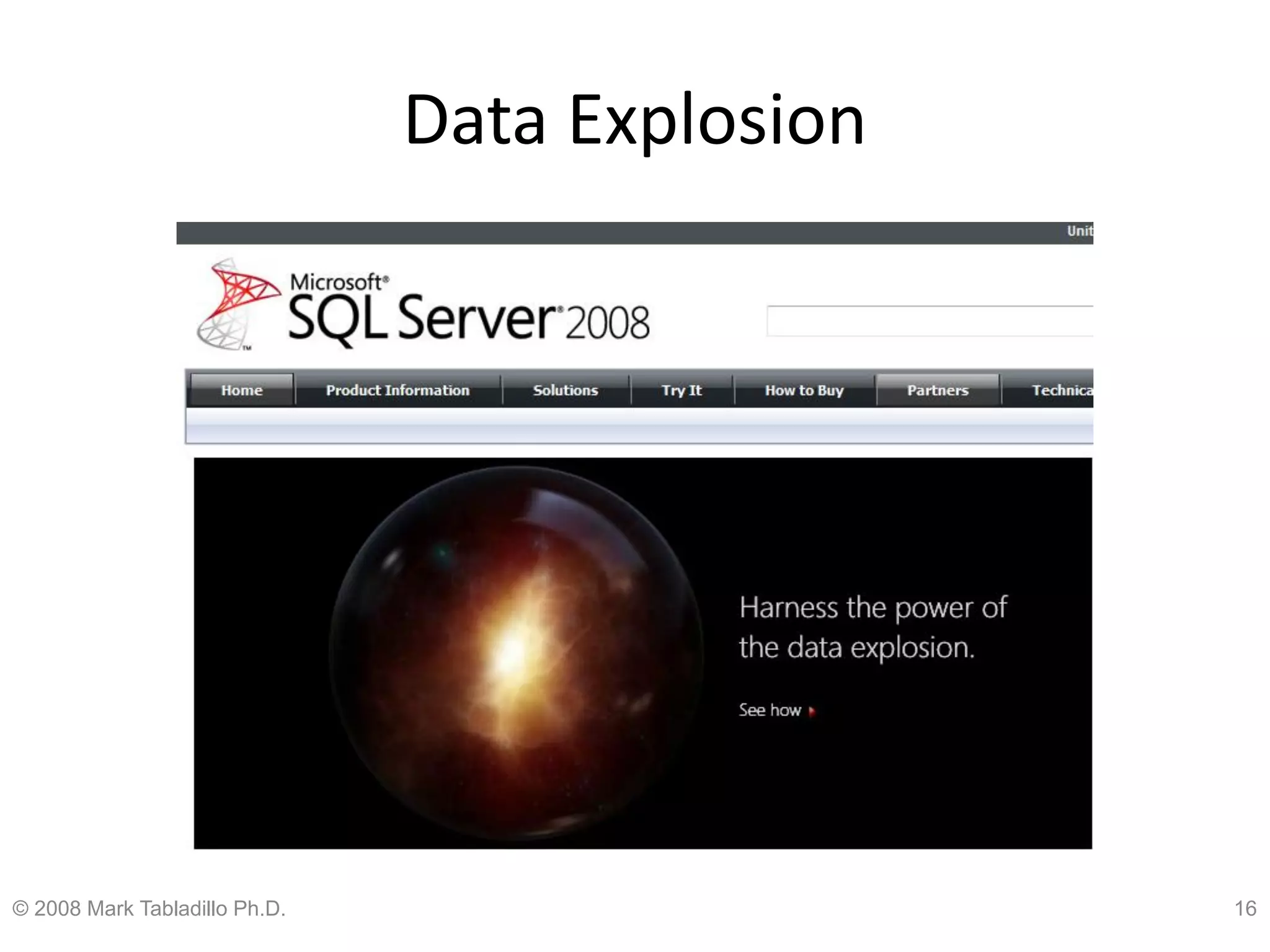

16. Data Explosion
© 2008 Mark Tabladillo Ph.D. 16

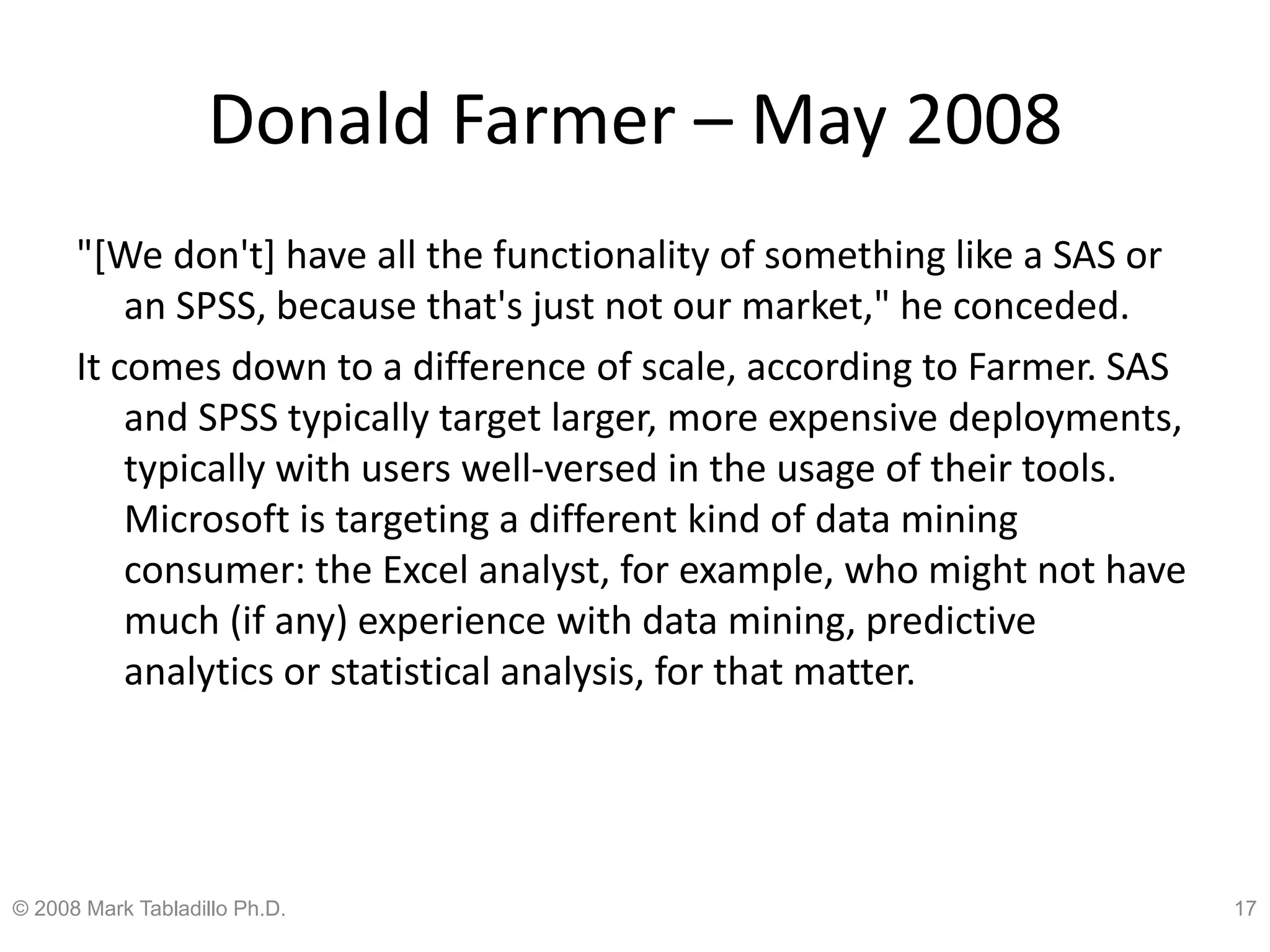

17. Donald Farmer – May 2008
"[We don't] have all the functionality of something like a SAS or
an SPSS, because that's just not our market," he conceded.
It comes down to a difference of scale, according to Farmer. SAS
and SPSS typically target larger, more expensive deployments,
typically with users well-versed in the usage of their tools.
Microsoft is targeting a different kind of data mining
consumer: the Excel analyst, for example, who might not have
much (if any) experience with data mining, predictive
analytics or statistical analysis, for that matter.
© 2008 Mark Tabladillo Ph.D. 17

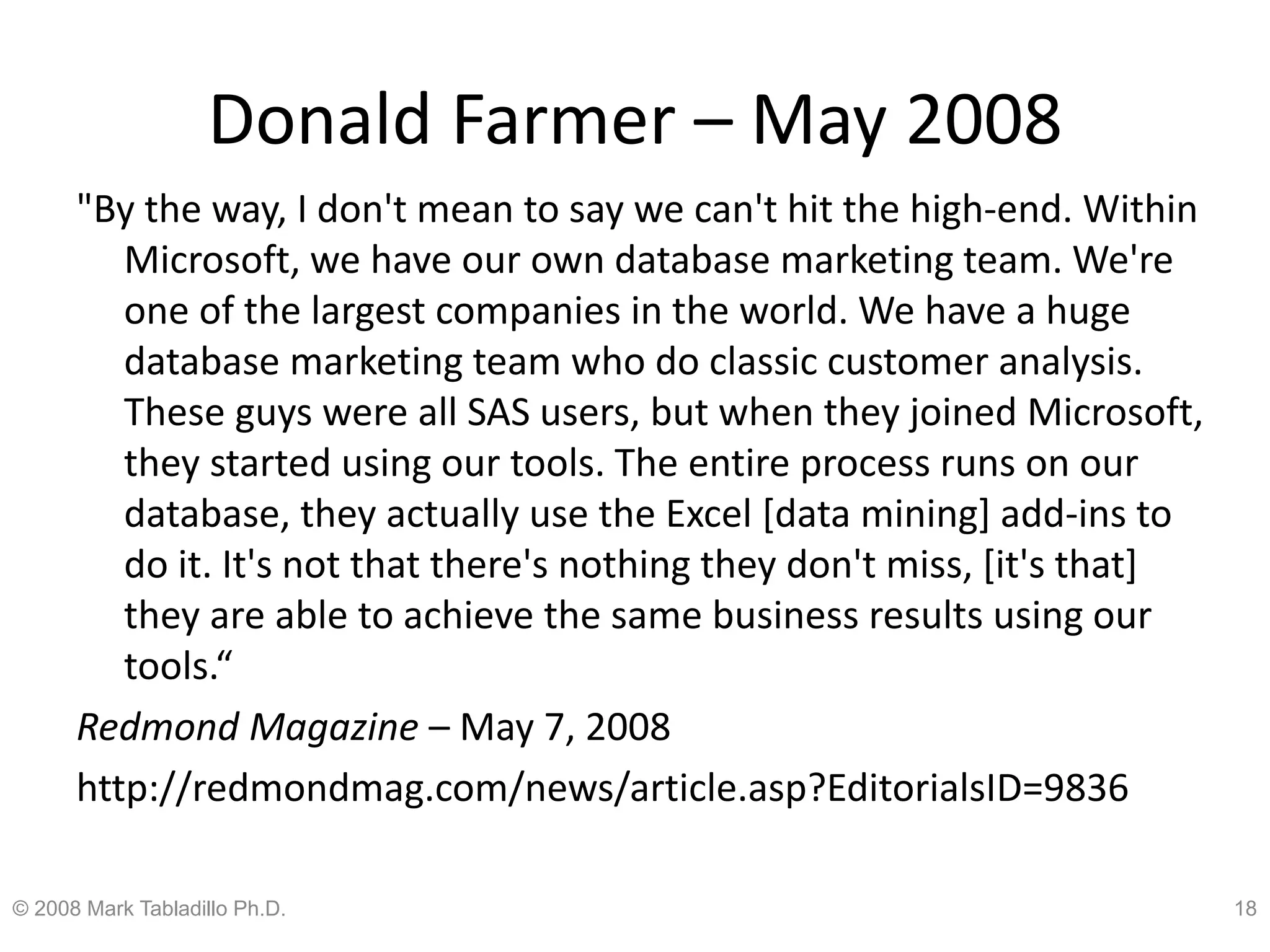

18. Donald Farmer – May 2008
"By the way, I don't mean to say we can't hit the high-end. Within
Microsoft, we have our own database marketing team. We're
one of the largest companies in the world. We have a huge
database marketing team who do classic customer analysis.
These guys were all SAS users, but when they joined Microsoft,
they started using our tools. The entire process runs on our
database, they actually use the Excel [data mining] add-ins to
do it. It's not that there's nothing they don't miss, [it's that]
they are able to achieve the same business results using our
tools.“
Redmond Magazine – May 7, 2008
http://redmondmag.com/news/article.asp?EditorialsID=9836
© 2008 Mark Tabladillo Ph.D. 18

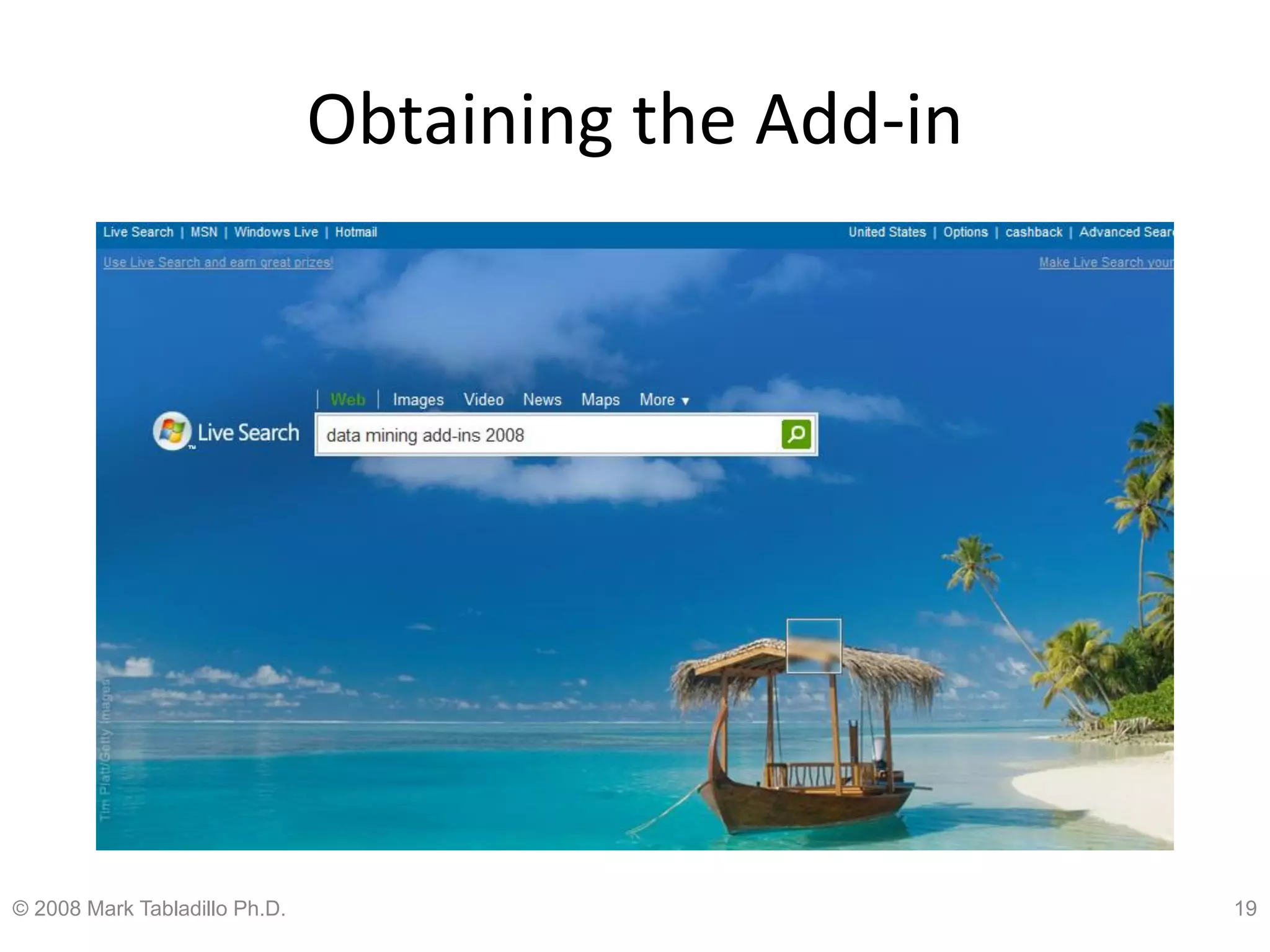

19. Obtaining the Add-in
© 2008 Mark Tabladillo Ph.D. 19

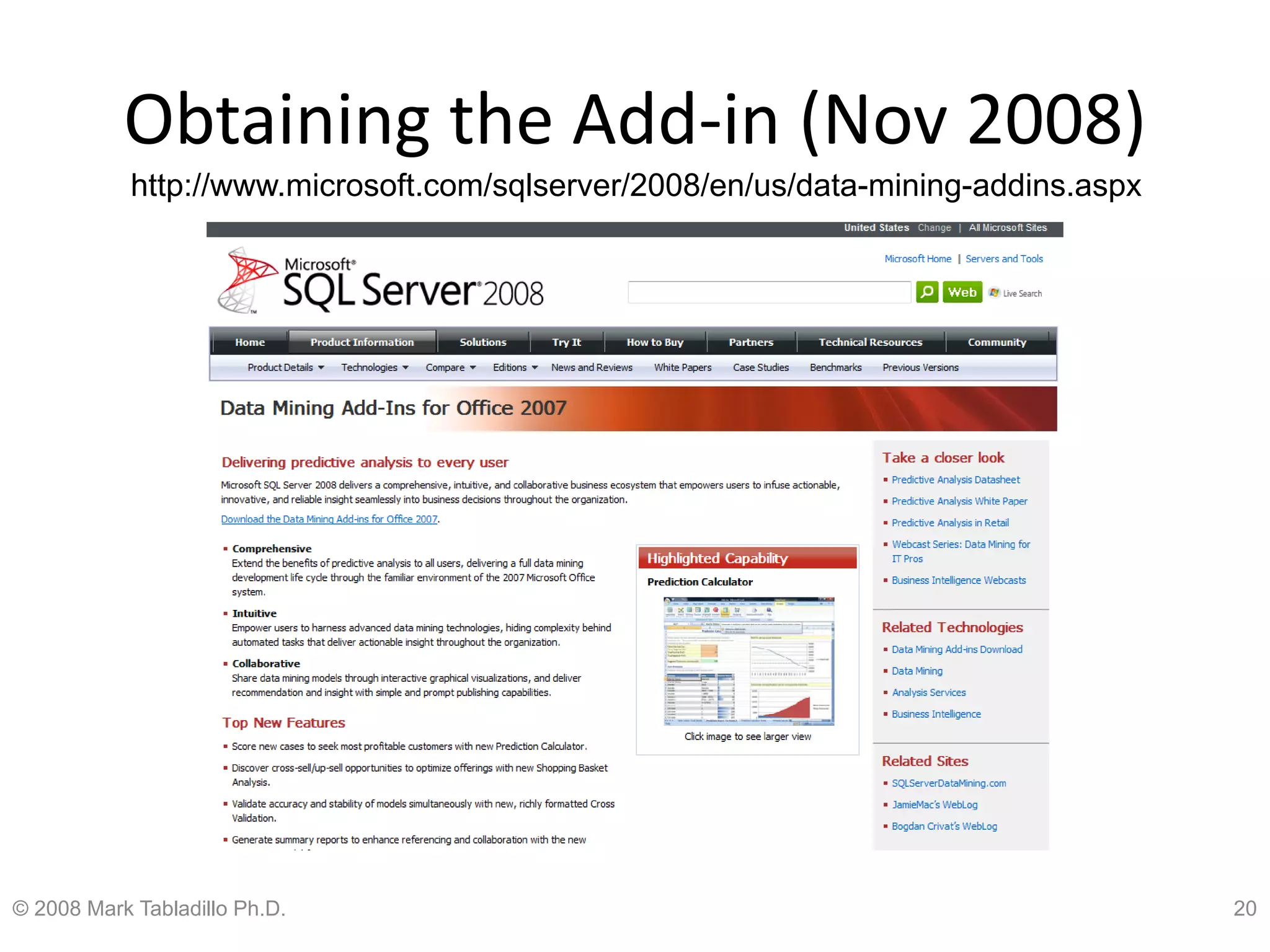

20. Obtaining the Add-in (Nov 2008)
http://www.microsoft.com/sqlserver/2008/en/us/data-mining-addins.aspx
© 2008 Mark Tabladillo Ph.D. 20

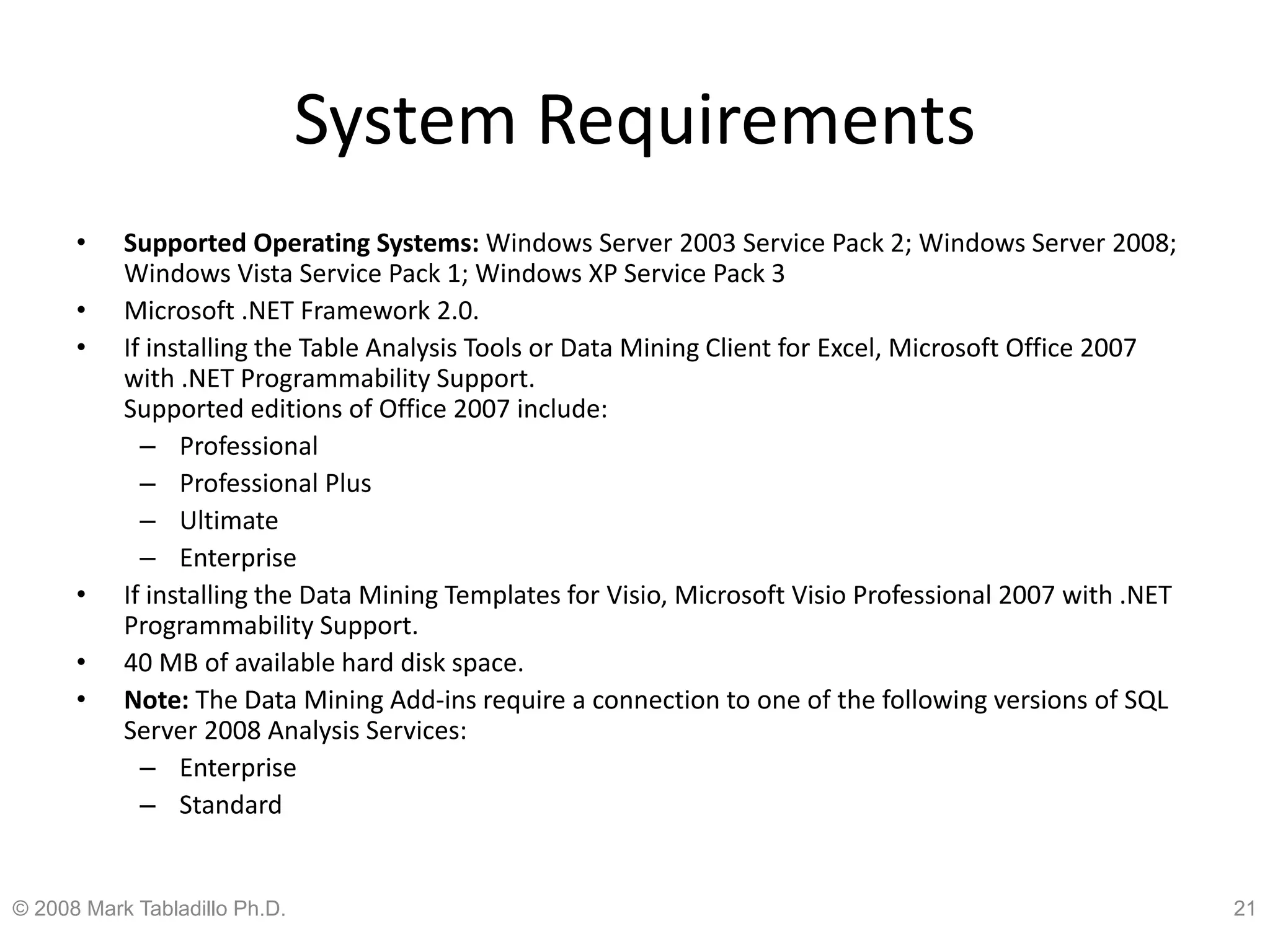

21. System Requirements
• Supported Operating Systems: Windows Server 2003 Service Pack 2; Windows Server 2008;
Windows Vista Service Pack 1; Windows XP Service Pack 3
• Microsoft .NET Framework 2.0.
• If installing the Table Analysis Tools or Data Mining Client for Excel, Microsoft Office 2007
with .NET Programmability Support.
Supported editions of Office 2007 include:
– Professional
– Professional Plus
– Ultimate
– Enterprise
• If installing the Data Mining Templates for Visio, Microsoft Visio Professional 2007 with .NET
Programmability Support.
• 40 MB of available hard disk space.
• Note: The Data Mining Add-ins require a connection to one of the following versions of SQL
Server 2008 Analysis Services:
– Enterprise
– Standard
© 2008 Mark Tabladillo Ph.D. 21

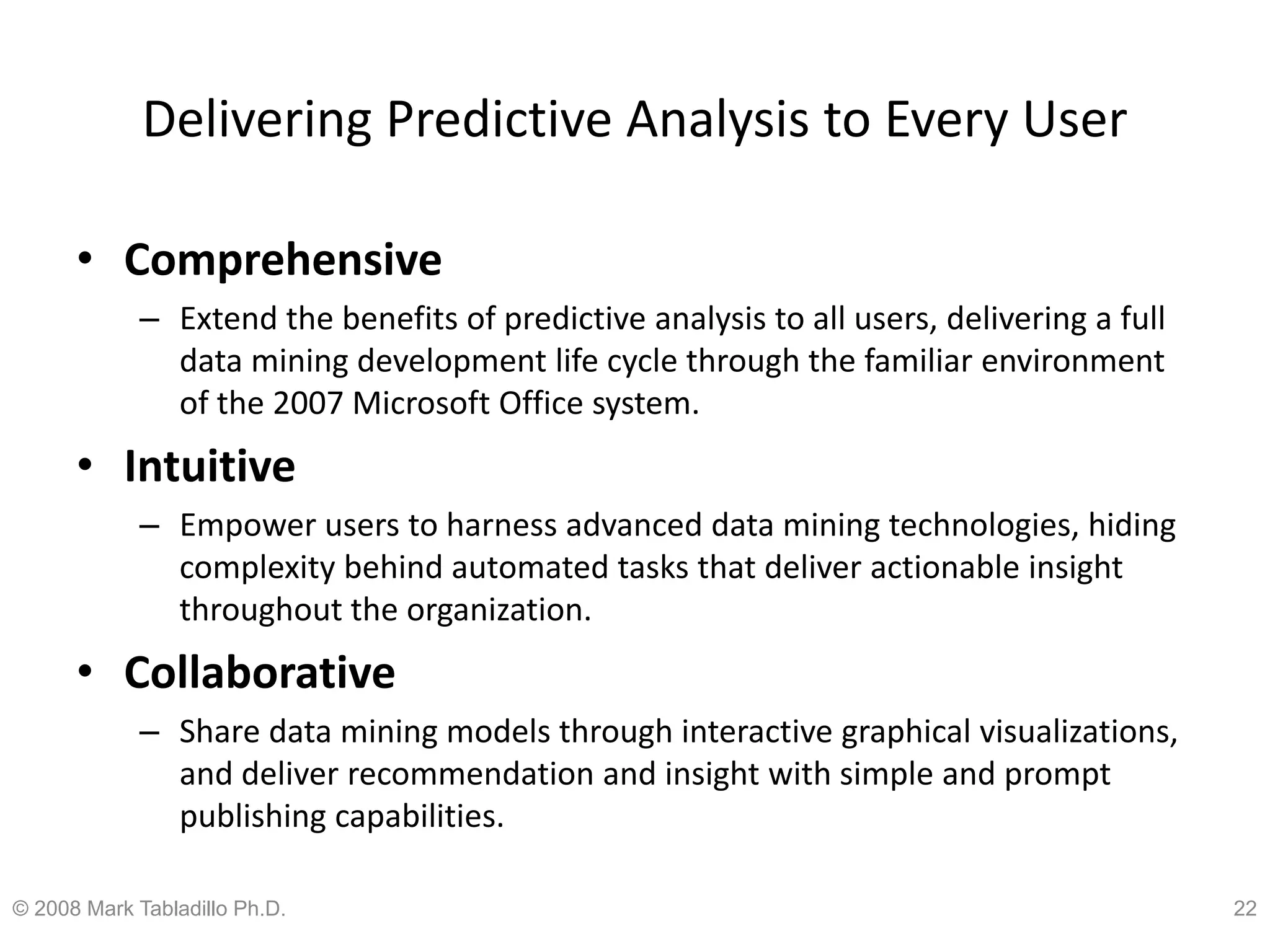

22. Delivering Predictive Analysis to Every User
• Comprehensive
– Extend the benefits of predictive analysis to all users, delivering a full
data mining development life cycle through the familiar environment
of the 2007 Microsoft Office system.
• Intuitive
– Empower users to harness advanced data mining technologies, hiding
complexity behind automated tasks that deliver actionable insight
throughout the organization.
• Collaborative
– Share data mining models through interactive graphical visualizations,
and deliver recommendation and insight with simple and prompt
publishing capabilities.
© 2008 Mark Tabladillo Ph.D. 22

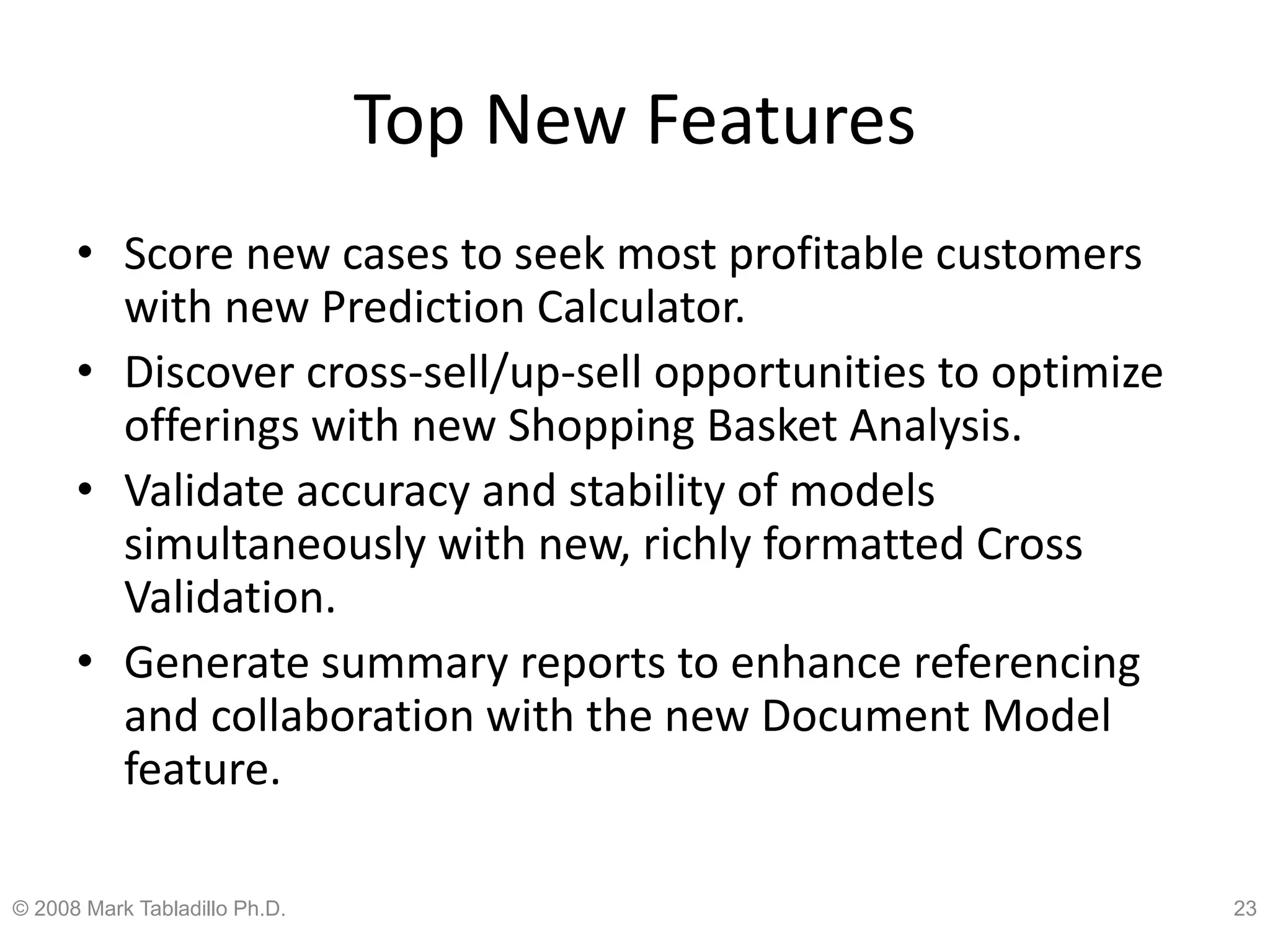

23. Top New Features
• Score new cases to seek most profitable customers
with new Prediction Calculator.
• Discover cross-sell/up-sell opportunities to optimize
offerings with new Shopping Basket Analysis.
• Validate accuracy and stability of models
simultaneously with new, richly formatted Cross
Validation.
• Generate summary reports to enhance referencing
and collaboration with the new Document Model
feature.
© 2008 Mark Tabladillo Ph.D. 23

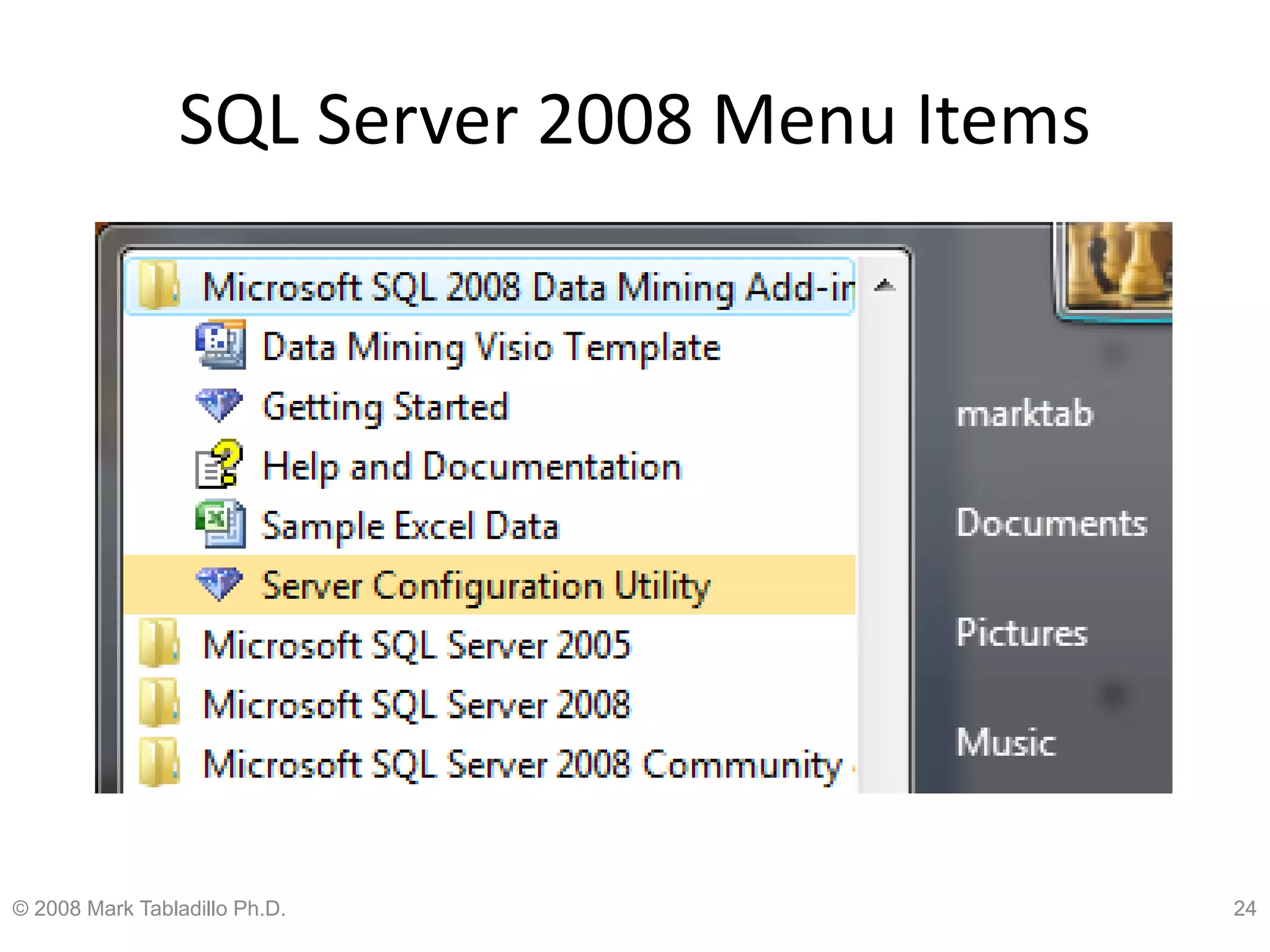

24. SQL Server 2008 Menu Items
© 2008 Mark Tabladillo Ph.D. 24

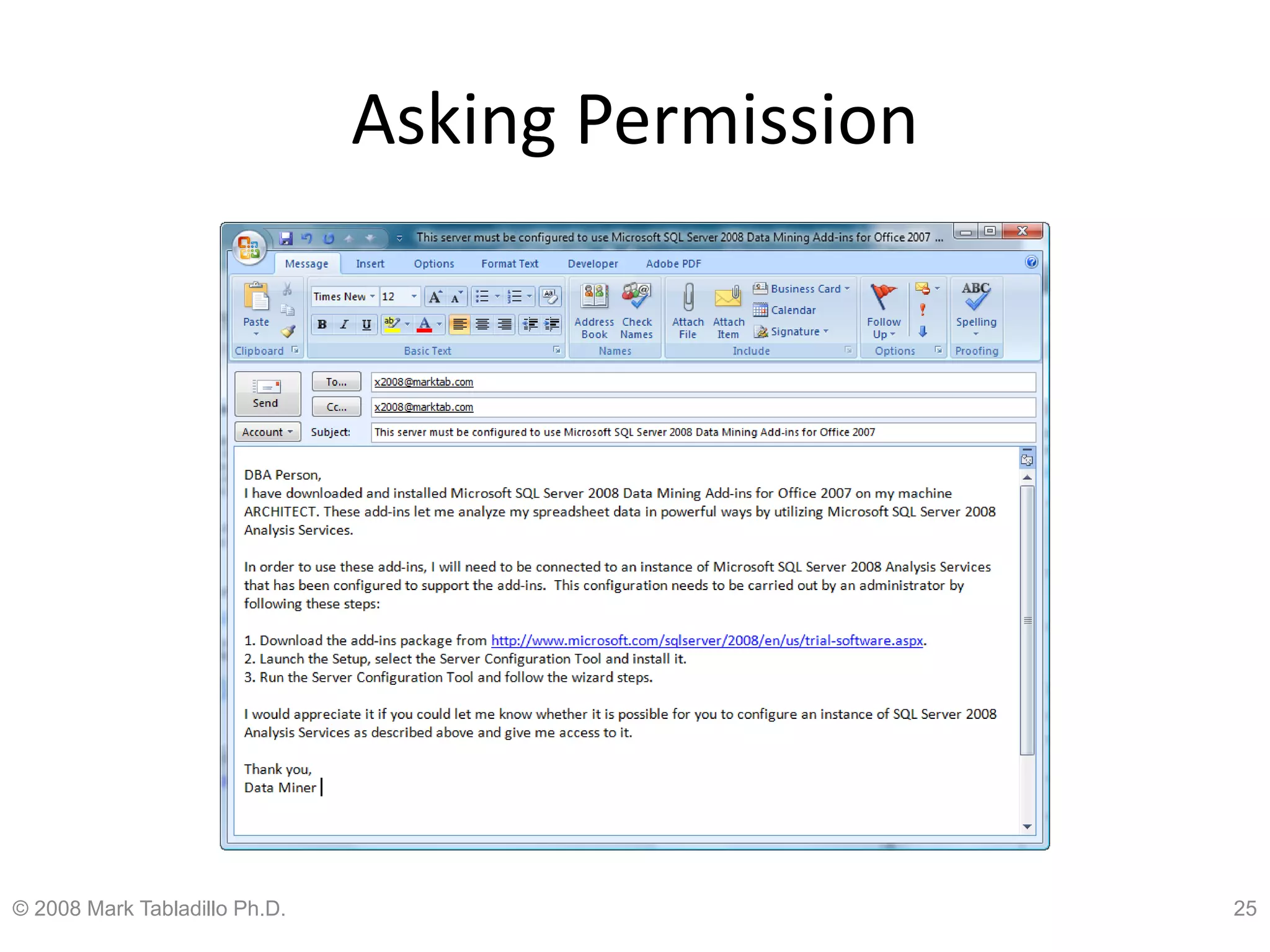

25. Asking Permission
© 2008 Mark Tabladillo Ph.D. 25

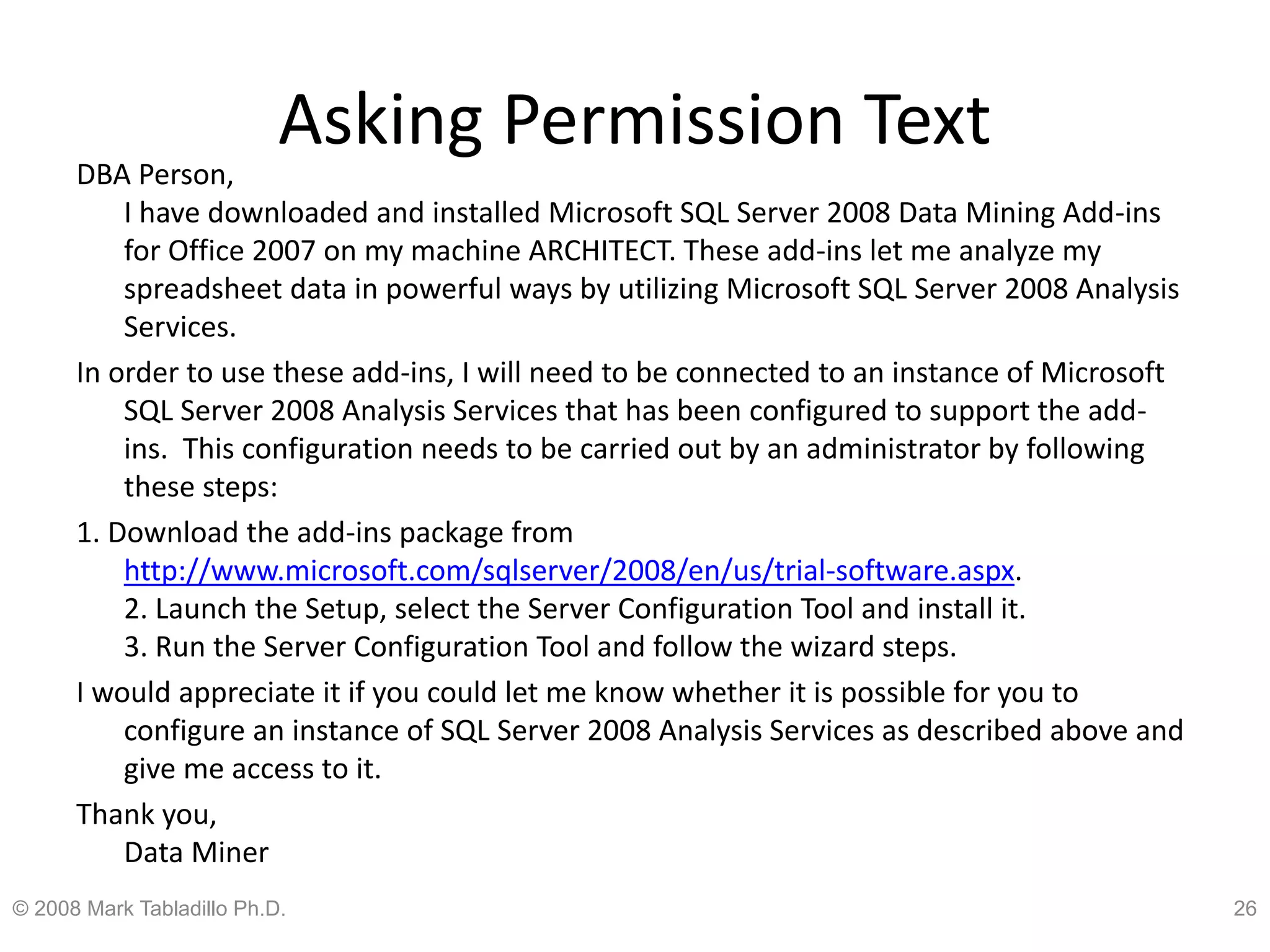

26. Asking Permission Text
DBA Person,
I have downloaded and installed Microsoft SQL Server 2008 Data Mining Add-ins
for Office 2007 on my machine ARCHITECT. These add-ins let me analyze my
spreadsheet data in powerful ways by utilizing Microsoft SQL Server 2008 Analysis
Services.
In order to use these add-ins, I will need to be connected to an instance of Microsoft
SQL Server 2008 Analysis Services that has been configured to support the add-
ins. This configuration needs to be carried out by an administrator by following
these steps:
1. Download the add-ins package from
http://www.microsoft.com/sqlserver/2008/en/us/trial-software.aspx.
2. Launch the Setup, select the Server Configuration Tool and install it.
3. Run the Server Configuration Tool and follow the wizard steps.
I would appreciate it if you could let me know whether it is possible for you to
configure an instance of SQL Server 2008 Analysis Services as described above and
give me access to it.
Thank you,
Data Miner
© 2008 Mark Tabladillo Ph.D. 26

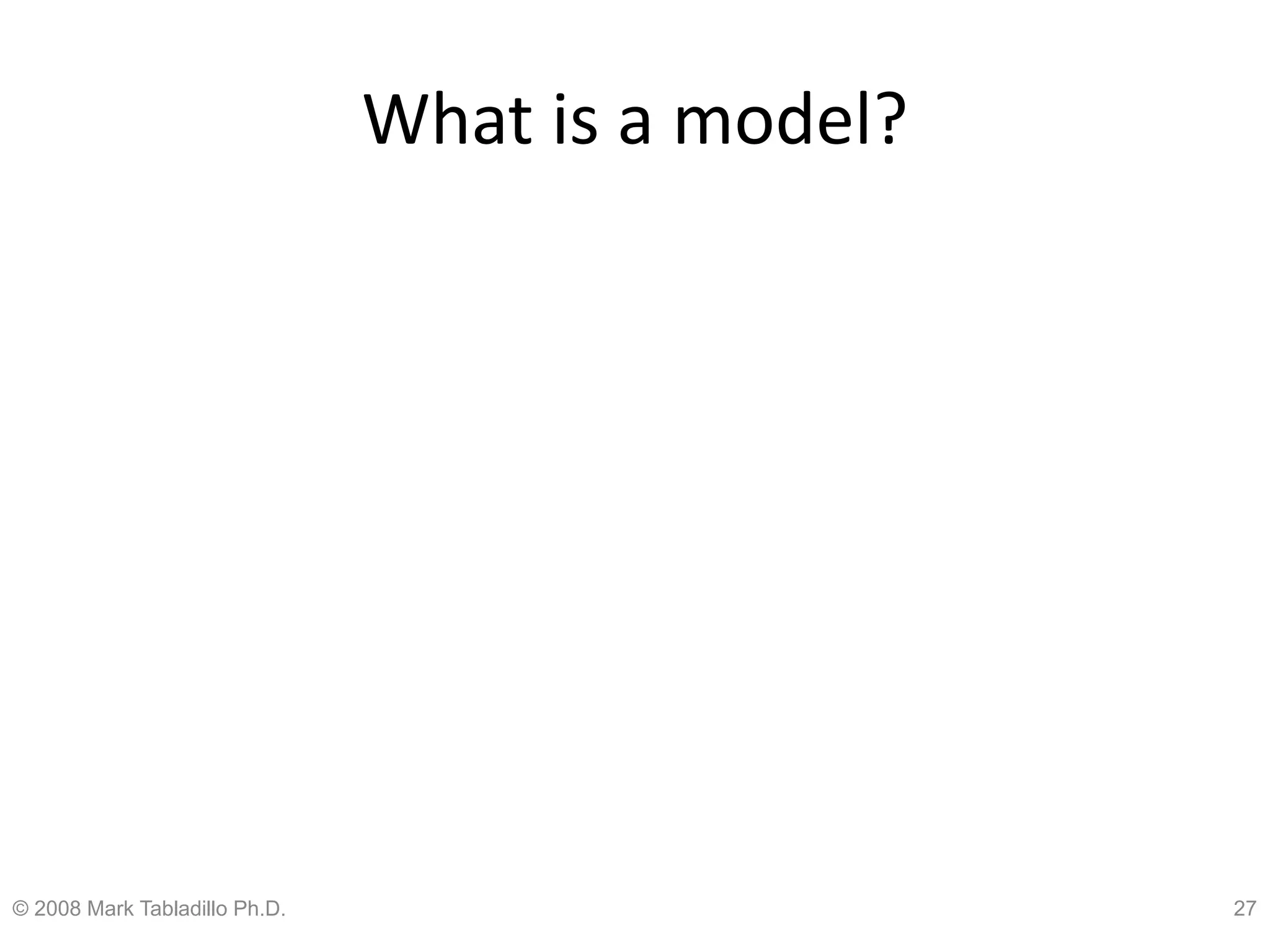

27. What is a model?
© 2008 Mark Tabladillo Ph.D. 27

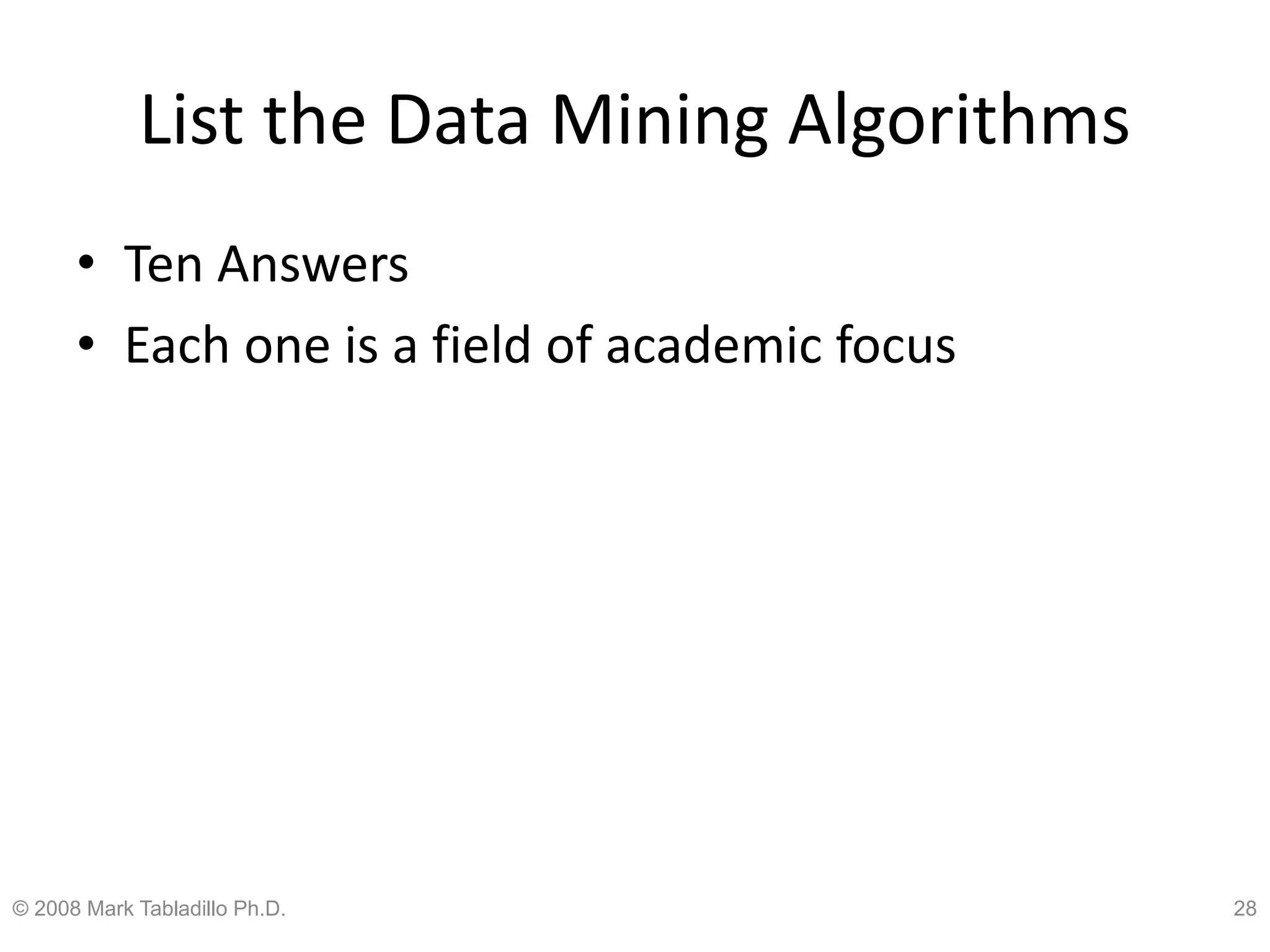

28. List the Data Mining Algorithms
• Ten Answers
• Each one is a field of academic focus
© 2008 Mark Tabladillo Ph.D. 28

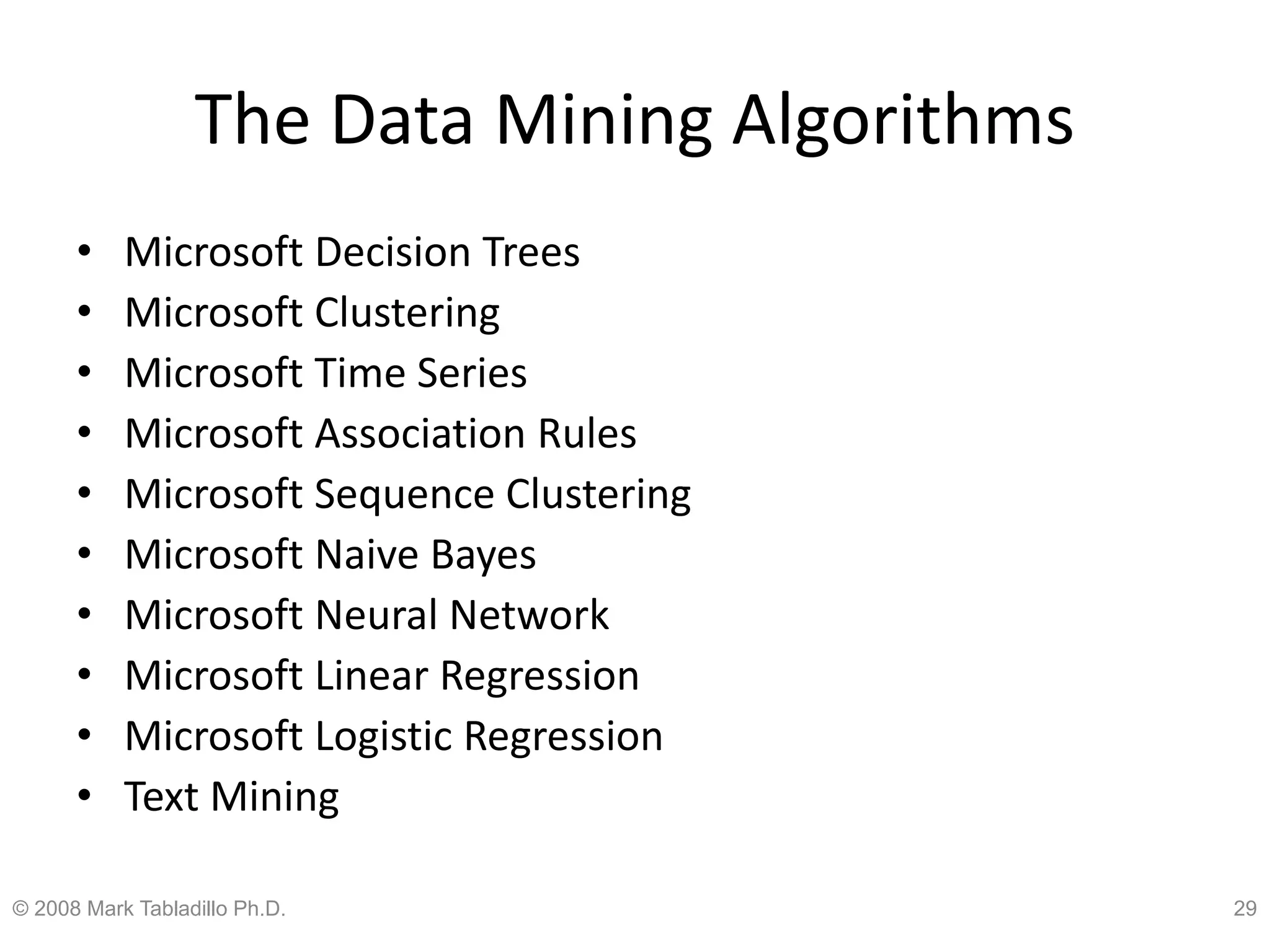

29. The Data Mining Algorithms
• Microsoft Decision Trees
• Microsoft Clustering
• Microsoft Time Series
• Microsoft Association Rules
• Microsoft Sequence Clustering
• Microsoft Naive Bayes
• Microsoft Neural Network
• Microsoft Linear Regression
• Microsoft Logistic Regression
• Text Mining
© 2008 Mark Tabladillo Ph.D. 29

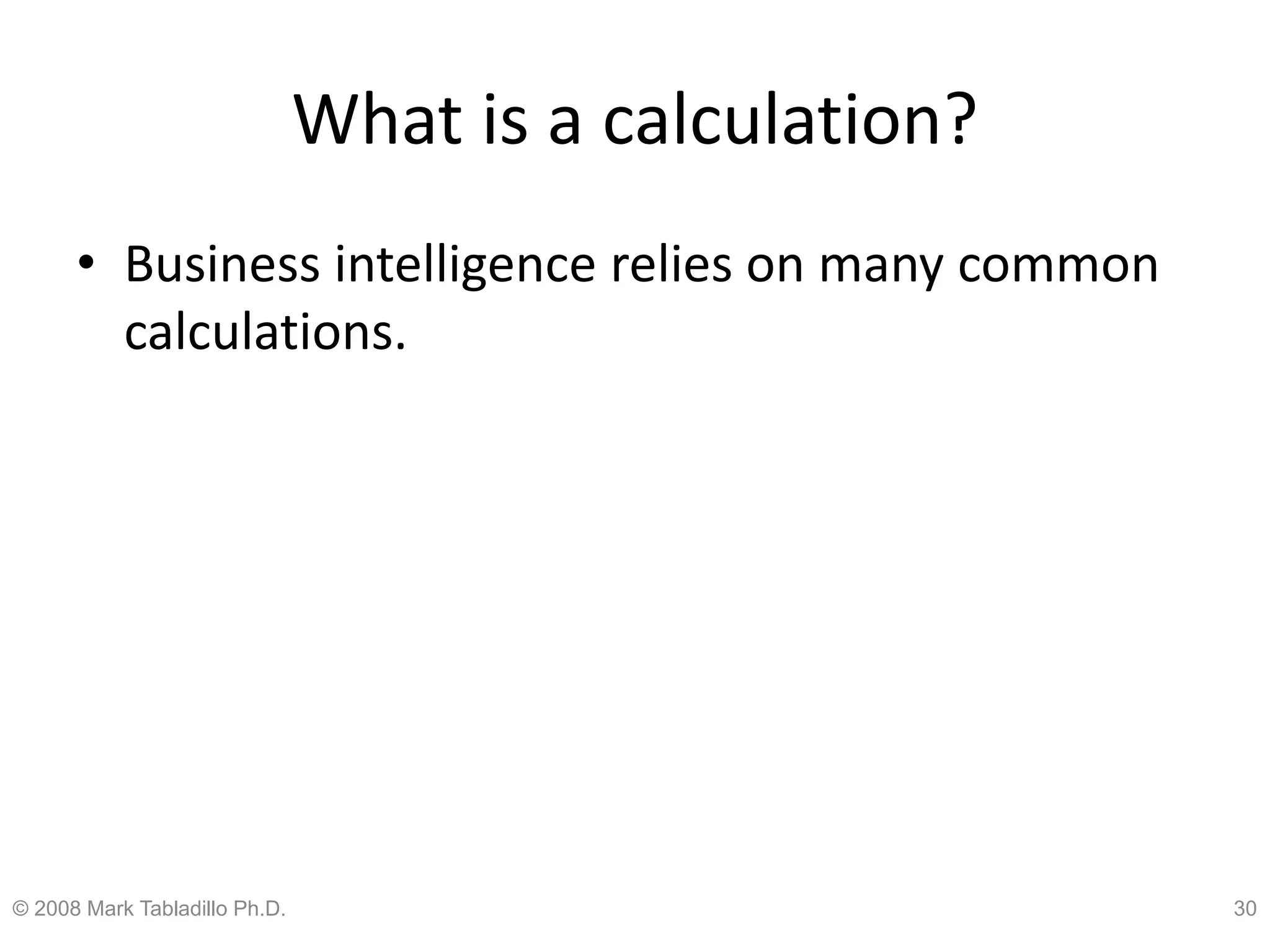

30. What is a calculation?
• Business intelligence relies on many common
calculations.
© 2008 Mark Tabladillo Ph.D. 30

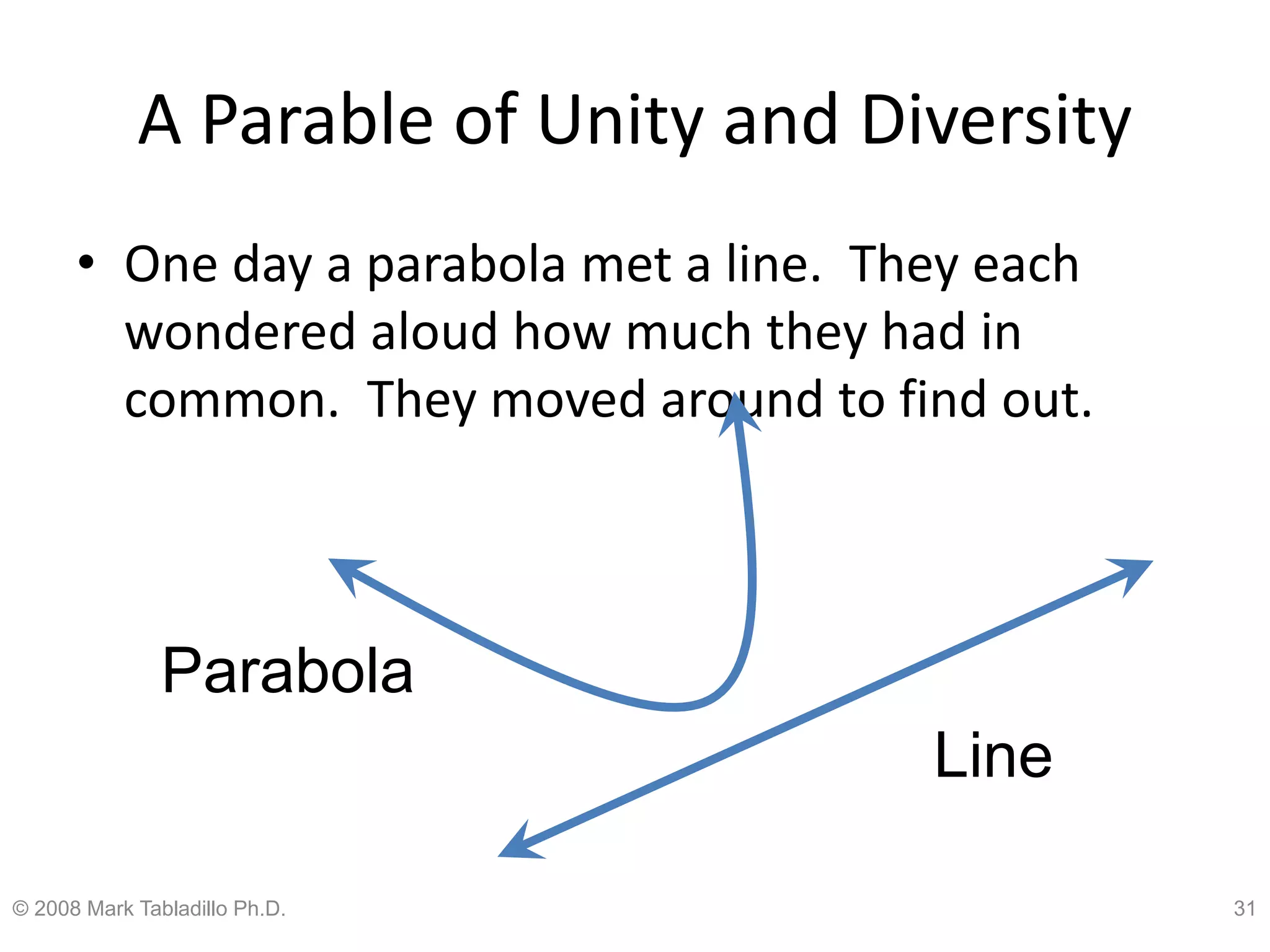

31. A Parable of Unity and Diversity
• One day a parabola met a line. They each
wondered aloud how much they had in
common. They moved around to find out.
Parabola
Line
© 2008 Mark Tabladillo Ph.D. 31

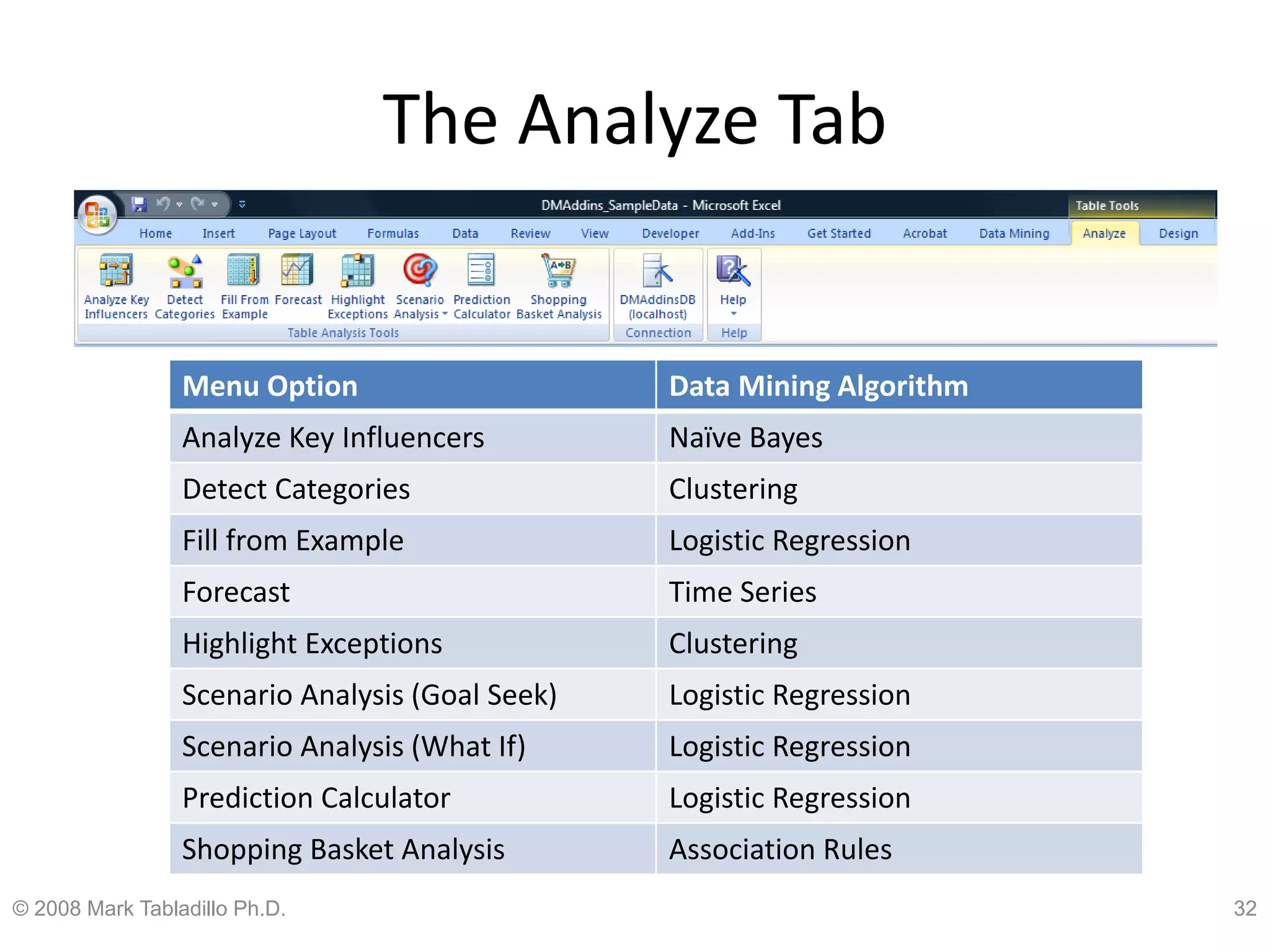

32. The Analyze Tab
Menu Option Data Mining Algorithm
Analyze Key Influencers Naïve Bayes
Detect Categories Clustering
Fill from Example Logistic Regression
Forecast Time Series
Highlight Exceptions Clustering
Scenario Analysis (Goal Seek) Logistic Regression
Scenario Analysis (What If) Logistic Regression
Prediction Calculator Logistic Regression
Shopping Basket Analysis Association Rules
© 2008 Mark Tabladillo Ph.D. 32

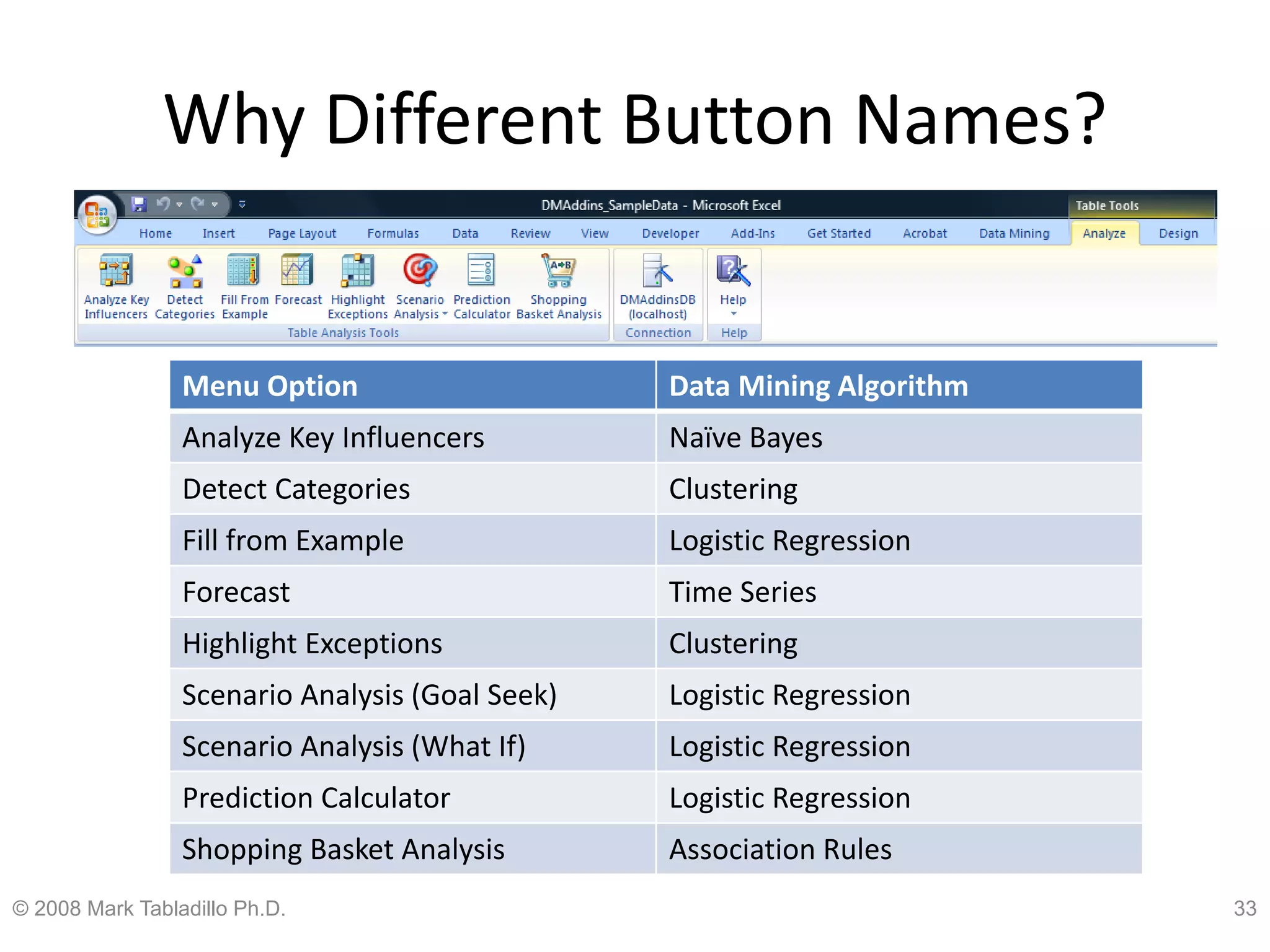

33. Why Different Button Names?
Menu Option Data Mining Algorithm
Analyze Key Influencers Naïve Bayes
Detect Categories Clustering
Fill from Example Logistic Regression
Forecast Time Series
Highlight Exceptions Clustering
Scenario Analysis (Goal Seek) Logistic Regression
Scenario Analysis (What If) Logistic Regression
Prediction Calculator Logistic Regression
Shopping Basket Analysis Association Rules
© 2008 Mark Tabladillo Ph.D. 33

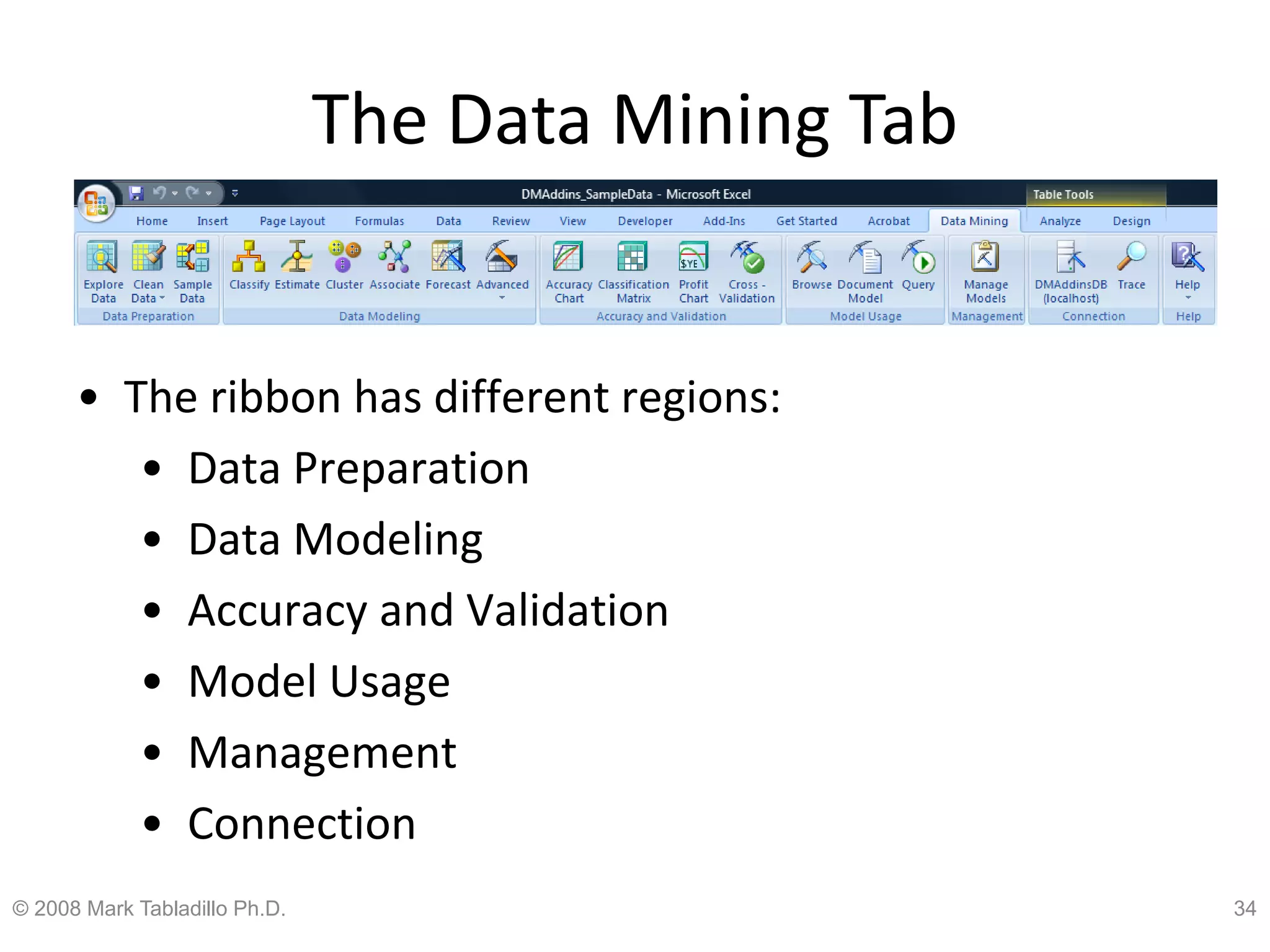

34. The Data Mining Tab
• The ribbon has different regions:
• Data Preparation
• Data Modeling
• Accuracy and Validation
• Model Usage
• Management
• Connection
© 2008 Mark Tabladillo Ph.D. 34

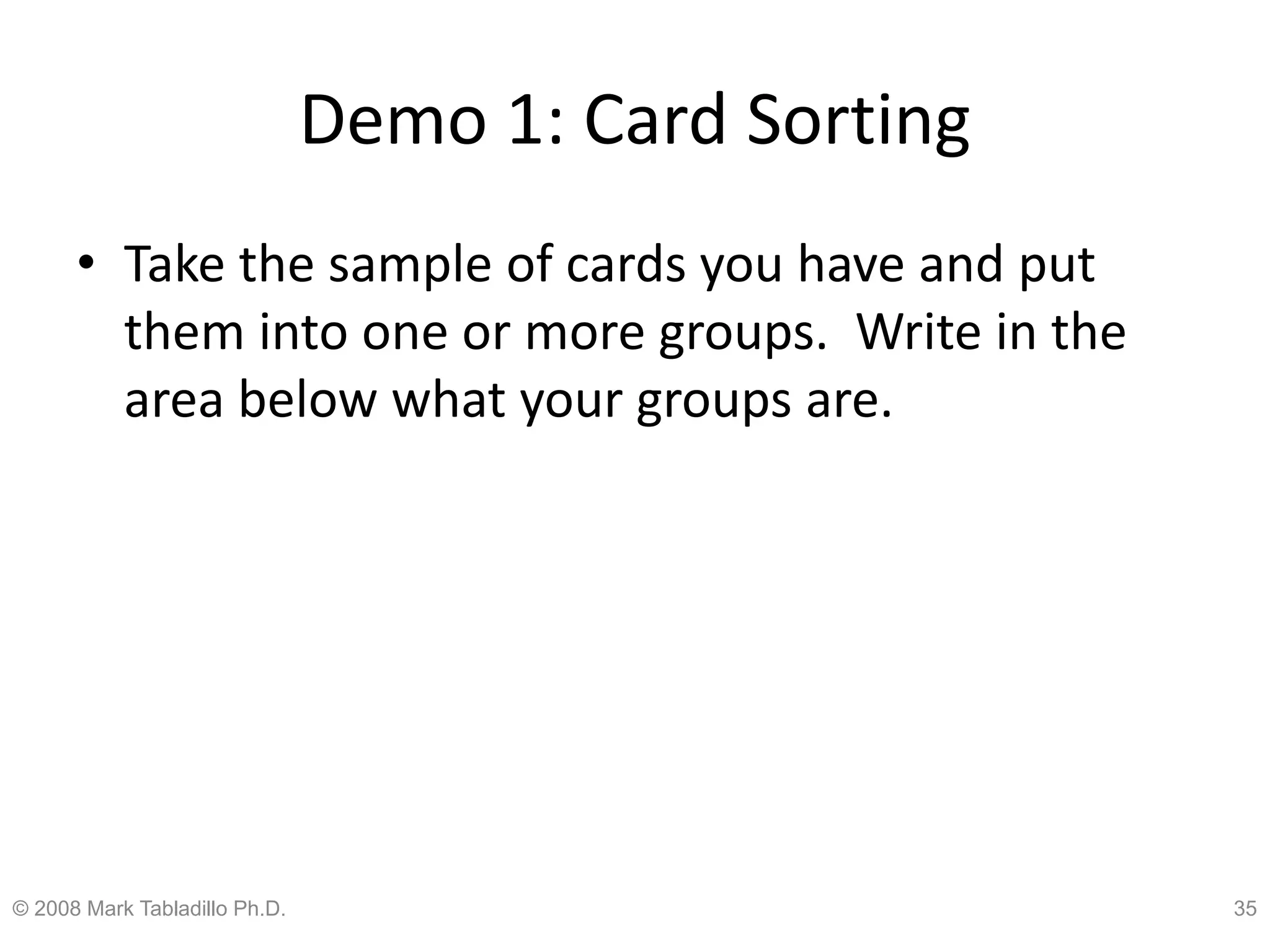

35. Demo 1: Card Sorting
• Take the sample of cards you have and put
them into one or more groups. Write in the
area below what your groups are.
© 2008 Mark Tabladillo Ph.D. 35

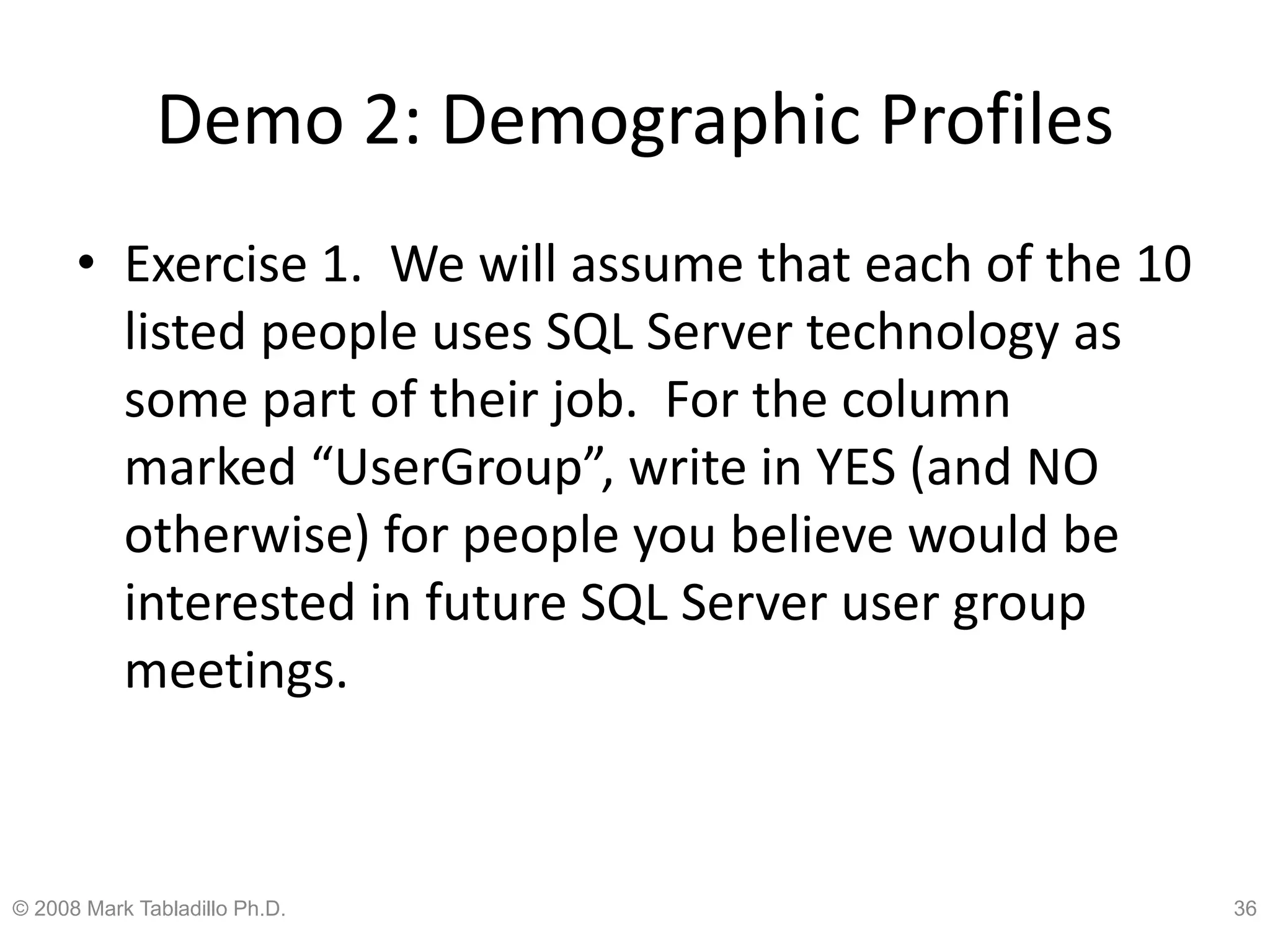

36. Demo 2: Demographic Profiles
• Exercise 1. We will assume that each of the 10
listed people uses SQL Server technology as
some part of their job. For the column
marked “UserGroup”, write in YES (and NO
otherwise) for people you believe would be
interested in future SQL Server user group
meetings.
© 2008 Mark Tabladillo Ph.D. 36

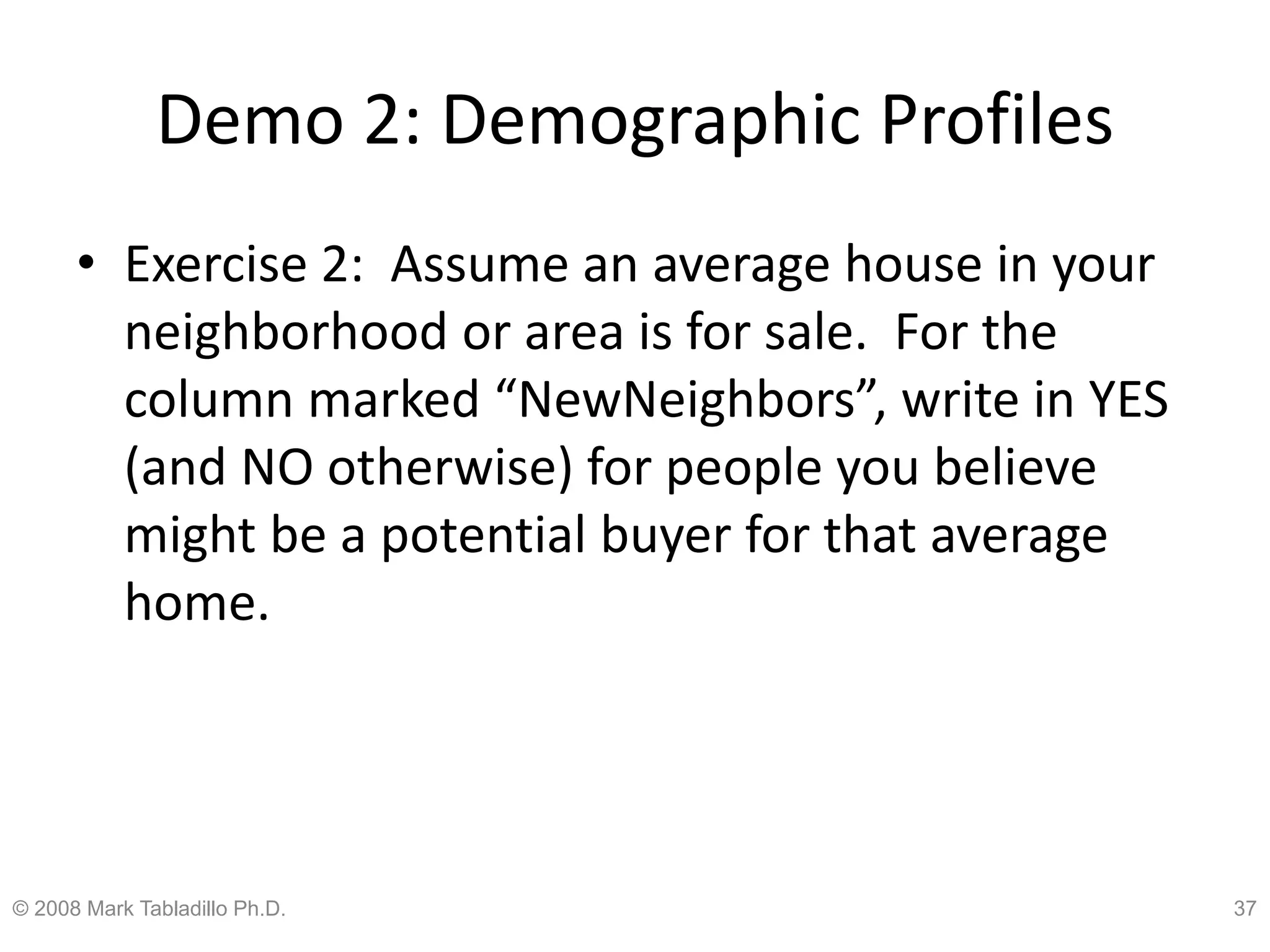

37. Demo 2: Demographic Profiles
• Exercise 2: Assume an average house in your
neighborhood or area is for sale. For the
column marked “NewNeighbors”, write in YES
(and NO otherwise) for people you believe
might be a potential buyer for that average
home.
© 2008 Mark Tabladillo Ph.D. 37

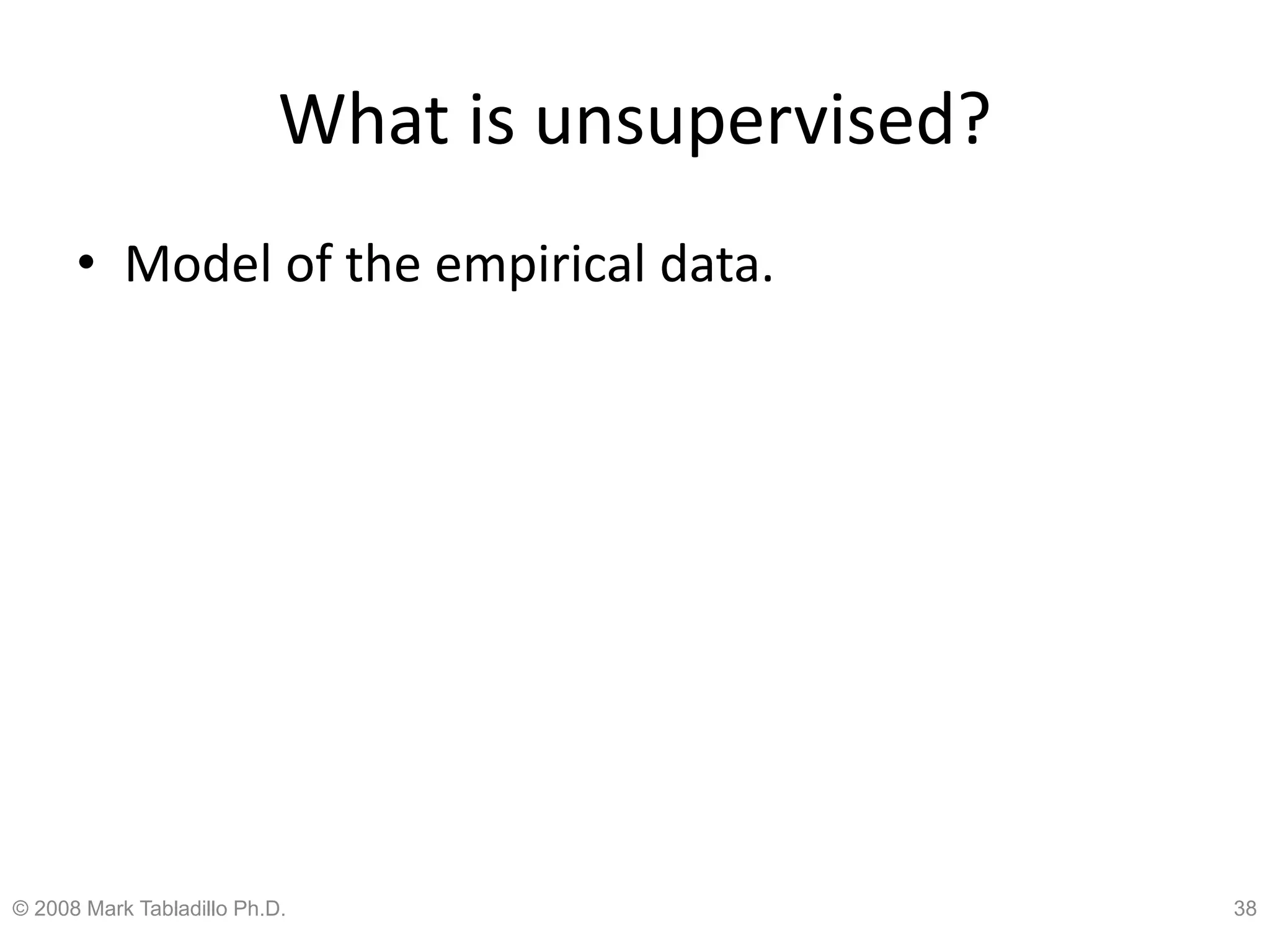

38. What is unsupervised?
• Model of the empirical data.
© 2008 Mark Tabladillo Ph.D. 38

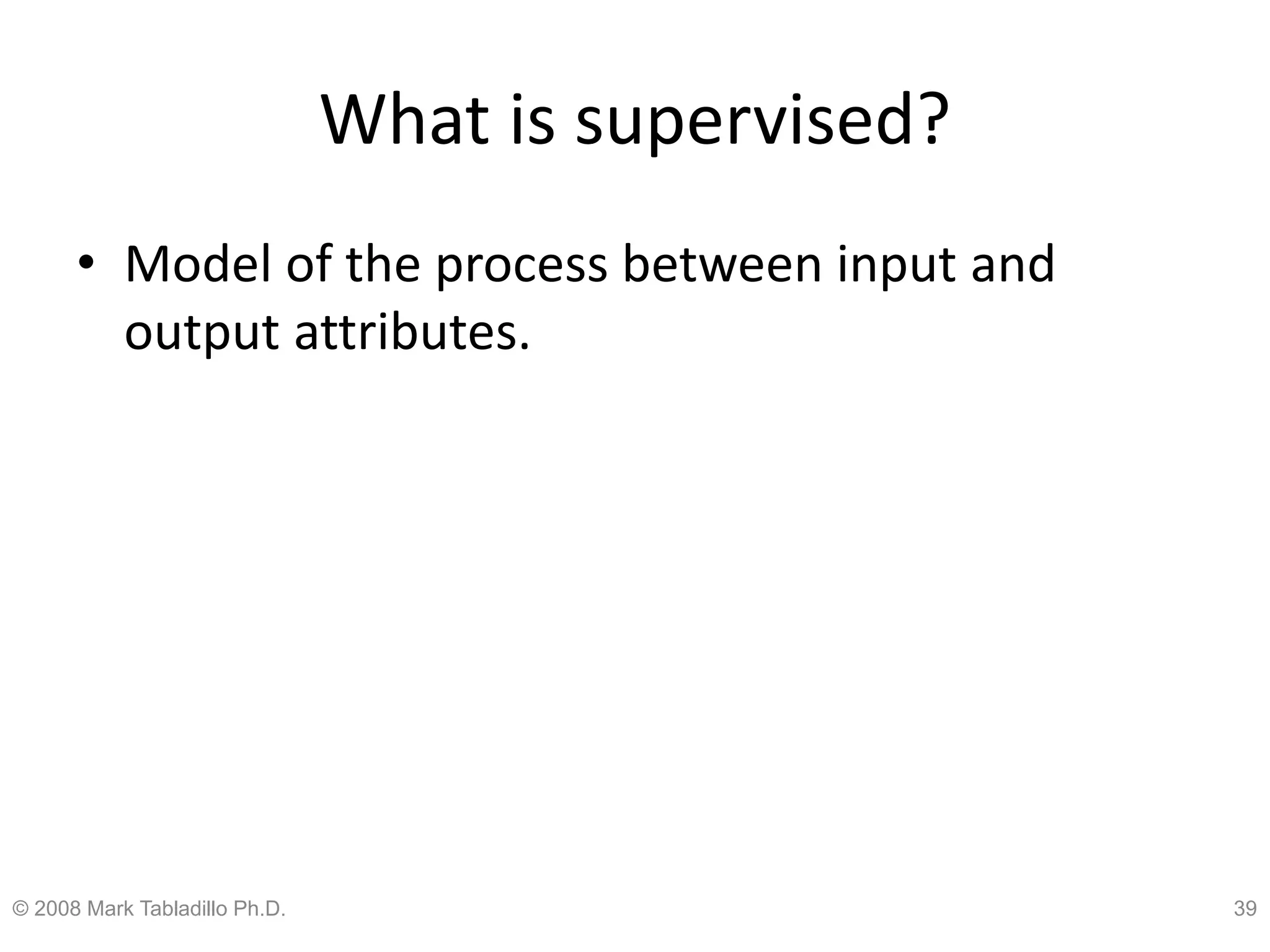

39. What is supervised?
• Model of the process between input and
output attributes.
© 2008 Mark Tabladillo Ph.D. 39

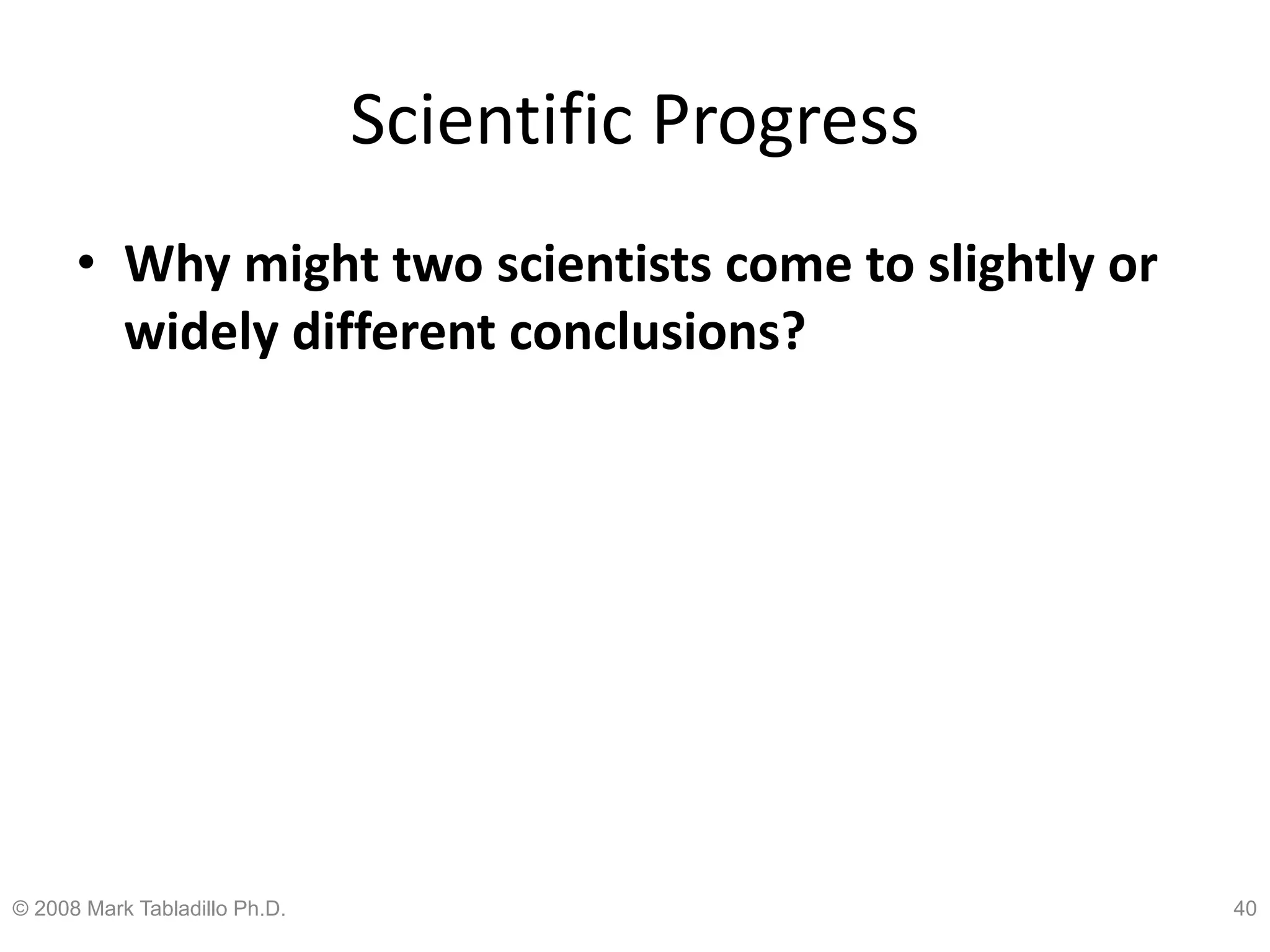

40. Scientific Progress
• Why might two scientists come to slightly or
widely different conclusions?
© 2008 Mark Tabladillo Ph.D. 40

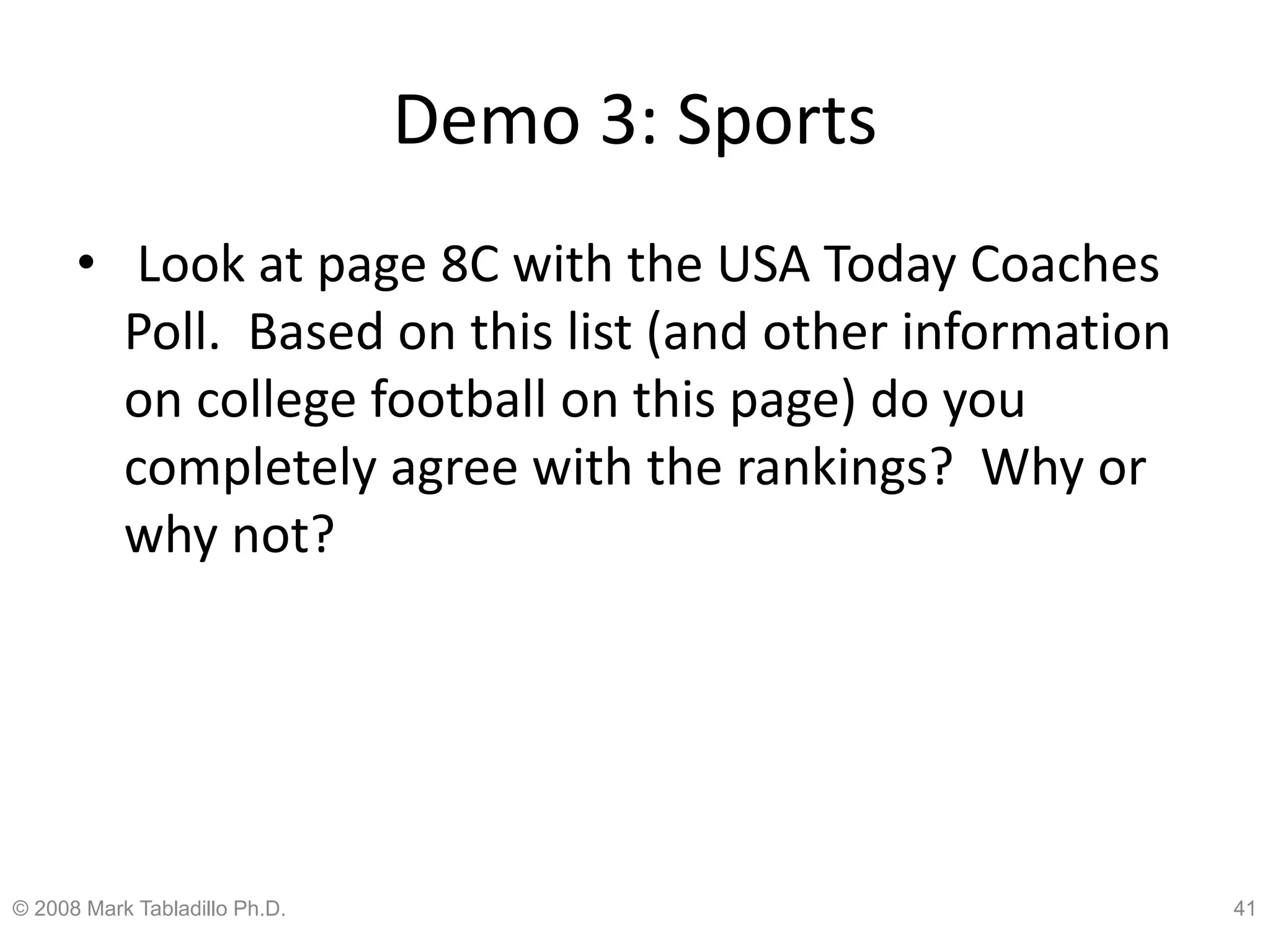

41. Demo 3: Sports
• Look at page 8C with the USA Today Coaches
Poll. Based on this list (and other information
on college football on this page) do you
completely agree with the rankings? Why or
why not?
© 2008 Mark Tabladillo Ph.D. 41

42. Demo 4: Money
• Look at page 6B with the USA Today Market
Trends. Choose three specific pieces of
information on this chart which, to you,
illustrate the current state of the American
Economy.
© 2008 Mark Tabladillo Ph.D. 42

43. Wittgenstein’s Duck-Rabbit
© 2008 Mark Tabladillo Ph.D. 43

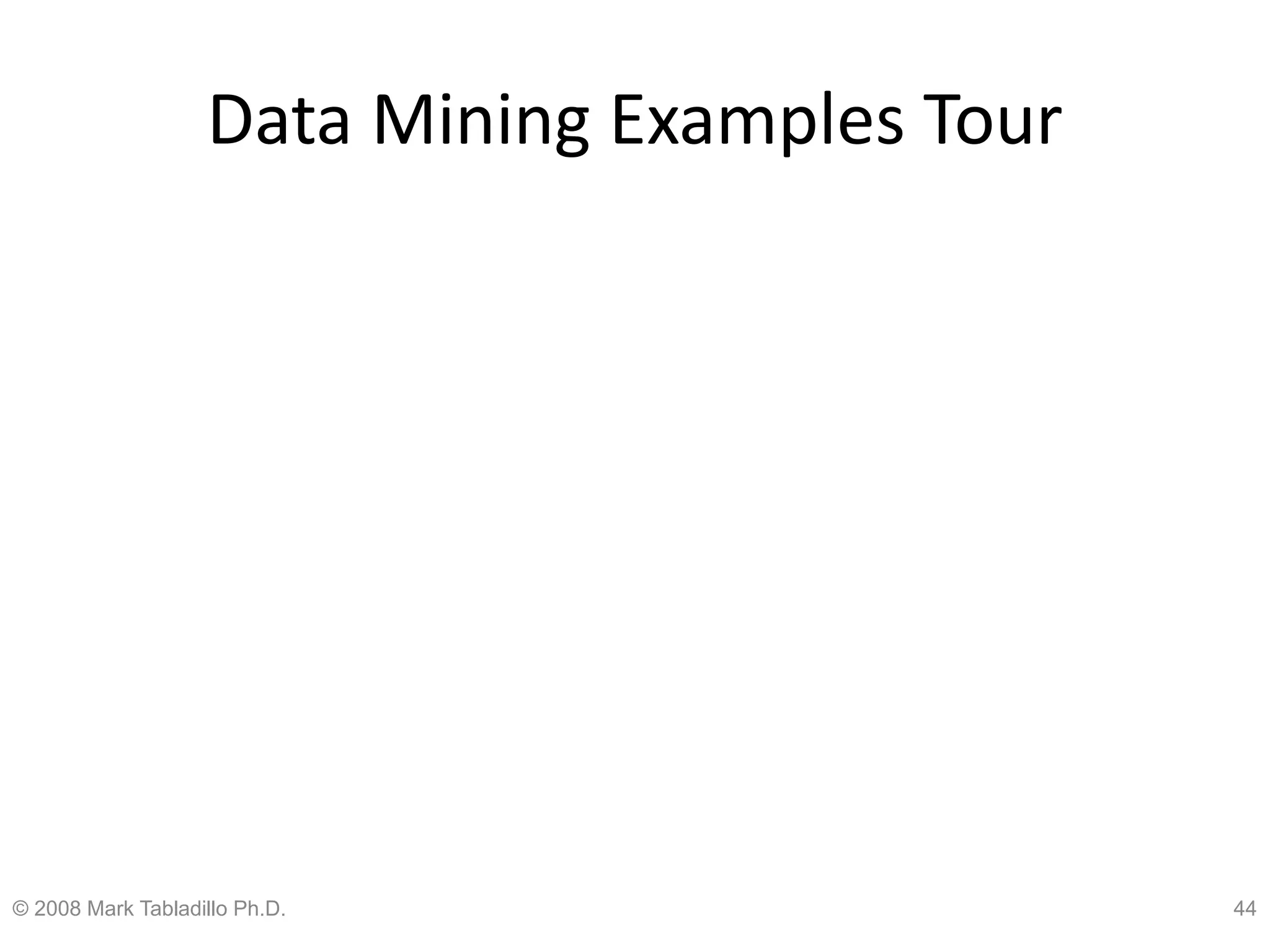

44. Data Mining Examples Tour
© 2008 Mark Tabladillo Ph.D. 44

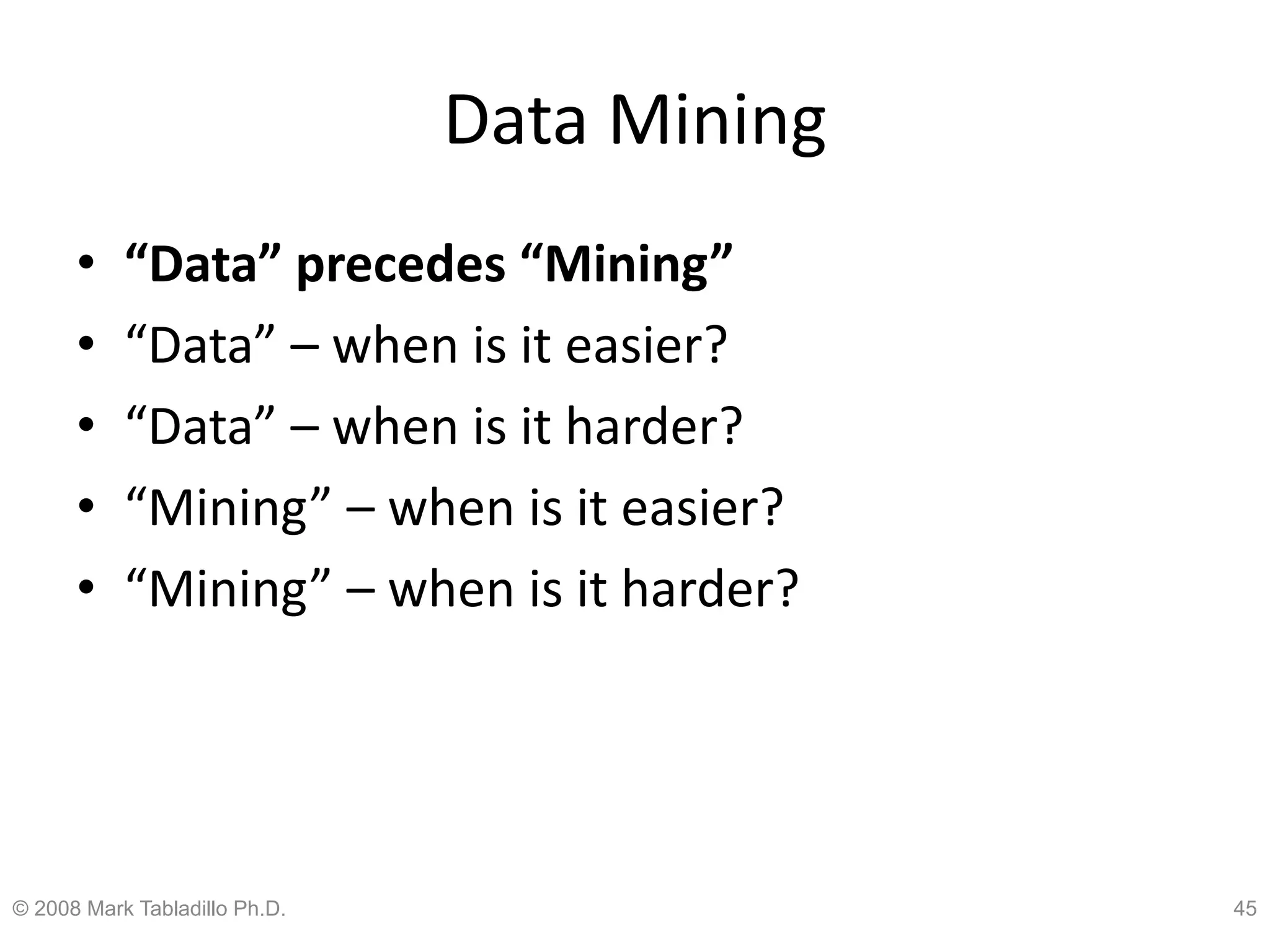

45. Data Mining
• “Data” precedes “Mining”
• “Data” – when is it easier?
• “Data” – when is it harder?
• “Mining” – when is it easier?
• “Mining” – when is it harder?
© 2008 Mark Tabladillo Ph.D. 45

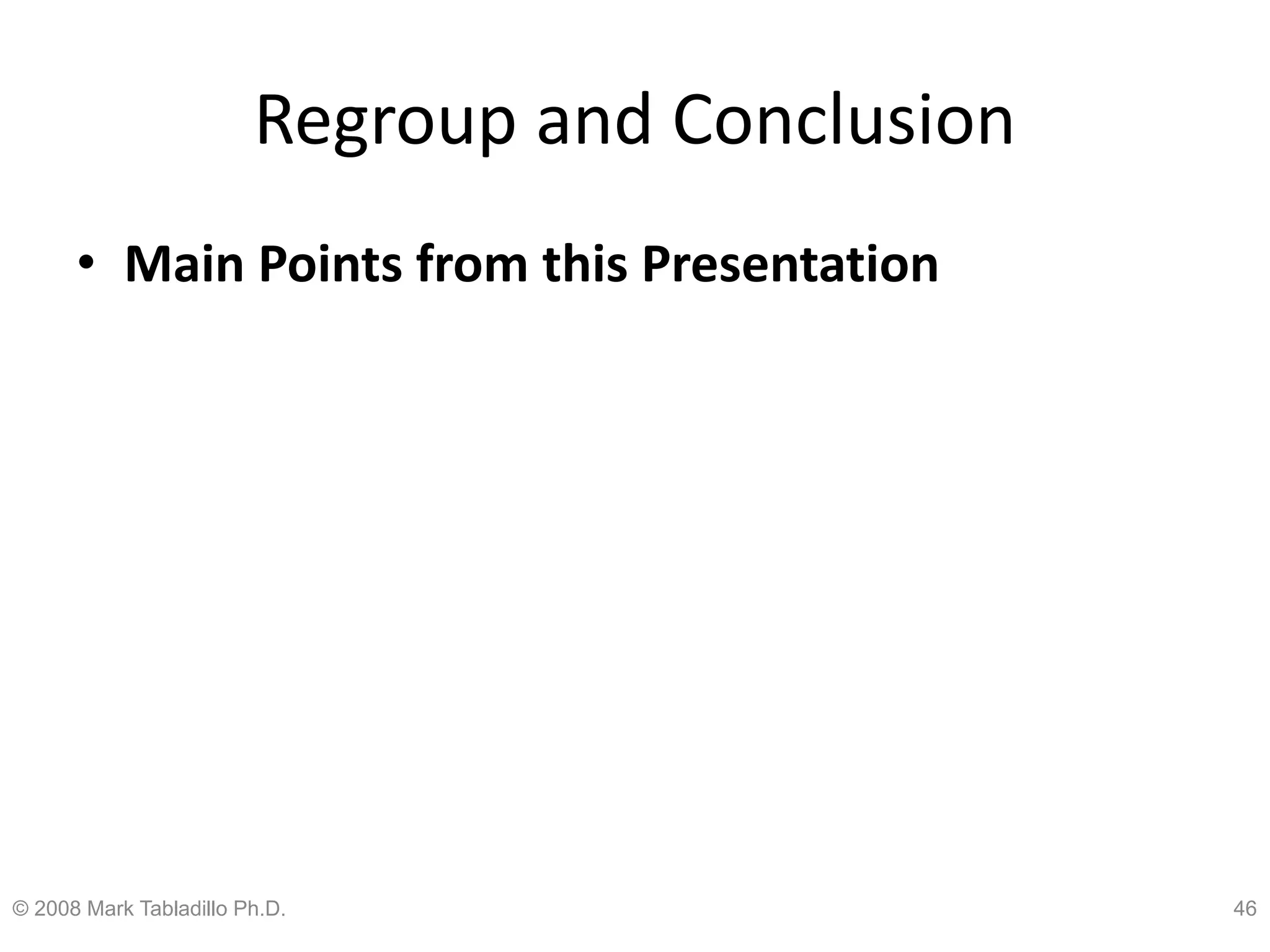

46. Regroup and Conclusion
• Main Points from this Presentation
© 2008 Mark Tabladillo Ph.D. 46

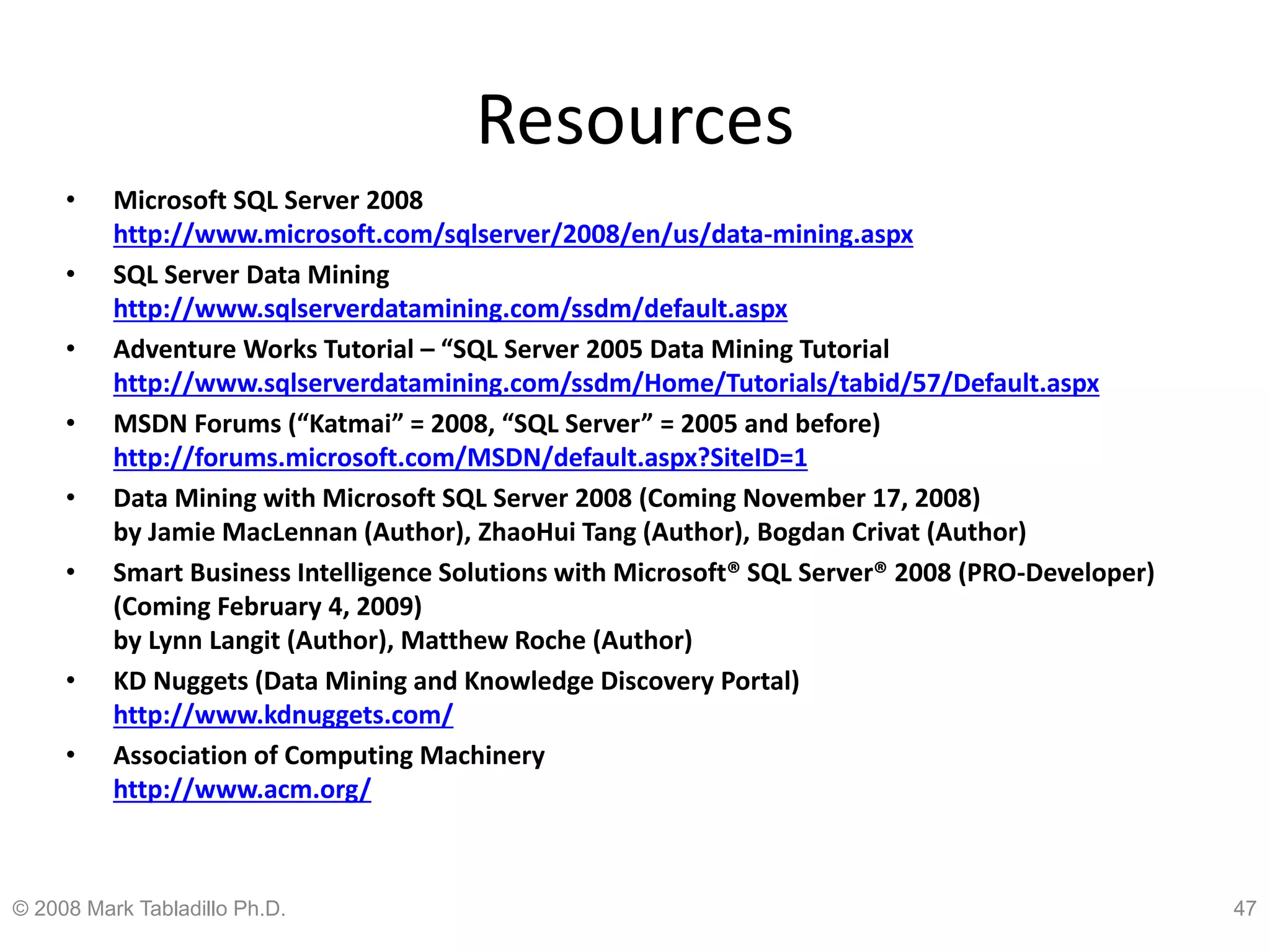

47. Resources
• Microsoft SQL Server 2008
http://www.microsoft.com/sqlserver/2008/en/us/data-mining.aspx
• SQL Server Data Mining
http://www.sqlserverdatamining.com/ssdm/default.aspx
• Adventure Works Tutorial – “SQL Server 2005 Data Mining Tutorial
http://www.sqlserverdatamining.com/ssdm/Home/Tutorials/tabid/57/Default.aspx
• MSDN Forums (“Katmai” = 2008, “SQL Server” = 2005 and before)
http://forums.microsoft.com/MSDN/default.aspx?SiteID=1
• Data Mining with Microsoft SQL Server 2008 (Coming November 17, 2008)
by Jamie MacLennan (Author), ZhaoHui Tang (Author), Bogdan Crivat (Author)
• Smart Business Intelligence Solutions with Microsoft® SQL Server® 2008 (PRO-Developer)
(Coming February 4, 2009)
by Lynn Langit (Author), Matthew Roche (Author)
• KD Nuggets (Data Mining and Knowledge Discovery Portal)
http://www.kdnuggets.com/
• Association of Computing Machinery
http://www.acm.org/
© 2008 Mark Tabladillo Ph.D. 47

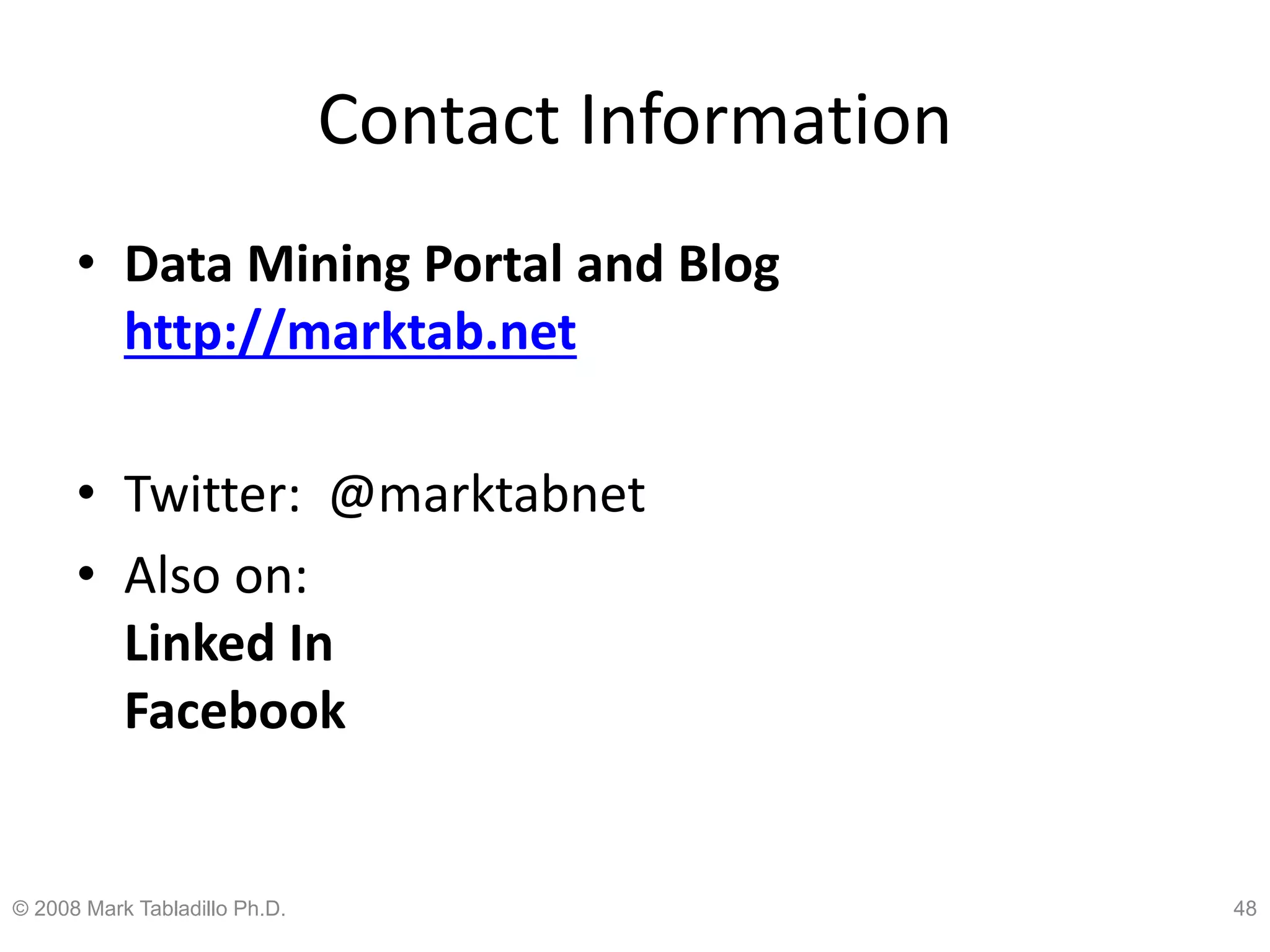

48. Contact Information
• Data Mining Portal and Blog
http://marktab.net
• Twitter: @marktabnet
• Also on:
Linked In
Facebook
© 2008 Mark Tabladillo Ph.D. 48
