This document outlines a daily inspection checklist for a mobile crane. It contains 39 items across various crane systems that are to be checked for issues and documented. Any deficiencies must be reported to supervisors and rectified before crane use. The checklist is to be completed by the crane operator and approved by the lifting supervisor, who must also complete a separate safety inspection checklist.

1. Daily Mobile Crane Inspection Checklist
Section A: Inspection
Contractor Company
LM Cert No.
s/no
Date of Expiry
Items
OK
Not OK
N/A
Remarks
Truck
1.
Carrier Structure
2.
Tyre pressure
3.
Wheel Nuts
4.
Radiator water
5.
Engine Oil Level
6.
Diesel Level
7.
Diesel Tank
8.
Any Retrofitted Fuel Tanks
9.
Battery water level
Power Transmission System
10.
Power take-off (PTO)
11.
Propeller Shaft
Hydraulic System
12.
Hydraulic tank
13.
Hydraulic Pump
14.
Hydraulic hose
15.
Hydraulic Oil
Slewing System
16.
Slewing Table
17.
Slewing Gear and bearing
Boom Elevation System
18.
Elevating Cylinder
Boom Telescopic System
19.
Boom Structure
20.
Fly-jib
21
Single Top
Sheave and hook block
22.
Sheave and hook block
Wire Rope
23.
Boom Hoist wire
24.
Load hoist wire
Hoisting System
25.
Winch motor
26.
Clutch
27.
Brake
SWP– 04.38
Rev 0
Page 1 of 2

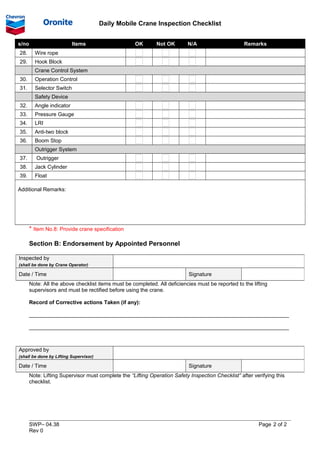

2. Daily Mobile Crane Inspection Checklist
s/no
Items
28.
Not OK
N/A
Remarks
Wire rope
29.
OK
Hook Block
Crane Control System
30.
Operation Control
31.
Selector Switch
Safety Device
32.
Angle indicator
33.
Pressure Gauge
34.
LRI
35.
Anti-two block
36.
Boom Stop
Outrigger System
37.
Outrigger
38.
Jack Cylinder
39.
Float
Additional Remarks:
* Item No.8: Provide crane specification
Section B: Endorsement by Appointed Personnel
Inspected by
(shall be done by Crane Operator)
Date / Time
Signature
Note: All the above checklist items must be completed. All deficiencies must be reported to the lifting
supervisors and must be rectified before using the crane.
Record of Corrective actions Taken (if any):
_______________________________________________________________________________________
_______________________________________________________________________________________
Approved by
(shall be done by Lifting Supervisor)
Date / Time
Signature
Note: Lifting Supervisor must complete the “Lifting Operation Safety Inspection Checklist” after verifying this
checklist.
SWP– 04.38
Rev 0
Page 2 of 2
