A content provider allows data to be shared across applications. It encapsulates the data and provides methods for querying and modifying the data. There are built-in Android content providers for common data types like contacts, audio, images. A custom content provider can be created by extending the ContentProvider class. It must implement methods like query(), insert(), update(), delete() and return a Uri or number of rows affected. The provider is declared in the manifest and permissions can control access at the provider or URI level.

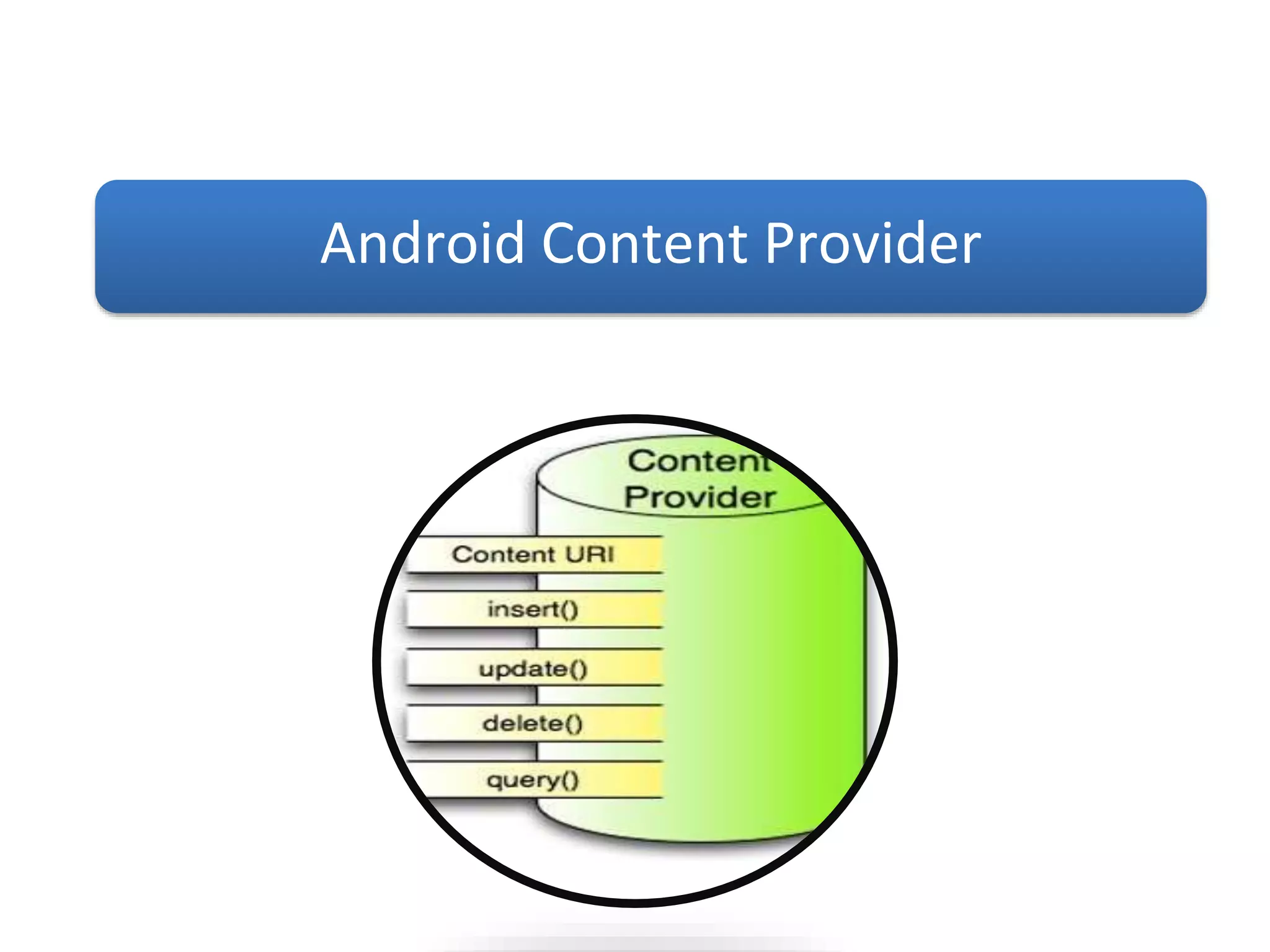

1. Android Content Provider

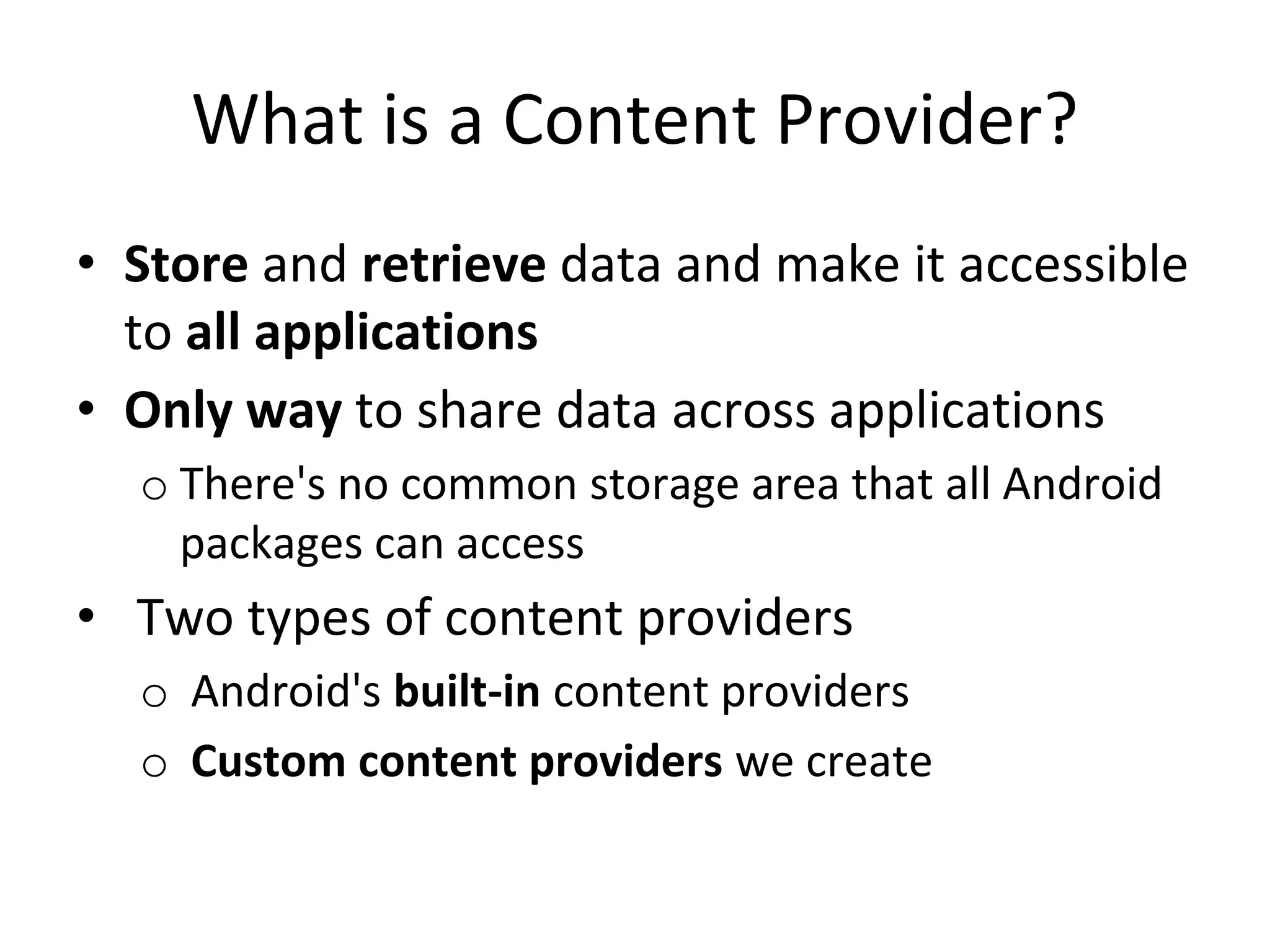

2. What is a Content Provider?
• Store and retrieve data and make it accessible
to all applications
• Only way to share data across applications
o There's no common storage area that all Android
packages can access
• Two types of content providers
o Android's built-in content providers
o Custom content providers we create

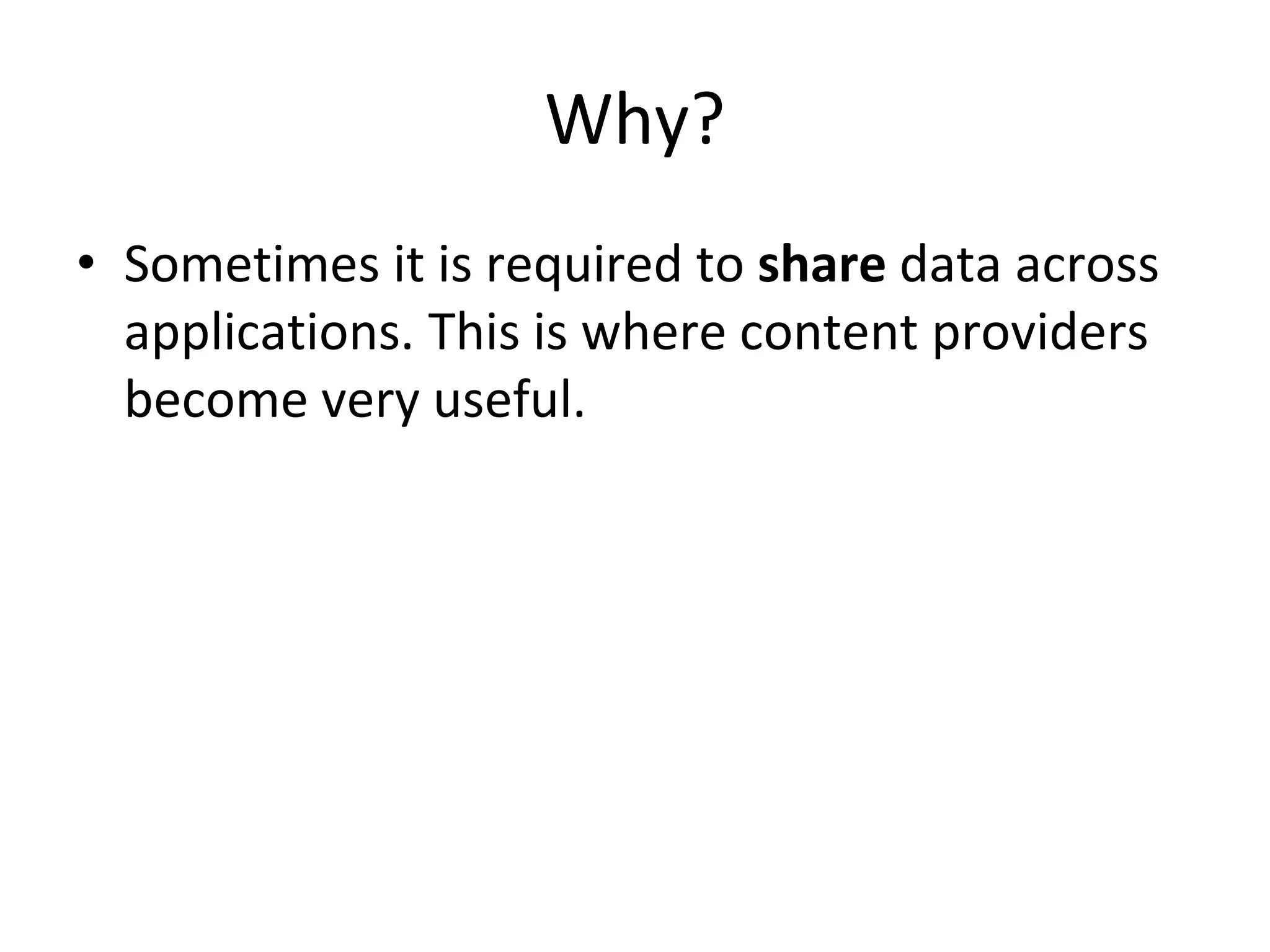

3. Why?
• Sometimes it is required to share data across
applications. This is where content providers
become very useful.

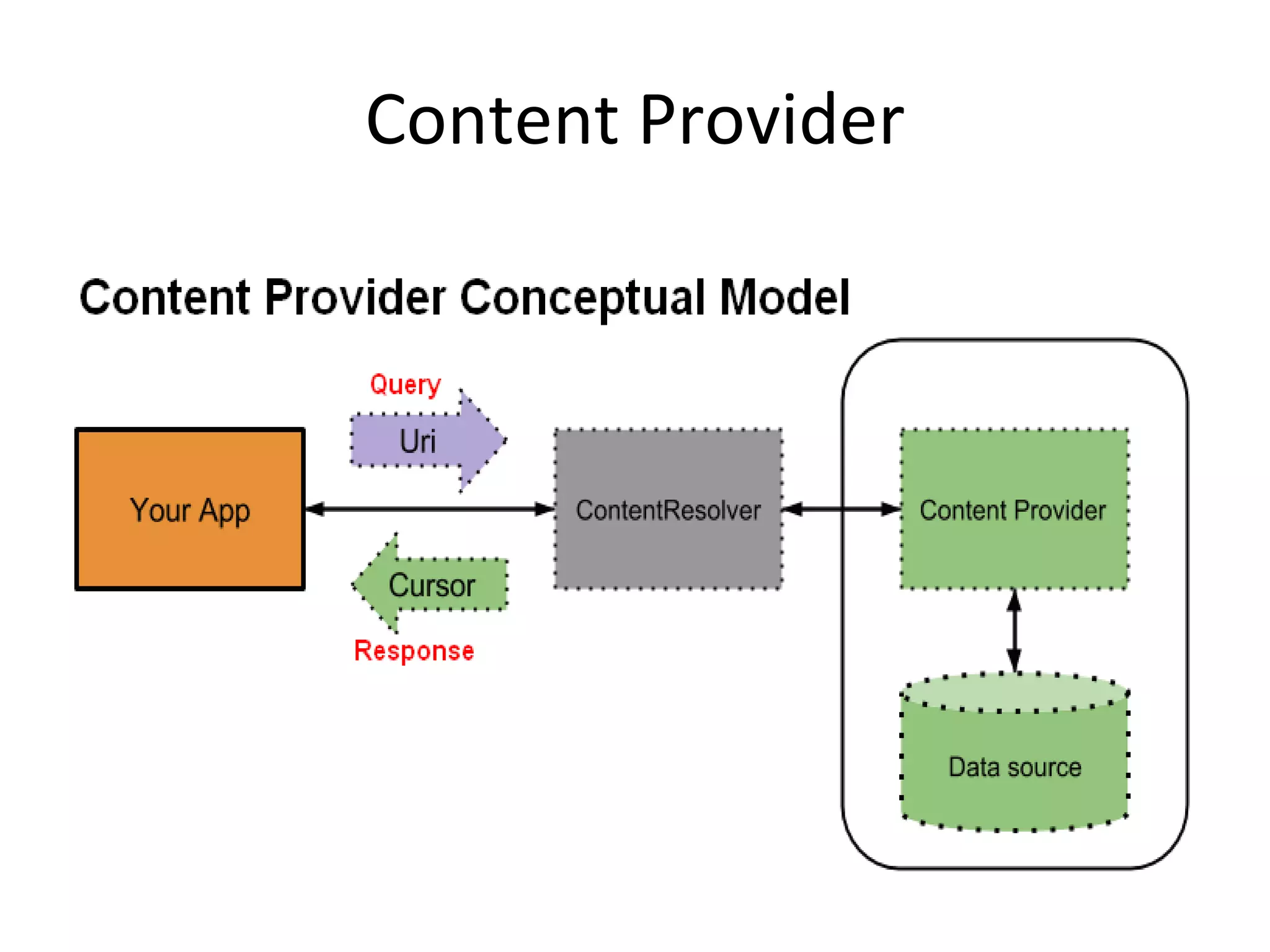

4. Content Provider

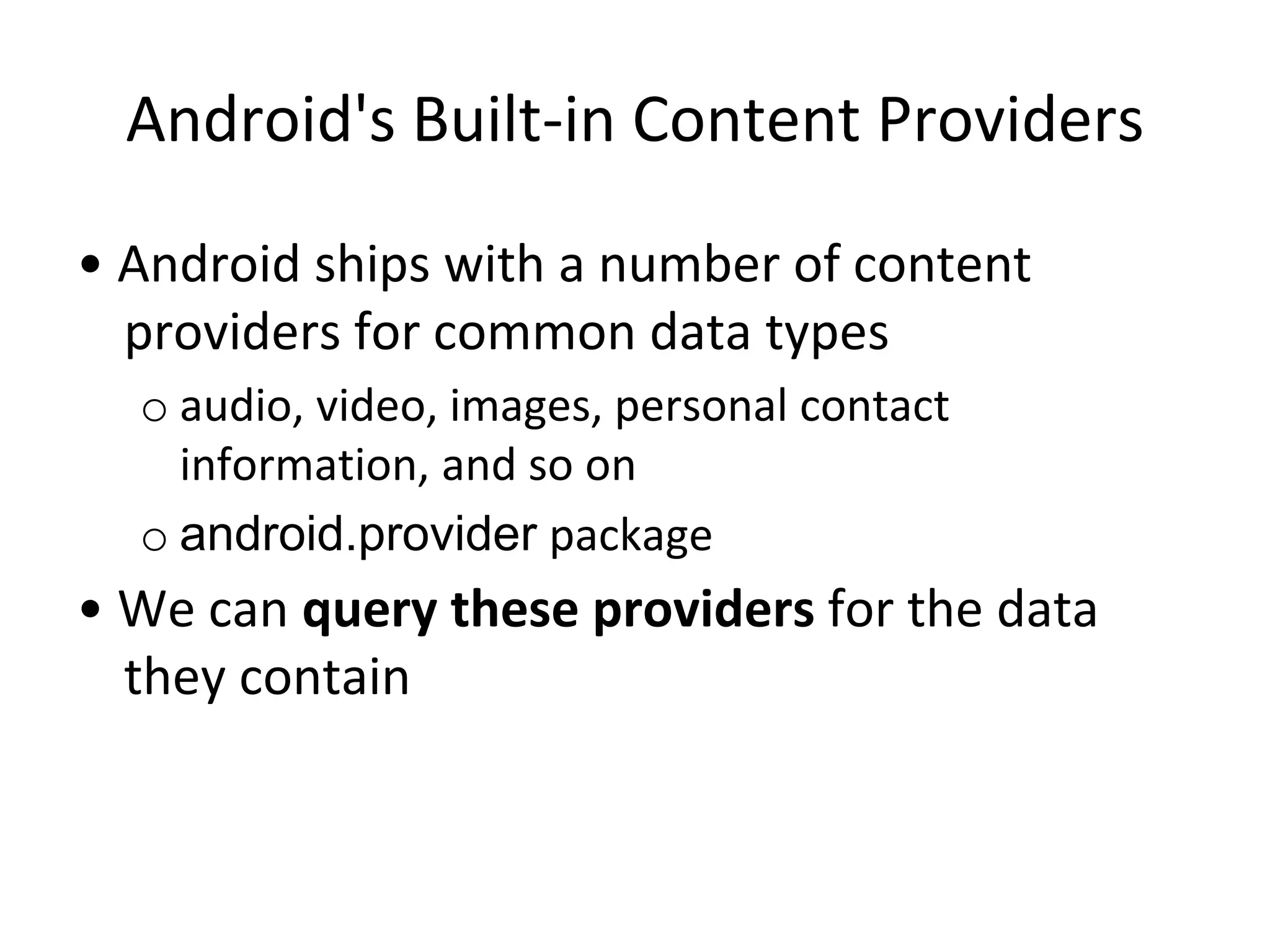

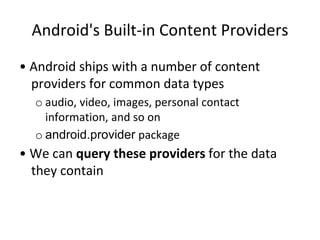

5. Android's Built-in Content Providers
• Android ships with a number of content
providers for common data types
o audio, video, images, personal contact
information, and so on
o android.provider package
• We can query these providers for the data
they contain

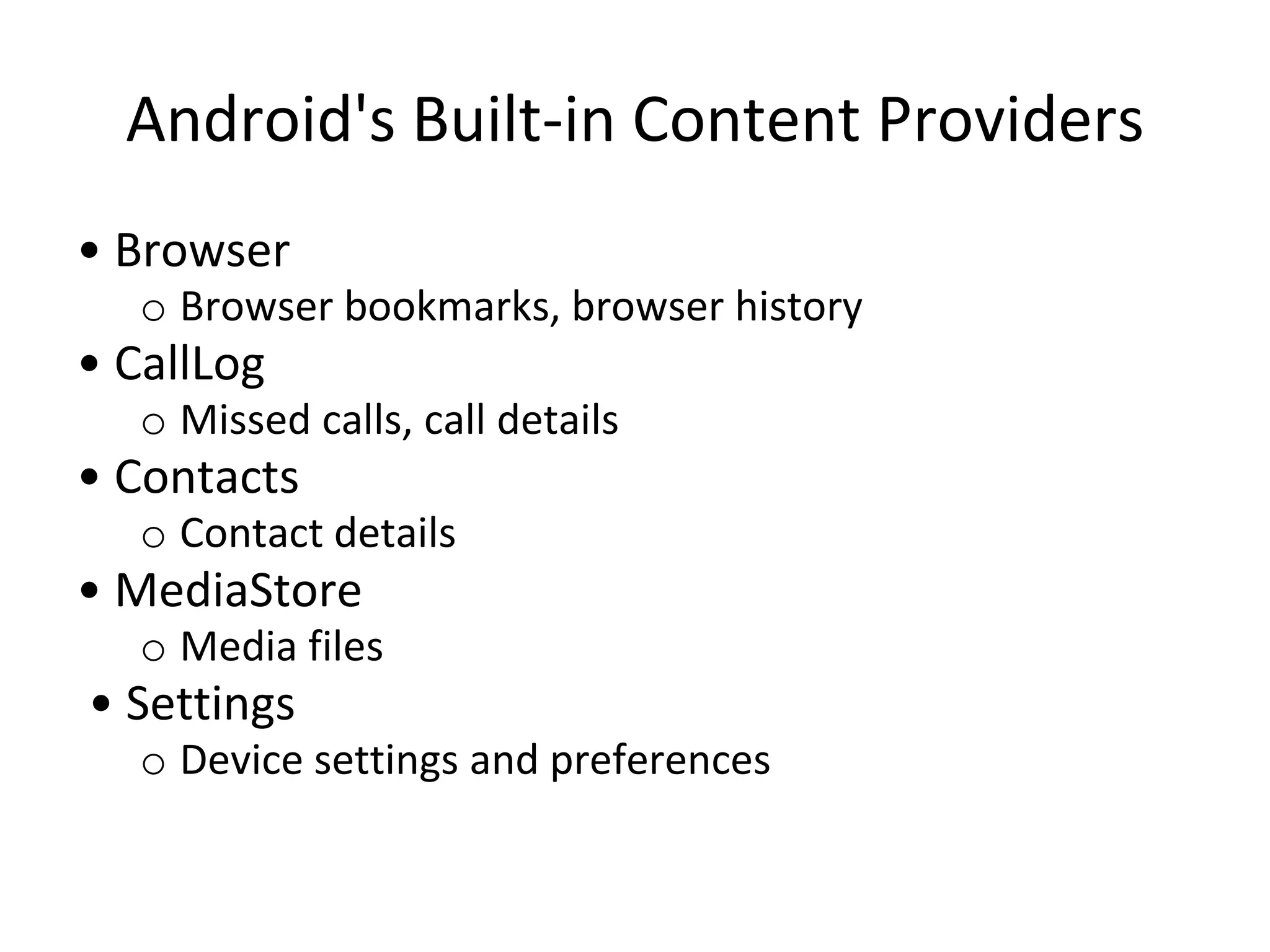

6. Android's Built-in Content Providers
• Browser
o Browser bookmarks, browser history
• CallLog
o Missed calls, call details
• Contacts
o Contact details
• MediaStore
o Media files
• Settings
o Device settings and preferences

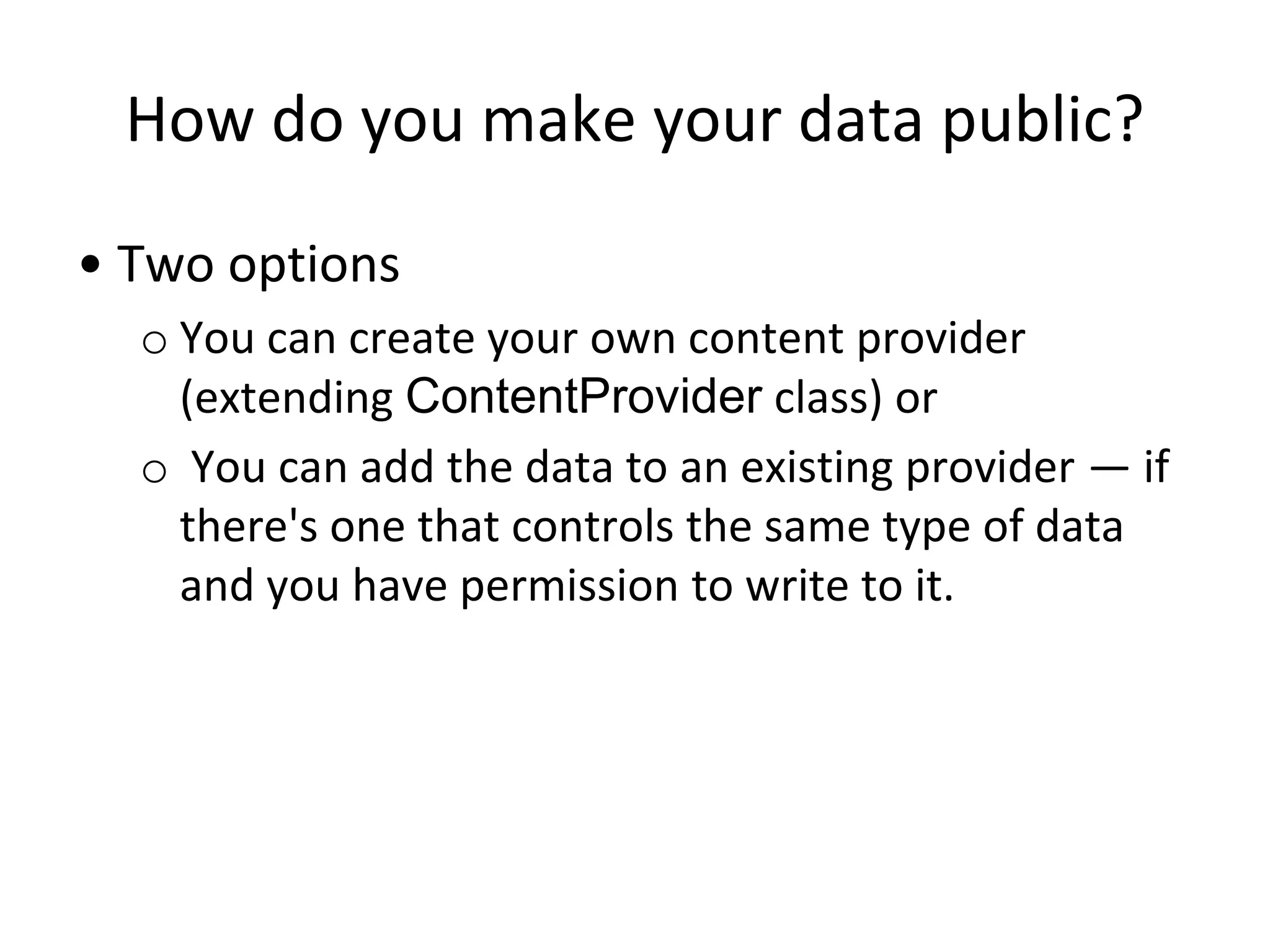

7. How do you make your data public?
• Two options
o You can create your own content provider
(extending ContentProvider class) or
o You can add the data to an existing provider — if
there's one that controls the same type of data
and you have permission to write to it.

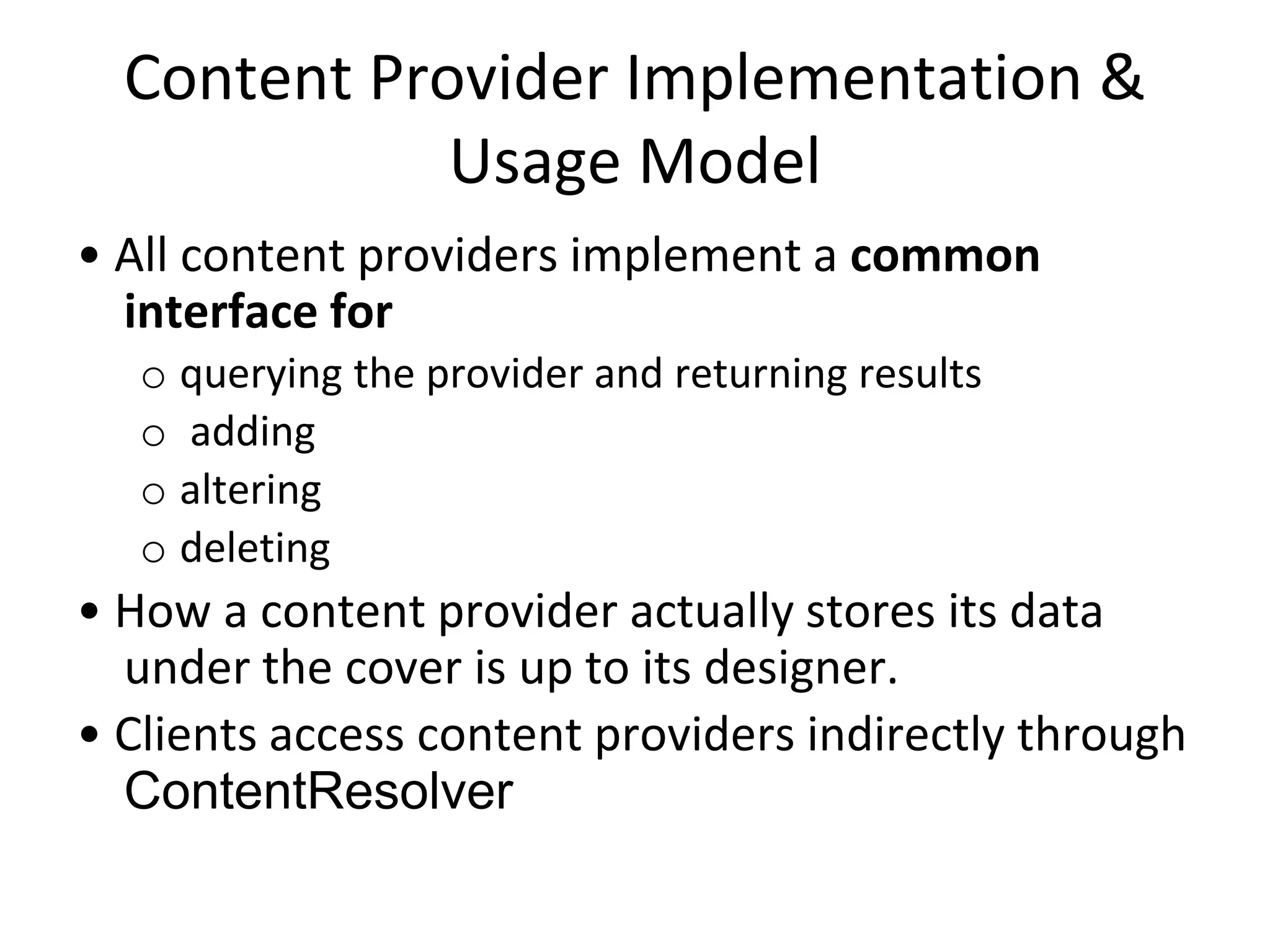

8. Content Provider Implementation &
Usage Model
• All content providers implement a common
interface for
o querying the provider and returning results
o adding
o altering
o deleting
• How a content provider actually stores its data
under the cover is up to its designer.
• Clients access content providers indirectly through
ContentResolver

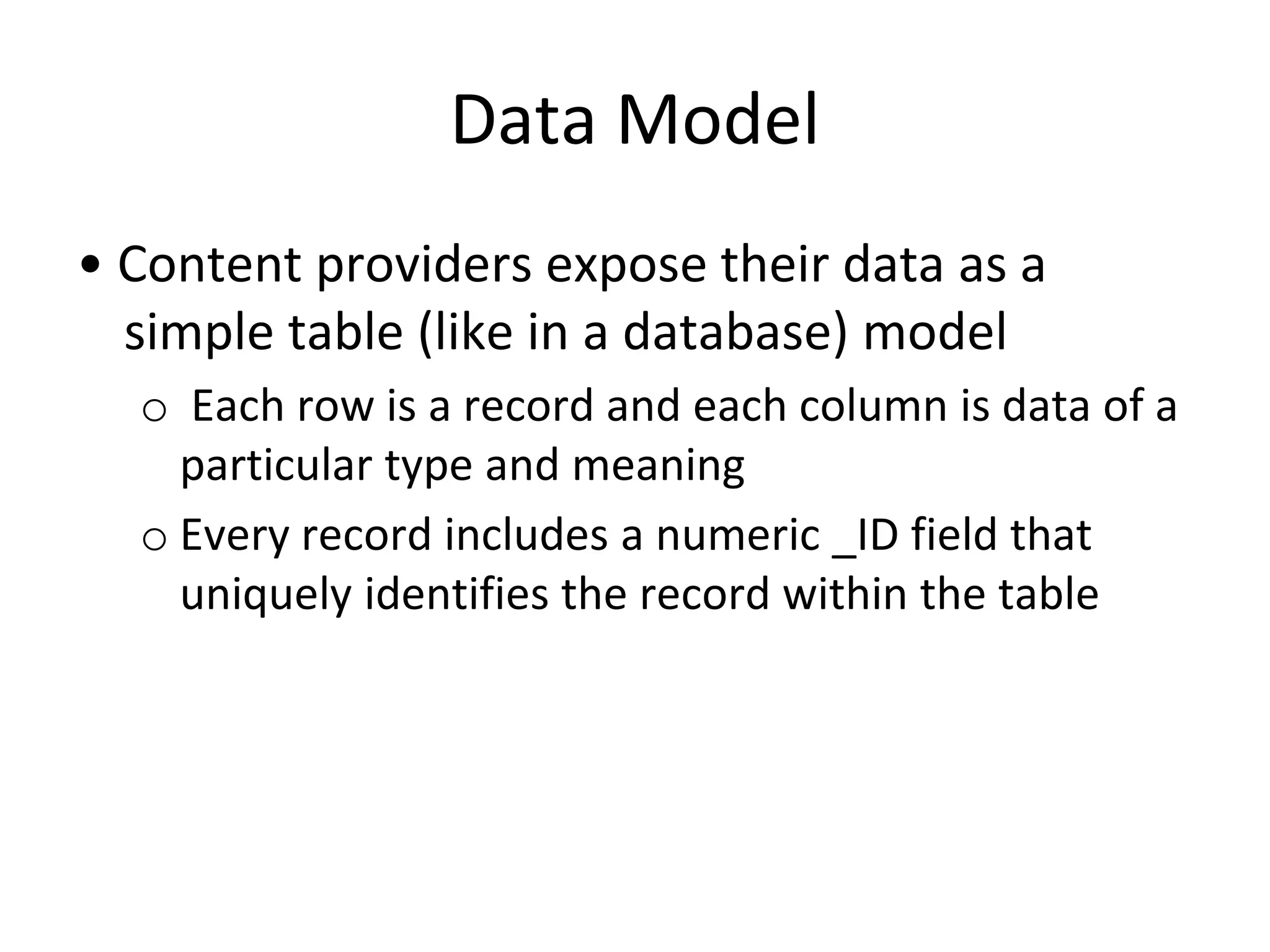

9. Data Model
• Content providers expose their data as a
simple table (like in a database) model
o Each row is a record and each column is data of a
particular type and meaning
o Every record includes a numeric _ID field that
uniquely identifies the record within the table

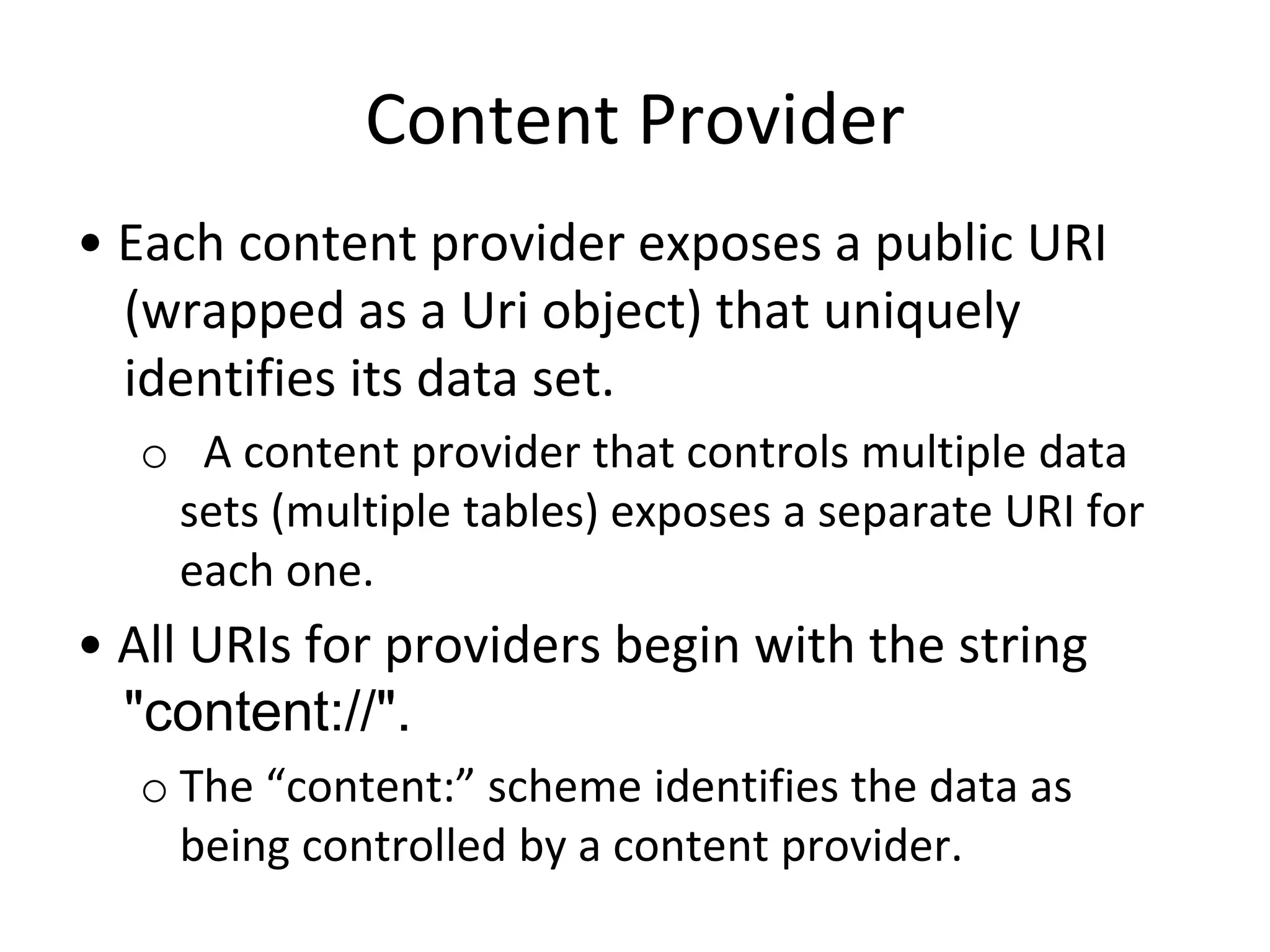

10. Content Provider
• Each content provider exposes a public URI
(wrapped as a Uri object) that uniquely
identifies its data set.
o A content provider that controls multiple data
sets (multiple tables) exposes a separate URI for
each one.
• All URIs for providers begin with the string
"content://".
o The “content:” scheme identifies the data as
being controlled by a content provider.

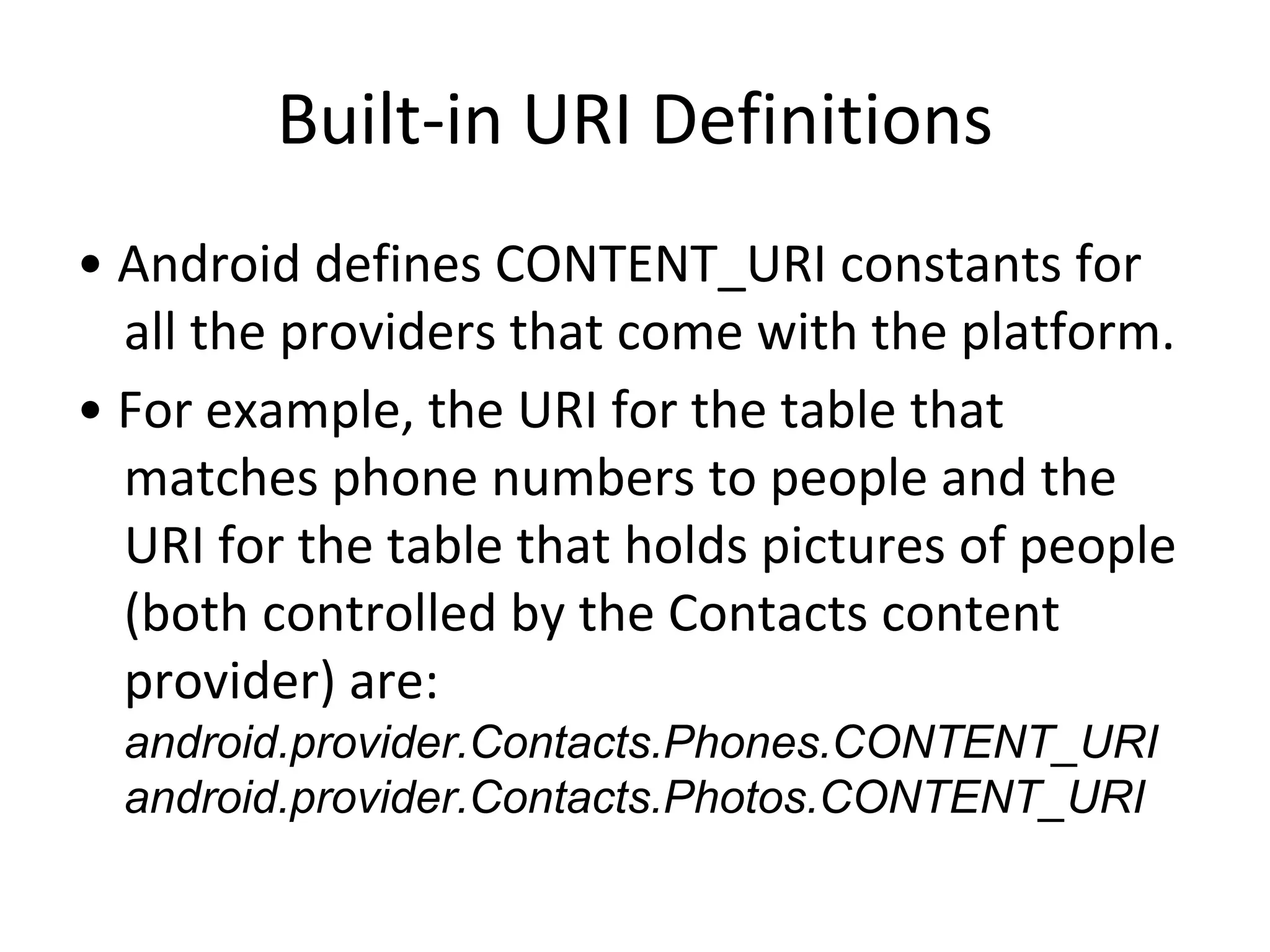

11. Built-in URI Definitions
• Android defines CONTENT_URI constants for
all the providers that come with the platform.
• For example, the URI for the table that
matches phone numbers to people and the
URI for the table that holds pictures of people
(both controlled by the Contacts content
provider) are:
android.provider.Contacts.Phones.CONTENT_URI
android.provider.Contacts.Photos.CONTENT_URI

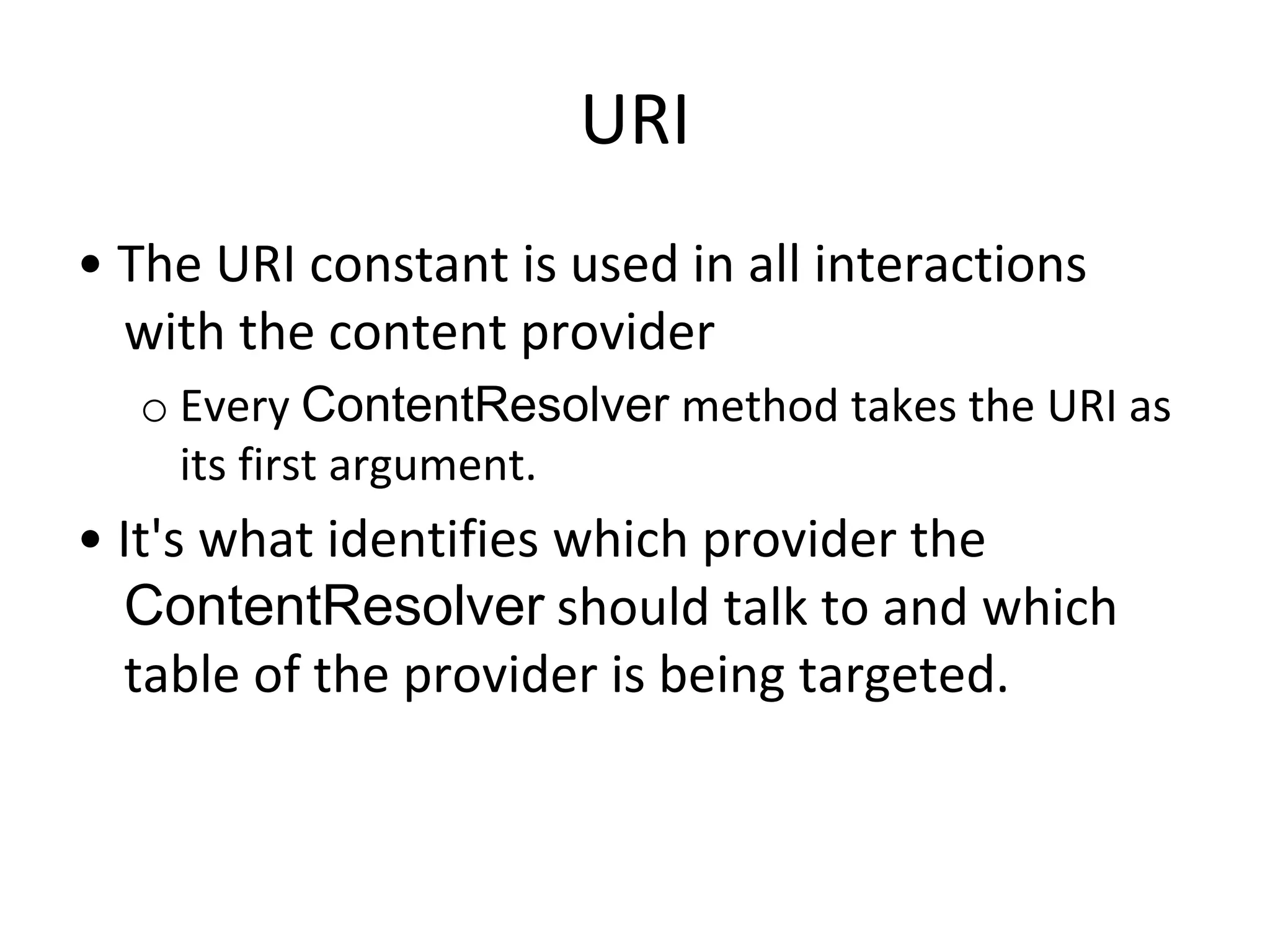

12. URI
• The URI constant is used in all interactions
with the content provider
o Every ContentResolver method takes the URI as
its first argument.
• It's what identifies which provider the
ContentResolver should talk to and which
table of the provider is being targeted.

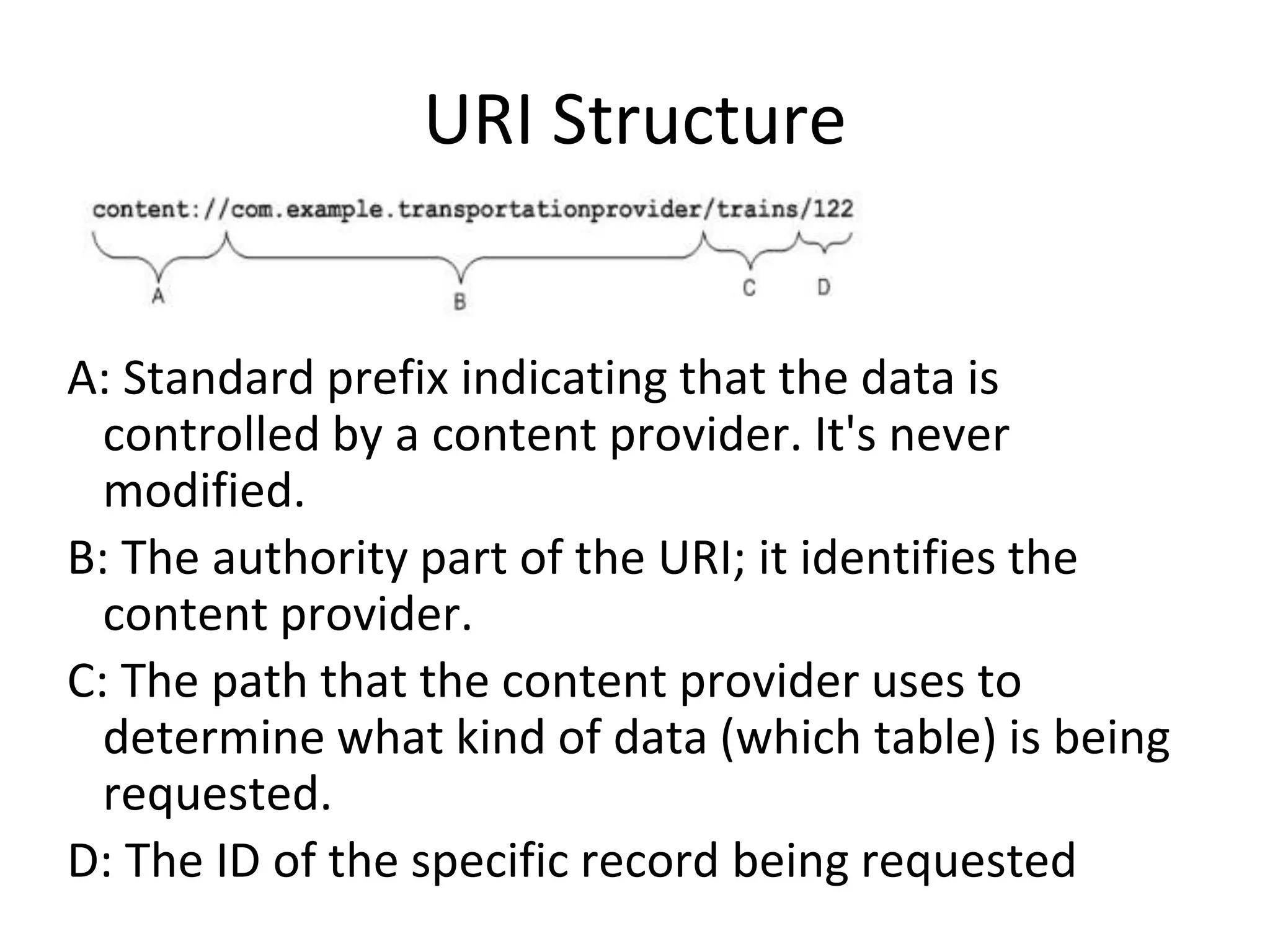

13. URI Structure
A: Standard prefix indicating that the data is
controlled by a content provider. It's never
modified.
B: The authority part of the URI; it identifies the
content provider.
C: The path that the content provider uses to
determine what kind of data (which table) is being
requested.
D: The ID of the specific record being requested

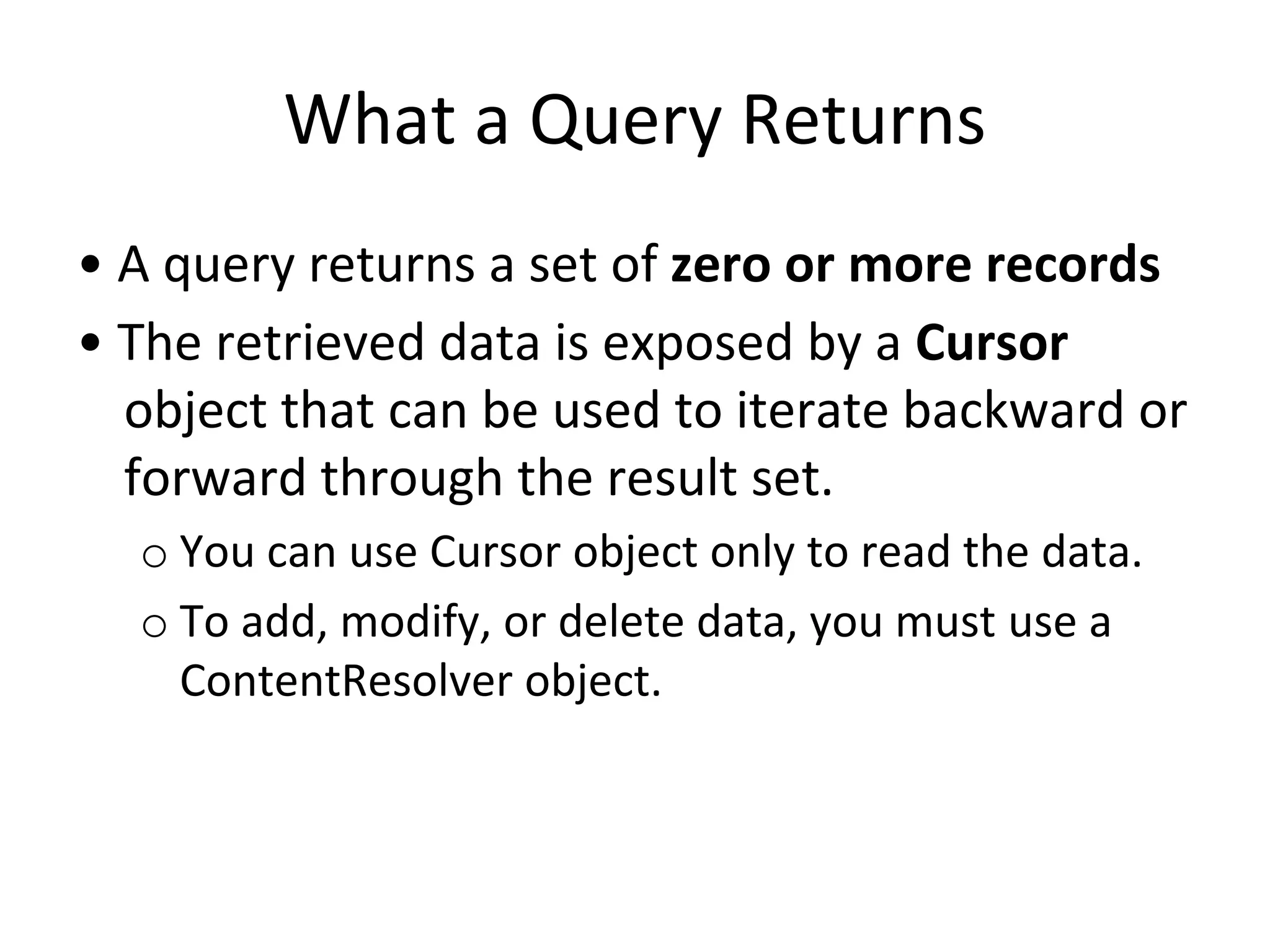

14. What a Query Returns
• A query returns a set of zero or more records
• The retrieved data is exposed by a Cursor
object that can be used to iterate backward or
forward through the result set.
o You can use Cursor object only to read the data.
o To add, modify, or delete data, you must use a
ContentResolver object.

15. Custom Content Provider

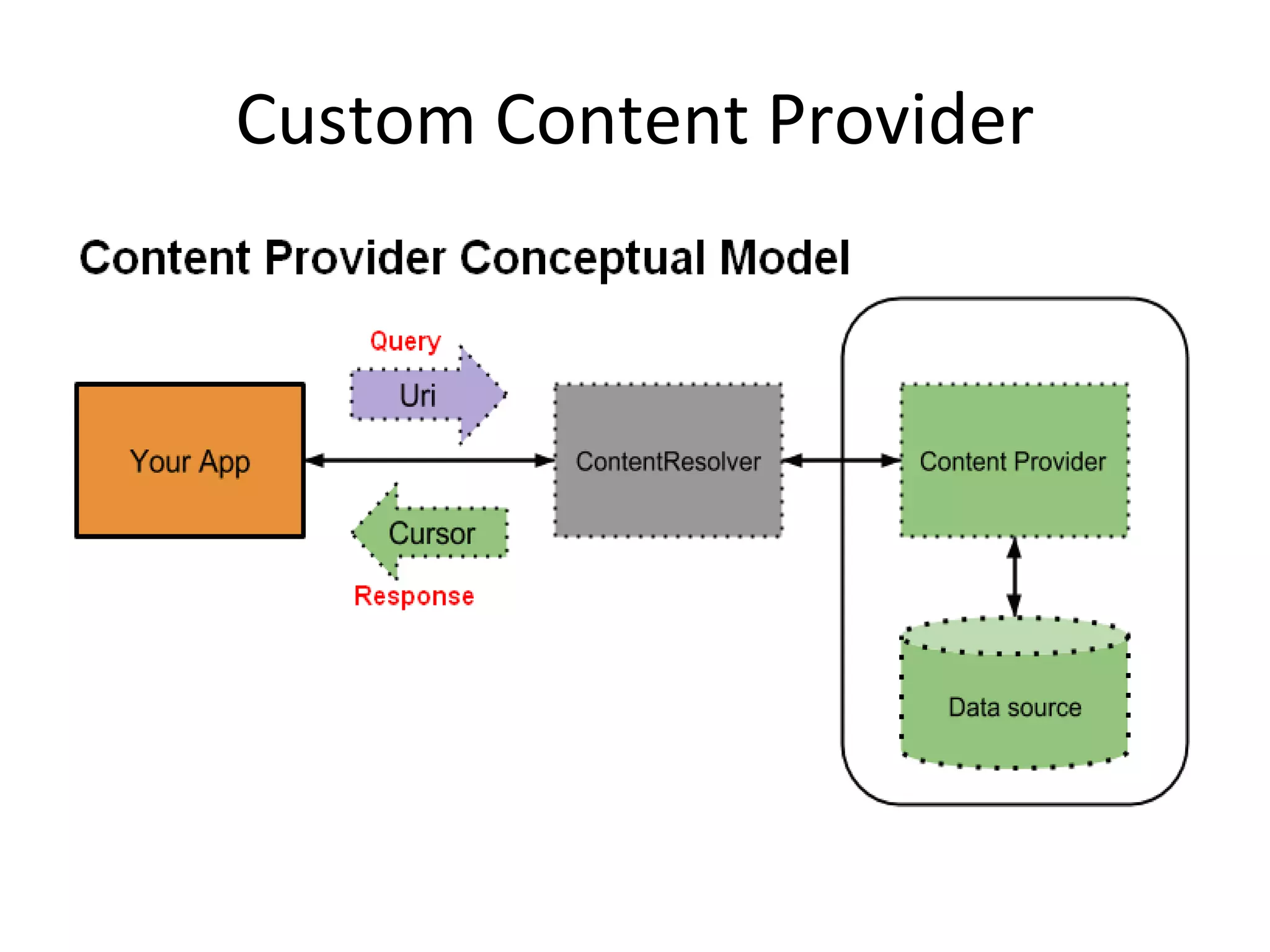

16. Custom Content Provider

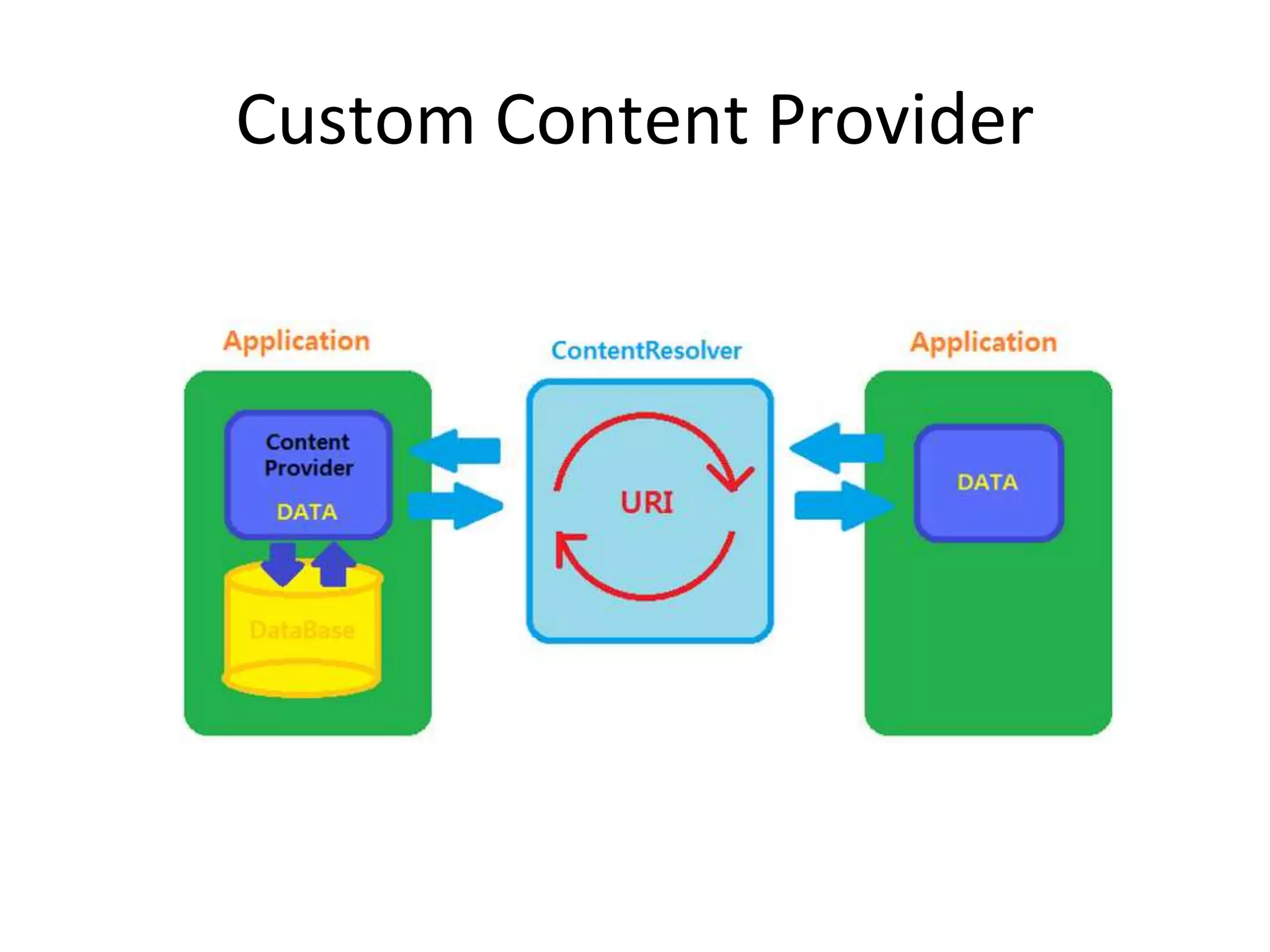

17. Custom Content Provider

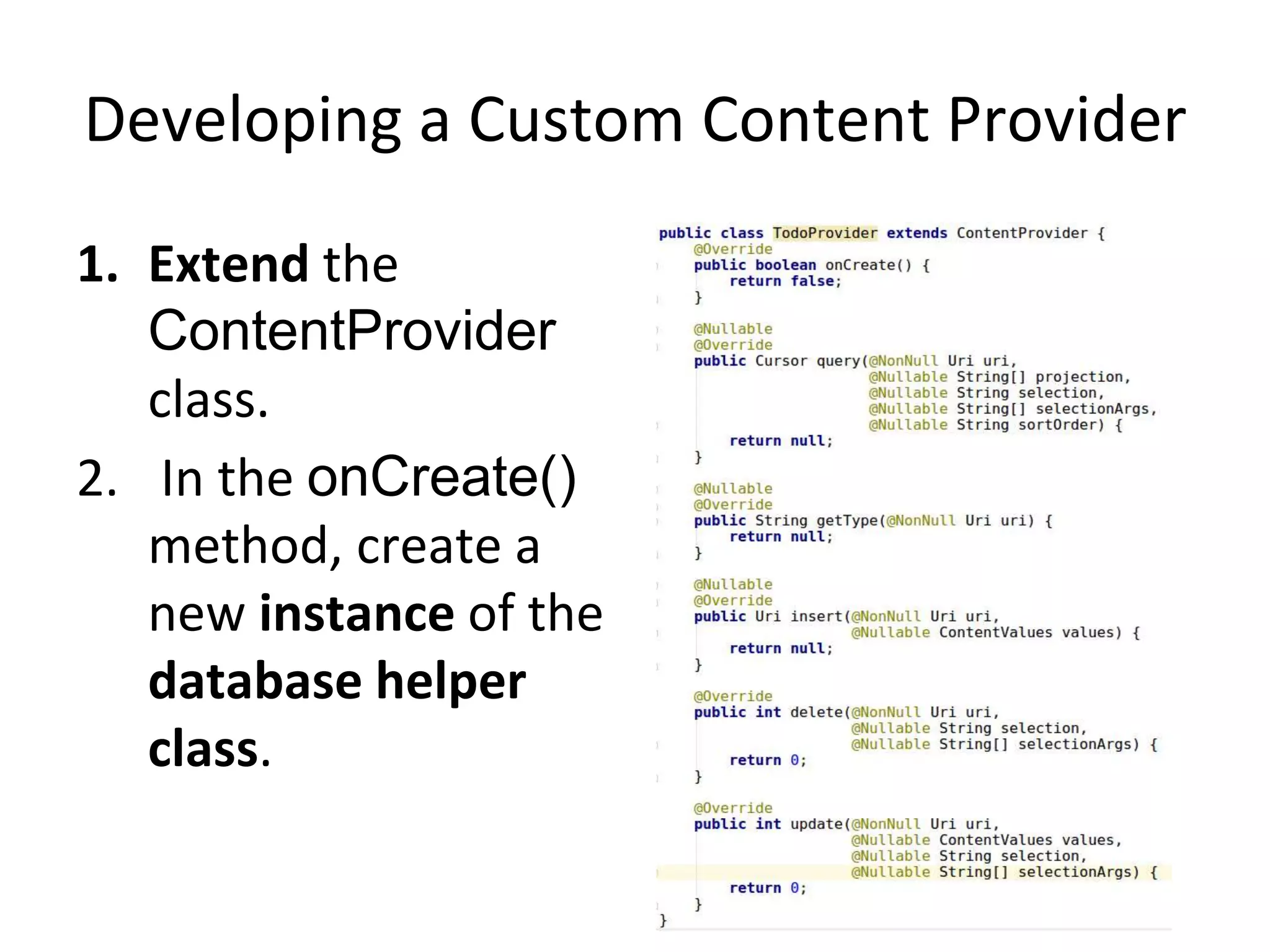

18. Developing a Custom Content Provider
1. Extend the
ContentProvider
class.
2. In the onCreate()
method, create a
new instance of the
database helper
class.

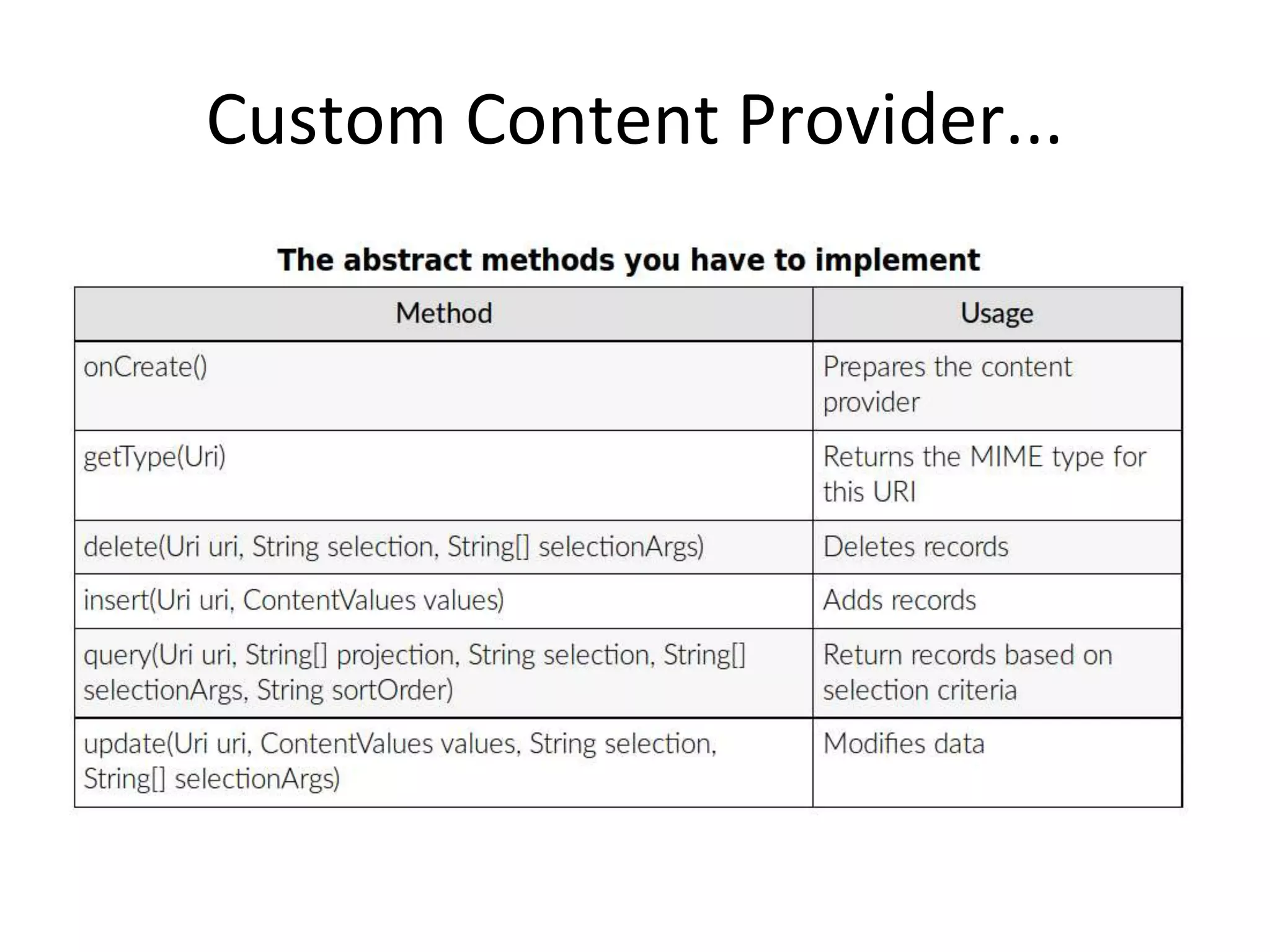

19. Custom Content Provider...

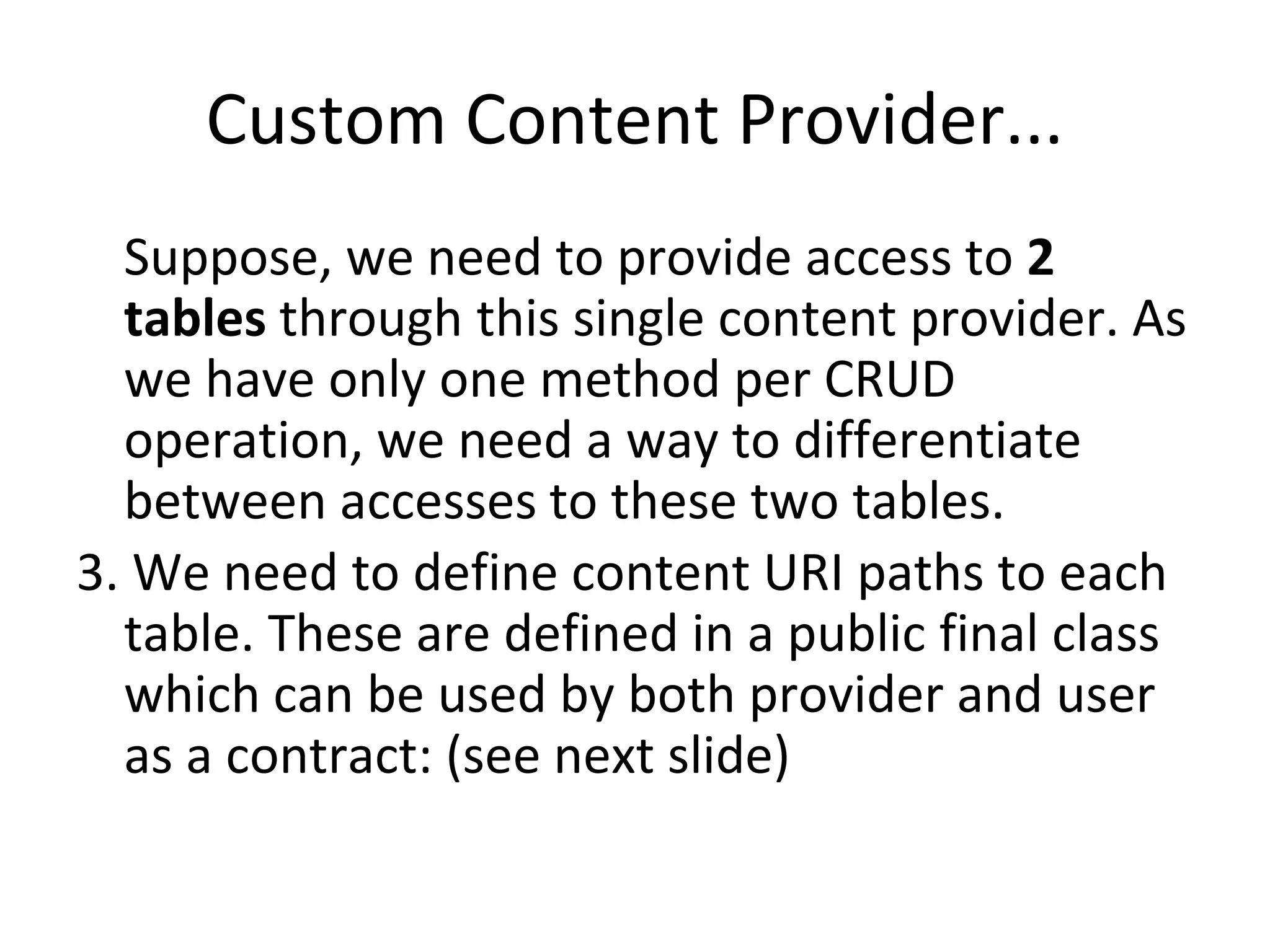

20. Custom Content Provider...
Suppose, we need to provide access to 2
tables through this single content provider. As
we have only one method per CRUD
operation, we need a way to differentiate
between accesses to these two tables.

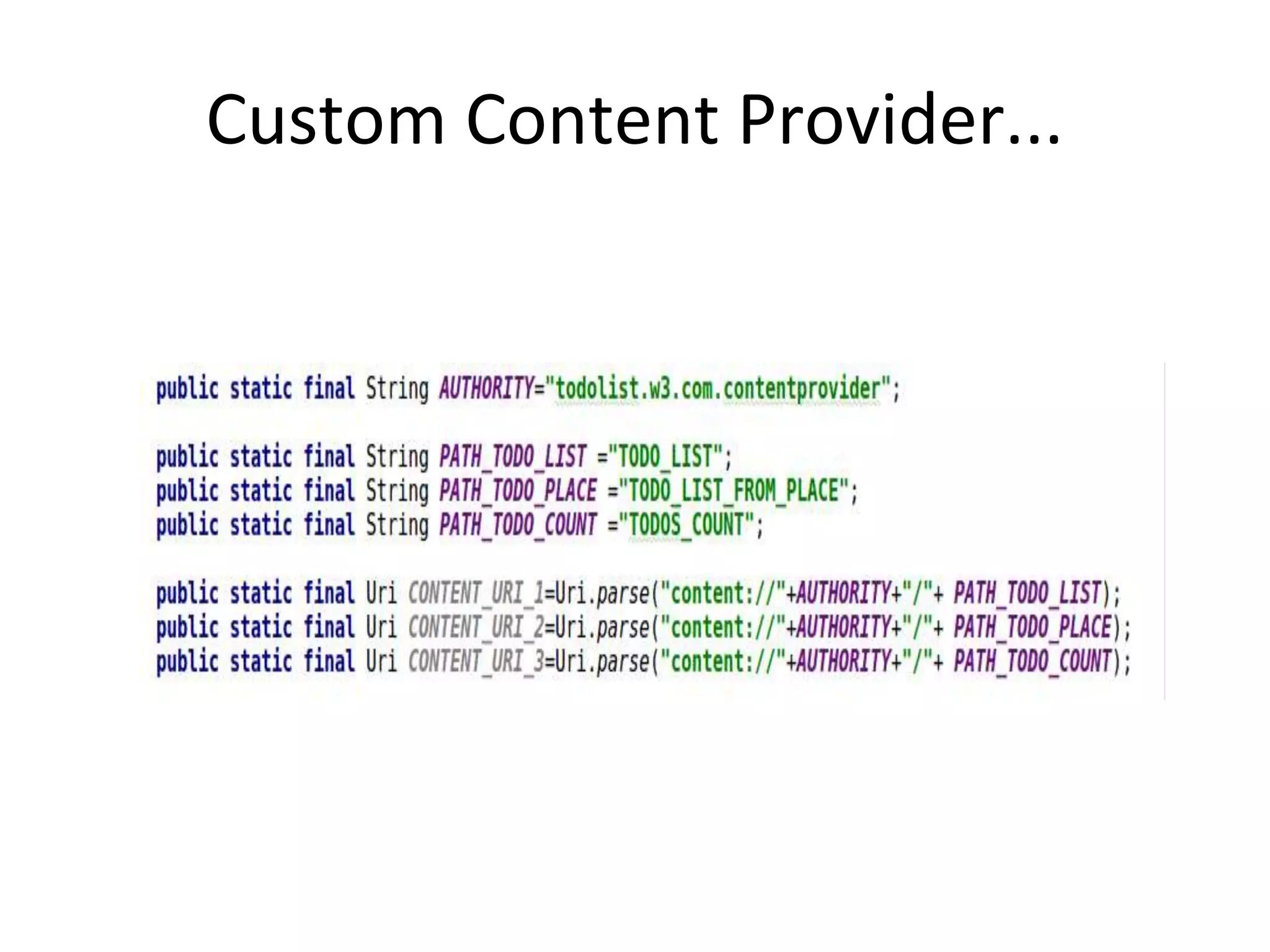

3. We need to define content URI paths to each
table. These are defined in a public final class
which can be used by both provider and user
as a contract: (see next slide)

21. Custom Content Provider...

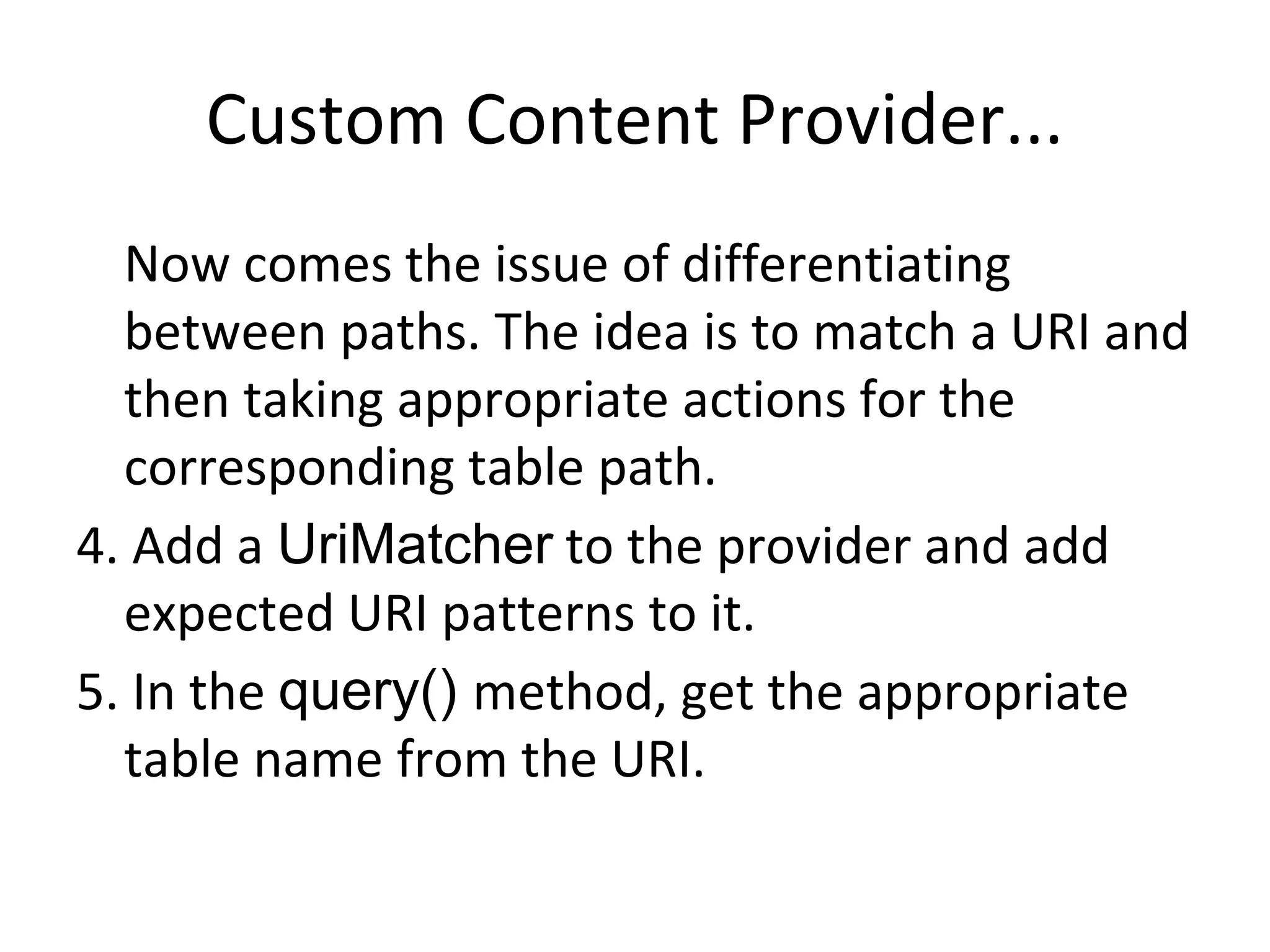

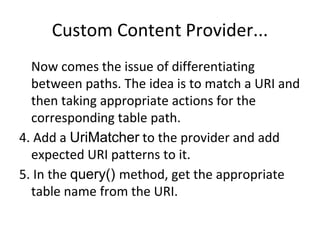

22. Custom Content Provider...
Now comes the issue of differentiating
between paths. The idea is to match a URI and
then taking appropriate actions for the
corresponding table path.
4. Add a UriMatcher to the provider and add
expected URI patterns to it.
5. In the query() method, get the appropriate
table name from the URI.

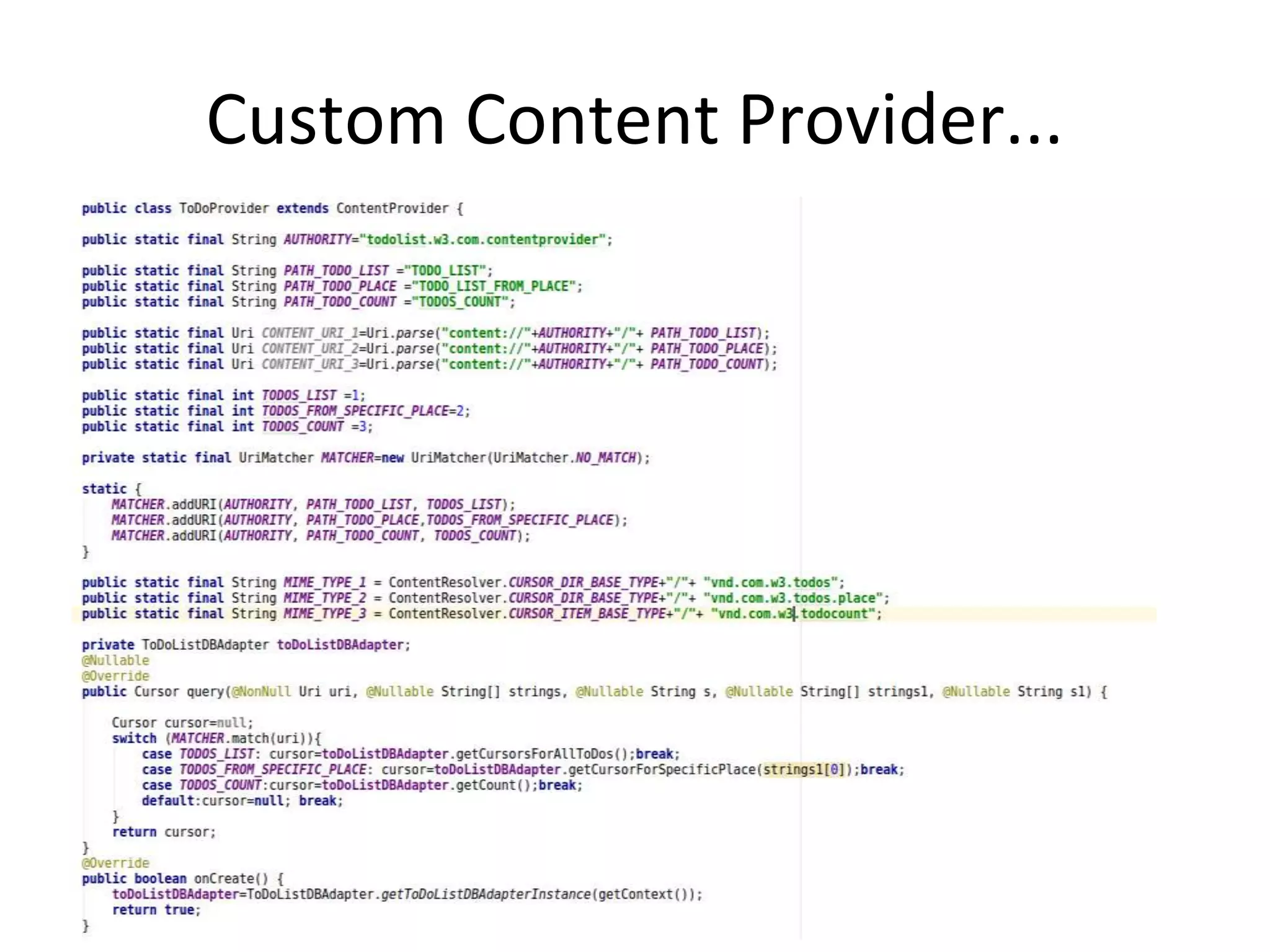

23. Custom Content Provider...

24. Custom Content Provider...
6. Now write the actual query method:
• You should add this URI to notification
observables by calling setNotificationUri() so that
if this cursor is directly used in a ListView,
updating or inserting or deleting data in the table
represented by this URI would notify the ListView
of this data change

25. Custom Content Provider...
7. insert, update and delete methods are
similar.
• insert() returns the Uri with the newly inserted ID
appended.
• update() and delete() returns the number of
rows affected.
• You should call
notifyChangeToContentObservers(uri); before
returning from these methods.

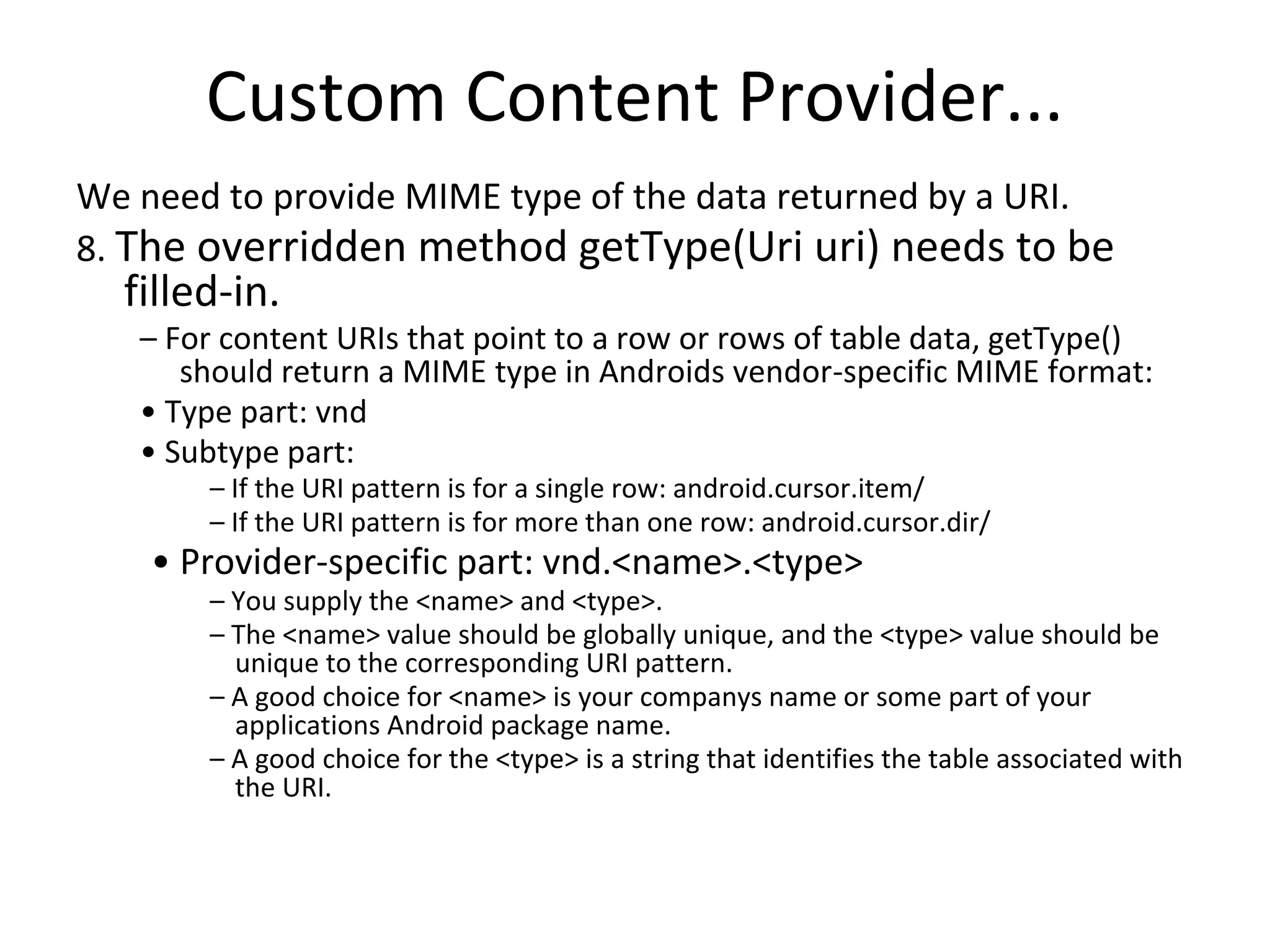

26. Custom Content Provider...
We need to provide MIME type of the data returned by a URI.

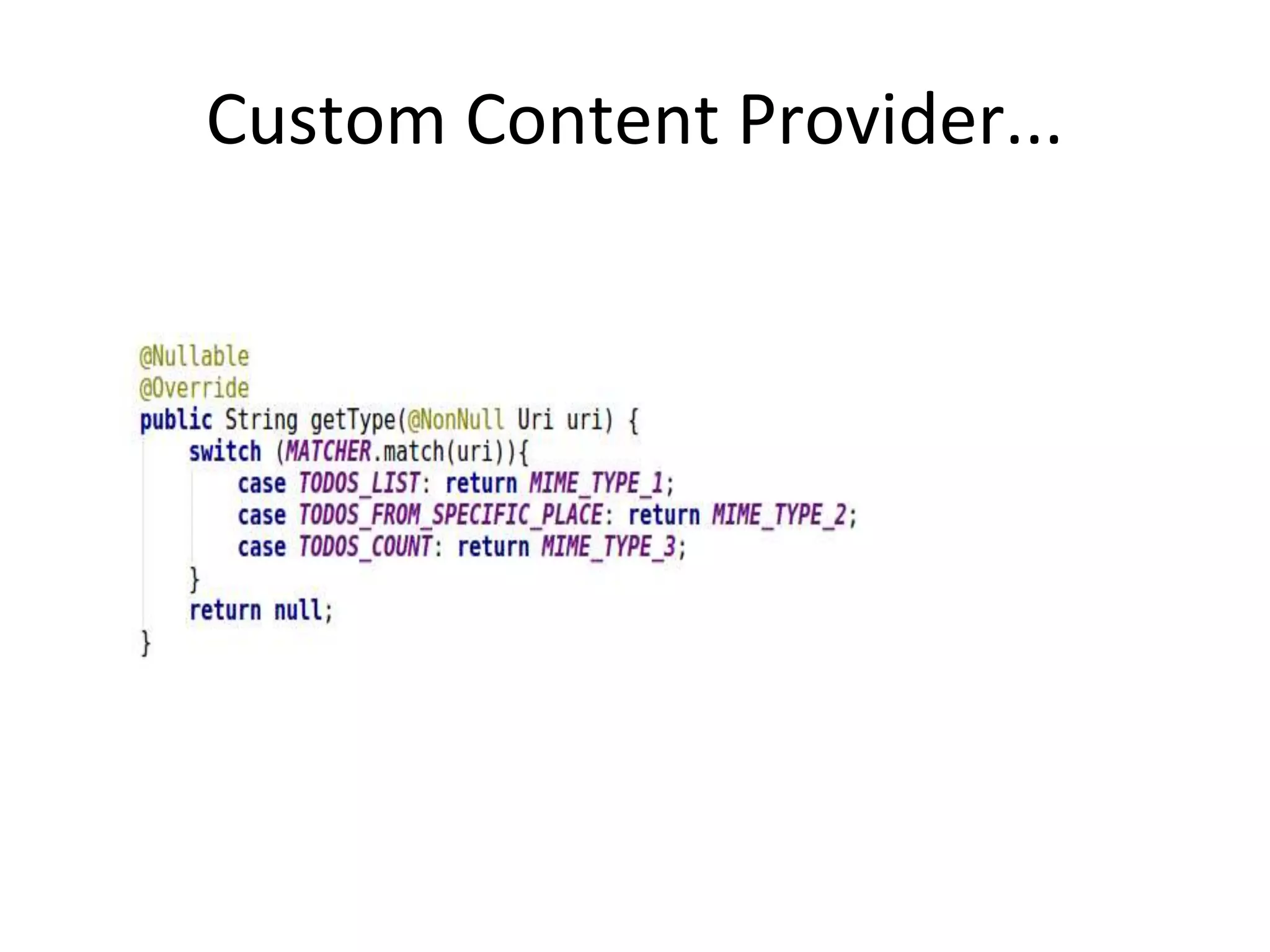

8. The overridden method getType(Uri uri) needs to be
filled-in.
– For content URIs that point to a row or rows of table data, getType()
should return a MIME type in Androids vendor-specific MIME format:
• Type part: vnd
• Subtype part:
– If the URI pattern is for a single row: android.cursor.item/
– If the URI pattern is for more than one row: android.cursor.dir/
• Provider-specific part: vnd.<name>.<type>
– You supply the <name> and <type>.
– The <name> value should be globally unique, and the <type> value should be
unique to the corresponding URI pattern.
– A good choice for <name> is your companys name or some part of your
applications Android package name.
– A good choice for the <type> is a string that identifies the table associated with
the URI.

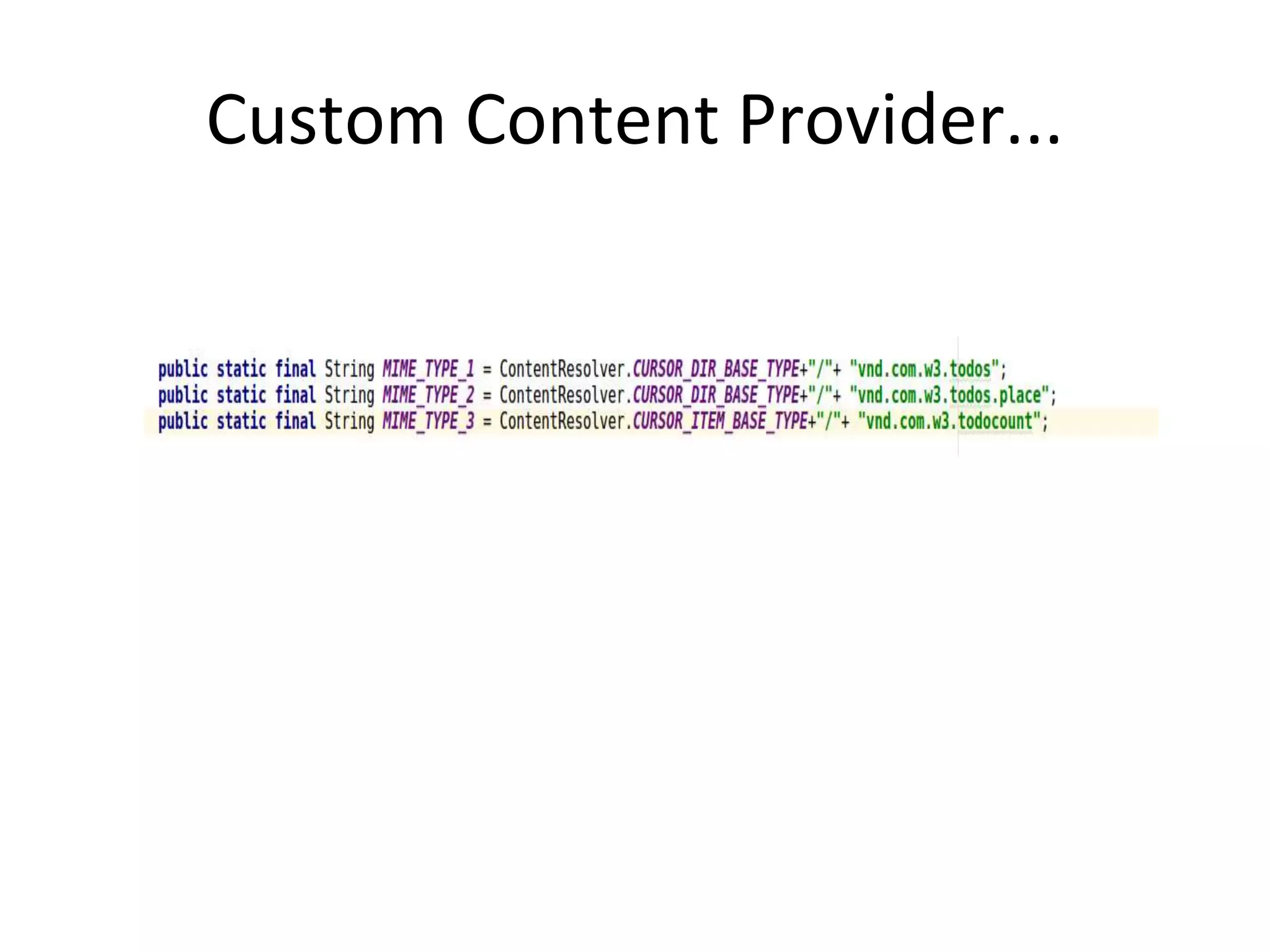

27. Custom Content Provider...

28. Custom Content Provider...

29. Custom Content Provider...
9. We need to declare the provider in the
manifest.xml file:

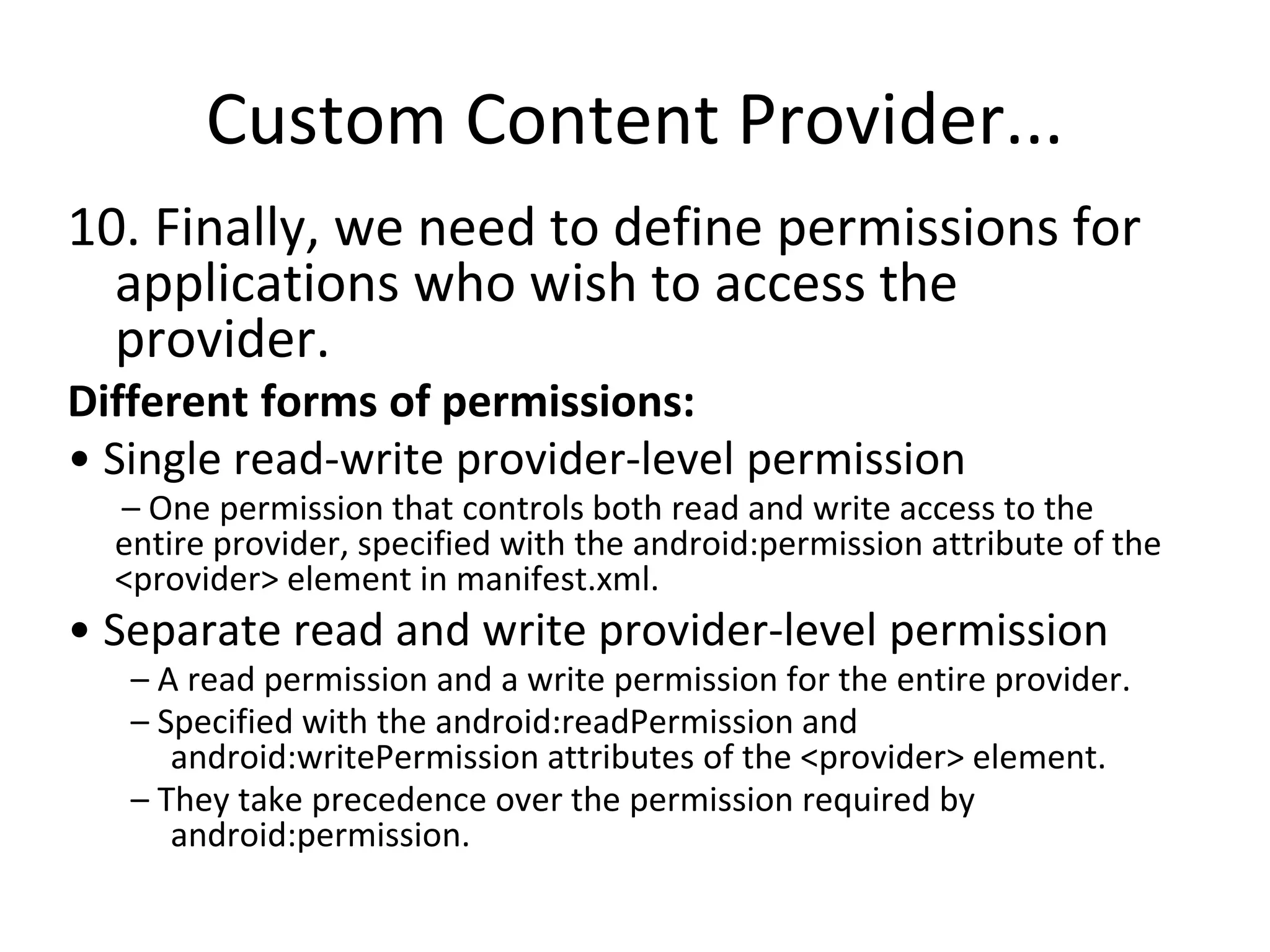

30. Custom Content Provider...
10. Finally, we need to define permissions for
applications who wish to access the
provider.
Different forms of permissions:
• Single read-write provider-level permission
– One permission that controls both read and write access to the
entire provider, specified with the android:permission attribute of the
<provider> element in manifest.xml.
• Separate read and write provider-level permission
– A read permission and a write permission for the entire provider.
– Specified with the android:readPermission and
android:writePermission attributes of the <provider> element.
– They take precedence over the permission required by
android:permission.

31. Custom Content Provider...
• Path-level permission
– Read, write, or read/write permission for a content
URI in your provider.
– You specify each URI you want to control with a
<path-permission> child element of the <provider>
element.

32. DEMO TIME

33. THANK YOU ☺
