Threads are lightweight processes that improve application performance through parallelism. Each thread has its own program counter and stack but shares other resources like memory with other threads in a process. Using threads provides advantages like lower overhead context switching compared to processes and allows parallel execution on multi-core systems. There are two types of threads - user level threads managed by libraries and kernel level threads supported by the OS kernel. Threads have a life cycle that includes states like new, ready, running, blocked, and terminated.

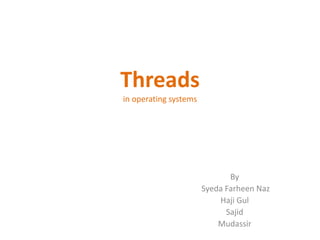

1. Threads
in operating systems
By
Syeda Farheen Naz
Haji Gul
Sajid
Mudassir

2. What are Threads?
• Thread is an execution unit which consists of its own program
counter, a stack, and a set of registers. Threads are also known
as Lightweight processes.
• Threads are popular way to improve application through
parallelism.
• As each thread has its own independent resource for process
execution, multiple processes can be executed parallel by
increasing number of threads.

3. Why use Threads?
• Large multiprocessors need many computing entities (one per
CPU)
• Switching between processes incurs high overhead
• With threads, an application can avoid per-process overheads
– Thread creation, deletion, switching cheaper than processes
• Threads have full access to address space (easy sharing)
• Threads can execute in parallel on multiprocessors

4. Single Threaded Approaches
• A single execution path per process, in which the concept of a
thread is not recognized, is referred to as a single-threaded
approach
• MS-DOS is an example of an OS that supports a single user
process and a single thread.
• some versions of UNIX also supported this type of process.

5. Multithreaded Approaches
• A Java run-time environment is a system of one process with
multiple threads; Windows also support multiple multithreaded
processes

6. Concurrent Execution on a Single-core System
Parallel Execution on a Multi core System

7. Types of Thread
There are two types of threads :
1. User level Thread management done by user-level threads
library(Pthreads,Win32 threads, Java threads)
2. Kernel level Supported by the Kernel/OS(Linux ,Windows
XP/2000)

8. 8
Advantages and disadvantages of ULT
Advantages
• Thread switching does not
involve the kernel: no
mode switching, therefore
fast
• Scheduling can be
application specific:
choose the best algorithm
for the situation.
• Can run on any OS. We
only need a thread library
Disadvantages
• Most system calls are
blocking for processes. So
all threads within a process
will be implicitly blocked
• The kernel can only assign
processors to processes.
Two threads within the
same process cannot run
simultaneously on two
processors

9. 9
Advantages and disadvantages of KLT
Advantages
• The kernel can schedule
multiple threads of the same
process on multiple
processors
• Blocking at thread level, not
process level
– If a thread blocks, the
CPU can be assigned to
another thread in the
same process
• Even the kernel routines can
be multithreaded
Disadvantages
• Thread switching always
involves the kernel. This
means 2 mode switches
per thread switch
• So it is slower compared to
User Level Threads
– (But faster than a full
process switch)

10. 10
Few Implementation
Libraries
PThreads
• A POSIX standard (IEEE 1003.1c) API for thread creation and
synchronization
• API specifies behavior of the thread library, implementation is up
to development of the library
Windows Threads
• Implements the one-to-one mapping
• Each thread contains
– A thread id
– Register set
– Separate user and kernel stacks
– Private data storage area

11. 11
Linux Threads
• Linux refers to them as tasks rather than threads
• Thread creation is done through clone() system call
• clone() allows a child task to share the address space of the parent
task (process)
Java Threads
• Java threads may be created by:
– Extending Thread class
– Implementing the Run able interface
• Java threads are managed by the JVM.

12. Cooperative Threads
• Cooperative threads use non pre-emptive scheduling
• Advantages:
– Simple
• Scientific apps
• Disadvantages:
– For badly written code
• Scheduler gets invoked only when Yield is called
• A thread could yield the processor when it blocks for I/O

13. Non-Cooperative Threads
• No explicit control passing among threads
• Rely on a scheduler to decide which thread to run
• A thread can be pre-empted at any point
• Often called pre-emptive threads
• Most modern thread packages use this approach.

14. Multithreading Models
The user threads must be mapped to kernel threads, by one of the
following strategies.
• Many-To-One Model
• One-To-One Model
• Many-To-Many Model

15. Many-To-One Model
• In the many-to-one model, many user-level threads are all
mapped onto a single kernel thread.
• Thread management is handled by the thread library in user space,
which is efficient in nature.

16. One-To-One Model
• The one-to-one model creates a separate kernel thread to
handle each and every user thread.
• Most implementations of this model place a limit on how
many threads can be created.
• Linux and Windows from 95 to XP implement the one-to-one
model for threads.

17. Many-To-Many Model
• The many-to-many model multiplexes any number of user
threads onto an equal or smaller number of kernel threads,
combining the best features of the one-to-one and many-to-one
models.
• Users can create any number of the threads.
• Blocking the kernel system calls does not block the entire
process.
• Processes can be split across multiple processors.

18. Thread Life Cycle in JAVA
The Life cycle of thread in Java is controlled by JVM. The Java thread states are as
follows.
 New
The thread is in new state if you create an instance of Thread class but before
the invocation of start() method.
 Runnable
The thread is in runnable state after invocation of start() method, but the
thread scheduler has not selected it to be the running thread.
 Running
The thread is in running state if the thread scheduler has selected it.
 Non-Runnable (Blocked)
This is the state when the thread is still alive, but is currently not eligible to
run.
 Terminated
A thread is terminated when run() method terminates.

19. Non
Runnable
(Bocked)
New
Runnable
Running
Terminated
Start()
Sleep, block on
I/O, suspend,
wait
Sleep done, I/O
complete,
resume, notify

20. Thread Control Block
• Thread Control Block (TCB) is a data structure in the operating system kernel
which contains thread-specific information needed to manage it. The TCB is "the
manifestation of a thread in an operating system".
• An example of information contained within a TCB is:
• Stack pointer: Points to thread's stack in the process
• Program counter
• State of the thread (running, ready, waiting, start, done)
• Thread's register values
• Pointer to the Process control block (PCB) of the process that the thread lives on
The Thread Control Block acts as a library of information about the threads in a
system. Specific information is stored in the thread control block highlighting
important information about each thread.
