1. Pmos,inductorCTLE pole zero
precise analysis

2. Different configurations of active
inductor with just nmos and pmos
Looking in both directions yields same
results !!!!!!!!
Look at a and b

3. Boosting factor : 1+gmRs/2

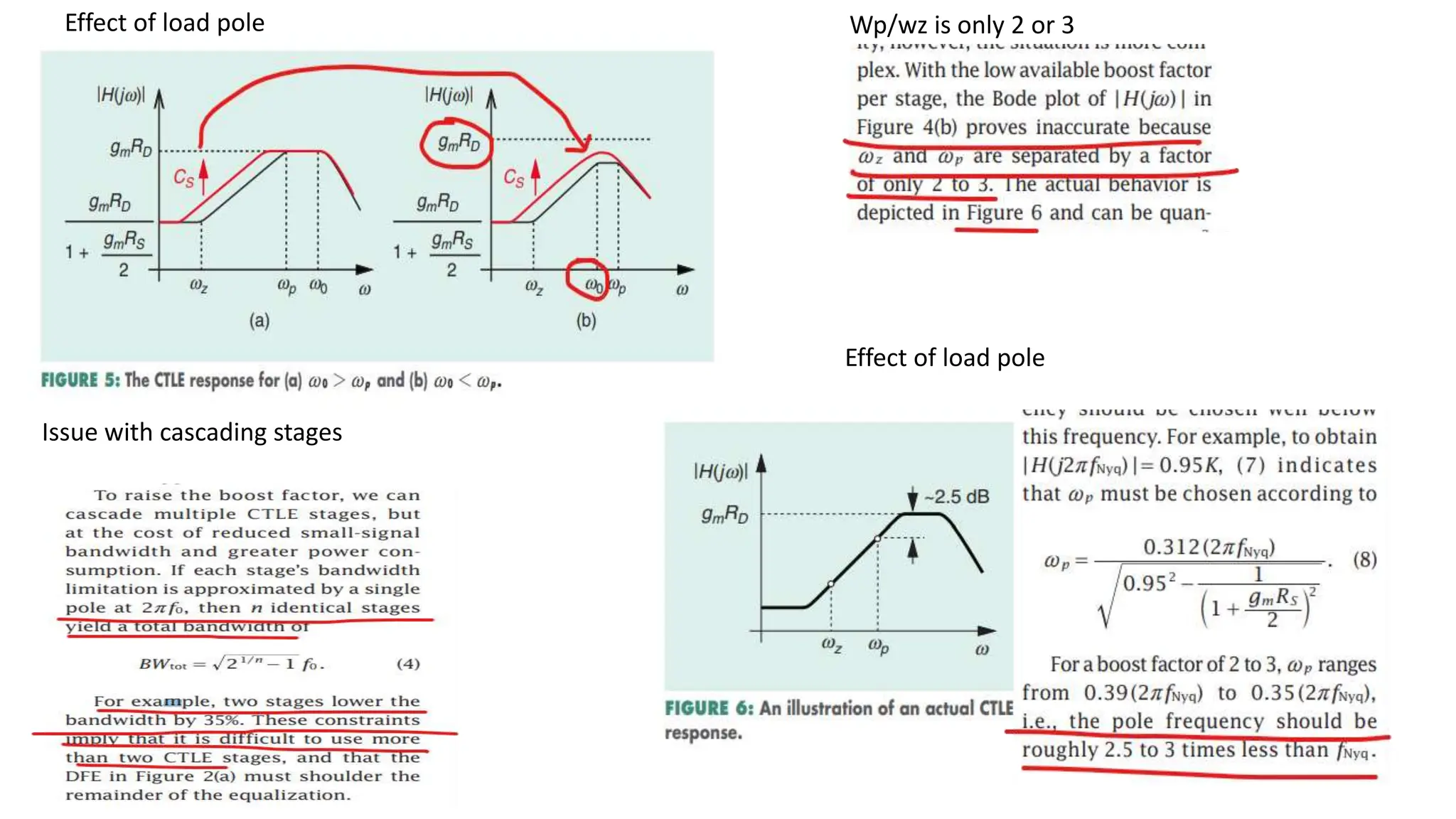

4. Effect of load pole
Issue with cascading stages
Wp/wz is only 2 or 3
Effect of load pole

5. Effect of inductor

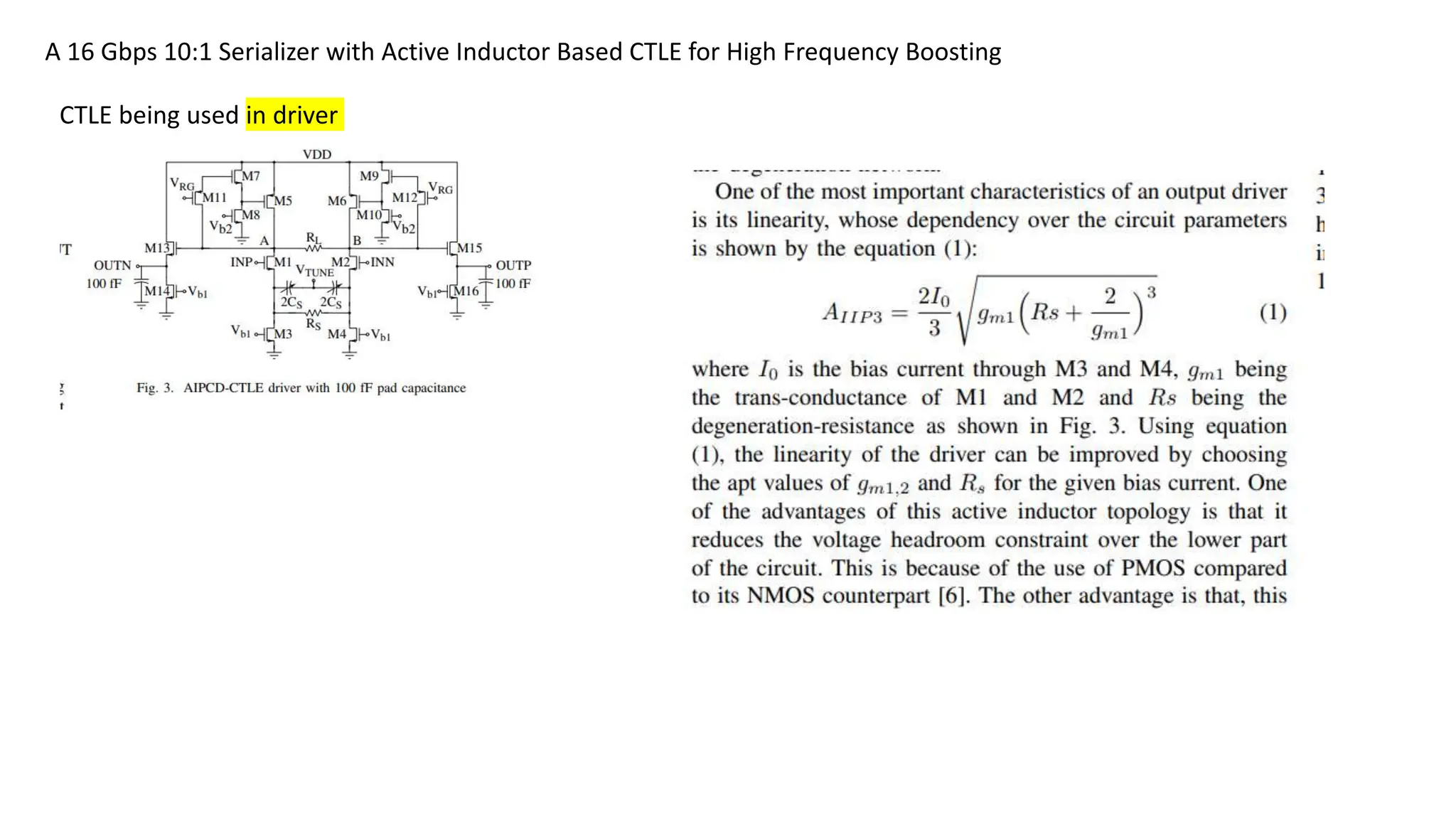

6. A 16 Gbps 10:1 Serializer with Active Inductor Based CTLE for High Frequency Boosting
CTLE being used in driver

7. Give an example of ss corner

9. Also, insertion loss to ctle itself is 2-4db which ctle has to equalize
