This document discusses chest trauma, including injuries to the thoracic cage, diaphragm, pleura, lungs, trachea/bronchi, mediastinum, and vascular structures. It outlines common causes of chest trauma like falls, blows, blunt force impacts, penetrating injuries, and surgery. Specific injuries covered include rib fractures, flail segments, pneumothorax, hemothorax, pulmonary contusions, lacerations, and fat embolism. Imaging techniques for evaluation such as CT, ultrasound, and aortography are also discussed.

1. CTBLUNTCHESTTRAUMA
DR.SAHANA.S
MODERATOR - DR.UDHAYAKUMAR.K

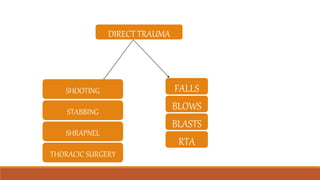

2. DIRECT TRAUMA
FALLS
BLOWS
BLASTS
RTA
SHOOTING
STABBING
SHRAPNEL
THORACIC SURGERY

3. INJURY
SKELETAL TRAUMA
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

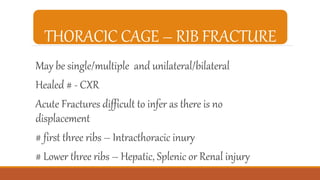

4. THORACIC CAGE – RIB FRACTURE
May be single/multiple and unilateral/bilateral
Healed # - CXR
Acute Fractures difficult to infer as there is no
displacement
# first three ribs – Intracthoracic inury
# Lower three ribs – Hepatic, Splenic or Renal injury

5. • Flail segment
• Pneumothorax
• Hemothorax
• Subcutaneous Emphysema

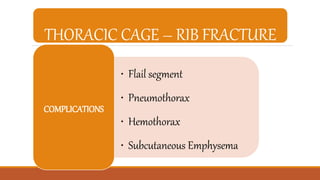

COMPLICATIONS
THORACIC CAGE – RIB FRACTURE

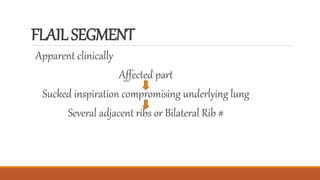

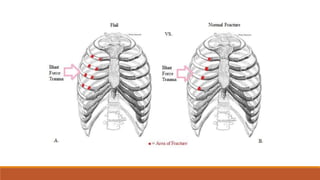

6. FLAILSEGMENT
Apparent clinically
Affected part
Sucked inspiration compromising underlying lung
Several adjacent ribs or Bilateral Rib #

7. Pneumothorax
Hemothorax
Hemopneumothorax
Intrapulmonary hemorrhage

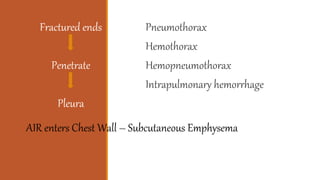

Fractured ends
Penetrate
Pleura
AIR enters Chest Wall – Subcutaneous Emphysema

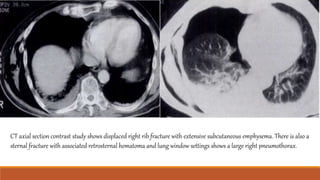

10. CT axial section contrast study shows displaced right rib fracture with extensive subcutaneous emphysema. There is also a
sternal fracture with associated retrosternal hematoma and lung window settings shows a large right pneumothorax.

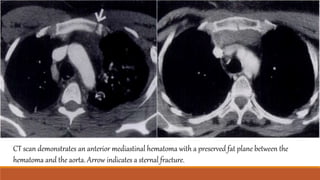

11. CT scan demonstrates an anterior mediastinal hematoma with a preserved fat plane between the
hematoma and the aorta. Arrow indicates a sternal fracture.

12. MISCELLANOUS
Stress #- First and Second ribs
Cough #- 6th – 9th in the posterior axillary line{not seen
until callus formation}
Sternum # - CXR Lateral view (occasionally)
Thoracic Spine with Para spinal shadow – HEMATOMA
Clavicle # maybe associated with Subclavian/ brachial injury

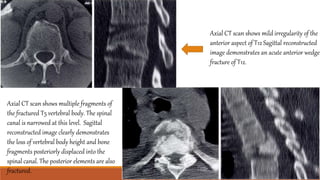

13. Axial CT scan shows mild irregularity of the
anterior aspect of T12 Sagittal reconstructed
image demonstrates an acute anterior wedge
fracture of T12.
Axial CT scan shows multiple fragments of
the fractured T5 vertebral body. The spinal
canal is narrowed at this level. Sagittal
reconstructed image clearly demonstrates
the loss of vertebral body height and bone
fragments posteriorly displaced into the
spinal canal. The posterior elements are also
fractured.

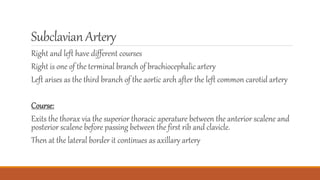

14. SubclavianArtery
Right and left have different courses
Right is one of the terminal branch of brachiocephalic artery
Left arises as the third branch of the aortic arch after the left common carotid artery
Course:
Exits the thorax via the superior thoracic aperature between the anterior scalene and
posterior scalene before passing between the first rib and clavicle.
Then at the lateral border it continues as axillary artery

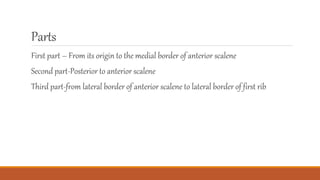

15. Parts
First part – From its origin to the medial border of anterior scalene
Second part-Posterior to anterior scalene
Third part-from lateral border of anterior scalene to lateral border of first rib

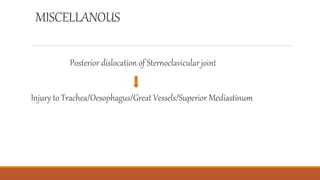

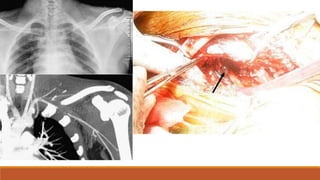

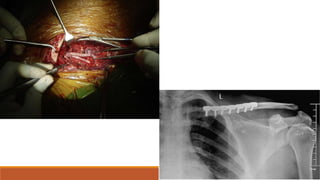

18. MISCELLANOUS

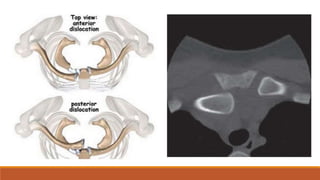

Posterior dislocation of Sternoclavicular joint
Injury to Trachea/Oesophagus/Great Vessels/Superior Mediastinum

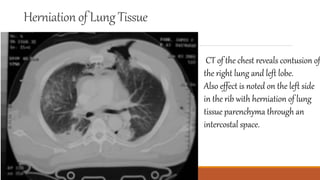

20. Herniation of Lung Tissue
CT of the chest reveals contusion of
the right lung and left lobe.
Also effect is noted on the left side
in the rib with herniation of lung
tissue parenchyma through an
intercostal space.

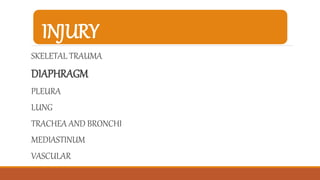

21. INJURY
SKELETAL TRAUMA
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

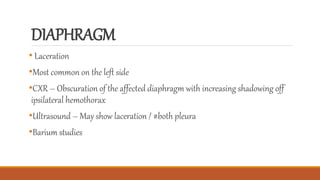

22. DIAPHRAGM
• Laceration
•Most common on the left side
•CXR – Obscuration of the affected diaphragm with increasing shadowing off
ipsilateral hemothorax
•Ultrasound – May show laceration / #both pleura
•Barium studies

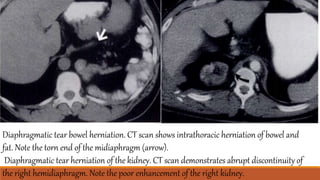

23. Diaphragmatic tear bowel herniation. CT scan shows intrathoracic herniation of bowel and
fat. Note the torn end of the midiaphragm (arrow).
Diaphragmatic tear herniation of the kidney. CT scan demonstrates abrupt discontinuity of
the right hemidiaphragm. Note the poor enhancement of the right kidney.

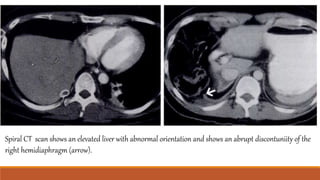

24. Spiral CT scan shows an elevated liver with abnormal orientation and shows an abrupt discontuniity of the
right hemidiaphragm (arrow).

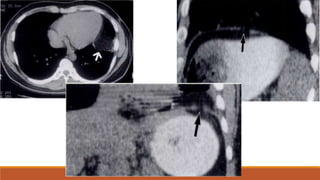

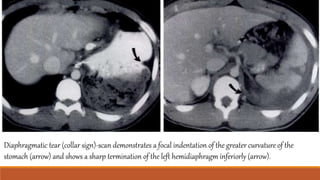

25. Diaphragmatic tear (collar sign)-scan demonstrates a focal indentation of the greater curvature of the
stomach (arrow) and shows a sharp termination of the left hemidiaphragm inferiorly (arrow).

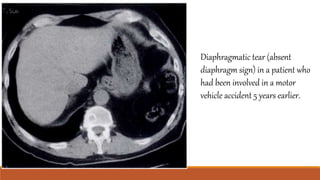

26. Diaphragmatic tear (absent
diaphragm sign) in a patient who
had been involved in a motor
vehicle accident 5 years earlier.

28. INJURY
SKELETAL TRAUMA
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

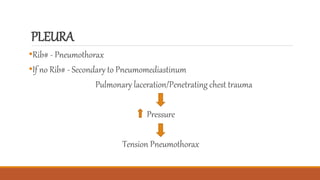

29. PLEURA
•Rib# - Pneumothorax
•If no Rib# - Secondary to Pneumomediastinum
Pulmonary laceration/Penetrating chest trauma
Pressure
Tension Pneumothorax

30. PLEURA
Hemothorax <With or without RIB #>
Mostly due to laceration of intercostal and pleural vessels

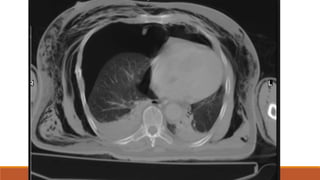

32. INJURY
SKELETAL TRAUMA
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

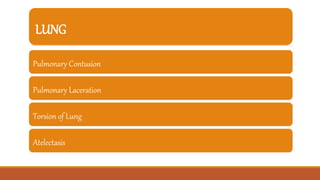

33. LUNG
Pulmonary Contusion
Pulmonary Laceration
Torsion of Lung
Atelectasis

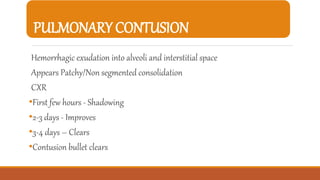

34. PULMONARY CONTUSION
Hemorrhagic exudation into alveoli and interstitial space
Appears Patchy/Non segmented consolidation
CXR
•First few hours - Shadowing
•2-3 days - Improves
•3-4 days – Clears
•Contusion bullet clears

35. PULMONARYCONTUSION
CONTUSION – focal parenchymal
injury consisting of edema and
interstitial and alveolar hemorrhage

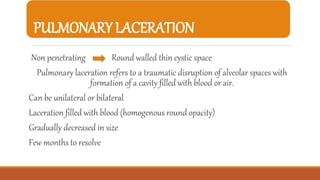

36. PULMONARY LACERATION
Non penetrating Round walled thin cystic space
Pulmonary laceration refers to a traumatic disruption of alveolar spaces with
formation of a cavity filled with blood or air.
Can be unilateral or bilateral
Laceration filled with blood (homogenous round opacity)
Gradually decreased in size
Few months to resolve

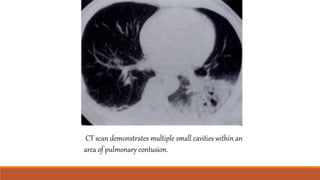

37. CT scan demonstrates multiple small cavities within an
area of pulmonary contusion.

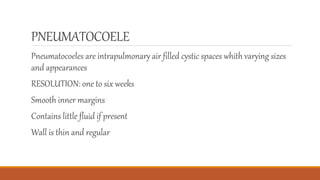

38. PNEUMATOCOELE
Pneumatocoeles are intrapulmonary air filled cystic spaces whith varying sizes
and appearances
RESOLUTION: one to six weeks
Smooth inner margins
Contains little fluid if present
Wall is thin and regular

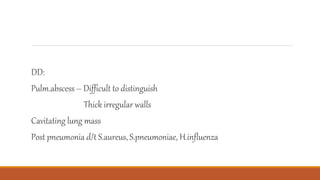

39. DD:
Pulm.abscess – Difficult to distinguish
Thick irregular walls
Cavitating lung mass
Post pneumonia d/t S.aureus, S.pneumoniae, H.influenza

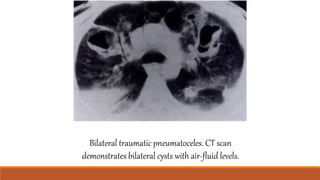

40. Bilateral traumatic pneumatoceles. CT scan
demonstrates bilateral cysts with air-fluid levels.

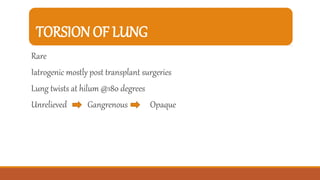

41. TORSION OF LUNG
Rare
Iatrogenic mostly post transplant surgeries
Lung twists at hilum @180 degrees
Unrelieved Gangrenous Opaque

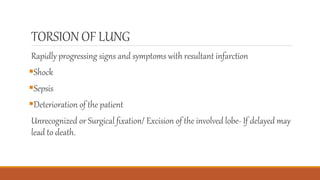

42. TORSION OF LUNG
Rapidly progressing signs and symptoms with resultant infarction
Shock
Sepsis
Deterioration of the patient
Unrecognized or Surgical fixation/ Excision of the involved lobe- If delayed may
lead to death.

43. TORSION OF LUNG
The degree of rotation in pulmonary torsion is generally 180°, although on
occasion, 90°or 360° torsion has been recorded.
Torsion of hilar structures and pulmonary veins leads to impaired circulation
with reflux into the venous pathways, resulting in interstitial edema and
alveolar exudation
Mostly happens when the anchorage is improper

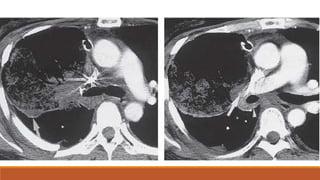

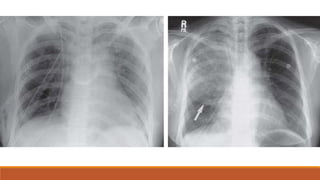

46. shows a torsed pulmonary artery and venous congestion

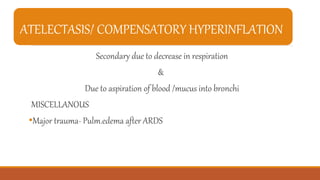

47. ATELECTASIS/ COMPENSATORY HYPERINFLATION
Secondary due to decrease in respiration
&
Due to aspiration of blood /mucus into bronchi
MISCELLANOUS
•Major trauma- Pulm.edema after ARDS

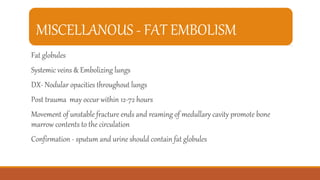

49. MISCELLANOUS - FAT EMBOLISM
Fat globules
Systemic veins & Embolizing lungs
DX- Nodular opacities throughout lungs
Post trauma may occur within 12-72 hours
Movement of unstable fracture ends and reaming of medullary cavity promote bone
marrow contents to the circulation
Confirmation - sputum and urine should contain fat globules

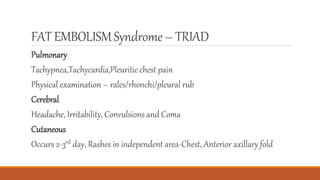

50. FAT EMBOLISMSyndrome– TRIAD
Pulmonary
Tachypnea,Tachycardia,Pleuritic chest pain
Physical examination – rales/rhonchi/pleural rub
Cerebral
Headache, Irritability, Convulsions and Coma
Cutaneous
Occurs 2-3rd day, Rashes in independent area-Chest, Anterior axillary fold

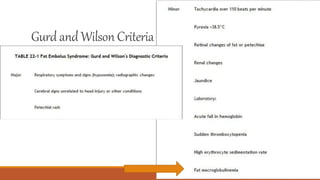

51. Gurd and Wilson Criteria

52. FAT Embolism

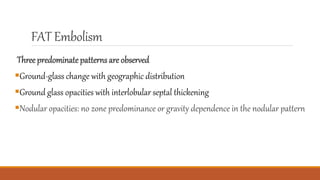

Three predominatepatterns are observed
Ground-glass change with geographic distribution
Ground glass opacities with interlobular septal thickening
Nodular opacities: no zone predominance or gravity dependence in the nodular pattern

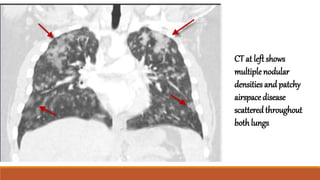

53. CT at left shows
multiplenodular
densities and patchy
airspace disease
scatteredthroughout
both lungs

54. HRCT scan obtained at the lower lung
zones reveals a predominantly peripheral
distribution of ground-glass opacities
associated with smooth and nodular septal
thickening.
HRCT obtained at a lower level shows
relative sparing of some secondary lobules

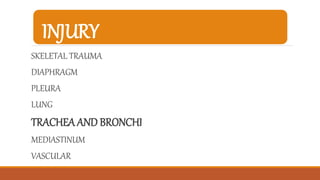

55. INJURY
SKELETAL TRAUMA
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

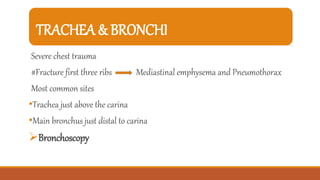

56. TRACHEA & BRONCHI
Severe chest trauma
#Fracture first three ribs Mediastinal emphysema and Pneumothorax
Most common sites
•Trachea just above the carina
•Main bronchus just distal to carina
Bronchoscopy

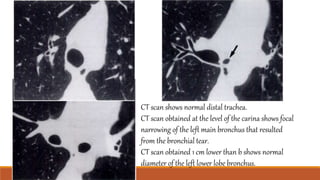

57. CT scan shows normal distal trachea.
CT scan obtained at the level of the carina shows focal
narrowing of the left main bronchus that resulted
from the bronchial tear.
CT scan obtained 1 cm lower than b shows normal
diameter of the left lower lobe bronchus.

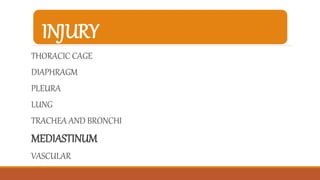

58. INJURY
THORACIC CAGE
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

59. PNEUMOMEDIATINUM
Pneumomediastinum is presence of extraluminal gas within the mediastinum
Continuous diaphragm sign
Ring around artery sign
Tubular artery sign
Double bronchial sign

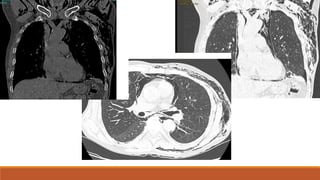

61. Ring aroundarterysign – airsurroundingthe pulmonaryartery

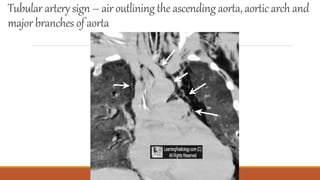

62. Tubulararterysign – airoutliningthe ascendingaorta,aorticarchand
majorbranches of aorta

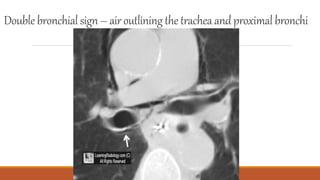

63. Double bronchialsign – airoutlining thetracheaandproximalbronchi

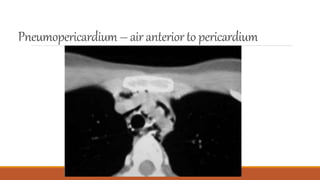

64. Pneumopericardium– air anteriorto pericardium

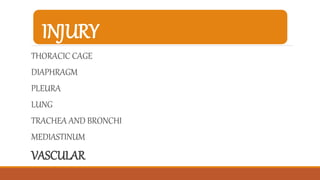

65. INJURY
THORACIC CAGE
DIAPHRAGM
PLEURA
LUNG
TRACHEA AND BRONCHI
MEDIASTINUM
VASCULAR

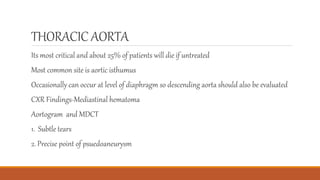

66. THORACIC AORTA
Its most critical and about 25% of patients will die if untreated
Most common site is aortic isthumus
Occasionally can occur at level of diaphragm so descending aorta should also be evaluated
CXR Findings-Mediastinal hematoma
Aortogram and MDCT
1. Subtle tears
2. Precise point of psuedoaneurysm

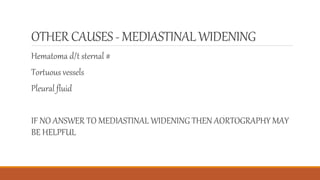

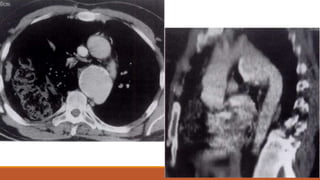

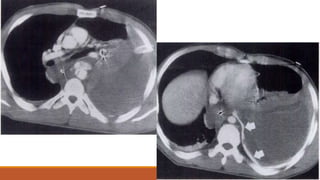

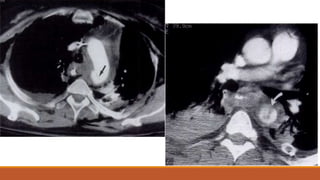

70. OTHER CAUSES- MEDIASTINALWIDENING
Hematoma d/t sternal #
Tortuous vessels
Pleural fluid
IF NO ANSWER TO MEDIASTINAL WIDENING THEN AORTOGRAPHY MAY
BE HELPFUL

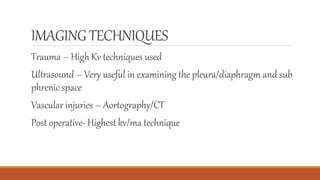

71. IMAGING TECHNIQUES
Trauma – High Kv techniques used
Ultrasound – Very useful in examining the pleura/diaphragm and sub
phrenic space
Vascular injuries – Aortography/CT
Post operative- Highest kv/ma technique

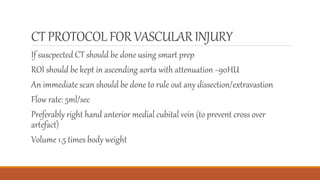

72. CT PROTOCOL FOR VASCULARINJURY
If suscpected CT should be done using smart prep
ROI should be kept in ascending aorta with attenuation ~90HU
An immediate scan should be done to rule out any dissection/extravastion
Flow rate: 5ml/sec
Preferably right hand anterior medial cubital vein (to prevent cross over
artefact)
Volume 1.5 times body weight

73. THANK YOU

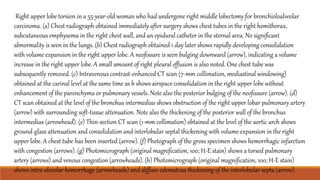

74. Right upper lobe torsion in a 55-year-old woman who had undergone right middle lobectomy for bronchioloalveolar
carcinoma. (a) Chest radiograph obtained immediately after surgery shows chest tubes in the right hemithorax,
subcutaneous emphysema in the right chest wall, and an epidural catheter in the sternal area. No significant
abnormality is seen in the lungs. (b) Chest radiograph obtained 1 day later shows rapidly developing consolidation
with volume expansion in the right upper lobe. A neofissure is seen bulging downward (arrow), indicating a volume
increase in the right upper lobe. A small amount of right pleural effusion is also noted. One chest tube was
subsequently removed. (c) Intravenous contrast-enhanced CT scan (7-mm collimation, mediastinal windowing)
obtained at the carinal level at the same time as b shows airspace consolidation in the right upper lobe without
enhancement of the parenchyma or pulmonary vessels. Note also the posterior bulging of the neofissure (arrow). (d)
CT scan obtained at the level of the bronchus intermedius shows obstruction of the right upper lobar pulmonary artery
(arrow) with surrounding soft-tissue attenuation. Note also the thickening of the posterior wall of the bronchus
intermedius (arrowhead). (e) Thin-section CT scan (1-mm collimation) obtained at the level of the aortic arch shows
ground-glass attenuation and consolidation and interlobular septal thickening with volume expansion in the right
upper lobe. A chest tube has been inserted (arrow). (f) Photograph of the gross specimen shows hemorrhagic infarction
with congestion (arrows). (g) Photomicrograph (original magnification, 100; H-E stain) shows a torsed pulmonary
artery (arrows) and venous congestion (arrowheads). (h) Photomicrograph (original magnification, 100; H-E stain)
shows intra-alveolar hemorrhage (arrowheads) and diffuse edematous thickening of the interlobular septa (arrow).
