C-SAW: A Framework for Graph Sampling and Random Walk on GPUs
- 1. C-SAW: A Framework for Graph Sampling and Random Walk on GPUs Santosh Pandey , Lingda Li , Adolfy Hoisie , Xiaoye S. Li , Hang Liu Source code: https://github.com/concept-inversion/C-SAW

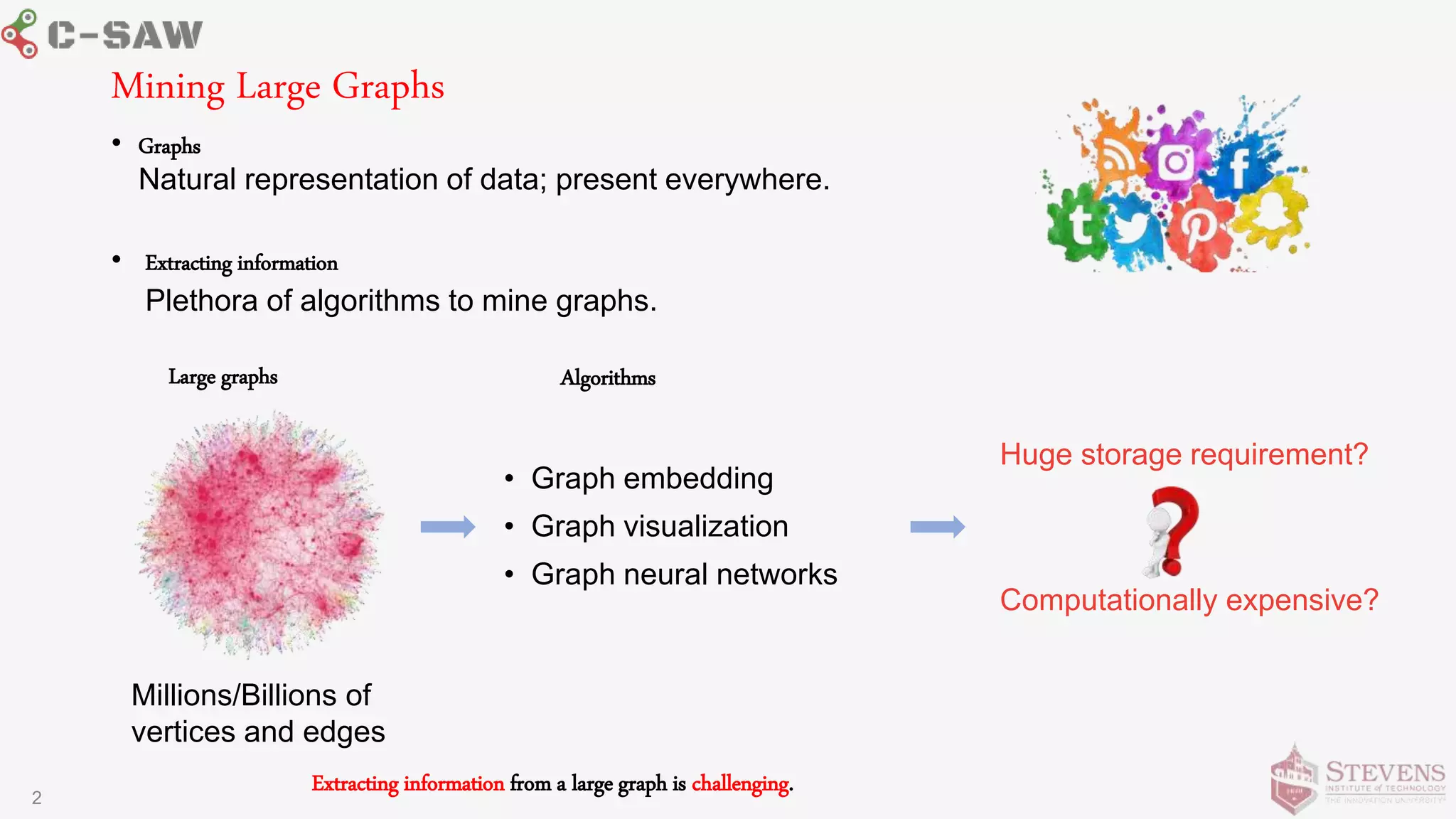

- 2. • Graphs Natural representation of data; present everywhere. 2 Mining Large Graphs • Graph embedding • Graph visualization • Graph neural networks Huge storage requirement? Computationally expensive? Extracting information from a large graph is challenging. Algorithms • Extracting information Plethora of algorithms to mine graphs. Large graphs Millions/Billions of vertices and edges
- 3. 3 Graph Sampling and Random Walk (RW) Reduces computational complexity and memory requirement. Reference: https://towardsdatascience.com/graph-embeddings-the-summary-cc6075aba007 1 Samples/RWs 2 Train model 3 Compute embeddings G (V, E)
- 4. 3 15 2 15 2 15 2 15 4 Graph Sampling and RW 4 5 7 8 9 3 2 1 6 0 10 11 12 Biased edge transition. 5 9 10 11 7 7 🎲 *Dice: Random number (0,1) 6 15
- 5. 5 Framework for Graph Sampling and RW • Allows implementation with few lines of codes. GraphSAINT KnightKing A distributed framework random walk. Sampler for generating graph embedding. Framework Sampling algorithms* RW algorithms GPU support KnightKing ❌ ✅ ❌ GraphSAINT ❌ ✅ ❌ C-SAW ✅ ✅ ✅ Limitations Our work Challenge 1: No generic framework * Traversal-based graph sampling algorithms.
- 6. 6 Sampling Example with C-SAW • Multi-dimensional RW • Randomly generated frontier set. • Sample a frontier vertex (Biased). • Sample a neighbor vertex (Unbiased). • Replace frontier with sampled neighbor. C-SAW API Challenge 1 NeighborPool FrontierPoolt 8 0 3 Frontiert 8 5 7 9 10 11 FrontierPoolt+1 0 3 7 VERTEXBIAS() EDGEBIAS () UPDATE () 7 Sampled edges 8 7 Almost all graph sampling/RW algorithms can be defined with similar flow. But have different 1) bias and 2) method to update frontier set.
- 7. 7 C-SAW Framework Simple and Expressive; Support existing/emerging algorithms. Hides complex implementation from users. VERTEXBIAS ( ) EDGEBIAS ( ) UPDATE ( ) (a) User programming interface Challenge 1 (b) MAIN function Optimized for GPU;
- 8. 8 Sampling More Than 1 Neighbors • Objective: Sample 2 (out of 5) neighbors of red vertex (8) with a bias. Independent and Concurrent. Fast sampling. But ??? Thread 1 and 2 sampled same vertex (7). Selection Collision 4 5 7 8 9 3 2 1 6 0 10 11 12 7 Challenge 2 Thread1 Thread2 🎲 🎲
- 9. 9 Solutions for Selection Collision 1. Updated sampling 4 5 7 8 9 3 2 1 6 0 10 11 12 3 15 6 15 2 15 2 15 2 15 3 9 2 9 2 9 2 9 7 🎲 11 Costly update 4 5 7 8 9 3 2 1 6 0 10 11 12 3 15 6 15 2 15 2 15 2 15 2. Repeated sampling High repetition 7 🎲 🎲 🎲 10 4 5 7 8 9 3 2 1 6 0 10 11 12 3 15 6 15 2 15 2 15 2 15 Proposed: Bipartite region search (BRS) 7 🎲 Update random number to jump from 7. Repeat sampling in new region. Reduces repetition Cheap update 10 Challenge 2 *More details on paper. 🎲 🎲 🎲
- 10. 10 Sampling Large Graph GPUs Memory RTX 2080 Ti 11 GB P100 16 GB V100 16/32 GB Graphs Graph Size (CSR) Friendster 29 GB Twitter 22 GB clueweb12 162 GB Uk-2014 180 GB • GPU memory • Graph Size Limited memory Larger graph Solution Out-of-memory sampling with 1D partition. Observation: Entire graph not required. Challenge 3
- 11. GP U CPU Frontier = {0, 2, 8} 11 Out-of-memory Sampling P1 P3 Transfer partition 2 Workload balancing Queue size 3 2 0 1 #active frontier vertices P 1 P 2 P 3 Workload-aware scheduling 1 ɸ ɸ 7, 5, 4 Frontier queues (Kernel K1 exits) 4 P 1 P 2 P 3 Frontier queues 0, 2 8 ɸ K2 K1 Frontier queues (Kernel K2 exits) 7 5 3 3 ɸ 7, 5 Challenge 3 Frontier: {0 , 2 , 8} 4 5 7 8 9 3 2 1 6 0 10 11 12 8 2 0 5 7 3 4 *Assume 2 partitions can fit in GPU. Repeat: until frontier is { ɸ } 1 2 3
- 12. 12 Experimental Setup • Comparison metrics: Sampled edges per second (SEPS). #𝐒𝐚𝐦𝐩𝐥𝐞𝐝𝐄𝐝𝐠𝐞𝐬 𝐓𝐢𝐦𝐞 • Test performed on Summit supercomputer of ORNL. • 6 NVIDIA Tesla 16GB V100 GPUs, dual-socket 22-core POWER9 CPUs. • 10 Datasets.
- 13. 13 Comparing with The State-of-the-Art • Length of the RW: 2000 • Number of sampling instances/walks: 4000 Frontier size for multi-dimensional RW: 2000 C-SAW vs KnightKing: Biased RW C-SAW vs GraphSAINT: Multi-dimensional RW Speedup: 10x (1 GPU) , 14.7x (6 GPUs) Speedup: 8.1x (1 GPU) , 11.5x (6 GPUs) 95 135 Million SEPS AM AS CP FS LJ OR RE TW WG YE 0 20 40 60 KnightKing C-SAW (1 GPU) C-SAW (6 GPUs) Million SEPS AM AS CP FS LJ OR RE TW WG YE 0 4 8 10 C-SAW (1 GPU) C-SAW (6 GPUs) GraphSAINT
- 14. 14 Scalability of C-SAW with Multiple GPUs • Neighbor sampling with 8000 instances 0 1 2 3 4 5 6 AM AS CP FR LJ OR RE TW WG YE Speedup 1 2 3 4 5 6 GPUs: 5.2x with 6 GPUs *More detailed evaluation on paper.
- 15. 15 Conclusion • First GPU based framework for graph sampling and RW. • Outperforms the sate-of-the-art works by 14.7x and 11.5x for KnightKing and GraphSAINT respectively. • Efficient out-of-memory sampling for handling larger graphs. • Future work: Adding support for more sampling algorithms. Improving the sampling techniques. Source code: https://github.com/concept-inversion/C-SAW
- 16. 16 Acknowledgement Thank you. Please cite this work if it was useful for you. Pandey, Santosh, et al. "C-SAW: A framework for graph sampling and random walk on GPUs." SC20: International Conference for High Performance Computing, Networking, Storage and Analysis. IEEE, 2020.
Editor's Notes
- Graph provides a natural representation for most data and are widely used. They are mostly used to represent social networks, web networks, knowledge graphs etc. (N) A plethora of algorithms exists for mining crucial information from graphs. Generating embeddings, visualization of graph data and graph neural networks are some of the example algorithms. (N) But Real world graphs are large and applying these algorithms directly over large graphs incurs huge storage requirement and computational cost. (N) Hence, extracting information from a large graph is challenging.
- Graph sampling and random walk algorithms are used to overcome the challenge. Instead of directly applying algorithms over a large graph G (N), we can generate samples or random walks. As samples and random walks are reduced representation of graph, the memory and computational requirement for processing them is also low (N). Multiple instances of samples or random walks can be used instead of whole graph allowing applications to train (N) and perform prediction or compute embeddings from large graphs.
- Let’s take a deeper look on how we generate samples or random walks. We start from a randomly selected source vertex 8, and randomly traverse immediate neighbors for certain steps (N). Here, vertex 5, 7, 9, 10 and 11 are the immediate neighbors of vertex 8. The transition probability for each vertex can be defined as degree of vertex upon sum of degree of all neighbor vertices. We can call this transition as biased edge transition. For vertex 8, the sum of degree of all neighbor vertices is 15. For example, as the degree of vertex 7 is 6, its transition probability is 6 upon 15. For random transition (N), we need to generate a random number between 0 and 1 (N) which is denoted by a dice roll here. Based upon the random number, (N) we select a neighbor. We repeat the process from vertex 7 for certain steps to generate samples or random walks.
- Moving on, let's have an overview of available framework for graph sampling and random walks. A framework allows us to implement sampling and random walk algorithms with just a few lines of code. Two related works propose a framework for sampling and random walk. (N) The first one is Graphsaint which focus is on defining sampler for generating graph embeddings (N). The second one is KnightKing which is a distributed framework for random walk algorithms (N). Moving towards the limitations, (N) both graphsaint and kinghtking lacks support for majority of traversal based graph sampling algorithm and also do not support GPUs. (N) This brings us towards our first challenge: building a generic framework supporting all algorithms. (N) Our proposed framework C-SAW is the first framework in our knowledge able to support both sampling and random walk algorithms with GPU support.
- Let’s see how C-SAW can be used to implement these algorithms with Multi-dimensional random walk as an example. (N) This random walk starts with a randomly generated frontier set. We have vertex 8, 0 and 3 in the frontier set. First, (N) we sample a frontier vertex with vertex degree as a bias. Here, the sampled frontier is vertex 8. Next, (N) we gather the neighbors of vertex 8 (N) and sample one neighbor with equal probability or unbiased selection. The sampled neighbor is 7 which is also added to the sampled edge list. Next, (N) we update the frontier with sampled neighbor by replacing vertex 8 in the frontierpool with vertex 7. (N) Almost all sampling and random walk algorithms can be defined with similar flow (N) but they differ in two things : first, how the bias is defined and second one is method to update the frontier set. (N) Now, let's see how we can use C-SAW APIs to implement these algorithms. (N) Our first API vertexbias defines how a frontier is sampled from frontierpool. (N) Second API Edgebias defines how a neighbor is sampled from neighborpool and (N) our third API update defines how a frontier is updated based upon the sampled neighbor.
- Looking at the overview of C-SAW framework, (N) C-SAW provides three simple and expressive APIs or user programming interface which can support existing algorithms and have flexibility to support emerging ones. (N) The main function uses these APIs for implementation and is optimized for GPU. (N) The users do not need to know about the complex implementation of C-SAW to define sampling and random walk algorithms. With this, we address our first challenge for a generic framework.
- Moving on to the next challenge: while most random walk algorithms sample only a single neighbor, some graph sampling algorithms like layer sampling or neighbor sampling need to sample more than one neighbor from a vertex with a bias. Here, in this figure, our objective is to sample 2 neighbors of vertex 8 based upon a bias. (N) For faster sampling, we use two different threads to sample each neighbor. Each thread samples independently and concurrently. (N) But with biased sampling, different threads could sample the same neighbor. Here, both threads try to sample same vertex 7 (N) which is not allowed if we do not want any duplicates. We term this duplication as selection collision which is another challenge not addressed by previous work.
- One solution for selection collision could be updated sampling. In this method, we update the transition probability after sampling each neighbor. (N) Here, we first sampled the neighbor 7 randomly. Then, (N) vertex 7 is removed from the neighbor list and the transition probability is updated for the remaining neighbors. (N) We perform sampling again with updated transition probability. This time we sampled neighbor 11. As the sampled vertices are removed, we avoid selection collision from happening. (N) But updating the transition probability after each sample is very costly. (N) Another solution for selection collision is repeated sampling. In this technique, we repeat the sampling until we acquire unique neighbors. (N) First, each thread samples neighbor independently. As there is a selection collision for a thread in vertex 7, (N) one thread repeats the sampling process. There is again a selection collision as vertex 7 is sampled again. (N) Finally, in another repetition, the thread is able to sample a unique neighbor This method also solves the problem of selection collision but (N) may require higher number of repetition. (N) We propose an efficient solution inspired from both updated sampling and repeated sampling which we term as bipartite region search or BRS. (N) If selection collision occurs during sampling, (N) we update the random number in such a way that we jump from vertex 7. The update corresponds to a virtual removal of vertex 7 from the neighbor list. (N) Then, we repeat sampling with updated random number in a new region. With this technique, (N) we reduce number of repetition for sampling and avoid costly update. With BRS, C-SAW solves challenge 2 more efficiently. (N) More details on how BRS works can be found on the paper.
- As discussed earlier, real world graphs are can be very large. (N) The average memory in recent GPUs in 16 GB with a model of V100 GPU having up to 32 GB. (N) The size of the graph in CSR format for graphs like Friendster and Twitter is 29 GB and 22 GB respectively which is larger than the average memory size of recent GPUs. Even with GPU memory size of 32 GB, graphs like clueweb12 and Uk-2014 have higher than 100 GB space requirement. (N) This brings us to a third challenge: handling graphs larger than memory size of GPU. (N) For sampling and random walk, we observe that entire graph is not required to be stored in the GPU memory. We only need the active frontiers and their immediate neighbors for each step of sampling. (N) This motivates our solution out-of-memory sampling with 1D partition.
- Let’s see an example of out-of-memory sampling with C-SAW. (N) Assume we are sampling randomly generated source vertices 0, 2 and 8. (N) We partition the graph by equally assigning the vertices to a different partition P1, p2 and P3. Each color represents a partition in the figure. (N) At first, we have frontiers in the CPU side. (N)Then, we determine the active frontier vertices for each partition. Here, P1, P2 and P3 have 2,0 and 1 active vertices respectively. Our first optimization, (N) workload-aware scheduling determines which partition to sample based upon the workload. The partition with higher workload is scheduled earlier as it helps to reduce the overall partition transfer to GPU. (N) Assuming we can only sample two partitions, we select P1 and P3. (N) Our next optimization, workload balancing, allocates computation resources based upon the workload. As the ration of workload is 2:1 for P1 and P3, the computational resource is also allocated in the ration of 2:1. (N) Then, the partitions are transferred to the GPU side for sampling. (N) Each partition have its own frontier queue in the GPU memory. (N) After first round of sampling, P1 have one frontier, P2 have two frontiers 7,5, and P3 have 0 frontiers. Each selected partitioned at an iteration continues sampling as long as they have some frontiers. As P3 do not have any active frontier, sampling terminates for P3. (N) In the next round, only P1 is sampled which results in addition of one frontier vertex in P2 and sampling terminates for P1. As sampling for both P1 and P3 have terminated, one iteration is completed with 3 vertices in frontier queue of P2. (N) For determining next partitions and resource allocation, the queue size for each partition is passed to CPU side. (N) We repeat this process until the frontier is empty. With this out-of-memory sampling, we address challenge 3.
- Moving on to the evaluations, we perform all tests on summit supercomputer from oak ridge national labo. (N) Each node is equipped with 6 V100 gpus with 16gb memory and dual-socket 22 core power9 CPUs. (N) We use 10 different datasets for evaluation. More details on graph datasets and size can be found on the paper. (N) For comparing our work with related works, we use sampled edges per second or SEPS in short. It is computed as total number of sampled edges upon total time for sampling.
- For comparing with state of the art methods, we compare our results with Knightking and graphsaint. For Knightking, we use biased ranom walk and for graphsaint we use multi-dimensional random walk. (N) The length of the random walk is kept 2000 and number of sampling instances or walks is 4000 for all comparisons. (N) The graph shows million sampled edges per second achieved for different datasets. Compared with knightking, we achieve 10 times and 14.7 times speedup with 1 GPU and 6 GPUs. (N) We achieve 8.1 times and 11.5 times speedup with 1 GPU and 6 GPU respectively. For multi-dimensional random walk, we use a frontier size of 2000.
- Next, we compare the scalability of C-SAW with multiple GPUs using neighbor sampling algorithm with 8000 instances of samples. (N) The graph shows the speedup achieved with different graph datasets. (N) We achieve upto 5.2x speedup at max with 6 GPUs. (N) More detailed evaluation of C-SAW along with profiling of each optimization can be found in the paper.
- In conclusion, C-SAW is first generic GPU based framework for both graph sampling random walk. C-SAW outperforms both state-of-the-art implementation 14.7 times and 11.5 times for Knightking and Graphsaint respectively. C-SAW provides efficient out-of-memory sampling for handling larger graphs. For future improvements, we leave adding support for more sampling algorithms and improving the existing sampling techniques. The source-code of C-SAW is open sourced in Github. Please checkout our paper if you find this work interesting.
- This work was supported by NSF and Department of energy. Thank you.
