Crushed by technical debt

Crushed by Technical Debt?
Disciplined Agile Strategies to Dig Your Way Out

The primary goal of this presentation is to help you
to understand the issues surrounding technical
debt. It overviews a collection of strategies for
avoiding, finding, fixing, and funding technical debt.
© 2015 Disciplined Agile Consortium 2

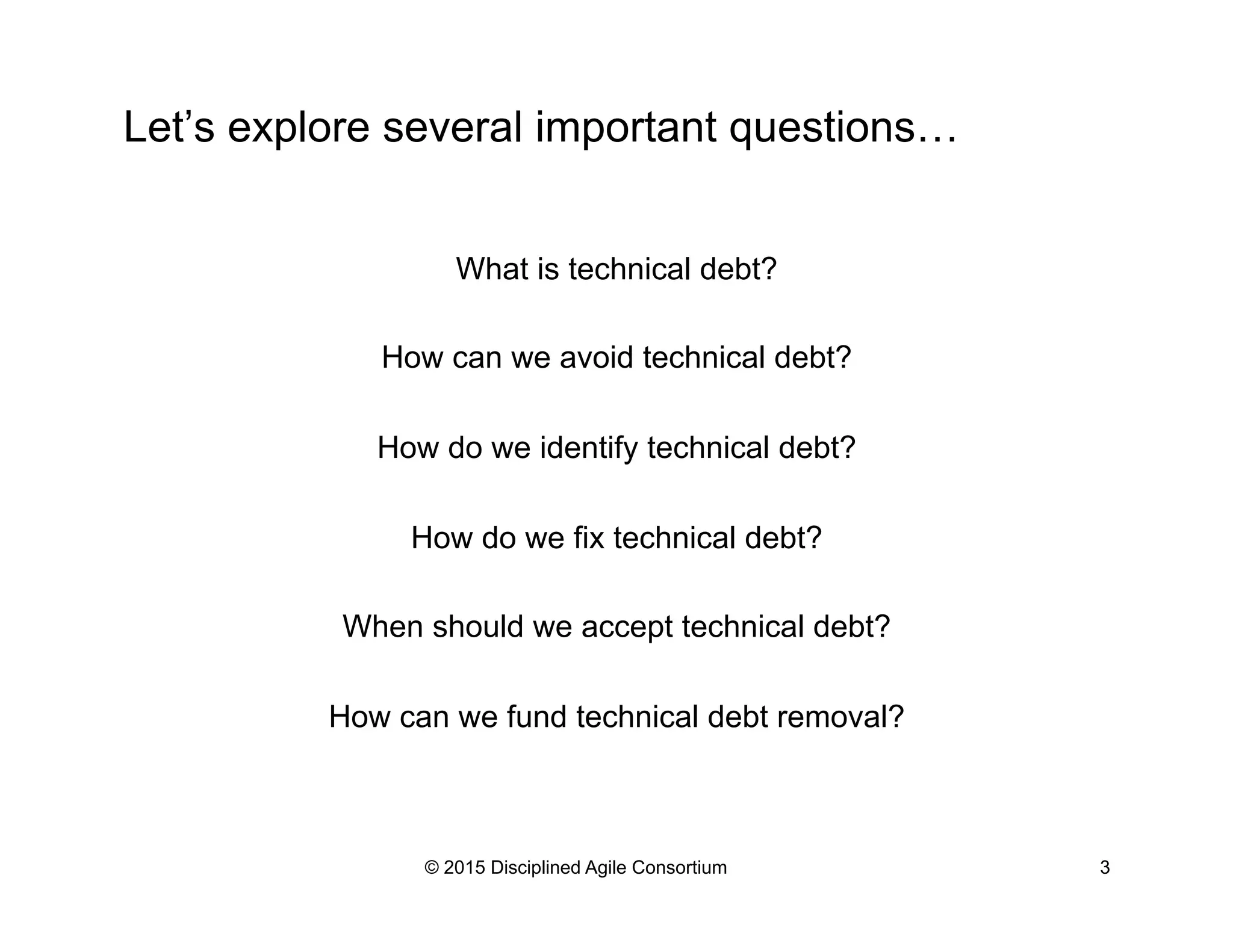

Let’s explore several important questions…
What is technical debt?
How can we avoid technical debt?
How do we identify technical debt?
How do we fix technical debt?
When should we accept technical debt?
How can we fund technical debt removal?

The Survey Results Shared in This Presentation
•  All surveys were performed in an
open manner
•  The questions as they were
asked, the source data, and a
summary slide deck can be
downloaded free of charge from
Ambysoft.com/surveys/

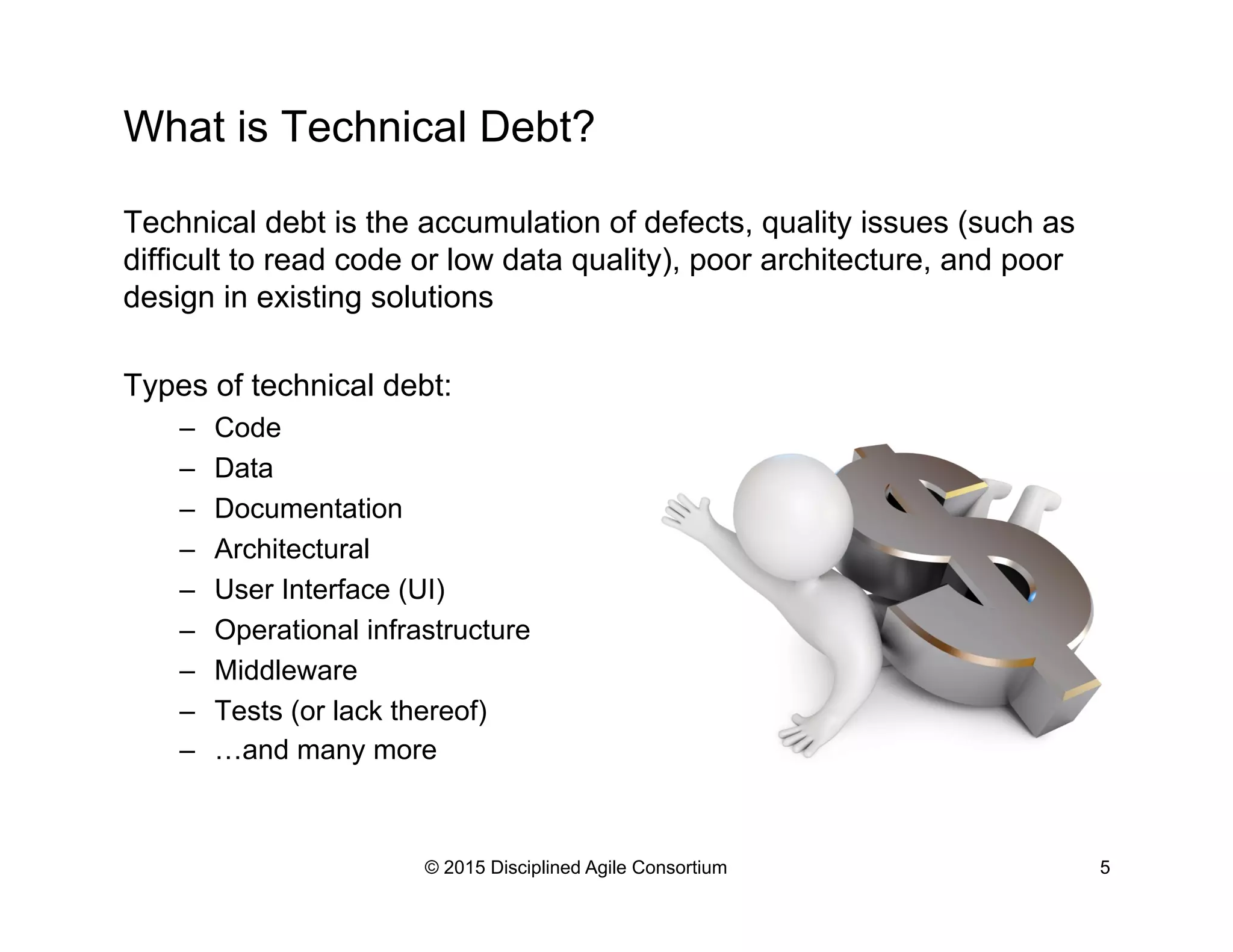

What is Technical Debt?
Technical debt is the accumulation of defects, quality issues (such as
difficult to read code or low data quality), poor architecture, and poor
design in existing solutions
Types of technical debt:
–  Code
–  Data
–  Documentation
–  Architectural
–  User Interface (UI)
–  Operational infrastructure
–  Middleware
–  Tests (or lack thereof)
–  …and many more

Why Does Technical Debt Occur?
•  Business pressures
•  Lack of process
•  Lack of alignment of implementation to requirements
•  Lack of architectural thinking
•  Lack of a regression test suite
•  Lack of documentation
•  Lack of collaborative development
•  Poorly coordinated parallel development
•  Delayed refactoring
•  Lack of alignment to standards
•  Lack of knowledge
•  Lack of effective governance
Source: Reworked from Wikipedia

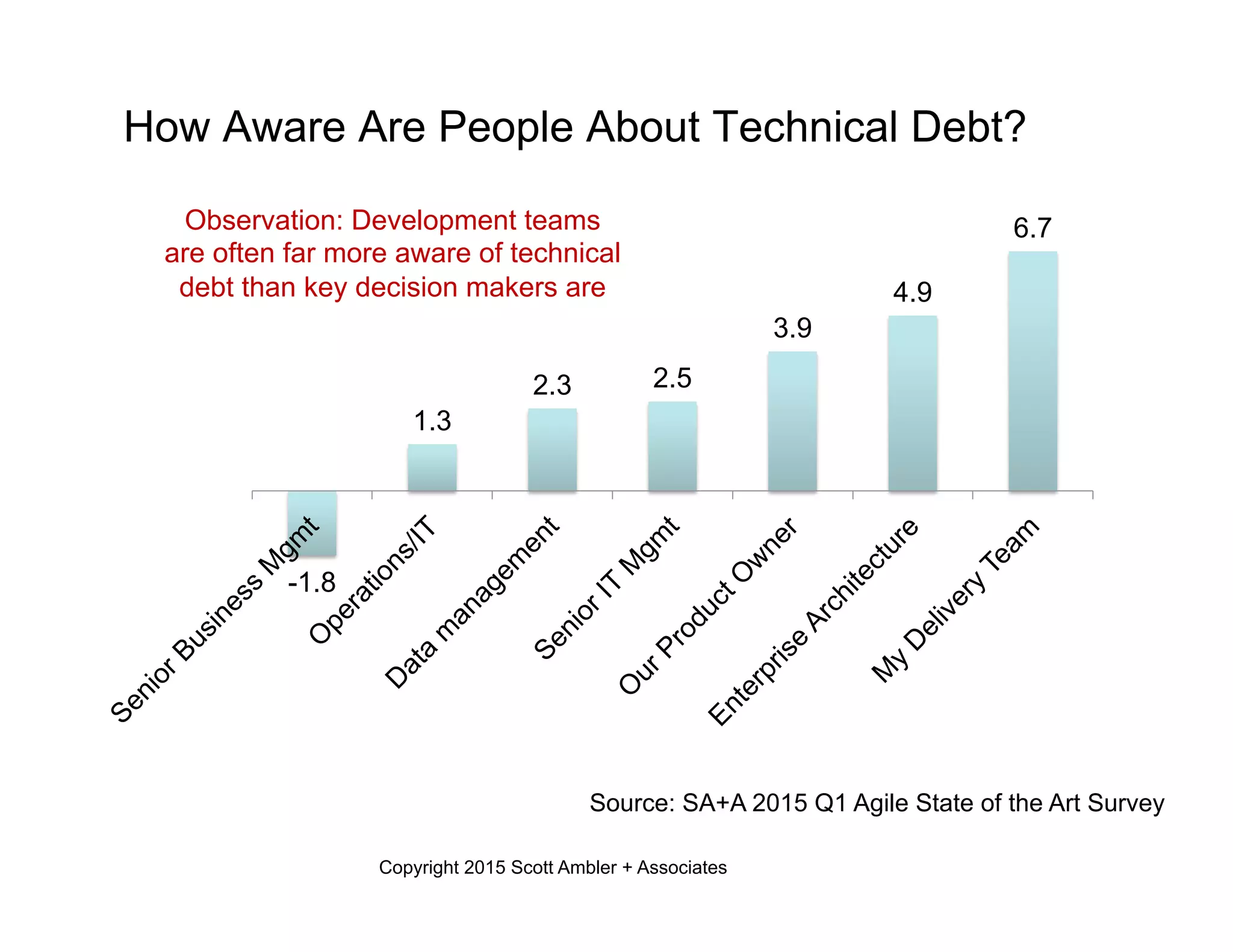

How Aware Are People About Technical Debt?
-1.8
1.3
2.3 2.5
3.9
4.9
6.7
Copyright 2015 Scott Ambler + Associates
Source: SA+A 2015 Q1 Agile State of the Art Survey
Observation: Development teams
are often far more aware of technical
debt than key decision makers are

Technical Debt Quadrant
Reckless Prudent
Deliberate
Inadvertent
“We don’t have time
for architecture”
“We don’t have time
for design”
“We must ship now
and deal with the
consequences later”
“What is layering?”
“What is data
normalization?”
“What is UX design?”
“Now we know how
we should
have done it”
Source: Martin Fowler

Disciplined Agile Delivery
(DAD) is a process decision
framework
The key characteristics of DAD:
–  People-first
–  Goal-driven
–  Hybrid agile
–  Learning-oriented
–  Full delivery lifecycle
–  Solution focused
–  Risk-value lifecycle
–  Enterprise aware
Claim: DAD motivates you
towards the prudent end of the
spectrum

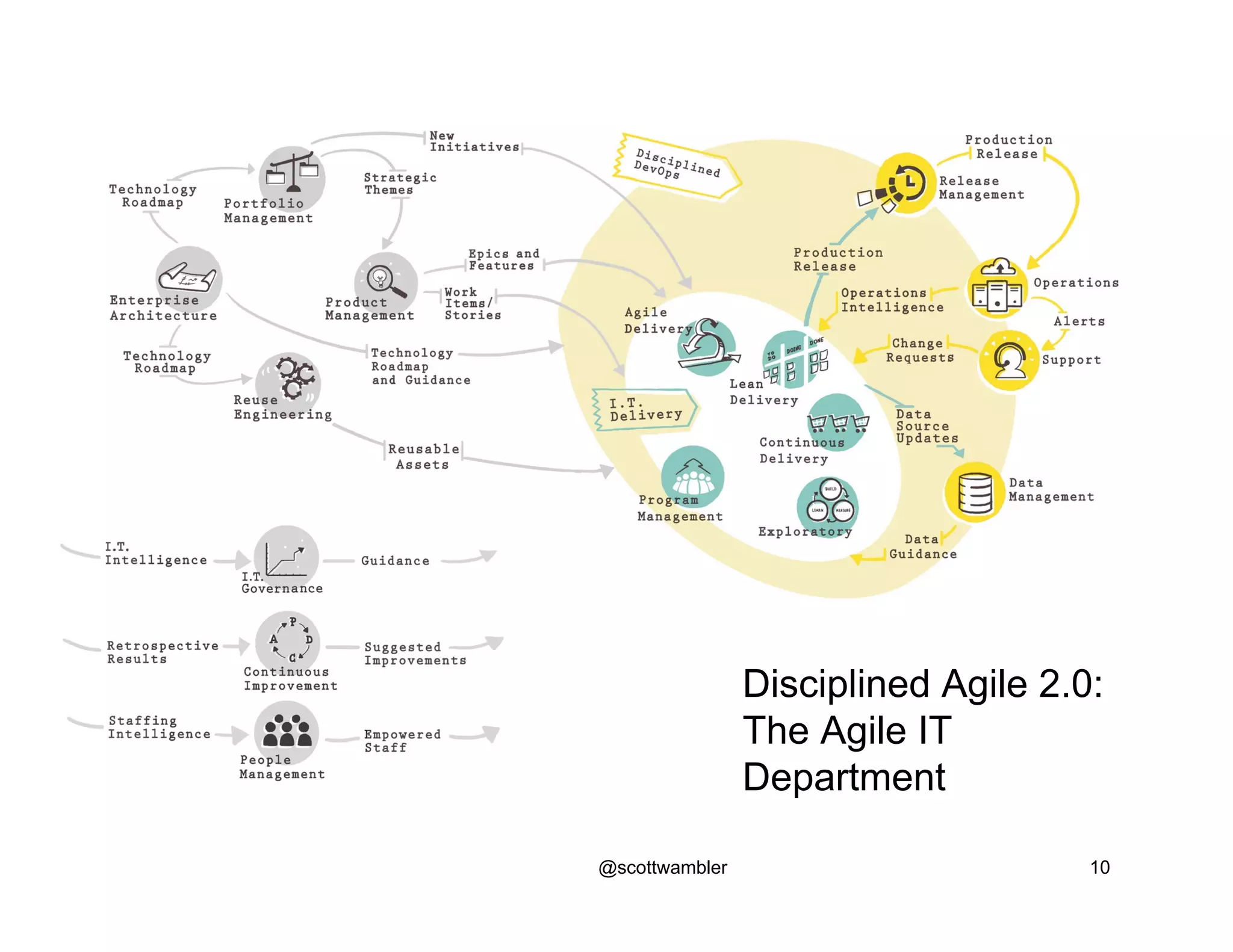

Disciplined Agile 2.0:
The Agile IT
Department
10@scottwambler

Avoiding Technical
Debt

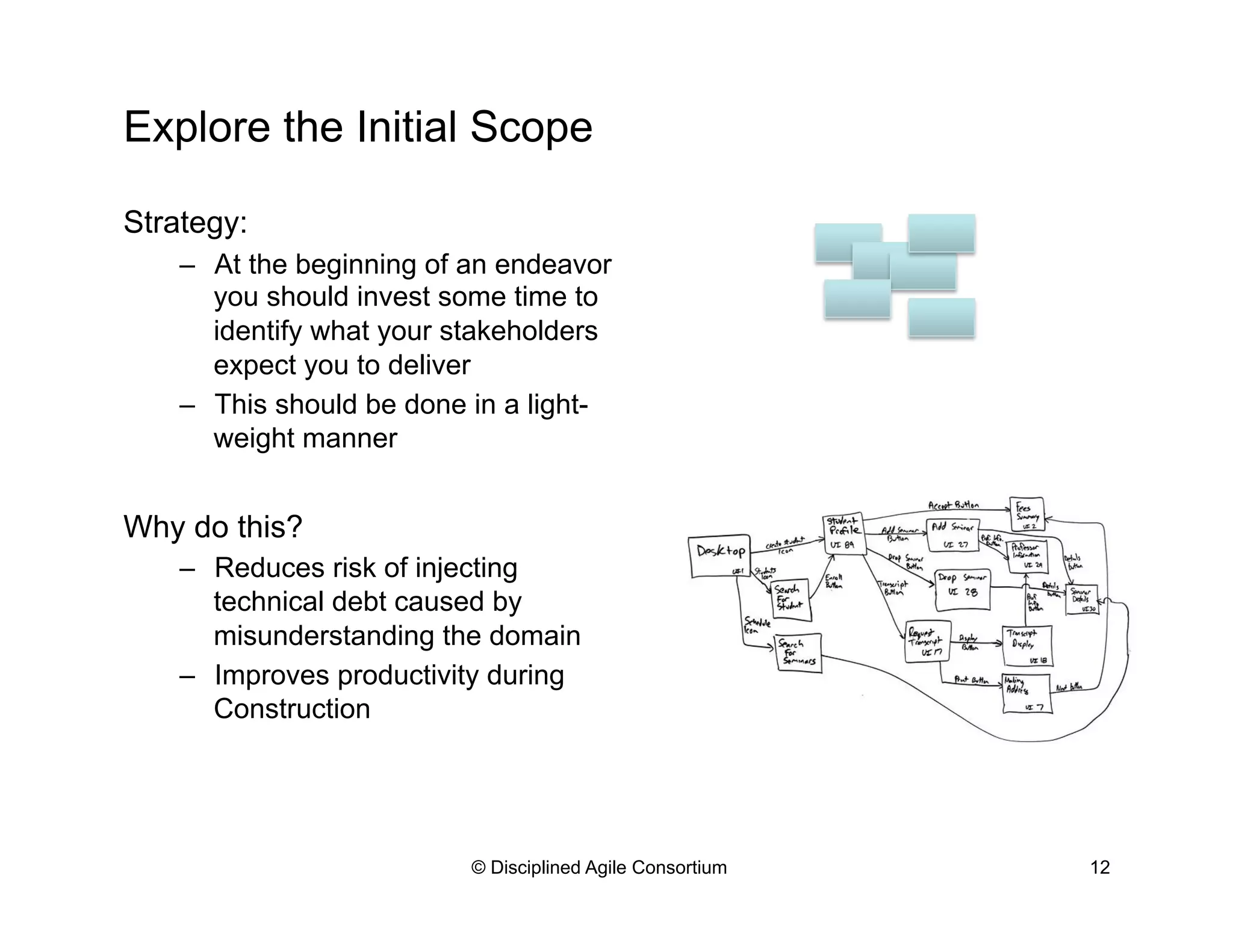

Explore the Initial Scope
Strategy:
–  At the beginning of an endeavor
you should invest some time to
identify what your stakeholders
expect you to deliver
–  This should be done in a light-
weight manner
Why do this?
–  Reduces risk of injecting
technical debt caused by
misunderstanding the domain
–  Improves productivity during
Construction
© Disciplined Agile Consortium 12

Build Quality In From the Beginning
© Scott Ambler + Associates 13
Strategy:
–  At the beginning of an
endeavor you should
identify the quality of
service (QoS)/non-
functional
requirements
Why do this?
–  Reduces risk of
injecting technical
debt caused by
missing key QoS
needs
Observation: Most architectural debt results
from missed QoS requirements

Goal: Explore Initial Scope
Observation: There’s
more to agile
requirements than
writing user stories

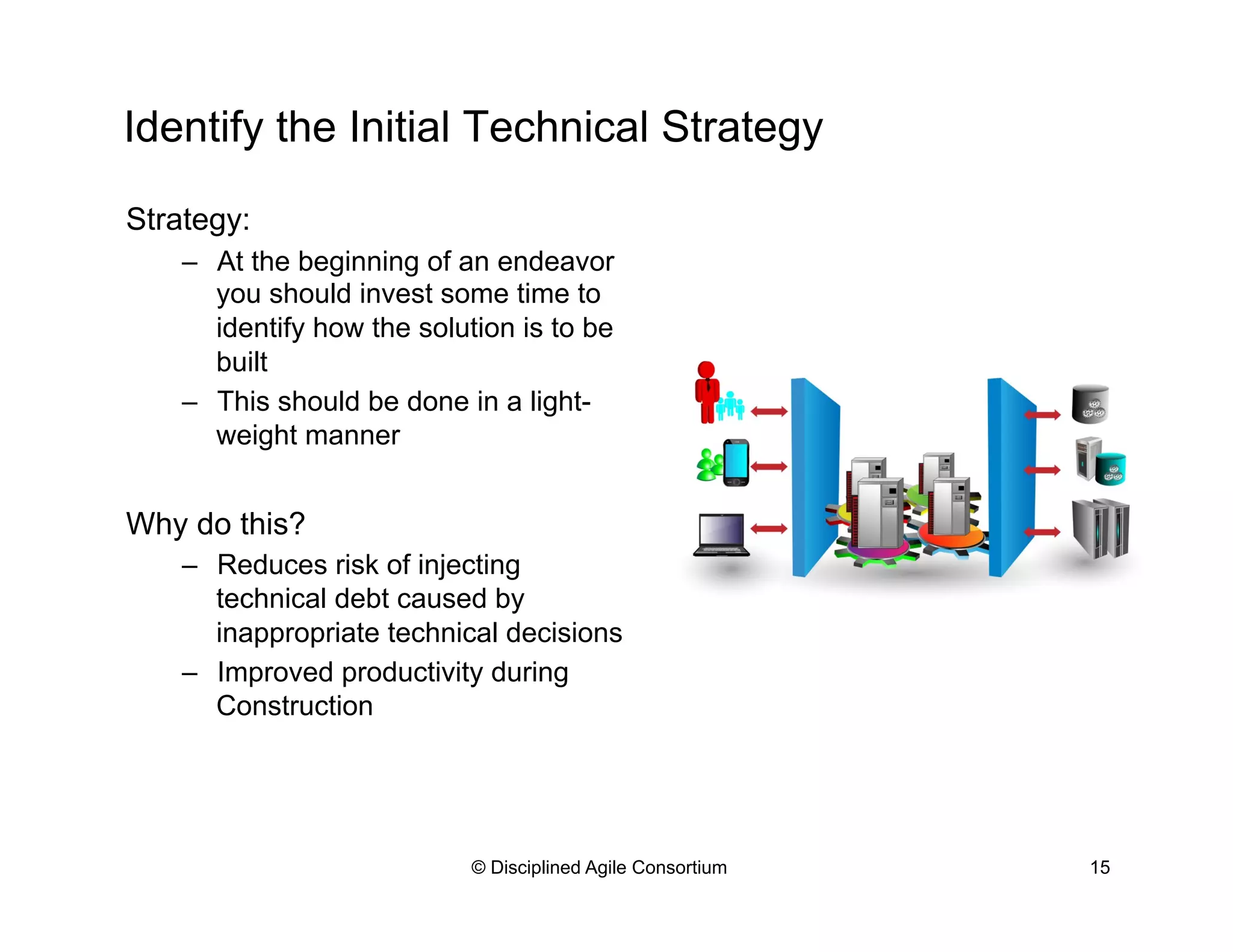

Identify the Initial Technical Strategy
Strategy:
–  At the beginning of an endeavor
you should invest some time to
identify how the solution is to be
built
–  This should be done in a light-
weight manner
Why do this?
–  Reduces risk of injecting
technical debt caused by
inappropriate technical decisions
–  Improved productivity during
Construction

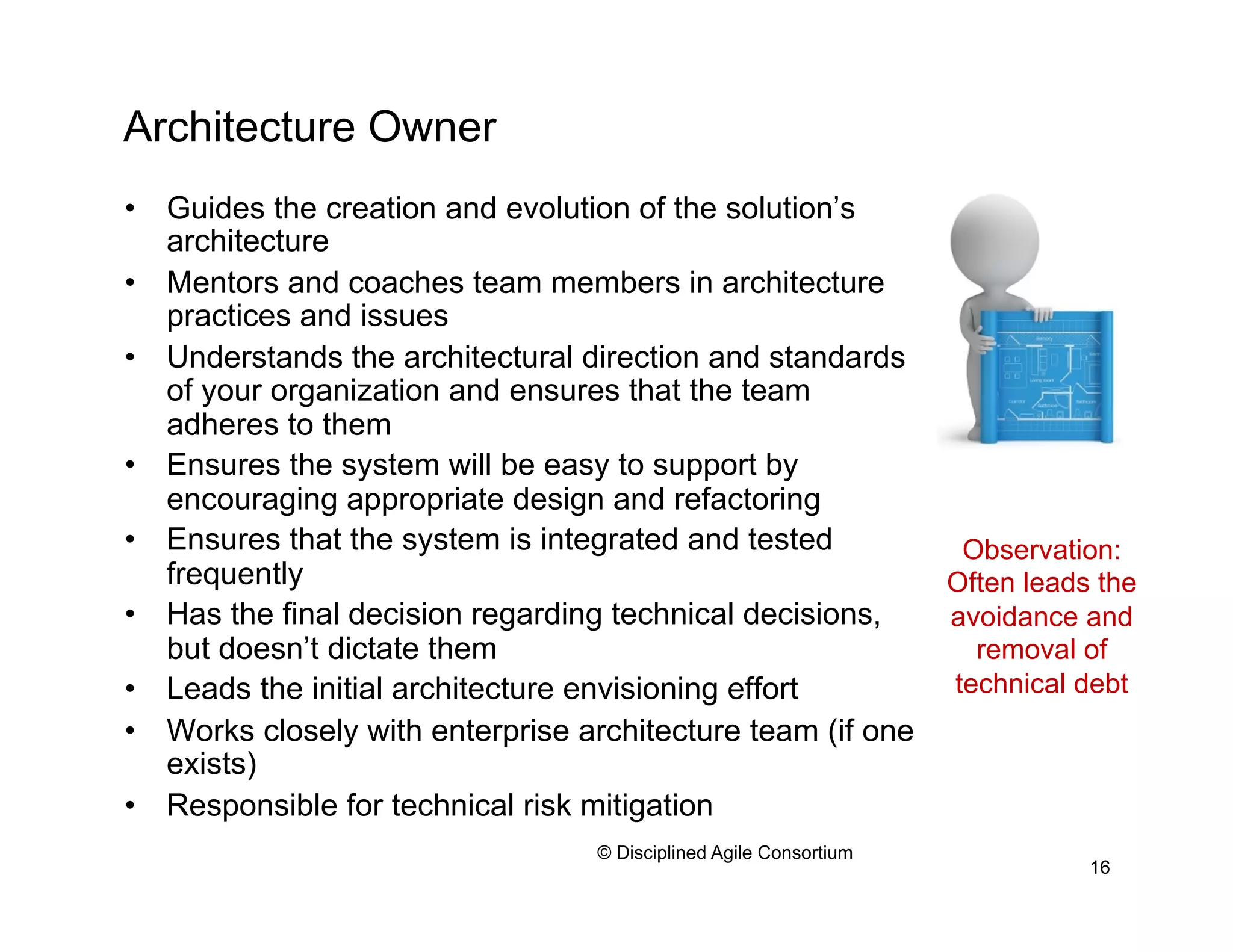

Architecture Owner
•  Guides the creation and evolution of the solution’s
architecture
•  Mentors and coaches team members in architecture
practices and issues
•  Understands the architectural direction and standards
of your organization and ensures that the team
adheres to them
•  Ensures the system will be easy to support by
encouraging appropriate design and refactoring
•  Ensures that the system is integrated and tested
frequently
•  Has the final decision regarding technical decisions,
but doesn’t dictate them
•  Leads the initial architecture envisioning effort
•  Works closely with enterprise architecture team (if one
exists)
•  Responsible for technical risk mitigation
16
© Disciplined Agile Consortium
Observation:
Often leads the
avoidance and
removal of
technical debt

Goal: Identify Initial Technical Strategy
Observation: A little bit
of agile architecture
modeling can avoid a
lot of future rework

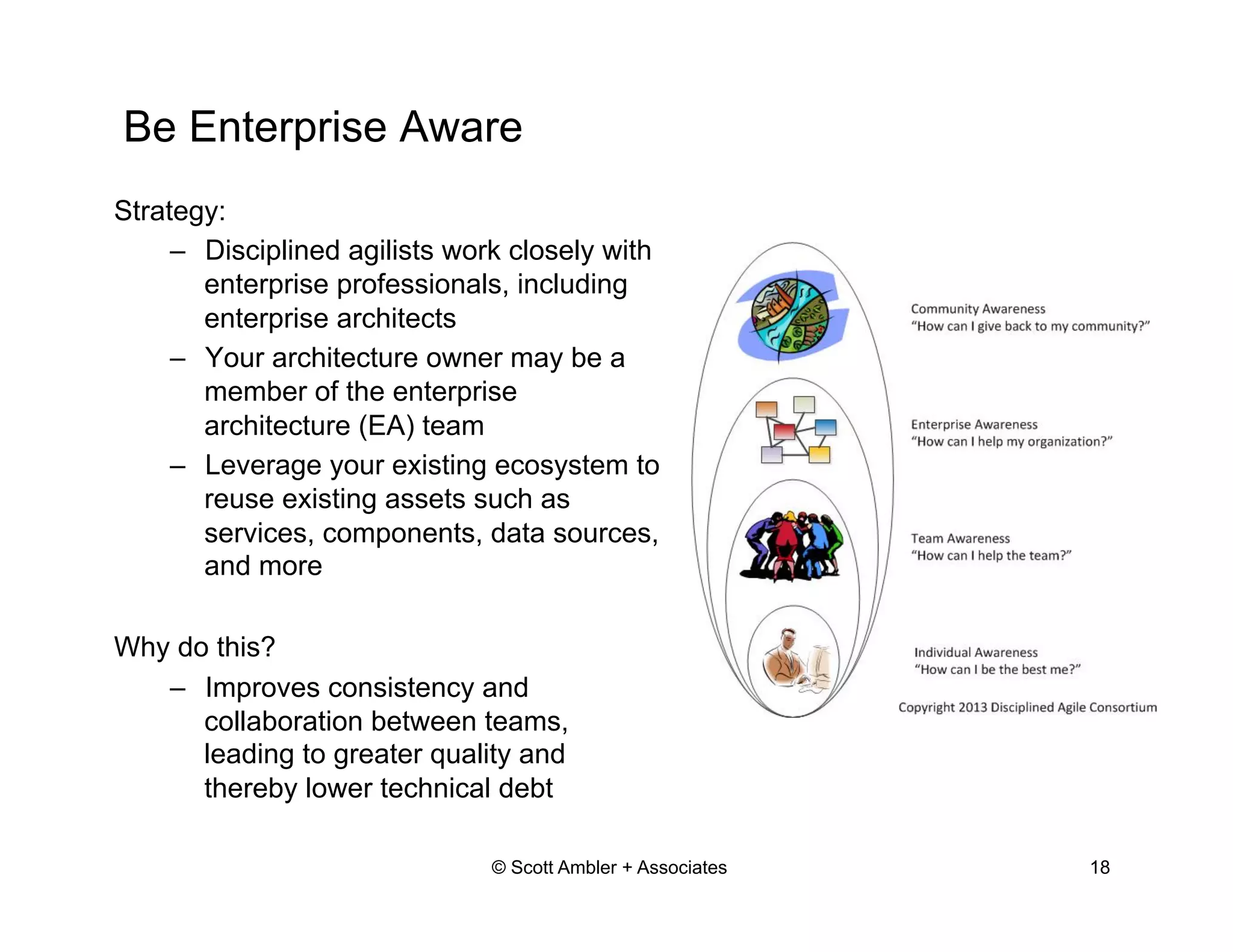

Be Enterprise Aware
Strategy:
–  Disciplined agilists work closely with
enterprise professionals, including
enterprise architects
–  Your architecture owner may be a
member of the enterprise
architecture (EA) team
–  Leverage your existing ecosystem to
reuse existing assets such as
services, components, data sources,
and more
Why do this?
–  Improves consistency and
collaboration between teams,
leading to greater quality and
thereby lower technical debt

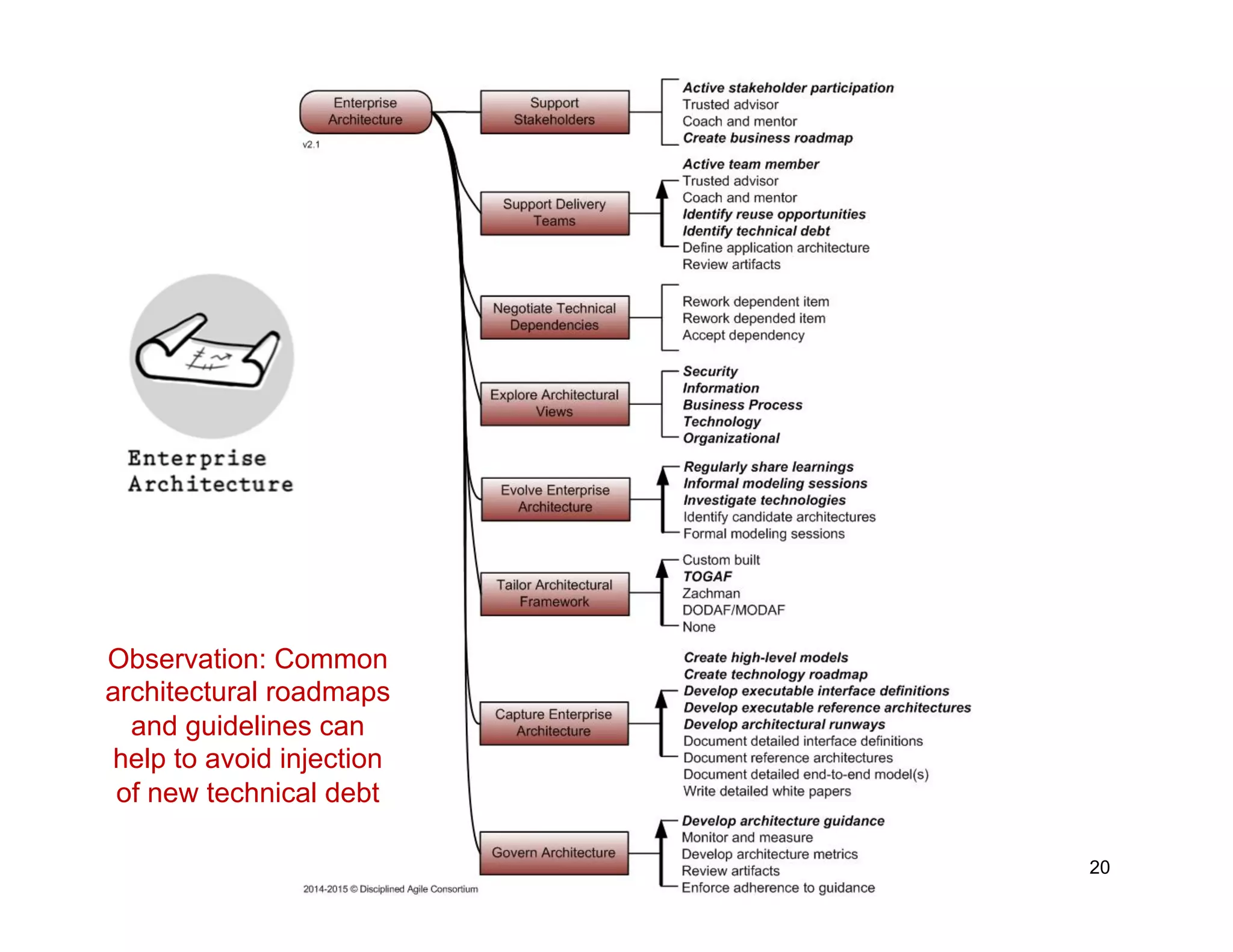

Enterprise Architecture Teams
Observation: A collaborative, light-
weight approach to EA increases the
chance that delivery teams will
understand and follow the roadmaps

Observation: Common
architectural roadmaps
and guidelines can
help to avoid injection
of new technical debt

Observation: The
greater the level of
reuse, the lower
overall technical debt

Following Organizational Guidelines
Strategy:
–  Teams adopt and follow organizational guidelines
Examples of guidelines:
–  Development, database, user interface, and coding guidelines
–  Testing guidelines (e.g. unit test coverage)
–  Governance guidelines
–  Architecture guidelines
–  Asset reuse guidelines
–  Documentation guidelines
Why do this?
–  Following guidelines can improve quality, consistency, supportability,
and consumability of solutions across the organization

Goal: Align with Enterprise Direction
Observation: A lot of technical debt is caused by
development teams that don’t understand the “big picture”

Technical Debt Avoidance Strategies
Detailed up-front architecture modeling
Team members trained in technical
debt
Team works with Enterprise Architects
Team includes Architecture Owner/
Agile Architect
Tech debt considered when designing
Lightweight up-front architecture
12%
16%
19%
39%
49%
53%

Finding Technical
Debt

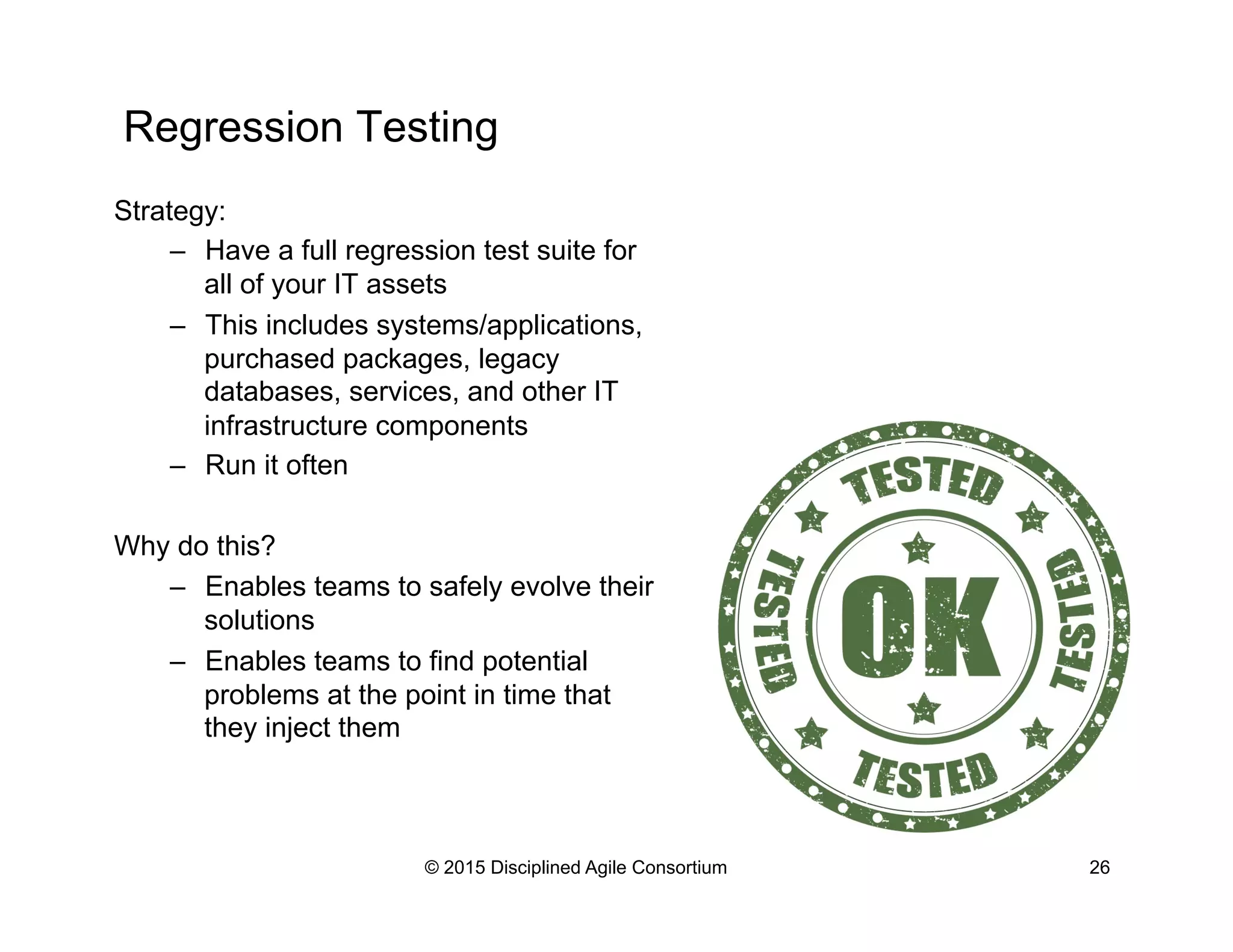

Regression Testing
Strategy:
–  Have a full regression test suite for
all of your IT assets
–  This includes systems/applications,
purchased packages, legacy
databases, services, and other IT
infrastructure components
–  Run it often
Why do this?
–  Enables teams to safely evolve their
solutions
–  Enables teams to find potential
problems at the point in time that
they inject them

Test-First Development (TFD)
Strategy:
–  Write a single test before you write
just enough production code to fulfill
that test
Why do this?
–  Forces you to think before you code
–  Results in development of higher-
quality assets
–  Reduces technical debt associated
with poor requirements or poor
design

Automated Tooling to Detect Technical Debt
Strategy
–  Include static and dynamic code analysis
in your continuous integration (CI) strategy
Many potential code analysis tools:
–  CAST
–  SonarQube
–  Checkstyle
–  FindBugs
–  Database schema tools such as TOAD are
emerging
Why do this?
–  Straightforward and easy way to identify
potential quality problems

Continuous Integration (CI)
29
© Disciplined Agile Consortium
Strategy
–  Automatically build, test, and
measure your work whenever you
check a file in
Why do this?
–  Enables previously mentioned
techniques, including regression
testing, TFD, and static/dynamic
analysis

Measure Technical Debt
Strategy
–  Make measurement of technical a common practice across
your organization
Subjective measures:
–  We know it when we see it
Potential objective measures:
–  Quality metrics from code analysis tools
–  Defect trends
–  Cycle time
–  Coverage testing
Why do this?
–  Provides insight into the extent of your technical debt
problem, thereby motivating the need to invest in its removal
Observation: What gets
measured gets improved

Technical Debt Identification Strategies
Explictly measure tech debt across IT
Continuous integration strategy
includes the database
Measure tech debt within teams
Continous integration includes code
analysis
We know technical debt when we see
it
8%
10%
20%
35%
61%
Observation: If you
can’t consistently
identify technical debt
then you can’t fix it

Fixing
Technical Debt

Refactoring
Strategy
–  Make simple changes to your design that improves the quality
without changing its semantics (in a practical manner)
Examples
–  Rename operation
–  Introduce variable
–  Rename column
–  Align entry fields
Why do this
–  Enables us to safely improve the quality of our work, including
legacy systems

Database Refactoring
Strategy
–  Fix data quality problems via
simple refactorings of your
database
Why do it?
–  Data is a corporate asset, or at
least it should be
–  Significant data technical debt
exists in your legacy data
sources
Challenge: Refactoring is still
considered a radical concept within
the data management community

Technical Debt Removal Strategies
Database refactoring
User interface refactoring
Code refactoring
38%
53%
90%

Accepting
Technical
Debt

Explicitly Accept Technical Debt
Strategy
–  Explicitly accept existing technical debt, or even accept
injection of new technical debt
–  This is a business decision that is the responsibility of the
Product Owner
–  The team, in particular your Architecture Owner, must
educate the Product Owner on the implications of accepting
technical debt
Why do this?
–  Sometimes it makes sense to accept technical debt in the
short term, particularly given schedule constraints
Architecture
Owner
Product
Owner
Recommendation: Document the reasons in your architecture
handbook as to why you accepted the technical debt

Challenges
•  Business doesn’t understand technical debt
•  Business wants new functionality
•  Time-to-market concerns are often allowed to
override long-term sustainability concerns
•  Acceptance of technical debt is typically the
result of short-term tactical thinking, not long-
term strategic thinking

Funding
Removal of
Technical
Debt

Explicitly Fund Removal of Technical Debt
Strategy
–  Choose a strategy to fund the removal of technical debt
Why do this?
–  It requires investment to remove technical debt
Option Advantages Disadvantages
Built-Into
Team
Budget
•  Easy to estimate costs •  Often insufficient
•  TD removal often dropped in
favor of new development
•  Seen as an overhead
Technical
Stories
•  Easy to estimate costs
•  Explicit funding strategy for
small-scale TD removal
•  Clear impact on team velocity
motivates deprioritization of
such stories
Projects •  Explicit funding strategy for
large-scale TD removal
•  Becomes a big ticket item in
your IT budget

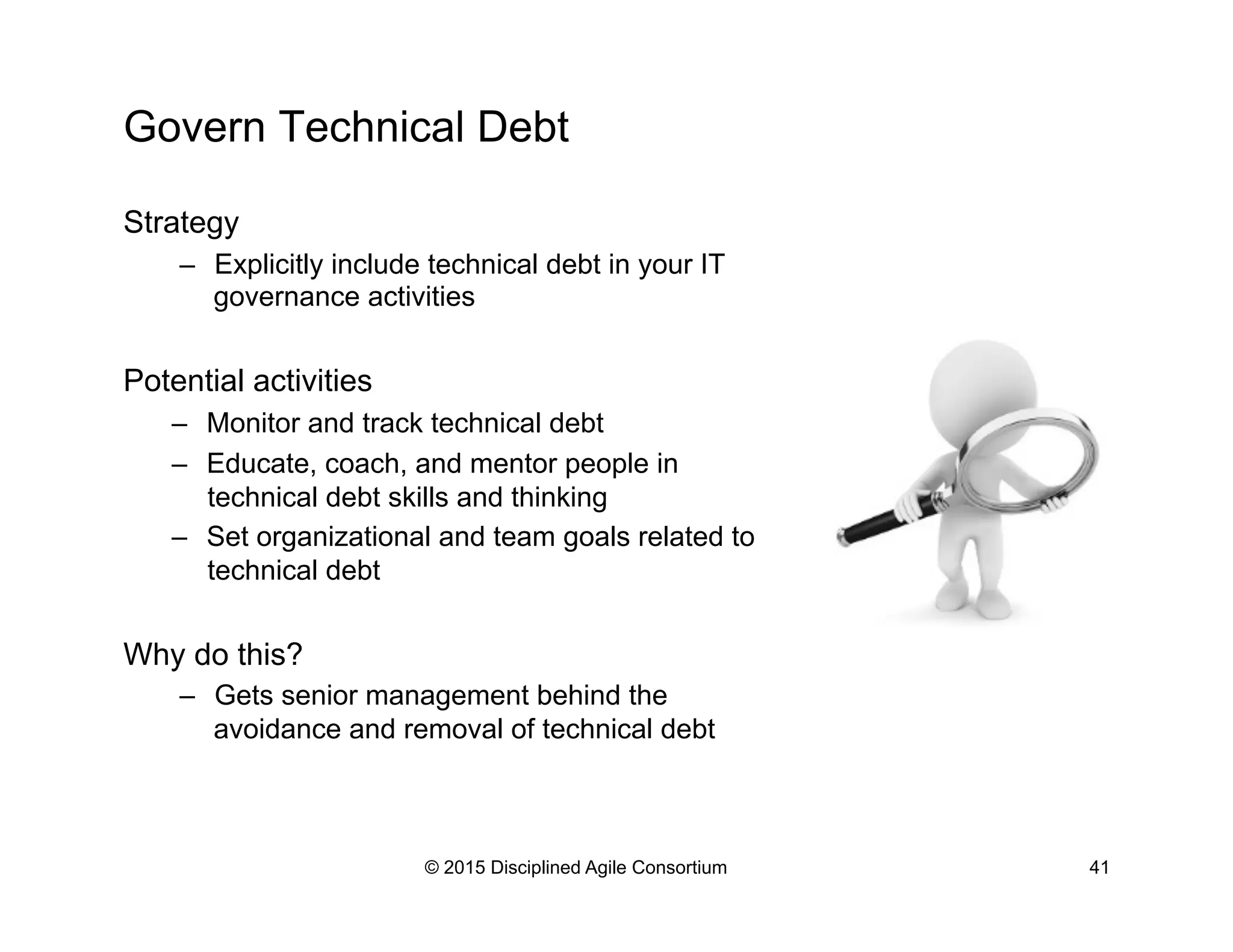

Govern Technical Debt
Strategy
–  Explicitly include technical debt in your IT
governance activities
Potential activities
–  Monitor and track technical debt
–  Educate, coach, and mentor people in
technical debt skills and thinking
–  Set organizational and team goals related to
technical debt
Why do this?
–  Gets senior management behind the
avoidance and removal of technical debt

Technical Debt Funding Strategies
Cost of addressing tech debt is tracked
Value of addressing tech debt is
tracked
Specific projects to pay down tech
debt
Paying down tech debt automatically
funded
Specific requirements to pay down
tech debt
5%
14%
23%
48%
49%

Technical Debt Requires a Culture Change
•  Make technical debt awareness part of your culture
•  Educate people in technical debt and the implications of it
•  Help people recognize the tradeoffs that they’re making
•  Communicate, communicate, communicate

You Can Address Technical Debt
•  This presentation shared a collection of
strategies to:
–  Avoid technical debt
–  Find and fix technical debt
–  Find and accept technical debt
–  Fund technical debt related efforts
Adage: The best time to plant a tree
was 20 years ago. The next best
time is today.

If You Don’t Address Technical Debt…

Thank you – Questions?
•  Scott Ambler + Associates
–  ScottAmbler.com
–  scott@scottambler.com
@scottwambler
•  Disciplined Agile Delivery: A Practitioner’s Guide, by Scott Ambler &
Mark Lines
•  Introduction to Disciplined Agile Delivery: A Small Team’s Journey, by
Mark Lines and Scott Ambler
•  DisciplinedAgileDelivery.com
•  DisciplinedAgileConsortium.org
•  DAD LinkedIn Discussion Group:
–  linkedin.com/groups/Disciplined-Agile-Delivery-4685263
47

Scott Ambler + Associates is the thought leader behind the Disciplined
Agile Delivery (DAD) framework and its application. We are a boutique
IT management consulting firm that advises organizations to be more
effective applying disciplined agile and lean processes within the
context of your business.
Our website is ScottAmbler.com
We can help

For the Certified Disciplined Agilists among us…
This webinar counts as one hour towards your education time
to maintain your certification
See DisciplinedAgileConsortium.org/certification for details

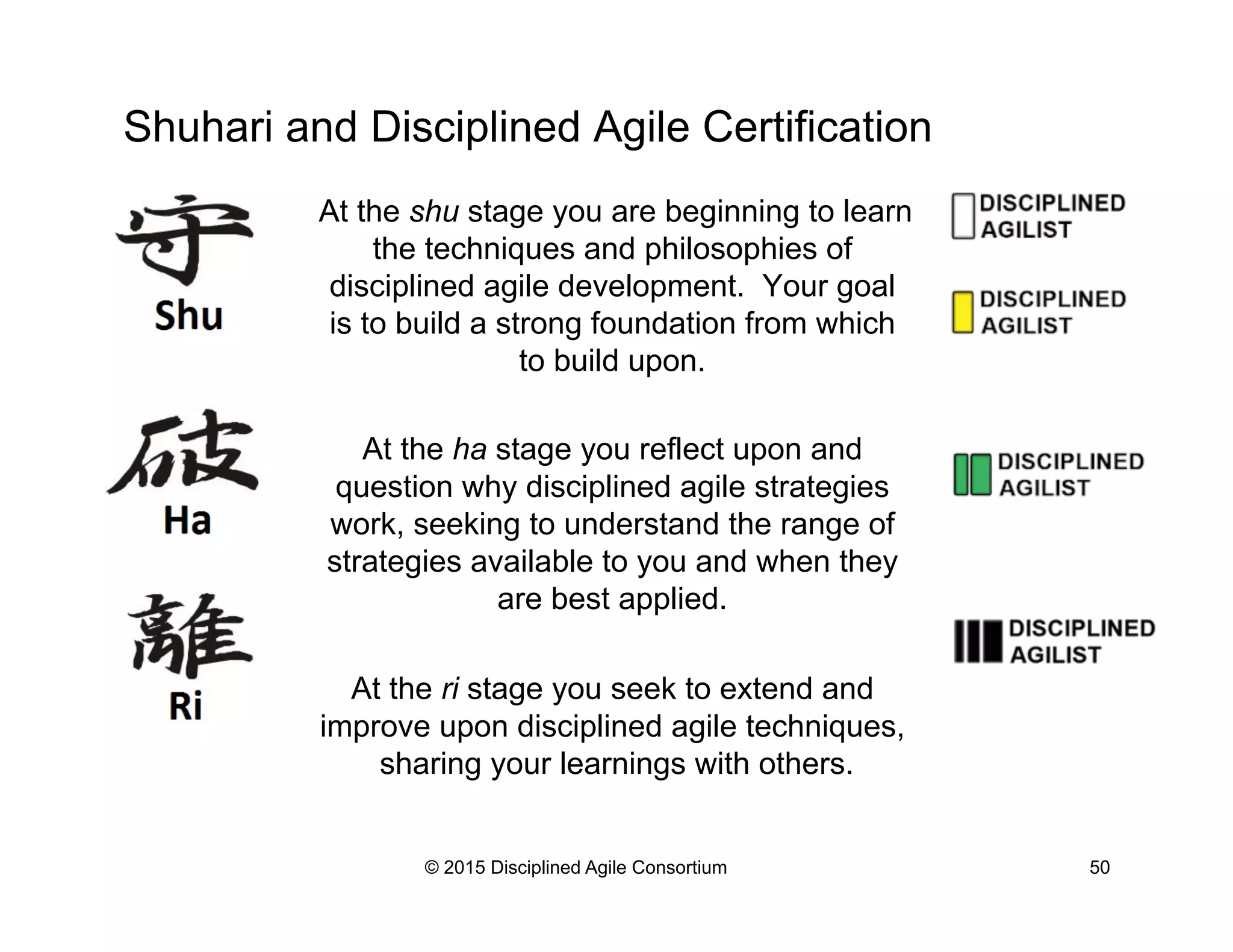

Shuhari and Disciplined Agile Certification
At the shu stage you are beginning to learn
the techniques and philosophies of
disciplined agile development. Your goal
is to build a strong foundation from which
to build upon.
At the ha stage you reflect upon and
question why disciplined agile strategies
work, seeking to understand the range of
strategies available to you and when they
are best applied.
At the ri stage you seek to extend and
improve upon disciplined agile techniques,
sharing your learnings with others.

Disciplined Agile Delivery (DAD)
Disciplined Agile Delivery:
The Foundation for Scaling Agile
© 2015 Disciplined Agile Consortium
Scrum LeanKanban
Unified Process Agile Modeling
And more…“Traditional”DevOps
Team Size
Geographic
Distribution
Compliance
Domain
Complexity
Technical
Complexity
Organizational
Distribution
Team Culture
Organizational
Culture
DAD leverages proven strategies from several sources,
providing a decision framework to guide your adoption and
tailoring of them in a context-driven manner.
51

Crushed by technical debt

More Related Content

What's hot

Viewers also liked

Similar to Crushed by technical debt

More from Scott W. Ambler

Recently uploaded

Crushed by technical debt
