1. Michael Beale
Autodesk Developer
Creating your Next VR Walkthrough
(with Cloud Rendered Stereo Panoramas)

2. “I have rendered lots of random panoramas …”
...“How can I connect them into a VR story ?”
aframe @michaelb

3. Architect
Firm
Example Scenario
Floorplan Pre-Viz
Panoramas
aframe @michaelb

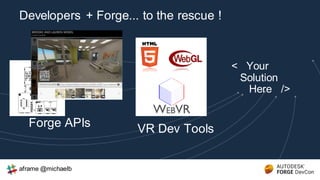

4. Forge APIs
Developers + Forge... to the rescue !

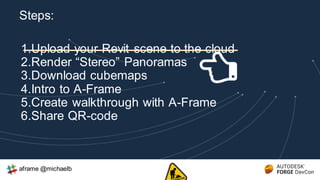

VR Dev Tools
< Your
Solution
Here />
aframe @michaelb

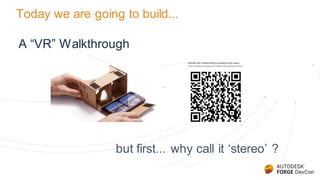

5. Today we are going to build...
A “VR” Walkthrough
but first... why call it ‘stereo’ ?

6. Panorama
vs

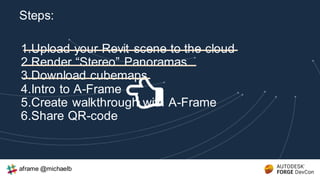

‘Stereo’ Panorama
aframe @michaelb

7. “Magic Eye”
© 2016 Autodesk
The difference between the pixels, gives the illusion of depth

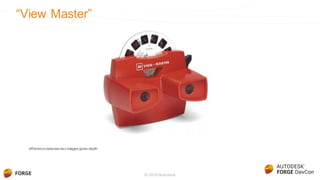

8. “View Master”
© 2016 Autodesk
difference between two images gives depth

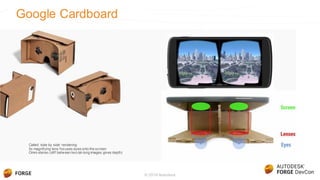

9. Google Cardboard
© 2016 Autodesk
Called ‘side by side’ rendering
5x magnifying lens focuses eyesonto the screen
Omni-stereo (diff between two lat-long images gives depth)

10. ? + ? = stereo pano
Architects share the ‘feeling of space’ ...
... Conveniently through your phone

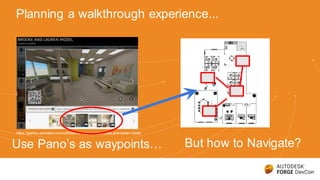

11. But how to Navigate?
Planning a walkthrough experience...
https://gallery.autodesk.com/a360rendering/projects/brooke-and-lauren-model
Use Pano’s as waypoints…

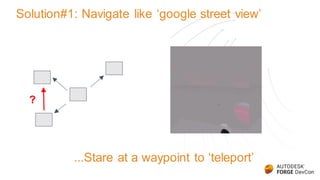

12. Solution#1: Navigate like ‘google street view’
?
...Stare at a waypoint to ‘teleport’

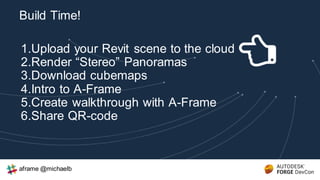

13. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Build Time!
aframe @michaelb

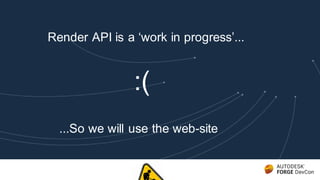

14. Render API is a ‘work in progress’...
...So we will use the web-site
:(

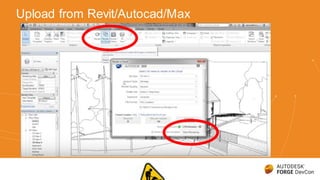

15. Upload from Revit/Autocad/Max

16. Login to A360 Rendering
https://rendering.360.autodesk.com/mygallery.aspx

17. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
aframe @michaelb

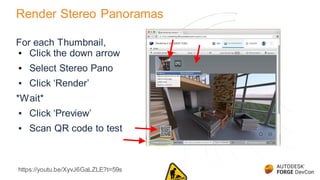

18. Render Stereo Panoramas
https://youtu.be/XyvJ6GaLZLE?t=59s
For each Thumbnail,
▪ Click the down arrow
▪ Select Stereo Pano
▪ Click ‘Render’
*Wait*
▪ Click ‘Preview’
▪ Scan QR code to test

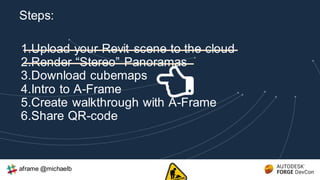

19. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
aframe @michaelb

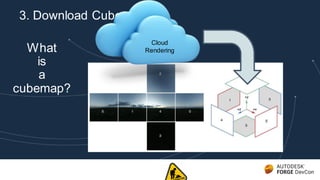

20. 3. Download Cubemap’s
What
is
a
cubemap?
Cloud
Rendering

21. What is a cubemap ?
Facebook F8 conference / USA Today Video

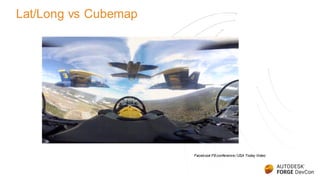

22. Lat/Long vs Cubemap
Facebook F8 conference / USA Today Video

23. Download One Cubemap
▪ first, let’s download one cubemap
https://gallery.autodesk.com/a360rendering/projects/brooke-and-lauren-model

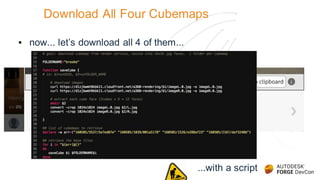

24. Download All Four Cubemaps
▪ now... let’s download all 4 of them...
...with a script

25. You’re folder structure should look like this...
...4 x 2 x 6 = 48 .jpg’s
4 waypoints / rooms
Left and Right eye
6 faces
aframe @michaelb

26. Add cubemaps to your favorite framework...
Today, we will use this one...

27. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
aframe @michaelb

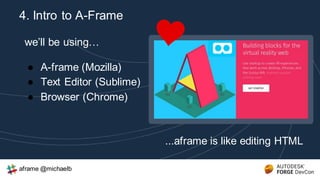

28. we’ll be using…
● A-frame (Mozilla)
● Text Editor (Sublime)
● Browser (Chrome)
4. Intro to A-Frame
...aframe is like editing HTML
aframe @michaelb

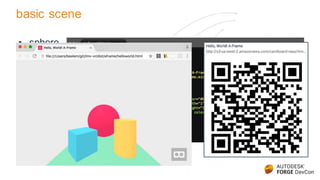

29. basic scene
▪ sphere
▪ box
▪ plane
▪ sky

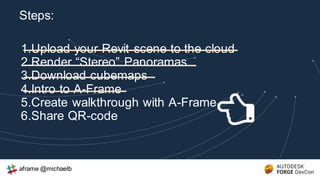

30. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
aframe @michaelb

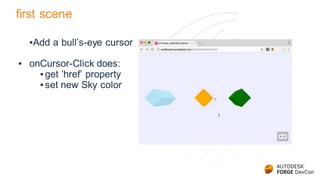

31. first scene
▪Add a bull’s-eye cursor
▪ onCursor-Click does:
▪ get ’href’ property
▪ set new Sky color

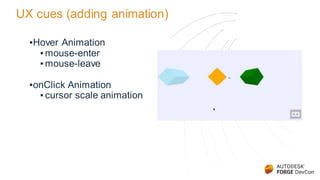

32. UX cues (adding animation)
▪Hover Animation
▪ mouse-enter
▪ mouse-leave
▪onClick Animation
▪ cursor scale animation

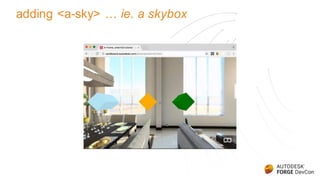

33. adding <a-sky> … ie. a skybox

34. We will use:
- chrome debugger
- set camera position
Now, let’s move the cubes into place
aframe @michaelb

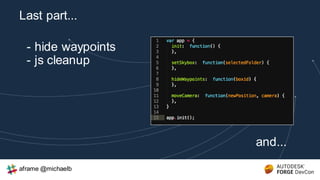

35. - hide waypoints
- js cleanup
Last part...
and...
aframe @michaelb

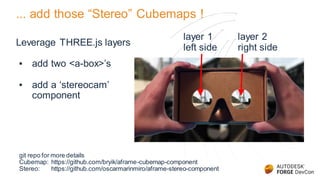

36. ... add those “Stereo” Cubemaps !
Leverage THREE.js layers
▪ add two <a-box>’s
▪ add a ‘stereocam’
component
git repo for more details
Cubemap: https://github.com/bryik/aframe-cubemap-component
Stereo: https://github.com/oscarmarinmiro/aframe-stereo-component
layer 2
right side
layer 1
left side

37. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
aframe @michaelb

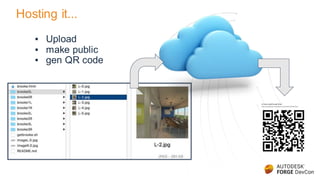

38. Hosting it...
▪ Upload
▪ make public
▪ gen QR code

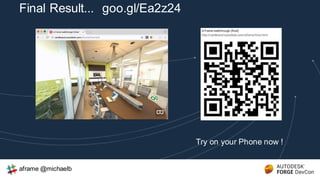

39. Final Result... goo.gl/Ea2z24
Try on your Phone now !
aframe @michaelb

40. 1.Upload your Revit scene to the cloud
2.Render “Stereo” Panoramas
3.Download cubemaps
4.Intro to A-Frame
5.Create walkthrough with A-Frame
6.Share QR-code
Steps:
Done !
aframe @michaelb

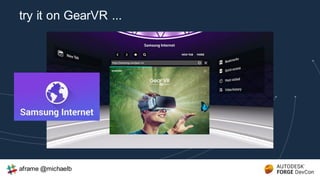

41. try it on GearVR ...
aframe @michaelb

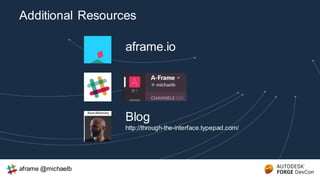

42. aframe.io
..
Blog
http://through-the-interface.typepad.com/
Additional Resources
aframe @michaelb

43. Questions ?
cardboard.autodesk.com/aframe/final.html
aframe @michaelb
