This document discusses the potential use of stereo 3D applications for heritage disaster management. It provides examples of historic 3D photography from the 19th century and describes how 3D models can now be superimposed on photographs for reconstruction purposes using augmented reality. Programming examples are given for an Adobe Director application that generates a 3D geometric model and particles. The document concludes stereo images are not fully utilized and augmented reality could help translate paper reconstructions into interactive computer applications.

1. STEREO 3D
APPLICATIONS
POTENTIAL FOR
HERITAGE DISASTER
MANAGEMENT
Maria BOSTENARU DAN

2. Introduction
 Human viewing in 3D through stereo images
 Pairs of images / colours
 3D photography
 Disaster management
 Heritage conservation – 3D images (incl. Puzzles)
 Reconstruction of antique sites superposed to real
 In this paper: Adobe (Macromedia) Director
application
 Potential for augmented reality (superpose 3D
model and photograph)

3. Historical and now
Research on stereo
photography

4. 3D photography
 historic
 Canadian Centre for Architecture
 1866 fire in Portland, Maine – J. Soule
 Giorgio Sommer
 Evora
 DDR
 Now
 Castles in Hungary

5. Canadian Centre for Architecture

6. Canadian Centre for Architecture

8. Photographer Siever
CCA
Fire Boston 1873

9. Photographer Soule John
CCA
Fire Portland (Maine) 1866

10. wikipedia
Giorgio Sommer Vesuvius 26 April 1872

11. wikipedia
Giorgio Sommer Vesuvius

12. wikipedia
Giorgio Sommer Pompei

13. Evora disaparecida

15. http://www.varak3d.hu/
Várak 3D

16. Photo.net
Projection of stereo in an installation

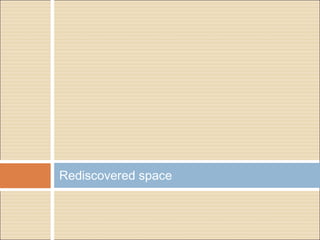

17. Rediscovered space

18. Rediscovered space

19. Rediscovered space

20. Satellite imagery
 2001 Gujarat earthquake – M. Markus
(comparison with eye view)
 L‘Aquila (our research)
 2010 Haiti – stereo pairs (Langenbach)

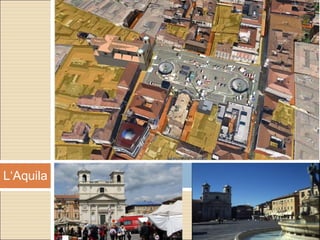

21. Foto 2003, 2010
Plan: Protecţia Civilă Italiană
L‘Aquila

22. Stereo pairs 2010
http://www.conservationtech.com/
Pictometry images

23. 3D application programming

24. Programming
 Lingo script, openGL basis
 Of a geometric model which we also built in
paper (rhombicuboctaedron)

28. member(1).newCamera("axonometrie")
(member 1 of castLib 1).Camera(2).translate(0, 0, 100, #world)
member(1).camera(2).rotate(45, 0, -135, #world)
member(1).newCamera("camera2")
(member 1 of castLib 1).Camera(3).translate(0, 0, 100, #world)
member(1).camera(3).rotate(45, 0, -135, #world)
member(1).camera(3).translate(20, 0, 0, #world)

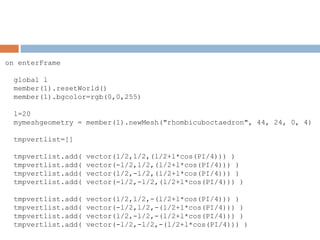

29. on enterFrame
global l
member(1).resetWorld()
member(1).bgcolor=rgb(0,0,255)
l=20
mymeshgeometry = member(1).newMesh("rhombicuboctaedron", 44, 24, 0, 4)
tmpvertlist=[]
tmpvertlist.add( vector(l/2,l/2,(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(-l/2,l/2,(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(l/2,-l/2,(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(-l/2,-l/2,(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(l/2,l/2,-(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(-l/2,l/2,-(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(l/2,-l/2,-(l/2+l*cos(PI/4))) )
tmpvertlist.add( vector(-l/2,-l/2,-(l/2+l*cos(PI/4))) )

30. mymeshgeometry.vertexlist=tmpvertlist
mymeshgeometry.colorList=[ rgb(255,255,255),
rgb(0,255,255) , rgb(255,0,0), rgb(0,0,255)]
mymeshgeometry.face[1].vertices=[1,3,2]
mymeshgeometry.face[1].colors=[1,1,1]
mymeshgeometry.face[2].vertices=[4,2,3]
mymeshgeometry.face[2].colors=[1,1,1]
mymeshgeometry.face[3].vertices=[2,4,17]
mymeshgeometry.face[42].colors=[1,1,1]
mymeshgeometry.face[43].vertices=[6,8,5]
mymeshgeometry.face[43].colors=[1,1,1]
mymeshgeometry.face[44].vertices=[5,8,7]
mymeshgeometry.face[44].colors=[1,1,1]
mymeshgeometry.generateNormals(#flat)
mymeshgeometry.build()
mymeshl = member(1).newModel("meshlinks", mymeshgeometry)
(member 1 of castLib 1).Model[1].visibility = #both
mymeshgeometryx = member(1).newMesh("tetraedru", 4, 4, 0, 1, 1)

31. myboxgeometry = member(1).newModelResource("cub", #box)
myboxgeometry.width = l
myboxgeometry.length = l
myboxgeometry.height = l
mybox = member(1).newModel("cube", myboxgeometry)
myboxtexture = member(1).newTexture("cubetexture", #fromCastMember, member("bitmap"))
(member 1 of castLib 1).newShader("rot",#standard)
(member 1 of castLib 1).Shader[2].textureList[1] = (member 1 of castLib 1).texture[3]
(member 1 of castLib 1).Model[3].shaderList = (member 1 of castLib 1).shader[2]
member(1).model[3].translate(0, 0, (2*(l+l*cos(PI/4))) , #world)
mymeshgeometryz = member(1).newMesh("tetraedruz", 4, 4, 0, 1, 1)
mymeshgeometryz.vertexList=[vector(-((l/2)*cos(PI/4)),-((l/2)*cos(PI/4)),-((l/2)*cos(PI/4))),
vector(-((l/2)*cos(PI/4)),((l/2)*cos(PI/4)),((l/2)*cos(PI/4))),vector(((l/2)*cos(PI/4)),-((l/2)*cos
((l/2)*cos(PI/4))),vector(((l/2)*cos(PI/4)),((l/2)*cos(PI/4)),-((l/2)*cos(PI/4)))]
mymeshgeometryz.colorList=[rgb(255,0,0)]
mymeshgeometryz.face[1].vertices=[1,3,2]
mymeshgeometryz.face[2].vertices=[2,3,4]
mymeshgeometryz.face[3].vertices=[1,2,4]
mymeshgeometryz.face[4].vertices=[1,4,3]
mymeshgeometryz.face[1].colors=[1,1,1]
mymeshgeometryz.face[2].colors=[1,1,1]
mymeshgeometryz.face[3].colors=[1,1,1]
mymeshgeometryz.face[4].colors=[1,1,1]
mymeshgeometryz.generateNormals(#flat)
mymeshgeometryz.build()
mymeshx = member(1).newModel("tetraederz", mymeshgeometryz)
(member 1 of castLib 1).Model[4].visibility = #both
member(1).model[4].translate(0, 0, (3*(l+l*cos(PI/4))), #world)

32. mymeshgeometryx.vertexList=[vector(((l/2)*cos(PI/4)),((l/2)*cos(PI
((l/2)*cos(PI/4))),vector(((l/2)*cos(PI/4)),-((l/2)*cos(PI/4)),-((
vector(-((l/2)*cos(PI/4)),((l/2)*cos(PI/4)),-((l/2)*cos(PI/4))),
vector(-((l/2)*cos(PI/4)),-((l/2)*cos(PI/4)),((l/2)*cos(PI/4)))]
mymeshgeometryx.colorList=[rgb(255,0,0)]
mymeshgeometryx.face[1].vertices=[1,3,2]
mymeshgeometryx.face[2].vertices=[2,3,4]
mymeshgeometryx.face[3].vertices=[1,2,4]
mymeshgeometryx.face[4].vertices=[1,4,3]
mymeshgeometryx.face[1].colors=[1,1,1]
mymeshgeometryx.face[2].colors=[1,1,1]
mymeshgeometryx.face[3].colors=[1,1,1]
mymeshgeometryx.face[4].colors=[1,1,1]
mymeshgeometryx.generateNormals(#flat)
mymeshgeometryx.build()
mymeshx = member(1).newModel("tetraeder", mymeshgeometryx)
(member 1 of castLib 1).Model[2].visibility = #both
member(1).model[2].translate(0, 0, (l+l*cos(PI/4)), #world)

33. particleresource=member(1).newModelResource("particles",#particle)
particleresource.emitter.minSpeed = 40
particleresource.emitter.maxSpeed = 50
particleresource.emitter.numParticles = 350
particleresource.emitter.tweenMode = #age
particleresource.emitter.angle = 90
particleresource.emitter.direction = vector(0.000, -150.000, 0.000 )
particleresource.emitter.region = [vector(-50.000, 0.000, -50.000 ),
vector(50.000, 0.000, -50.000 ), vector(50.000, 0.000, 50.000 ), vector(-50.000, 0.000, 50.000 )
particleresource.wind = vector(1.000, -50.000, 50.000 )
particleresource.lifeTime = 5000
particleresource.colorRange.start = rgb(0, 255, 255)
particleresource.colorRange.end = rgb(255, 255, 255)
particleresource.sizeRange.start = 12
particleresource.sizeRange.end = 6
particleresource.blendRange.start = 25
particleresource.blendRange.end = 100
t = member(1).newTexture("tparticle", #fromCastMember, member "particle")
t.quality =#low
t.renderFormat = #rgba4444
particleresource.texture = t
member(1).camera(1).addChild(member(1).newModel("particles1", particleresource))
member(1).camera(1).addChild(member(1).newModel("particles2", particleresource))
member(1).model("particles2").rotate(0,0,180,#parent)
end
create world

34. sprite(1).camera=member(1).camera("axonomet
rie")
sprite(2).camera=member(1).camera("camera2"
)
member(1).model[3].rotate(0, 90, 0,
member(1).model[1])
end

43. Outlook
 Stereo images – illusion of 3D
 Potential not fully used
 Like in reconstruction on CD in the last
decade, translation from paper into computer
application of augmented reality

44. Rediscovered space

45. Rediscovered space

46. Rediscovered space

47. Rediscovered space

48. Rediscovered space

49. Rediscovered space

50. Rediscovered space

51. Rediscovered space

52. Rediscovered space

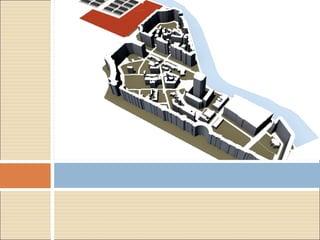

53. Student exercise site

61. Augmented reality

62. Leebmann 2002
Augmented reality – photo & modell
superposition

63. Leebmann 2004
Superposition of video, laser-scanning and
CAD simulation

64. Potential application

65. Archeologic reconstruction
 Granada 3D
 Troia 3D
 Director

66. Now and then photography
 Rezistenta.net
 Langenbach (Piranesi)
 San Francisco 1906 (Arnold Genthe)
 Indian Mutiny (Felice Beato)
