1. Brian Sherman
Senior Developer
Building Value-Added Integrations with Autodesk’s
IoT APIs
Allan O’Leary
Product Manager

2. © 2016 Autodesk

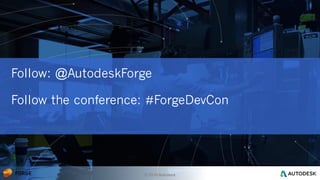

Follow: @AutodeskForge
Follow the conference: #ForgeDevCon

3. About the Speakers
Brian Sherman
• Senior Software Engineer
• Worked on the Fusion
Connect team for 2 years
• Computer Science degree
from UC Berkeley

4. © 2016 Autodesk
About the Speakers
Allan O’Leary
• Product Manger
• Working in San Francisco office
focusing on Fusion Connect.
• Joined Autodesk in 2008
• Good at running distances.
• Poor at running a fantasy football
team.

5. © 2016 Autodesk
Learning Objectives
• Overview of the Fusion Connect API
• Getting Started with a Fusion Connect App
• Fusion Connect API Methods
• Example application

6. © 2016 Autodesk

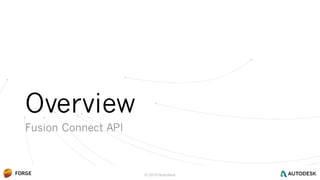

Overview
Fusion Connect API

7. © 2016 Autodesk

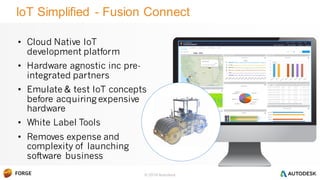

IoT Simplified - Fusion Connect
• Cloud Native IoT
development platform
• Hardware agnostic inc pre-
integrated partners
• Emulate & test IoT concepts
before acquiring expensive
hardware
• White Label Tools
• Removes expense and
complexity of launching
software business
Roller A016

8. © 2016 Autodesk

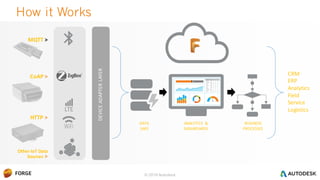

How it Works
CRM
ERP
Analytics
Field
Service
Logistics
MQTT >
CoAP >
HTTP >
Other IoT Data
Sources >
ANALYTICS &
DASHBOARDS
BUSINESS
PROCESSES
DATA
LAKE
DEVICEADAPTERLAYER

9. © 2016 Autodesk© 2016 Autodesk
• Cloud native device adaptor and message queueing
• Support for several standard device protocols
• Device creation through input API methods
• Options for message processing and storage
• Extract message data to build IoT applications
Fusion Connect API

10. © 2016 Autodesk

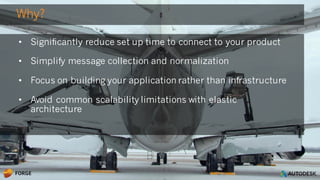

• Significantly reduce set up time to connect to your product
• Simplify message collection and normalization
• Focus on building your application rather than infrastructure
• Avoid common scalability limitations with elastic
architecture
Why?

11. © 2016 Autodesk

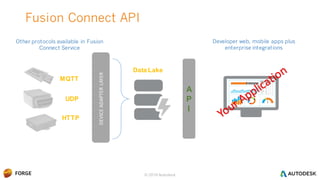

Fusion Connect API
MQTT
UDP
HTTP
Data Lake
A
P
I
Developer web, mobile apps plus
enterprise integrations
Other protocols available in Fusion
Connect Service
DEVICEADAPTERLAYER

12. © 2016 Autodesk

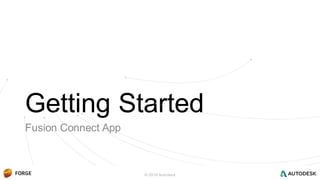

Getting Started
Fusion Connect App

13. © 2016 Autodesk
Access Overview
Create new app in
Forge
Add Fusion Connect
API
Retrieve Forge
developer key
Provision Fusion
Connect account
Access service via
broker API
Add device via API
Check Device
Connection
Review Device
Messages
Retrieve raw
messages via API
(data-stream)
Extract data outputs
via API
Build IoT
application on
messages / outputs

14. © 2016 Autodesk

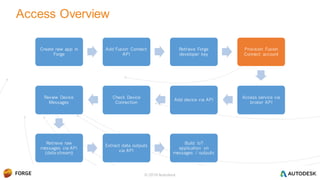

Access Overview
Create new app in
Forge
Add Fusion Connect
API
Retrieve Forge
developer key
Provision Fusion
Connect account
Access service via
broker API
Add device via API
Check Device
Connection
Review Device
Messages
Retrieve raw
messages via API
(data-stream)
Extract data outputs
via API
Build IoT
application on
messages / outputs

15. © 2016 Autodesk

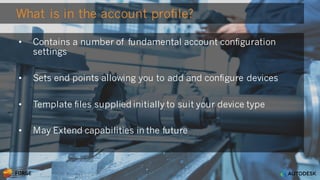

What is in the account profile?
• Contains a number of fundamental account configuration
settings
• Sets end points allowing you to add and configure devices
• Template files supplied initially to suit your device type
• May Extend capabilities in the future

16. © 2016 Autodesk

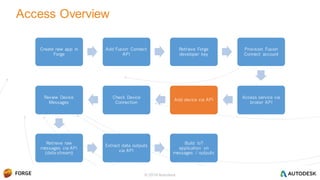

Create new app in
Forge
Add Fusion Connect
API
Retrieve Forge
developer key
Provision Fusion
Connect account
Access service via
broker API
Add device via API
Check Device
Connection
Review Device
Messages
Retrieve raw
messages via API
(data-stream)
Extract data outputs
via API
Build IoT
application on
messages / outputs
Access Overview

17. © 2016 Autodesk

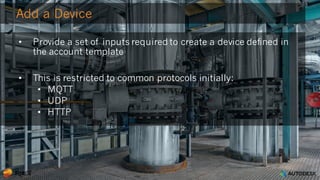

Add a Device
• Provide a set of inputs required to create a device defined in
the account template
• This is restricted to common protocols initially:
• MQTT
• UDP
• HTTP

18. Access Overview
Create new app in
Forge
Add Fusion Connect
Service
Retrieve Forge
developer key
Provision Fusion
Connect account
Access service via
broker API
Add device via API
Check Device
Connection
Review Device
Messages
Retrieve raw
messages via API
(data-stream)
Run data outputs
via API
Build IoT
application on
messages / outputs

19. © 2016 Autodesk

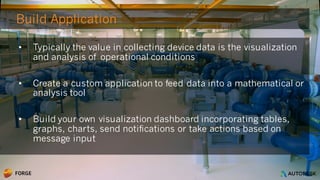

Build Application
• Typically the value in collecting device data is the visualization
and analysis of operational conditions
• Create a custom application to feed data into a mathematical or
analysis tool
• Build your own visualization dashboard incorporating tables,
graphs, charts, send notifications or take actions based on
message input

20. © 2016 Autodesk

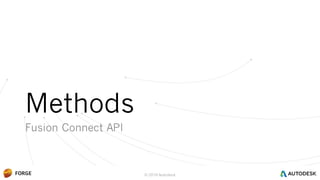

Methods
Fusion Connect API

21. © 2016 Autodesk
Method and URI AUTHENTICATE https://developer-dev.api.autodesk.com/authentication/v1/
Required OAuth Scopes N/A
Data Format JSON string
Forge AUTHENTICATE
© 2016 Autodesk
Generates a temporary authentication token for your Forge
application.

22. © 2016 Autodesk
Method and URI ACCOUNT https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : create, data : write
Data Format XML string
ACCOUNT
© 2016 Autodesk
Provisions a new Fusion Connect account to serve as the IoT
engine of your Forge-enabled application.
Fusion Connect account can have as many features as you
specify in your application template

23. © 2016 Autodesk

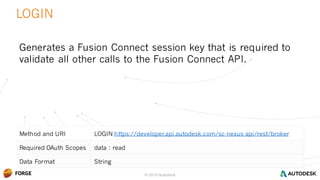

Method and URI LOGIN https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read
Data Format String
LOGIN
© 2016 Autodesk
Generates a Fusion Connect session key that is required to
validate all other calls to the Fusion Connect API.

24. © 2016 Autodesk

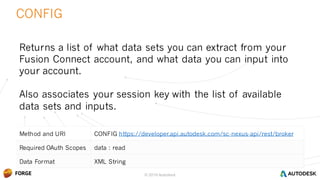

Method and URI CONFIG https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read
Data Format XML String
CONFIG
© 2016 Autodesk
Returns a list of what data sets you can extract from your
Fusion Connect account, and what data you can input into
your account.
Also associates your session key with the list of available
data sets and inputs.

25. © 2016 Autodesk
Method and URI GET https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read
Data Format XML String
GET
© 2016 Autodesk
Extracts the specified data set from your Fusion Connect
account.
You can provide criteria to automatically filter the data
returned by this call.

26. © 2016 Autodesk

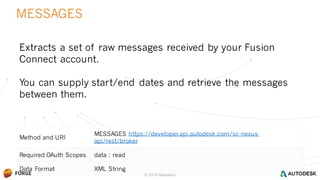

Method and URI
MESSAGES https://developer.api.autodesk.com/sc-nexus-
api/rest/broker
Required OAuth Scopes data : read
Data Format XML String
MESSAGES
© 2016 Autodesk
Extracts a set of raw messages received by your Fusion
Connect account.
You can supply start/end dates and retrieve the messages
between them.

27. © 2016 Autodesk

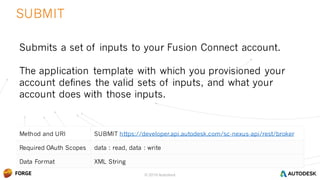

Method and URI SUBMIT https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read, data : write
Data Format XML String
SUBMIT
© 2016 Autodesk
Submits a set of inputs to your Fusion Connect account.
The application template with which you provisioned your
account defines the valid sets of inputs, and what your
account does with those inputs.

28. © 2016 Autodesk

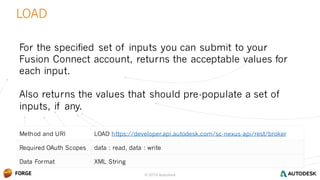

Method and URI LOAD https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read, data : write
Data Format XML String
LOAD
© 2016 Autodesk
For the specified set of inputs you can submit to your
Fusion Connect account, returns the acceptable values for
each input.
Also returns the values that should pre-populate a set of
inputs, if any.

29. © 2016 Autodesk

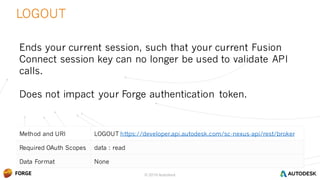

Method and URI LOGOUT https://developer.api.autodesk.com/sc-nexus-api/rest/broker
Required OAuth Scopes data : read
Data Format None
LOGOUT
© 2016 Autodesk
Ends your current session, such that your current Fusion
Connect session key can no longer be used to validate API
calls.
Does not impact your Forge authentication token.

30. © 2016 Autodesk
Example
IoT Application

31. © 2016 Autodesk

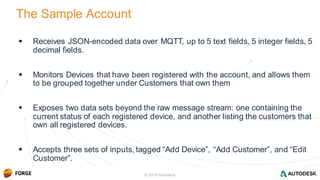

 Receives JSON-encoded data over MQTT, up to 5 text fields, 5 integer fields, 5
decimal fields.
 Monitors Devices that have been registered with the account, and allows them
to be grouped together under Customers that own them
 Exposes two data sets beyond the raw message stream: one containing the
current status of each registered device, and another listing the customers that
own all registered devices.
 Accepts three sets of inputs, tagged “Add Device”, “Add Customer”, and “Edit
Customer”.
The Sample Account
© 2016 Autodesk

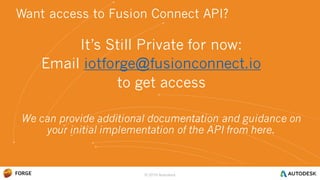

32. It’s Still Private for now:
Email iotforge@fusionconnect.io
to get access
We can provide additional documentation and guidance on
your initial implementation of the API from here.
Want access to Fusion Connect API?
© 2016 Autodesk

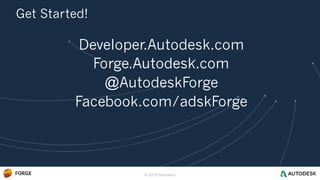

33. Developer.Autodesk.com
Forge.Autodesk.com
@AutodeskForge
Facebook.com/adskForge
Get Started!
© 2016 Autodesk
