1. CPU is in Focus Again!
Implementing DOF on CPU.
Advanced Visual Computing
3D Graphics Team
Presenter:
Evgeny Gorodetsky
Graphics Software Engineer
evgeny.gorodetsky@intel.com,
twitter: egorodet

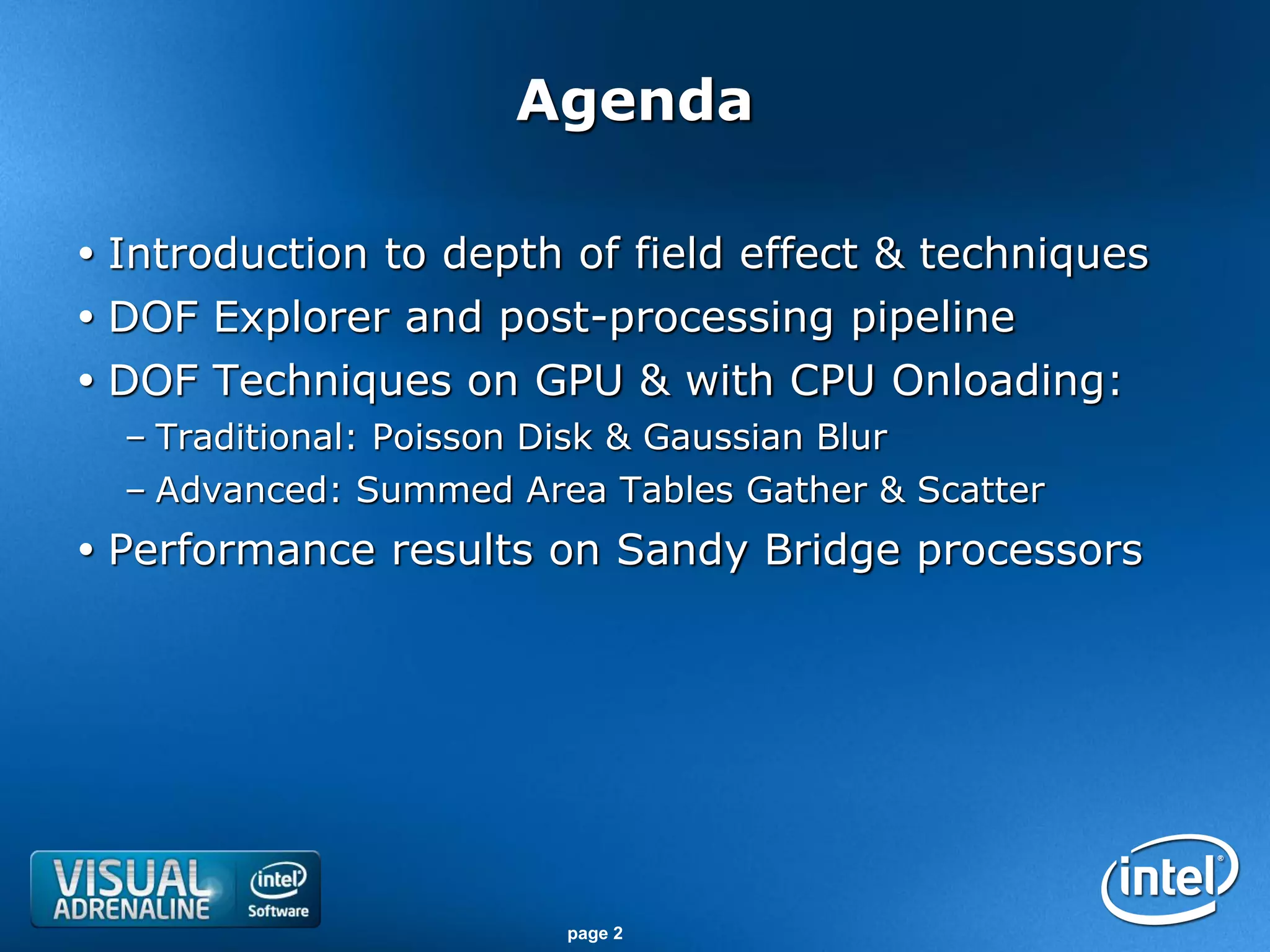

2. Agenda
 Introduction to depth of field effect & techniques
 DOF Explorer and post-processing pipeline
 DOF Techniques on GPU & with CPU Onloading:
– Traditional: Poisson Disk & Gaussian Blur
– Advanced: Summed Area Tables Gather & Scatter
 Performance results on Sandy Bridge processors
page 2

3. Introduction to DOF
DEPTH OF FIELD EXPLAINED
page 3

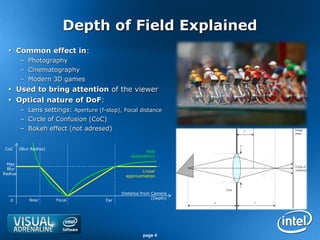

4. Depth of Field Explained
 Common effect in:
– Photography
– Cinematography
– Modern 3D games
 Used to bring attention of the viewer
 Optical nature of DoF:
– Lens settings: Aperture (f-stop), Focal distance
– Circle of Confusion (CoC)
– Bokeh effect (not adresed)
CoC (Blur Radius)
Real
dependency
Max
Blur
Linear
Radius
approximation
Distance from Camera
Near Focal (Depth)
0 Far
page 4

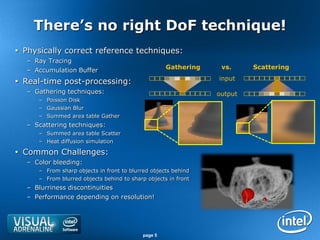

5. There’s no right DoF technique!
 Physically correct reference techniques:
– Ray Tracing
– Accumulation Buffer Gathering vs. Scattering
input
 Real-time post-processing:
– Gathering techniques: output
– Poisson Disk
– Gaussian Blur
– Summed area table Gather
– Scattering techniques:
– Summed area table Scatter
– Heat diffusion simulation
 Common Challenges:
– Color bleeding:
– From sharp objects in front to blurred objects behind
– From blurred objects behind to sharp objects in front
– Blurriness discontinuities
– Performance depending on resolution!
page 5

6. Depth of Field Explorer
 Post-processing on GPU and with CPU Onloading
 Compare DoF techniques: Depth of Field technique GPU CPU
– On one of three scenes Poisson Disk  
– Performance & quality
Gaussian Blur  
– Runtime settings
Gaussian Blur mixed with Poisson Disk  
 Deferred rendering with
async. CPU-GPU execution
Summed Area Table (SAT) Gather  
Summed Area Table (SAT) Scatter  
 Performance analysis
Simple MipMap  
Advanced MipMap  
page 6

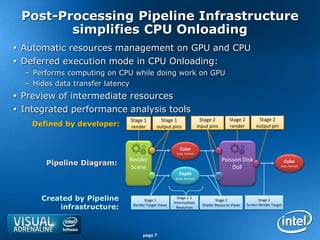

7. Post-Processing Pipeline Infrastructure
simplifies CPU Onloading
 Automatic resources management on GPU and CPU
 Deferred execution mode in CPU Onloading:
– Performs computing on CPU while doing work on GPU
– Hides data transfer latency
 Preview of intermediate resources
 Integrated performance analysis tools
Stage 1 Stage 1 Stage 2 Stage 2 Stage 2
Defined by developer: render output pins input pins render output pin
Color
[size, format]
Render Poisson Disk
Pipeline Diagram: Color
Scene DoF [size, format]
Depth
[size, format]
Created by Pipeline Stage 1
Stage 1-2
Intermediate
Stage 2 Stage 2
infrastructure: Render Target Views
Resources
Shader Resource Views Screen Render Target
page 7

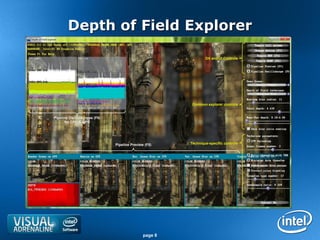

8. Depth of Field Explorer
DX and UI Controls
Common explorer controls
Pipeline Oscilloscopes (F6)
for CPU & GPU
Pipeline Preview (F5) Technique-specific controls
page 8

9. Poisson Disk & Gaussian Blur on GPU & CPU
TRADITIONAL DOF TECHNIQUES
page 9

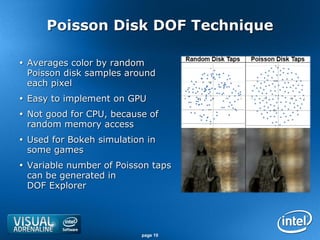

10. Poisson Disk DOF Technique
 Averages color by random
Poisson disk samples around
each pixel
 Easy to implement on GPU
 Not good for CPU, because of
random memory access
 Used for Bokeh simulation in
some games
 Variable number of Poisson taps
can be generated in
DOF Explorer
page 10

11. Gaussian Blur DOF Technique
 Convolution of NxN neighbor pixels with pre-computed weights:
2 +2
1 −
, = 22
22 ; , = , ∙ ( , )
=1 =1
 Decomposed into 2 passes:
– Vertical pass
– Horizontal pass
2
1 − 2
= 2 ; , = ∙ ∙ ( , )
2
=1 =1
 Implementation:
– Traditional for GPU in pixel shader
– Novell for CPU, accelerated with TBB & SSE
page 11

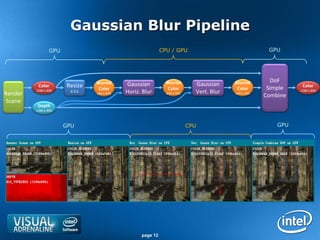

12. Gaussian Blur Pipeline
GPU CPU / GPU GPU
Blurred Blurred Blurred DoF
Color Resize Gaussian Gaussian Color
Color Color Color Simple
Render
1280 x 800 X 0.5 640 x 400 Horiz. Blur 640 x 400 Vert. Blur 640 x 400
1280 x 800
Combine
Scene
Depth
1280 x 800
GPU CPU GPU
page 12

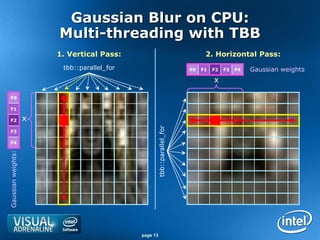

13. Gaussian Blur on CPU:
Multi-threading with TBB
1. Vertical Pass: 2. Horizontal Pass:
tbb::parallel_for F0 F1 F2 F3 F4 Gaussian weights
x
F0
F1
F2 x
tbb::parallel_for
F3
F4
Gaussian weights:
page 13

14. Gaussian Blur on CPU:
Vectorization with SSE 4
SSE SSE
F0 F0 F0 F0 R0 G0 B0 A0
x
F1 F1 F1 F1 R1 G1 B1 A1
Vertical Pass:
F2 F2 F2 F2 R2 G2 B2 A2 = R0’ G0’ B0’ A0’
… … … … … … … …
SSE SSE SSE
F0 F0 F0 F0 F1 F1 F1 F1 F2 F2 F2 F2 F3 …
x x x
Horizontal Pass: R0 G0 B0 A0 R1 G1 B1 A1 R2 G2 B2 A2 R3 …
(cache friendly)
=
=
=
R0’ G0’ B0’ A0’ R1’ G1’ B1’ A1’ R2’ G2’ B2’ A2’ R3’ …
= R0 G0 B0 A0
page 14

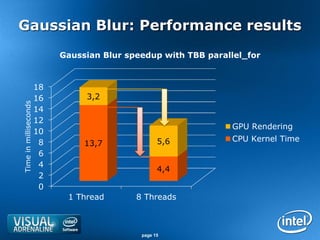

15. Gaussian Blur: Performance results
Gaussian Blur speedup with TBB parallel_for
18
16 3,2
Time in milliseconds
14
12
GPU Rendering
10
8 5,6 CPU Kernel Time
13,7
6
4
4,4
2
0
1 Thread 8 Threads
page 15

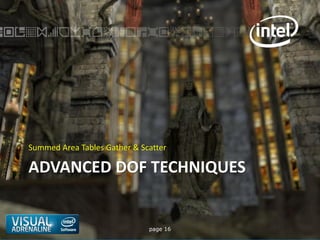

16. Summed Area Tables Gather & Scatter
ADVANCED DOF TECHNIQUES
page 16

17. Summed Area Tables
 Enables averaging values in variable rectangle areas in
constant time: just with 4 SAT-texture reads!
Source Table: Summed Area Table (SAT): Averaging values in the area
of source table by SAT:
1 2 3 4 1 2 3 4
1 0 7 2 4 1 0 7 9 13
2 1 4 1 2 2 1 12 15 21
+ -
UL UR
3 6 1 2 0 3 7 19 24 30
- LL +
height
LR
4 0 3 5 2 4 7 22 32 40 width
− − +
= = =
×
= =
page 17

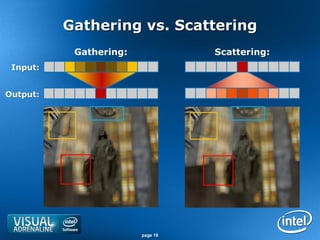

18. Gathering vs. Scattering
Gathering: Scattering:
Input:
Output:
page 18

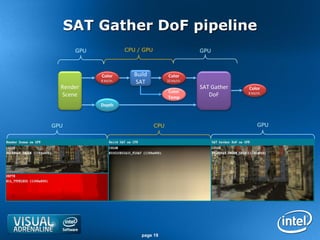

19. SAT Gather DoF pipeline
GPU CPU / GPU GPU
Color Build Color
8 bit/ch. SAT 32 bit/ch.
Render SAT Gather Color
Color
Scene Temp
DoF 8 bit/ch.
Depth
GPU CPU GPU
page 19

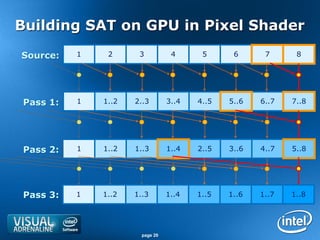

20. Building SAT on GPU in Pixel Shader
Source: 1 2 3 4 5 6 7 8
Pass 1: 1 1..2 2..3 3..4 4..5 5..6 6..7 7..8
Pass 2: 1 1..2 1..3 1..4 2..5 3..6 4..7 5..8
Pass 3: 1 1..2 1..3 1..4 1..5 1..6 1..7 1..8
page 20

21. Building SAT on CPU with SSE & TBB
 Single pass on CPU
 Simultaneously process RGBA channels as 4 floats with SSE 4
(128-bit width vector instructions):
– Can be easily extended to 256-bit width AVX on Sandy Bridge
 Split texture in tiles and process them in parallel threads:
– Implemented in TBB Tasks
– Run tile-processing tasks with respect of
dependencies T1,1 T2,1 T3,1
, = , + ,− + −, − −,−
=−, −−,− +,
,− +
Si-1,j-1 Si,j-1
T1,2 T2,2 T3,2
= , = − + ,
Build SAT for each row j=1..n: Si-1,j Pi,j
+= , , = ,− + T1,3 T2,3 T3,3
page 21

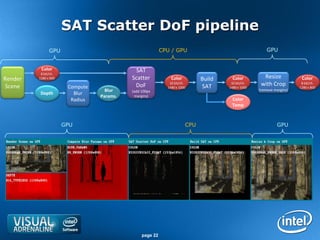

22. SAT Scatter DoF pipeline
GPU CPU / GPU GPU
Color SAT
8 bit/ch.
Render 1280 x 800 Scatter Color Build Color Resize Color
Scene Compute DoF 32 bit/ch.
1480 x 1000 SAT
32 bit/ch.
1480 x 1000
with Crop 8 bit/ch.
1280 x 800
Blur (add 100px (remove margins)
Depth Blur
Params. margins)
Radius Color
Temp
GPU CPU GPU
page 22

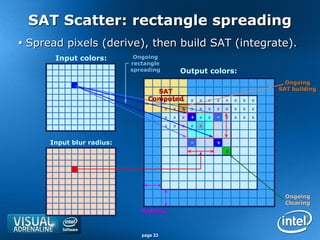

23. SAT Scatter: rectangle spreading
 Spread pixels (derive), then build SAT (integrate).
Input colors: Ongoing
rectangle
spreading Output colors:
Ongoing
SAT SAT building
Computed
x x x x x x x x x x x
x x S x x x x x x x x
x x x + x x ‒ x x x x
x x x x x
Input blur radius: ‒ +
0
Ongoing
Clearing
Padding
page 23

24. SAT Scatter: Optimization Notes
 Rectangle spreading on GPU:
– Implemented in Geometry Shader
– Requires huge number of Draw Calls = width x height
– Works slow even on high-end GPUs
– Compute Shaders could help, but not available on Sandy Bridge
 Rectangle spreading on CPU:
– Takes advantage of SSE 4 instructions for RGBA float channels
– Multi-threaded with TBB Tasks (like SAT, but with different dependencies)
– Much faster than on GPU:
8.3x on SNB GT2, 2.7x on NHM GTX 280
 Rectangle spreading CPU-stage can be fused with zeroing and SAT
building to minimize memory footprint
 Quality can be improved with repeated SAT integration (next slides)
page 24

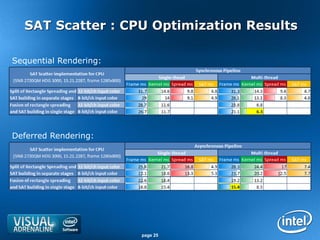

25. SAT Scatter : CPU Optimization Results
Sequential Rendering:
Deferred Rendering:
page 25

26. Higher Order SAT Scatter (1/4)
Original Image
No filter
page 26

27. Higher Order SAT Scatter (2/4)
1-st order filter
box filter
page 27

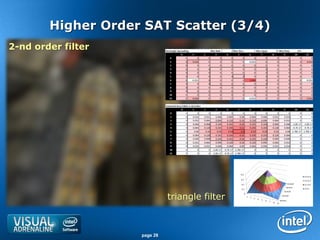

28. Higher Order SAT Scatter (3/4)
2-nd order filter
triangle filter
page 28

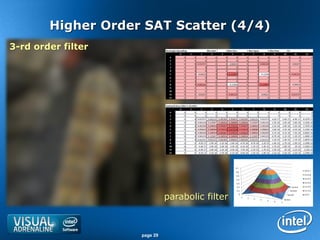

29. Higher Order SAT Scatter (4/4)
3-rd order filter
parabolic filter
page 29

30. PERFORMANCE RESULTS ON 2-ND
GENERATION CORE PROCESSORS
page 30

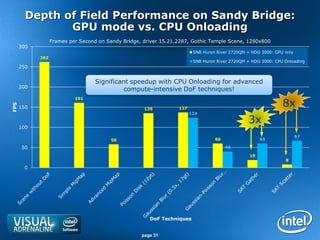

31. Depth of Field Performance on Sandy Bridge:
GPU mode vs. CPU Onloading
Frames per Second on Sandy Bridge, driver 15.21.2287, Gothic Temple Scene, 1280x800
300
SNB Huron River 2720QM + HDG 3000: GPU only
262
SNB Huron River 2720QM + HDG 3000: CPU Onloading
250
Significant speedup with CPU Onloading for advanced
200
compute-intensive DoF techniques!
161
8x
FPS
150 135 137
124
3x
100
67
58 60 60
50 40
19
8
0
DoF Techniques
page 31

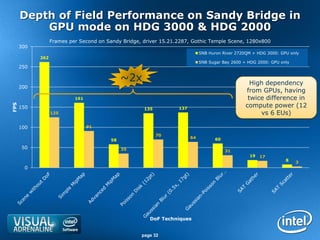

32. Depth of Field Performance on Sandy Bridge in
GPU mode on HDG 3000 & HDG 2000
Frames per Second on Sandy Bridge, driver 15.21.2287, Gothic Temple Scene, 1280x800
300
SNB Huron River 2720QM + HDG 3000: GPU only
262
SNB Sugar Bay 2600 + HDG 2000: GPU only
250
~2x High dependency
200
from GPUs, having
161 twice difference in
compute power (12
FPS
150 135 137
125 vs 6 EUs)
100 91
70
64 60
58
50 35 31
19 17
8
3
0
DoF Techniques
page 32

33. Depth of Field Performance on Sandy Bridge in
CPU Onloading mode on HDG 3000 & HDG 2000
Frames per Second on Sandy Bridge, driver 15.21.2287, Gothic Temple Scene, 1280x800
140
120 SNB Huron River 2720QM + HDG 3000: CPU Onloading
124
~1.2-1.4x
SNB Sugar Bay 2600 + HDG 2000: CPU Onloading
100
90
80
FPS
67
Less dependent from 60
60 GPU with extensive 53
50
CPU Onloading!
40
40 34
20
0
DoF Techniques
page 33

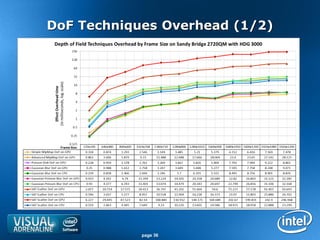

34. DoF Techniques Overhead (1/2)
page 36

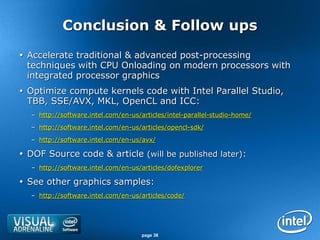

35. Conclusion & Follow ups
 Accelerate traditional & advanced post-processing
techniques with CPU Onloading on modern processors with
integrated processor graphics
 Optimize compute kernels code with Intel Parallel Studio,
TBB, SSE/AVX, MKL, OpenCL and ICC:
– http://software.intel.com/en-us/articles/intel-parallel-studio-home/
– http://software.intel.com/en-us/articles/opencl-sdk/
– http://software.intel.com/en-us/avx/
 DOF Source code & article (will be published later):
– http://software.intel.com/en-us/articles/dofexplorer
 See other graphics samples:
– http://software.intel.com/en-us/articles/code/
page 38
