The document presents advanced real-time post-processing techniques using GPGPU methods, focusing on depth of field algorithms and visual quality improvements. It details various methods such as Poisson disc blur, multi-passed diffusion, and separable diffusion, along with their implementation using HLSL and CUDA. While GPGPU techniques demonstrate great potential for enhancing image processing, they are not yet fully mature for widespread use due to hardware limitations and optimization challenges.

1. Advanced Real-time Post-Processing using GPGPU techniques

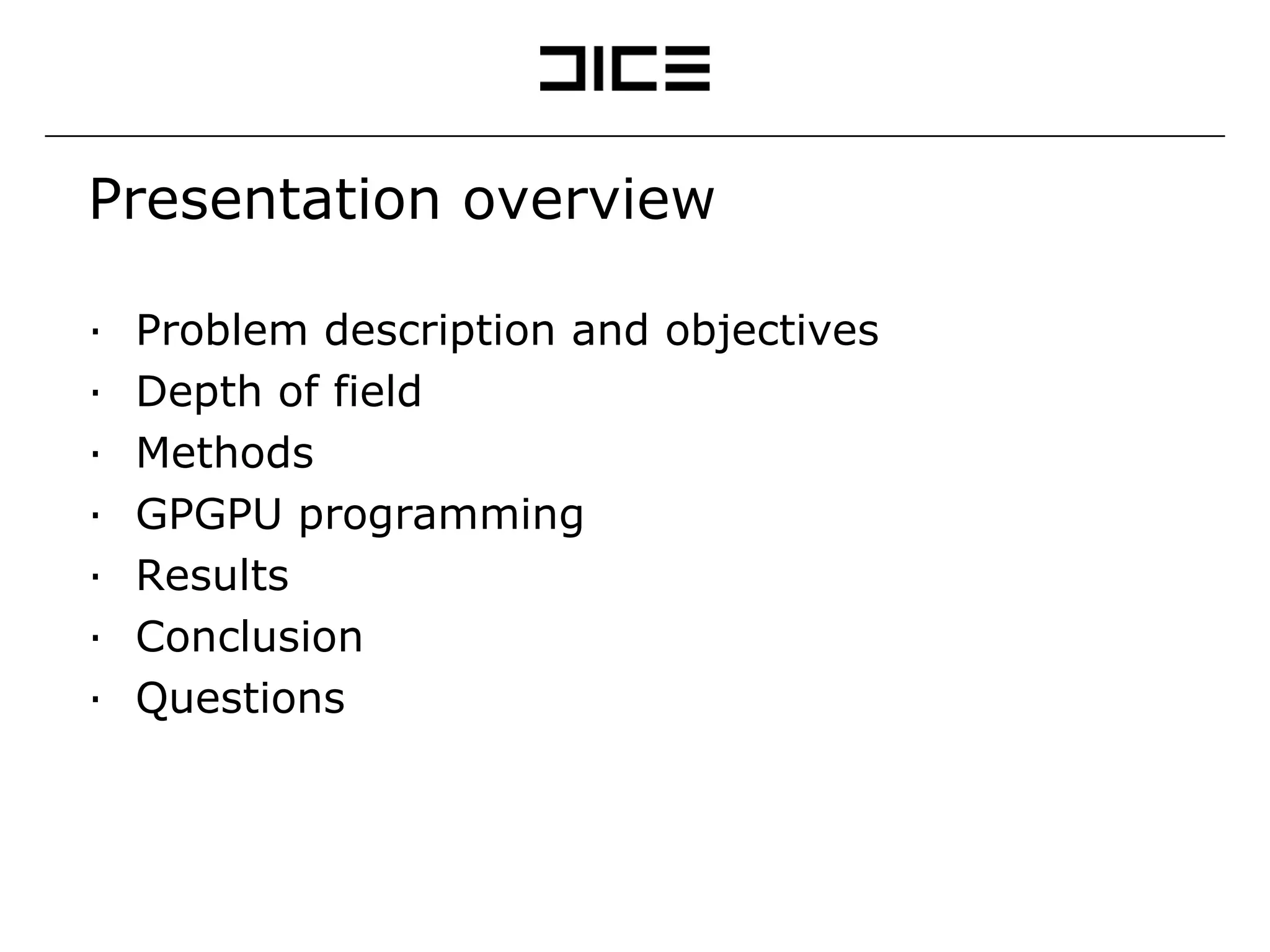

2. Presentation overview Problem description and objectives Depth of field Methods GPGPU programming Results Conclusion Questions

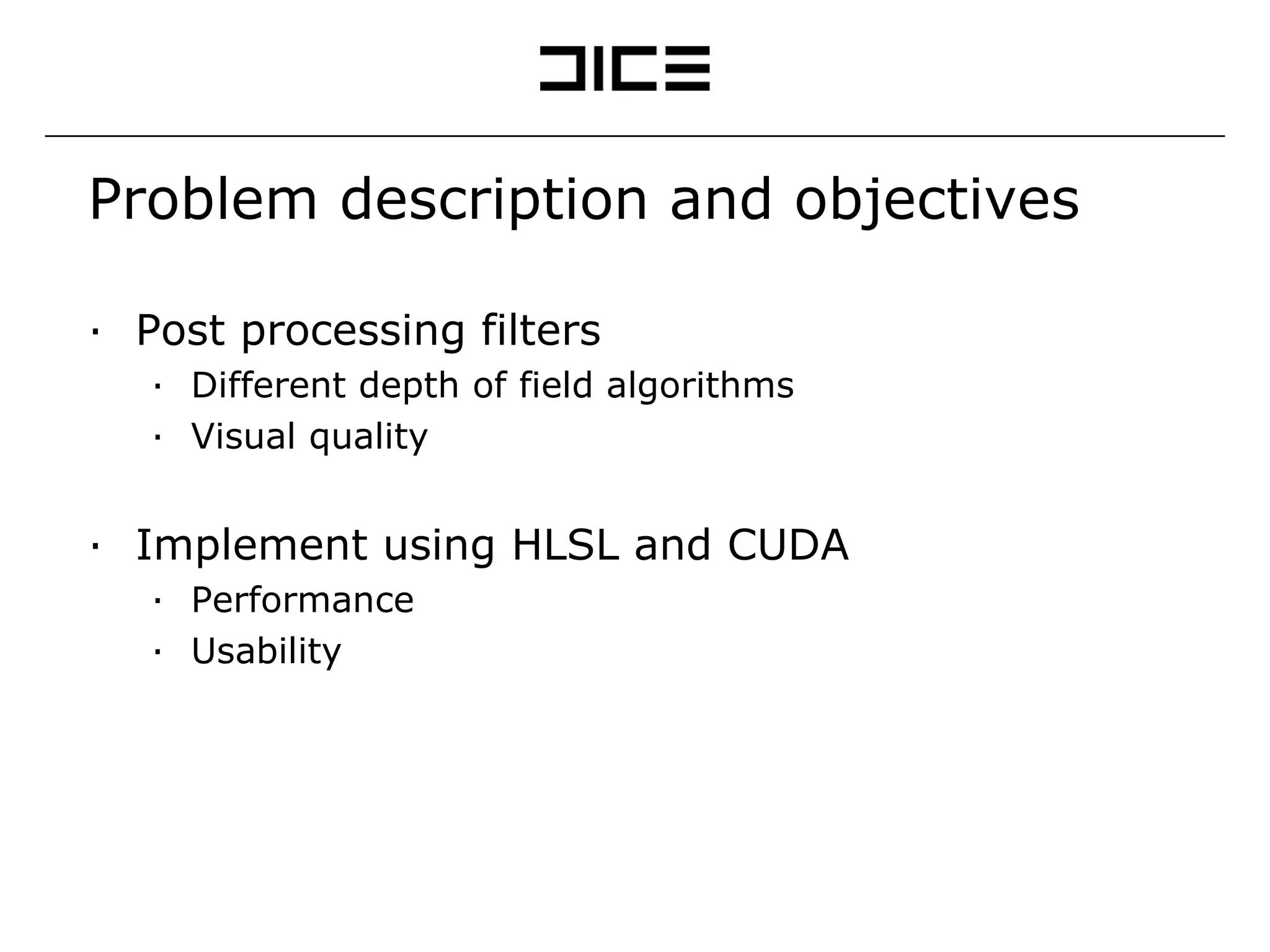

3. Problem description and objectives Post processing filters Different depth of field algorithms Visual quality Implement using HLSL and CUDA Performance Usability

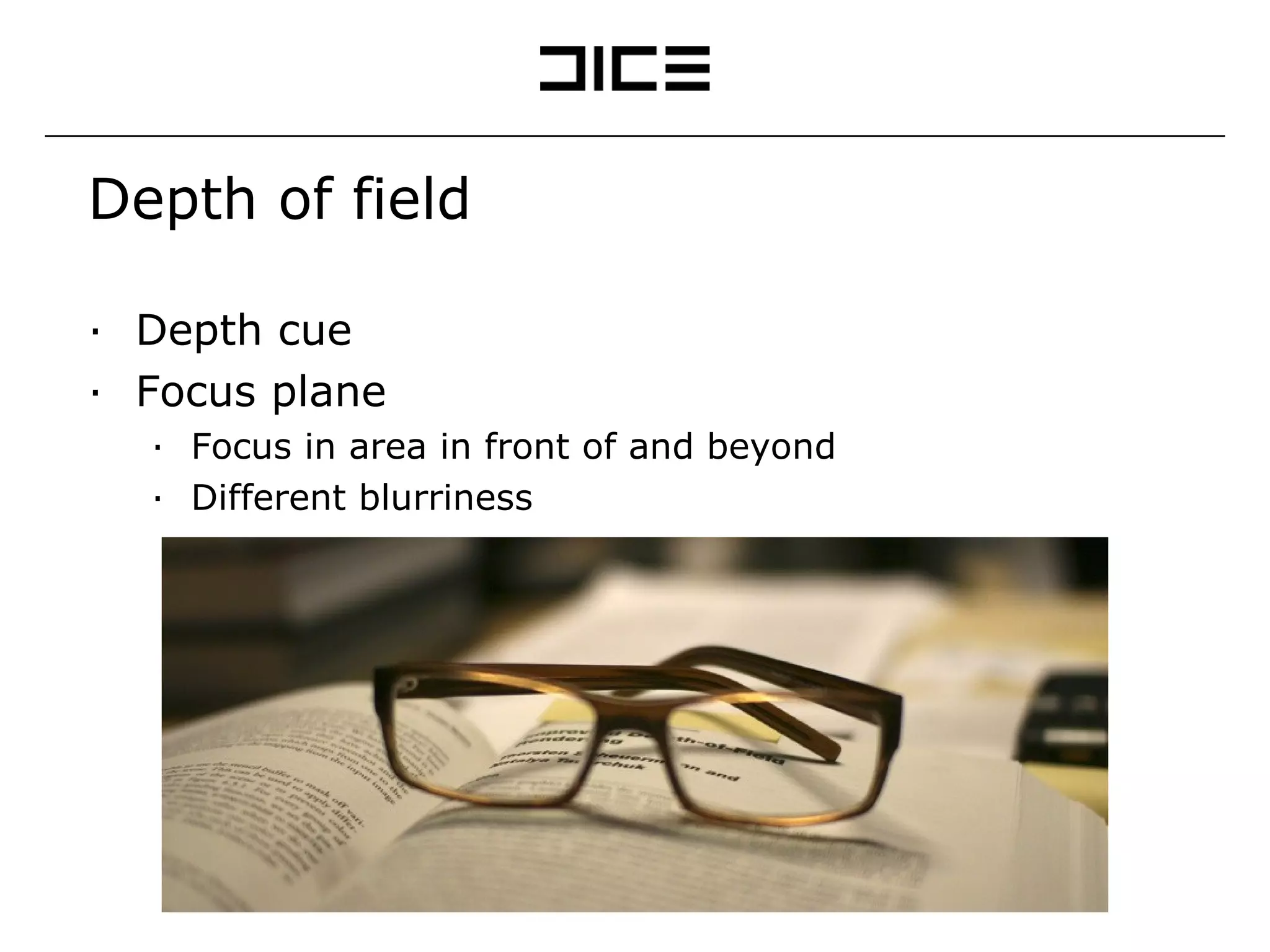

4. Depth of field Depth cue Focus plane Focus in area in front of and beyond Different blurriness

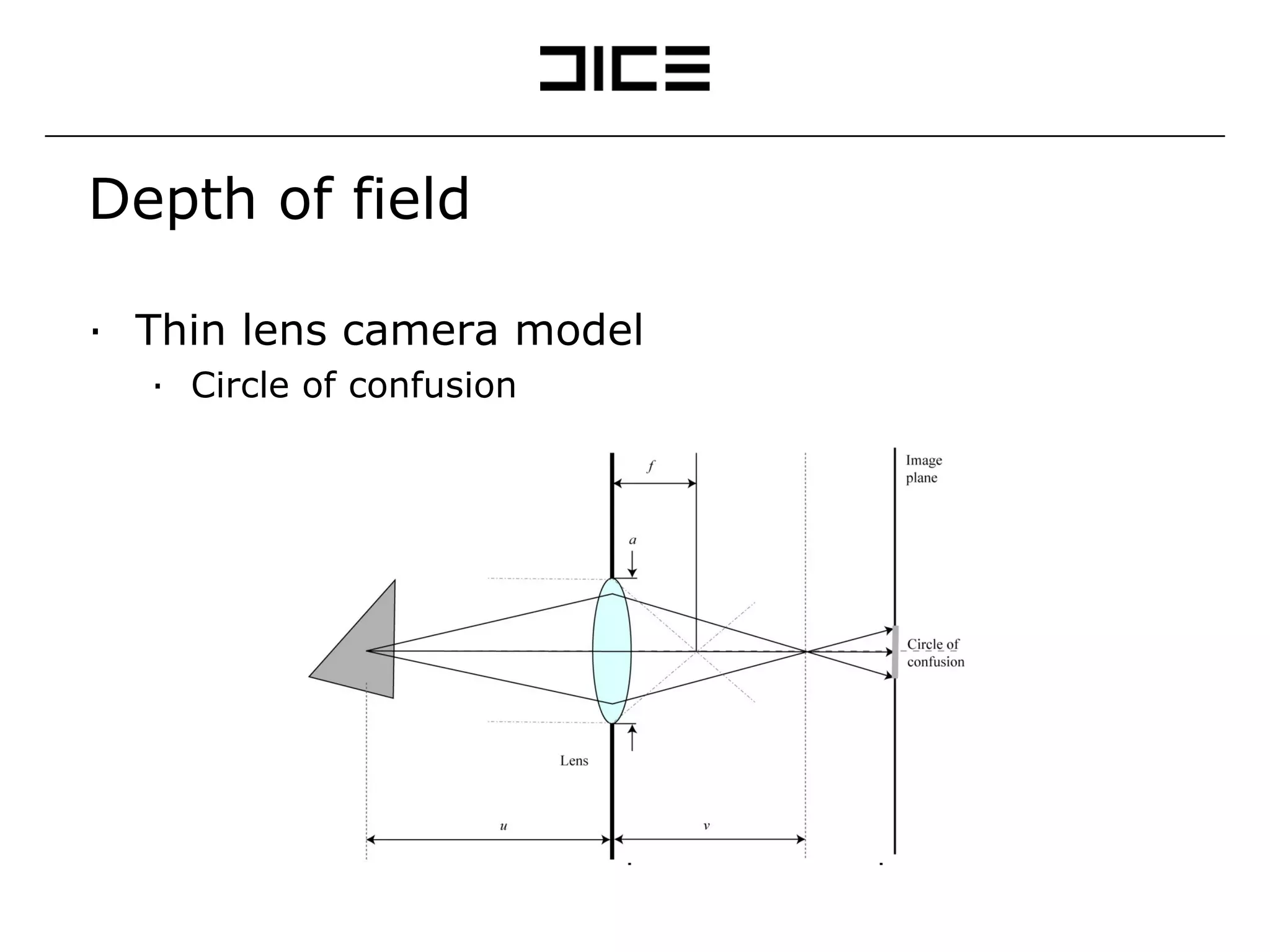

5. Depth of field Thin lens camera model Circle of confusion

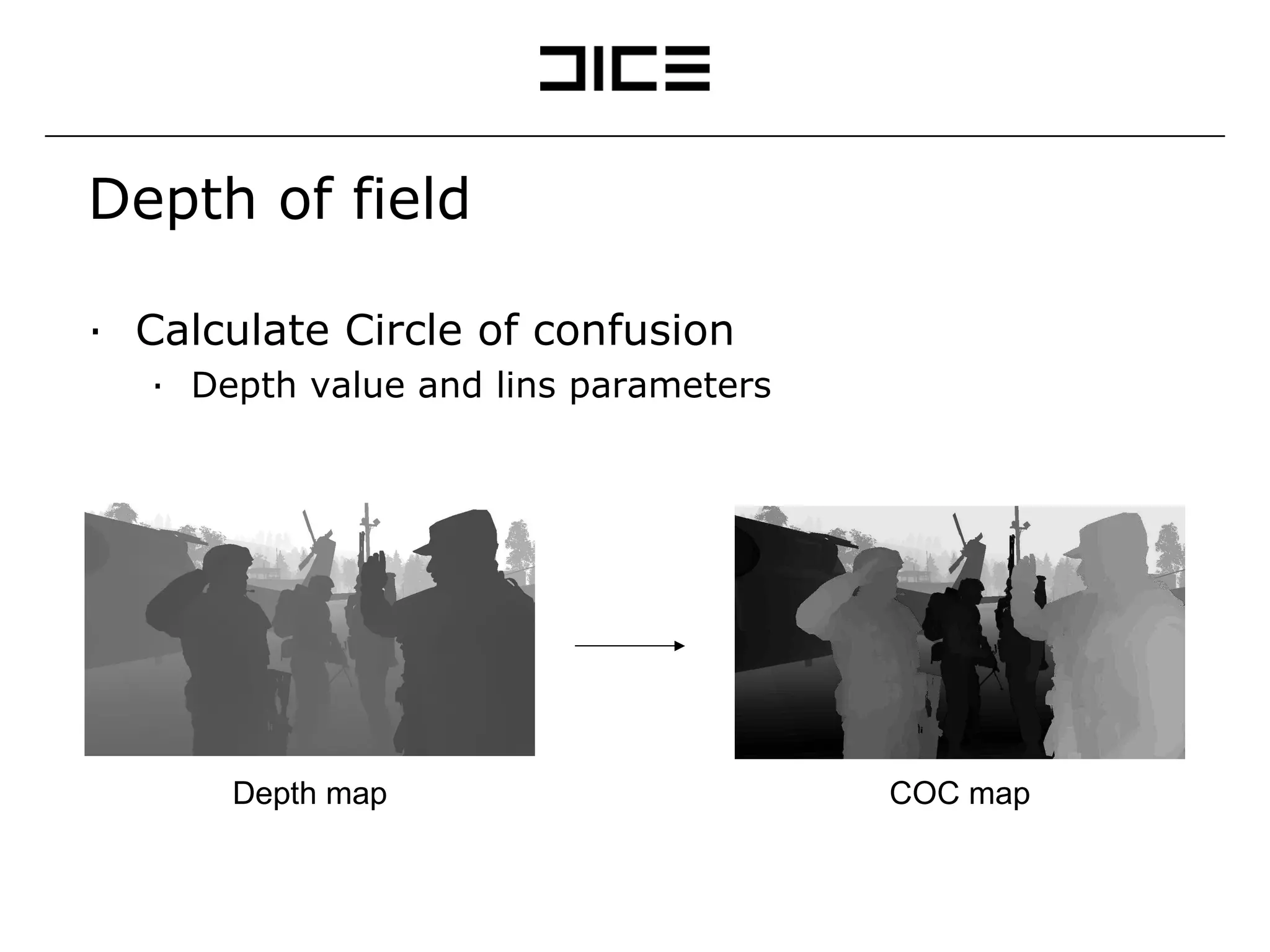

6. Depth of field Calculate Circle of confusion Depth value and lins parameters Depth map COC map

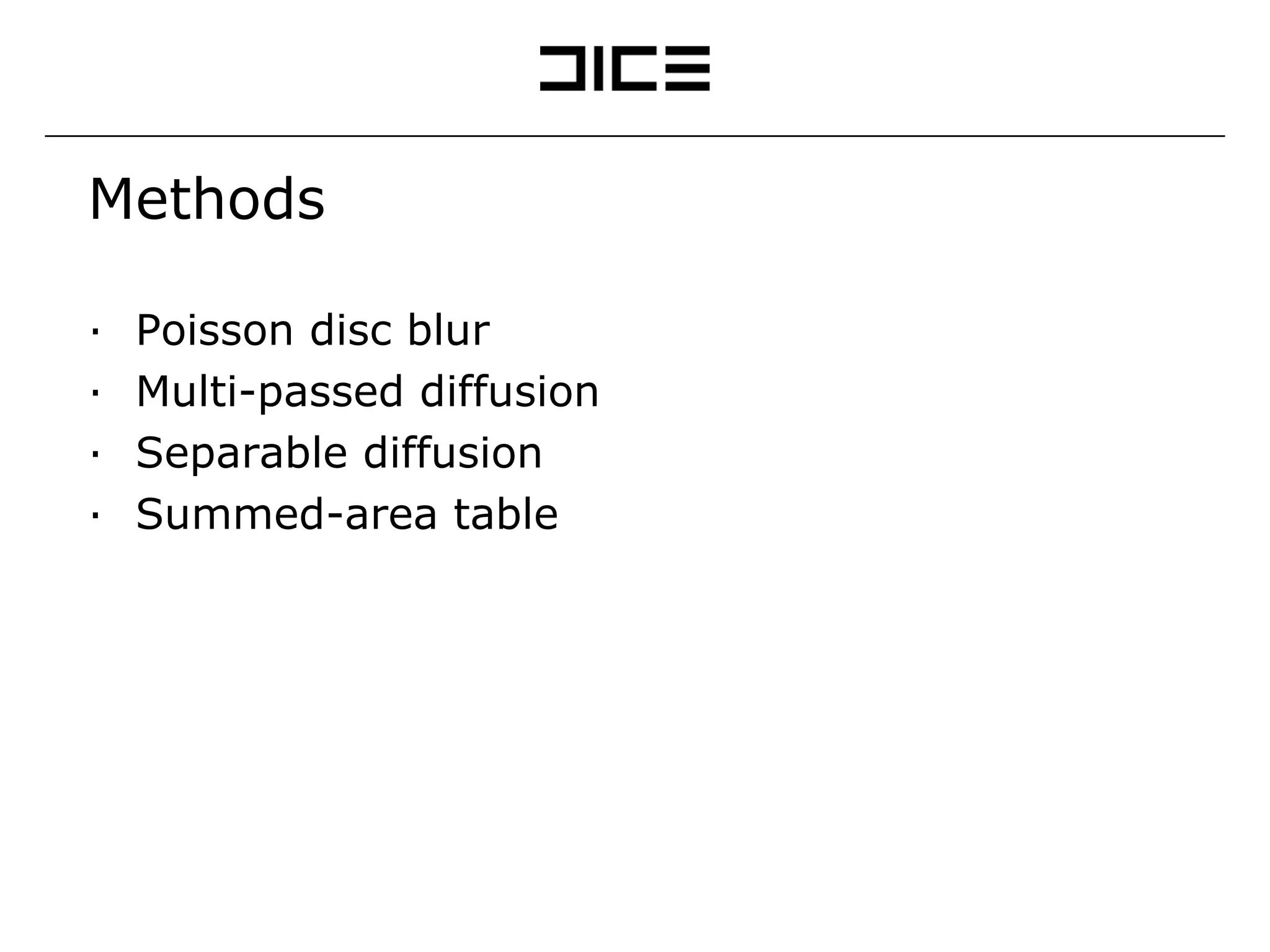

7. Methods Poisson disc blur Multi-passed diffusion Separable diffusion Summed-area table

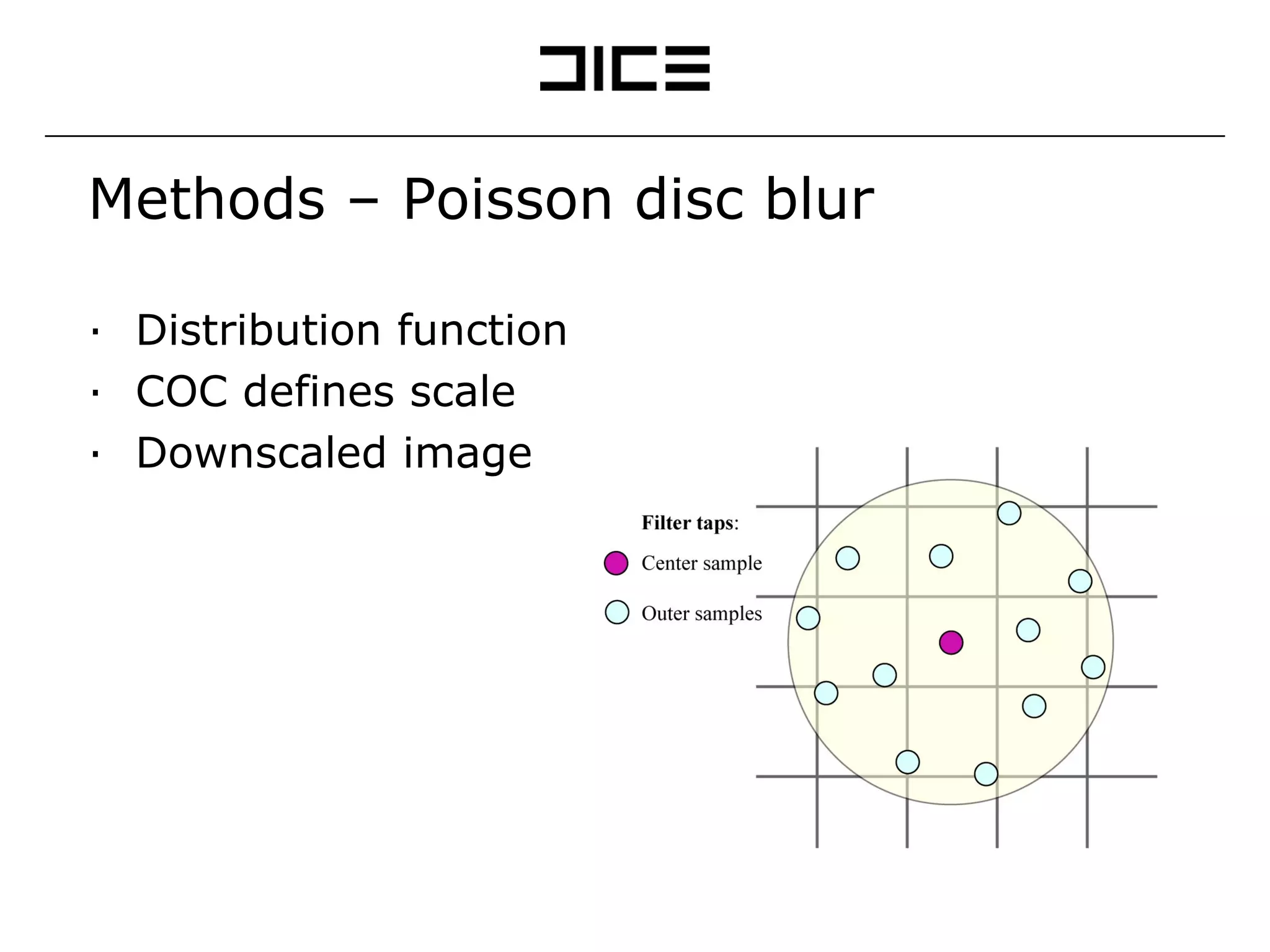

8. Methods – Poisson disc blur Distribution function COC defines scale Downscaled image

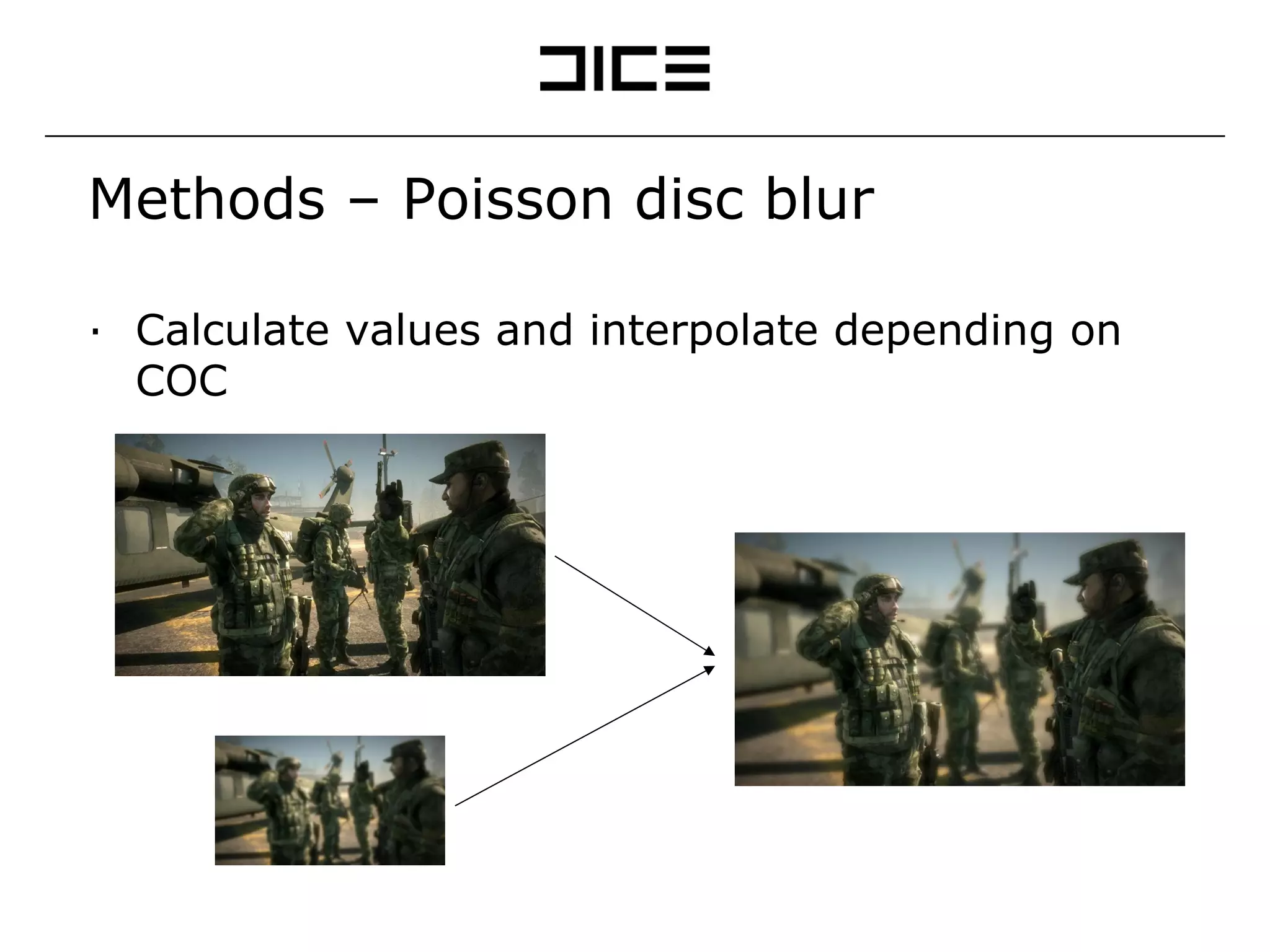

9. Methods – Poisson disc blur Calculate values and interpolate depending on COC

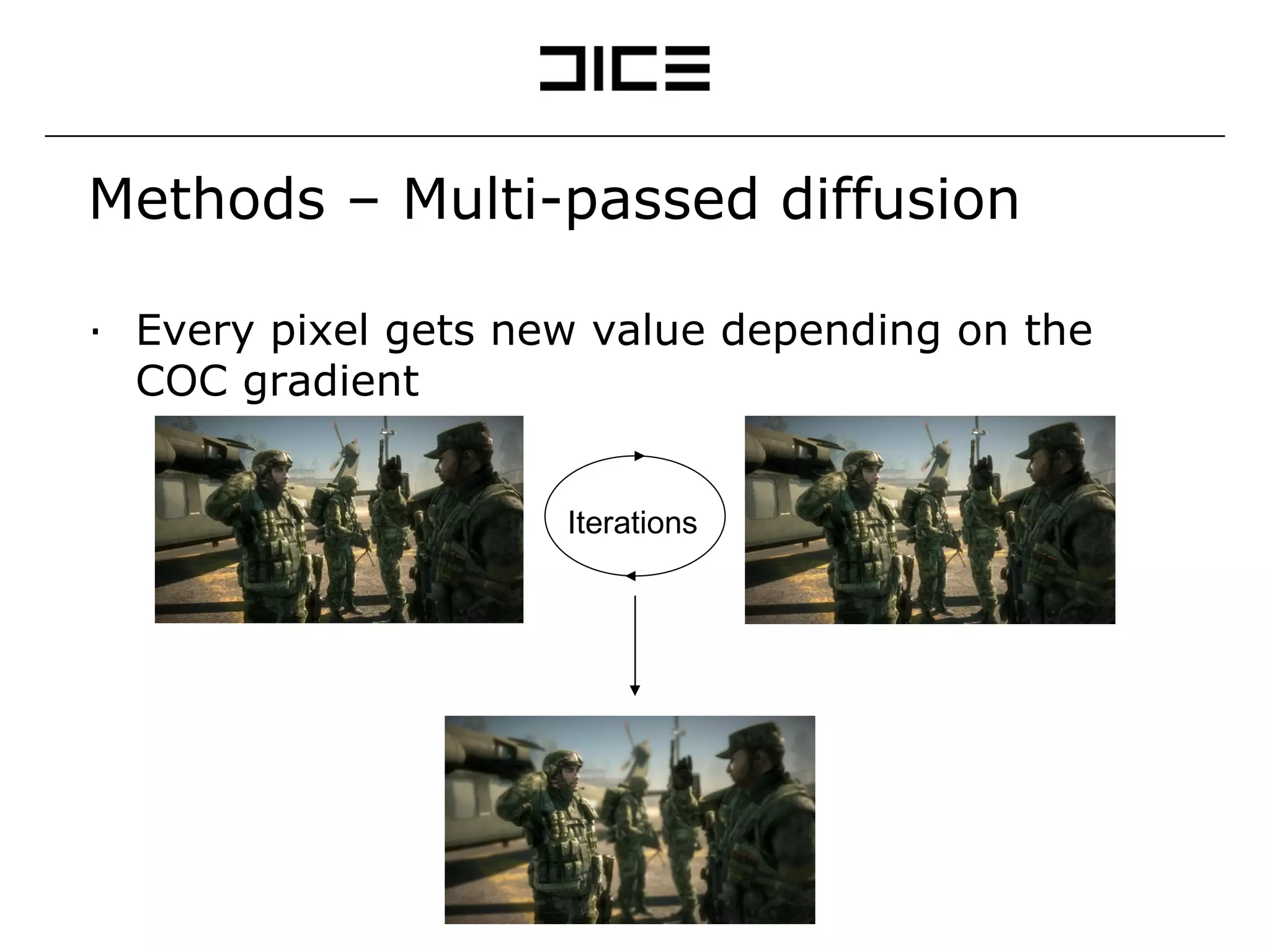

10. Methods – Multi-passed diffusion Every pixel gets new value depending on the COC gradient Iterations

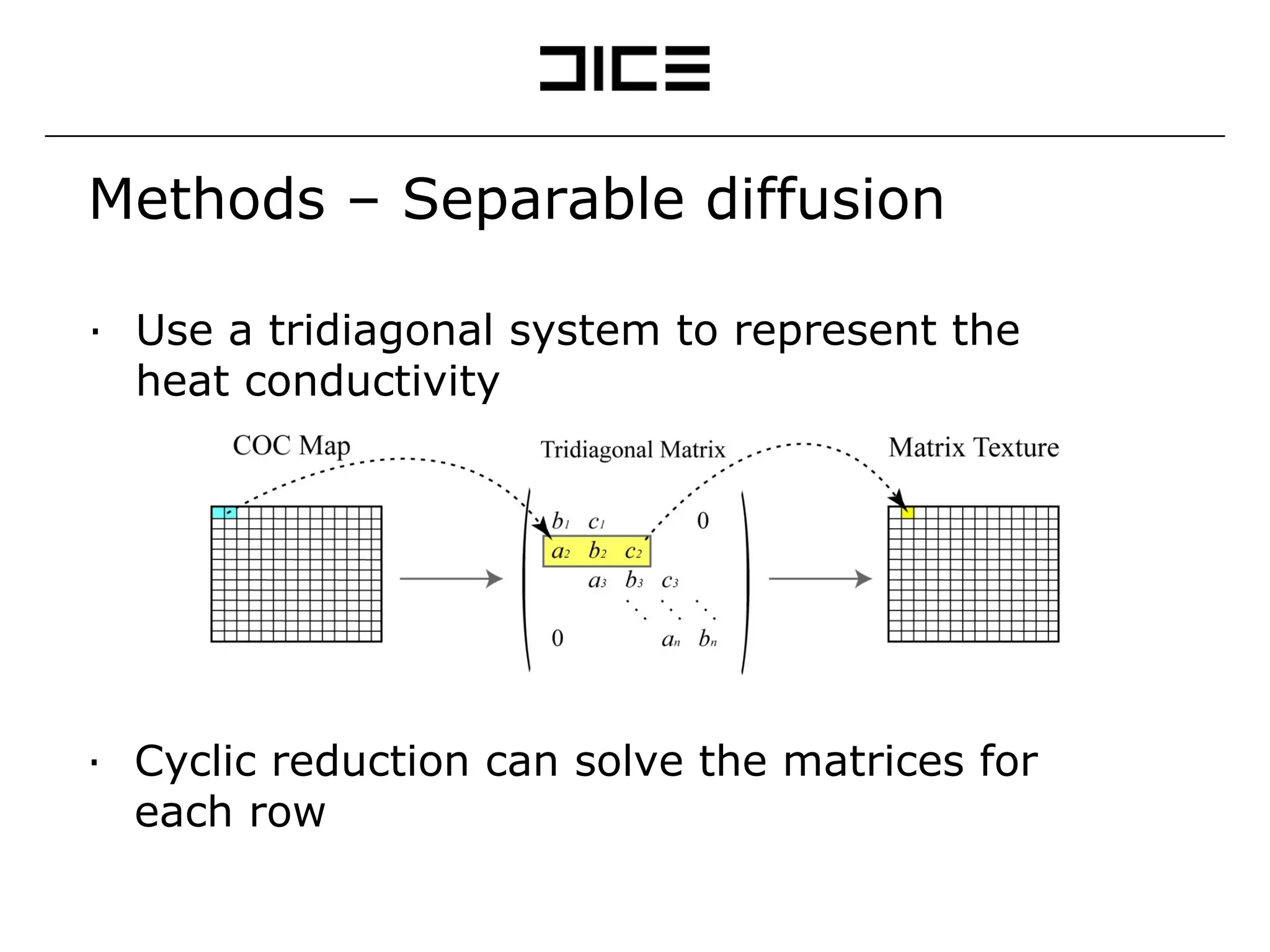

11. Methods – Separable diffusion Use a tridiagonal system to represent the heat conductivity Cyclic reduction can solve the matrices for each row

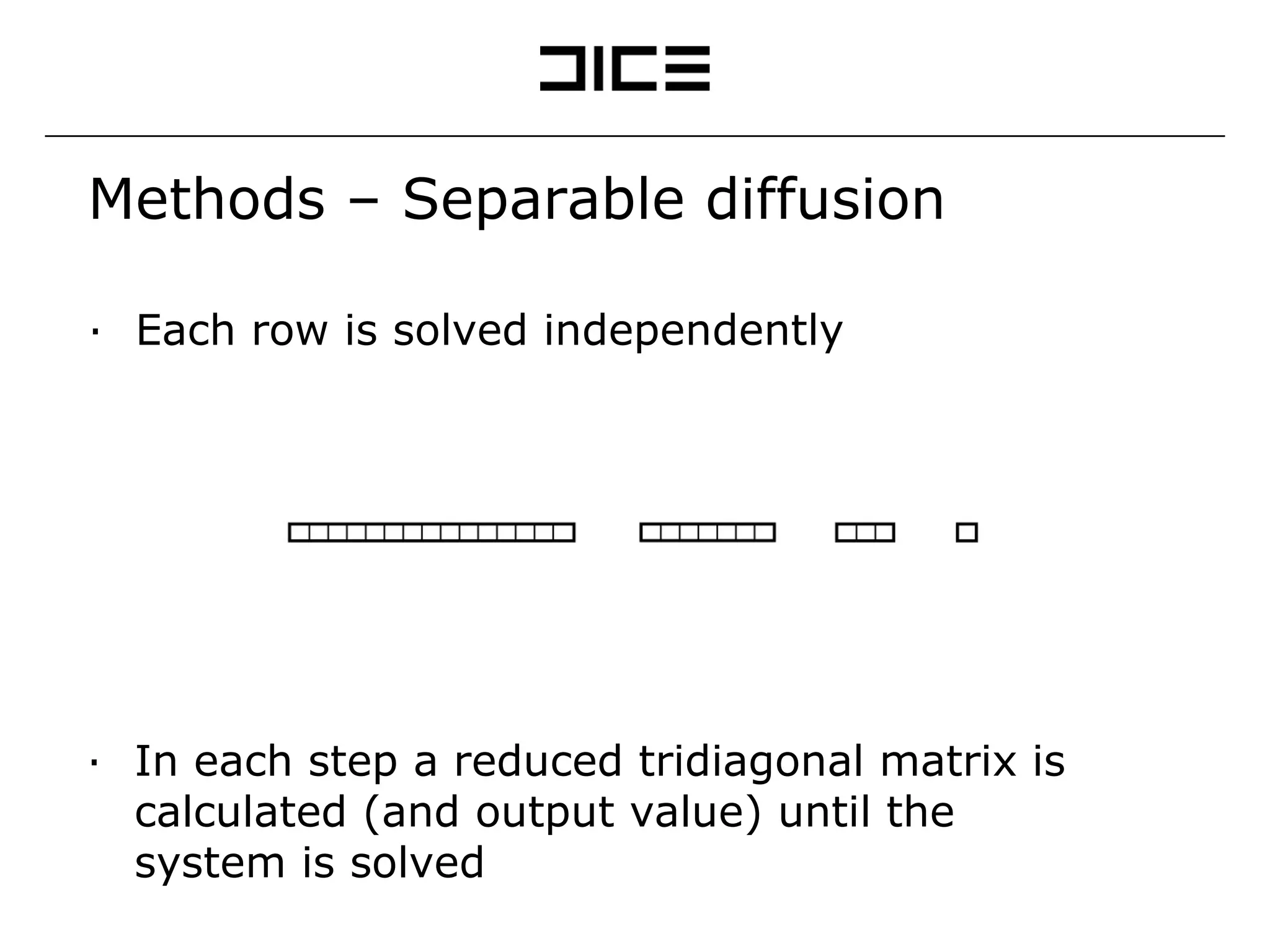

12. Methods – Separable diffusion Each row is solved independently In each step a reduced tridiagonal matrix is calculated (and output value) until the system is solved

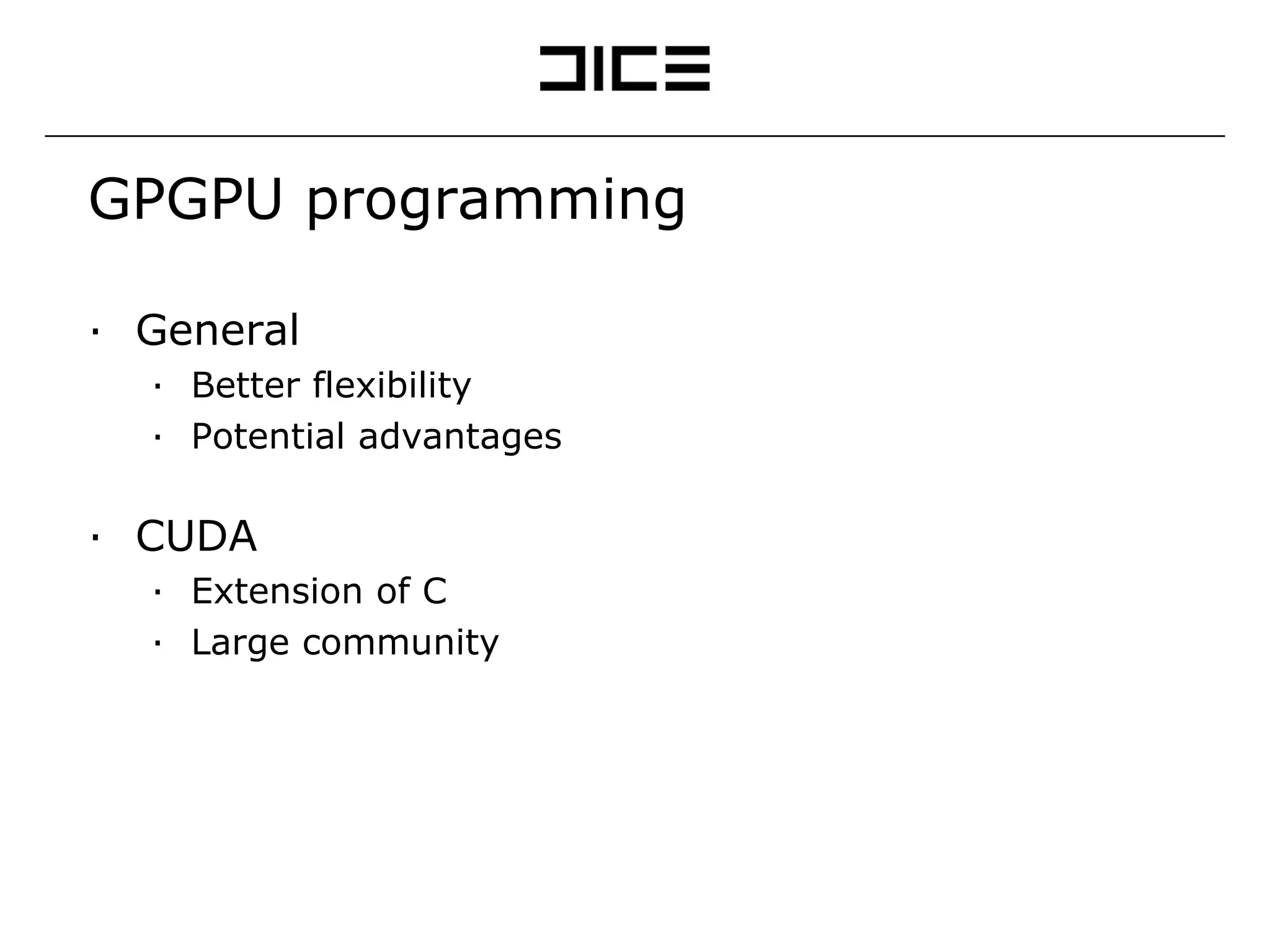

13. GPGPU programming General Better flexibility Potential advantages CUDA Extension of C Large community

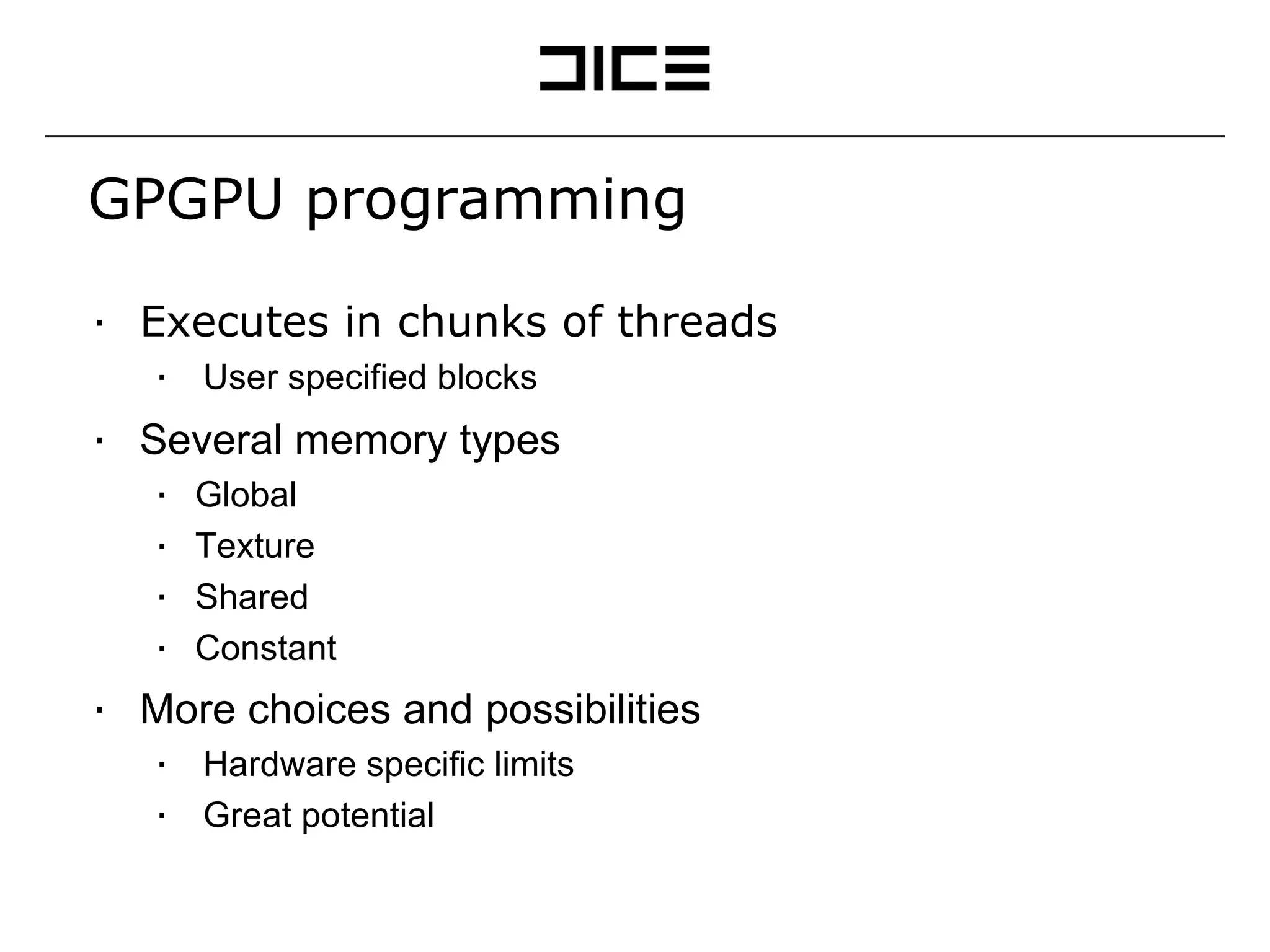

14. GPGPU programming Executes in chunks of threads User specified blocks Several memory types Global Texture Shared Constant More choices and possibilities Hardware specific limits Great potential

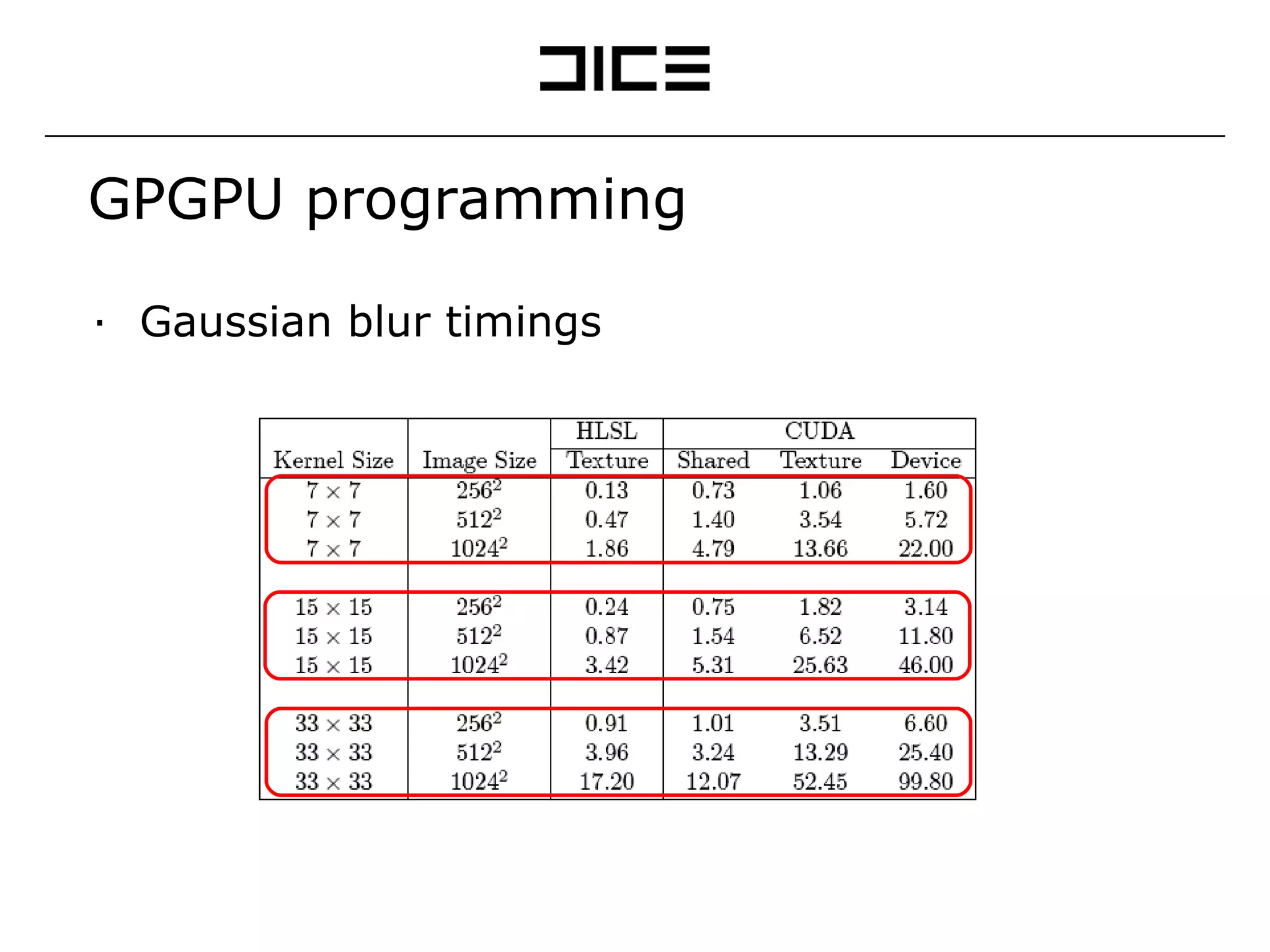

15. GPGPU programming Gaussian blur timings

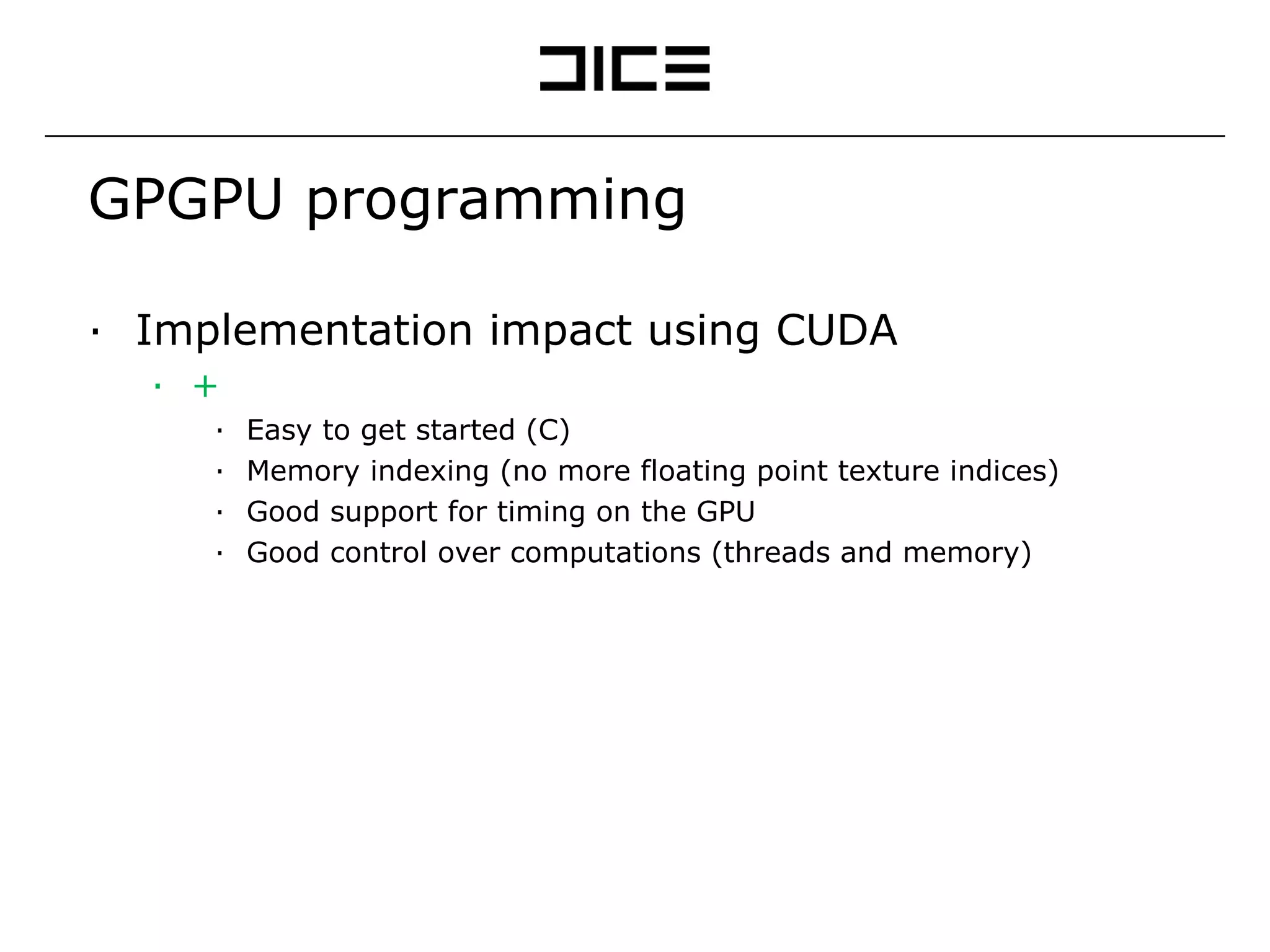

16. GPGPU programming Implementation impact using CUDA + Easy to get started (C) Memory indexing (no more floating point texture indices) Good support for timing on the GPU Good control over computations (threads and memory) - A lot of ”rules” (amount of threads, occupancy, etc) Hard to optimize Beta problems (lack of interop, slow operations)

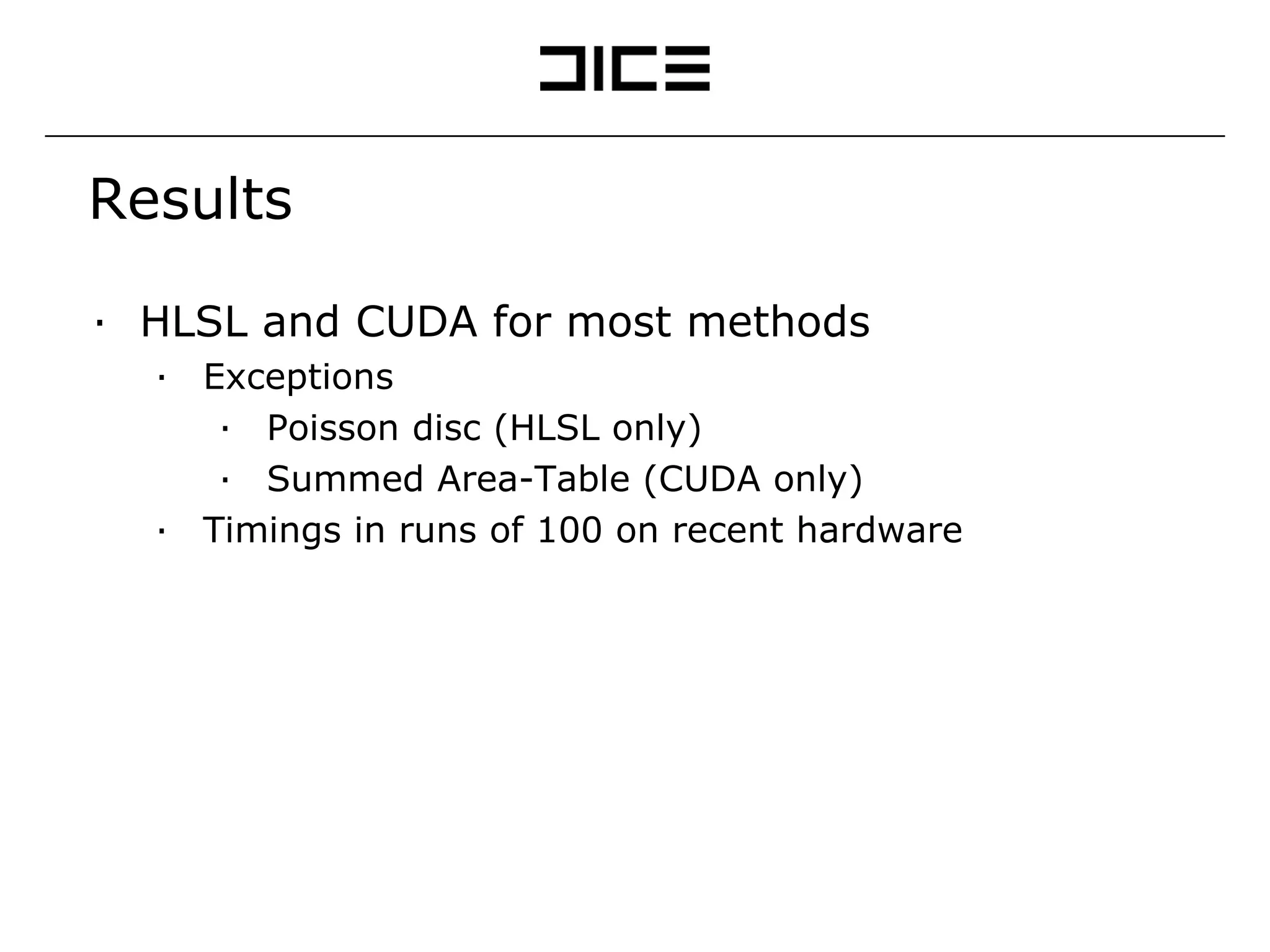

17. Results HLSL and CUDA for most methods Exceptions Poisson disc (HLSL only) Summed Area-Table (CUDA only) Timings in runs of 100 on recent hardware

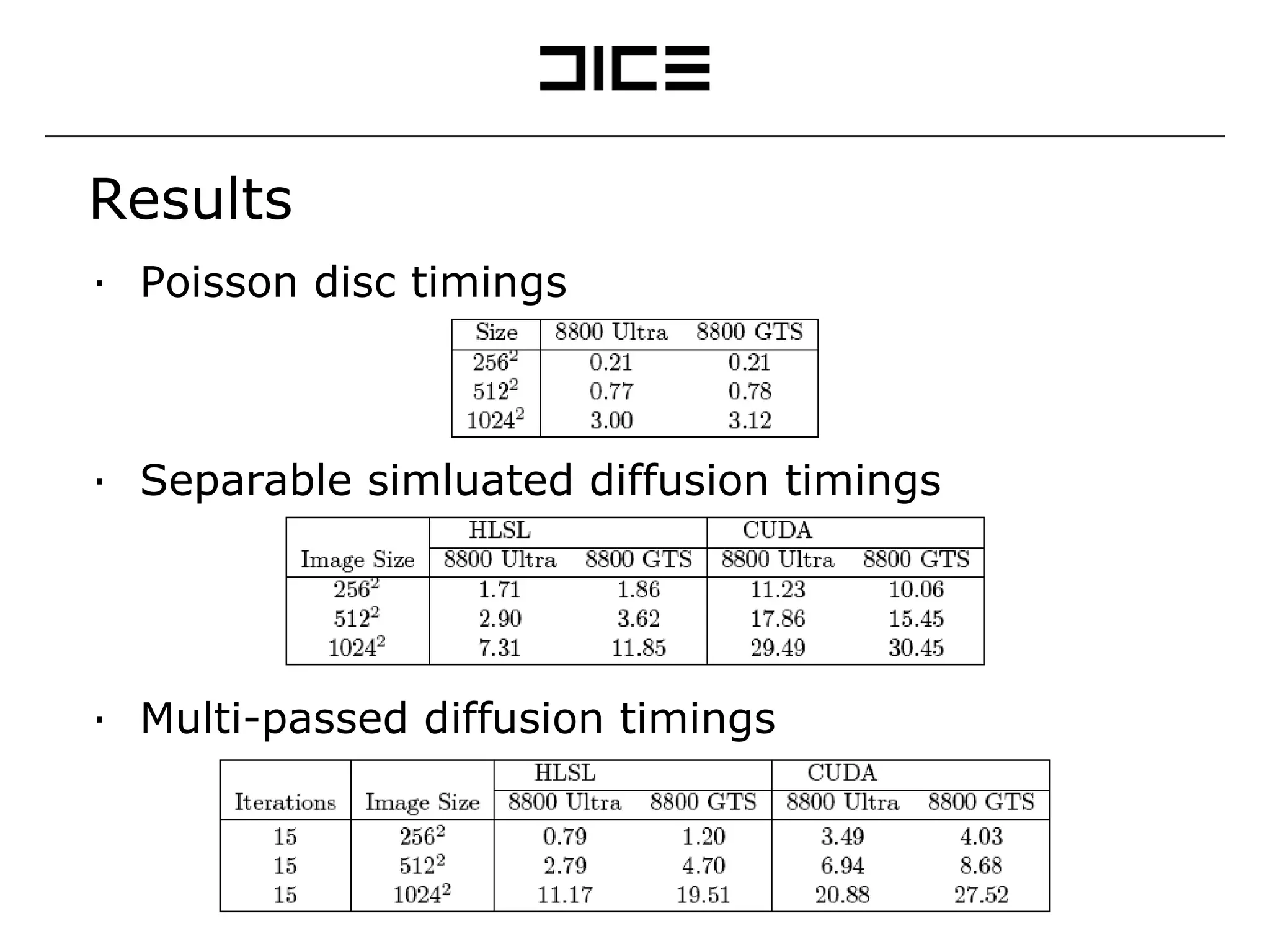

18. Results Poisson disc timings Separable simluated diffusion timings Multi-passed diffusion timings

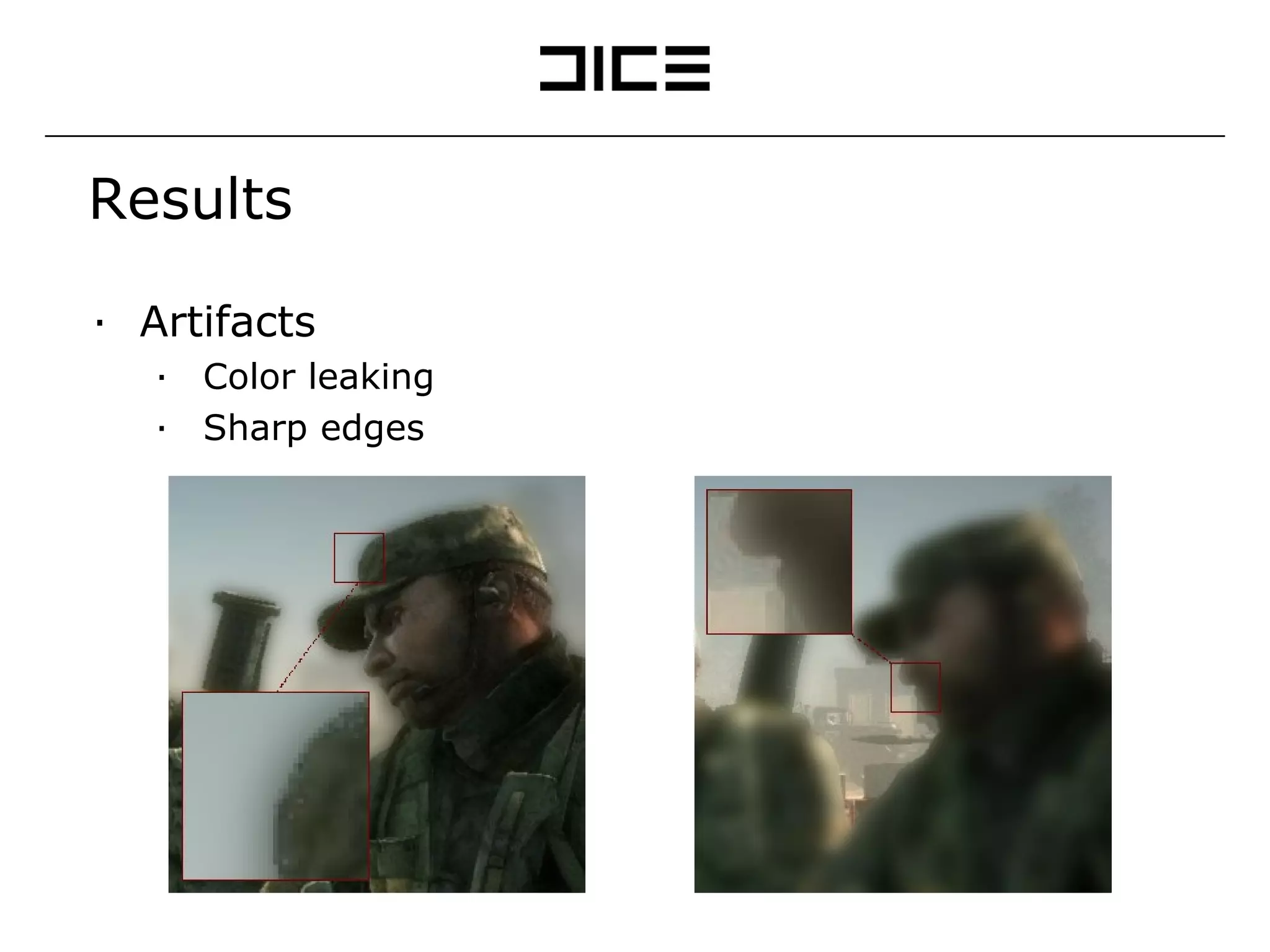

19. Results Artifacts Color leaking Sharp edges

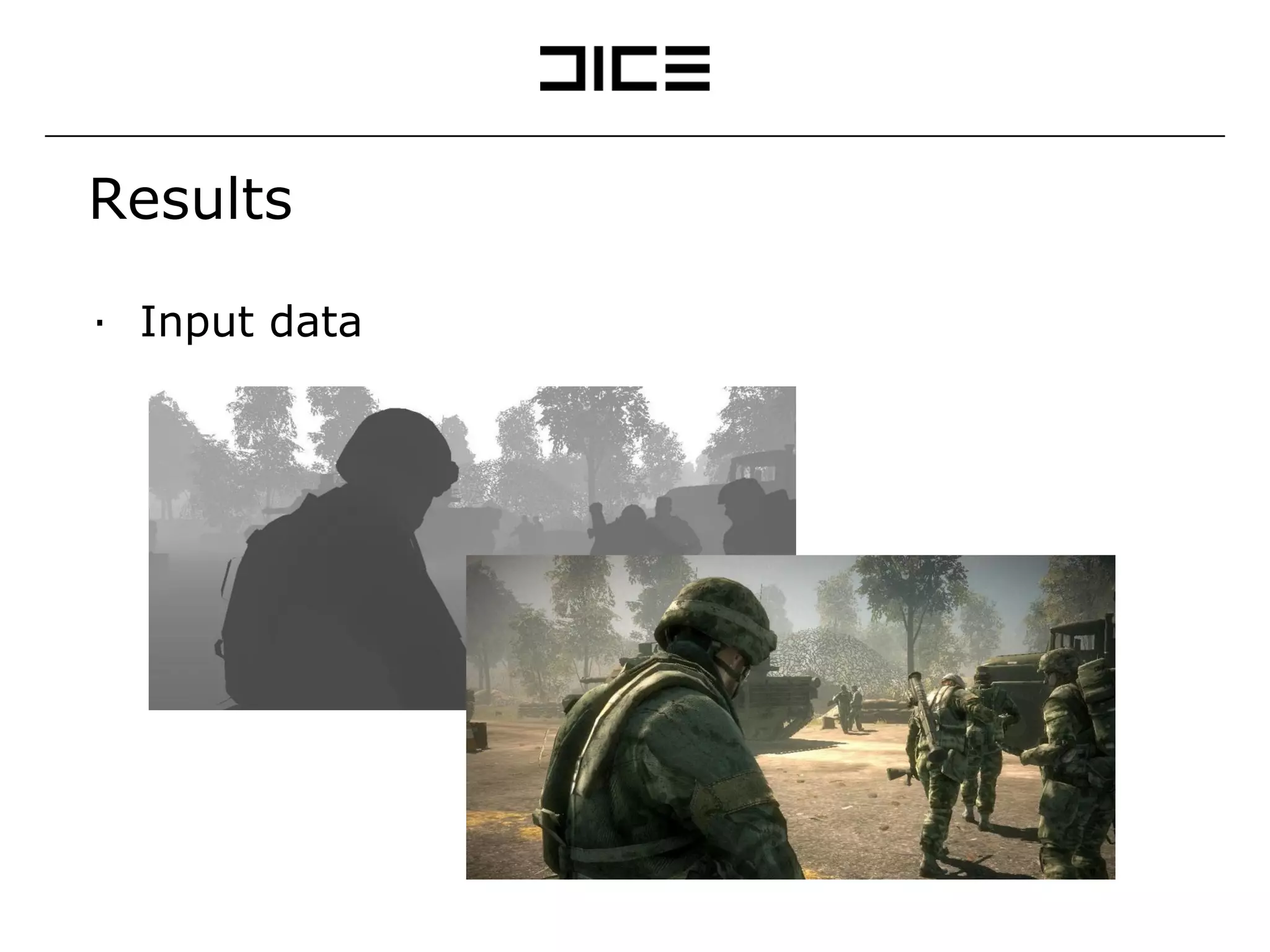

20. Results Input data

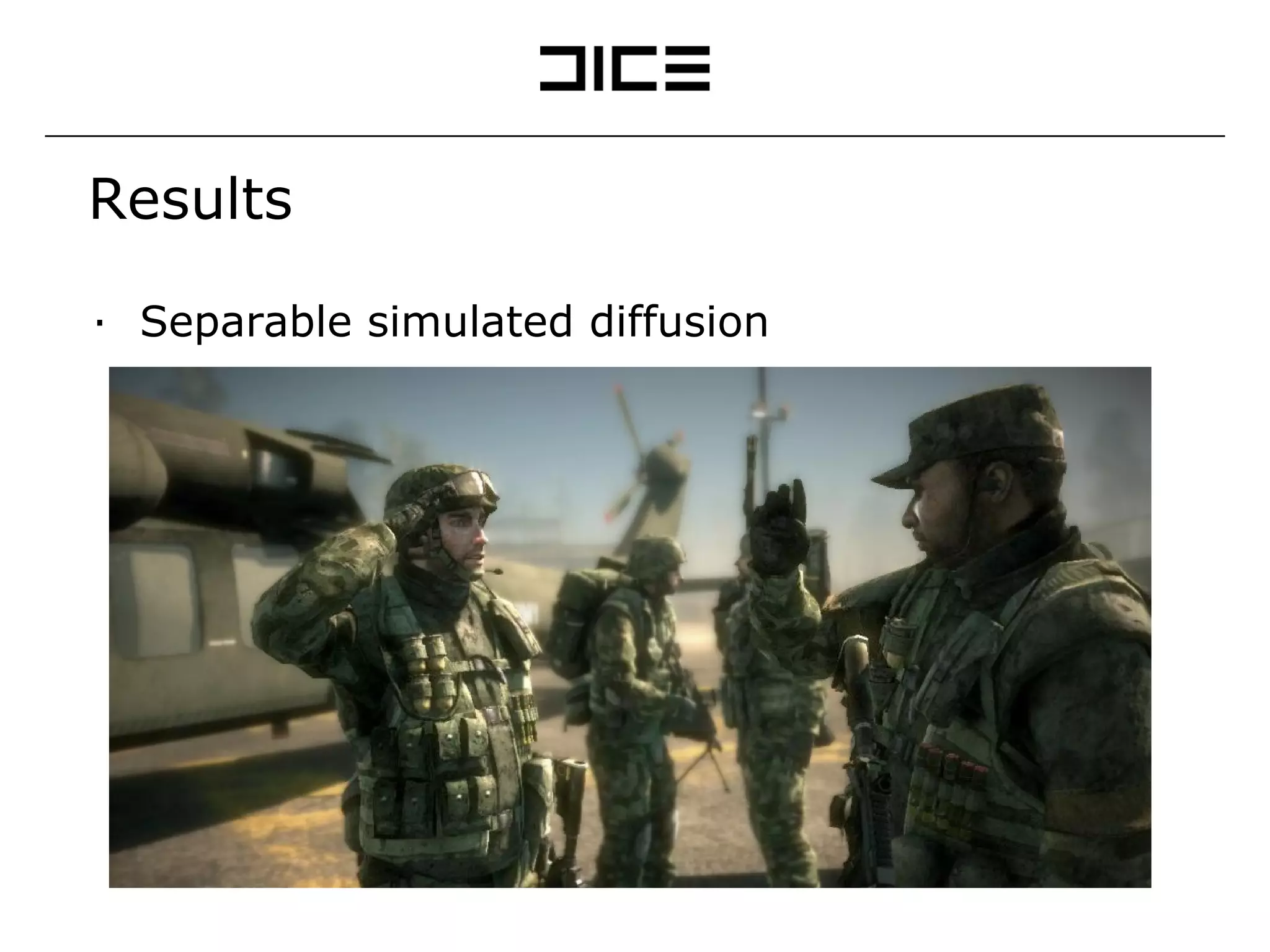

21. Results Poisson disc Multi-passed diffusion Separable simulated diffusion

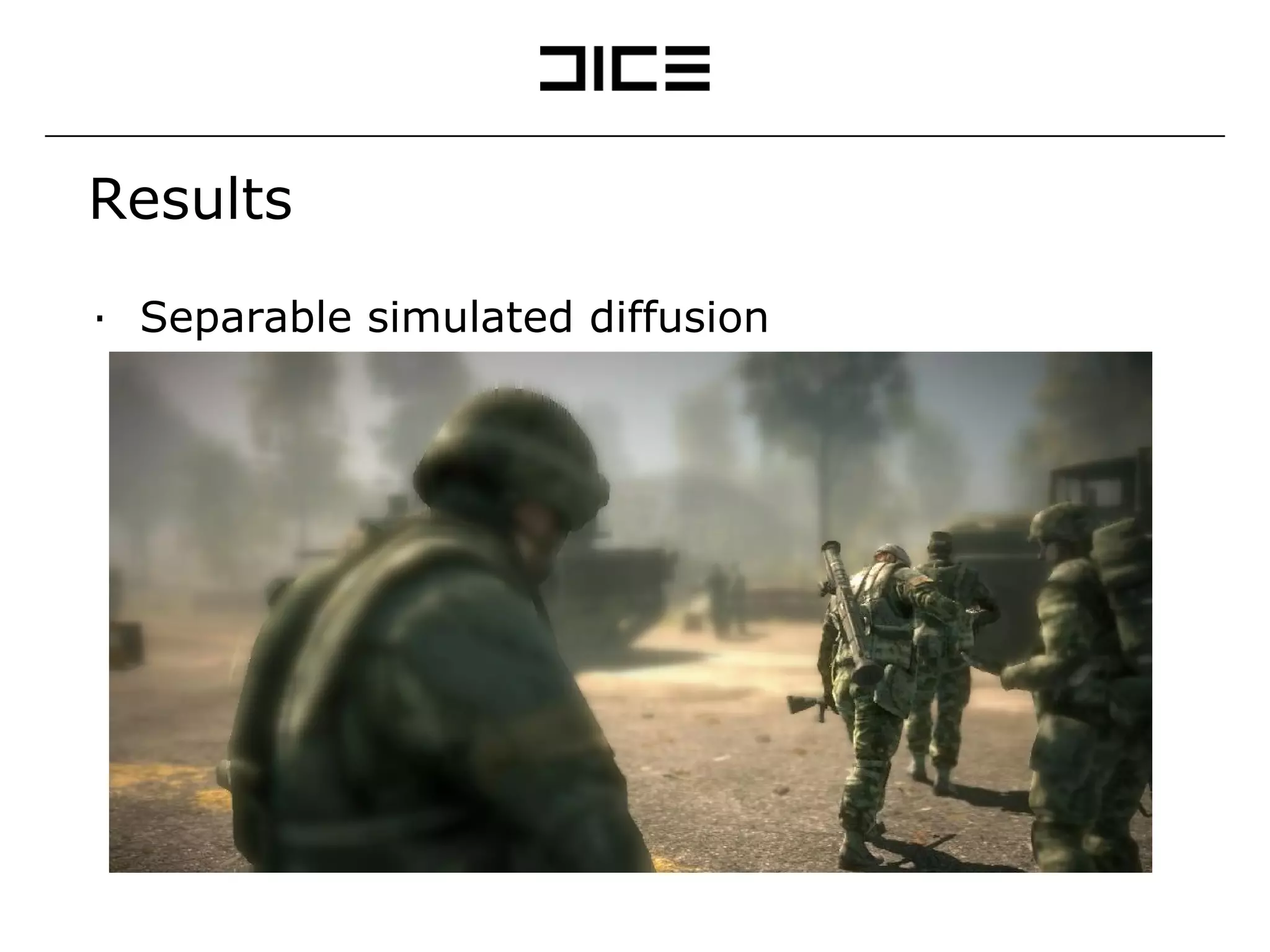

22. Results Poisson disc Multi-passed diffusion Separable simulated diffusion

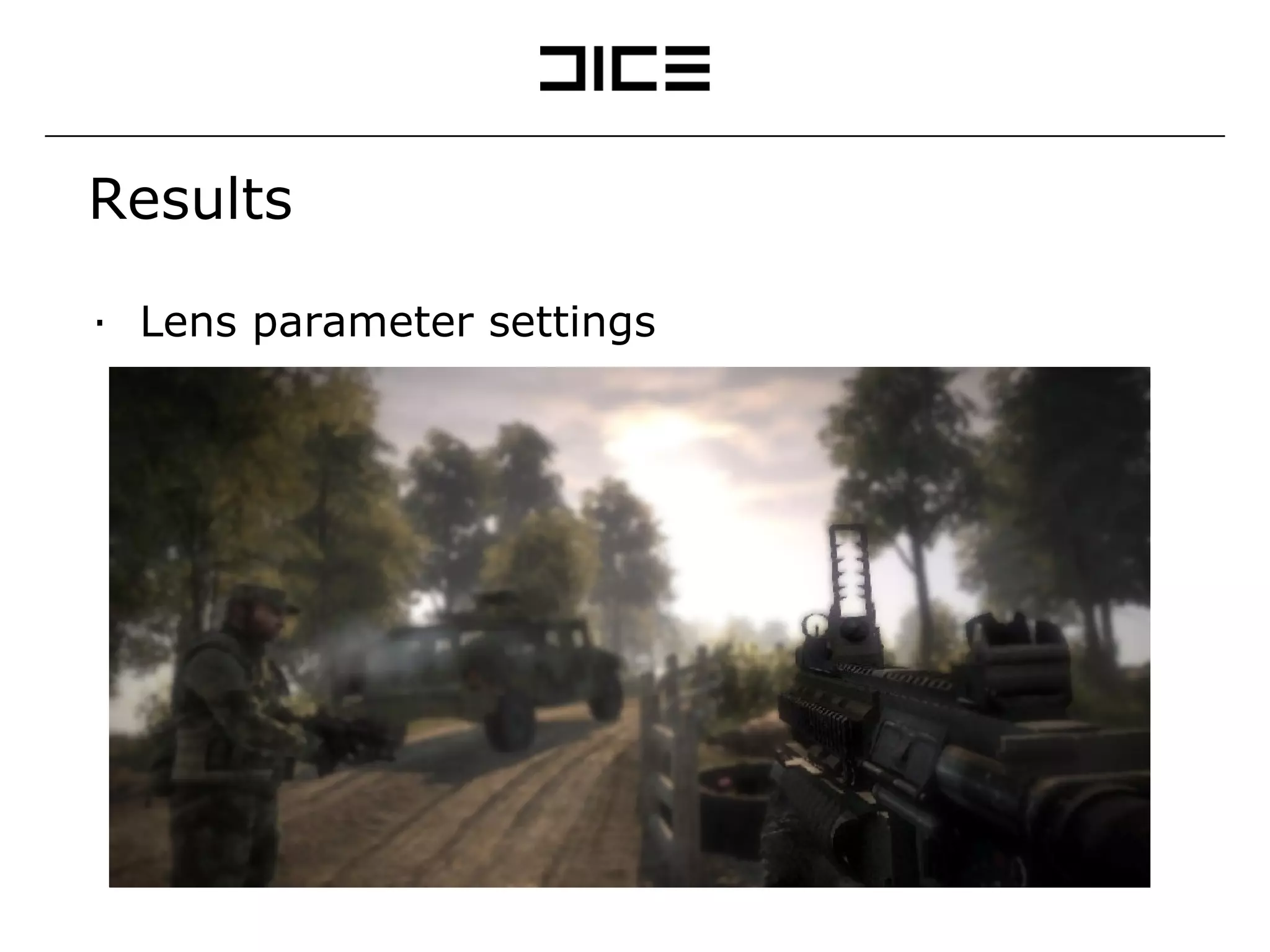

23. Results Lens parameter settings

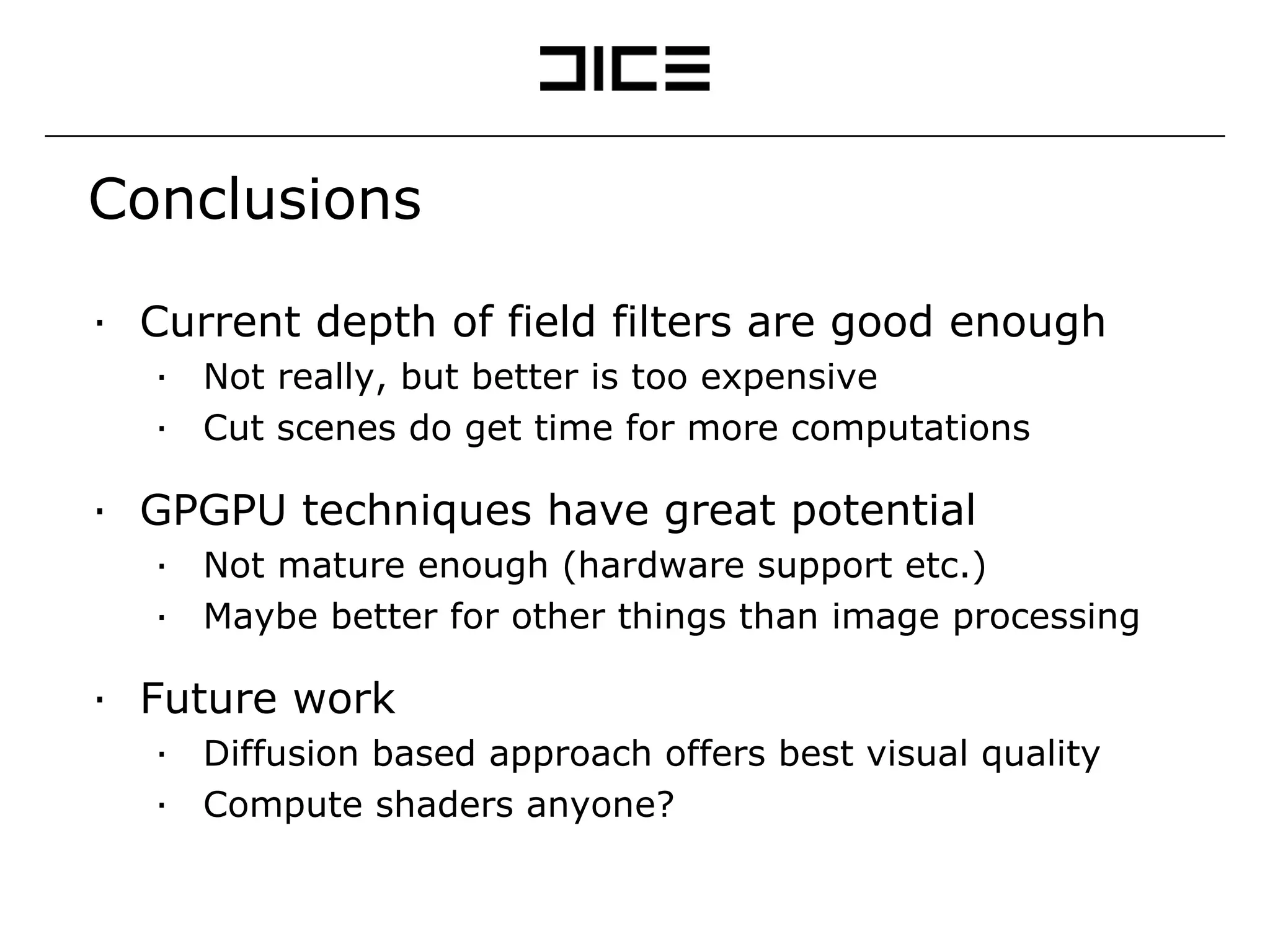

24. Conclusions Current depth of field filters are good enough Not really, but better is too expensive Cut scenes do get time for more computations GPGPU techniques have great potential Not mature enough (hardware support etc.) Maybe better for other things than image processing Future work Diffusion based approach offers best visual quality Compute shaders anyone?

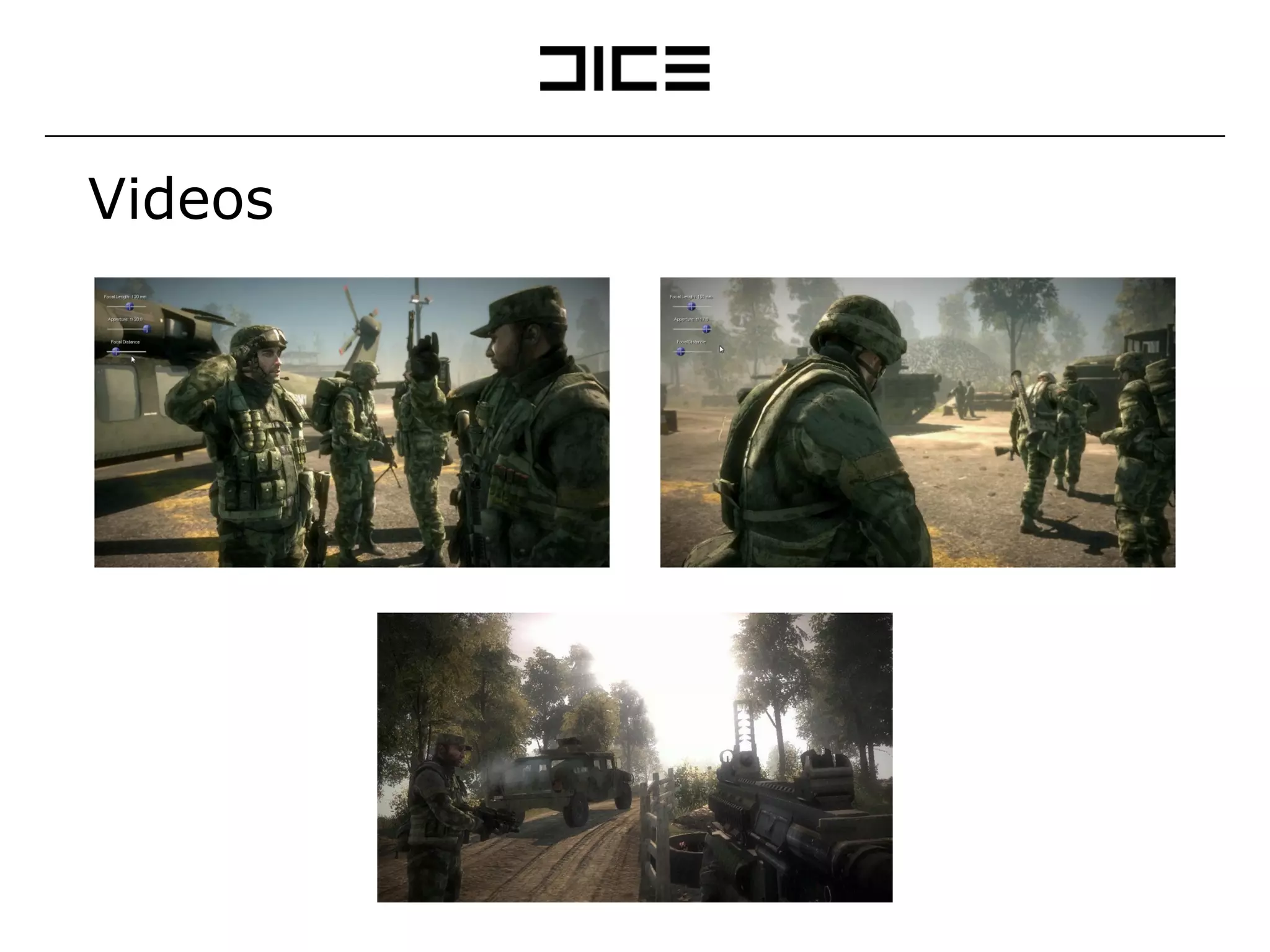

25. Videos

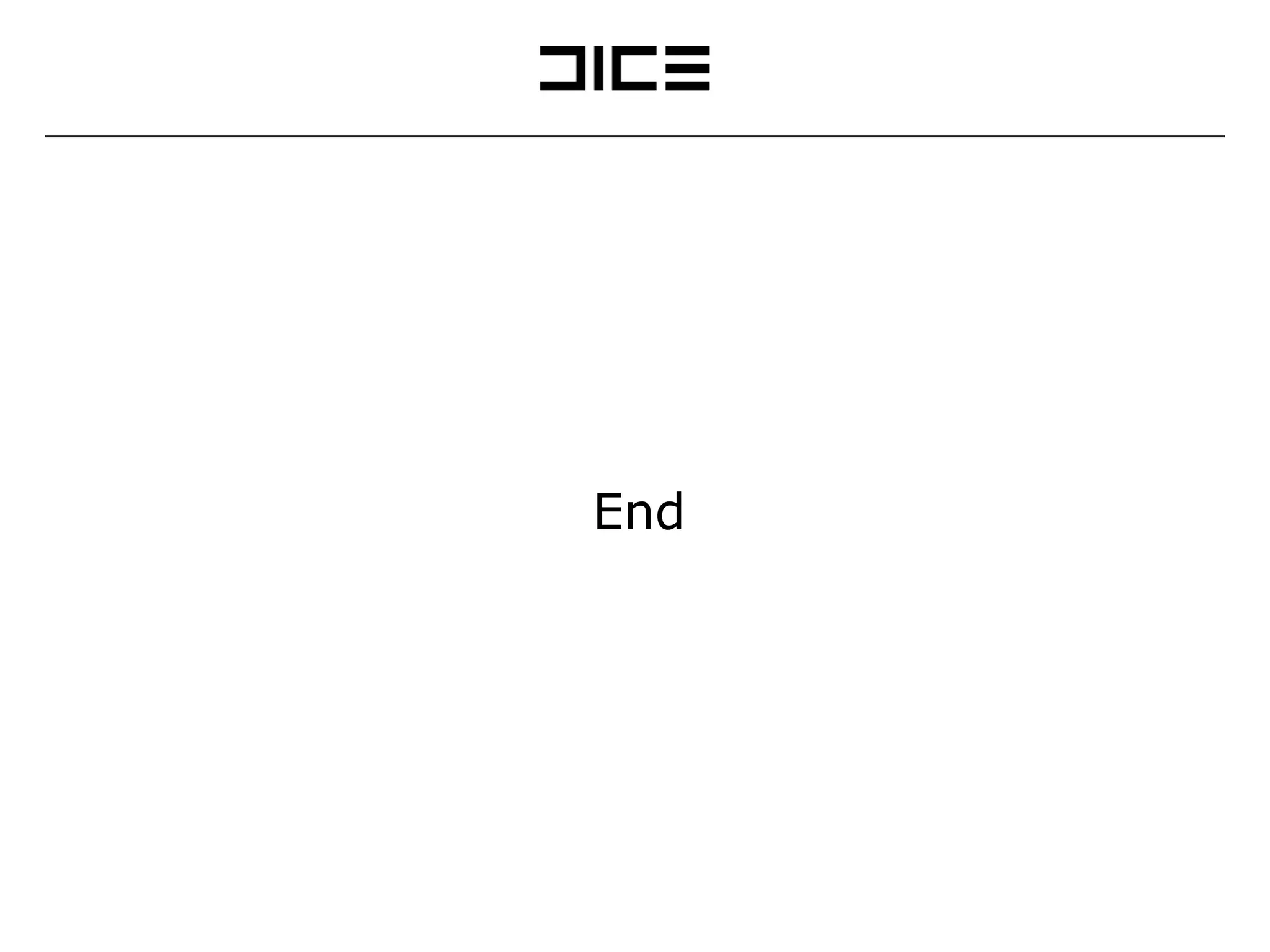

26. End
