Introduction to Core Data - Jason Shapiro

Introduction to Core Data for iOS

Jason Shapiro, Intertech

An Intertech Course


Award-Winning Training and Consulting.

Visit www.Intertech.com for complete details.

Copyright © Intertech, Inc. • www.Intertech.com • 800-866-9884 Slide 2


Intertech offers
Mobile Training On:
• Android
• HTML5
• iOS
• Java ME
• jQuery
• Windows Phone

Visit www.Intertech.com for complete course schedule.


Stop by Intertech’s
booth for a chance to
win FREE Training.

Or go to bit.ly.com/intertech-login



from
page: 3

Welcome
• Jason S. Shapiro – jshapiro@intertech.com
• Intertech Blog: http://www.intertech.com/blog
• My LinkedIn Profile - http://linkedin.com/in/jshapiro

• ~19 Years Professional Software Development and Architecture
Experience

• Master of Science in Software Engineering (2004)

• Sun Certified Java Programmer (2001) & Web Component Developer
(2004)

• Scrum Alliance Certified ScrumMaster



from
page: 3

Welcome

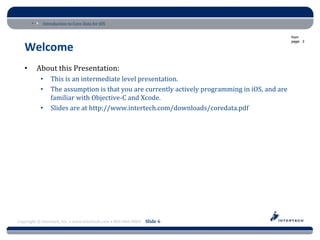

• About this Presentation:
• This is an intermediate level presentation.
• The assumption is that you are currently actively programming in iOS, and are
familiar with Objective-C and Xcode.
• Slides are at http://www.intertech.com/downloads/coredata.pdf



from
page: 4

Options for Persistence in iOS
• Core Data is used for data persistence.
• So, what is data persistence?
• The act of preserving data in non-volatile storage.
• Simply put: the ability to retain information after a program has shut down.
• Special considerations for iOS
• Limited Memory – the number of active apps reduces the amount of memory
available, and affects performance.
• No “Backing Store” or Automatic Paging – memory is released, not saved, when
the device hits its limits. In worst-case scenarios, an app will receive a warning to
release memory.
• Data Sharing Among Devices – users often own multiple devices they’d like to
share state between.



from
page: 4

Options for Persistence in iOS Cont.
• Common options for data persistence in iOS

Type Description
File System Saves data to a non-volatile area of memory on the device
(binary, plist, etc)
Networked Transfer data to an external resource. Typical options here are
Data Store a RESTful Web Service or iCloud.
SQLite C-based API & relational database.
Core Data Provides an object oriented way or managing and persisting
data.



from
page: 5

• What is Core Data?
• An Objective-C API and modeling tool that is used to manage object-graphs.
• Available for free with Xcode.
• Typically sits on top of SQLite, though other data stores can be used.

• Allows you to treat persistence in an object oriented manner (similar to ORM
frameworks).
• Lazy loads data with “faults.”


from
page: 5

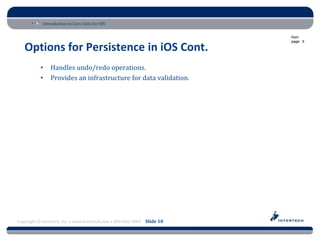

• Handles undo/redo operations.
• Provides an infrastructure for data validation.



from
page: 6

Core Data Architecture
• There are 5 core classes that are used in most operations with Core Data.

• Your code will typically call the methods and properties of Managed Objects
and The Managed Object Context.
• Although you will create the Managed Object Model, Persistent Store Coordinator,
and Persistent Store, these objects will be invoked indirectly by way of the
Managed Object Context.


from
page: 6

Core Data Architecture Cont.
• Managed Objects (NSManagedObject or subclass) represents
the model of your apps.
• These are the objects that represent data you want to persist.
• For example: Employee, Customer, Order, etc.
• The actual code for each class is generated for you based on the
model (though you may modify it if necessary).
• Because this is an object-graph management tool, changes in one
class can affect another. The modeling tool classifies these as
“Relationships.”



from
page: 7

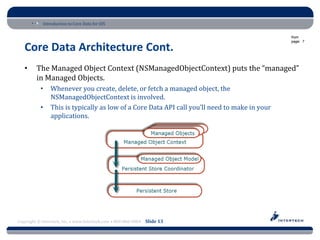

• The Managed Object Context (NSManagedObjectContext) puts the “managed”
in Managed Objects.
• Whenever you create, delete, or fetch a managed object, the
NSManagedObjectContext is involved.
• This is typically as low of a Core Data API call you’ll need to make in your
applications.



from
page: 7

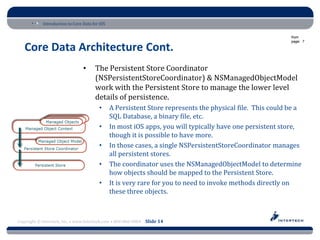

• The Persistent Store Coordinator
(NSPersistentStoreCoordinator) & NSManagedObjectModel
work with the Persistent Store to manage the lower level
details of persistence.
• A Persistent Store represents the physical file. This could be a
SQL Database, a binary file, etc.
• In most iOS apps, you will typically have one persistent store,
though it is possible to have more.
• In those cases, a single NSPersistentStoreCoordinator manages
all persistent stores.
• The coordinator uses the NSManagedObjectModel to determine
how objects should be mapped to the Persistent Store.
• It is very rare for you to need to invoke methods directly on
these three objects.



from
page: 8

Schema Design in Xcode
• Before data can be persisted, it must be modeled.
• Modeling describes the composition and relationships within an object-graph.
• A model is created as an *.xcdatamodeld file and constructed through a special
model editor in Xcode.
• Xcode compiles this into a *.momd file, which in turn is encapsulated in the
NSManagedObjectModel.



from
page: 10

Schema Design in Xcode Cont.
• A single model class is notated as an Entity.
• An entity may contain “Attributes” which are manifested as properties.
• Relationships between other classes may be defined (one to many, many to one,
many to many), which are also manifested as properties.



from
page: 10

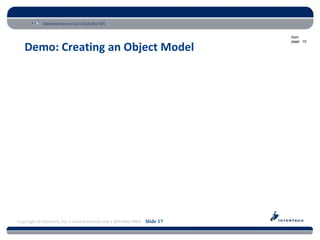

Demo: Creating an Object Model



from
page: 12

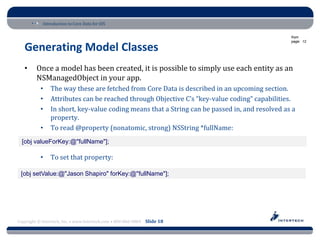

Generating Model Classes
• Once a model has been created, it is possible to simply use each entity as an
NSManagedObject in your app.
• The way these are fetched from Core Data is described in an upcoming section.
• Attributes can be reached through Objective C’s “key-value coding” capabilities.
• In short, key-value coding means that a String can be passed in, and resolved as a
property.
• To read @property (nonatomic, strong) NSString *fullName:
[obj valueForKey:@"fullName"];

• To set that property:

[obj setValue:@"Jason Shapiro" forKey:@"fullName"];



from
page: 12

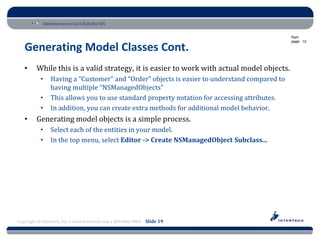

Generating Model Classes Cont.
• While this is a valid strategy, it is easier to work with actual model objects.
• Having a “Customer” and “Order” objects is easier to understand compared to
having multiple “NSManagedObjects”
• This allows you to use standard property notation for accessing attributes.
• In addition, you can create extra methods for additional model behavior.
• Generating model objects is a simple process.
• Select each of the entities in your model.
• In the top menu, select Editor -> Create NSManagedObject Subclass...



from
page: 13

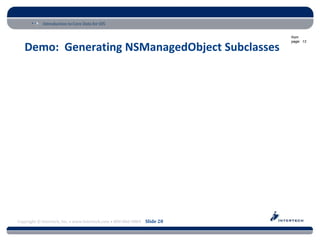

Demo: Generating NSManagedObject Subclasses



from
page: 14

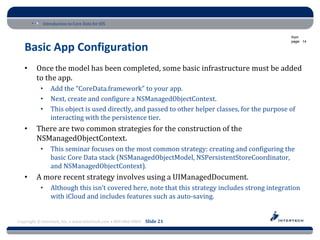

Basic App Configuration
• Once the model has been completed, some basic infrastructure must be added
to the app.
• Add the “CoreData.framework” to your app.
• Next, create and configure a NSManagedObjectContext.
• This object is used directly, and passed to other helper classes, for the purpose of
interacting with the persistence tier.
• There are two common strategies for the construction of the
NSManagedObjectContext.
• This seminar focuses on the most common strategy: creating and configuring the
basic Core Data stack (NSManagedObjectModel, NSPersistentStoreCoordinator,
and NSManagedObjectContext).
• A more recent strategy involves using a UIManagedDocument.
• Although this isn’t covered here, note that this strategy includes strong integration
with iCloud and includes features such as auto-saving.



from
page: 14

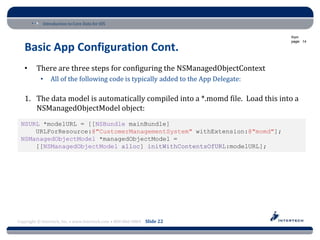

Basic App Configuration Cont.
• There are three steps for configuring the NSManagedObjectContext
• All of the following code is typically added to the App Delegate:

1. The data model is automatically compiled into a *.momd file. Load this into a
NSManagedObjectModel object:
NSURL *modelURL = [[NSBundle mainBundle]
URLForResource:@"CustomerManagementSystem" withExtension:@"momd"];
NSManagedObjectModel *managedObjectModel =
[[NSManagedObjectModel alloc] initWithContentsOfURL:modelURL];



from
page: 15

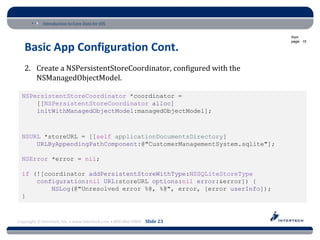

2. Create a NSPersistentStoreCoordinator, configured with the
NSManagedObjectModel.

NSPersistentStoreCoordinator *coordinator =
[[NSPersistentStoreCoordinator alloc]
initWithManagedObjectModel:managedObjectModel];

NSURL *storeURL = [[self applicationDocumentsDirectory]
URLByAppendingPathComponent:@"CustomerManagementSystem.sqlite"];

NSError *error = nil;

if (![coordinator addPersistentStoreWithType:NSSQLiteStoreType
configuration:nil URL:storeURL options:nil error:&error]) {
NSLog(@"Unresolved error %@, %@", error, [error userInfo]);
}



from
page: 15

3. Create the NSManagedObjectContext, configured with the
NSPersistentStoreCoordinator.
NSManagedObjectContext *context = [[NSManagedObjectContext alloc]
init];
context.persistentStoreCoordinator = coordinator;



from
page: 15

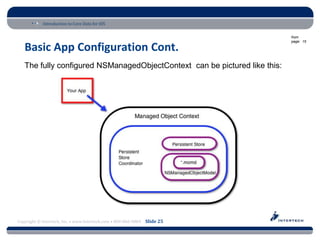

The fully configured NSManagedObjectContext can be pictured like this:



from
page: 16

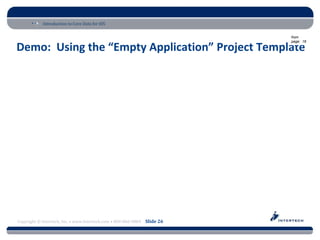

Demo: Using the “Empty Application” Project Template



from
page: 17

CRUD Operations
• Now that the NSManagedObjectContext is available, CRUD operations may be
applied to Managed Objects.
• CRUD is Create, Read, Update, and Delete.
• The standard pattern in iOS is to use the NSManagedObjectContext, or a helper
class that is configured with it, to execute CRUD functionality.
• All CRUD operations happen in memory.
• In order to persist any changes, the NSManagedObjectContext must receive a
“save” message.



from
page: 17

CRUD Operations Cont.
• Managed Objects are not created through standard alloc/init. calls.
• Instead an Entity Description (NSEntityDescription), which is configured with the
NSManagedObjectContext, is used for object creation.

Customer *customer = [NSEntityDescription
insertNewObjectForEntityForName:@"Customer"
inManagedObjectContext:self.context];

• Next, standard property calls are used to configure the object’s attributes.
customer.fullName = @”Jason Shapiro”;

• Object relationships should use one of the Managed Object’s generated methods.
Order *order =
[NSEntityDescription insertNewObjectForEntityForName:@"Order"
inManagedObjectContext:self.managedObjectContext];

// Configure Order code would be placed here...

[customer addOrdersObject:order];


from
page: 17

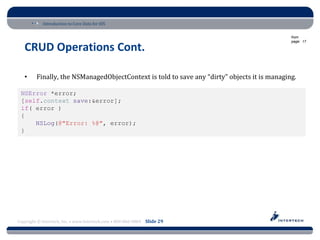

• Finally, the NSManagedObjectContext is told to save any “dirty” objects it is managing.

NSError *error;
[self.context save:&error];
if( error )
{
NSLog(@"Error: %@", error);
}



from
page: 18

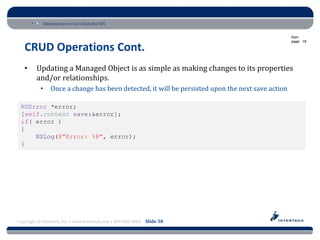

• Updating a Managed Object is as simple as making changes to its properties
and/or relationships.
• Once a change has been detected, it will be persisted upon the next save action

NSError *error;
[self.context save:&error];
if( error )
{
}



from
page: 18

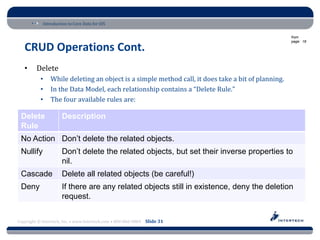

• Delete
• While deleting an object is a simple method call, it does take a bit of planning.
• In the Data Model, each relationship contains a “Delete Rule.”
• The four available rules are:

Delete Description
Rule
No Action Don’t delete the related objects.
Nullify Don’t delete the related objects, but set their inverse properties to
nil.
Cascade Delete all related objects (be careful!)
Deny If there are any related objects still in existence, deny the deletion
request.



from
page: 18

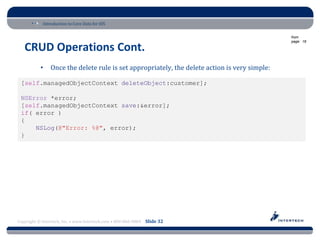

• Once the delete rule is set appropriately, the delete action is very simple:

[self.managedObjectContext deleteObject:customer];

NSError *error;
[self.managedObjectContext save:&error];
if( error )
{
}



from
page: 19

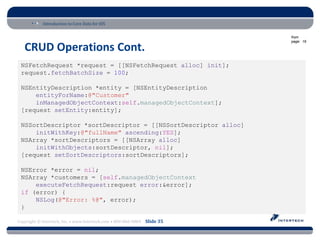

• A Read action uses a few different objects to construct its request.
• NSFetchRequest – The object which encapsulates the entire request, including the
batch size.
• NSEntityDescription – Specifies the entity type to retrieve.
• NSSortDescriptor – Determines one or more attributes to sort on and whether or
not the order is ascending or descending.
• NSPredicate – Optional. Similar to a “where” clause in SQL.
• NSManagedObjectContext – Executes the fetch request.



from
page: 19

• This first example retrieves all customer objects, sorting them by the
Customer’s fullName in an ascending order.
• All of the related Order managed objects are “faulted.”
• This means that a mock object is substituted during the initial load. As a
relationship path is followed with the ‘.’ operator, the real object is retrieved from
the data store. i.e. customer.orders[0].productId.



from
page: 19

NSFetchRequest *request = [[NSFetchRequest alloc] init];
request.fetchBatchSize = 100;

NSEntityDescription *entity = [NSEntityDescription
entityForName:@"Customer"
inManagedObjectContext:self.managedObjectContext];
[request setEntity:entity];

NSSortDescriptor *sortDescriptor = [[NSSortDescriptor alloc]
initWithKey:@"fullName" ascending:YES];
NSArray *sortDescriptors = [[NSArray alloc]
initWithObjects:sortDescriptor, nil];
[request setSortDescriptors:sortDescriptors];

NSError *error = nil;
NSArray *customers = [self.managedObjectContext
executeFetchRequest:request error:&error];
if (error) {
}



from
page: 20

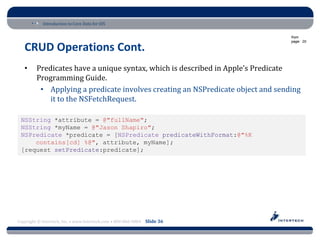

• Predicates have a unique syntax, which is described in Apple’s Predicate
Programming Guide.
• Applying a predicate involves creating an NSPredicate object and sending
it to the NSFetchRequest.

NSString *attribute = @"fullName";
NSString *myName = @"Jason Shapiro";
NSPredicate *predicate = [NSPredicate predicateWithFormat:@"%K
contains[cd] %@", attribute, myName];
[request setPredicate:predicate];



from
page: 21

Fetched Results Controller
• Core Data provides an object to help manage data being displayed in a Table
or Collection View: NSFetchedResultsController.
• Doesn’t provide direct data binding, but does provide methods and properties that
answer data source questions.
• In addition, it sends events to a delegate when the data has been updating, allowing
you to easily update the view.



from
page: 21

Fetched Results Controller Cont.
• Using a NSFetchedResultsController follows the same steps as a regular fetch
request.
• The only difference is that instead of passing the NSFetchRequest to the
NSManagedObjectContext, both of these objects are passed to an
NSFetchedResultsController.
• The init method includes a parameter for a “sectionNameKeyPath” which specifies
the path to a property that specifies the name of the section it should be placed in.
• There is also a “cacheName” which is an arbitrary NSString to enable/use a cache.

self.fetchedRC = [[NSFetchedResultsController alloc]
initWithFetchRequest:req managedObjectContext:self.context
sectionNameKeyPath:nil cacheName:nil];



from
page: 21

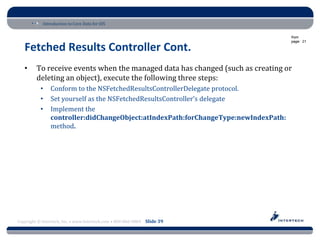

Fetched Results Controller Cont.
• To receive events when the managed data has changed (such as creating or
deleting an object), execute the following three steps:
• Conform to the NSFetchedResultsControllerDelegate protocol.
• Set yourself as the NSFetchedResultsController’s delegate
• Implement the
controller:didChangeObject:atIndexPath:forChangeType:newIndexPath:
method.



from
page: 21

Demo: Using a Fetched Results Controller



from
page: 23

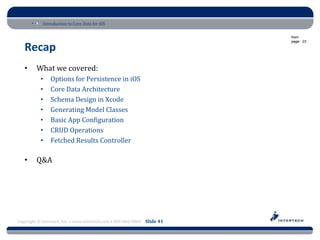

Recap
• What we covered:
• Options for Persistence in iOS
• Core Data Architecture
• Schema Design in Xcode
• Generating Model Classes
• Basic App Configuration
• CRUD Operations
• Fetched Results Controller

• Q&A



from
page: 24

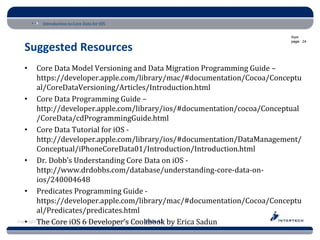

Suggested Resources
• Core Data Model Versioning and Data Migration Programming Guide –
https://developer.apple.com/library/mac/#documentation/Cocoa/Conceptu
al/CoreDataVersioning/Articles/Introduction.html
• Core Data Programming Guide –
http://developer.apple.com/library/ios/#documentation/cocoa/Conceptual
/CoreData/cdProgrammingGuide.html
• Core Data Tutorial for iOS -
http://developer.apple.com/library/ios/#documentation/DataManagement/
Conceptual/iPhoneCoreData01/Introduction/Introduction.html
• Dr. Dobb’s Understanding Core Data on iOS -
http://www.drdobbs.com/database/understanding-core-data-on-
ios/240004648
• Predicates Programming Guide -
https://developer.apple.com/library/mac/#documentation/Cocoa/Conceptu
al/Predicates/predicates.html
Copyright The Core • www.Intertech.com • 800-866-9884 Slide 42 by Erica Sadun
• © Intertech, Inc. iOS 6 Developer’s Cookbook

Introduction to Core Data - Jason Shapiro

More Related Content

Viewers also liked

Similar to Introduction to Core Data - Jason Shapiro

More from Mobile March

Introduction to Core Data - Jason Shapiro
