The document outlines a project focused on understanding containerization challenges, particularly at scale and in multi-tenant environments. It explains container anatomy, namespaces, and the use of tools like ptrace for process manipulation and inspection. The ultimate goal is to enable the inspection of container filesystems using standard tools while ensuring security and access restrictions.

1. Container Torture
Run any binary, in any container
Jean-Tiare Le Bigot
System Developer

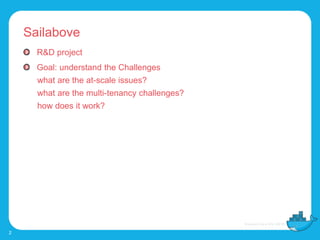

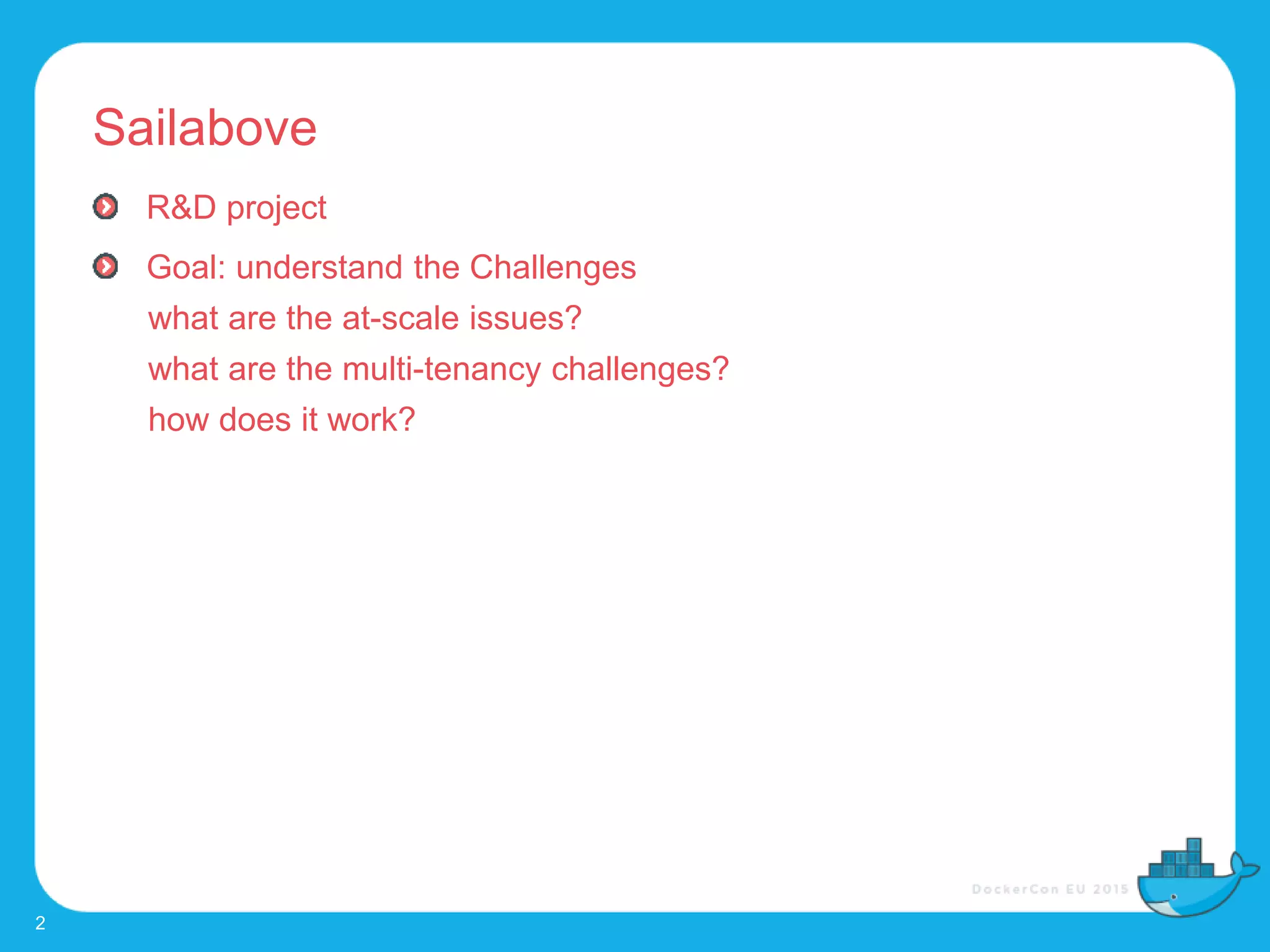

2. Sailabove
2
R&D project
Goal: understand the Challenges
what are the at-scale issues?
what are the multi-tenancy challenges?
how does it work?

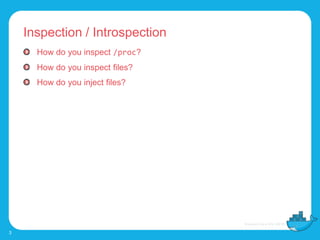

3. Inspection / Introspection
3
How do you inspect /proc?
How do you inspect files?
How do you inject files?

4. Inspection / Introspection
4
You don’t trust the container
You can’t make asumptions
You can’t alter the container

5. Let’s fix it

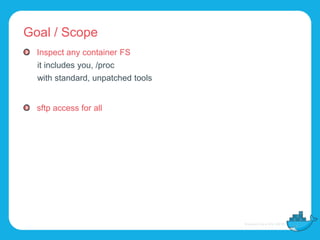

6. Goal / Scope
Inspect any container FS
it includes you, /proc
with standard, unpatched tools
sftp access for all

7. The road ahead
What is a container?
How (not) to enter a container?
Run a static host binary in a container
Run a dyn host binary in a container
Run a TUI host binary in a container
Stretch goal: sftp (and we'll stretch)

8. What is a container

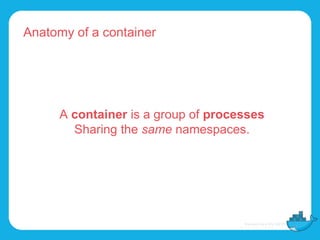

9. Anatomy of a container
A container is a group of processes
Sharing the same namespaces.

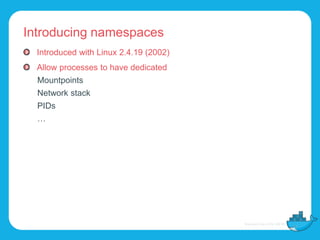

10. Introducing namespaces
Introduced with Linux 2.4.19 (2002)
Allow processes to have dedicated
Mountpoints
Network stack
PIDs
…

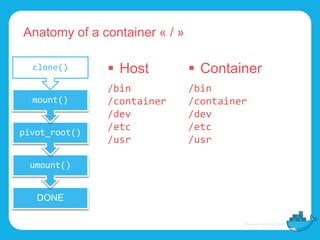

11. Anatomy of a container « / »
DONE
umount()
pivot_root()
mount()
clone()  Host
/bin
/container
/dev
/etc
/usr
 Container
/bin
/container
/dev
/etc
/usr

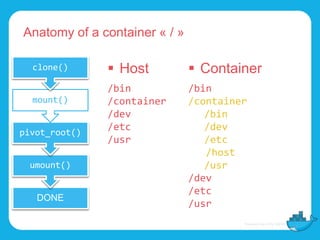

12. Anatomy of a container « / »
DONE
umount()
pivot_root()
mount()
clone()  Host
/bin
/container
/dev
/etc
/usr
 Container
/bin
/container
/bin
/dev
/etc
/host
/usr
/dev
/etc
/usr

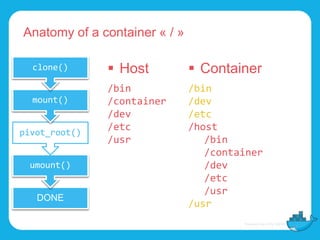

13. Anatomy of a container « / »
DONE
umount()
pivot_root()
mount()
clone()  Host
/bin
/container
/dev
/etc
/usr
 Container
/bin
/dev
/etc
/host
/bin
/container
/dev
/etc
/usr
/usr

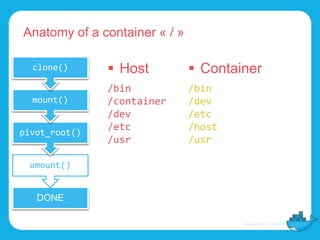

14. Anatomy of a container « / »
DONE
umount()
pivot_root()
mount()
clone()  Host
/bin
/container
/dev
/etc
/usr
 Container
/bin
/dev
/etc
/host
/usr

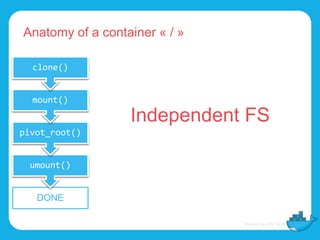

15. Anatomy of a container « / »
DONE
umount()
pivot_root()
mount()
clone()
Independent FS

16. How to enter a container?

17. Introducing setns

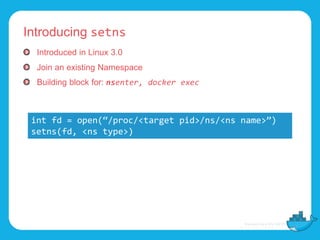

18. Introducing setns
Introduced in Linux 3.0
Join an existing Namespace
Building block for: nsenter, docker exec
int fd = open(“/proc/<target pid>/ns/<ns name>”)
setns(fd, <ns type>)

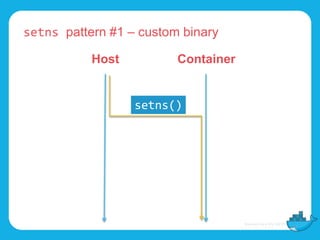

19. setns pattern #1 – custom binary
Host Container
setns()

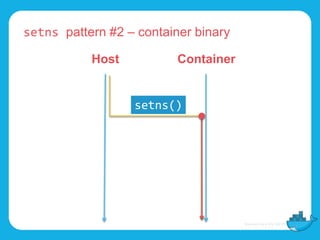

20. setns pattern #2 – container binary
Host Container
setns()

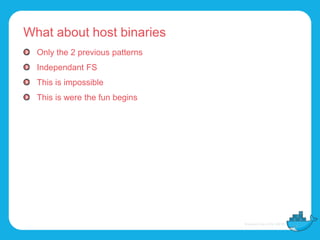

21. What about host binaries
Only the 2 previous patterns
Independant FS
This is impossible
This is were the fun begins

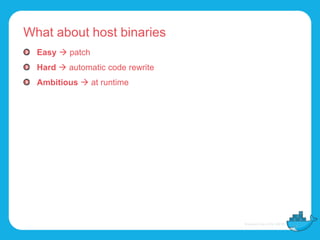

22. What about host binaries
Easy  patch
Hard  automatic code rewrite
Ambitious  at runtime

23. We’ll need some magic
ptrace, the grey

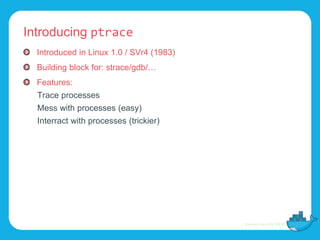

24. Introducing ptrace
Introduced in Linux 1.0 / SVr4 (1983)
Building block for: strace/gdb/…
Features:
Trace processes
Mess with processes (easy)
Interract with processes (trickier)

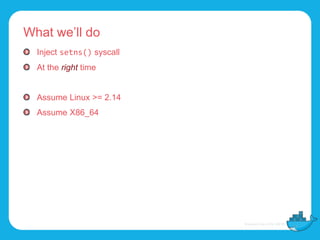

25. What we’ll do
Inject setns() syscall
At the right time
Assume Linux >= 2.14
Assume X86_64

26. Run static binaries

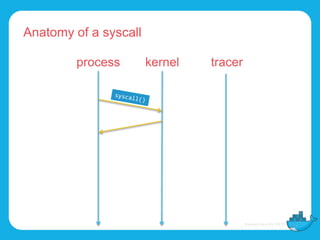

27. Anatomy of a syscall
process kernel tracer

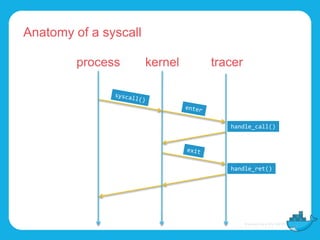

28. Anatomy of a syscall
process kernel tracer
handle_call()
handle_ret()

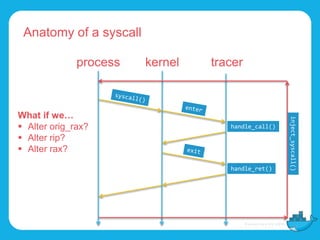

29. Anatomy of a syscall
process kernel tracer
handle_call()
handle_ret()
What if we…
 Alter orig_rax?
 Alter rip?
 Alter rax?
inject_syscall()

30. Injecting setns
1. Open each Namespace fd
2. Leak them in the target process
3. Start ptrace-ing
4. Wait until exec
5. Inject each setns calls
6. Clean your room

31. Show me the code!

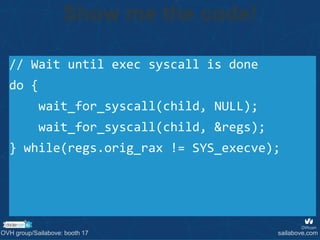

32. // Wait until exec syscall is done
do {
wait_for_syscall(child, NULL);
wait_for_syscall(child, &regs);
} while(regs.orig_rax != SYS_execve);
Show me the code!
OVH group/Sailabove: booth 17 sailabove.com

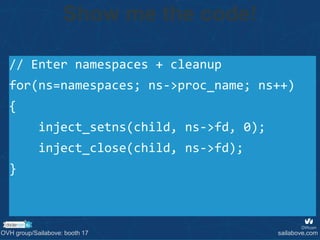

33. // Enter namespaces + cleanup
for(ns=namespaces; ns->proc_name; ns++)
{
inject_setns(child, ns->fd, 0);
inject_close(child, ns->fd);
}
Show me the code!
OVH group/Sailabove: booth 17 sailabove.com

34. Thank you!
