COMPUTER SPECIFICATIONS
BY: LEONEL V. RIVAS
1. Hard Disk Drive
2. Motherboard
3. Power Supply
4. LAN Card
5. CPU Fan and Heat sink
6. Sound Card
7. Video Card
8. Optical Disk Drive
9. Processor
10. System Fan
11. System Unit Case
12. Wi-Fi Adapter
13. Primary Memory
14. Monitor
15. Keyboard
16. Mouse
17. Speaker
18. Printer
19. Video Cam
SPECIFICATION
Sample Computer Specification
Is a list of components that makes up a computer.
1. Intel Core i5-8600K Coffee Lake 6-Core 3.6
GHz (4.3 GHz Turbo) LGA 1151 (300 Series)
2. GIGABYTE Z370M DS3H LGA 1151 (300
Series) Intel Z370 Ultra Durable
Motherboard Bundle
3. Kingston HyperX Fury 4GB 2400MHz DDR4
HX424C15FB/4 Desktop Memory
4. WD Blue 1TB Desktop Hard Disk Drive -
7200 RPM SATA 6Gb/s 64MB Cache 3.5
Inch - WD10EZEX
5. Liteon DVDRW Internal IHAS124 OEM
Optical Disk Drive (ODD)
6. Uplift 1000/100/10Mbps Realtek Gigabit
Ethernet Adapter LAN Card
7. NVIDIA GeForce 4GB GT730 GDDR5 128Bit
Express Game Video Card Graphics
8. Wavlink AC600 Dual Band USB Wireless
Adapter 2.4G/5G Network Card, Wi-Fi
Dongle
9. Gigaware FOREV FV-Q1 3Color Backlight
LED Lights Gaming Keyboard
10. Zeus M-110 Lightning Chain Bolt Gaming
Mouse
11. Zeus Z-100 2.1 Multimedia Speaker 3D
Sound Surrounded System
12. A4TECH HS-5P Internet Headset with Mic
(Black)
13. Samsung 23.6" LS24F350FHEXXP Full HD
LED Monitor (Black)
Processor
Motherboard
Memory
Hard Disk Drive
Optical Disk Drive
LAN Card
Video Card
Wi-Fi Adapter
Keyboard
Mouse
Speaker
Headset
Monitor

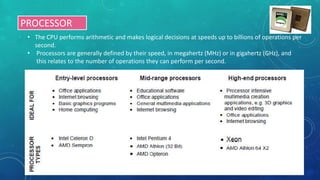

PROCESSOR
• The CPU performs arithmetic and makes logical decisions at speeds up to billions of operations per
second.
• Processors are generally defined by their speed, in megahertz (MHz) or in gigahertz (GHz), and
this relates to the number of operations they can perform per second.
PRIMARY MEMORY / RAM
• The processor uses this memory to run programs.
• RAM is measured in megabytes (MB). Most modern computers use DDR 2 RAM.
Types of RAM
HARD DISK DRIVE / HDD
• The hard drive is the computer’s primary storage area.
• It stores the applications and programs that run on the PC, as well as any work created by users.
• The capacity of the hard drive, measured in gigabytes (GB),
Currently, we can group hard drives into
four types:
1. IDE / Parallel Advanced Technology
Attachment (PATA)
2. Serial ATA (SATA)
3. Small Computer System Interface (SCSI)
4. Solid State Drives (SSD)
Hard Drive Types
OPTICAL DRIVES (CD/DVD DRIVES)
• CD R/W drives are standard on PCs and allow the information on a compact disc (either data or
audio) to be read and written.
• It is defined by its speed (i.e., 48x or 48 speed).
• DVD drives can read both CDs and DVDs
1. CD ROM- Compact Disk Read Only Memory drives
2. DVD ROM - Digital Versatile Disk Read Only
Memory drives had greater capacity and
performance than CD
3. Blu – ray -are typically reserved for devices with
high-definition display capabilities, including high-
end computers and the PlayStation 3 video game
console.
4. RW Drives - CD-ROMs, DVD-ROMs and Blu-ray
drives come in rewritable drive types.
Optical Drives Types

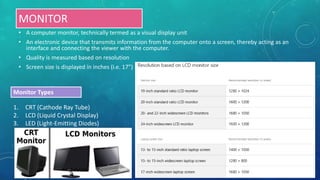

MONITOR
• A computer monitor, technically termed as a visual display unit
• An electronic device that transmits information from the computer onto a screen, thereby acting as an
interface and connecting the viewer with the computer.
• Quality is measured based on resolution
• Screen size is displayed in inches (i.e. 17”)
1. CRT (Cathode Ray Tube)
2. LCD (Liquid Crystal Display)
3. LED (Light-Emitting Diodes)
Monitor Types

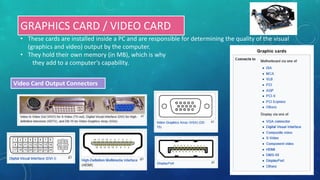

GRAPHICS CARD / VIDEO CARD
• These cards are installed inside a PC and are responsible for determining the quality of the visual
(graphics and video) output by the computer.
• They hold their own memory (in MB), which is why
they add to a computer’s capability.
Video Card Output Connectors
QUIZ
• Instruction: Given the specs write the name of the component/device.

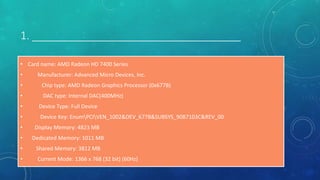

1. ___________________________________
• Card name: AMD Radeon HD 7400 Series
• Manufacturer: Advanced Micro Devices, Inc.
• Chip type: AMD Radeon Graphics Processor (0x677B)
• DAC type: Internal DAC(400MHz)
• Device Type: Full Device
• Device Key: EnumPCIVEN_1002&DEV_677B&SUBSYS_90B7103C&REV_00
• Display Memory: 4823 MB
• Dedicated Memory: 1011 MB
• Shared Memory: 3812 MB
• Current Mode: 1366 x 768 (32 bit) (60Hz)

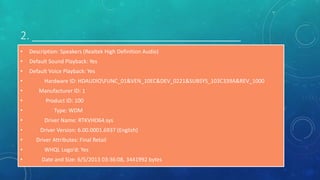

2. ___________________________________
• Description: Speakers (Realtek High Definition Audio)
• Default Sound Playback: Yes
• Default Voice Playback: Yes
• Hardware ID: HDAUDIOFUNC_01&VEN_10EC&DEV_0221&SUBSYS_103C339A&REV_1000
• Manufacturer ID: 1
• Product ID: 100
• Type: WDM
• Driver Name: RTKVHD64.sys
• Driver Version: 6.00.0001.6937 (English)
• Driver Attributes: Final Retail
• WHQL Logo'd: Yes
• Date and Size: 6/5/2013 03:36:08, 3441992 bytes

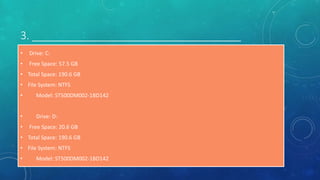

3. ___________________________________
• Drive: C:
• Free Space: 57.5 GB
• Total Space: 190.6 GB
• File System: NTFS
• Model: ST500DM002-1BD142
• Drive: D:
• Free Space: 20.6 GB
• Total Space: 190.6 GB
• File System: NTFS
• Model: ST500DM002-1BD142
4. ___________________________________
• Windows 7 Home Basic - - STD / DAZ / OEM
5. ___________________________________
• Intel(R) Core(TM) i5-3570 CPU @ 3.40GHz (4 CPUs), ~3.4GHz
6. ___________________________________
• 8192MB RAM
7. ___________________________________
• Monitor Name: Generic PnP Monitor
• Monitor Model: HP V192
• Monitor Id: HWP311E
• Native Mode: 1366 x 768(p) (59.790Hz)

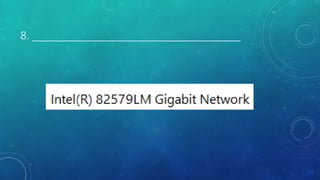

8. ___________________________________

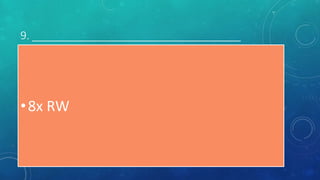

9. ___________________________________
•8x RW
10. ___________________________________
•1000 Watts
ANSWERS

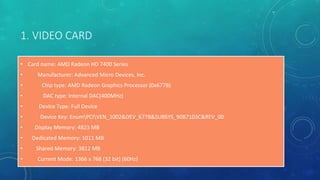

1. VIDEO CARD
• Card name: AMD Radeon HD 7400 Series
• Manufacturer: Advanced Micro Devices, Inc.
• Chip type: AMD Radeon Graphics Processor (0x677B)
• DAC type: Internal DAC(400MHz)
• Device Type: Full Device
• Device Key: EnumPCIVEN_1002&DEV_677B&SUBSYS_90B7103C&REV_00
• Display Memory: 4823 MB
• Dedicated Memory: 1011 MB
• Shared Memory: 3812 MB
• Current Mode: 1366 x 768 (32 bit) (60Hz)

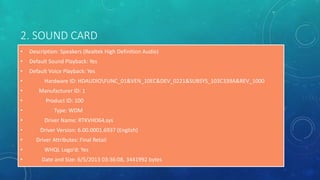

2. SOUND CARD
• Description: Speakers (Realtek High Definition Audio)
• Default Sound Playback: Yes
• Default Voice Playback: Yes
• Hardware ID: HDAUDIOFUNC_01&VEN_10EC&DEV_0221&SUBSYS_103C339A&REV_1000
• Manufacturer ID: 1
• Product ID: 100
• Type: WDM
• Driver Name: RTKVHD64.sys
• Driver Version: 6.00.0001.6937 (English)
• Driver Attributes: Final Retail
• WHQL Logo'd: Yes
• Date and Size: 6/5/2013 03:36:08, 3441992 bytes
3. HARD DISK DRIVE
• Drive: C:
• Free Space: 57.5 GB
• Total Space: 190.6 GB
• File System: NTFS
• Model: ST500DM002-1BD142
• Drive: D:
• Free Space: 20.6 GB
• Total Space: 190.6 GB
• File System: NTFS
• Model: ST500DM002-1BD142
4. OPERATING SYSTEM
• Windows 7 Home Basic - - STD / DAZ / OEM
5. CENTRAL PROCESSING UNIT
• Intel(R) Core(TM) i5-3570 CPU @ 3.40GHz (4 CPUs), ~3.4GHz

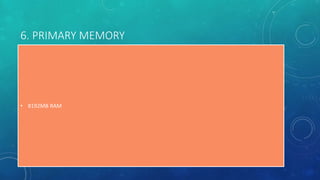

6. PRIMARY MEMORY
• 8192MB RAM

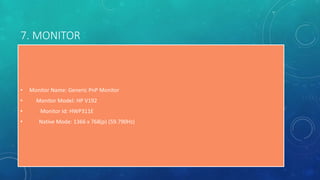

7. MONITOR
• Monitor Name: Generic PnP Monitor
• Monitor Model: HP V192
• Monitor Id: HWP311E
• Native Mode: 1366 x 768(p) (59.790Hz)

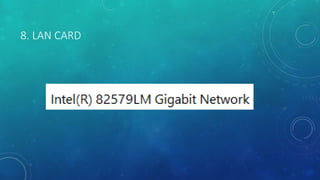

8. LAN CARD
9. OPTICAL DRIVE
•8x RW
10. POWER SUPPLY UNIT
•1000 Watts
