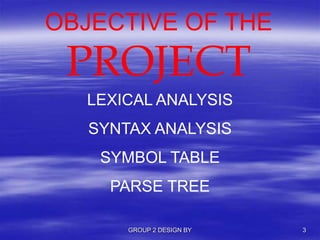

3. OBJECTIVE OF THE
PROJECT
LEXICAL ANALYSIS
SYNTAX ANALYSIS
SYMBOL TABLE
PARSE TREE
GROUP 2 DESIGN BY 3

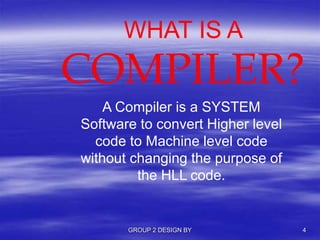

4. WHAT IS A
COMPILER?
A Compiler is a SYSTEM
Software to convert Higher level
code to Machine level code
without changing the purpose of
the HLL code.
GROUP 2 DESIGN BY 4

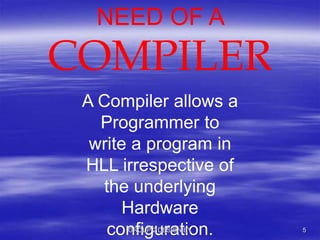

5. NEED OF A
COMPILER
A Compiler allows a
Programmer to
write a program in
HLL irrespective of
the underlying
Hardware
configuration.GROUP 2 DESIGN BY 5

6. GROUP 2 DESIGN BY 6

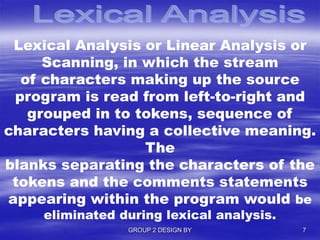

7. Lexical Analysis or Linear Analysis or
Scanning, in which the stream
of characters making up the source
program is read from left-to-right and
grouped in to tokens, sequence of
characters having a collective meaning.
The
blanks separating the characters of the
tokens and the comments statements
appearing within the program would be
eliminated during lexical analysis.
GROUP 2 DESIGN BY 7

8. GROUP 2 DESIGN BY 8

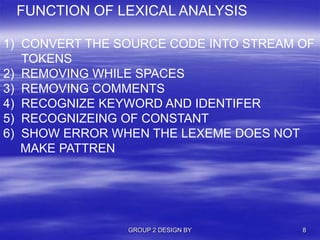

FUNCTION OF LEXICAL ANALYSIS
1) CONVERT THE SOURCE CODE INTO STREAM OF
TOKENS
2) REMOVING WHILE SPACES
3) REMOVING COMMENTS
4) RECOGNIZE KEYWORD AND IDENTIFER
5) RECOGNIZEING OF CONSTANT
6) SHOW ERROR WHEN THE LEXEME DOES NOT
MAKE PATTREN

9. GROUP 2 DESIGN BY 9

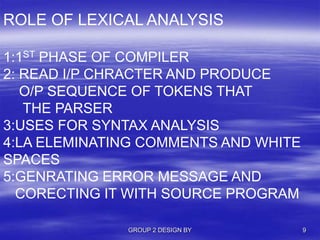

ROLE OF LEXICAL ANALYSIS
1:1ST PHASE OF COMPILER
2: READ I/P CHRACTER AND PRODUCE
O/P SEQUENCE OF TOKENS THAT
THE PARSER
3:USES FOR SYNTAX ANALYSIS
4:LA ELEMINATING COMMENTS AND WHITE
SPACES
5:GENRATING ERROR MESSAGE AND
CORECTING IT WITH SOURCE PROGRAM

10. TOKEN LEXEME AND STRING
 A lexeme is a sequence of characters in the source
program that matches the pattern for a token and is
identified by the lexical analyzer as an instance of
that token. A token is a pair consisting of
a token name and an optional attribute value. ...
The token names are the input symbols that the
parser processes .String within double quote some
LEXEME PATTERNTOKEN
EXAMPLE OF
GROUP 2 DESIGN BY 10

11. TOKEN PATTREN LEXEME
IF Character if
else Character
e,l,s,e
else
comparisin <or. Or
<=or>=
<= !=
id Letter
followed
letter and
digit
Pi,score,d2
Example of token pattern and lexeme
GROUP 2 DESIGN BY 11

12. GROUP 2 DESIGN BY 12

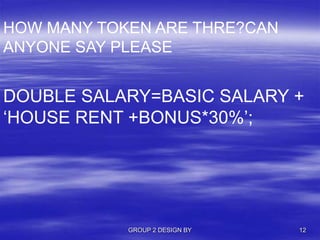

HOW MANY TOKEN ARE THRE?CAN
ANYONE SAY PLEASE
DOUBLE SALARY=BASIC SALARY +
‘HOUSE RENT +BONUS*30%’;

13. GROUP 2 DESIGN BY 13

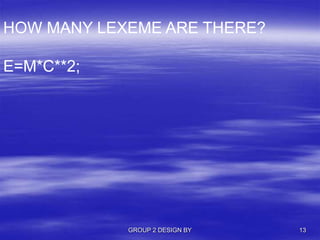

HOW MANY LEXEME ARE THERE?
E=M*C**2;

14. GROUP 2 DESIGN BY 14

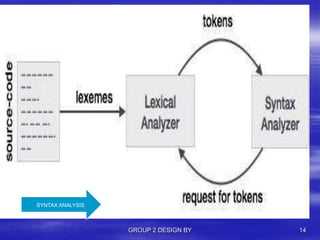

SYNTAX ANALYSIS

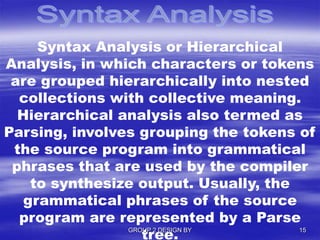

15. Syntax Analysis or Hierarchical
Analysis, in which characters or tokens
are grouped hierarchically into nested
collections with collective meaning.
Hierarchical analysis also termed as
Parsing, involves grouping the tokens of
the source program into grammatical
phrases that are used by the compiler
to synthesize output. Usually, the
grammatical phrases of the source
program are represented by a Parse
tree.GROUP 2 DESIGN BY 15

16. GROUP 2 DESIGN BY 16
Float position, initial, rate
Position =initial +rate*60
LA
SYNTAX ANALYZER
ID1=ID2+ID3*60

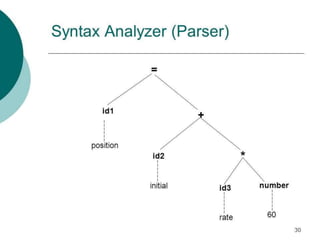

PARSE TREE /SYNTAX TREE
S=>ID=E
E=>E+T/T
T=>T*T/F
E=>ID/NUM
grammer

17. GROUP 2 DESIGN BY 17

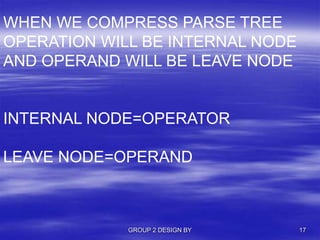

WHEN WE COMPRESS PARSE TREE
OPERATION WILL BE INTERNAL NODE
AND OPERAND WILL BE LEAVE NODE
INTERNAL NODE=OPERATOR
LEAVE NODE=OPERAND

18. GROUP 2 DESIGN BY 18

19. GROUP 2 DESIGN BY 19

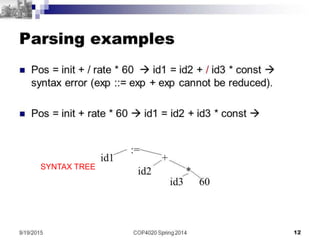

SYNTAX TREE

20. GROUP 2 DESIGN BY 20

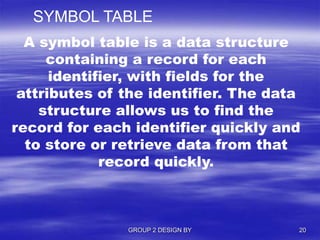

A symbol table is a data structure
containing a record for each
identifier, with fields for the
attributes of the identifier. The data
structure allows us to find the
record for each identifier quickly and
to store or retrieve data from that
record quickly.
SYMBOL TABLE

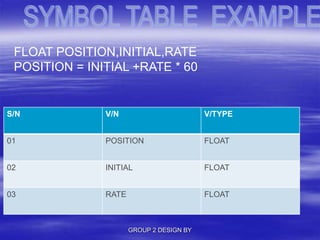

21. GROUP 2 DESIGN BY
S/N V/N V/TYPE
01 POSITION FLOAT
02 INITIAL FLOAT
03 RATE FLOAT
FLOAT POSITION,INITIAL,RATE
POSITION = INITIAL +RATE * 60

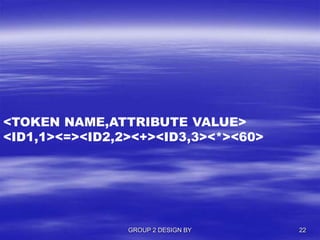

22. <TOKEN NAME,ATTRIBUTE VALUE>
<ID1,1><=><ID2,2><+><ID3,3><*><60>
GROUP 2 DESIGN BY 22

23. GROUP 2 DESIGN BY 23

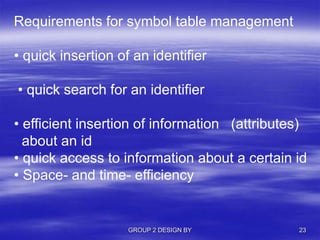

Requirements for symbol table management
• quick insertion of an identifier
• quick search for an identifier
• efficient insertion of information (attributes)
about an id
• quick access to information about a certain id
• Space- and time- efficiency

24. GROUP 2 DESIGN BY 24
