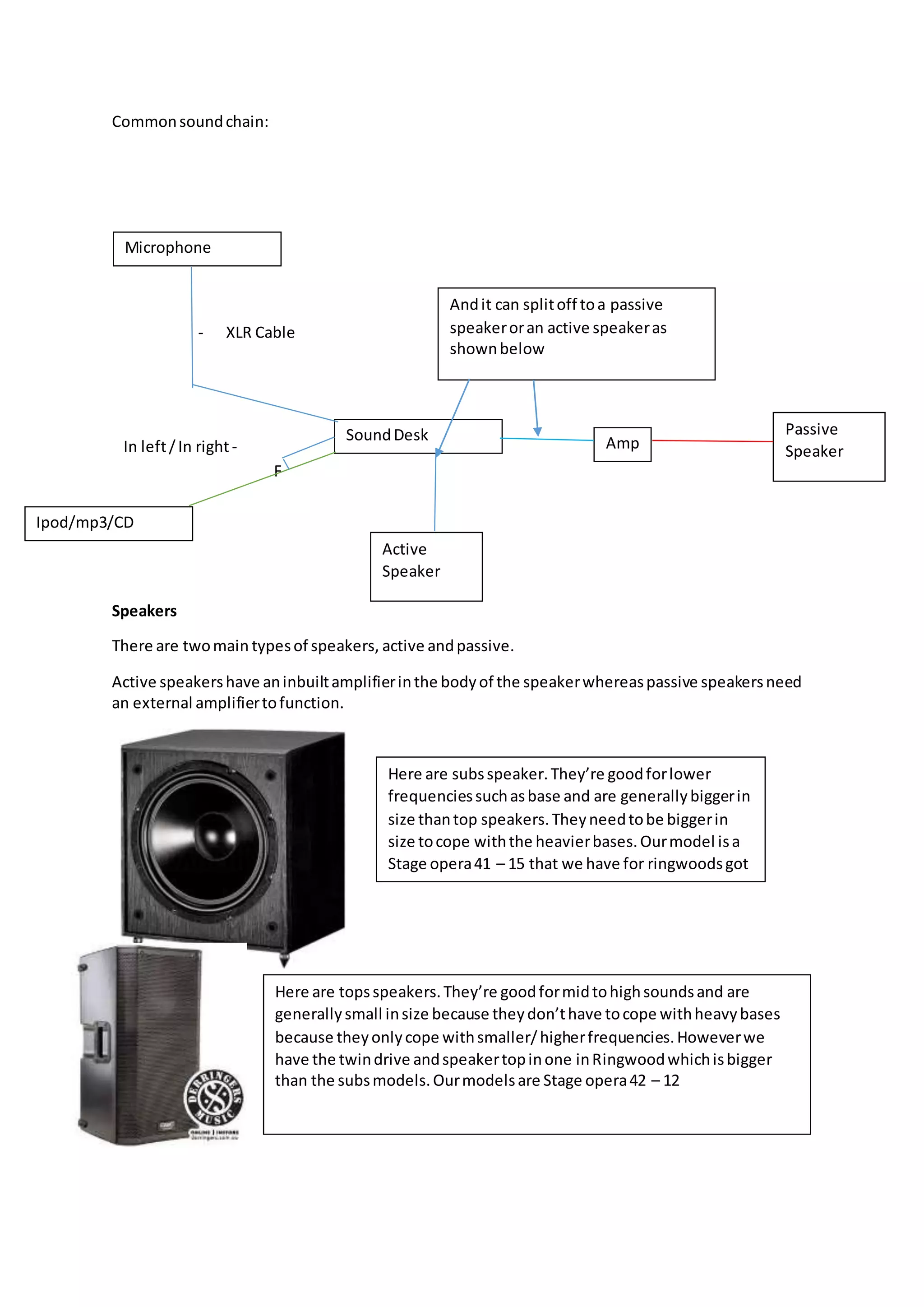

1. Commonsoundchain:
F
Speakers
There are twomain typesof speakers, active andpassive.
Active speakershave aninbuiltamplifierinthe bodyof the speakerwhereaspassive speakersneed
an external amplifiertofunction.
Here are subsspeaker.They’re goodforlower
frequenciessuchasbase and are generallybiggerin
size thantop speakers.Theyneedtobe biggerin
size tocope withthe heavierbases.Ourmodel isa
Stage opera41 – 15 that we have for ringwoodsgot
talent
Here are topsspeakers.They’re goodformidtohighsoundsand are
generallysmall insize because theydon’thave tocope withheavybases
because theyonlycope withsmaller/higherfrequencies.Howeverwe
have the twindrive andspeakertopinone inRingwoodwhichisbigger
than the subsmodels.Ourmodelsare Stage opera42 – 12
Microphone
SoundDesk
Ipod/mp3/CD
Amp
Passive
Speaker
Active
Speaker
- XLR Cable
In left/In right -
Andit can splitoff toa passive
speakeroran active speakeras
shownbelow

2. Here is a monitorspeaker.Theyare normallyusedfoldbackspeakers,this
meansthat theyare on stage for the act to be able to hearthemselvesas
theywouldn’thearthemselvesfromjustthe frontof house speakersfor
example,theywill onlyconnectthe speakersthattheywantto hearso
the drummermay onlyhave a monitorspeakeronlyplayinghisdrumsso
he knowswhathe’splaying.The modelswe have here atRingwood are
Studiosparesmonitorspeaker248240.
A sounddesk allowsyoutoadjust
the inputsandout puts of a
differentlevelsof sources,soyou
can mix and adjustthe levelsof
soundto sendoutto another
output.
Thisdeskhas 16
channels
howeverourone
has 32, whichis
more than
enoughforwhat
use use it for
(concerts,talent
shows,
presentations
ect)
Thisis the gain,these knobshelp
youget ridof any unwantedringing
(ie:frodrums) butchanginghow
much itamplifies
These are the eqknobs,withthese
youcan boostor cut the
frequencies,addmore bass, cutthe
treble if youthinkit’stoomuch
These are the aux cables.This
allowsyoutosenddifferentmixes
to differentmonitorsandalsoplay
directlyfromIpods.
Our deskhasa routingswitchwhich
sendsthe signal towhere everyou
wantit to go fromthe desk(ie:this
ishand for monitorsif bandsonly
wantto hear specificsounds)
These are faders,these givesthe
mix level tothe differentoutputs
and can alsocontrol the soundfrom
these aswell.

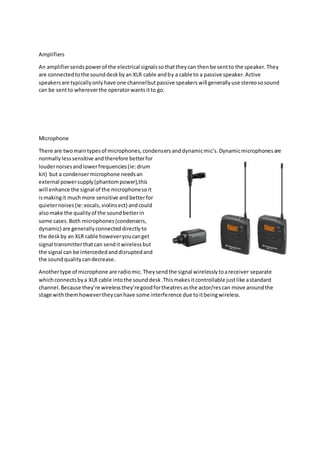

3. Amplifiers
An amplifiersendspowerof the electrical signalssothattheycan thenbe sentto the speaker.They
are connectedtothe sounddeskbyan XLR cable andby a cable to a passive speaker.Active
speakersare typicallyonlyhave one channelbutpassive speakerswill generallyuse stereososound
can be sentto whereverthe operatorwantsitto go.
Microphone
There are twomaintypesof microphones,condensersanddynamicmic’s.Dynamicmicrophonesare
normallylesssensitive andtherefore betterfor
loudernoisesandlowerfrequencies(ie:drum
kit) but a condensermicrophone needsan
external powersupply(phantompower),this
will enhance the signal of the microphonesoit
ismakingit muchmore sensitive andbetterfor
quieternoises(ie:vocals,violinsect) andcould
alsomake the qualityof the soundbetterin
some cases.Both microphones(condensers,
dynamic) are generallyconnecteddirectlyto
the deskby an XLR cable howeveryoucanget
signal transmitterthatcan senditwirelessbut
the signal can be intercededanddisruptedand
the soundqualitycandecrease.
Anothertype of microphone are radiomic.Theysendthe signal wirelesslytoareceiver separate
whichconnectsbya XLR cable intothe sounddesk.Thismakesitcontrollable justlike astandard
channel.Because they’re wirelessthey’regoodfortheatresasthe actor/rescan move aroundthe
stage withthemhowevertheycanhave some interference due toitbeingwireless.

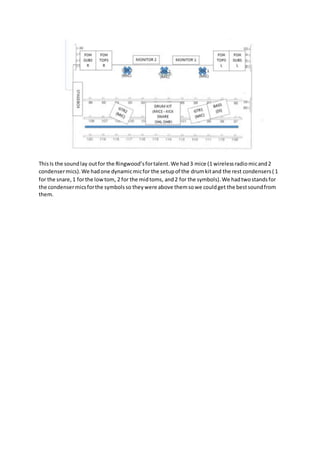

4. ThisIs the soundlay outfor the Ringwood’sfortalent.We had3 mice (1 wirelessradiomicand2
condensermics).We hadone dynamicmicfor the setupof the drumkitand the rest condensers( 1
for the snare,1 forthe lowtom, 2 for the midtoms, and2 for the symbols).We hadtwostandsfor
the condensermicsforthe symbolsso theywere above themsowe couldget the bestsoundfrom
them.
